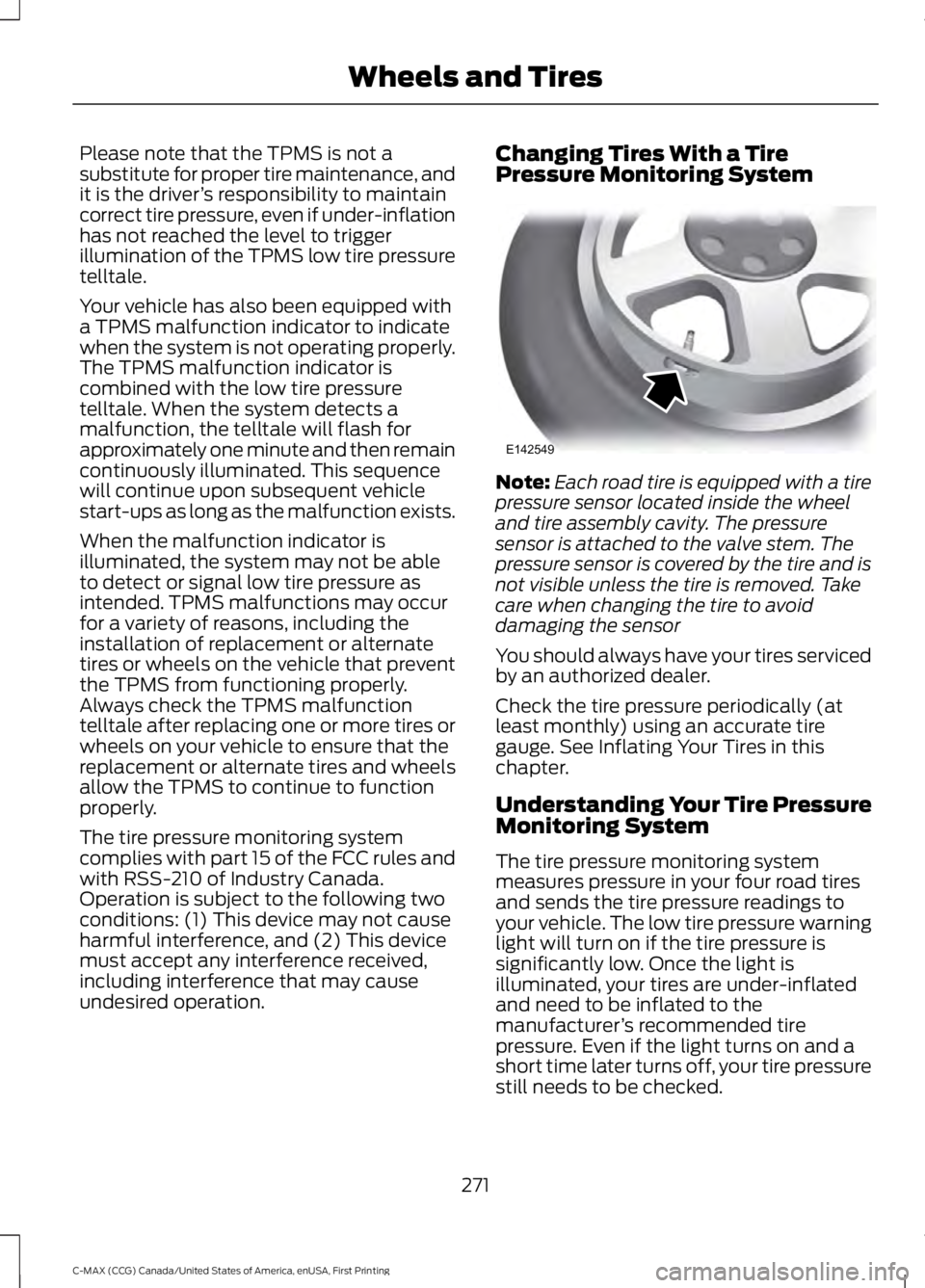

Please note that the TPMS is not a
substitute for proper tire maintenance, and
it is the driver
’s responsibility to maintain
correct tire pressure, even if under-inflation
has not reached the level to trigger
illumination of the TPMS low tire pressure
telltale.
Your vehicle has also been equipped with
a TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is
combined with the low tire pressure
telltale. When the system detects a
malfunction, the telltale will flash for
approximately one minute and then remain
continuously illuminated. This sequence
will continue upon subsequent vehicle
start-ups as long as the malfunction exists.
When the malfunction indicator is
illuminated, the system may not be able
to detect or signal low tire pressure as
intended. TPMS malfunctions may occur
for a variety of reasons, including the
installation of replacement or alternate
tires or wheels on the vehicle that prevent
the TPMS from functioning properly.
Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels
allow the TPMS to continue to function
properly.
The tire pressure monitoring system
complies with part 15 of the FCC rules and
with RSS-210 of Industry Canada.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference received,
including interference that may cause
undesired operation. Changing Tires With a Tire
Pressure Monitoring System
Note:
Each road tire is equipped with a tire
pressure sensor located inside the wheel
and tire assembly cavity. The pressure
sensor is attached to the valve stem. The
pressure sensor is covered by the tire and is
not visible unless the tire is removed. Take
care when changing the tire to avoid
damaging the sensor
You should always have your tires serviced
by an authorized dealer.
Check the tire pressure periodically (at
least monthly) using an accurate tire
gauge. See Inflating Your Tires in this
chapter.
Understanding Your Tire Pressure
Monitoring System
The tire pressure monitoring system
measures pressure in your four road tires
and sends the tire pressure readings to
your vehicle. The low tire pressure warning
light will turn on if the tire pressure is
significantly low. Once the light is
illuminated, your tires are under-inflated
and need to be inflated to the
manufacturer ’s recommended tire
pressure. Even if the light turns on and a
short time later turns off, your tire pressure
still needs to be checked.
271
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Wheels and TiresE142549

Note:
The driver is ultimately responsible
for the safe operation of the vehicle, and
therefore, must evaluate whether it is safe
to follow the suggested directions. Any
navigation features provided are only an aid.
Make your driving decisions based on your
observations of local conditions and existing
traffic regulations. Do not follow the route
suggestions if doing so would result in an
unsafe or illegal maneuver, place you in an
unsafe situation, or if you would be directed
into an area that you consider unsafe. Maps
used by this system may be inaccurate
because of errors, changes in roads, traffic
conditions or driving conditions. Note:
When you connect, the service uses
GPS technology and advanced vehicle
sensors to collect your vehicle's current
location, travel direction and speed to help
provide you with the directions, traffic
reports, or business searches you request.
Further, to provide the services you request,
for continuous improvement, the service
may collect and record call details and voice
communications. For more information, see
SYNC Services Terms and Conditions at
www.SYNCMyRide.com. If you do not want
Ford or its service providers to collect your
vehicle travel information or other
information identified in the Terms and
Conditions, do not subscribe or use the
service.
SYNC Services uses advanced vehicle
sensors, integrated GPS technology and
comprehensive map and traffic data, to
give you personalized traffic reports,
precise turn-by-turn directions, business
search, news, sports, weather and more.
For a complete list of services, or to learn
more, please visit www.SYNCMyRide.com.
Connecting to SYNC Services Using Voice Commands
Press the voice button and when prompted say: Action and Description
Voice command
This initiates an outgoing call to SYNC Services using your
paired and connected Bluetooth-enabled cellular phone.
Services
Once you connect to the service, follow the voice prompts
to request the desired service, for example traffic or directions.
Once you are connected to SYNC Services, you can also say the following: Receive a list of available services from which to choose.
(what are my (options |
choices) | what can I say
| [available] commands)
320
C-MAX (CCG) Canada/United States of America, enUSA, First Printing SYNC™

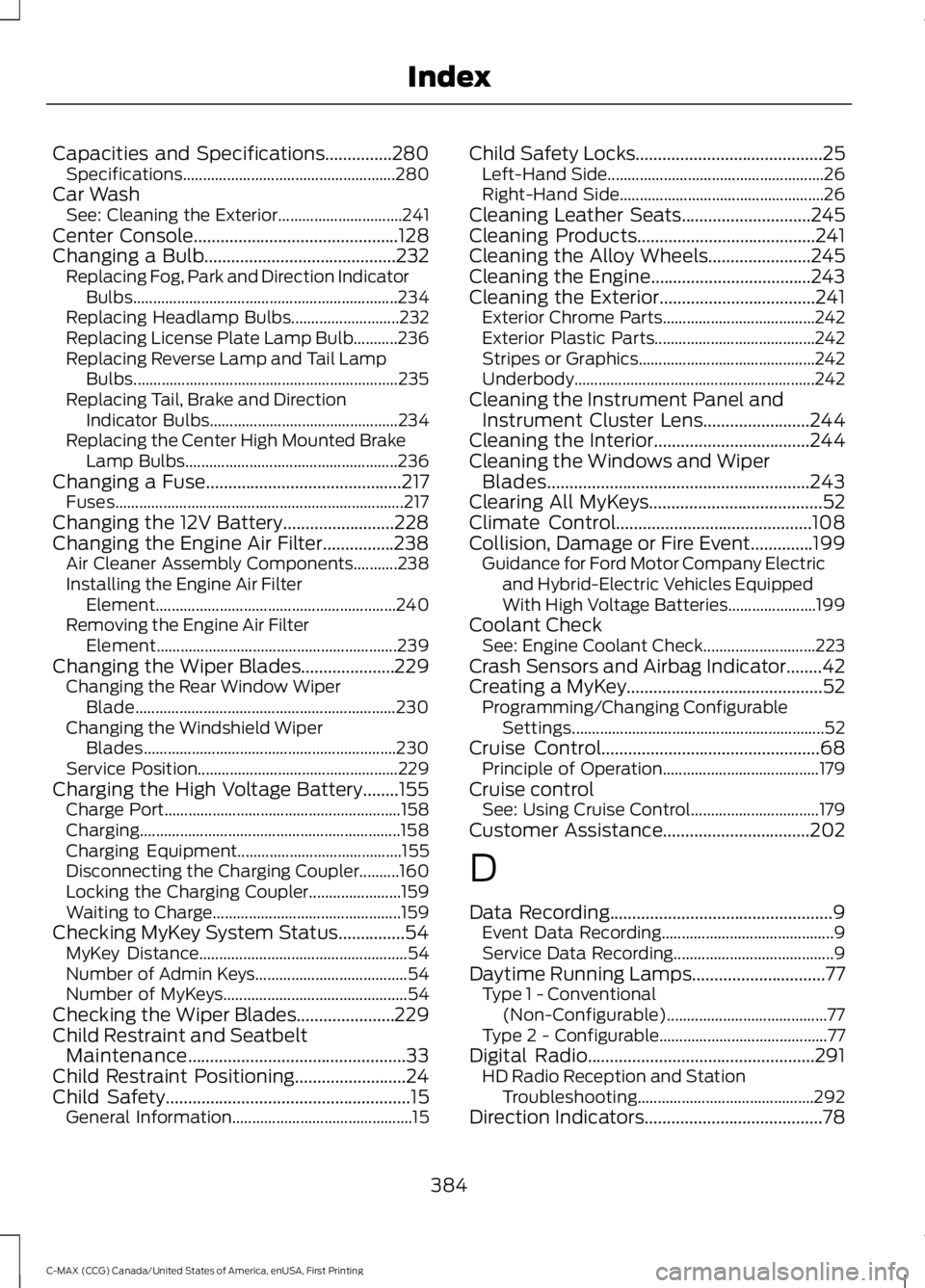

Capacities and Specifications...............280
Specifications..................................................... 280
Car Wash See: Cleaning the Exterior............................... 241
Center Console..............................................128
Changing a Bulb...........................................232 Replacing Fog, Park and Direction Indicator
Bulbs.................................................................. 234
Replacing Headlamp Bulbs........................... 232
Replacing License Plate Lamp Bulb...........236
Replacing Reverse Lamp and Tail Lamp Bulbs.................................................................. 235
Replacing Tail, Brake and Direction Indicator Bulbs............................................... 234
Replacing the Center High Mounted Brake Lamp Bulbs..................................................... 236
Changing a Fuse............................................217 Fuses........................................................................\
217
Changing the 12V Battery.........................228
Changing the Engine Air Filter................238 Air Cleaner Assembly Components...........238
Installing the Engine Air Filter
Element
............................................................ 240
Removing the Engine Air Filter Element............................................................ 239
Changing the Wiper Blades.....................229 Changing the Rear Window Wiper
Blade
................................................................. 230
Changing the Windshield Wiper Blades............................................................... 230
Service Position.................................................. 229
Charging the High Voltage Battery........155 Charge Port........................................................... 158
Charging................................................................. 158
Charging Equipment......................................... 155
Disconnecting the Charging Coupler..........160
Locking the Charging Coupler....................... 159
Waiting to Charge............................................... 159
Checking MyKey System Status...............54 MyKey Distance.................................................... 54
Number of Admin Keys...................................... 54
Number of MyKeys.............................................. 54
Checking the Wiper Blades......................229
Child Restraint and Seatbelt Maintenance.................................................33
Child Restraint Positioning.........................24
Child Safety
.......................................................15
General Information............................................. 15Child Safety Locks
..........................................25
Left-Hand Side...................................................... 26
Right-Hand Side................................................... 26
Cleaning Leather Seats.............................245
Cleaning Products
........................................241
Cleaning the Alloy Wheels.......................245
Cleaning the Engine....................................243
Cleaning the Exterior
...................................241
Exterior Chrome Parts...................................... 242
Exterior Plastic Parts........................................ 242
Stripes or Graphics............................................ 242
Underbody............................................................ 242
Cleaning the Instrument Panel and Instrument Cluster Lens
........................244
Cleaning the Interior...................................244
Cleaning the Windows and Wiper Blades...........................................................243
Clearing All MyKeys.......................................52
Climate Control............................................108
Collision, Damage or Fire Event..............199 Guidance for Ford Motor Company Electric
and Hybrid-Electric Vehicles Equipped
With High Voltage Batteries...................... 199
Coolant Check See: Engine Coolant Check............................ 223
Crash Sensors and Airbag Indicator........42
Creating a MyKey............................................52 Programming/Changing Configurable
Settings............................................................... 52
Cruise Control.................................................68 Principle of Operation....................................... 179
Cruise control See: Using Cruise Control................................ 179
Customer Assistance
.................................202
D
Data Recording
..................................................9
Event Data Recording........................................... 9
Service Data Recording........................................ 9
Daytime Running Lamps..............................77 Type 1 - Conventional
(Non-Configurable)........................................ 77
Type 2 - Configurable.......................................... 77
Digital Radio...................................................291 HD Radio Reception and Station
Troubleshooting............................................ 292
Direction Indicators
........................................78
384
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Index
