driver seat adjustment FORD C MAX 2016 Owners Manual

Introduction
About This Manual...........................................7
Symbols Glossary
.............................................7
Data Recording
..................................................9
California Proposition 65..............................11
Perchlorate.........................................................11
Ford Credit
..........................................................11
Replacement Parts Recommendation
........................................11
Special Notices................................................12
Mobile Communications Equipment.....................................................12
Export Unique Options..................................13
Environment
Protecting the Environment........................14
Child Safety
General Information
.......................................15
Installing Child Restraints
............................16
Booster Seats
..................................................22
Child Restraint Positioning.........................24
Child Safety Locks
..........................................25
Seatbelts
Principle of Operation...................................27
Fastening the Seatbelts..............................28
Seatbelt Height Adjustment.....................30
Seatbelt Warning Lamp and Indicator Chime..............................................................31
Seatbelt Reminder
..........................................31
Child Restraint and Seatbelt Maintenance
................................................33
Personal Safety System ™
Personal Safety System ™
..........................34
Supplementary Restraints System
Principle of Operation..................................35 Driver and Passenger Airbags...................36
Front Passenger Sensing System.............37
Side Airbags
.....................................................39
Driver Knee Airbag.........................................40
Safety Canopy ™
............................................40
Crash Sensors and Airbag Indicator........42
Airbag Disposal
...............................................43
Keys and Remote Controls
General Information on Radio Frequencies..................................................44
Remote Control..............................................44
Replacing a Lost Key or Remote Control...........................................................50
MyKey ™
Principle of Operation
...................................51
Creating a MyKey............................................52
Clearing All MyKeys.......................................52
Checking MyKey System Status...............54
Using MyKey With Remote Start Systems.........................................................54
MyKey Troubleshooting
...............................54
Locks
Locking and Unlocking
.................................56
Manual Liftgate..............................................60
Power Liftgate..................................................61
Security
Passive Anti-Theft System
........................65
Anti-Theft Alarm............................................66
Steering Wheel
Adjusting the Steering Wheel....................67
Audio Control
...................................................67
Voice Control
...................................................68
Cruise Control.................................................68
Information Display Control
......................69
1
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Table of Contents

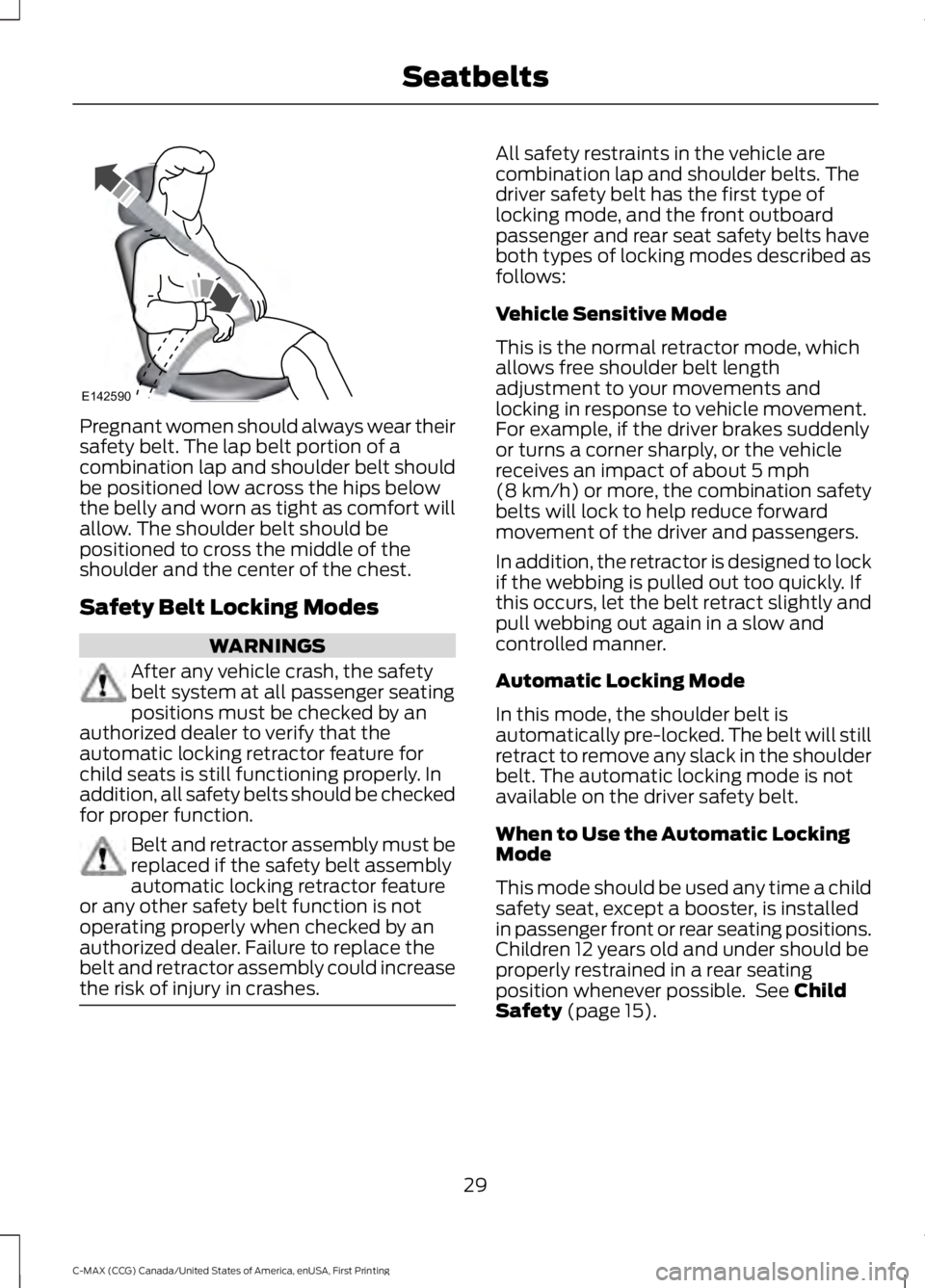

Pregnant women should always wear their
safety belt. The lap belt portion of a
combination lap and shoulder belt should
be positioned low across the hips below
the belly and worn as tight as comfort will
allow. The shoulder belt should be
positioned to cross the middle of the
shoulder and the center of the chest.
Safety Belt Locking Modes
WARNINGS
After any vehicle crash, the safety
belt system at all passenger seating
positions must be checked by an
authorized dealer to verify that the
automatic locking retractor feature for
child seats is still functioning properly. In
addition, all safety belts should be checked
for proper function. Belt and retractor assembly must be
replaced if the safety belt assembly
automatic locking retractor feature
or any other safety belt function is not
operating properly when checked by an
authorized dealer. Failure to replace the
belt and retractor assembly could increase
the risk of injury in crashes. All safety restraints in the vehicle are
combination lap and shoulder belts. The
driver safety belt has the first type of
locking mode, and the front outboard
passenger and rear seat safety belts have
both types of locking modes described as
follows:
Vehicle Sensitive Mode
This is the normal retractor mode, which
allows free shoulder belt length
adjustment to your movements and
locking in response to vehicle movement.
For example, if the driver brakes suddenly
or turns a corner sharply, or the vehicle
receives an impact of about 5 mph
(8 km/h) or more, the combination safety
belts will lock to help reduce forward
movement of the driver and passengers.
In addition, the retractor is designed to lock
if the webbing is pulled out too quickly. If
this occurs, let the belt retract slightly and
pull webbing out again in a slow and
controlled manner.
Automatic Locking Mode
In this mode, the shoulder belt is
automatically pre-locked. The belt will still
retract to remove any slack in the shoulder
belt. The automatic locking mode is not
available on the driver safety belt.
When to Use the Automatic Locking
Mode
This mode should be used any time a child
safety seat, except a booster, is installed
in passenger front or rear seating positions.
Children 12 years old and under should be
properly restrained in a rear seating
position whenever possible. See
Child
Safety (page 15).
29
C-MAX (CCG) Canada/United States of America, enUSA, First Printing SeatbeltsE142590

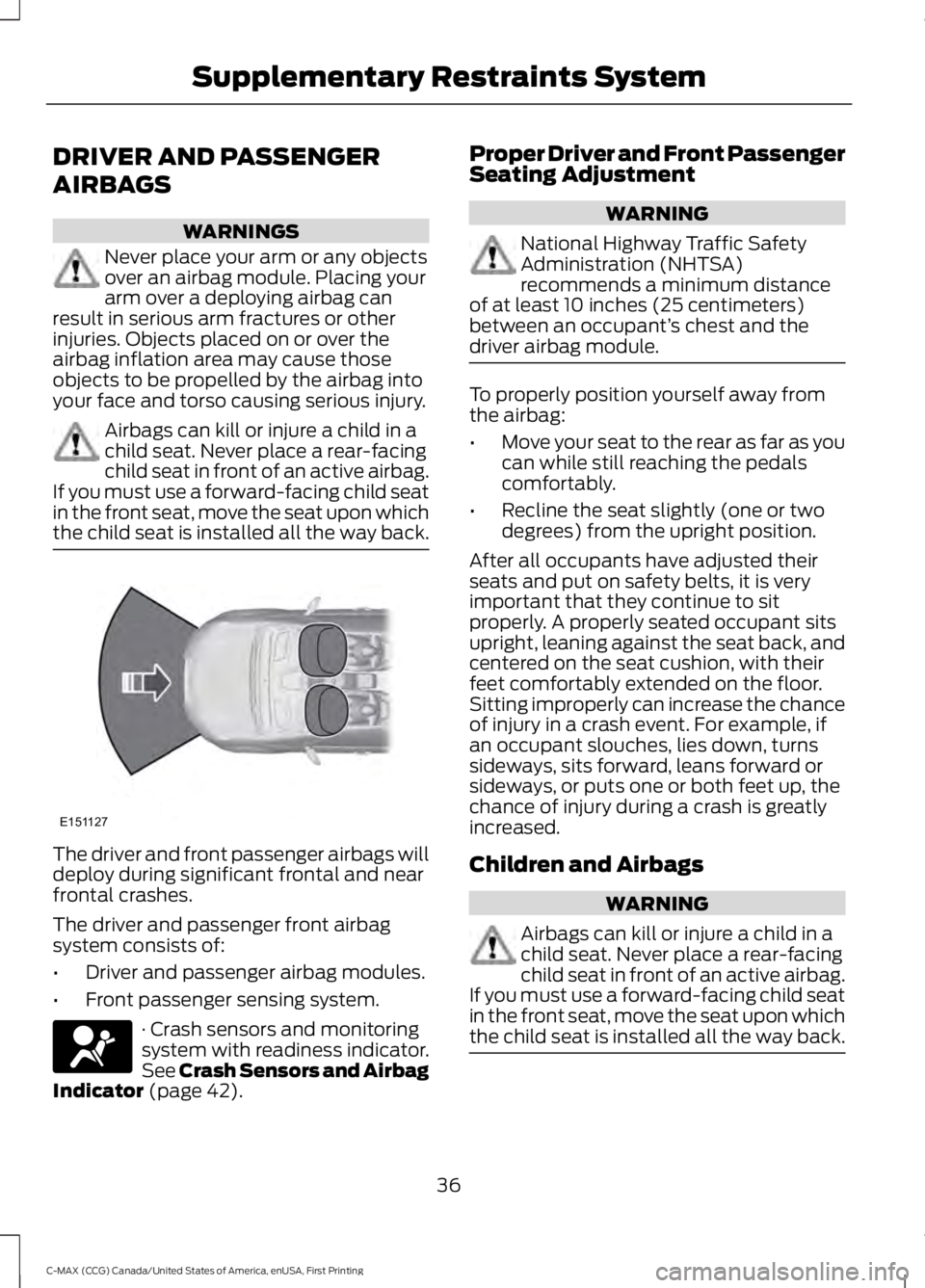

DRIVER AND PASSENGER
AIRBAGS
WARNINGS
Never place your arm or any objects
over an airbag module. Placing your
arm over a deploying airbag can
result in serious arm fractures or other
injuries. Objects placed on or over the
airbag inflation area may cause those
objects to be propelled by the airbag into
your face and torso causing serious injury. Airbags can kill or injure a child in a
child seat. Never place a rear-facing
child seat in front of an active airbag.
If you must use a forward-facing child seat
in the front seat, move the seat upon which
the child seat is installed all the way back. The driver and front passenger airbags will
deploy during significant frontal and near
frontal crashes.
The driver and passenger front airbag
system consists of:
•
Driver and passenger airbag modules.
• Front passenger sensing system. · Crash sensors and monitoring
system with readiness indicator.
See Crash Sensors and Airbag
Indicator (page 42). Proper Driver and Front Passenger
Seating Adjustment WARNING
National Highway Traffic Safety
Administration (NHTSA)
recommends a minimum distance
of at least 10 inches (25 centimeters)
between an occupant’ s chest and the
driver airbag module. To properly position yourself away from
the airbag:
•
Move your seat to the rear as far as you
can while still reaching the pedals
comfortably.
• Recline the seat slightly (one or two
degrees) from the upright position.
After all occupants have adjusted their
seats and put on safety belts, it is very
important that they continue to sit
properly. A properly seated occupant sits
upright, leaning against the seat back, and
centered on the seat cushion, with their
feet comfortably extended on the floor.
Sitting improperly can increase the chance
of injury in a crash event. For example, if
an occupant slouches, lies down, turns
sideways, sits forward, leans forward or
sideways, or puts one or both feet up, the
chance of injury during a crash is greatly
increased.
Children and Airbags WARNING
Airbags can kill or injure a child in a
child seat. Never place a rear-facing
child seat in front of an active airbag.
If you must use a forward-facing child seat
in the front seat, move the seat upon which
the child seat is installed all the way back. 36
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Supplementary Restraints SystemE151127

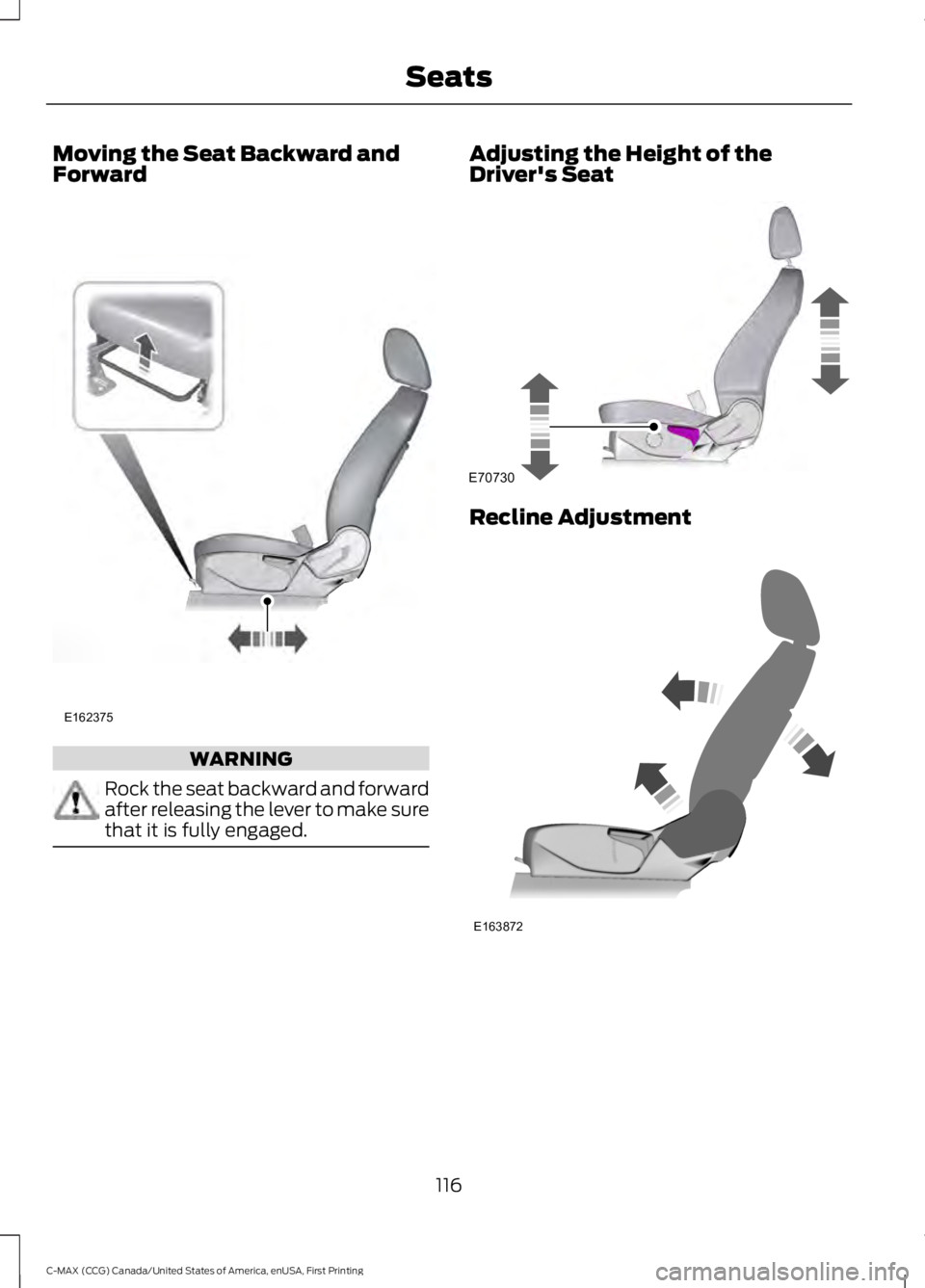

Moving the Seat Backward and
Forward
WARNING
Rock the seat backward and forward
after releasing the lever to make sure
that it is fully engaged. Adjusting the Height of the
Driver's Seat
Recline Adjustment
116
C-MAX (CCG) Canada/United States of America, enUSA, First Printing SeatsE162375 E70730 E163872

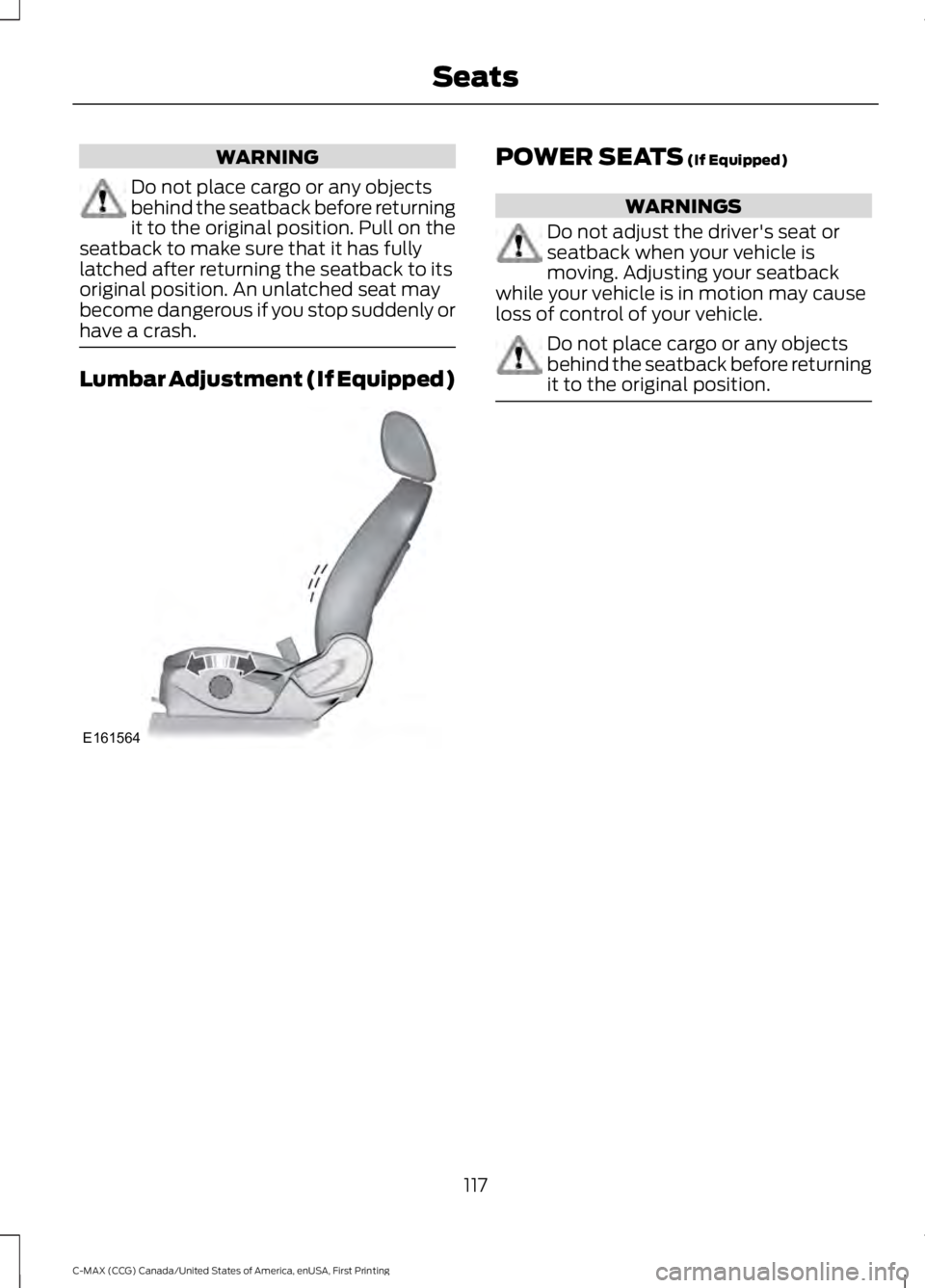

WARNING
Do not place cargo or any objects
behind the seatback before returning
it to the original position. Pull on the
seatback to make sure that it has fully
latched after returning the seatback to its
original position. An unlatched seat may
become dangerous if you stop suddenly or
have a crash. Lumbar Adjustment (If Equipped) POWER SEATS (If Equipped)
WARNINGS
Do not adjust the driver's seat or
seatback when your vehicle is
moving. Adjusting your seatback
while your vehicle is in motion may cause
loss of control of your vehicle. Do not place cargo or any objects
behind the seatback before returning
it to the original position.
117
C-MAX (CCG) Canada/United States of America, enUSA, First Printing SeatsE161564

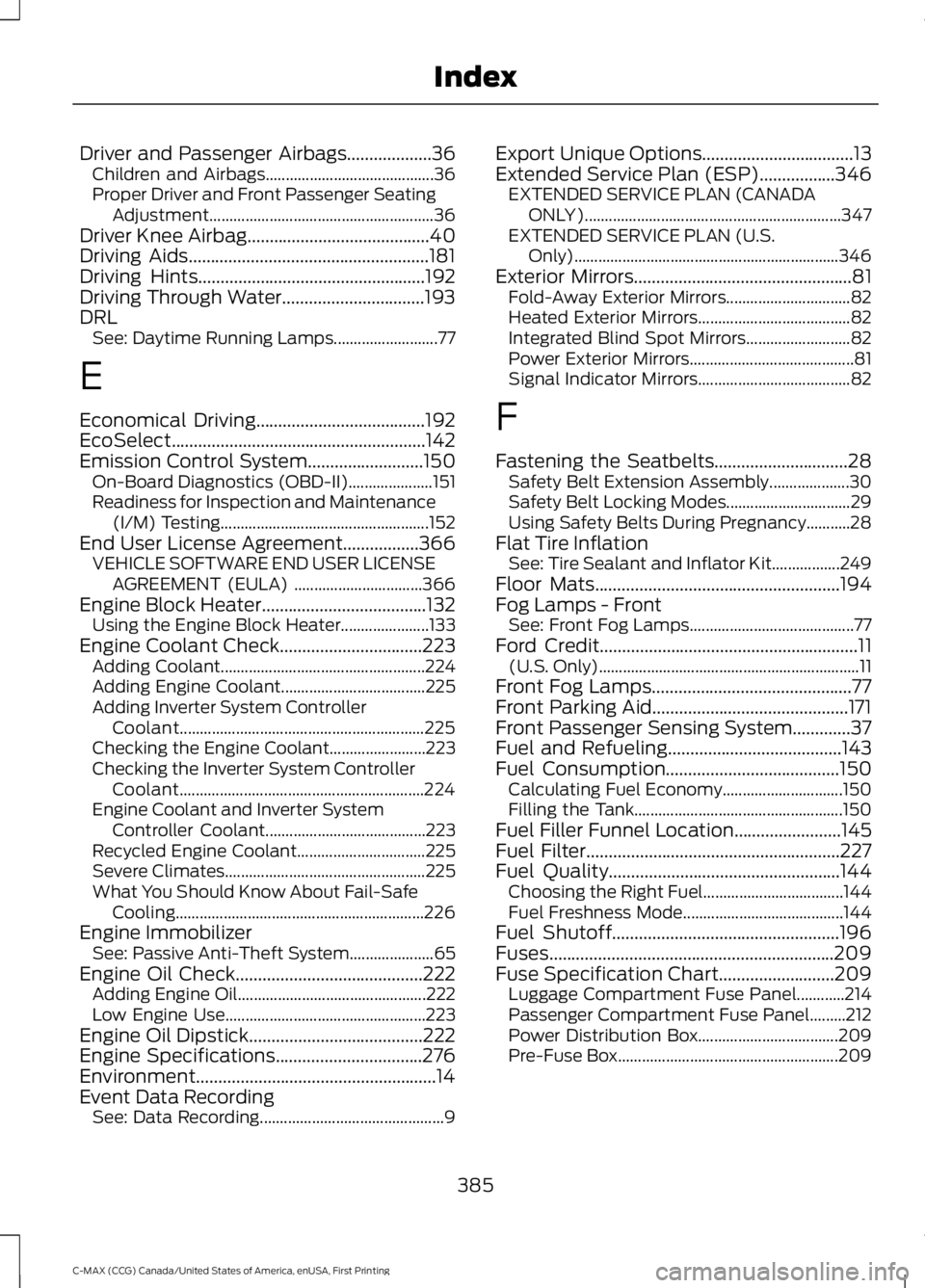

Driver and Passenger Airbags...................36
Children and Airbags.......................................... 36
Proper Driver and Front Passenger Seating Adjustment........................................................ 36
Driver Knee Airbag.........................................40
Driving Aids......................................................181
Driving Hints...................................................192
Driving Through Water................................193
DRL See: Daytime Running Lamps.......................... 77
E
Economical Driving......................................192
EcoSelect.........................................................142
Emission Control System
..........................150
On-Board Diagnostics (OBD-II)..................... 151
Readiness for Inspection and Maintenance (I/M) Testing.................................................... 152
End User License Agreement.................366 VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) ................................ 366
Engine Block Heater.....................................132 Using the Engine Block Heater...................... 133
Engine Coolant Check
................................223
Adding Coolant................................................... 224
Adding Engine Coolant.................................... 225
Adding Inverter System Controller Coolant............................................................. 225
Checking the Engine Coolant........................ 223
Checking the Inverter System Controller Coolant............................................................. 224
Engine Coolant and Inverter System Controller Coolant........................................ 223
Recycled Engine Coolant................................ 225
Severe Climates.................................................. 225
What You Should Know About Fail-Safe Cooling.............................................................. 226
Engine Immobilizer See: Passive Anti-Theft System..................... 65
Engine Oil Check
..........................................222
Adding Engine Oil............................................... 222
Low Engine Use.................................................. 223
Engine Oil Dipstick
.......................................222
Engine Specifications.................................276
Environment......................................................14
Event Data Recording See: Data Recording.............................................. 9Export Unique Options..................................13
Extended Service Plan (ESP).................346
EXTENDED SERVICE PLAN (CANADA
ONLY)................................................................ 347
EXTENDED SERVICE PLAN (U.S. Only).................................................................. 346
Exterior Mirrors
.................................................81
Fold-Away Exterior Mirrors............................... 82
Heated Exterior Mirrors...................................... 82
Integrated Blind Spot Mirrors.......................... 82
Power Exterior Mirrors......................................... 81
Signal Indicator Mirrors...................................... 82
F
Fastening the Seatbelts..............................28 Safety Belt Extension Assembly.................... 30
Safety Belt Locking Modes............................... 29
Using Safety Belts During Pregnancy...........28
Flat Tire Inflation See: Tire Sealant and Inflator Kit.................249
Floor Mats.......................................................194
Fog Lamps - Front See: Front Fog Lamps......................................... 77
Ford Credit
..........................................................11
(U.S. Only)................................................................. 11
Front Fog Lamps.............................................77
Front Parking Aid............................................171
Front Passenger Sensing System.............37
Fuel and Refueling.......................................143
Fuel Consumption
.......................................150
Calculating Fuel Economy.............................. 150
Filling the Tank.................................................... 150
Fuel Filler Funnel Location........................145
Fuel Filter.........................................................227
Fuel Quality....................................................144 Choosing the Right Fuel................................... 144
Fuel Freshness Mode........................................ 144
Fuel Shutoff
...................................................196
Fuses................................................................209
Fuse Specification Chart
..........................209
Luggage Compartment Fuse Panel............214
Passenger Compartment Fuse Panel.........212
Power Distribution Box................................... 209
Pre-Fuse Box....................................................... 209
385
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Index

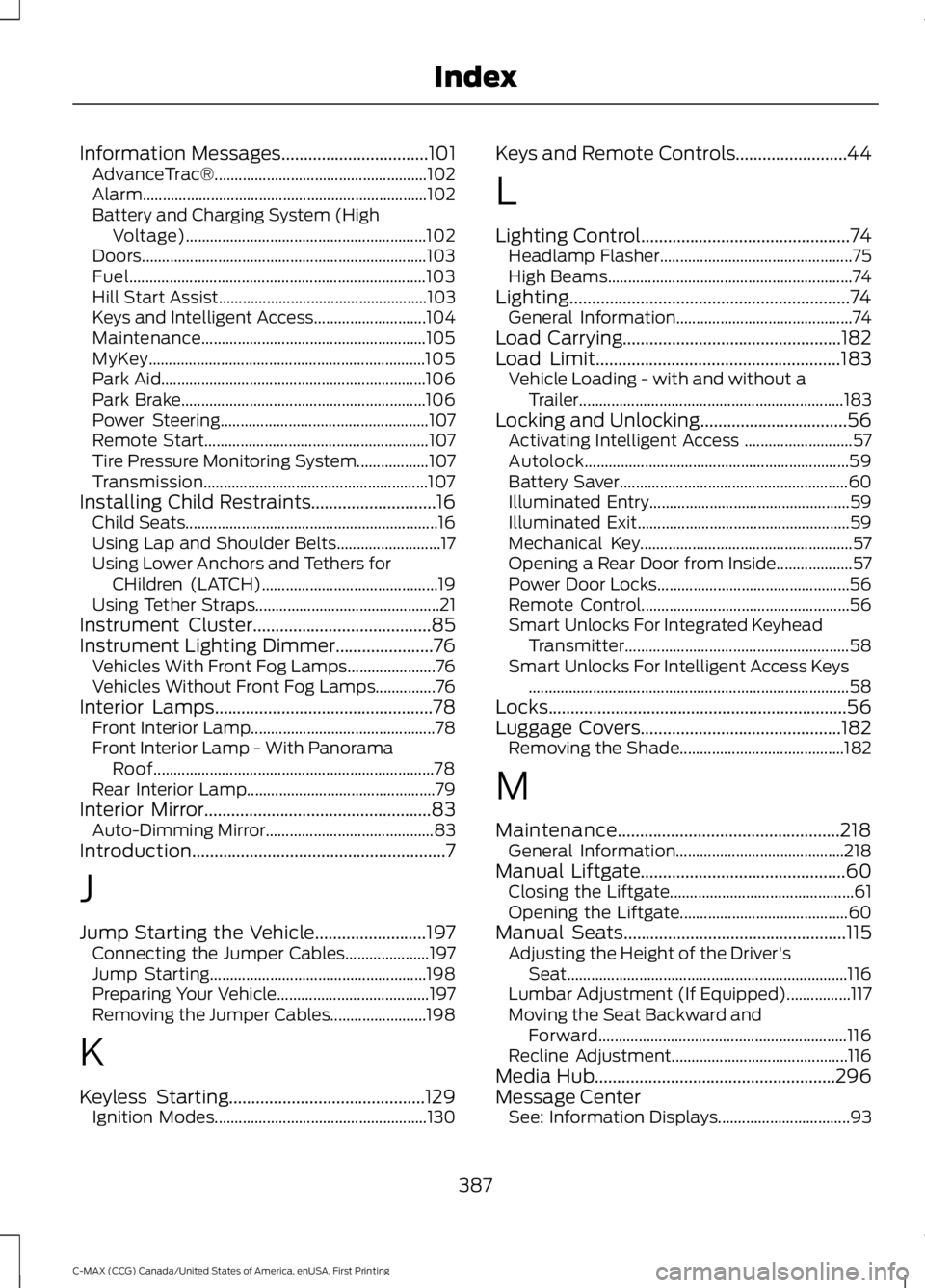

Information Messages.................................101
AdvanceTrac®..................................................... 102
Alarm....................................................................... 102
Battery and Charging System (High Voltage)............................................................ 102
Doors....................................................................... 103
Fuel........................................................................\
.. 103
Hill Start Assist.................................................... 103
Keys and Intelligent Access............................ 104
Maintenance........................................................ 105
MyKey..................................................................... 105
Park Aid.................................................................. 106
Park Brake............................................................. 106
Power Steering.................................................... 107
Remote Start........................................................ 107
Tire Pressure Monitoring System.................. 107
Transmission........................................................ 107
Installing Child Restraints
............................16
Child Seats............................................................... 16
Using Lap and Shoulder Belts.......................... 17
Using Lower Anchors and Tethers for CHildren (LATCH)............................................ 19
Using Tether Straps.............................................. 21
Instrument Cluster
........................................85
Instrument Lighting Dimmer......................76
Vehicles With Front Fog Lamps...................... 76
Vehicles Without Front Fog Lamps...............76
Interior Lamps
.................................................78
Front Interior Lamp.............................................. 78
Front Interior Lamp - With Panorama Roof...................................................................... 78
Rear Interior Lamp............................................... 79
Interior Mirror
...................................................83
Auto-Dimming Mirror.......................................... 83
Introduction.........................................................7
J
Jump Starting the Vehicle.........................197 Connecting the Jumper Cables..................... 197
Jump Starting...................................................... 198
Preparing Your Vehicle...................................... 197
Removing the Jumper Cables........................ 198
K
Keyless Starting
............................................129
Ignition Modes..................................................... 130Keys and Remote Controls.........................44
L
Lighting Control
...............................................74
Headlamp Flasher................................................ 75
High Beams............................................................. 74
Lighting...............................................................74 General Information............................................ 74
Load Carrying.................................................182
Load Limit
.......................................................183
Vehicle Loading - with and without a
Trailer .................................................................. 183
Locking and Unlocking
.................................56
Activating Intelligent Access ........................... 57
Autolock.................................................................. 59
Battery Saver......................................................... 60
Illuminated Entry.................................................. 59
Illuminated Exit..................................................... 59
Mechanical Key..................................................... 57
Opening a Rear Door from Inside................... 57
Power Door Locks................................................ 56
Remote Control.................................................... 56
Smart Unlocks For Integrated Keyhead Transmitter........................................................ 58
Smart Unlocks For Intelligent Access Keys ........................................................................\
........ 58
Locks
...................................................................56
Luggage Covers.............................................182 Removing the Shade......................................... 182
M
Maintenance..................................................218 General Information.......................................... 218
Manual Liftgate..............................................60 Closing the Liftgate.............................................. 61
Opening the Liftgate.......................................... 60
Manual Seats
..................................................115
Adjusting the Height of the Driver's
Seat...................................................................... 116
Lumbar Adjustment (If Equipped)................117
Moving the Seat Backward and Forward.............................................................. 116
Recline Adjustment............................................ 116
Media Hub
......................................................296
Message Center See: Information Displays................................. 93
387
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Index
