development we validate these partsdeliver the intended level of protection asa whole system. A great way to know forsure you are getting this level of protectionis to use genuine Ford replacementcollision parts.
Warranty on Replacement Parts
Genuine Ford and Motorcraft replacementparts are the only replacement parts thatbenefit from a Ford Warranty. Damagecaused to your vehicle as a result of thefailure of non-Ford parts may not becovered by the Ford Warranty. Foradditional information, refer to the termsand conditions of the Ford Warranty.
SPECIAL NOTICES
New Vehicle Limited Warranty
For a detailed description of what iscovered and what is not covered by yourvehicle’s New Vehicle Limited Warranty,refer to the Warranty Manual that isprovided to you along with your Owner’sManual.
Special Instructions
For your added safety, your vehicle is fittedwith sophisticated electronic controls.
WARNINGS
You risk death or serious injury toyourself and others if you do notfollow the instruction highlighted bythe warning symbol. Failure to follow thespecific warnings and instructions couldresult in personal injury.
Front seat mounted rear-facing childor infant seats should NEVER beplaced in front of an activepassenger airbag.
On-board Diagnostics (OBD-II)
Your vehicle’s On-board Diagnostics(OBD-II) system has a data port fordiagnostics, repair and reprogrammingservices with diagnostic scan tools.Installing a non-Ford-approvedaftermarket OBD plug-in device that usesthe port during normal driving, for exampleremote insurance company monitoring,remote vehicle diagnostics, telematics orengine reprogramming, may causeinterference or damage to vehicle systems.We do not recommend or endorse the useof any non-Ford-approved aftermarketOBD plug-in devices. The vehicle Warrantymay not cover damage caused by anynon-Ford-approved aftermarket OBDplug-in device.
MOBILE COMMUNICATIONS
EQUIPMENT
Using mobile communications equipmentis becoming increasingly important in theconduct of business and personal affairs.However, you must not compromise yourown or others’ safety when using suchequipment. Mobile communications canenhance personal safety and security whenappropriately used, particularly inemergency situations. Safety must beparamount when using mobilecommunications equipment to avoidnegating these benefits. Mobilecommunication equipment includes, butis not limited to, cellular phones, pagers,portable email devices, text messagingdevices and portable two-way radios.
12
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
Introduction

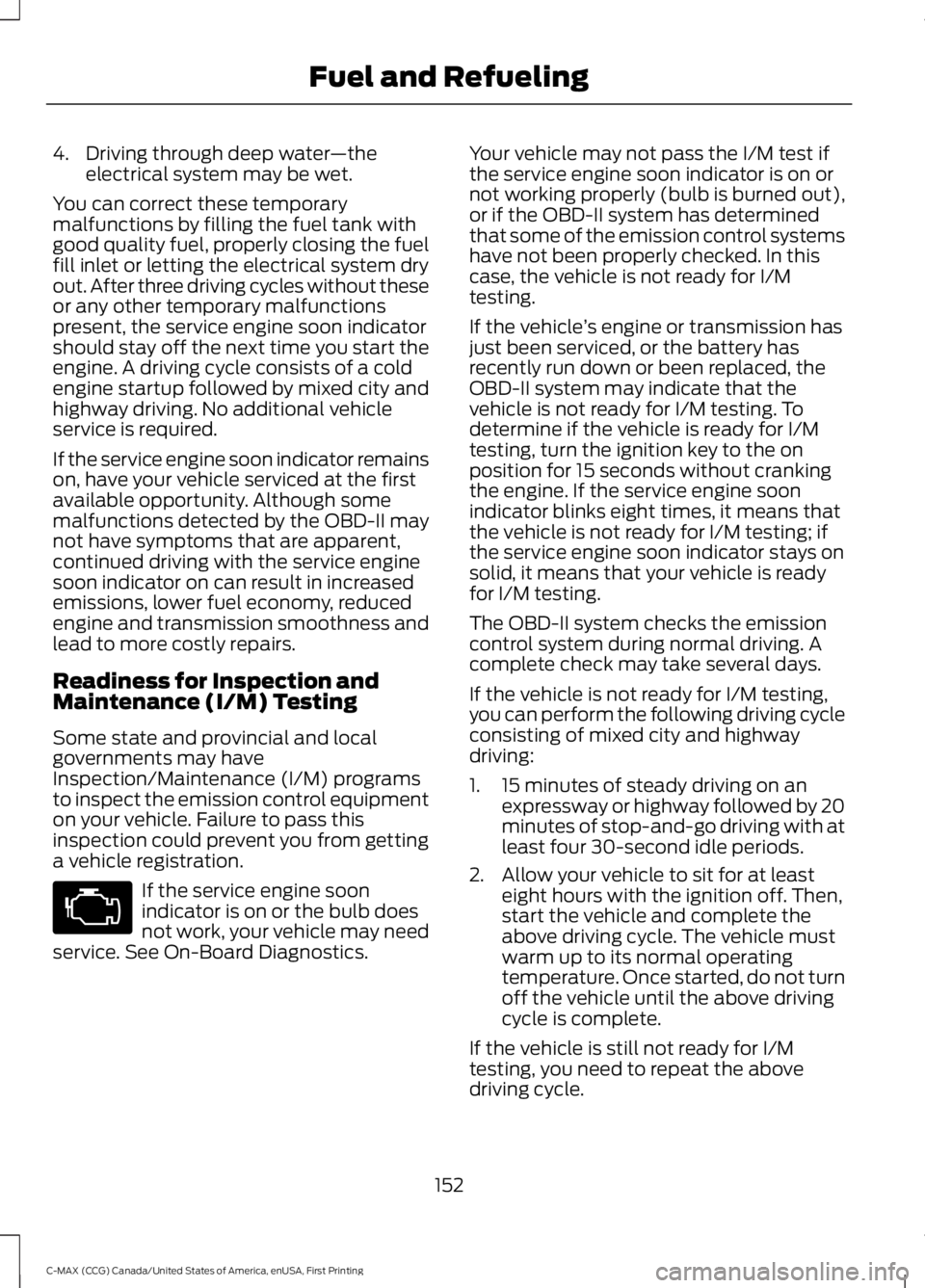

4. Driving through deep water—theelectrical system may be wet.
You can correct these temporarymalfunctions by filling the fuel tank withgood quality fuel, properly closing the fuelfill inlet or letting the electrical system dryout. After three driving cycles without theseor any other temporary malfunctionspresent, the service engine soon indicatorshould stay off the next time you start theengine. A driving cycle consists of a coldengine startup followed by mixed city andhighway driving. No additional vehicleservice is required.
If the service engine soon indicator remainson, have your vehicle serviced at the firstavailable opportunity. Although somemalfunctions detected by the OBD-II maynot have symptoms that are apparent,continued driving with the service enginesoon indicator on can result in increasedemissions, lower fuel economy, reducedengine and transmission smoothness andlead to more costly repairs.
Readiness for Inspection andMaintenance (I/M) Testing
Some state and provincial and localgovernments may haveInspection/Maintenance (I/M) programsto inspect the emission control equipmenton your vehicle. Failure to pass thisinspection could prevent you from gettinga vehicle registration.
If the service engine soonindicator is on or the bulb doesnot work, your vehicle may needservice. See On-Board Diagnostics.
Your vehicle may not pass the I/M test ifthe service engine soon indicator is on ornot working properly (bulb is burned out),or if the OBD-II system has determinedthat some of the emission control systemshave not been properly checked. In thiscase, the vehicle is not ready for I/Mtesting.
If the vehicle’s engine or transmission hasjust been serviced, or the battery hasrecently run down or been replaced, theOBD-II system may indicate that thevehicle is not ready for I/M testing. Todetermine if the vehicle is ready for I/Mtesting, turn the ignition key to the onposition for 15 seconds without crankingthe engine. If the service engine soonindicator blinks eight times, it means thatthe vehicle is not ready for I/M testing; ifthe service engine soon indicator stays onsolid, it means that your vehicle is readyfor I/M testing.
The OBD-II system checks the emissioncontrol system during normal driving. Acomplete check may take several days.
If the vehicle is not ready for I/M testing,you can perform the following driving cycleconsisting of mixed city and highwaydriving:
1. 15 minutes of steady driving on anexpressway or highway followed by 20minutes of stop-and-go driving with atleast four 30-second idle periods.
2. Allow your vehicle to sit for at leasteight hours with the ignition off. Then,start the vehicle and complete theabove driving cycle. The vehicle mustwarm up to its normal operatingtemperature. Once started, do not turnoff the vehicle until the above drivingcycle is complete.
If the vehicle is still not ready for I/Mtesting, you need to repeat the abovedriving cycle.
152
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
Fuel and Refueling

Protected componentsFuse amp ratingFuse or relay number
Fuel pump supply.20AF56
Not used.—F57
Not used (spare).5AF58
Passive anti-theft system.5AF59
Interior light.10AF60Driver door switch pack.Glove box illumination.Overhead console switch bank.
Cigar lighter.20AF61Second row power point.
Autowiper module.5AF62Autodimming rear view mirror.
Not used (spare).10AF63
Not used.—F64
Liftgate release.10AF65
Driver door unlock supply.20AF66
Cell phone passport (C-MAX Energi).7.5AF67Multi-function display.GPS module.Sync.
Not used (spare).15AF68
Instrument cluster.5AF69
Central lock and unlock supply.20AF70
Climate control module.7.5AF71
Steering wheel module.7.5AF72
Data link connector.7.5AF73OBD II supply.
Headlamp supply.15AF74
Fog lamp supply.15AF75
Reversing lamp supply.10AF76
213
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
Fuses

Driver and Passenger Airbags...................36Children and Airbags..........................................36Proper Driver and Front Passenger SeatingAdjustment........................................................36Driver Knee Airbag.........................................40Driving Aids......................................................181Driving Hints...................................................192Driving Through Water................................193DRLSee: Daytime Running Lamps..........................77
E
Economical Driving......................................192EcoSelect.........................................................142Emission Control System..........................150On-Board Diagnostics (OBD-II).....................151Readiness for Inspection and Maintenance(I/M) Testing....................................................152End User License Agreement.................366VEHICLE SOFTWARE END USER LICENSEAGREEMENT (EULA) ................................366Engine Block Heater.....................................132Using the Engine Block Heater......................133Engine Coolant Check................................223Adding Coolant...................................................224Adding Engine Coolant....................................225Adding Inverter System ControllerCoolant.............................................................225Checking the Engine Coolant........................223Checking the Inverter System ControllerCoolant.............................................................224Engine Coolant and Inverter SystemController Coolant........................................223Recycled Engine Coolant................................225Severe Climates..................................................225What You Should Know About Fail-SafeCooling..............................................................226Engine ImmobilizerSee: Passive Anti-Theft System.....................65Engine Oil Check..........................................222Adding Engine Oil...............................................222Low Engine Use..................................................223Engine Oil Dipstick.......................................222Engine Specifications.................................276Environment......................................................14Event Data RecordingSee: Data Recording..............................................9
Export Unique Options..................................13Extended Service Plan (ESP).................346EXTENDED SERVICE PLAN (CANADAONLY)................................................................347EXTENDED SERVICE PLAN (U.S.Only)..................................................................346Exterior Mirrors.................................................81Fold-Away Exterior Mirrors...............................82Heated Exterior Mirrors......................................82Integrated Blind Spot Mirrors..........................82Power Exterior Mirrors.........................................81Signal Indicator Mirrors......................................82
F
Fastening the Seatbelts..............................28Safety Belt Extension Assembly....................30Safety Belt Locking Modes...............................29Using Safety Belts During Pregnancy...........28Flat Tire InflationSee: Tire Sealant and Inflator Kit.................249Floor Mats.......................................................194Fog Lamps - FrontSee: Front Fog Lamps.........................................77Ford Credit..........................................................11(U.S. Only).................................................................11Front Fog Lamps.............................................77Front Parking Aid............................................171Front Passenger Sensing System.............37Fuel and Refueling.......................................143Fuel Consumption.......................................150Calculating Fuel Economy..............................150Filling the Tank....................................................150Fuel Filler Funnel Location........................145Fuel Filter.........................................................227Fuel Quality....................................................144Choosing the Right Fuel...................................144Fuel Freshness Mode........................................144Fuel Shutoff...................................................196Fuses................................................................209Fuse Specification Chart..........................209Luggage Compartment Fuse Panel............214Passenger Compartment Fuse Panel.........212Power Distribution Box...................................209Pre-Fuse Box.......................................................209
385
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
Index

Repairing Minor Paint Damage..............245Replacement PartsRecommendation.........................................11Collision Repairs.....................................................11Scheduled Maintenance and MechanicalRepairs...................................................................11Warranty on Replacement Parts.....................12Replacing a Lost Key or RemoteControl............................................................50Reporting Safety Defects (CanadaOnly)..............................................................207Reporting Safety Defects (U.S.Only)..............................................................207Roadside Assistance...................................195Vehicles Sold in Canada: Getting RoadsideAssistance........................................................195Vehicles Sold in Canada: RoadsideAssistance Program Coverage.................196Vehicles Sold in Canada: Using RoadsideAssistance........................................................196Vehicles Sold in the United States: GettingRoadside Assistance....................................195Vehicles Sold in the United States: UsingRoadside Assistance....................................195Roadside Emergencies...............................195Running-InSee: Breaking-In..................................................192Running Out of Fuel.....................................145Adding Fuel From a Portable FuelContainer..........................................................145Filling a Portable Fuel Container..................145
S
Safety Canopy™............................................40Safety Precautions.......................................143Satellite Radio..............................................294Satellite Radio Electronic Serial Number(ESN)................................................................295Satellite Radio Reception Factors..............294SIRIUS® Satellite Radio Service.................294Troubleshooting.................................................295Scheduled Maintenance Record...........356Scheduled Maintenance..........................348Seatbelt Height Adjustment.....................30Seatbelt Reminder..........................................31Belt-Minder™.........................................................31
Seatbelts............................................................27Principle of Operation.........................................27Seatbelt Warning Lamp and IndicatorChime................................................................31Conditions of operation......................................31Seats...................................................................113Security..............................................................65Side Airbags.....................................................39Sitting in the Correct Position...................113Snow ChainsSee: Using Snow Chains.................................270Special Notices................................................12New Vehicle Limited Warranty.........................12On-board Diagnostics (OBD-II).......................12Special Instructions..............................................12Special Operating Conditions ScheduledMaintenance..............................................354Exceptions............................................................355Speed ControlSee: Cruise Control.............................................179Stability Control............................................168Principle of Operation......................................168Starter SwitchSee: Ignition Switch...........................................129Starting a Gasoline Engine.......................130Guarding Against Exhaust Fumes................132Important Ventilating Information...............132Switching Off the Vehicle When It IsMoving................................................................132Switching Off the Vehicle When It IsStationary..........................................................131Vehicles with an Ignition Key.........................130Vehicles with Keyless Start............................130Starting and Stopping the Engine..........129General Information..........................................129Steering.............................................................181Electric Power Steering.....................................181Steering Wheel................................................67Storage Compartments.............................128Sun Shades......................................................84Bounce-Back.........................................................84Opening and Closing the Sun Shade...........84Sun Shade Relearning.......................................84Sun Visors.........................................................83Illuminated Vanity Mirror...................................83Supplementary Restraints System.........35Principle of Operation.........................................35Symbols Glossary.............................................7
389
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
Index
