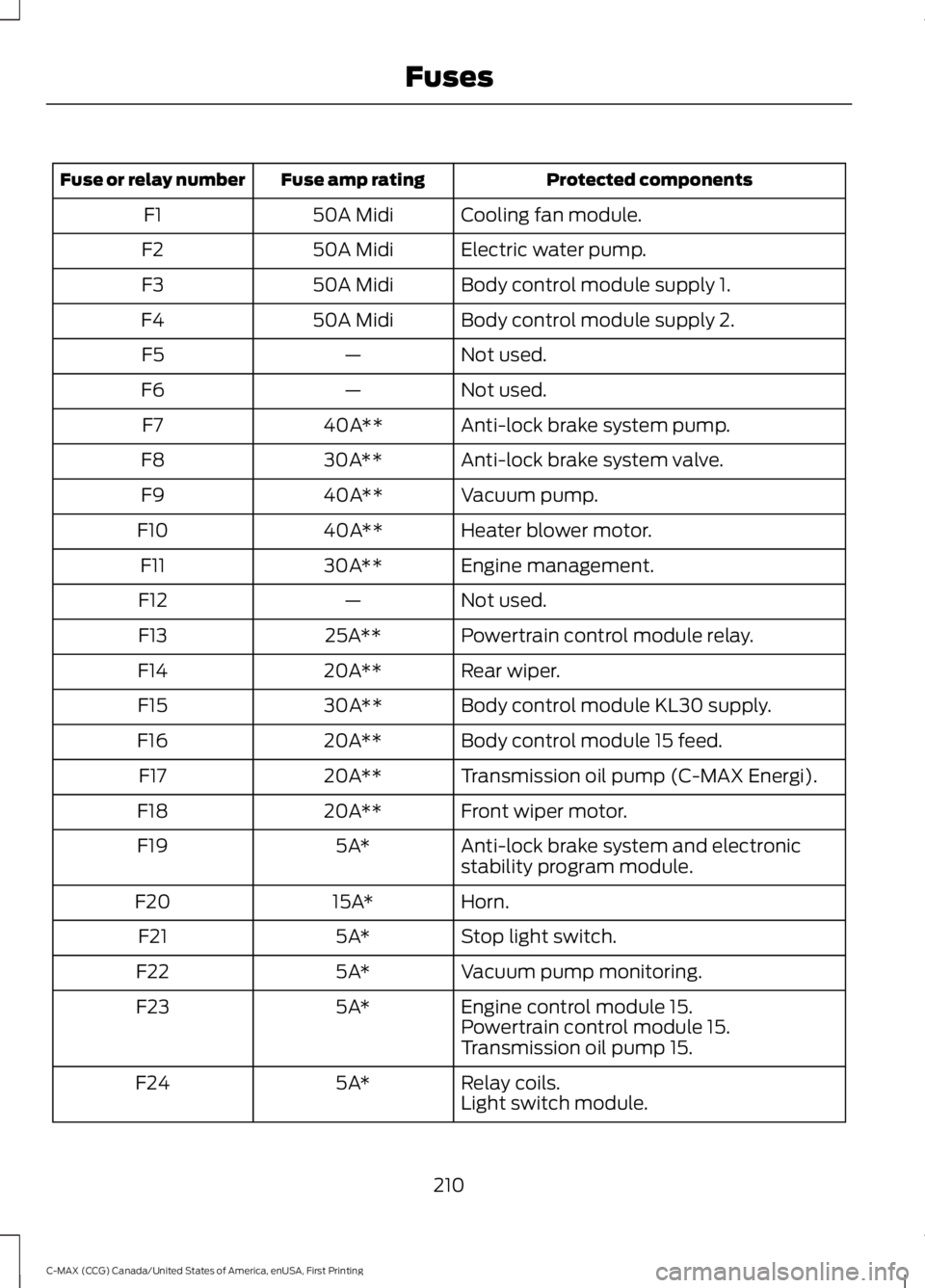

Protected componentsFuse amp ratingFuse or relay number
Cooling fan module.50A MidiF1
Electric water pump.50A MidiF2
Body control module supply 1.50A MidiF3
Body control module supply 2.50A MidiF4
Not used.—F5
Not used.—F6
Anti-lock brake system pump.40A**F7
Anti-lock brake system valve.30A**F8
Vacuum pump.40A**F9
Heater blower motor.40A**F10
Engine management.30A**F11
Not used.—F12
Powertrain control module relay.25A**F13
Rear wiper.20A**F14
Body control module KL30 supply.30A**F15
Body control module 15 feed.20A**F16
Transmission oil pump (C-MAX Energi).20A**F17
Front wiper motor.20A**F18
Anti-lock brake system and electronicstability program module.5A*F19
Horn.15A*F20
Stop light switch.5A*F21
Vacuum pump monitoring.5A*F22
Engine control module 15.5A*F23Powertrain control module 15.Transmission oil pump 15.
Relay coils.5A*F24Light switch module.
210
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
Fuses

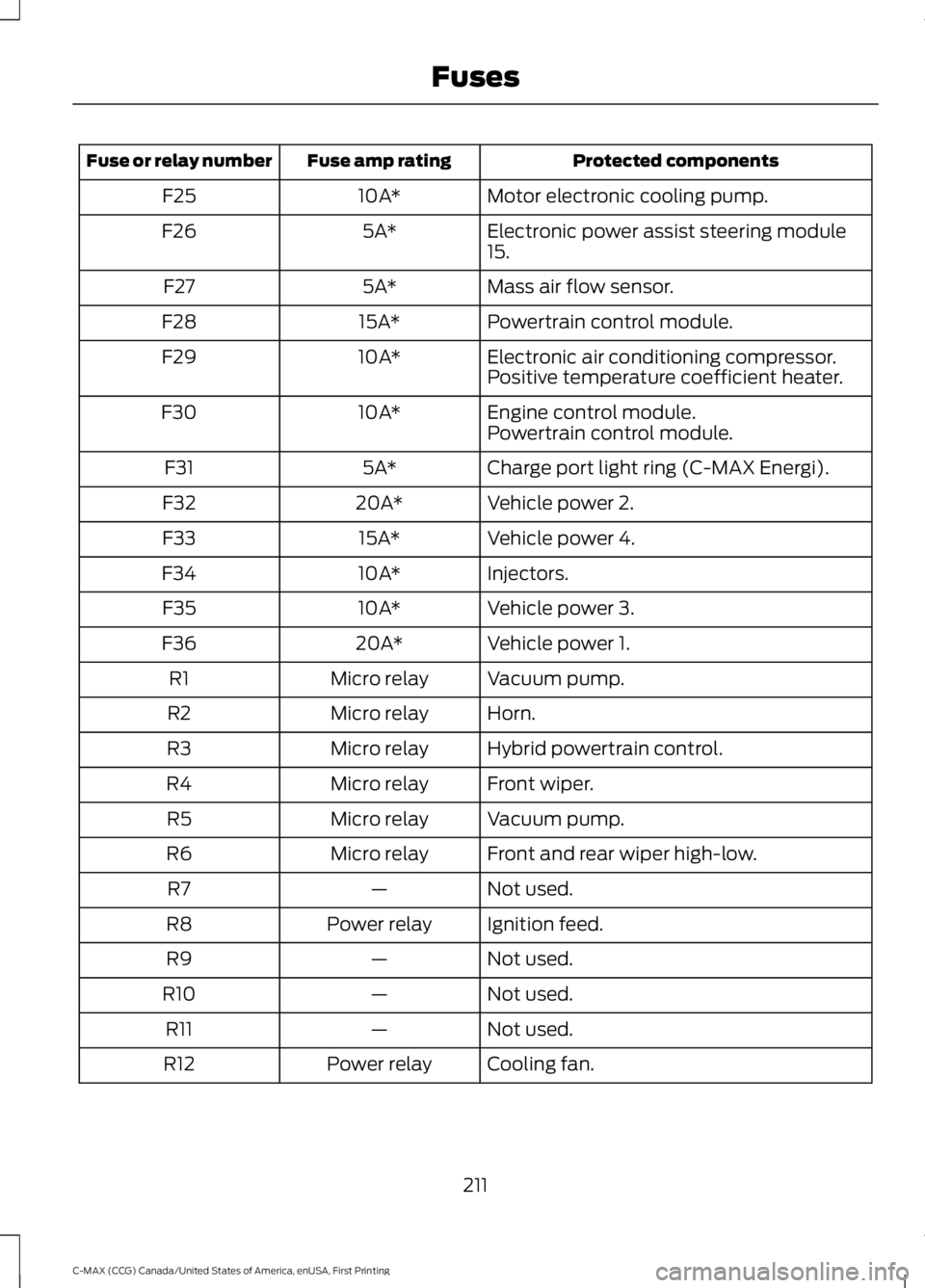

Protected componentsFuse amp ratingFuse or relay number
Motor electronic cooling pump.10A*F25
Electronic power assist steering module15.5A*F26
Mass air flow sensor.5A*F27
Powertrain control module.15A*F28
Electronic air conditioning compressor.10A*F29Positive temperature coefficient heater.
Engine control module.10A*F30Powertrain control module.
Charge port light ring (C-MAX Energi).5A*F31
Vehicle power 2.20A*F32
Vehicle power 4.15A*F33
Injectors.10A*F34
Vehicle power 3.10A*F35
Vehicle power 1.20A*F36
Vacuum pump.Micro relayR1
Horn.Micro relayR2
Hybrid powertrain control.Micro relayR3
Front wiper.Micro relayR4
Vacuum pump.Micro relayR5
Front and rear wiper high-low.Micro relayR6
Not used.—R7
Ignition feed.Power relayR8
Not used.—R9
Not used.—R10
Not used.—R11
Cooling fan.Power relayR12
211
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
Fuses

Protected componentsFuse amp ratingFuse or relay number
Heater blower.Mini relayR13
Engine control relay.Mini relayR14
*Mini fuses **Cartridge fuses
Passenger Compartment FusePanel
The fuse panel is located on the right-handside below the glove box. You may needto remove a trim panel to access it.
212
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
FusesE129926

Protected componentsFuse amp ratingFuse or relay number
Fuel pump supply.20AF56
Not used.—F57
Not used (spare).5AF58
Passive anti-theft system.5AF59
Interior light.10AF60Driver door switch pack.Glove box illumination.Overhead console switch bank.
Cigar lighter.20AF61Second row power point.
Autowiper module.5AF62Autodimming rear view mirror.
Not used (spare).10AF63
Not used.—F64
Liftgate release.10AF65
Driver door unlock supply.20AF66
Cell phone passport (C-MAX Energi).7.5AF67Multi-function display.GPS module.Sync.
Not used (spare).15AF68
Instrument cluster.5AF69
Central lock and unlock supply.20AF70
Climate control module.7.5AF71
Steering wheel module.7.5AF72
Data link connector.7.5AF73OBD II supply.
Headlamp supply.15AF74
Fog lamp supply.15AF75
Reversing lamp supply.10AF76
213
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
Fuses

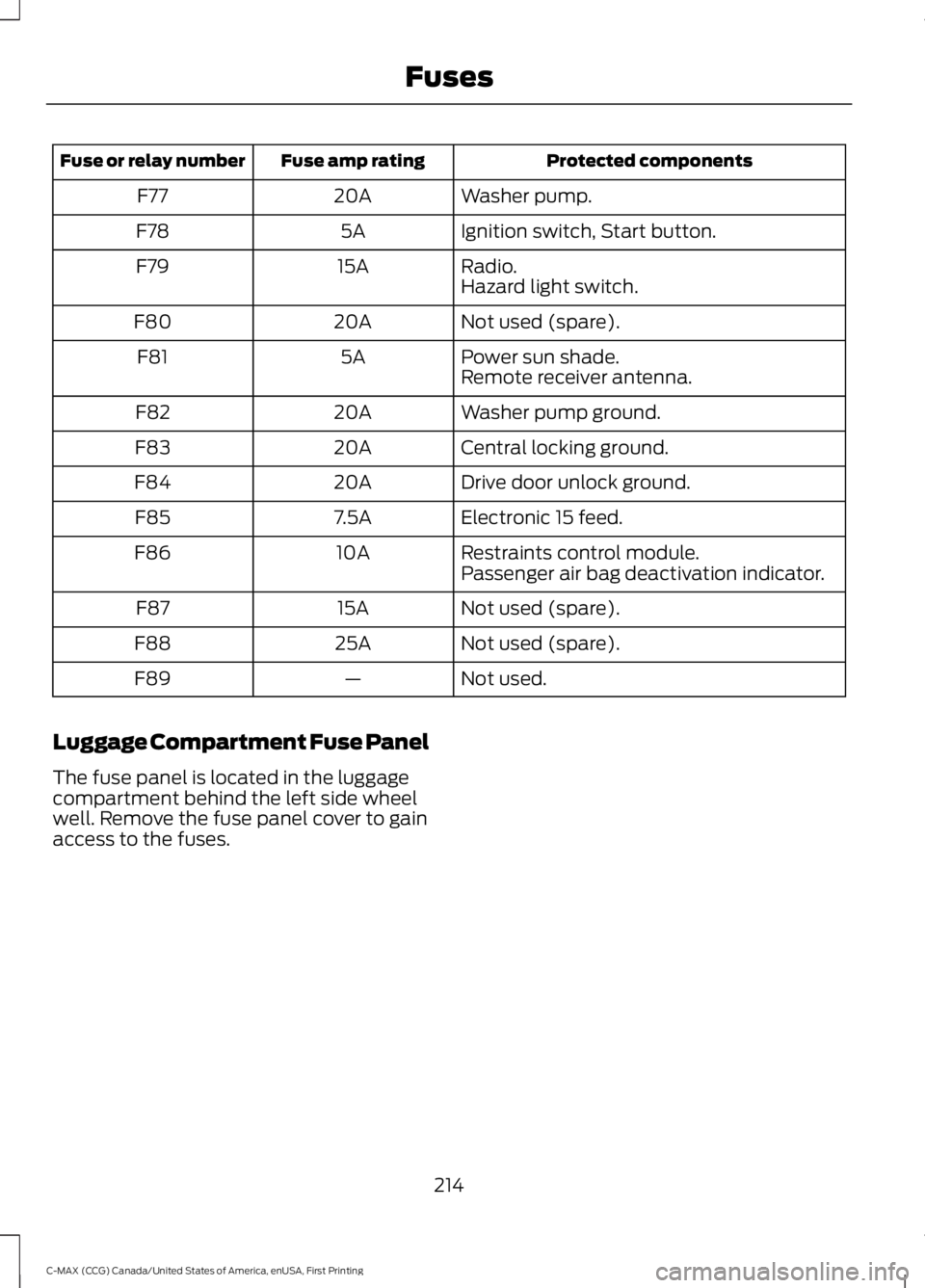

Protected componentsFuse amp ratingFuse or relay number
Washer pump.20AF77
Ignition switch, Start button.5AF78
Radio.15AF79Hazard light switch.
Not used (spare).20AF80
Power sun shade.5AF81Remote receiver antenna.
Washer pump ground.20AF82
Central locking ground.20AF83
Drive door unlock ground.20AF84
Electronic 15 feed.7.5AF85
Restraints control module.10AF86Passenger air bag deactivation indicator.
Not used (spare).15AF87
Not used (spare).25AF88
Not used.—F89
Luggage Compartment Fuse Panel
The fuse panel is located in the luggagecompartment behind the left side wheelwell. Remove the fuse panel cover to gainaccess to the fuses.
214
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
Fuses

Protected componentsFuse amp ratingFuse or relay number
Hands-free liftgate entry module.5AF1
Keyless vehicle module.10AF2
Keyless vehicle door handles.5AF3
Door control unit front left.25AF4
Door control unit front right.25AF5
Door control unit rear left.25AF6
Door control unit rear right.25AF7
Not used.—F8
Driver seat motor.25AF9
Heated rear window.25AF10
Ignition relay.5AF11
Battery electronics control module.15AF12
Not used.—F13
Charger (C-MAX Energi).10AF14
Not used.—F15
Not used.—F16
Battery electronics control module.10AF17
Battery electronics control module — fan.15AF18
215
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
FusesE129927

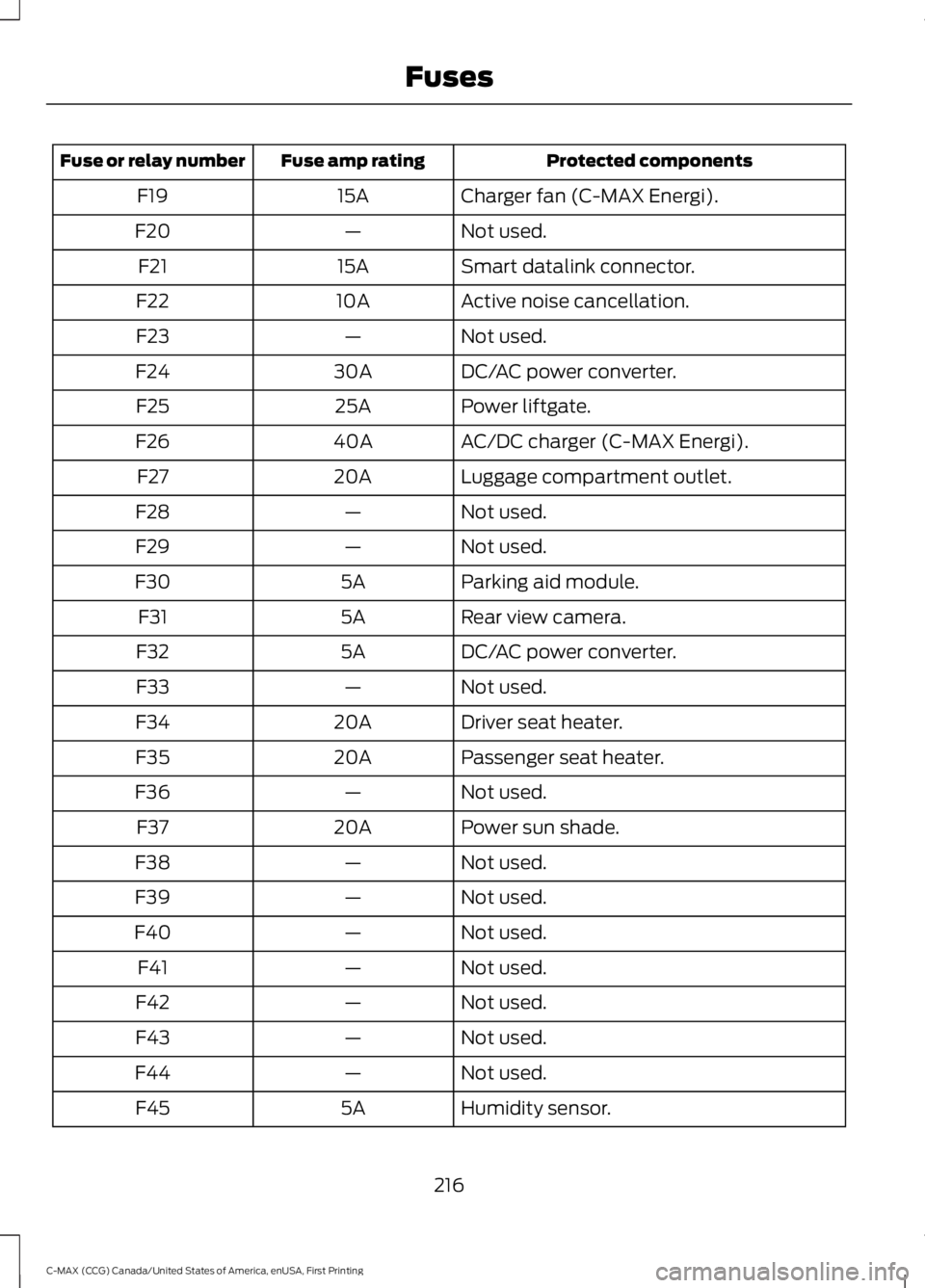

Protected componentsFuse amp ratingFuse or relay number
Charger fan (C-MAX Energi).15AF19
Not used.—F20
Smart datalink connector.15AF21
Active noise cancellation.10AF22
Not used.—F23
DC/AC power converter.30AF24
Power liftgate.25AF25
AC/DC charger (C-MAX Energi).40AF26
Luggage compartment outlet.20AF27
Not used.—F28
Not used.—F29
Parking aid module.5AF30
Rear view camera.5AF31
DC/AC power converter.5AF32
Not used.—F33
Driver seat heater.20AF34
Passenger seat heater.20AF35
Not used.—F36
Power sun shade.20AF37
Not used.—F38
Not used.—F39
Not used.—F40
Not used.—F41
Not used.—F42
Not used.—F43
Not used.—F44
Humidity sensor.5AF45
216
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
Fuses

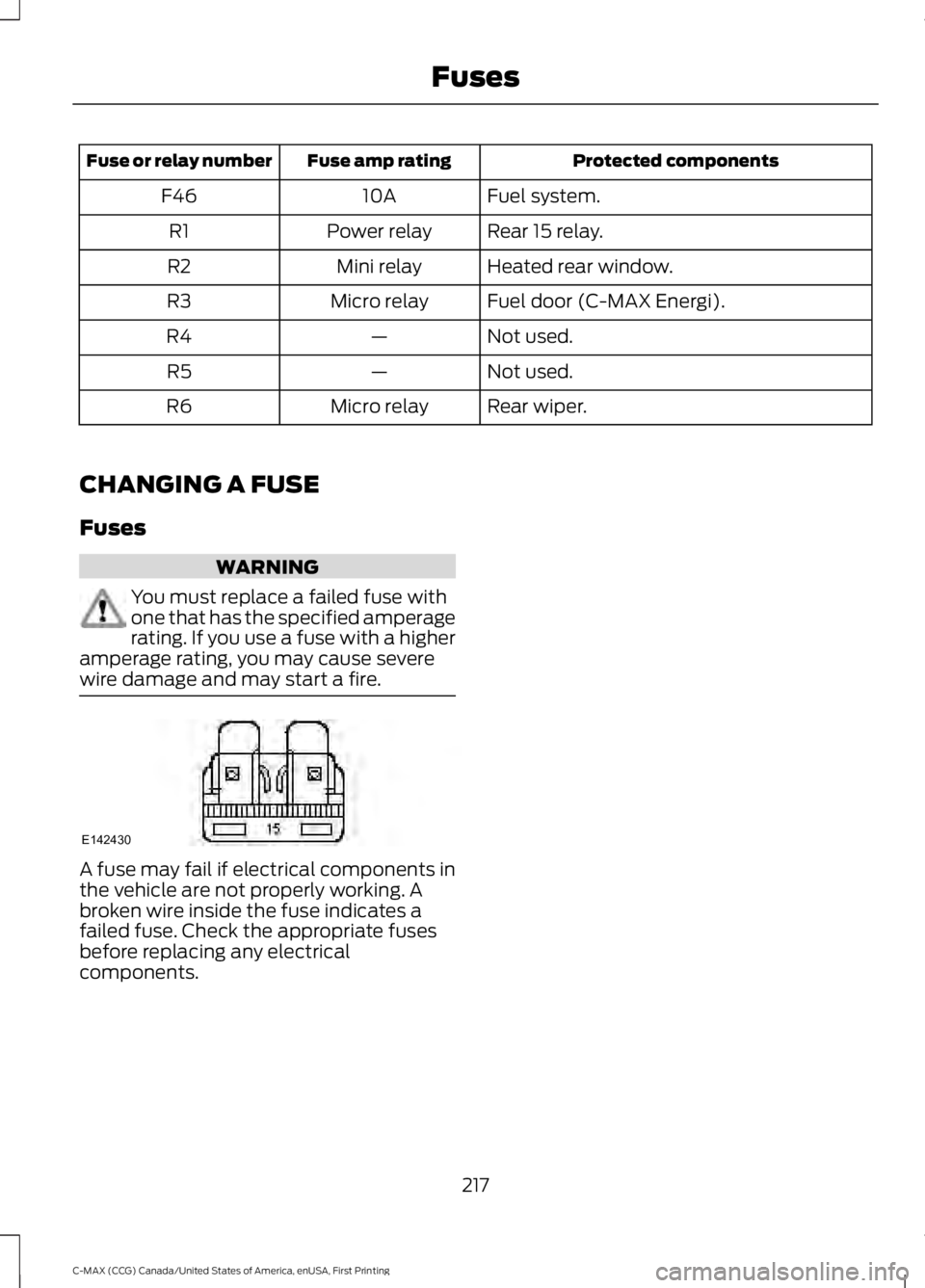

Protected componentsFuse amp ratingFuse or relay number
Fuel system.10AF46
Rear 15 relay.Power relayR1
Heated rear window.Mini relayR2
Fuel door (C-MAX Energi).Micro relayR3
Not used.—R4
Not used.—R5
Rear wiper.Micro relayR6
CHANGING A FUSE
Fuses
WARNING
You must replace a failed fuse withone that has the specified amperagerating. If you use a fuse with a higheramperage rating, you may cause severewire damage and may start a fire.
A fuse may fail if electrical components inthe vehicle are not properly working. Abroken wire inside the fuse indicates afailed fuse. Check the appropriate fusesbefore replacing any electricalcomponents.
217
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
FusesE142430
