fuse FORD C MAX HYBRID 2014 2.G User Guide

Protected components
Fuse amp rating
Fuse or relay number
Interior light, Driver door switch pack, Glove
box illumination, Overhead console switch
bank
10A
F60
Cigar lighter, Second row power point
20A
F61
Autowipers module, Auto-dimming rear
view mirror
5A
F62
Not used (spare)
10A
F63
Not used
—
F64
Liftgate release
10A
F65
Driver door unlock supply
20A
F66
Cell phone passport (C-MAX Energi), Multi-
function display, GPS module, SYNC
7.5A
F67
Not used (spare)
15A
F68
Instrument cluster
5A
F69
Central lock and unlock supply
20A
F70
Heating control head (manual air condi-
tioner), Climate control module
10A
F71
Steering wheel module
7.5A
F72
Data link connector, OBD II supply
7.5A
F73
Headlamp supply
15A
F74
Fog lamp supply
15A
F75
Reversing lamp supply
10A
F76
Washer pump
20A
F77
Ignition switch, Start button
5A
F78
Radio, Hazard light switch
15A
F79
Not used (spare)
20A
F80
Power sun shade, Remote receiver antenna
5A
F81
Washer pump ground
20A
F82
Central locking ground
20A
F83
204
C-MAX (CCG) Fuses

Protected components
Fuse amp rating
Fuse or relay number
Drive door unlock ground
20A
F84
Electronic 15 feed
7.5A
F85
Restraints control module, Passenger air
bag deactivation indicator
10A
F86
Not used
—
F87
Not used (spare)
25A
F88
Not used
—
F89
Luggage Compartment Fuse Panel
The fuse panel is located in the luggage
compartment behind the left side wheel
well. Remove the fuse panel cover to gain
access to the fuses. Protected components
Fuse amp rating
Fuse or relay number
Hands-free liftgate entry module
5A
F1
Keyless vehicle module
10A
F2
Keyless vehicle door handles
5A
F3
Door control unit front left
25A
F4
Door control unit front right
25A
F5
Door control unit rear left
25A
F6
205
C-MAX (CCG) FusesE129927

Protected components
Fuse amp rating
Fuse or relay number
Door control unit rear right
25A
F7
Not used
—
F8
Driver seat motor
25A
F9
Heated rear window
25A
F10
Not used
—
F11
Battery electronics control module
15A
F12
Not used
—
F13
Charger (C-MAX Energi)
10A
F14
Not used
—
F15
Not used
—
F16
Battery electronics control module
10A
F17
Battery electronics control module — fan
15A
F18
Charger fan (C-MAX Energi)
15A
F19
Not used
—
F20
Smart datalink connector
15A
F21
Active noise cancellation
10A
F22
Not used
—
F23
DC/AC power converter
30A
F24
Power liftgate
25A
F25
AC/DC charger (C-MAX Energi)
40A
F26
Luggage compartment outlet
20A
F27
Not used
—
F28
Not used
—
F29
Parking aid module
5A
F30
Rear view camera
5A
F31
DC/AC power converter
5A
F32
Not used
—
F33
206
C-MAX (CCG) Fuses

Protected components
Fuse amp rating
Fuse or relay number
Driver seat heater
20A
F34
Passenger seat heater
20A
F35
Not used
—
F36
Power sun shade
20A
F37
Not used
—
F38
Not used
—
F39
Not used
—
F40
Not used
—
F41
Not used
—
F42
Not used
—
F43
Not used
—
F44
Humidity sensor
5A
F45
Fuel system
10A
F46
Rear 15 relay
Power relay
R1
Heated rear window
Mini relay
R2
Fuel door (C-MAX Energi)
Micro relay
R3
Not used
—
R4
Not used
—
R5
Rear wiper
Micro relay
R6
CHANGING A FUSE
Fuses WARNING
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire. If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
207
C-MAX (CCG) FusesE142430

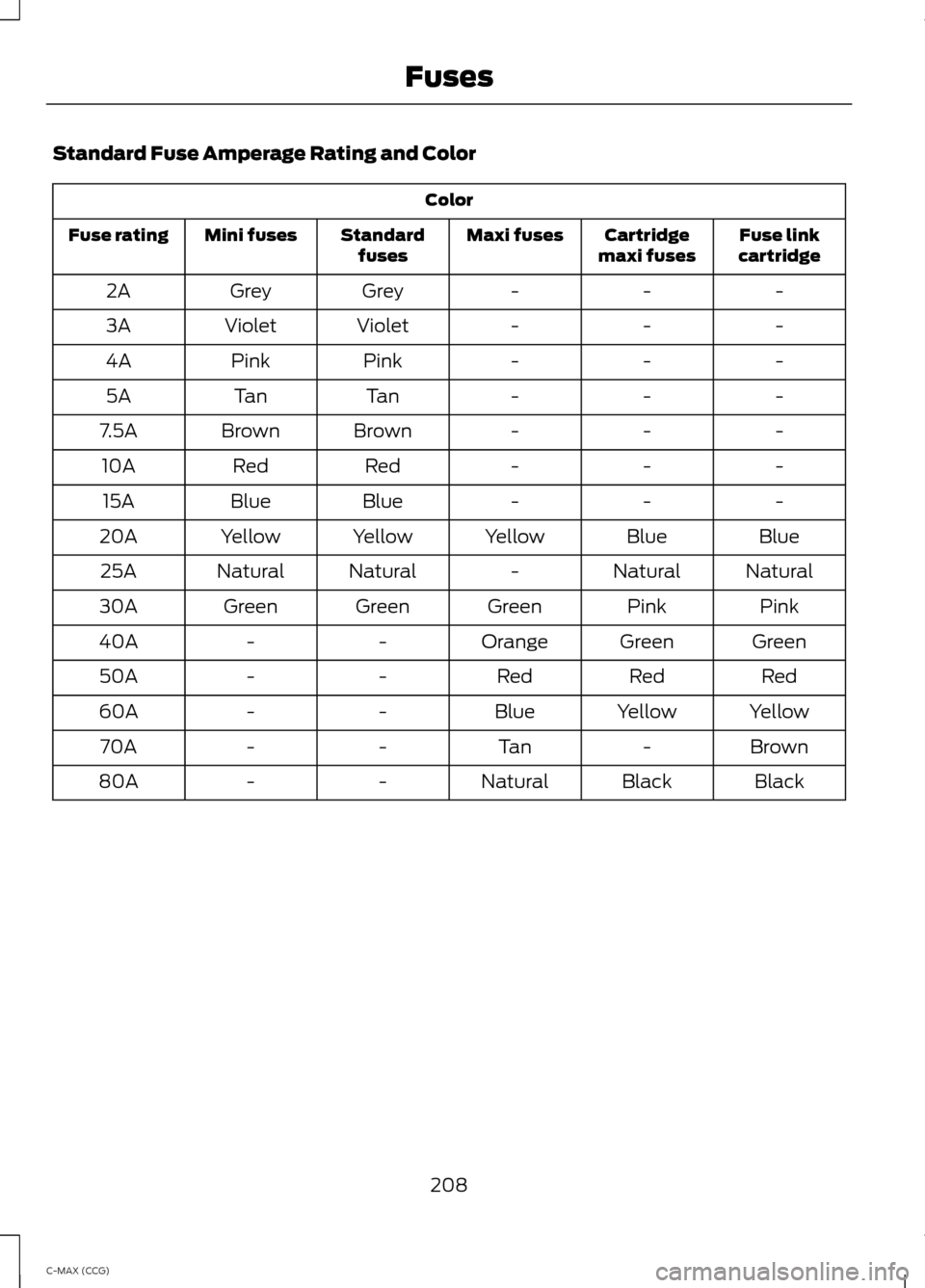

Standard Fuse Amperage Rating and Color
Color
Fuse link
cartridge
Cartridge
maxi fuses
Maxi fuses
Standard
fuses
Mini fuses
Fuse rating
-
-
-
Grey
Grey
2A
-
-
-
Violet
Violet
3A
-
-
-
Pink
Pink
4A
-
-
-
Tan
Tan
5A
-
-
-
Brown
Brown
7.5A
-
-
-
Red
Red
10A
-
-
-
Blue
Blue
15A
Blue
Blue
Yellow
Yellow
Yellow
20A
Natural
Natural
-
Natural
Natural
25A
Pink
Pink
Green
Green
Green
30A
Green
Green
Orange
-
-
40A
Red
Red
Red
-
-
50A
Yellow
Yellow
Blue
-
-
60A
Brown
-
Tan
-
-
70A
Black
Black
Natural
-
-
80A
208
C-MAX (CCG) Fuses

Engine coolant reservoir cap. See Engine Coolant Check (page 213).
A
Engine oil filler cap. See
Engine Oil Check (page 212).
B
Engine oil dipstick. See
Engine Oil Dipstick (page 212).
C
Engine air filter cover. See
Changing the Engine Air Filter (page 229).
D
Inverter system controller.
E
Brake fluid reservoir cap. See
Brake Fluid Check (page 217).
F
Power distribution box. See
Fuses (page 200).
G
Inverter system controller coolant reservoir cap.
H
Windshield washer fluid reservoir cap. See
Washer Fluid Check (page 217).
I
211
C-MAX (CCG) MaintenanceABCDEFG
HIE162485

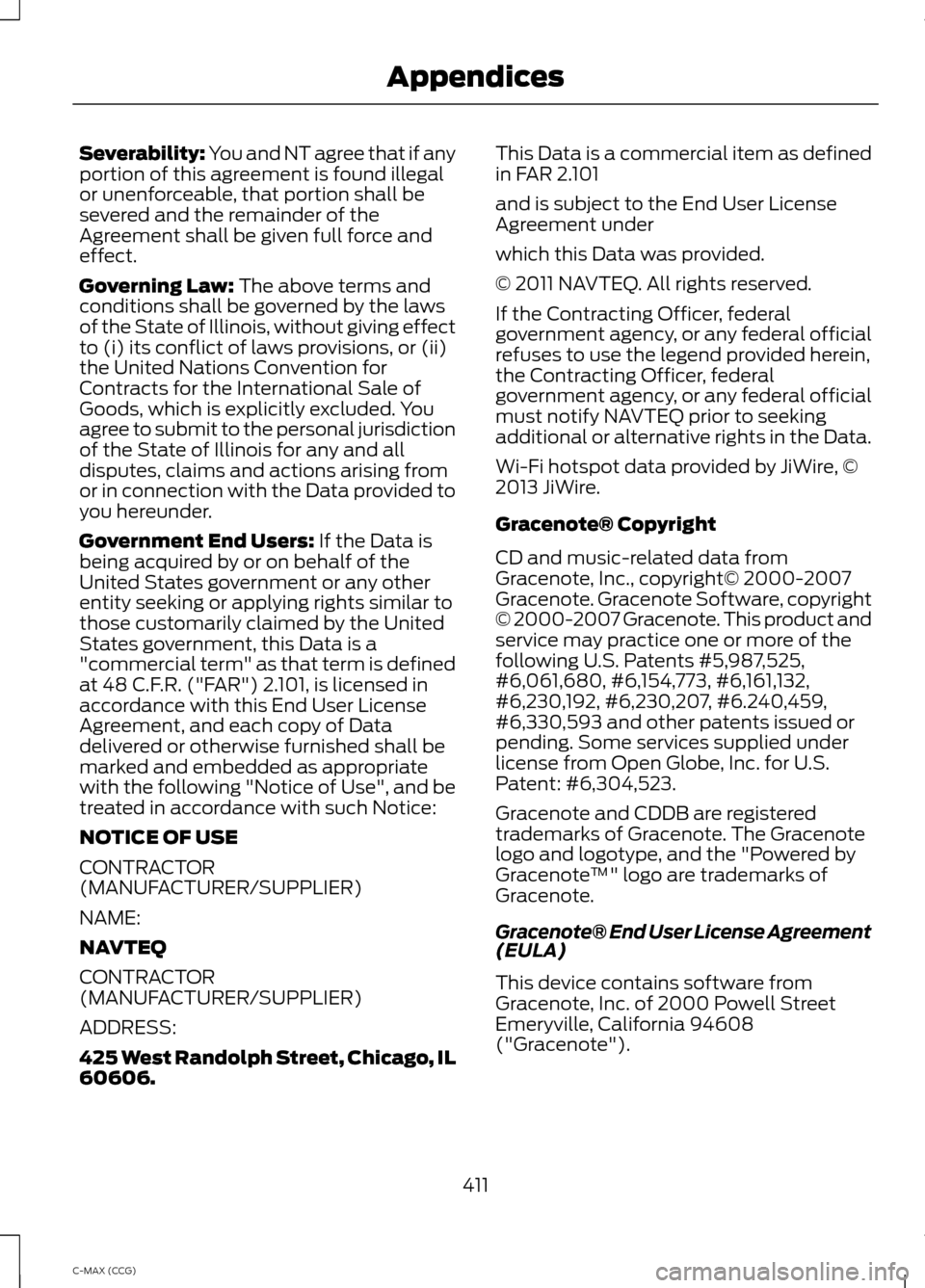

Severability: You and NT agree that if any
portion of this agreement is found illegal
or unenforceable, that portion shall be
severed and the remainder of the
Agreement shall be given full force and
effect.
Governing Law: The above terms and
conditions shall be governed by the laws
of the State of Illinois, without giving effect
to (i) its conflict of laws provisions, or (ii)
the United Nations Convention for
Contracts for the International Sale of
Goods, which is explicitly excluded. You
agree to submit to the personal jurisdiction
of the State of Illinois for any and all
disputes, claims and actions arising from
or in connection with the Data provided to
you hereunder.
Government End Users:
If the Data is
being acquired by or on behalf of the
United States government or any other
entity seeking or applying rights similar to
those customarily claimed by the United
States government, this Data is a
"commercial term" as that term is defined
at 48 C.F.R. ("FAR") 2.101, is licensed in
accordance with this End User License
Agreement, and each copy of Data
delivered or otherwise furnished shall be
marked and embedded as appropriate
with the following "Notice of Use", and be
treated in accordance with such Notice:
NOTICE OF USE
CONTRACTOR
(MANUFACTURER/SUPPLIER)
NAME:
NAVTEQ
CONTRACTOR
(MANUFACTURER/SUPPLIER)
ADDRESS:
425 West Randolph Street, Chicago, IL
60606. This Data is a commercial item as defined
in FAR 2.101
and is subject to the End User License
Agreement under
which this Data was provided.
© 2011 NAVTEQ. All rights reserved.
If the Contracting Officer, federal
government agency, or any federal official
refuses to use the legend provided herein,
the Contracting Officer, federal
government agency, or any federal official
must notify NAVTEQ prior to seeking
additional or alternative rights in the Data.
Wi-Fi hotspot data provided by JiWire, ©
2013 JiWire.
Gracenote® Copyright
CD and music-related data from
Gracenote, Inc., copyright© 2000-2007
Gracenote. Gracenote Software, copyright
© 2000-2007 Gracenote. This product and
service may practice one or more of the
following U.S. Patents #5,987,525,
#6,061,680, #6,154,773, #6,161,132,
#6,230,192, #6,230,207, #6.240,459,
#6,330,593 and other patents issued or
pending. Some services supplied under
license from Open Globe, Inc. for U.S.
Patent: #6,304,523.
Gracenote and CDDB are registered
trademarks of Gracenote. The Gracenote
logo and logotype, and the "Powered by
Gracenote
â„¢" logo are trademarks of
Gracenote.
Gracenote® End User License Agreement
(EULA)
This device contains software from
Gracenote, Inc. of 2000 Powell Street
Emeryville, California 94608
("Gracenote").
411
C-MAX (CCG) Appendices

Center Console..............................................123
Changing a Bulb...........................................222
Lamp Assembly Condensation.................... 222
Replacing Fog, Park and Turn Signal Bulbs.................................................................. 224
Replacing Headlamp Bulbs........................... 223
Replacing License Plate Lamp Bulb...........227
Replacing Reverse Lamp and Tail Lamp Bulbs:................................................................. 226
Replacing Tail, Brake and Turn Signal Bulbs.................................................................. 225
Replacing the Center High Mounted Brake Lamp Bulbs...................................................... 227
Changing a Fuse...........................................207 Fuses....................................................................... 207
Changing the 12V Battery..........................218
Changing the Engine Air Filter.................229 Identifying Air Filter Element
Components................................................... 229
Installing the Engine Air Filter Element............................................................ 230
Removing the Engine Air Filter Element
............................................................ 230
Changing the Wiper Blades......................219
Changing the Front Wiper Blades...............220
Changing the Rear Window Wiper
Blade................................................................. 220
Setting the Front Wipers in the Service Position............................................................. 220
Charging the High Voltage Battery
........148
CHARGING THE HIGH-VOLTAGE BATTERY
(ENERGI VEHICLES).................................... 148
Checking MyKey System Status..............50
Checking the Wiper Blades.......................219
Child Restraint and Safety Belt Maintenance.................................................32
Child Safety.......................................................14 General Information............................................. 14
Child Safety Locks
..........................................24
Left-Hand Side...................................................... 25
Right-Hand Side................................................... 25
Child Seat Positioning
..................................23
Cleaning Leather Seats.............................235
Cleaning Products.......................................232
Cleaning the Alloy Wheels
.......................236
Cleaning the Engine....................................233 Cleaning the Exterior
..................................232
Cleaning Plastic Exterior Parts...................... 233
Exterior Chrome.................................................. 232
Stripes or Graphics (if equipped)................232
Underbody............................................................ 233
Cleaning the Instrument Panel and Instrument Cluster Lens.........................234
Cleaning the Interior...................................234
Cleaning the Windows and Wiper Blades...........................................................234
Clearing All MyKeys.......................................50
Climate............................................................384 Climate Control Voice Commands.............385
Climate Control.............................................105
Collision, Damage or Fire Event...............191 Guidance for Ford Motor Company Electric
and Hybrid-Electric Vehicles Equipped
With High Voltage Batteries....................... 191
Coolant Check See: Engine Coolant Check............................. 213
Crash Sensors and Airbag Indicator
.........41
Creating a MyKey...........................................50
Programming/Changing Configurable
Settings............................................................... 50
Cruise Control
.................................................66
Principle of Operation........................................ 171
Cruise control See: Using Cruise Control.................................. 171
Customer Assistance
..................................194
D
Data Recording
..................................................9
Event Data Recording........................................... 9
Service Data Recording........................................ 9
Daytime Running Lamps
.............................73
Digital Radio..................................................280
HD Radio Reception and Station
Troubleshooting............................................. 281
Direction Indicators
........................................73
Driver and Passenger Airbags....................35 Children and Airbags........................................... 35
Proper Driver and Front Passenger Seating Adjustment........................................................ 35
Driver Knee Airbag.........................................39
Driving Aids
......................................................173
Driving Hints...................................................184
Driving Through Water................................185
436
C-MAX (CCG) Index

Fuel Quality.....................................................136
Choosing the Right Fuel................................... 136
Fuel Freshness Mode (Energi Vehicles Only)................................................................... 136
Octane Recommendations............................ 136
Fuel Shutoff...................................................188
Fuses................................................................200
Fuse Specification Chart..........................200 Luggage Compartment Fuse Panel...........205
Passenger Compartment Fuse
Panel................................................................. 203
Power Distribution Box................................... 200
Pre-Fuse Box...................................................... 200
G
Garage Door Opener See: Universal Garage Door Opener.............117
Gauges................................................................81 Common Displays................................................ 82
Left Information Display..................................... 81
Right Information Display.................................. 81
General Information on Radio Frequencies...................................................43
Intelligent Access................................................. 43
General Maintenance Information
.........417
Multi-point Inspection..................................... 420
Owner Checks and Services.......................... 419
Protecting Your Investment............................ 417
Why Maintain Your Vehicle?........................... 417
Why Maintain Your Vehicle at Your Dealership?...................................................... 417
Getting Assistance Outside the U.S. and Canada..........................................................197
Getting the Services You Need...............194 Away From Home.............................................. 194
Global Opening
................................................77
Opening the Windows........................................ 77
H
Handbrake See: Parking Brake.............................................. 157
Hazard Warning Flashers
..........................188
Headlamp Exit Delay.....................................73
Head Restraints.............................................110 Adjusting the Head Restraint........................... 111
Heated Seats...................................................115 Heated Windows and Mirrors..................107
Heated Exterior Mirror...................................... 108
Heated Rear Window........................................ 107
Heating See: Climate Control......................................... 105
HEV See: Hybrid Electric Vehicle............................ 129
High Voltage Battery Cut-Off Switch.............................................................151
High Voltage Battery...................................146 General Information.......................................... 146
Hill Start Assist
..............................................157
Using Hill Start Assist....................................... 158
Hints on Controlling the Interior Climate..........................................................107
General Hints........................................................ 107
Hints on Driving With Anti-Lock Brakes.............................................................157
Hood Lock See: Opening and Closing the Hood..........209
Hybrid Electric Vehicle................................129 Hybrid Vehicle Operation (C-MAX Hybrid
and C-MAX Energi)....................................... 130
Plug-in Power Mode and Hybrid Mode (C-MAX Energi Only).................................... 129
I
Ignition Switch
...............................................124
In California (U.S. Only).............................195
Information Display Control
......................66
Multimedia Controls............................................ 67
Information Displays
....................................88
General Information........................................... 88
Information.....................................................375 911 Assist................................................................ 381
Alerts...................................................................... 380
Calendar................................................................. 381
SIRIUS Travel Link.............................................. 378
SYNC Services (If Equipped, United States Only).................................................................. 375
Vehicle Health Report...................................... 383
438
C-MAX (CCG) Index
