Page 231 of 447

FORD C MAX HYBRID 2014 2.G Owners Manual CHANGING THE ENGINE AIR
FILTER
WARNING
To reduce the risk of vehicle damage
and/or personal burn injuries do not
start your engine with the air cleaner
removed and do not remove it while the
engine is

Page 232 of 447

FORD C MAX HYBRID 2014 2.G Owners Manual A. Air cleaner assembly
B. Air cleaner cover
C. Air cleaner outlet tube
D. Positive crankcase ventilation (PCV)
tube
E. Air cleaner intake tube
Removing the Engine Air Filter
Element 1.
Loosen the hos

Page 233 of 447

FORD C MAX HYBRID 2014 2.G Owners Manual 1.
Install the new engine air filter into the
engine air cleaner assembly.
2. Install the air cleaner cover (B) and tighten the 5 bolts. 3. Position the air cleaner assembly (A)
onto the engine and ma

Page 234 of 447

FORD C MAX HYBRID 2014 2.G Owners Manual GENERAL INFORMATION
Your Ford or Lincoln authorized dealer has
many quality products available to clean
your vehicle and protect its finishes.
CLEANING PRODUCTS
For best results, use the following pro

Page 235 of 447

FORD C MAX HYBRID 2014 2.G Owners Manual •
Wash your vehicle first, using cool or
lukewarm water and a neutral pH
shampoo, such as Motorcraft Detail
Wash.
• Use Motorcraft Custom Bright Metal
Cleaner. Apply the product as you
would a wax

Page 236 of 447

FORD C MAX HYBRID 2014 2.G Owners Manual •
Never wash or rinse any ignition coil,
spark plug wire or spark plug well, or
the area in and around these locations.
• Cover the battery, power distribution
box, and air filter assembly to prev

Page 237 of 447

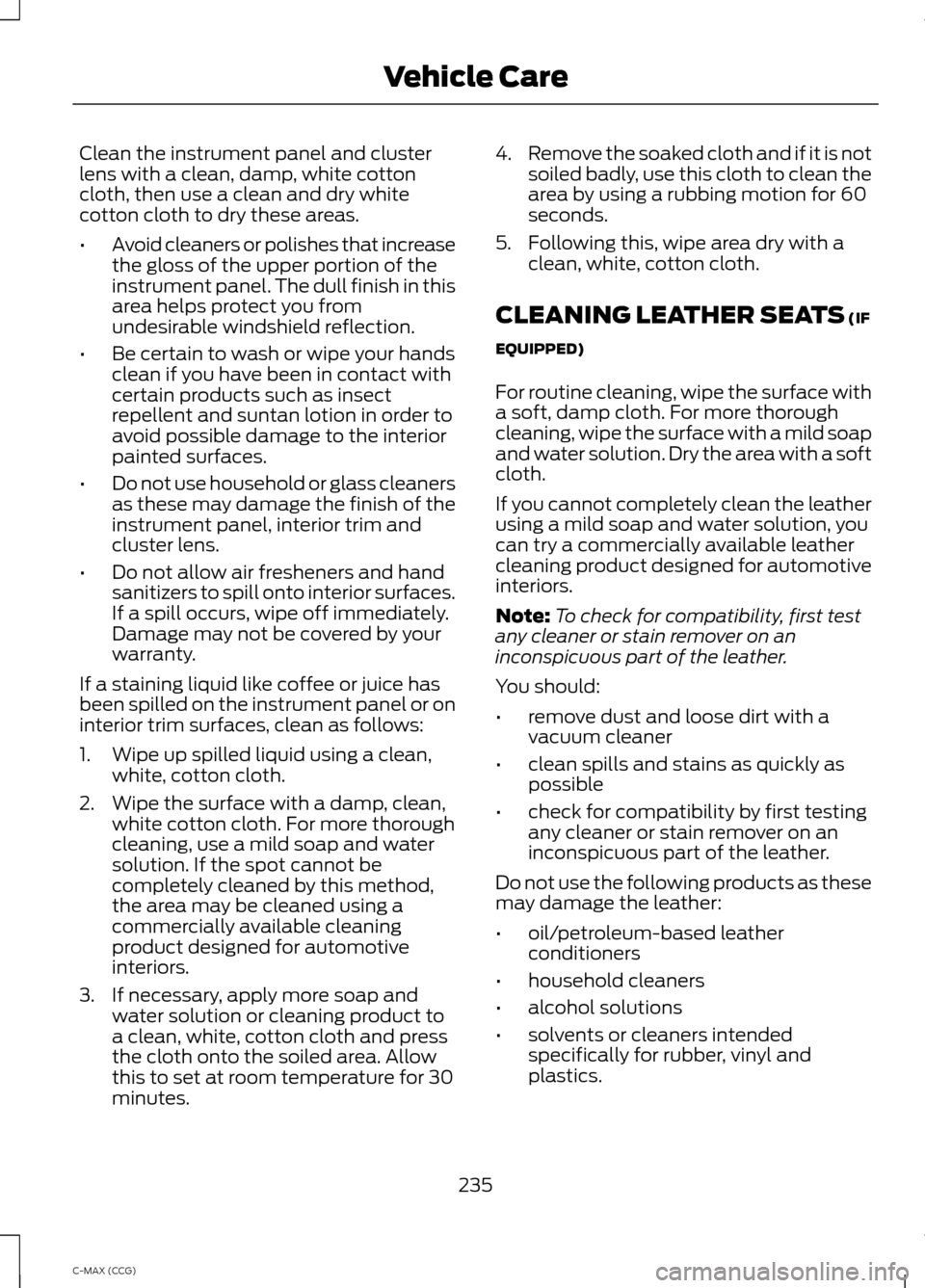

FORD C MAX HYBRID 2014 2.G Owners Manual Clean the instrument panel and cluster
lens with a clean, damp, white cotton
cloth, then use a clean and dry white
cotton cloth to dry these areas.
•
Avoid cleaners or polishes that increase
the glo

Page 238 of 447

FORD C MAX HYBRID 2014 2.G Owners Manual REPAIRING MINOR PAINT
DAMAGE
Your authorized dealer has touch-up paint
to match your vehicle
’s color. Take your
color code (printed on a sticker in the
driver ’s door jamb) to your authorized
dea

Page 239 of 447

FORD C MAX HYBRID 2014 2.G Owners Manual •
Touch-up exposed or primed metal to
prevent rust.
• Cover chrome and stainless steel parts
with a thick coat of auto wax to prevent
discoloration. Re-wax as necessary
when your vehicle is washed

Page 240 of 447

FORD C MAX HYBRID 2014 2.G Owners Manual •
Check brake pedal operation. Drive
your vehicle 15 feet (4.5 meters) back
and forth to remove rust build-up.
• Check fluid levels (including coolant,
oil and gas) to make sure there are no
leaks
