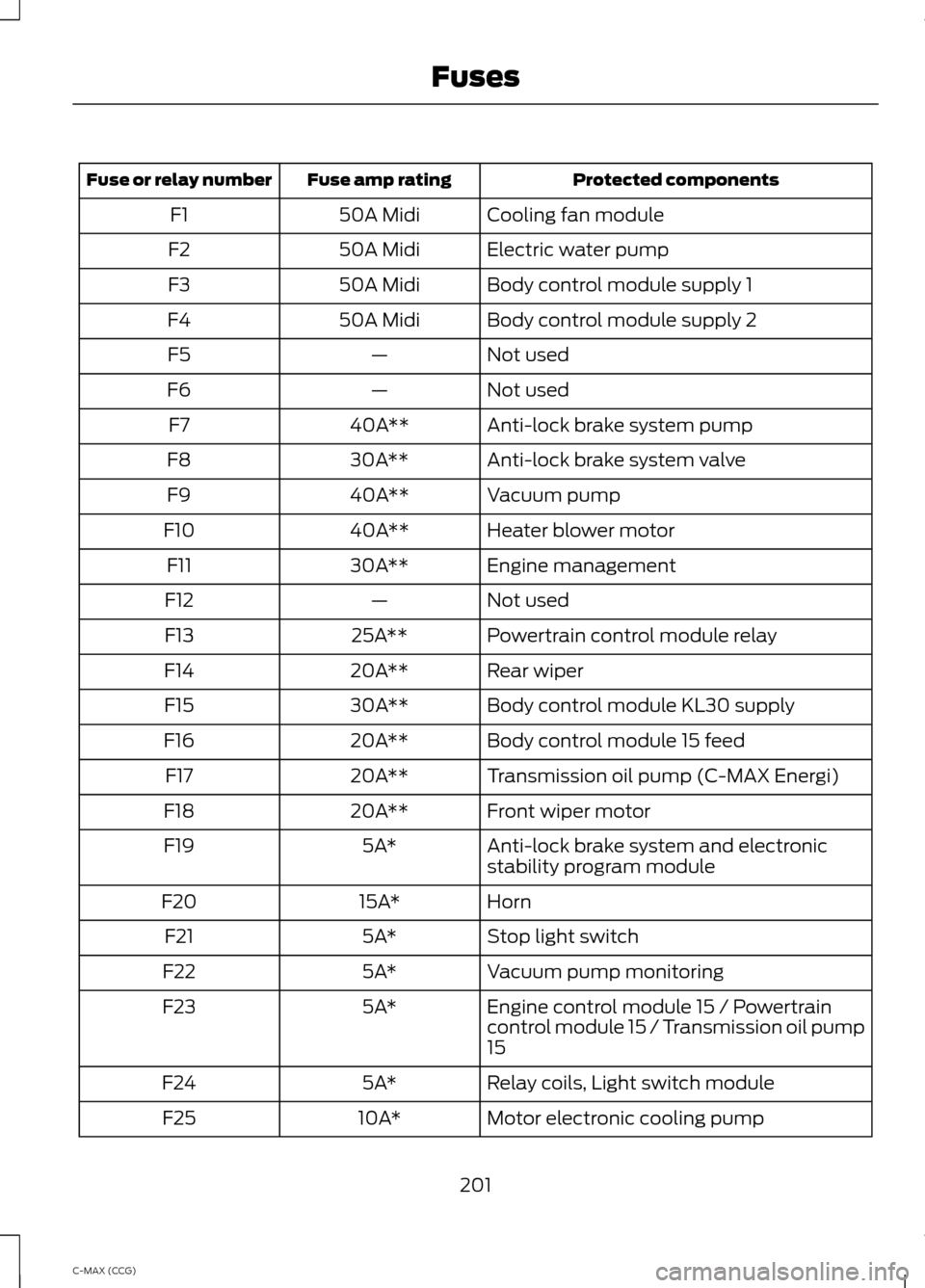

Protected components
Fuse amp rating
Fuse or relay number
Cooling fan module
50A Midi
F1
Electric water pump
50A Midi
F2
Body control module supply 1
50A Midi
F3
Body control module supply 2
50A Midi
F4
Not used
—
F5
Not used
—
F6
Anti-lock brake system pump
40A**
F7
Anti-lock brake system valve
30A**
F8
Vacuum pump
40A**
F9
Heater blower motor
40A**
F10
Engine management
30A**
F11
Not used
—
F12
Powertrain control module relay
25A**
F13
Rear wiper
20A**
F14
Body control module KL30 supply
30A**
F15
Body control module 15 feed
20A**
F16
Transmission oil pump (C-MAX Energi)
20A**
F17
Front wiper motor
20A**
F18
Anti-lock brake system and electronic
stability program module
5A*
F19
Horn
15A*
F20
Stop light switch
5A*
F21
Vacuum pump monitoring
5A*
F22
Engine control module 15 / Powertrain
control module 15 / Transmission oil pump
15
5A*
F23
Relay coils, Light switch module
5A*
F24
Motor electronic cooling pump
10A*
F25
201
C-MAX (CCG) Fuses

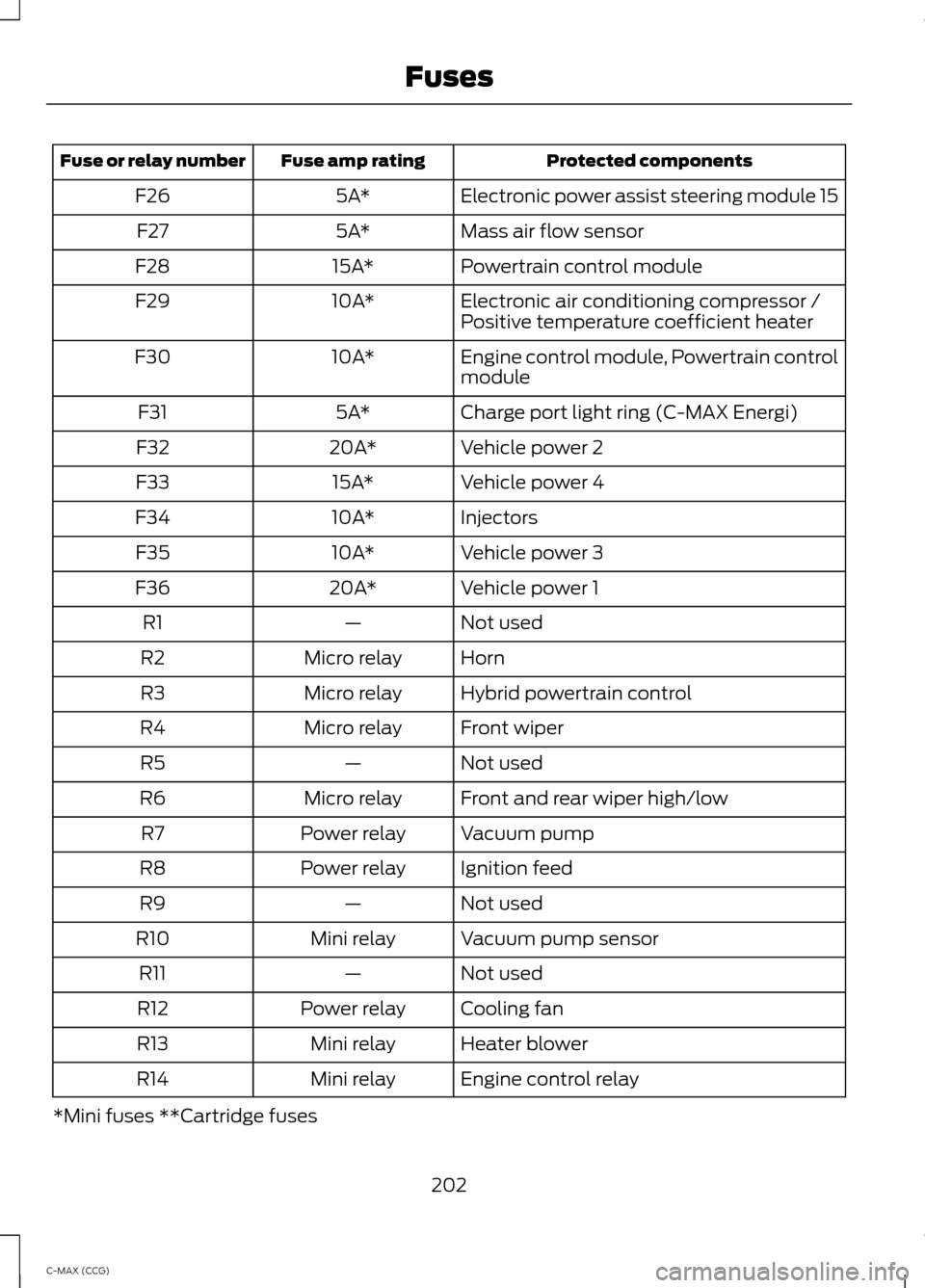

Protected components
Fuse amp rating
Fuse or relay number
Electronic power assist steering module 15
5A*
F26
Mass air flow sensor
5A*
F27
Powertrain control module
15A*
F28
Electronic air conditioning compressor /
Positive temperature coefficient heater
10A*
F29
Engine control module, Powertrain control
module
10A*
F30
Charge port light ring (C-MAX Energi)
5A*
F31
Vehicle power 2
20A*
F32
Vehicle power 4
15A*
F33
Injectors
10A*
F34
Vehicle power 3
10A*
F35
Vehicle power 1
20A*
F36
Not used
—
R1
Horn
Micro relay
R2
Hybrid powertrain control
Micro relay
R3
Front wiper
Micro relay
R4
Not used
—
R5
Front and rear wiper high/low
Micro relay
R6
Vacuum pump
Power relay
R7
Ignition feed
Power relay
R8
Not used
—
R9
Vacuum pump sensor
Mini relay
R10
Not used
—
R11
Cooling fan
Power relay
R12
Heater blower
Mini relay
R13
Engine control relay
Mini relay
R14
*Mini fuses **Cartridge fuses
202
C-MAX (CCG) Fuses

Passenger Compartment Fuse
Panel
The fuse panel is located on the right-hand
side below the glove box. You may need
to remove a trim panel to access it. Protected components
Fuse amp rating
Fuse or relay number
Fuel pump supply
20A
F56
Not used
—
F57
Not used (spare)
5A
F58
Passive anti-theft system
5A
F59
203
C-MAX (CCG) FusesE129926

Protected components
Fuse amp rating
Fuse or relay number
Interior light, Driver door switch pack, Glove
box illumination, Overhead console switch
bank
10A
F60
Cigar lighter, Second row power point
20A
F61
Autowipers module, Auto-dimming rear
view mirror
5A
F62
Not used (spare)
10A
F63
Not used
—
F64
Liftgate release
10A
F65
Driver door unlock supply
20A
F66
Cell phone passport (C-MAX Energi), Multi-
function display, GPS module, SYNC
7.5A
F67
Not used (spare)
15A
F68
Instrument cluster
5A
F69
Central lock and unlock supply
20A
F70
Heating control head (manual air condi-
tioner), Climate control module
10A
F71
Steering wheel module
7.5A
F72
Data link connector, OBD II supply
7.5A
F73
Headlamp supply
15A
F74
Fog lamp supply
15A
F75
Reversing lamp supply
10A
F76
Washer pump
20A
F77
Ignition switch, Start button
5A
F78
Radio, Hazard light switch
15A
F79
Not used (spare)
20A
F80
Power sun shade, Remote receiver antenna
5A
F81
Washer pump ground
20A
F82
Central locking ground
20A
F83
204
C-MAX (CCG) Fuses

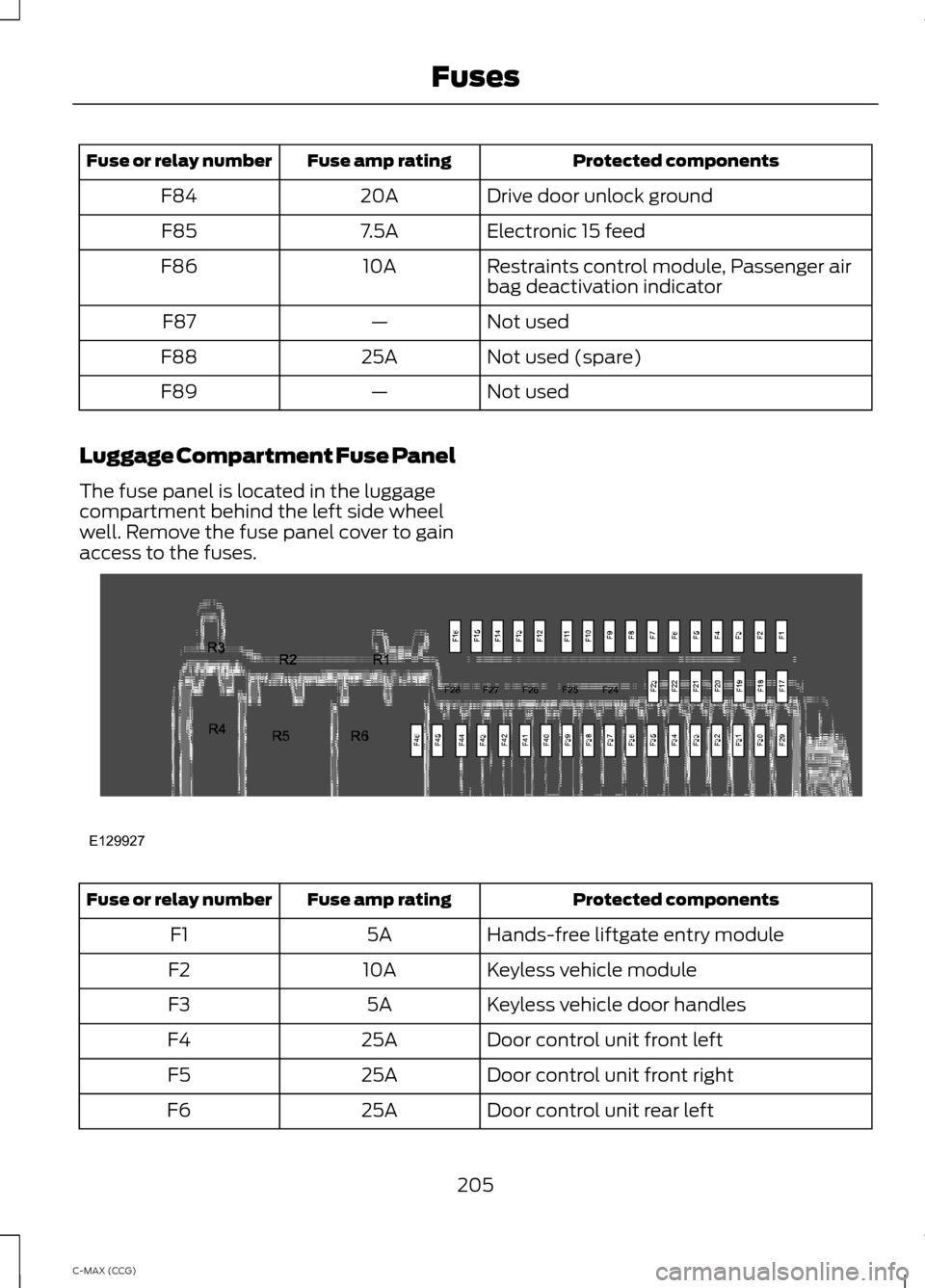

Protected components
Fuse amp rating
Fuse or relay number
Drive door unlock ground
20A
F84
Electronic 15 feed
7.5A
F85
Restraints control module, Passenger air
bag deactivation indicator
10A
F86
Not used
—
F87
Not used (spare)
25A
F88
Not used
—
F89
Luggage Compartment Fuse Panel
The fuse panel is located in the luggage
compartment behind the left side wheel
well. Remove the fuse panel cover to gain
access to the fuses. Protected components
Fuse amp rating
Fuse or relay number
Hands-free liftgate entry module
5A
F1
Keyless vehicle module
10A
F2
Keyless vehicle door handles
5A
F3
Door control unit front left
25A
F4
Door control unit front right
25A
F5
Door control unit rear left
25A
F6
205
C-MAX (CCG) FusesE129927

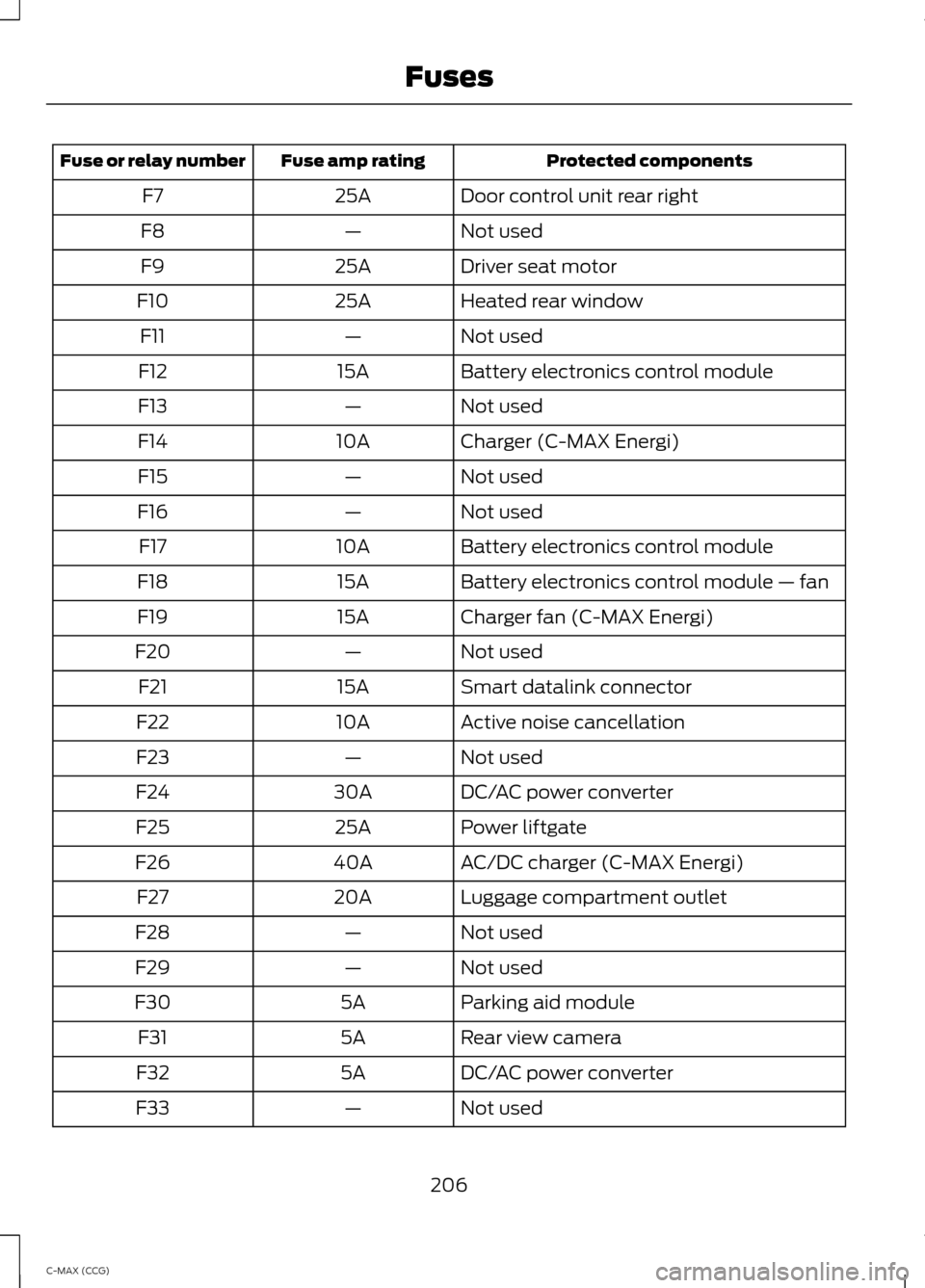

Protected components
Fuse amp rating
Fuse or relay number
Door control unit rear right
25A
F7
Not used
—
F8
Driver seat motor
25A
F9
Heated rear window
25A
F10
Not used
—
F11
Battery electronics control module
15A
F12
Not used
—
F13
Charger (C-MAX Energi)
10A
F14
Not used
—
F15
Not used
—
F16
Battery electronics control module
10A
F17
Battery electronics control module — fan
15A
F18
Charger fan (C-MAX Energi)
15A
F19
Not used
—
F20
Smart datalink connector
15A
F21
Active noise cancellation
10A
F22
Not used
—
F23
DC/AC power converter
30A
F24
Power liftgate
25A
F25
AC/DC charger (C-MAX Energi)
40A
F26
Luggage compartment outlet
20A
F27
Not used
—
F28
Not used
—
F29
Parking aid module
5A
F30
Rear view camera
5A
F31
DC/AC power converter
5A
F32
Not used
—
F33
206
C-MAX (CCG) Fuses

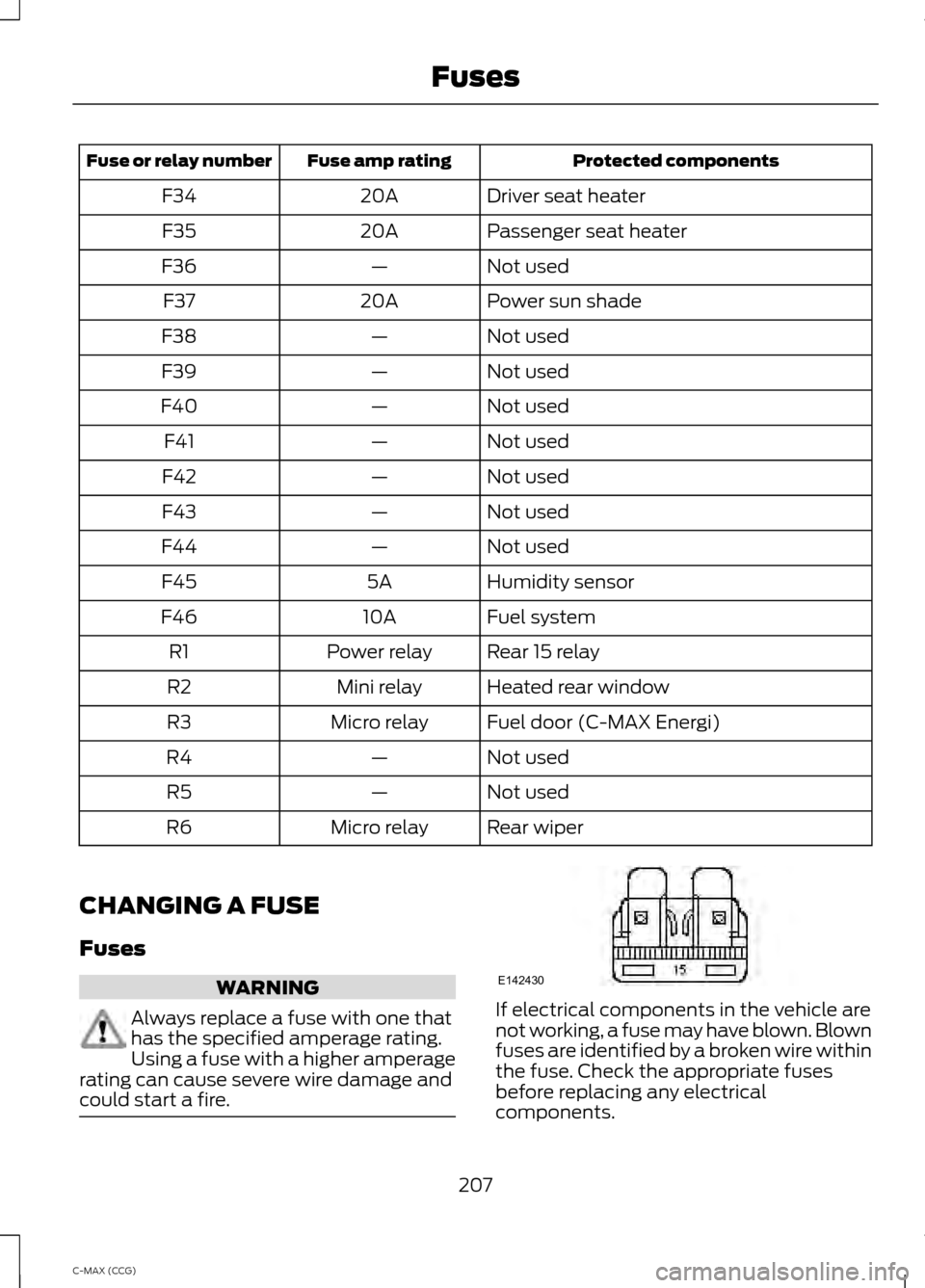

Protected components
Fuse amp rating
Fuse or relay number
Driver seat heater
20A
F34
Passenger seat heater
20A
F35
Not used
—
F36
Power sun shade
20A
F37
Not used
—
F38
Not used
—
F39
Not used
—
F40
Not used
—
F41
Not used
—
F42
Not used
—
F43
Not used
—
F44
Humidity sensor
5A
F45
Fuel system
10A
F46
Rear 15 relay
Power relay
R1
Heated rear window
Mini relay
R2
Fuel door (C-MAX Energi)
Micro relay
R3
Not used
—
R4
Not used
—
R5
Rear wiper
Micro relay
R6
CHANGING A FUSE
Fuses WARNING
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire. If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
207
C-MAX (CCG) FusesE142430
