FUSE SPECIFICATION CHART
Pre-Fuse Box
Your vehicle has a pre-fuse box attached
to the power distribution box. There is a
second pre-fuse box attached to the
12-volt battery terminal in the rear of your
vehicle. They contain high-current fuses.
If you need to replace one of these fuses,
see an authorized dealer.
Power Distribution Box
WARNINGS
Always disconnect the battery before
servicing high current fuses. WARNINGS
To reduce risk of electrical shock,
always replace the cover to the
power distribution box before
reconnecting the battery or refilling fluid
reservoirs. The power distribution box is located in
the engine compartment. It has
high-current fuses that protect your
vehicle's main electrical systems from
overloads.
If you disconnect and reconnect the
battery, you will need to reset some
features. See Changing the 12V Battery
(page 233).
Lift the release lever at the rear of the cover
to remove it. 211
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing FusesE162196

Protected components
Fuse amp rating
Fuse or relay number
Ignition feed.
Power relay
R8
Not used.
—
R9
Not used.
—
R10
Not used.
—
R11
Cooling fan.
Power relay
R12
Heater blower.
Mini relay
R13
Engine control relay.
Mini relay
R14
1 Mini fuse.
2 Cartridge fuse.
Passenger Compartment Fuse
Panel
The fuse panel is located on the right-hand
side below the glove box. You may need
to remove a trim panel to access it.
214
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Fuel pump supply.
20A
F56
Not used.
—
F57
Not used (spare).
5A
F58
Passive anti-theft system.
5A
F59
Interior light.
10A
F60
Driver door switch pack.
Glove box illumination.
Overhead console switch bank.
215
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing FusesE129926

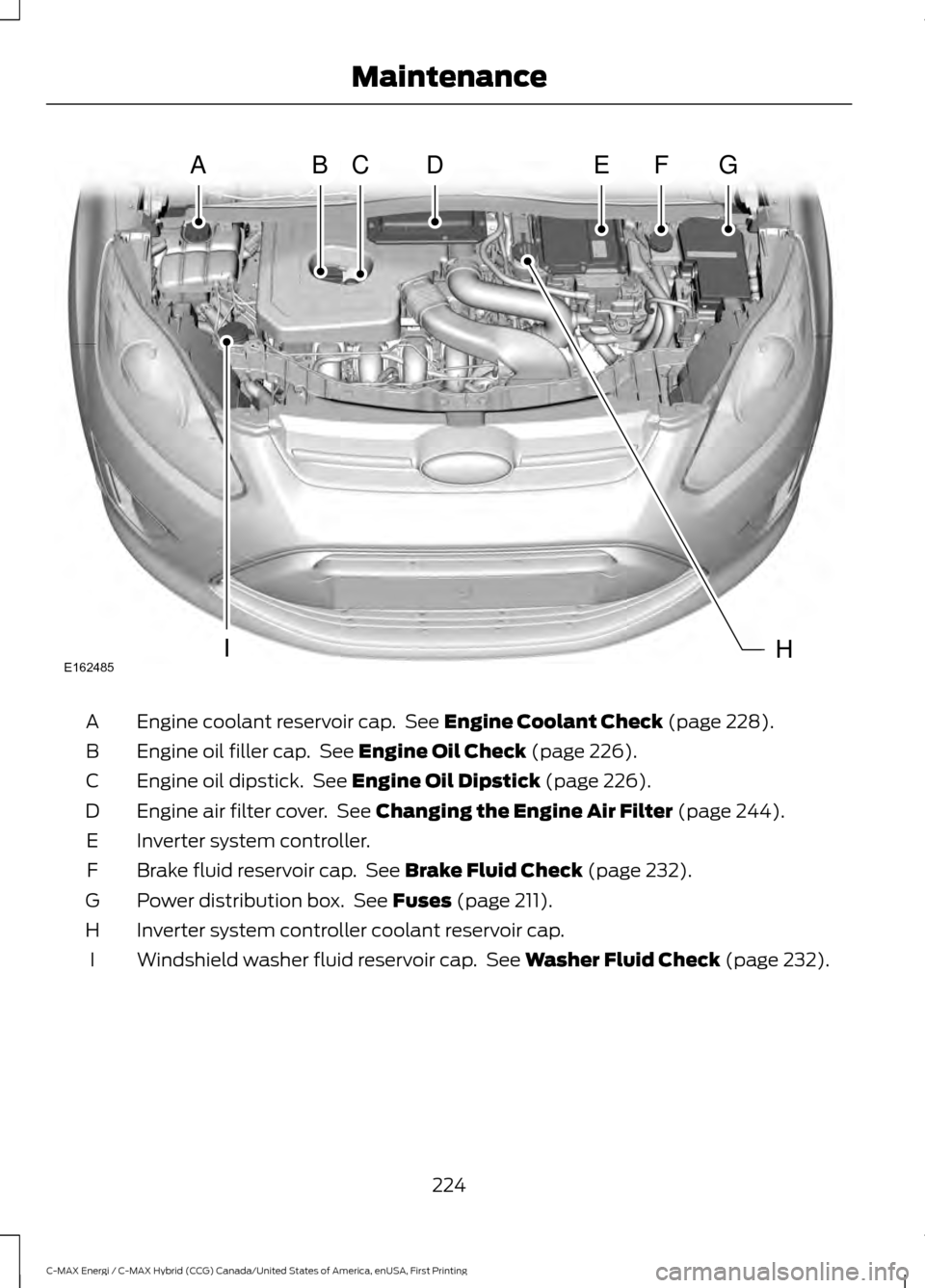

Engine coolant reservoir cap. See Engine Coolant Check (page 228).
A
Engine oil filler cap. See
Engine Oil Check (page 226).
B
Engine oil dipstick. See
Engine Oil Dipstick (page 226).
C
Engine air filter cover. See
Changing the Engine Air Filter (page 244).
D
Inverter system controller.
E
Brake fluid reservoir cap. See
Brake Fluid Check (page 232).
F
Power distribution box. See
Fuses (page 211).
G
Inverter system controller coolant reservoir cap.
H
Windshield washer fluid reservoir cap. See
Washer Fluid Check (page 232).
I
224
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing MaintenanceABCDEFG
HIE162485

Brake fluid reservoir cap. See Brake Fluid Check (page 232).
F
Power distribution box. See
Fuses (page 211).
G
Inverter system controller coolant reservoir cap.
H
Windshield washer fluid reservoir cap. See
Washer Fluid Check (page 232).
I
ENGINE OIL DIPSTICK MINA
MAX
B
ENGINE OIL CHECK
Check the level before starting the engine
and make sure that the level is between
the MIN and the MAX marks.
1. Make sure that your vehicle is on level ground.
2. Switch the engine off and wait 10 minutes for the oil to drain into the oil
pan.
3. Remove the dipstick and wipe it with a clean, lint-free cloth. Replace the
dipstick and remove it again to check
the oil level.
If the oil level is at the minimum mark, add
oil immediately. Adding Engine Oil
Note:
Do not remove the filler cap when
the engine is running.
Note: Do not add oil further than the MAX
mark. Oil levels above the MAX mark may
cause engine damage. Only use oils certified for gasoline engines
by the American Petroleum Institute (API).
An oil with this trademark symbol
conforms to the current engine and
emission system protection standards and
fuel economy requirements of the
International Lubricants Specification
Advisory Council (ILSAC), comprised of
U.S. and Japanese automobile
manufacturers.
1. Remove the filler cap.
2. Add engine oil that meets the Ford
specifications. See
Capacities and
Specifications (page 282).
3. Wipe off any spilled oil.
4. Replace the filler cap. Turn it until you feel a strong resistance.
226
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing MaintenanceAB
E169062 E142732

Event Data Recording
See: Data Recording.............................................. 9
Export Unique Options..................................13
Exterior Mirrors................................................79
Blind Spot Information System....................... 81
Fold-Away Exterior Mirrors.............................. 80
Heated Exterior Mirrors...................................... 80
Integrated Blind Spot Mirrors.......................... 80
Power Exterior Mirrors........................................ 79
Puddle Lamps....................................................... 80
Signal Indicator Mirrors..................................... 80
F
Fastening the Seatbelts
................................31
Seatbelt Locking Modes.................................... 32
Using Seatbelts During Pregnancy.................31
Flat Tire Inflation See: Tire Sealant and Inflator Kit.................255
Floor Mats.......................................................195
Fog Lamps - Front See: Front Fog Lamps......................................... 76
Ford Credit
..........................................................11
US Only...................................................................... 11
Ford Protect
...................................................439
Ford Protect Extended Service Plan
(CANADA ONLY).......................................... 440
Ford Protect Extended Service Plans (U.S. Only).................................................................. 439
Front Fog Lamps............................................76
Front Parking Aid..........................................169
Front Passenger Sensing System............40
Fuel and Refueling.......................................142
Fuel Consumption
.......................................148
Calculating Fuel Economy.............................. 148
Filling the Fuel Tank........................................... 148
Fuel Filler Funnel Location........................144
Fuel Filter
........................................................233
Fuel Quality.....................................................143 Choosing the Right Fuel................................... 143
Fuel Freshness Mode........................................ 143
Fuel Shutoff...................................................198
Fuses...................................................................211
Fuse Specification Chart
.............................211
Luggage Compartment Fuse Panel.............217
Passenger Compartment Fuse Panel.........214
Power Distribution Box...................................... 211
Pre-Fuse Box......................................................... 211G
Garage Door Opener
See: Universal Garage Door Opener.............121
Gauges...............................................................84 Left Information Display.................................... 84
Right Information Display................................. 86
General Information on Radio Frequencies...................................................47
Intelligent Access.................................................. 47
General Maintenance Information
........441
Multi-point Inspection..................................... 444
Owner Checks and Services.......................... 443
Protecting Your Investment............................ 441
Why Maintain Your Vehicle?.......................... 441
Why Maintain Your Vehicle at Your Dealership?...................................................... 441
Getting Assistance Outside the U.S. and Canada.........................................................207
Getting the Services You Need..............204 Away From Home............................................. 204
Global Opening
...............................................79
Opening the Windows........................................ 79
H
Handbrake See: Parking Brake............................................. 163
Hazard Warning Flashers..........................198
Headlamp Adjusting See: Adjusting the Headlamps..................... 236
Headlamp Exit Delay.....................................75
Headlamp Removal See: Removing a Headlamp.......................... 238
Head Restraints
..............................................114
Adjusting the Head Restraint.......................... 115
Heated Seats
.................................................120
Heated Windows and Mirrors....................112
Heated Exterior Mirrors...................................... 113
Heated Rear Window......................................... 112
Heating See: Climate Control......................................... 109
High Voltage Battery Cut-Off Switch............................................................158
High Voltage Battery....................................151 General Information........................................... 151
Hill Start Assist..............................................163 Switching the System On and Off...............164
488
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing Index
