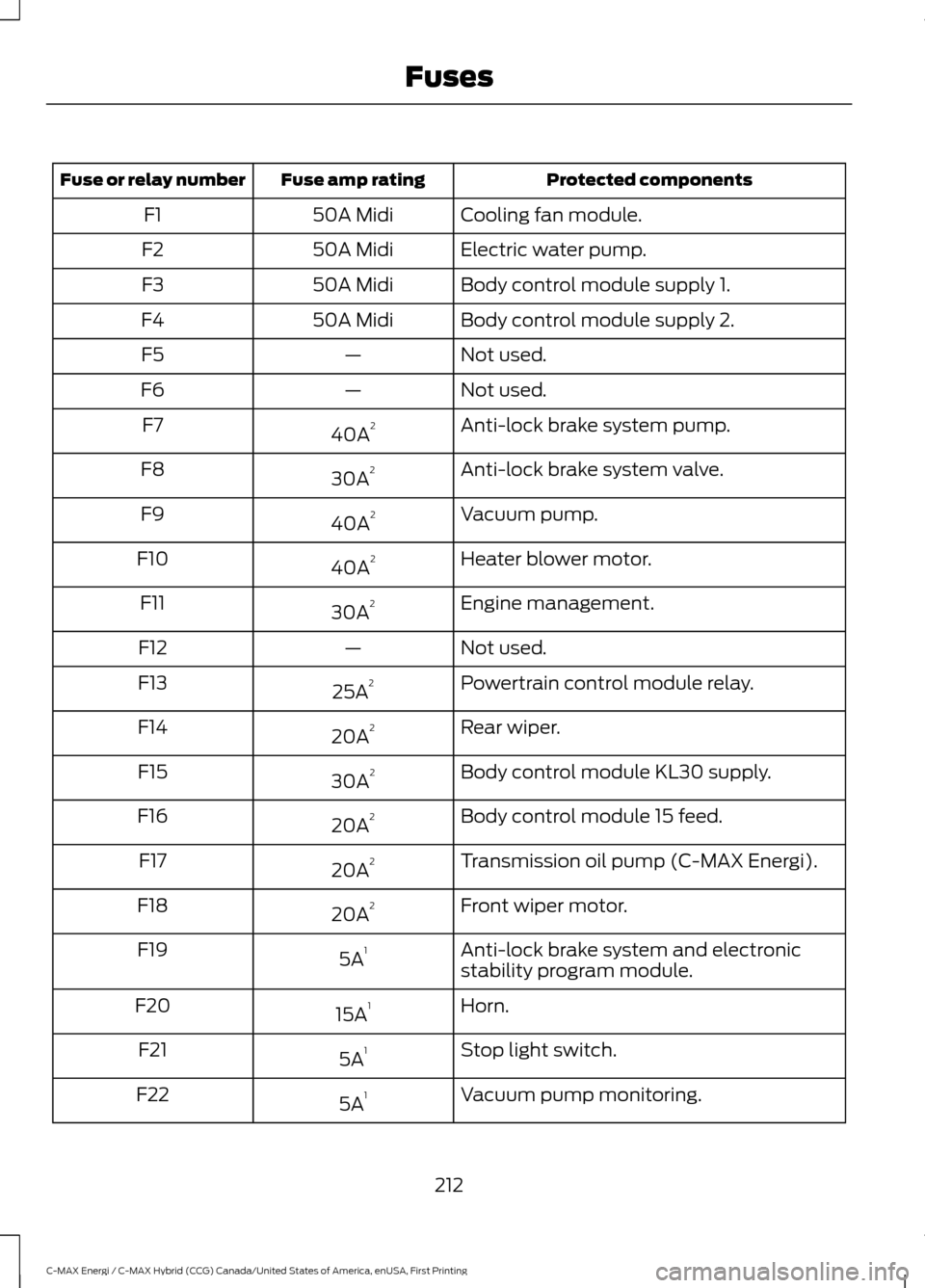

Protected components
Fuse amp rating
Fuse or relay number
Cooling fan module.
50A Midi
F1
Electric water pump.
50A Midi
F2
Body control module supply 1.
50A Midi
F3
Body control module supply 2.
50A Midi
F4
Not used.
—
F5
Not used.
—
F6
Anti-lock brake system pump.
40A 2
F7
Anti-lock brake system valve.
30A 2
F8
Vacuum pump.
40A 2
F9
Heater blower motor.
40A 2
F10
Engine management.
30A 2
F11
Not used.
—
F12
Powertrain control module relay.
25A 2
F13
Rear wiper.
20A 2
F14
Body control module KL30 supply.
30A 2
F15
Body control module 15 feed.
20A 2
F16
Transmission oil pump (C-MAX Energi).
20A 2
F17
Front wiper motor.
20A 2
F18
Anti-lock brake system and electronic
stability program module.
5A 1
F19
Horn.
15A 1
F20
Stop light switch.
5A 1
F21
Vacuum pump monitoring.
5A 1
F22
212
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing Fuses

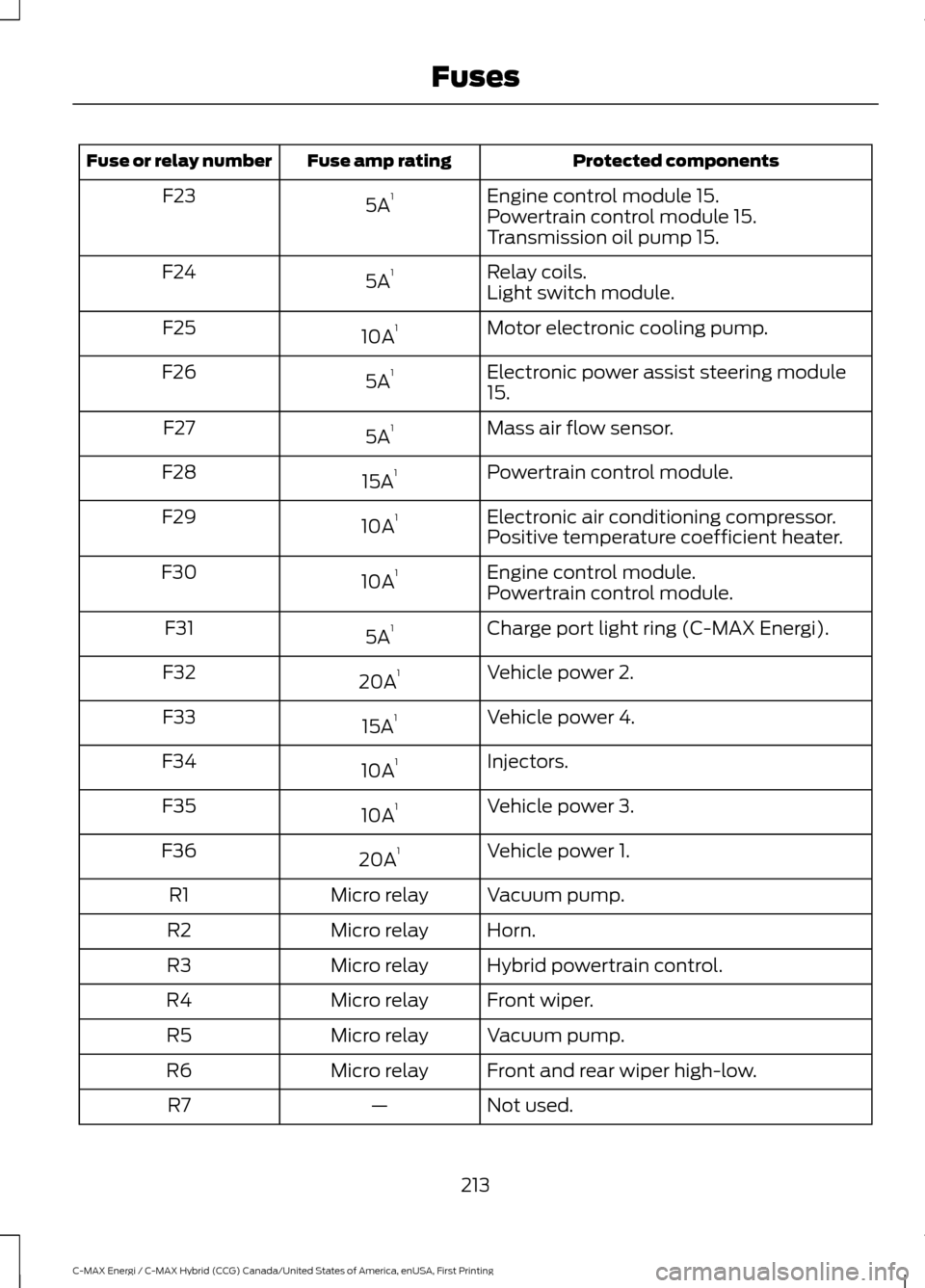

Protected components
Fuse amp rating
Fuse or relay number
Engine control module 15.
5A 1
F23
Powertrain control module 15.
Transmission oil pump 15.
Relay coils.
5A 1
F24
Light switch module.
Motor electronic cooling pump.
10A 1
F25
Electronic power assist steering module
15.
5A 1
F26
Mass air flow sensor.
5A 1
F27
Powertrain control module.
15A 1
F28
Electronic air conditioning compressor.
10A 1
F29
Positive temperature coefficient heater.
Engine control module.
10A 1
F30
Powertrain control module.
Charge port light ring (C-MAX Energi).
5A 1
F31
Vehicle power 2.
20A 1
F32
Vehicle power 4.
15A 1
F33
Injectors.
10A 1
F34
Vehicle power 3.
10A 1
F35
Vehicle power 1.
20A 1
F36
Vacuum pump.
Micro relay
R1
Horn.
Micro relay
R2
Hybrid powertrain control.
Micro relay
R3
Front wiper.
Micro relay
R4
Vacuum pump.
Micro relay
R5
Front and rear wiper high-low.
Micro relay
R6
Not used.
—
R7
213
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing Fuses

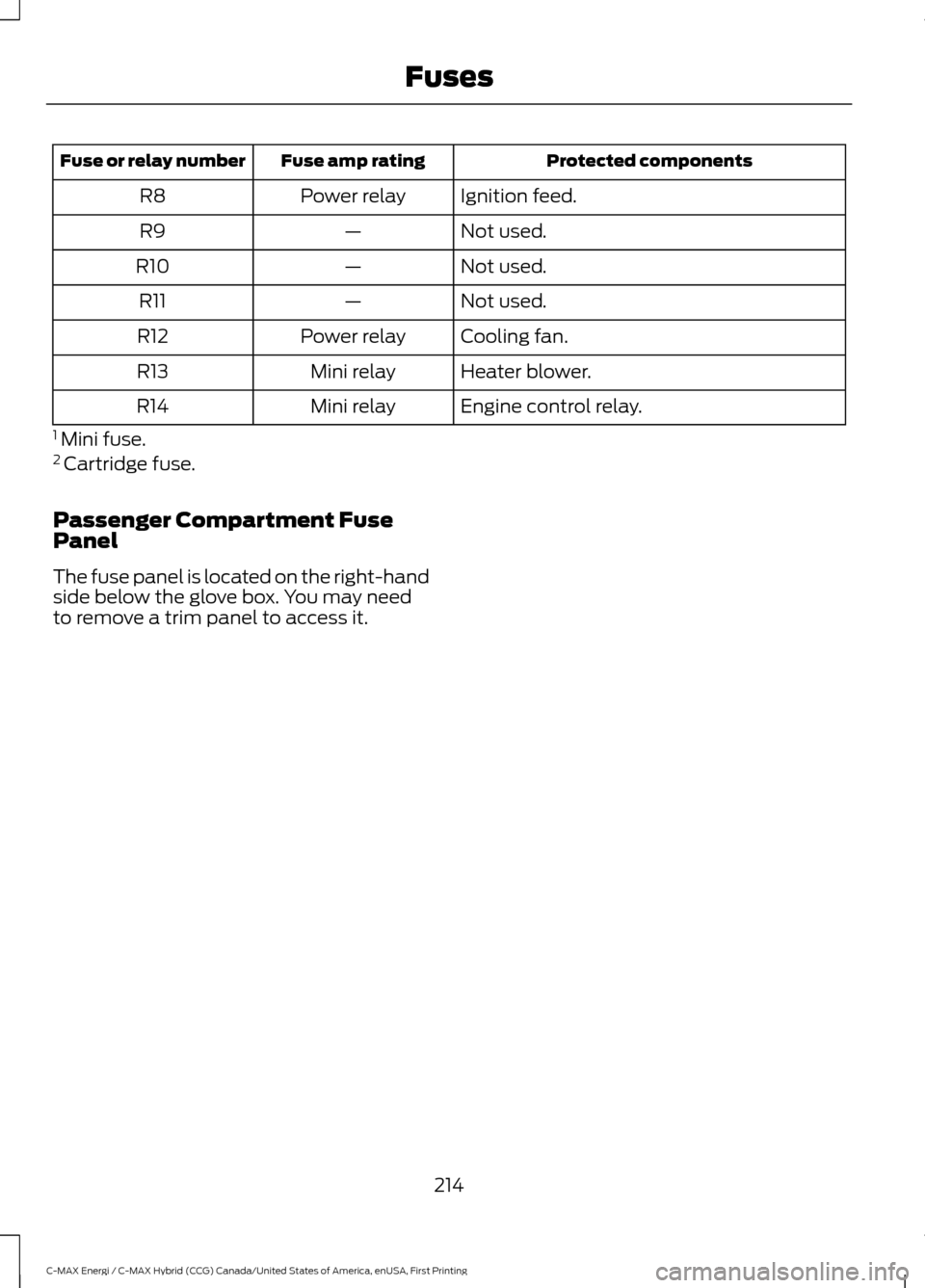

Protected components
Fuse amp rating
Fuse or relay number
Ignition feed.
Power relay
R8
Not used.
—
R9
Not used.
—
R10
Not used.
—
R11
Cooling fan.
Power relay
R12
Heater blower.
Mini relay
R13
Engine control relay.
Mini relay
R14
1 Mini fuse.
2 Cartridge fuse.
Passenger Compartment Fuse
Panel
The fuse panel is located on the right-hand
side below the glove box. You may need
to remove a trim panel to access it.
214
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing Fuses

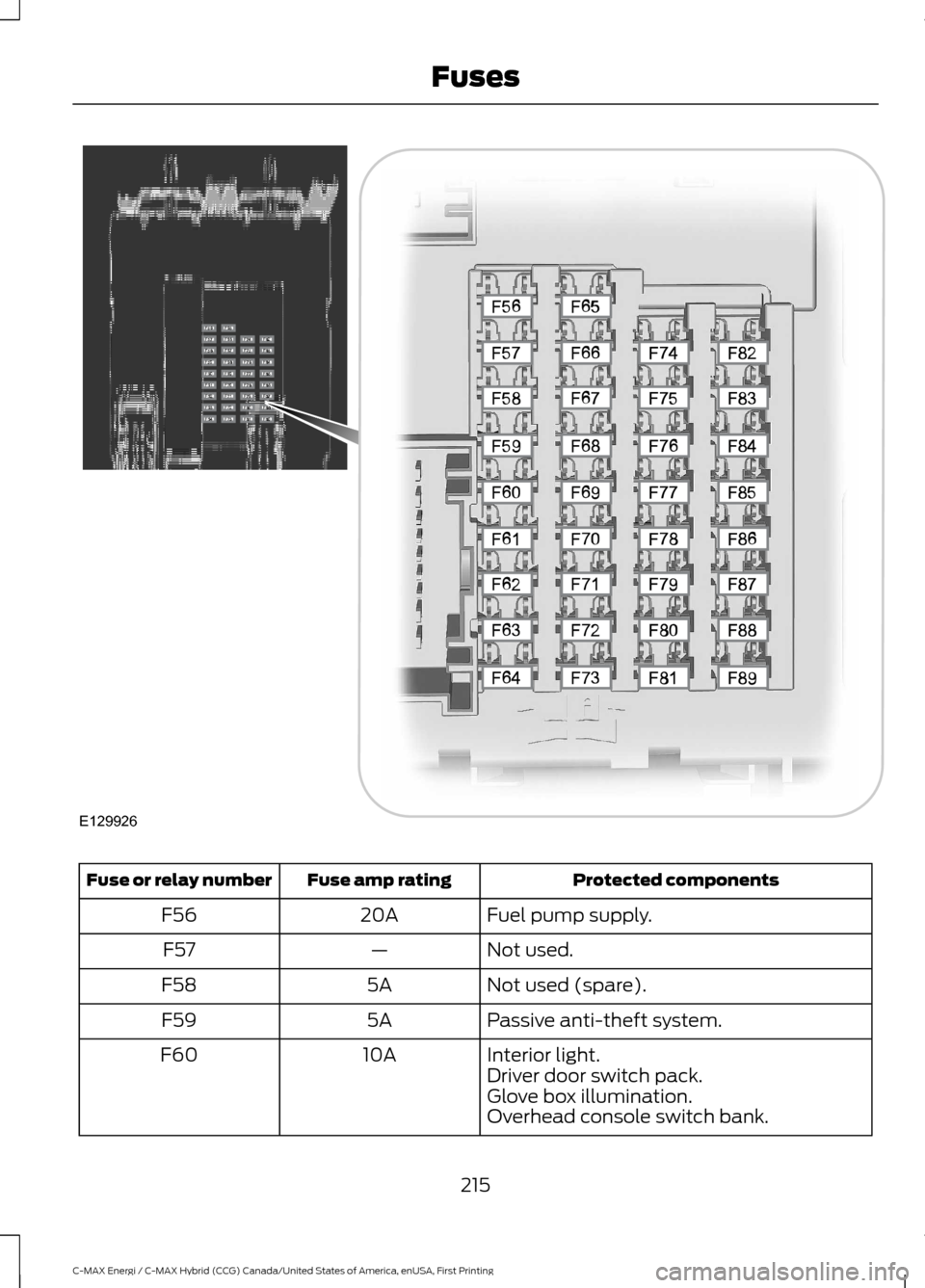

Protected components
Fuse amp rating
Fuse or relay number
Fuel pump supply.
20A
F56
Not used.
—
F57
Not used (spare).
5A
F58
Passive anti-theft system.
5A
F59
Interior light.
10A
F60
Driver door switch pack.
Glove box illumination.
Overhead console switch bank.
215
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing FusesE129926

Protected components
Fuse amp rating
Fuse or relay number
Cigar lighter.
20A
F61
Second row power point.
Autowiper module.
5A
F62
Autodimming rear view mirror.
Not used (spare).
10A
F63
Not used.
—
F64
Liftgate release.
10A
F65
Driver door unlock supply.
20A
F66
Cell phone passport (C-MAX Energi).
7.5A
F67
Multi-function display.
GPS module.
Sync.
Not used (spare).
15A
F68
Instrument cluster.
5A
F69
Central lock and unlock supply.
20A
F70
Climate control module.
7.5A
F71
Steering wheel module.
7.5A
F72
Data link connector.
7.5A
F73
OBD II supply.
Headlamp supply.
15A
F74
Fog lamp supply.
15A
F75
Reversing lamp supply.
10A
F76
Washer pump.
20A
F77
Ignition switch, Start button.
5A
F78
Radio.
15A
F79
Hazard light switch.
Not used (spare).
20A
F80
Power sun shade.
5A
F81
Remote receiver antenna.
Washer pump ground.
20A
F82
216
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing Fuses

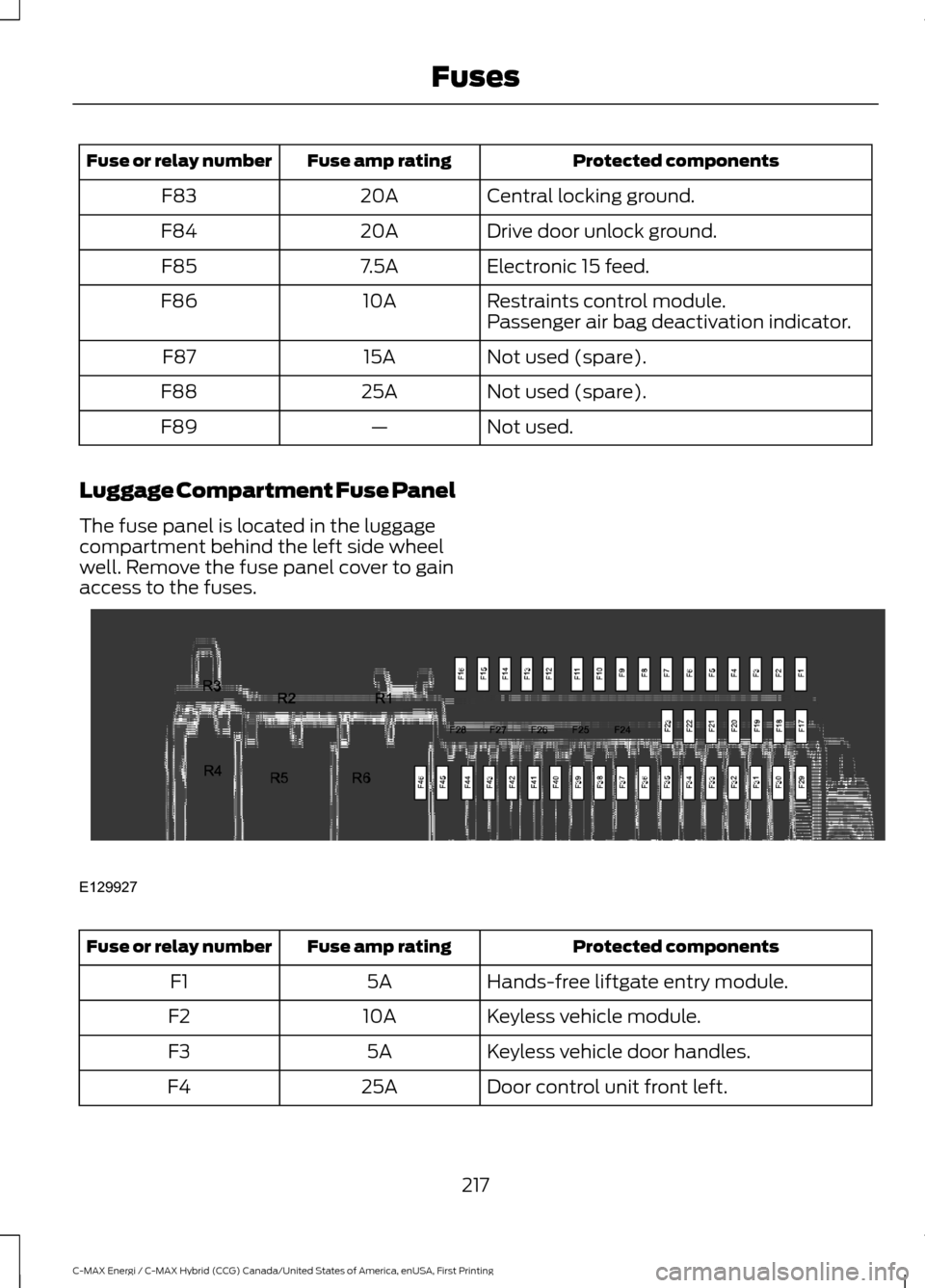

Protected components
Fuse amp rating
Fuse or relay number
Central locking ground.
20A
F83
Drive door unlock ground.
20A
F84
Electronic 15 feed.
7.5A
F85
Restraints control module.
10A
F86
Passenger air bag deactivation indicator.
Not used (spare).
15A
F87
Not used (spare).
25A
F88
Not used.
—
F89
Luggage Compartment Fuse Panel
The fuse panel is located in the luggage
compartment behind the left side wheel
well. Remove the fuse panel cover to gain
access to the fuses. Protected components
Fuse amp rating
Fuse or relay number
Hands-free liftgate entry module.
5A
F1
Keyless vehicle module.
10A
F2
Keyless vehicle door handles.
5A
F3
Door control unit front left.
25A
F4
217
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing FusesE129927

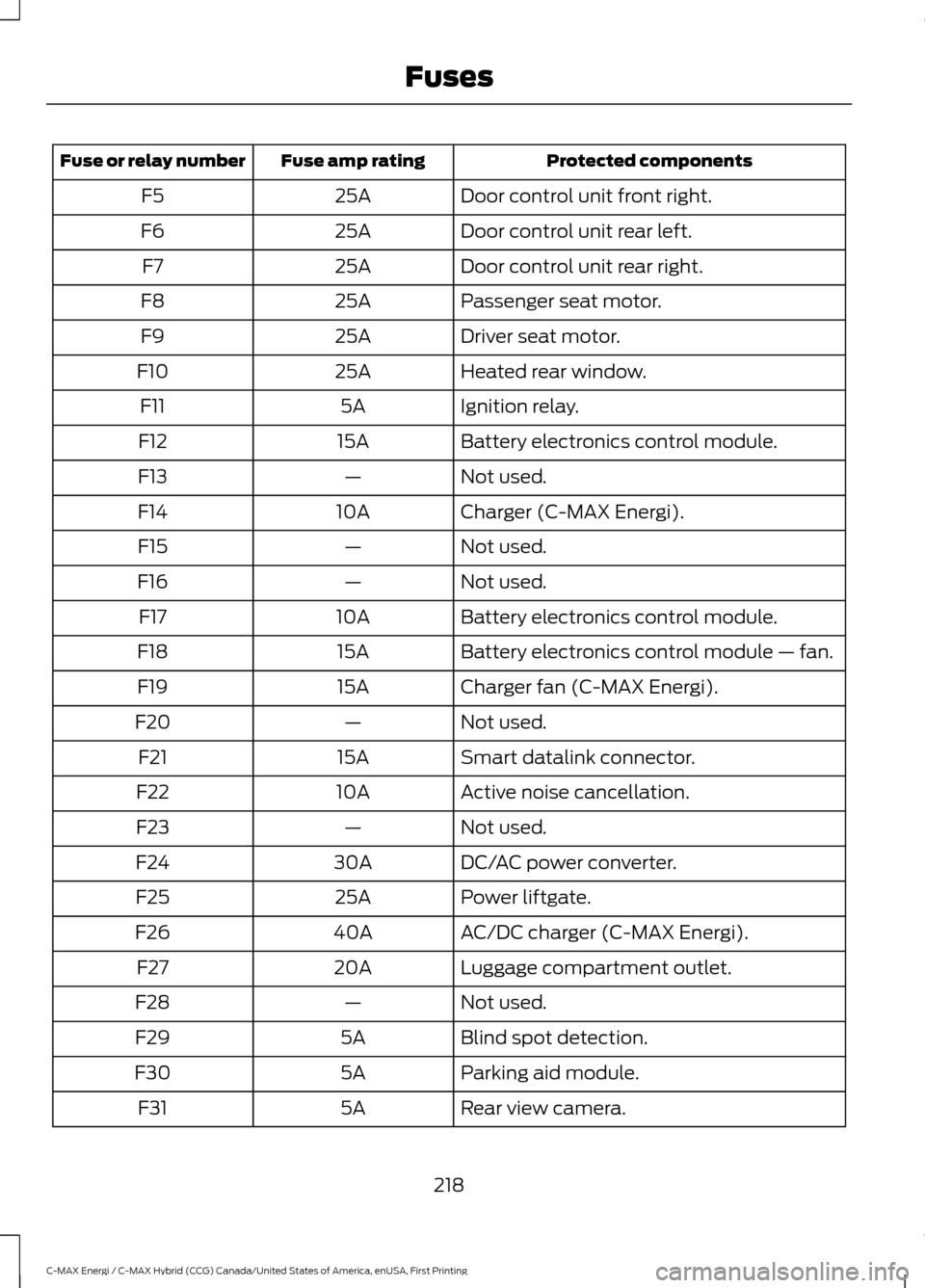

Protected components
Fuse amp rating
Fuse or relay number
Door control unit front right.
25A
F5
Door control unit rear left.
25A
F6
Door control unit rear right.
25A
F7
Passenger seat motor.
25A
F8
Driver seat motor.
25A
F9
Heated rear window.
25A
F10
Ignition relay.
5A
F11
Battery electronics control module.
15A
F12
Not used.
—
F13
Charger (C-MAX Energi).
10A
F14
Not used.
—
F15
Not used.
—
F16
Battery electronics control module.
10A
F17
Battery electronics control module — fan.
15A
F18
Charger fan (C-MAX Energi).
15A
F19
Not used.
—
F20
Smart datalink connector.
15A
F21
Active noise cancellation.
10A
F22
Not used.
—
F23
DC/AC power converter.
30A
F24
Power liftgate.
25A
F25
AC/DC charger (C-MAX Energi).
40A
F26
Luggage compartment outlet.
20A
F27
Not used.
—
F28
Blind spot detection.
5A
F29
Parking aid module.
5A
F30
Rear view camera.
5A
F31
218
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing Fuses

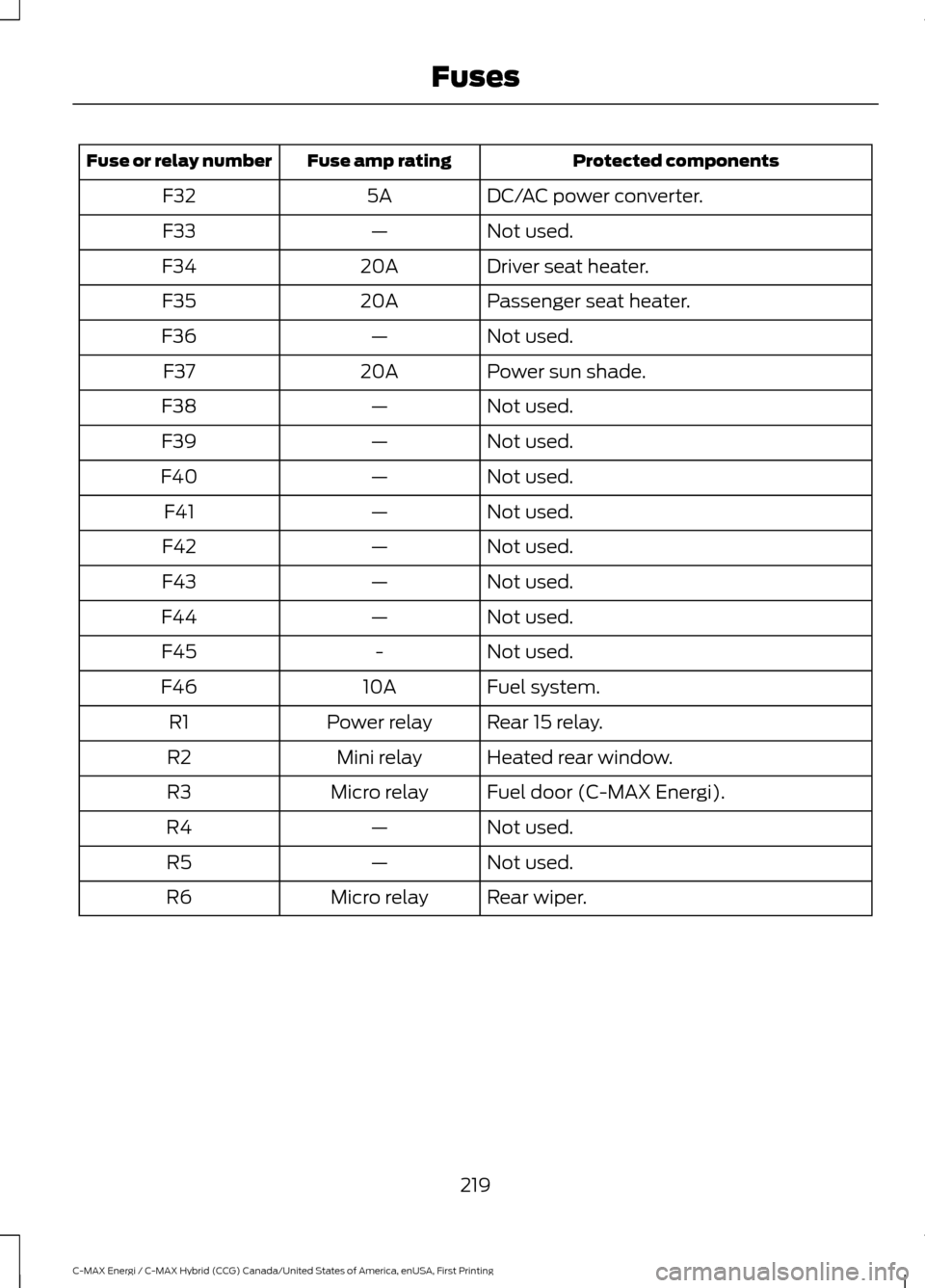

Protected components
Fuse amp rating
Fuse or relay number
DC/AC power converter.
5A
F32
Not used.
—
F33
Driver seat heater.
20A
F34
Passenger seat heater.
20A
F35
Not used.
—
F36
Power sun shade.
20A
F37
Not used.
—
F38
Not used.
—
F39
Not used.
—
F40
Not used.
—
F41
Not used.
—
F42
Not used.
—
F43
Not used.
—
F44
Not used.
-
F45
Fuel system.
10A
F46
Rear 15 relay.
Power relay
R1
Heated rear window.
Mini relay
R2
Fuel door (C-MAX Energi).
Micro relay
R3
Not used.
—
R4
Not used.
—
R5
Rear wiper.
Micro relay
R6
219
