Instrumentation
15
*
[IS03850(ALL)04/96]
If you lose engine oil pressure:
*
[IS03900(ALL)04/96]1.
Pull off the road as soon as safely possible.
*
[IS04000(ALL)03/96]2.
Shut off the engine immediately. If you do not stop the
engine as soon as safely possible, severe engine damage
could result.
*
[IS04100(ALL)12/95]3.
Check the engine's oil level, following the instructions on
checking and adding engine oil in this Owner Guide. (See
Engine oilin the Index.) If you do not follow these
instructions, engine damage could result. To ensure an
accurate reading, your vehicle should be on level ground.
*
[IS04200(ALL)12/95]4.
If the level is low, add only as much oil as necessary to
bring it to the full level before you start the engine again.
Do not overfill. Do not operate the engine if the light is on,
regardless of the oil level. Contact your nearest dealer for
further service actions.
%*
[IS04300(ALL)03/96]
High Beam Light
*
[IS04400(ALL)03/96]
This light illuminates when the headlamps are turned to high
beam or when you flash the lights.
[IS04500(ALL)12/95]
If the high beam light flashes in a vehicle equipped with the
Daytime Running Light (DRL) system (Canada), it indicates a
failure in the DRL circuit. Check the bulbs and fuses or have
the DRL system checked by your dealer or a qualified service
technician.
File:03cdiso.ex
Update:Thu Sep 12 10:58:17 1996

16
[IS04600(ALL)12/95]
6 pica art:0000295-B*
[IS04700(ALL)08/95]
Chime for Headlamps On
[IS04800(ALL)12/95]
This chime sounds if the driver's door is open when the parking
lamps or headlamps are on. The chime sounds until you close
the door or turn off the lamps.
%*
[IS04900(ALL)03/96]
Air Bag Readiness Light
*
[IS05000(ALL)03/96]
The air bag supplemental restraint system uses a readiness light
and a tone to indicate the condition of the system. The
readiness light is in the instrument cluster. When you turn the
ignition key to ON, this light will illuminate for approximately
six (6) seconds and then turn off. This indicates that the system
is operating normally.NOTE:Maintenance of the air bag system
is not required.
[IS05100(ALL)12/95]
A problem with the system is indicated by one or more of the
following: the readiness light will either flash or stay lit, or it
will not light or a group of five beeps will be heard.
*
[IS05200(ALL)03/96]
RWARNING
If any of these things happen, even intermittently, have
the air bag system serviced at your Ford or
Lincoln-Mercury dealer immediately.
File:03cdiso.ex
Update:Thu Sep 12 10:58:17 1996

52
%*
[CF05200(ALL)03/96]
NOTE: Never use sharp instruments or window cleaners with
abrasives to clean the inside of your rear window. If
you do, you may damage the heating elements that
are bonded to the inside of the rear window and
cause damage to the rear window defroster.
%*
[CF05300(ALL)03/96]
The Interior and Exterior Lights
%*
[CF05400(ALL)03/96]
Turning On the Exterior Lights
[CF05500(ALL)12/95]
To turn on your headlamps, parking lamps, and tail lamps, use
the knob that is on the instrument panel, to the left of the
steering wheel.
[CF05600(O )04/96]
10-1/2 pica art:0001178-E

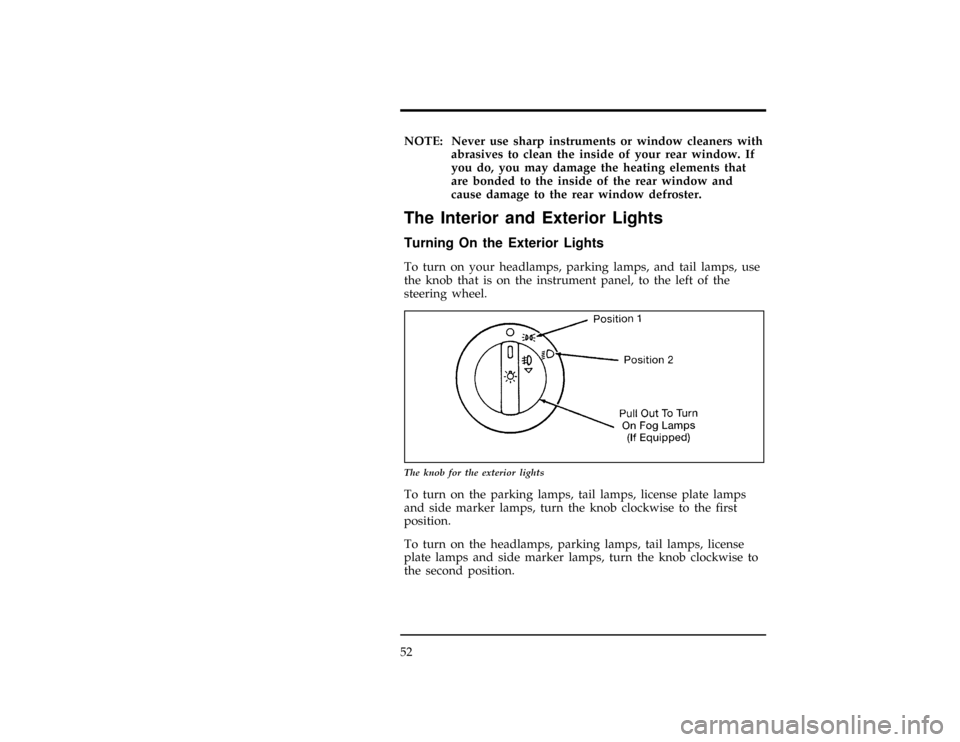

The knob for the exterior lights
[CF05800(ALL)04/96]
To turn on the parking lamps, tail lamps, license plate lamps
and side marker lamps, turn the knob clockwise to the first
position.
[CF05900(ALL)04/96]
To turn on the headlamps, parking lamps, tail lamps, license
plate lamps and side marker lamps, turn the knob clockwise to
the second position.
File:05cdcfo.ex
Update:Fri Sep 13 08:48:17 1996

Controls and Features
53
%*
[CF06000(ALL)08/95]
Fog Lamps (If equipped)
[CF06100(ALL)12/95]
The fog lamps act as a supplement to the low beam headlamps
under limited visibility conditions such as rain, snow, dust or
fog.
[CF06200(ALL)12/95]
The fog lamps operate only when the low beam headlamps are
on. To operate the fog lamps, turn the headlamp control knob
to the second position (headlamps on) and pull the knob out.
An indicator lamp will glow when the fog lamps are on.
[CF06300(ALL)12/95]
To turn off, push the headlamp control knob in.
*
[CF06400(ALL)03/96]
To maximize fog lamp bulb life, it is recommended that the fog
lamp switch be turned off after each use prior to turning off the
headlamps.
%*
[CF06500(ALL)03/96]
Daytime Running Light System
*
[CF06600(ALL)03/96]
(Canadian vehicles only)
*
[CF06700(ALL)01/96]
The Daytime Running Light (DRL) system is designed to turn
the high beam headlamps on, with a reduced light output and
without illuminating the high beam indicator lamp in the
instrument panel. The DRL system operates when all of the
following conditions are met:
[CF06750(ALL)04/96]
n
The vehicle's parking brake is fully released.
[CF06800(ALL)04/96]
n
The vehicle is ªrunning.º
[CF06900(ALL)04/96]
n
The headlamp system is in the OFF position.
*
[CF07000(ALL)03/96]
The high beam indicator light on the instrument cluster will not
be on.
[CF07100(ALL)12/95]
A flashing high beam light in the instrument cluster indicates a
failure in the DRL system circuit, like a burnt bulb or fuse.
File:05cdcfo.ex
Update:Fri Sep 13 08:48:17 1996

54
*
[CF07200(ALL)03/96]
RWARNING
The Daytime Running Light (DRL) system will not
illuminate the tail lamps and parking lamps. Turn on
your headlamps at dusk. Failure to do so may result in a
collision.
%*
[CF07300(ALL)01/96]
Lighting Up the Interior and Instrument Panel
[CF07400(ALL)12/95]
When either front door is opened, the footwell lights and the
door courtesy lights come on.
[CF07500(ALL)12/95]
The instrument panel lights, window control lights and door
handle lights come on whenever the headlamp switch is turned
from the OFF position. To dim the instrument panel lights, use
the thumbwheel on the instrument panel to the right of the
steering wheel.
[CF07600(ALL)12/95]
6 pica art:0001177-B

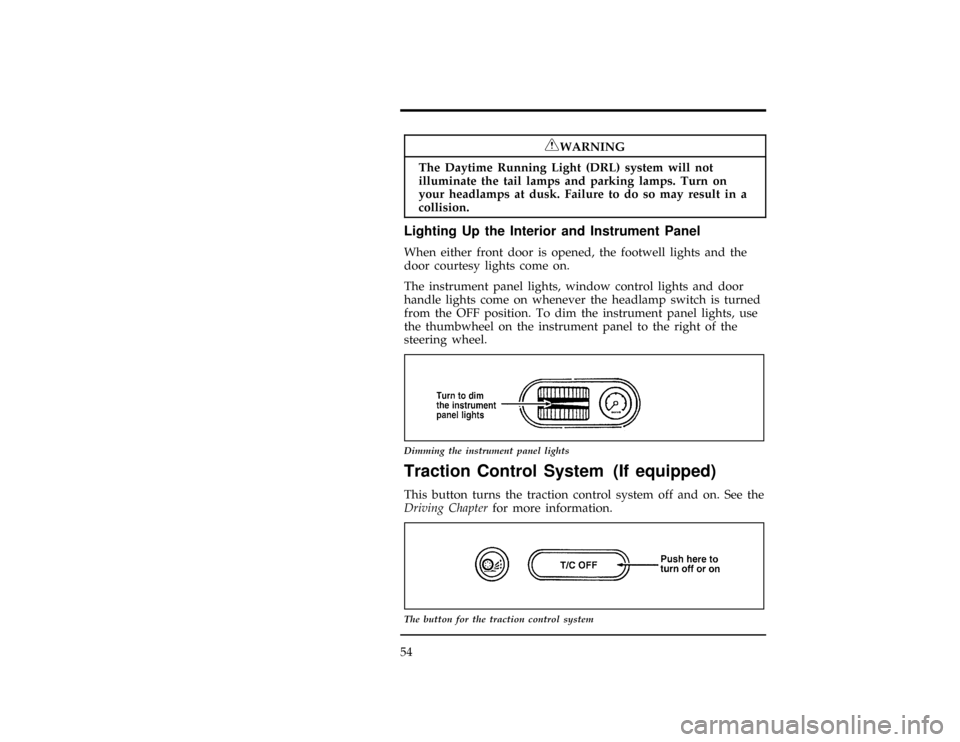

Dimming the instrument panel lights
% [CF07700(ALL)12/95]
Traction Control System (If equipped)
[CF07800(ALL)02/96]
This button turns the traction control system off and on. See the
Driving Chapterfor more information.
[CF07900(ALL)12/95]
6 pica art:0001179-C
The button for the traction control system
File:05cdcfo.ex
Update:Fri Sep 13 08:48:17 1996

60
*
[CF12800(ALL)08/95]
High Beams and Flashing the Lamps
[CF12900(ALL)12/95]
To turn on the high beams, turn the headlamp control knob to
the headlamp ON position and push the turn signal lever away
from you until it latches. When the high beams are on, the high
beam indicator light on the instrument cluster comes on.
[CF13000(ALL)12/95]
To turn off the high beams, pull the lever back to the off
position.
*
[CF13100(ALL)01/96]
To flash the headlamps, pull the lever toward you for a moment
and then release it. The headlamps will flash whether the
headlamp knob is in the on or off position.
%*
[CF13200(ALL)01/96]
Windshield Wipers and Washer
[CF13300(ALL)04/96]
To turn on the windshield wipers, the ignition key must be
turned to the ON position.
[CF13400(ALL)12/95]
10-1/2 pica
art:0001189-D

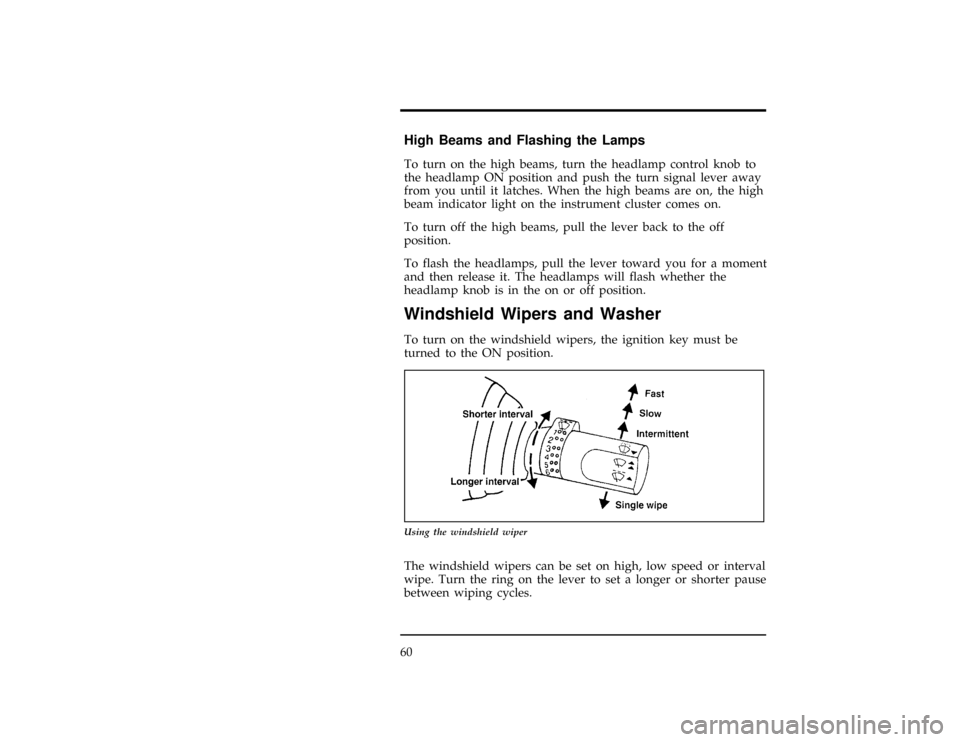

Using the windshield wiper
[CF13500(ALL)12/95]
The windshield wipers can be set on high, low speed or interval
wipe. Turn the ring on the lever to set a longer or shorter pause
between wiping cycles.
File:05cdcfo.ex
Update:Fri Sep 13 08:48:17 1996

80
[CF28100(ALL)05/96]
When you use the remote entry UNLOCK, TRUNK or PANIC
controls, the illuminated entry system turns on the interior
lights for 12 seconds. You can turn these lights off by turning
the ignition to the ON position. The interior lights will not turn
off if you have turned them on manually or if a door is open.
[CF28200(ALL)12/95]
NOTE: The illuminated entry system will only work when
the dome light switch is in the ª12º position.
*
[CF28300(ALL)04/96]
Locking the doors
*
[CF28400(ALL)04/96]
To lock all the doors, press the LOCK control.
*
[CF28500(ALL)04/96]
If you would like a signal that the doors are being locked, press
the LOCK control again within five seconds. The doors will lock
again and the horn will beep.
%*
[CF28600(ALL)03/96]
Activating the remote personal alarm
[CF28700(ALL)05/96]
If you wish to activate the remote personal alarm, press the
PANIC control. This will honk the horn and flash the low beam
headlamps and tail lamps for approximately two minutes
forty-five seconds. You can turn it off by pressing the PANIC
control again on the same transmitter or by turning the ignition
key to the ON position.
%*
[CF28800(ALL)03/96]
Replacing the Batteries
*
[CF28900(ALL)01/96]
The remote entry transmitter is powered by two coin type
three-volt lithium 2016 batteries (included) that should last for
several years of normal use. If you notice a significant decrease
in operating range, the batteries should be replaced.
Replacement batteries can be purchased at most pharmacies,
watch stores or at your Ford or Lincoln-Mercury dealer.
File:05cdcfo.ex
Update:Fri Sep 13 08:48:17 1996

117
Starting
%*
[TO00200(ALL)01/96]
Fuel-Injected Engines
*
[TO00300(ALL)01/96]
When starting a fuel-injected engine,the most important thing
to remember is to avoid pressing down on the accelerator
before or during starting. Only use the accelerator when you
have problems getting your vehicle started. SeeStarting Your
Enginein this chapter for details about when to use the
accelerator while you start your vehicle.
*
[TO00400(ALL)01/96]
Starting Your Vehicle
%*
[TO00500(ALL)01/96]
Preparing to Start Your Vehicle
*
[TO00600(ALL)02/96]
RWARNING
Do not start your vehicle in a closed garage or in other
enclosed areas. Exhaust fumes can be toxic. Always open
the garage door before you start the engine.
*
[TO00700(ALL)01/96]
Before you start your vehicle, do the following:
*
[TO00800(ALL)01/96]1.
Make sure all occupants in the vehicle buckle their safety
belts. SeeSafety Restraintsin the Index for more details.
*
[TO00900(ALL)12/95]2.
Make sure your headlamps and other accessories are turned
off and the parking brake is set.
[TO01000(ALL)12/95]3.
If you have a manual transaxle,make sure that the parking
brake is fully set, push the clutch pedal to the floor, and put
the gearshift into Neutral before you turn the key.
(Remember, the starter will operate only if the clutch pedal
is pushed all the way to the floor.)
[TO02000(ALL)12/95]
If you have an automatic transaxle,make sure that the
gearshift is in P (Park) and the parking brake is set before
you turn the key.
*
[TO02100(ALL)02/96]
Before you start your vehicle, you should test the warning lights
on the instrument panel to make sure that they work. Refer to
theInstrumentationchapter.
File:08cdtoo.ex
Update:Thu Sep 12 11:03:39 1996

Maintenance and Care
219
%*
[MC32300(ALL)03/96
]
How to Prepare Your Vehicle for
Inspection/Maintenance (I/M) Testing
*
[MC32400(ALL)05/96]
In some localities it may become a legal requirement to pass an
Inspection/Maintenance (I/M) test of the On-Board Diagnostic
(OBD) II system. If the vehicle's powertrain system or its battery
has just been serviced, the OBD II system is reset to a not ready
for I/M testing condition. To prepare for I/M testing, the law
specifies that additional mixed city and highway driving is
required to complete the check of the OBD II system.
*
[MC32500(ALL)05/96]
OBD II Drive Cycle
*
[MC32601(ALL)05/96]
The driving modes required to reach the ready condition consist
of a minimum of 30 minutes of city and highway driving as
described below:
*
[MC32701(ALL)05/96]
n
At least twenty minutes driving in stop and go, city type
traffic with at least four idle periods.
*
[MC32801(ALL)05/96]
n
At least ten minutes of driving on an expressway or
highway.
*
[MC32901(ALL)05/96]
Before completing the above driving modes, the engine must be
warmed up and at operating temperature. Once started, the
vehicle must not be turned off during these driving modes.
%*
[MC34300(ALL)03/96]
Lights and Bulb Replacement
*
[MC34400(ALL)01/96]
It is a good idea to check the operation of the following lights
frequently:
*
[MC34500(ALL)01/96]
n
headlamps
*
[MC34600(ALL)01/96]
n
tail lamps
*
[MC34700(ALL)01/96]
n
brakelamps
*
[MC34800(ALL)01/96]
n
high-mount brakelamp
*
[MC34900(ALL)01/96]
n
hazard flasher
File:11cdmco.ex
Update:Thu Sep 12 11:08:18 1996

220
*
[MC35000(ALL)01/96]
n
turn signals
*
[MC35100(ALL)01/96]
n
side markers
*
[MC35200(ALL)05/96]
n
license plate lamps
%*
[MC35300(ALL)01/96
]
The alignment of your headlamps should be checked if:
*
[MC35400(ALL)01/96]
n
oncoming motorists frequently signal you to turn off your
vehicle's high beams when you do not have the high beams
on
*
[MC35500(ALL)01/96]
n
the headlamps do not seem to give you enough light to see
clearly at night
[MC35600(ALL)04/96]
n
the headlamps are not aligned so that they point slightly
down and to the right.
%*
[MC35700(ALL)01/96
]
Headlamp Bulb
[MC35800(ALL)12/95]
The headlamps on your vehicle use replaceable bulbs, one for
high beam and one for low beam on each side. When the lamp
burns out, simply replace the bulb, rather than the whole lamp.
*
[MC35900(ALL)01/96]
RWARNING
Handle a halogen headlamp bulb carefully and keep out
of children's reach. Grasp the bulb only by its plastic
base and do not touch the glass. The oil from your hand
could cause the bulb to break the next time the
headlamps are operated.
*
[MC36000(ALL)01/96]
Do not remove the burned-out bulb unless you can immediately
replace it with a new one. If a bulb is removed for an extended
period of time, contaminants may enter the headlamp housing
and affect its performance.
File:11cdmco.ex
Update:Thu Sep 12 11:08:18 1996
