headlamp FORD CONTOUR 1999 2.G User Guide

Maintenance and care
201

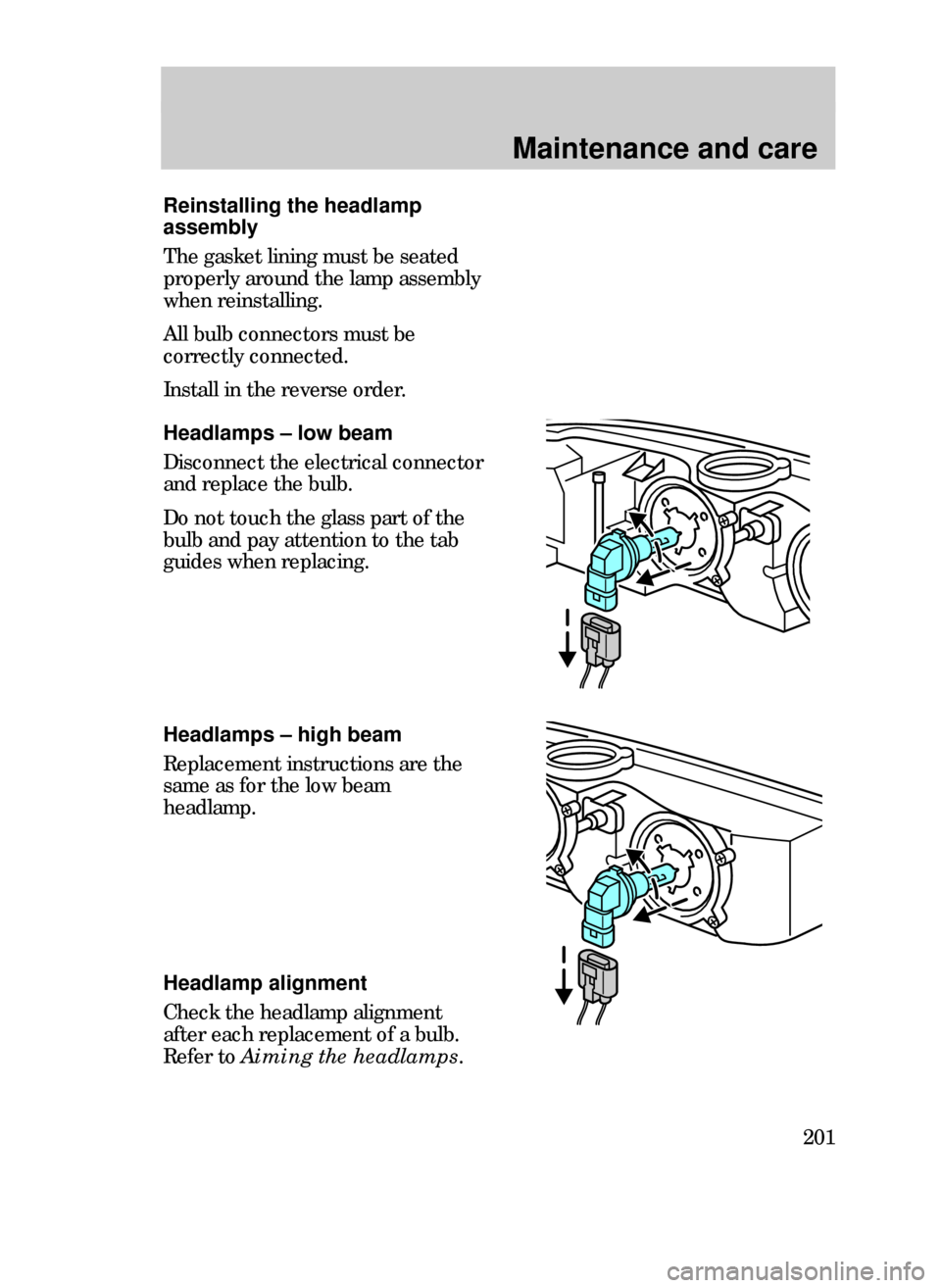

Reinstalling the headlamp
assembly
The gasket lining must be seated
properly around the lamp assembly
when reinstalling.
All bulb connectors must be
correctly connected.
Install in the reverse order.
Headlamps Ð low beam
Disconnect the electrical connector
and replace the bulb.
Do not touch the glass part of the
bulb and pay attention to the tab
guides when replacing.
Headlamp alignment
Check the headlamp alignment
after each replacement of a bulb.
Refer to Aiming the headlamps.
Headlamps Ð high beam
Replacement instructions are the
same as for the low beam
headlamp.
31CMCen 3/25/99 3:45 PM Page 201

Maintenance and care
206
FunctionTrade number
3457 NA
9005
9006
893
1157
1156 Front /turn lamp
Headlamp (high)
Headlamp (low)
Foglamp/License plate lamp
Rear tail/turn/brake lamp
Backup lamp
Bulb specifications
2723
C5W High-mounted brake lamp
Interior lamp211-2
License plate lamp
Reading lamp
578
31CMCen 3/25/99 3:45 PM Page 206

Maintenance and care
207
Aiming the headlamps
Your vehicle is equipped with a
Vehicle Headlamp Aim Device
(VHAD) on each headlamp body.
Each headlamp may be properly
aimed in the horizontal direction
(left/right) and the vertical
direction (up/down).
A non-zero bubble reading (vertical
indicator) does not necessarily
indicate out-of-aim headlamps. If
your vehicle is not positioned on a
level surface, the slope will be
included in the vertical indication.
Therefore, vertical and horizontal
headlamp adjustment should be
performed only when beam
direction appears to be incorrect.

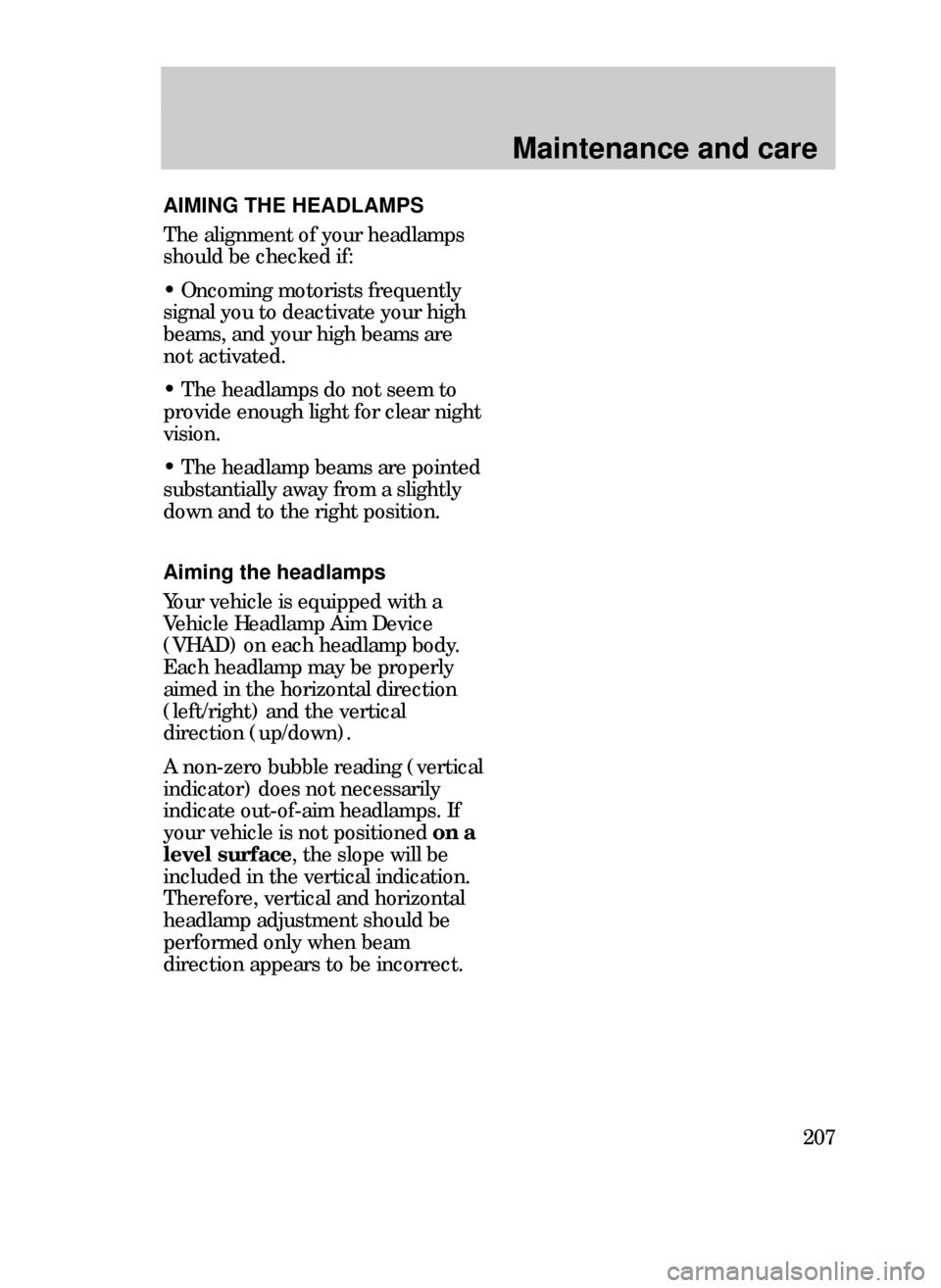

AIMING THE HEADLAMPS
The alignment of your headlamps
should be checked if:
¥ Oncoming motorists frequently
signal you to deactivate your high
beams, and your high beams are
not activated.
¥ The headlamps do not seem to
provide enough light for clear night
vision.
¥ The headlamp beams are pointed
substantially away from a slightly
down and to the right position.
31CMCen 3/25/99 3:45 PM Page 207

Maintenance and care
208

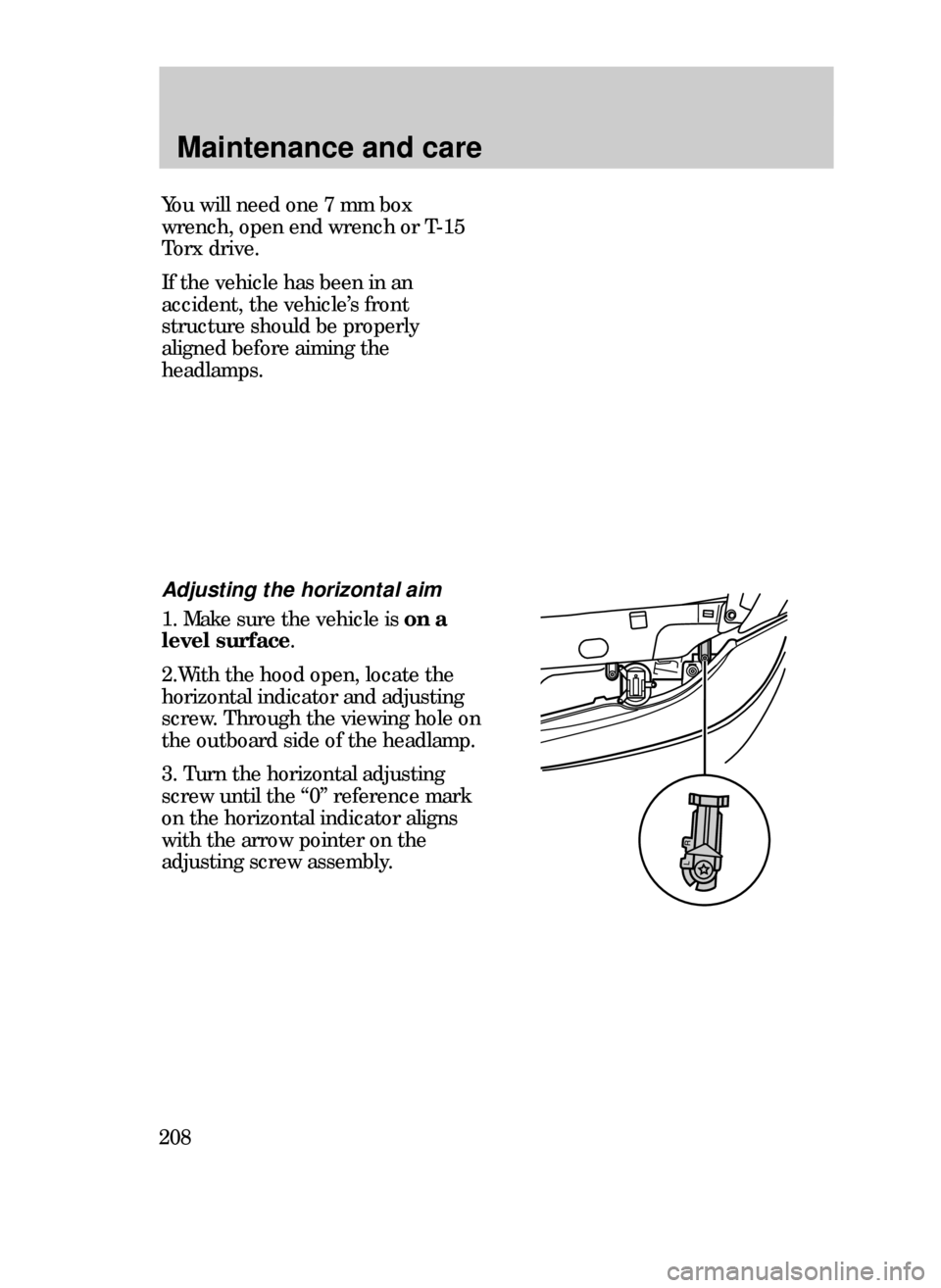

Adjusting the horizontal aim
1. Make sure the vehicle is on a
level surface.
2.With the hood open, locate the
horizontal indicator and adjusting
screw. Through the viewing hole on
the outboard side of the headlamp.
3. Turn the horizontal adjusting
screw until the Ò0Ó reference mark
on the horizontal indicator aligns
with the arrow pointer on the
adjusting screw assembly.
You will need one 7 mm box
wrench, open end wrench or T-15
Torx drive.
If the vehicle has been in an
accident, the vehicleÕs front
structure should be properly
aligned before aiming the
headlamps.
31CMCen 3/25/99 3:45 PM Page 208

Maintenance and care
209

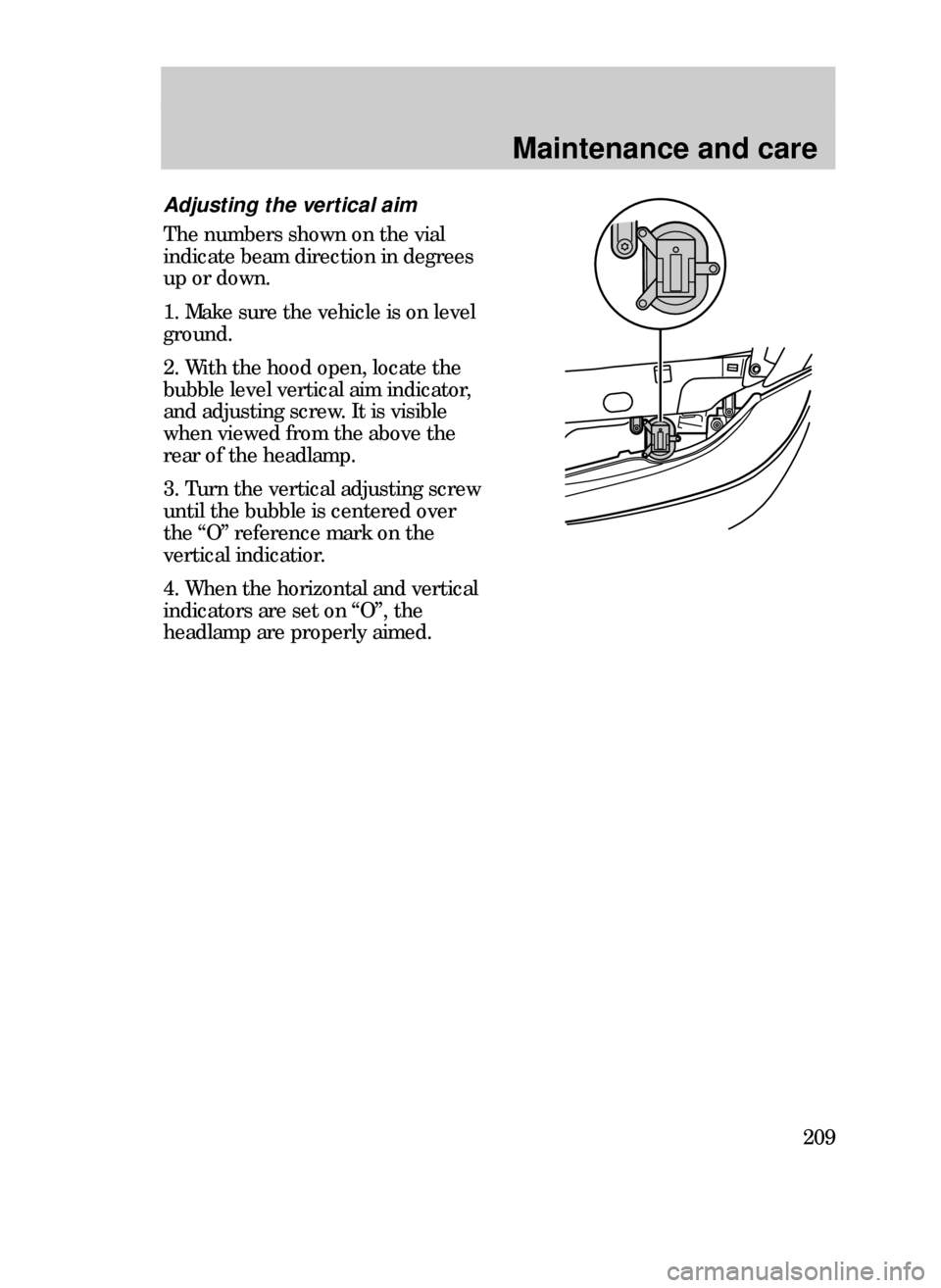

Adjusting the vertical aim
The numbers shown on the vial
indicate beam direction in degrees
up or down.
1. Make sure the vehicle is on level
ground.
2. With the hood open, locate the
bubble level vertical aim indicator,
and adjusting screw. It is visible
when viewed from the above the
rear of the headlamp.
3. Turn the vertical adjusting screw
until the bubble is centered over
the ÒOÓ reference mark on the
vertical indicatior.
4. When the horizontal and vertical
indicators are set on ÒOÓ, the
headlamp are properly aimed.
31CMCen 3/25/99 3:45 PM Page 209

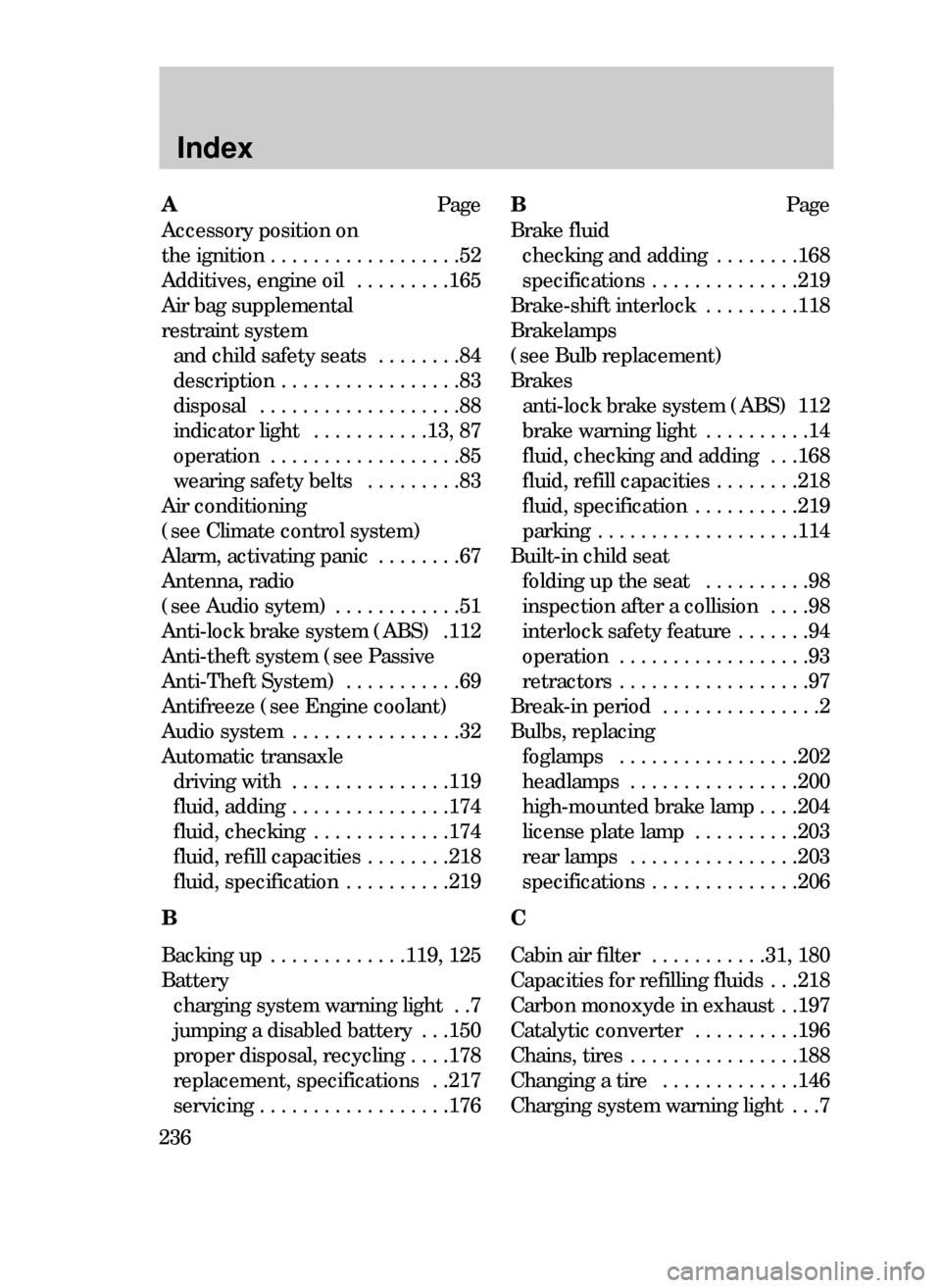

Index
