Instrumentation
6
Turn signal
Flashes when the left or right turn
signal or hazard lights are
activated.
There are two different instrument
cluster designs. The individual
warning and indicator lights are
described on the following pages.
000123
000010 20 3040506070
80
90
110
120
13 0
MPH
20 4060
55
80120 10 0
14 0
160
18 0
20010 0
EF
BRAKE
CHECK
ENGINEO/D
OFFTRACTION
CONTROL
CH
000123
000010 20 3040506070
80
90
110
120
13 0
MPH
20 4060
55
80120 10 0
14 0
160
18 0
20010 0
EF12
03
x 1000
4
5
6
7
8
O/D
OFFCHECK
ENGINE
BRAKE
TRACTION
CONTROL
CH
INSTRUMENT CLUSTER
LIGHTS AND CHIMES
Alternative design
12CInen 3/25/99 1:24 PM Page 6

Instrumentation
8Traction control system light
(if equipped)
This light comes on when the
traction control system has been
disengaged. It may flash on and off
while driving to indicate the system
is operating.
000123
000010 20 3040506070
80
90
110
120
13 0
MPH
20 4060
55
80120 10 0
14 0
160
18 0
20010 0
EF
000123
000010 20 3040506070
80
90
110
120
13 0
MPH
20 4060
55
80120 10 0
14 0
160
18 0
20010 0
EF12
03
x 1000
4
5
6
7
8
O/D
OFFCHECK
ENGINE
BRAKE
TRACTION
CONTROL
CH
O/D
OFFTRACTION
CONTROL
12CInen 3/25/99 1:24 PM Page 8

Instrumentation
9 O/D Off indicator
(Automatic transaxle only)
Illuminates and remains
illuminated when the transaxle
control switch (TCS) on the side of
the gearshift lever is pressed and
overdrive is turned off. For details,
refer to the Driving chapter.
Indicates the status of the
transaxle and will flash steadily if a
malfunction is detected. If the
flashing persists, have your
transaxle serviced by your dealer
or a qualified service technician as
soon as possible.
If the condition persists, your
transaxle may be damaged.
O/D
OFFTRACTION
CONTROL
O/D
OFFTRACTION
CONTROL
If the light stays on for more than
three (3) seconds after the
ignition is turned to the ON
position or stays on continuously
while you are driving, have the
traction control system checked
by a qualified technician as soon
as possible.
For more information, refer to
Traction Controlin the Driving
chapter.
Low coolant (if equipped)
Briefly illuminates when the
ignition is turned on and the engine
is off. Illuminates when the engine
coolant level is low. Refer to the
Maintenance and care chapter to
check the engine coolant level.
12CInen 3/25/99 1:24 PM Page 9

Instrumentation
11 The check engine indicator light
illuminates when the ignition is first
turned to the ON position to check
the bulb. If it comes on after the
engine is started, one of the
engineÕs emission control systems
may be malfunctioning. The light
may illuminate without a
driveability concern being noted.
The vehicle will usually be drivable
and will not require towing.
What you should do if the check
engine light illuminates
Light turns on solid:
This means that the OBD II system
has detected a malfunction.
Temporary malfunctions may cause
your check engine light to
illuminate. Examples are:
¥ The vehicle has run out of fuel.
(The engine may misfire or run
poorly)
¥ Poor fuel quality or water in the
fuel.
¥ The fuel cap may not have been
securely tightened.
12CInen 3/25/99 1:24 PM Page 11

Instrumentation
12These temporary malfunctions can
be corrected by filling the fuel tank
with good quality fuel and/or
properly tightening the fuel cap.
After three drive cycles without
these or any other temporary
malfunctions present, the check
engine light should turn off. (A
driving cycle consists of a cold
engine startup followed by mixed
city/highway driving.). No
additional vehicle service is
required.
If the check enginelight remains
on, have your vehicle serviced at
the first available opportunity.
Light is blinking:
Engine misfire is occuring which
could damage your catalytic
converter. You should drive in a
moderate fashion (avoid heavy
acceleration and deceleration) and
have your vehicle serviced at the
first available opportunity.
Under engine misfire
conditions, excessive
exhaust temperatures could
damage the catalytic converter,
the fuel system, interior floor
coverings or other vehicle com-
ponents, possibly causing a fire.
12CInen 3/25/99 1:24 PM Page 12

Instrumentation
13
CHECK
ENGINEAir bag readiness
Briefly illuminates when the
ignition is turned on. If the light
fails to illuminate, continues to
flash, or remains on, have the
system serviced immediately. Low fuel
Illuminates when the fuel tank has
approximately eight liters (two
gallons) remaining. The lamp will
also illuminate when the ignition
key is turned to ON and the engine
is off.
CHECK
ENGINE
CHECK
ENGINE
Front foglamps (if equipped)
Illuminates when foglamps are
switched on.
Refer to Foglamp controlin the
Controls and features chapter for
notes on use.
12CInen 3/25/99 1:24 PM Page 13

Instrumentation
15 Anti-lock brake system (ABS)
(if equipped)
Momentarily illuminates when the
ignition is turned on and the engine
is off. If the light stays on or
continues to flash, the ABS needs
to be serviced.
BRAKE
BRAKE
Alternative design
Brake system and ABS warning
lights
If both warning lights illuminate at
the same time while driving, stop
the vehicle as soon as it is safe to
do so. Have the braking system
checked by your dealer or qualified
service technician before
continuing your journey.
When stopping the vehicle, slowly
reduce the speed. Use the brakes
with great care. Have the system checked by your
dealer or qualified technician
before continuing your journey.
BRAKE
BRAKE
Alternative design
12CInen 3/25/99 1:24 PM Page 15

Instrumentation
16
EF
BRAKE
O/D
OFF
000123
000010 20 3040506070
80
90
110
120
13 0
MPH
20 4060
55
80120 10 0
14 0
160
18 0
20010 0
CHECK
ENGINETRACTION
CONTROL
CH
000123
000010 20 3040506070
80
90
110
120
13 0
MPH
20 4060
55
80120 10 0
14 0
160
18 0
20010 0
EF12
03
x 1000
4
5
6
7
8
O/D
OFFCHECK
ENGINE
BRAKE
TRACTION
CONTROL
CH
Engine oil pressure
Illuminates when the ignition is
turned on and the engine is off.
The light also illuminates when
engine oil pressure has been lost.
Refer to the Maintenance and
carechapter to check the engine
oil level as soon as possible. If the
engine oil level is correct and the
light stays on, see your dealer or
qualified service technician.
BRAKE
BRAKE
Alternative design
12CInen 3/25/99 1:24 PM Page 16

Instrumentation
17 Headlamps on warning chime
Sounds when the headlamps are
on, the ignition is off (and the key
is not in the ignition) and the
driverÕs door is open. Testing the warning and
indicator lights and chimes
Turn the ignition key to the on
position without starting the
engine. The following warning and
indicator lights will illuminate
briefly: charging system, safety belt
(does not illuminate, if the driverÕs
safety belt is fastened), traction
control, ABS, brake, low coolant,
low fuel, engine oil pressure, check
engine and air bag readiness.
If any of these lights do not
illuminate, see your dealer or
qualified service technician.
Key-in-ignition warning chime
Sounds when the key is left in the
off/lock or accessory position and
the driverÕs door is open.
Safety belt warning chime
For information on the safety belt
warning chime, refer to the
Seating and safety restraints
chapter.
12CInen 3/25/99 1:24 PM Page 17

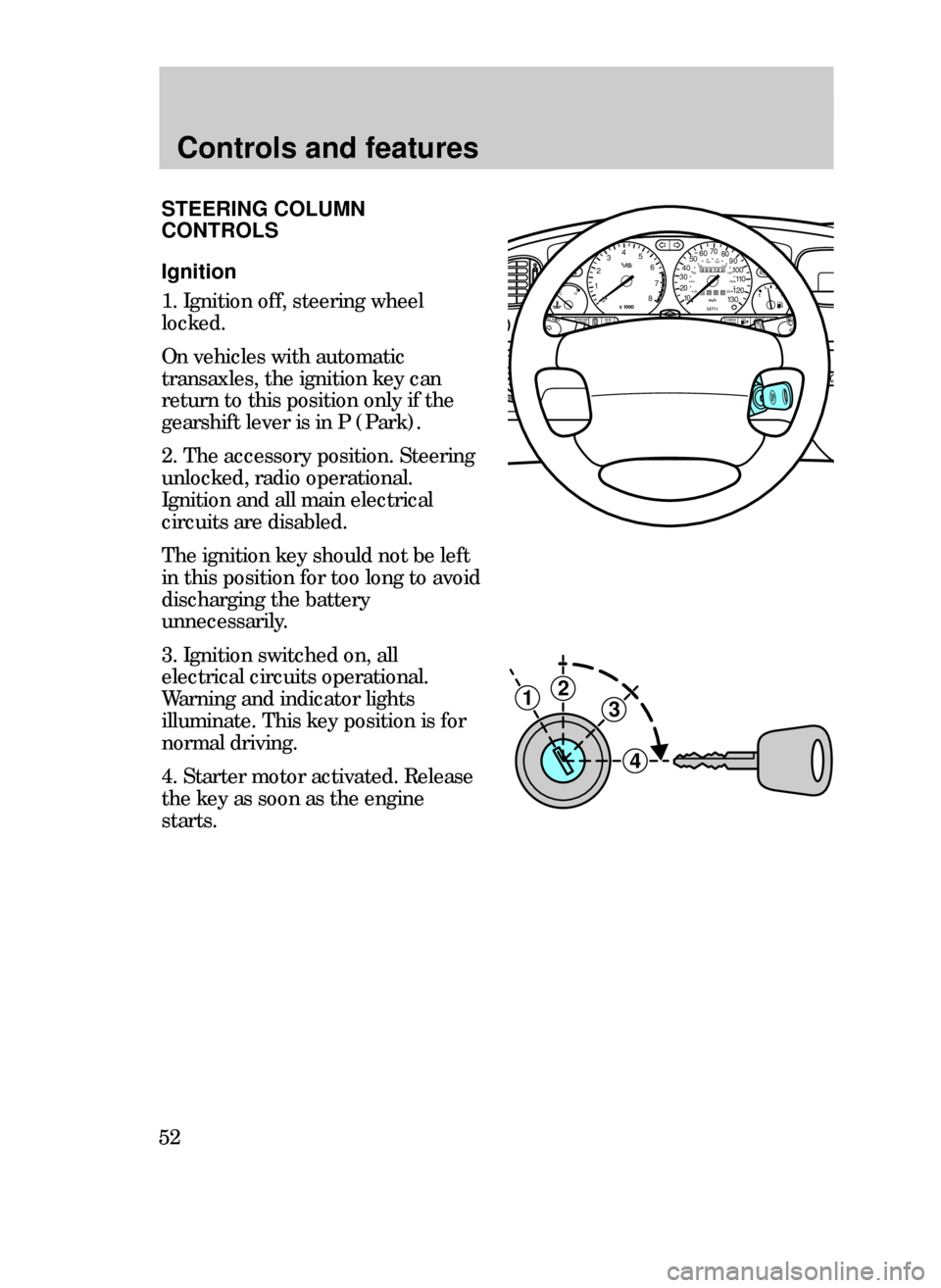

Controls and features
52
STEERING COLUMN
CONTROLS
Ignition
1. Ignition off, steering wheel
locked.
On vehicles with automatic
transaxles, the ignition key can
return to this position only if the
gearshift lever is in P (Park).
2. The accessory position. Steering
unlocked, radio operational.
Ignition and all main electrical
circuits are disabled.
The ignition key should not be left
in this position for too long to avoid
discharging the battery
unnecessarily.
3. Ignition switched on, all
electrical circuits operational.
Warning and indicator lights
illuminate. This key position is for
normal driving.
4. Starter motor activated. Release
the key as soon as the engine
starts.
3
4
21
000123
000010 20 3040506070
80
90
10 0
110
120
13 0MPH20 406055
80120 10 0
14 0
160
18 0
200EF12
03x 1000
4
5
6
7
8
CHECK
ENGINE TRACTION
CONTROLO/D
OFF
IRRORS
TRACTION
NTROL
CH
13CCfen 3/25/99 1:51 PM Page 52
