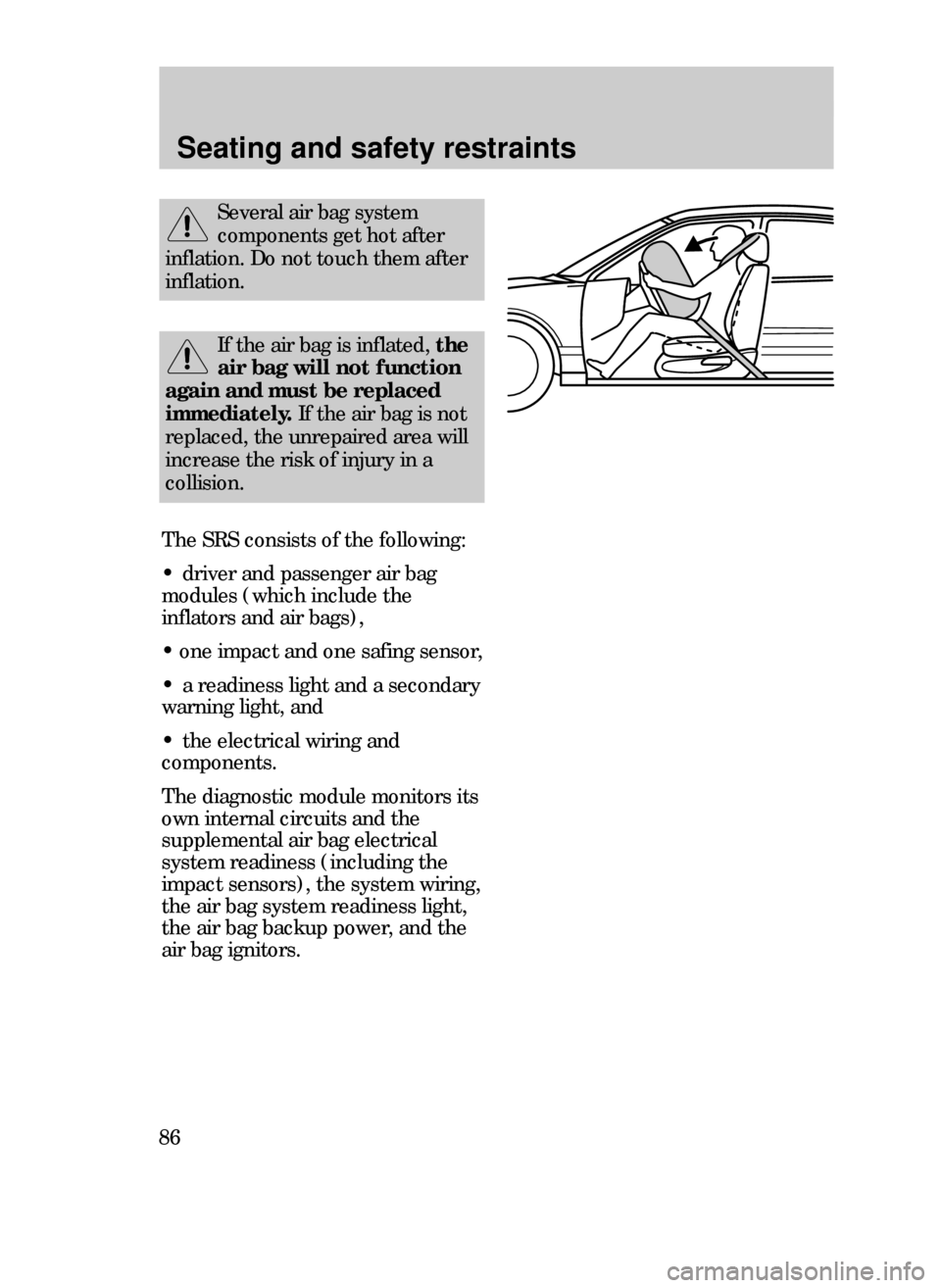

Seating and safety restraints
86
If the air bag is inflated, the
air bag will not function
again and must be replaced
immediately.If the air bag is not
replaced, the unrepaired area will
increase the risk of injury in a
collision.
The SRS consists of the following:
¥ driver and passenger air bag
modules (which include the
inflators and air bags),
¥ one impact and one safing sensor,
¥ a readiness light and a secondary
warning light, and
¥ the electrical wiring and
components.
The diagnostic module monitors its
own internal circuits and the
supplemental air bag electrical
system readiness (including the
impact sensors), the system wiring,
the air bag system readiness light,
the air bag backup power, and the
air bag ignitors.
Several air bag system
components get hot after
inflation. Do not touch them after
inflation.
14CSSen 3/25/99 1:59 PM Page 86

Roadside emergencies
141
Ampere
ratingCircuits protected
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
39
40
41
42
43
44
45
46
47
48
49
50
51
52Ñ
7.5
20
Ñ
Ñ
3
20
Ñ
15
Ñ
20
Ñ
20
7.5
7.5
7.5
7.5
7.5
Ñ
20*
20*
40*
Ñ
Ñ
60*
Ñ
Ñ
Ñ
60*
Ñ
60*
60*Not used
Alternator
Foglamps
Not used
Not used
EEC ignition module (memory)
Horn and hazard flasher warning system
Not used
Fuel pump
Not used
Ignition, Electronic Engine Control
Not used
HEGO sensor
ABS module
Low beam headlamp (passengerÕs side)
Low beam headlamp (driverÕs side)
High beam headlamp (passengerÕs side)
High beam headlamp (driverÕs side)
Not used
Ignition, light switch, central junction box
EEC relay
Central junction box (fuse 37 to blower relay)
Not used
Not used
Ignition
Not used
Not used
Not used
Engine cooling
not used
ABS
Central junction box (central timer module, rear
window defrost relay, fuses 24, 25, 27, 28, 34)Fuse
Power distribution box (engine compartment)
* Have these fuses replaced by your dealer or qualified technician.
