Introduction

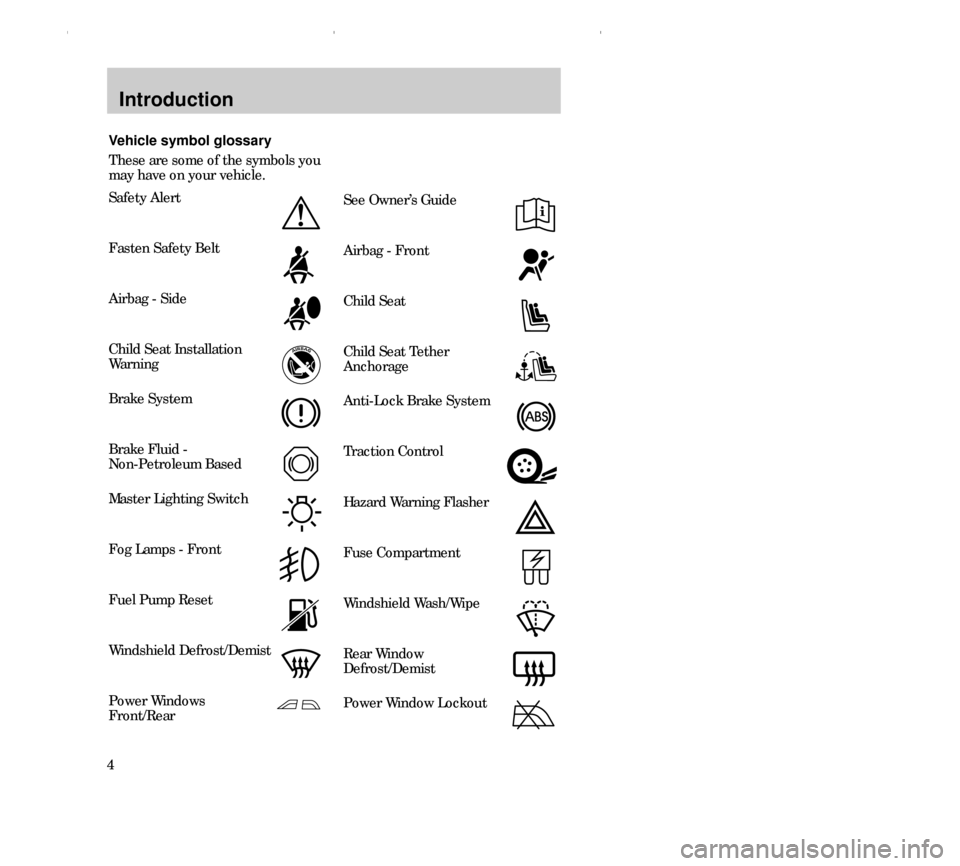

4Vehicle symbol glossary
These are some of the symbols you
may have on your vehicle.
Safety Alert
Fasten Safety Belt
Airbag - Side
Child Seat Installation
Warning
Brake System
Brake Fluid -
Non-Petroleum Based
Master Lighting Switch
Fog Lamps - Front
Fuel Pump Reset
Windshield Defrost/Demist
Power Windows
Front/Rear
See Owner’s Guide
Airbag - Front
Child Seat
Child Seat Tether
Anchorage
Anti-Lock Brake System
Traction Control
Hazard Warning Flasher
Fuse Compartment
Windshield Wash/Wipe
Rear Window
Defrost/Demist
Power Window Lockout
11CIten 17.6.99 10:37 Uhr Seite 4

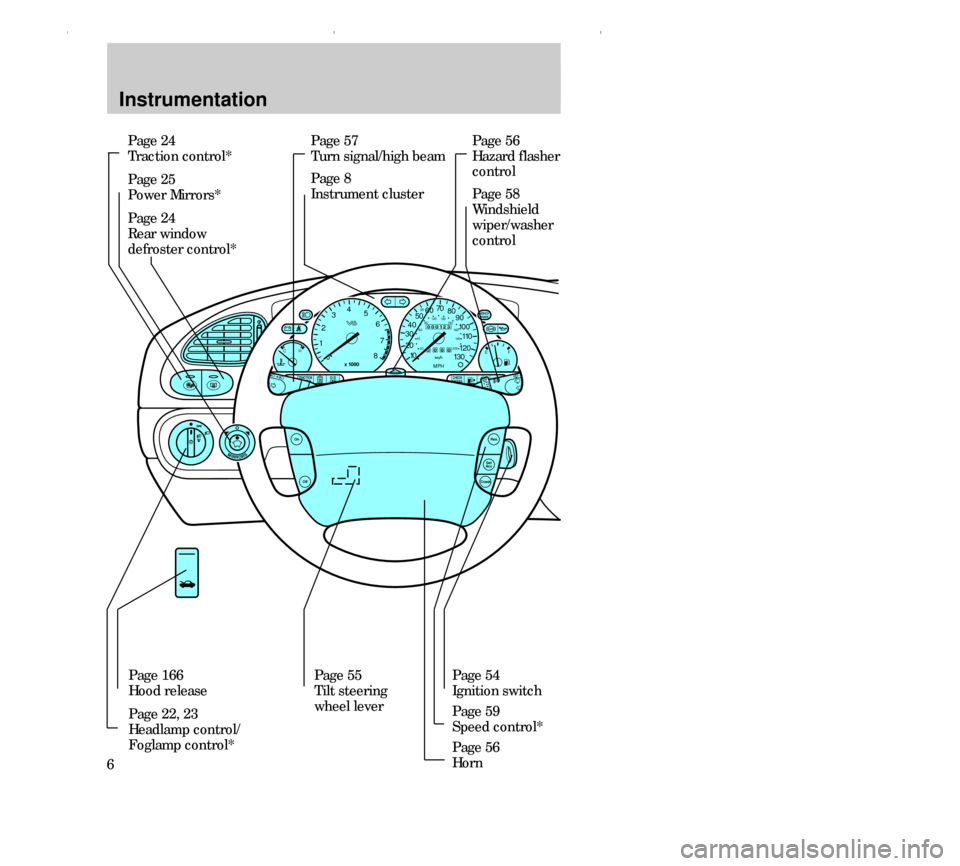

Instrumentation
Page 57
Turn signal/high beam
Page 8
Instrument clusterPage 56
Hazard flasher
control
Page 58
Windshield
wiper/washer
control
Page 166
Hood release
Page 22, 23
Headlamp control/
Foglamp control*Page 55
Tilt steering
wheel leverPage 54
Ignition switch
Page 59
Speed control*
Page 56
Horn Page 24
Traction control*
Page 25
Power Mirrors*
Page 24
Rear window
defroster control*
TRACTION
CONTROLCHECK
ENGINEO/D
OFF
Res
Set
Acc
CoastOff
On
EF

000123
000010 20 3040506070
80
90
10 0
110
120
13 0MPH
20 406055
80120 10 0
14 0
160
18 0
20012
03
x 1000
4
5
6
7
8
MIRRORS
BRAKE
CH
6
12CInen 17.6.99 10:41 Uhr Seite 6

Instrumentation

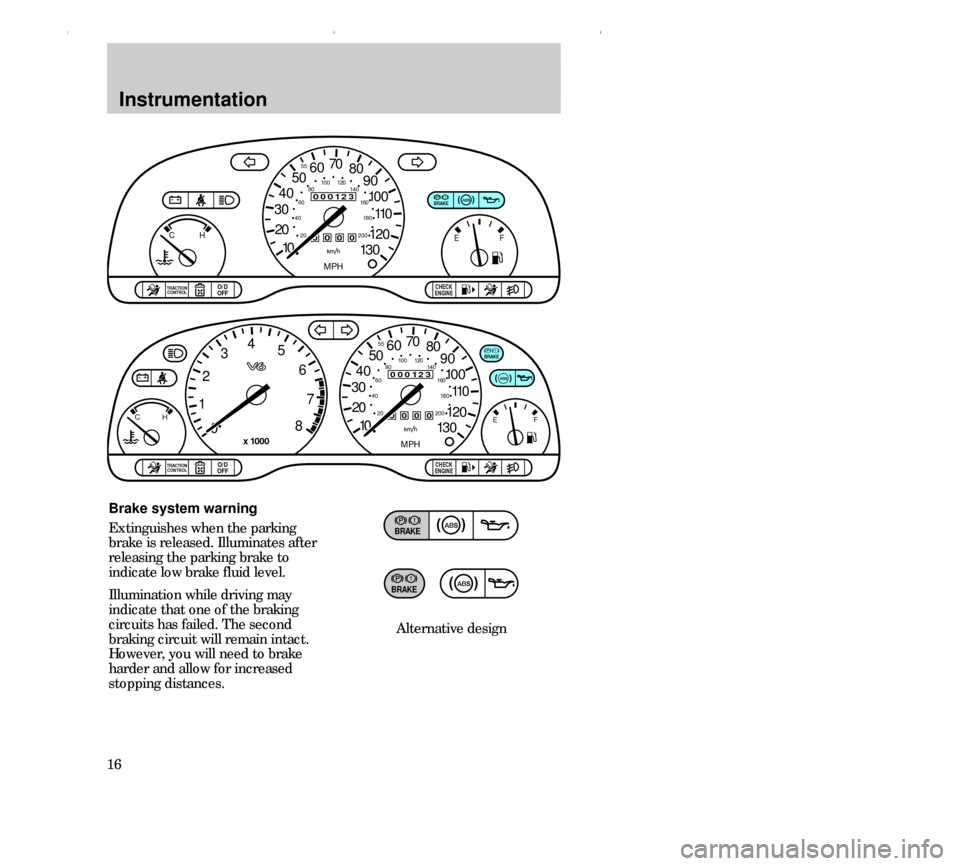

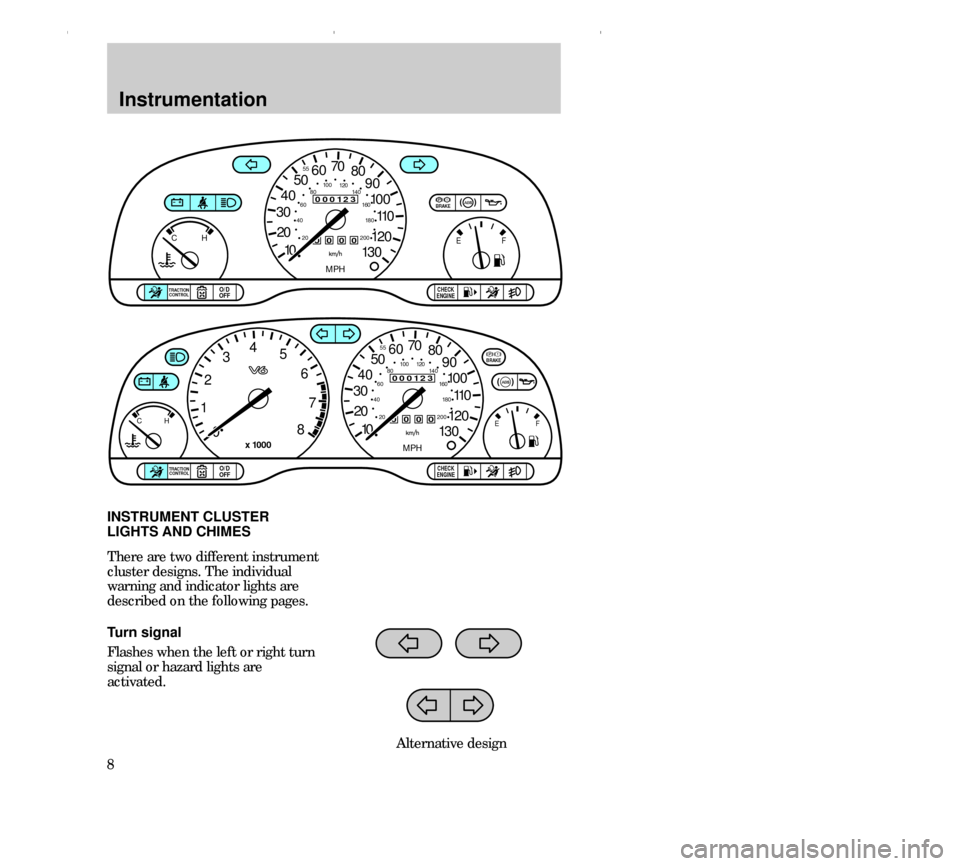

8Turn signal
Flashes when the left or right turn
signal or hazard lights are
activated. There are two different instrument
cluster designs. The individual
warning and indicator lights are
described on the following pages.
000123
000010 20 3040506070
80
90
110
120
13 0
MPH
20 4060
55
80120 10 0
14 0
160
18 0
20010 0
EF
BRAKE
CHECK
ENGINEO/D
OFFTRACTION
CONTROL
CH
000123
000010 20 3040506070
80
90
110
120
13 0
MPH
20 4060
55
80120 10 0
14 0
160
18 0
20010 0
EF12
03
x 1000
4
5
6
7
8
O/D
OFFCHECK
ENGINE
BRAKE
TRACTION
CONTROL
CH
INSTRUMENT CLUSTER
LIGHTS AND CHIMES
Alternative design
12CInen 17.6.99 10:41 Uhr Seite 8

Instrumentation

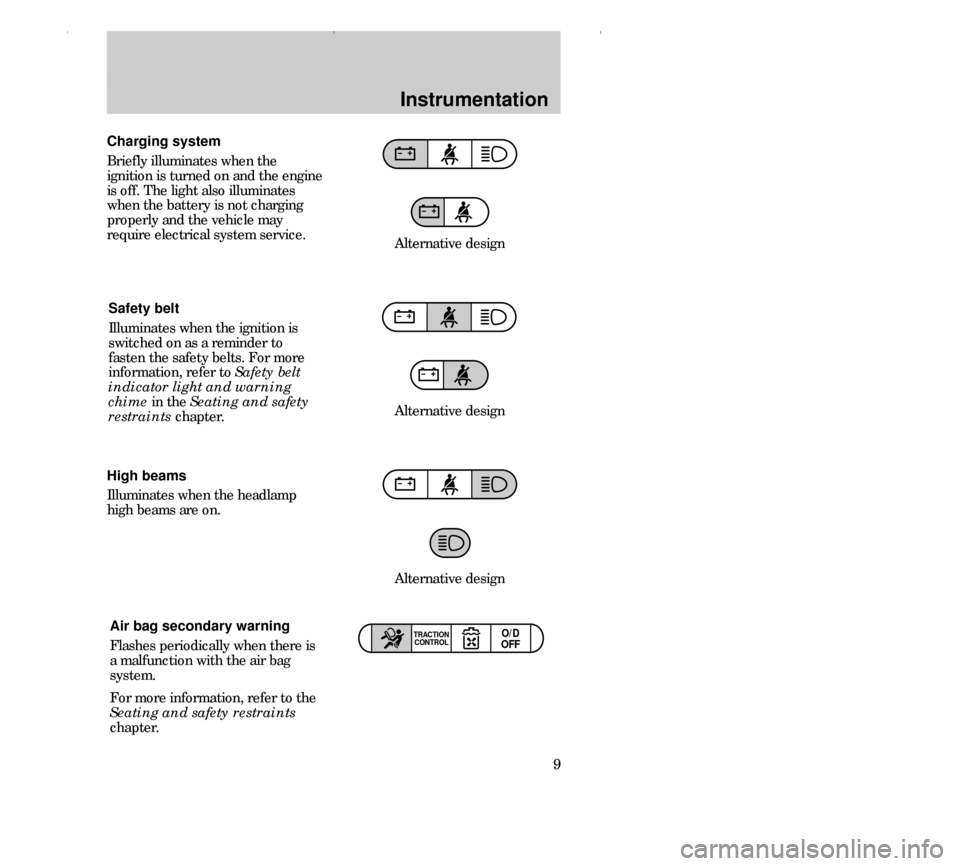

9 High beams
Illuminates when the headlamp
high beams are on. Charging system
Briefly illuminates when the
ignition is turned on and the engine
is off. The light also illuminates
when the battery is not charging
properly and the vehicle may
require electrical system service.
Safety belt
Illuminates when the ignition is
switched on as a reminder to
fasten the safety belts. For more
information, refer to
Safety belt
indicator light and warning
chime in the Seating and safety
restraints chapter.
Alternative design
Alternative design
Alternative design
Air bag secondary warning
Flashes periodically when there is
a malfunction with the air bag
system.
For more information, refer to the
Seating and safety restraints
chapter.
O/D
OFFTRACTION
CONTROL
12CInen 17.6.99 10:41 Uhr Seite 9

Instrumentation

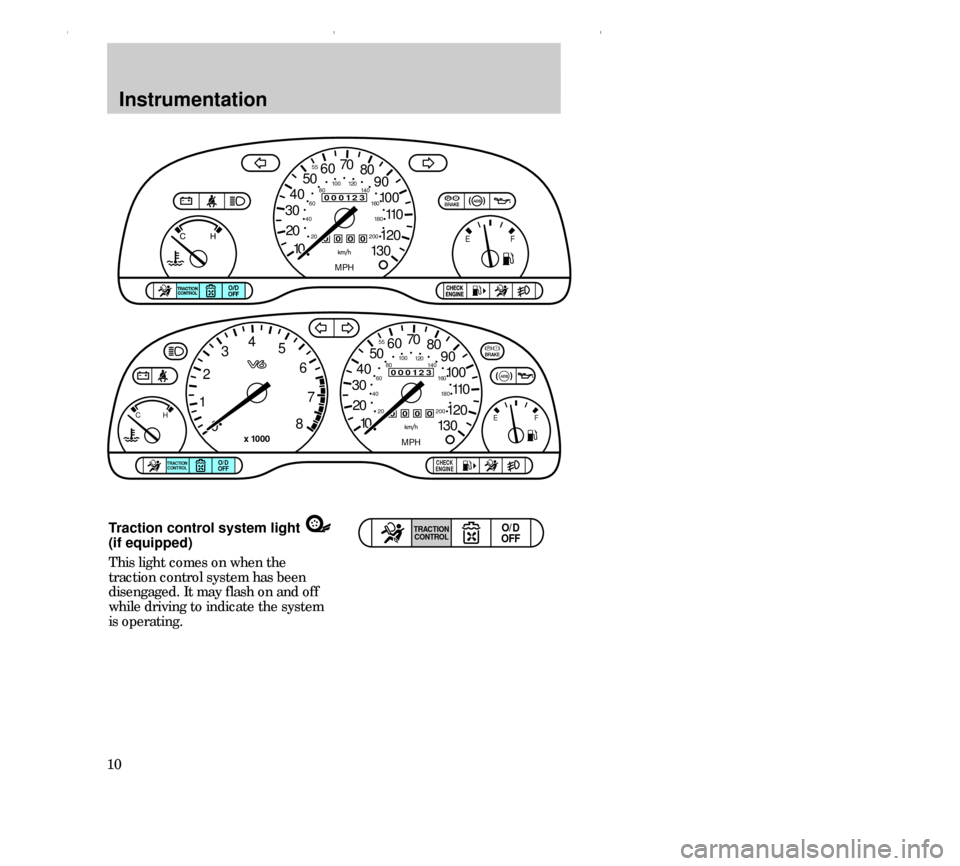

10Traction control system light
(if equipped)
This light comes on when the
traction control system has been
disengaged. It may flash on and off
while driving to indicate the system
is operating.
000123
000010 20 3040506070
80
90
110
120
13 0
MPH
20 4060
55
80120 10 0
14 0
160
18 0
20010 0
EF
000123
000010 20 3040506070
80
90
110
120
13 0
MPH
20 4060
55
80120 10 0
14 0
160
18 0
20010 0
EF12
03
x 1000
4
5
6
7
8
O/D
OFFCHECK
ENGINE
BRAKE
TRACTION
CONTROL
CH
O/D
OFFTRACTION
CONTROL
12CInen 17.6.99 10:41 Uhr Seite 10

Instrumentation

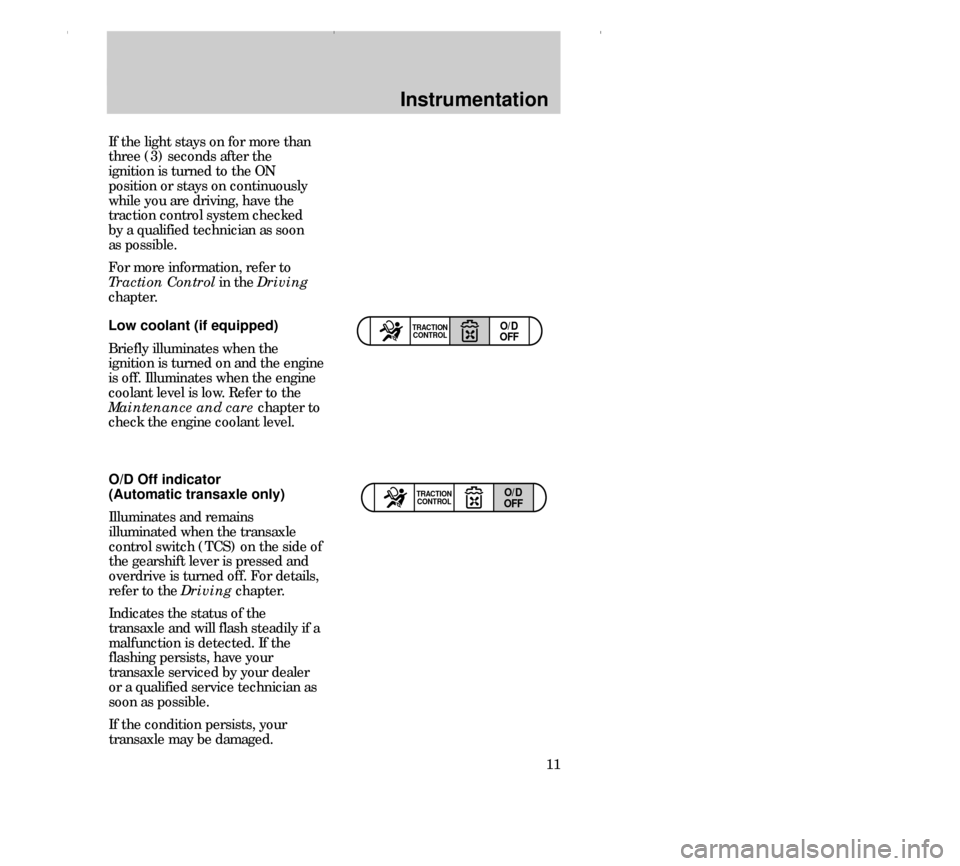

11 O/D Off indicator
(Automatic transaxle only)
Illuminates and remains
illuminated when the transaxle
control switch (TCS) on the side of
the gearshift lever is pressed and
overdrive is turned off. For details,
refer to the Driving chapter.
Indicates the status of the
transaxle and will flash steadily if a
malfunction is detected. If the
flashing persists, have your
transaxle serviced by your dealer
or a qualified service technician as
soon as possible.
If the condition persists, your
transaxle may be damaged.
O/D
OFFTRACTION
CONTROL
O/D
OFFTRACTION
CONTROL
If the light stays on for more than
three (3) seconds after the
ignition is turned to the ON
position or stays on continuously
while you are driving, have the
traction control system checked
by a qualified technician as soon
as possible.
For more information, refer to
Traction Controlin the Driving
chapter.
Low coolant (if equipped)
Briefly illuminates when the
ignition is turned on and the engine
is off. Illuminates when the engine
coolant level is low. Refer to the
Maintenance and care chapter to
check the engine coolant level.
12CInen 17.6.99 10:41 Uhr Seite 11

Instrumentation

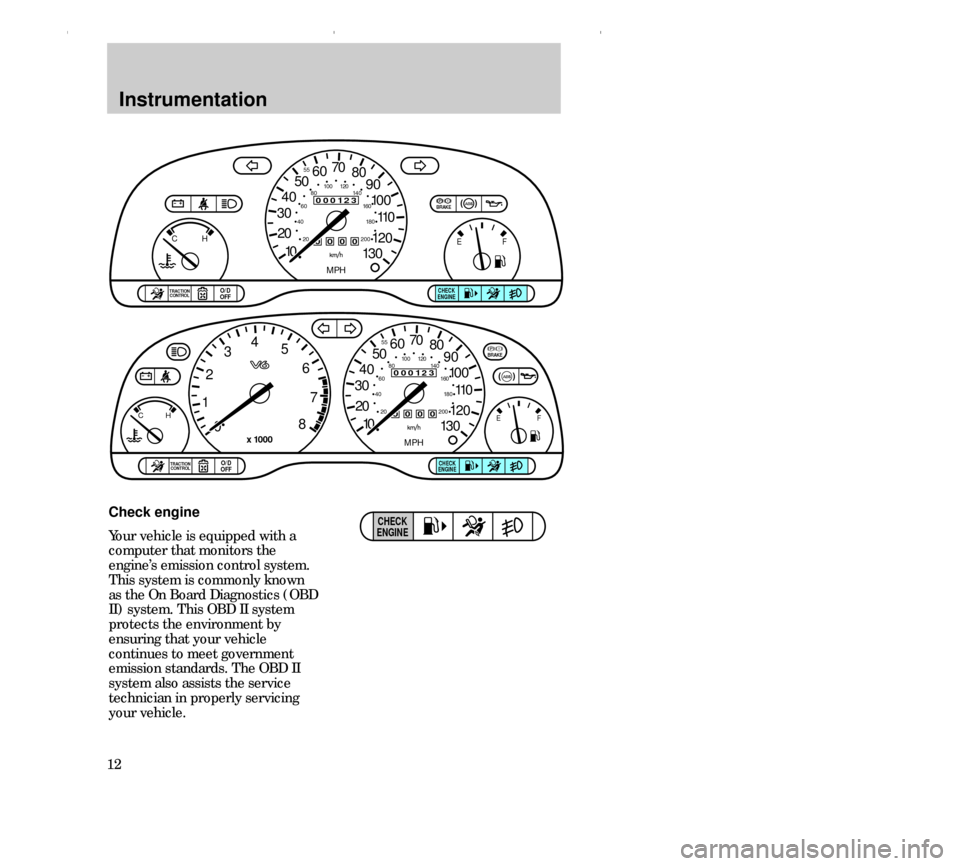

12Check engine
Your vehicle is equipped with a
computer that monitors the
engine’s emission control system.
This system is commonly known
as the On Board Diagnostics (OBD
II) system. This OBD II system
protects the environment by
ensuring that your vehicle
continues to meet government
emission standards. The OBD II
system also assists the service
technician in properly servicing
your vehicle.
CHECK
ENGINE
000123
000010 20 3040506070
80
90
110
120
13 0
MPH
20 4060
55
80120 10 0
14 0
160
18 0
20010 0
EF
BRAKE
O/D
OFFCHECK
ENGINETRACTION
CONTROL
CH
000123
000010 20 3040506070
80
90
110
120
13 0
MPH
20 4060
55
80120 10 0
14 0
160
18 0
20010 0
EF12
03
x 1000
4
5
6
7
8
TRACTION
CONTROLO/D
OFFCHECK
ENGINE
BRAKE
TRACTION
CONTROL
CH
12CInen 17.6.99 10:41 Uhr Seite 12

Instrumentation
16Brake system warning
Extinguishes when the parking
brake is released. Illuminates after
releasing the parking brake to
indicate low brake fluid level.
Illumination while driving may
indicate that one of the braking
circuits has failed. The second
braking circuit will remain intact.
However, you will need to brake
harder and allow for increased
stopping distances.
BRAKE
BRAKE
Alternative design
EF
BRAKE
O/D
OFF
000123
000010 20 3040506070
80
90
110
120
13 0
MPH
20 4060
55
80120 10 0
14 0
160
18 0
20010 0
CHECK
ENGINETRACTION
CONTROL
CH
000123
000010 20 3040506070
80
90
110
120
13 0
MPH
20 4060
55
80120 10 0
14 0
160
18 0
20010 0
EF12
03
x 1000
4
5
6
7
8
O/D
OFFCHECK
ENGINE
BRAKE
TRACTION
CONTROL
CH
12CInen 17.6.99 10:41 Uhr Seite 16

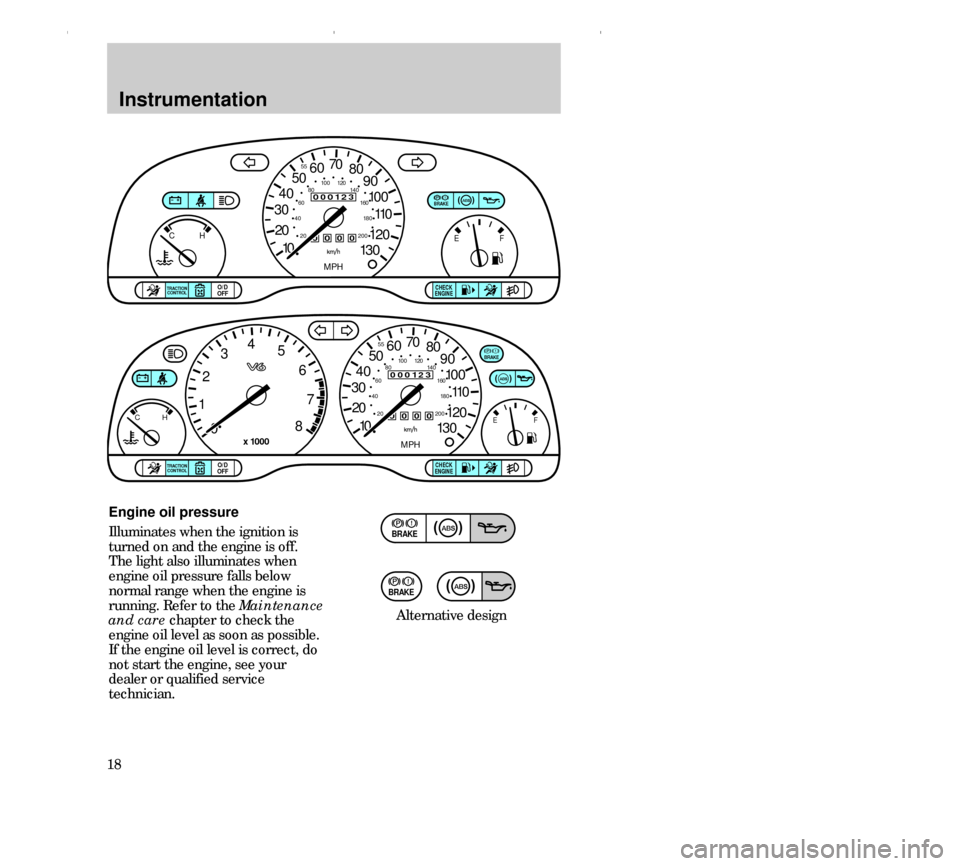

Instrumentation
18
EF
BRAKE
O/D
OFF
000123
000010 20 3040506070
80
90
110
120
13 0
MPH
20 4060
55
80120 10 0
14 0
160
18 0
20010 0
CHECK
ENGINETRACTION
CONTROL
CH
000123
000010 20 3040506070
80
90
110
120
13 0
MPH
20 4060
55
80120 10 0
14 0
160
18 0
20010 0
EF12
03
x 1000
4
5
6
7
8
O/D
OFFCHECK
ENGINE
BRAKE
TRACTION
CONTROL
CH
Engine oil pressure
Illuminates when the ignition is
turned on and the engine is off.
The light also illuminates when
engine oil pressure falls below
normal range when the engine is
running. Refer to the Maintenance
and carechapter to check the
engine oil level as soon as possible.
If the engine oil level is correct, do
not start the engine, see your
dealer or qualified service
technician.
BRAKE
BRAKE
Alternative design
12CInen 17.6.99 10:41 Uhr Seite 18

Instrumentation
19 Headlamps on warning chime
Sounds when the headlamps are
on, the ignition is off (and the key
is not in the ignition) and the
driver’s door is open. Testing the warning and
indicator lights and chimes
Turn the ignition key to the on
position without starting the
engine. The following warning and
indicator lights will illuminate
briefly: charging system, safety belt
(does not illuminate, if the driver’s
safety belt is fastened), traction
control, ABS, brake, low coolant,
low fuel, engine oil pressure, check
engine and air bag readiness.
If any of these lights do not
illuminate, see your dealer or
qualified service technician.
Key-in-ignition warning chime
Sounds when the key is left in the
off/lock or accessory position and
the driver’s door is open.
Safety belt warning chime
For information on the safety belt
warning chime, refer to the
Seating and safety restraints
chapter.
