fuse chart FORD CROWN VICTORIA 1996 1.G Owners Manual

272electrical parts, check the appropriate fuses
(conventional and high current) or circuit
breakers.
*
[SV36600( ALL)03/95]

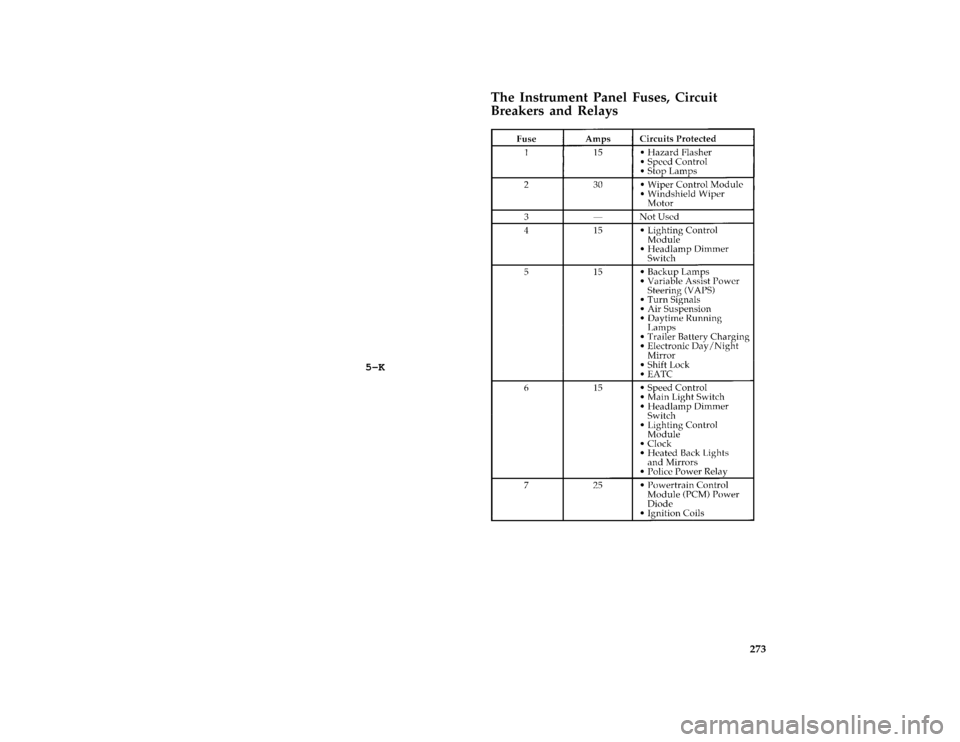

The following charts tell you which fuses or
circuit breakers protect the wiring for each
electrical part of your vehicle. If a fuse blows or
a circuit breaker opens a circuit,allthe parts of
your vehicle that use that circuit will not work.
*
[SV36610( ALL)01/95]
Once you have determined which fuses or circuit
breakers to check, follow the procedures under
Checking and replacing fusesorChecking and
replacing circuit breakersin this chapter.
[SV37400( GV)03/93]

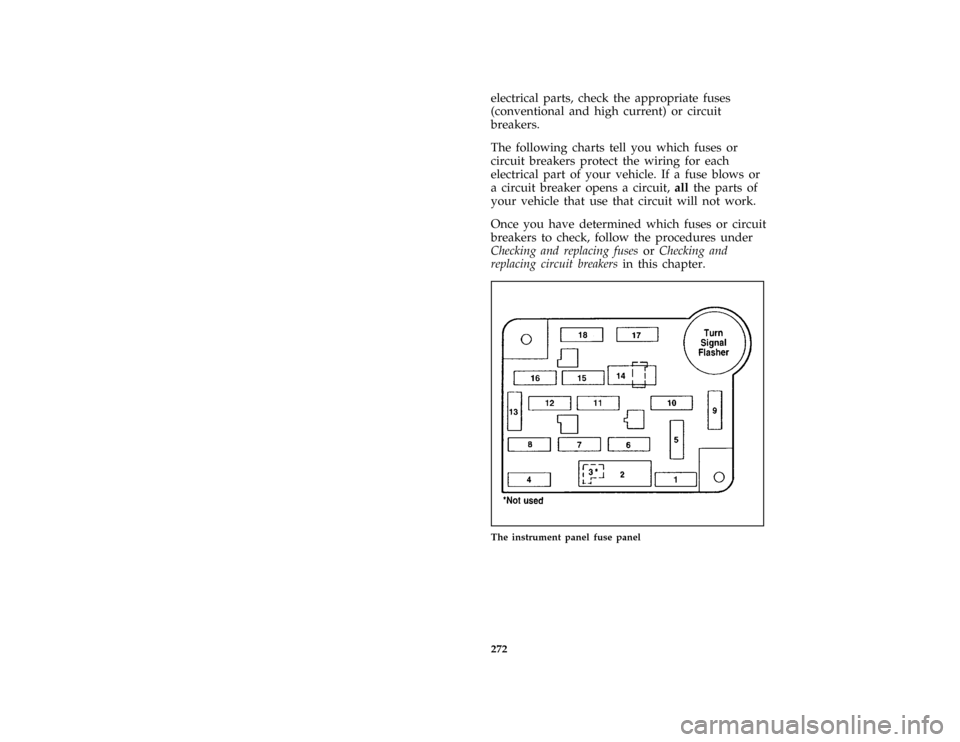

half page art:0011155-B
The instrument panel fuse panel
File:rcsvv.ex
Update:Wed Jun 28 16:02:20 1995

273 %
*
[SV37500( ALL)02/95]
The Instrument Panel Fuses, Circuit
Breakers and Relays
[SV38400( V)03/95]
thirty-two pica chart:0010395-KFile:rcsvv.ex
Update:Wed Jun 28 16:02:20 1995

279 [SV41600( GV)01/93]

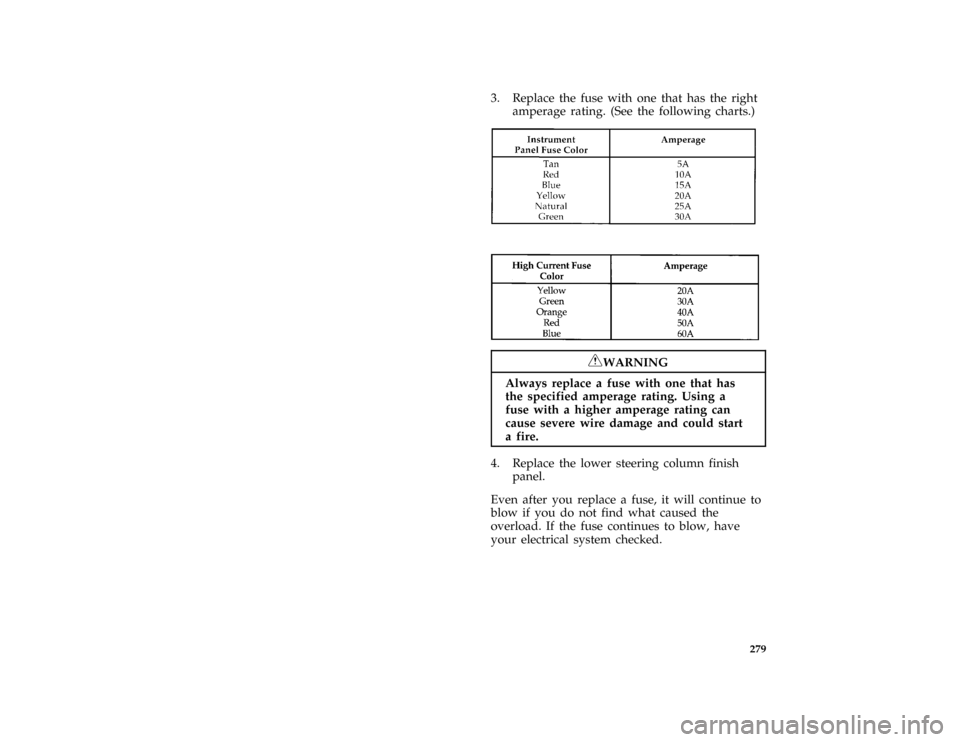

3. Replace the fuse with one that has the right
amperage rating. (See the following charts.)
[SV41900( ALL)05/95]
eight pica chart:0001092-B[SV41910(M GV)01/94]
six pica chart:0001093-B*
[SV42500( ALL)05/95]
RWARNING
Always replace a fuse with one that has
the specified amperage rating. Using a
fuse with a higher amperage rating can
cause severe wire damage and could start
a fire.
[SV42700( GV)12/91]
4. Replace the lower steering column finish
panel.
*
[SV42800( ALL)01/95]
Even after you replace a fuse, it will continue to
blow if you do not find what caused the
overload. If the fuse continues to blow, have
your electrical system checked.
File:rcsvv.ex
Update:Wed Jun 28 16:02:20 1995

280 %
*
[SV42900( ALL)03/95]
Circuit Breakers
*
[SV43000( ALL)01/95]
If you need to check a circuit breaker that is on
the fuse panel, seeChecking and replacing fusesin
this chapter to find out how to locate the fuse
panel.
[SV43200( ALL)12/94]
Circuit breakers will reset themselves and allow
the electrical parts to work again once the
overload on the circuit is removed. If the circuit
breakers continue to cut off electricity, have your
vehicle's electrical system checked.
*
[SV43250( ALL)02/95]
Diagnostic equipment is needed to check circuit
breakers. Refer to the manufacturer's
instructions.
*
[SV43300( ALL)02/95]
If you replace a circuit breaker, use one with the
same amperage rating. To remove a circuit
breaker mounted in the fuse panel, grip it with
your finger and thumb and pull it straight out
of its socket.
*
[SV43800(M GV)02/95]
Since the circuit breaker for the headlamps is
mounted in the headlamp switch, you must
replace the entire switch to install a new circuit
breaker.
[SV43900( GV)06/93]
Fuse Links
[SV43950( GV)03/93]
Fuse links are circuit protectors that are part of
the wiring harness for some electrical equipment.
These, like fuses, open when the circuit lead
exceeds their amperage rating. Fuse links may be
purchased from your Ford or Lincoln-Mercury
dealer. See the following charts to find out
which electrical parts are protected by a fuse
link.
File:rcsvv.ex
Update:Wed Jun 28 16:02:20 1995
