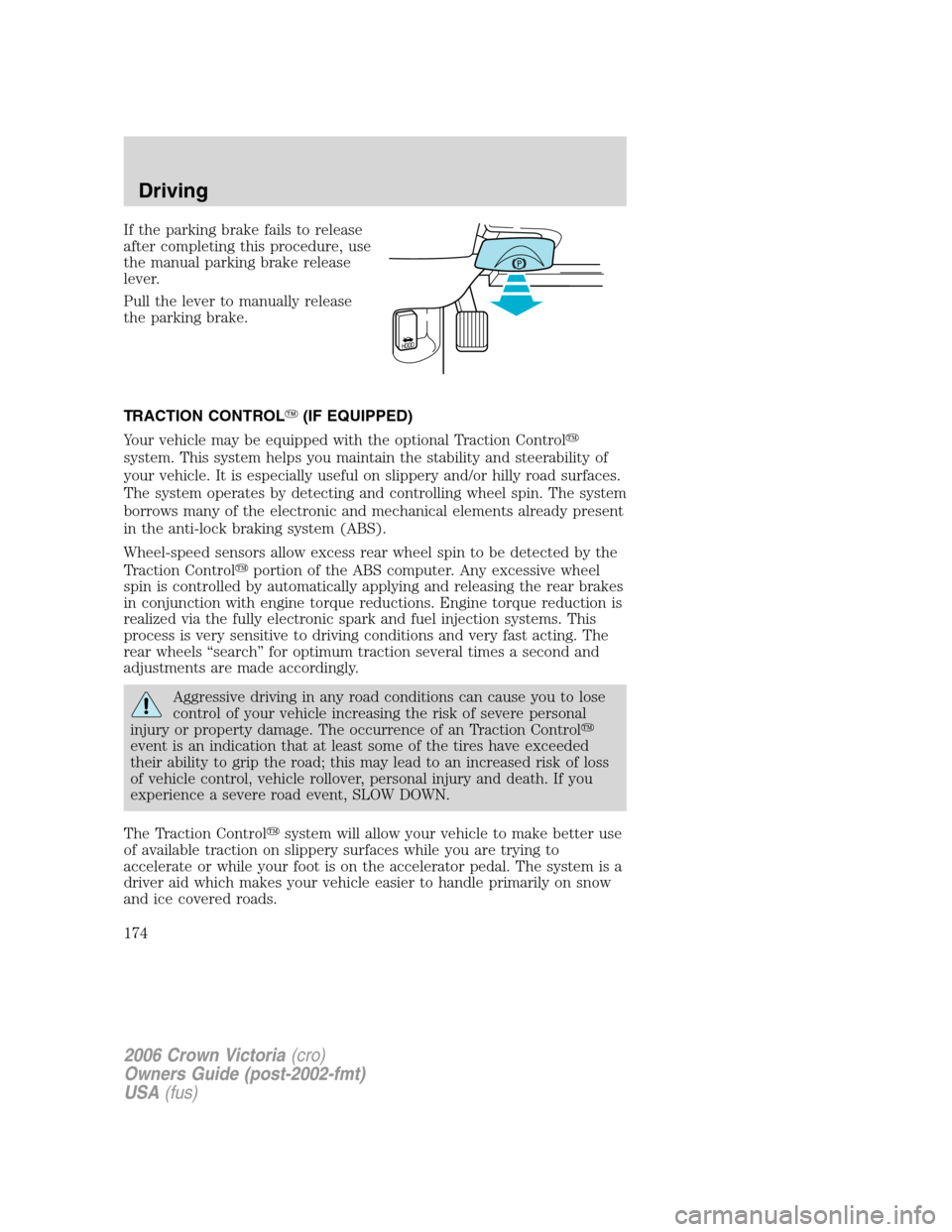

If the parking brake fails to release
after completing this procedure, use
the manual parking brake release
lever.
Pull the lever to manually release
the parking brake.
TRACTION CONTROL(IF EQUIPPED)
Your vehicle may be equipped with the optional Traction Control

system. This system helps you maintain the stability and steerability of
your vehicle. It is especially useful on slippery and/or hilly road surfaces.
The system operates by detecting and controlling wheel spin. The system
borrows many of the electronic and mechanical elements already present
in the anti-lock braking system (ABS).
Wheel-speed sensors allow excess rear wheel spin to be detected by the
Traction Control
portion of the ABS computer. Any excessive wheel
spin is controlled by automatically applying and releasing the rear brakes
in conjunction with engine torque reductions. Engine torque reduction is
realized via the fully electronic spark and fuel injection systems. This
process is very sensitive to driving conditions and very fast acting. The
rear wheels “search” for optimum traction several times a second and
adjustments are made accordingly.
Aggressive driving in any road conditions can cause you to lose
control of your vehicle increasing the risk of severe personal
injury or property damage. The occurrence of an Traction Control

event is an indication that at least some of the tires have exceeded
their ability to grip the road; this may lead to an increased risk of loss
of vehicle control, vehicle rollover, personal injury and death. If you
experience a severe road event, SLOW DOWN.
The Traction Control
system will allow your vehicle to make better use
of available traction on slippery surfaces while you are trying to
accelerate or while your foot is on the accelerator pedal. The system is a
driver aid which makes your vehicle easier to handle primarily on snow
and ice covered roads.
2006 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
174

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
12 25A* Audio
13 20A* Instrument panel power point
14 20A* Stop lamp switch
15 20A* Heated seats
16 25A* Tray lamps (Police vehicles only)
17 — Not used
18 — Not used
19 15A* Injectors
20 15A* PCM, Mass Air Flow (MAF)
sensor, IAT
21 15A* Powertrain loads and sensors, A/C
clutch relay coil
22 20A* Police PDB outputs (Police
vehicles only)
23 20A* Police PDB outputs (Police
vehicles only)
24 — Not used
101 40A** Blower relay feed
102 50A** Cooling fan
103 50A** Instrument panel (I/P) fuse box
feed #1, I/P fuses 19, 21, 23, 25
and 27
104 40A** Instrument panel (I/P) fuse box
feed #2, I/P fuses 1, 3, 5, 7, 8 and
9
105 30A** Starter relay feed
106 40A** Anti-lock Brake System (ABS)
module (Pump)
107 40A** Rear defroster relay feed
2006 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
192

autolock .....................................89
keypad .......................................90
programming entry code .........91
Keys .................................83, 95–96
positions of the ignition .........167
L
Lamps
autolamp system .......................40
bulb replacement
specifications chart ..................45
daytime running light ...............41
headlamps .................................40
headlamps, flash to pass ..........41
instrument panel, dimming .....42
interior lamps .....................43–46
replacing bulbs .........................46
Lane change indicator
(see Turn signal) ........................42
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........172
Limited slip axle
(see Traction Loc) ....................177
Load limits .................................156
Locks
autolock .....................................89
childproof ..................................84
doors ..........................................83
Lubricant specifications ...255, 257
Lug nuts ....................................200
Lumbar support, seats .............102
M
Message center .....................73–74
english/metric button ...............78
system check button ................77
warning messages .....................78Mirrors .........................................64
automatic dimming rearview
mirror ........................................63
fold away ...................................64
heated ........................................64
side view mirrors (power) .......64
Moon roof ....................................69
Motorcraft parts ........219, 236, 252
O
Octane rating ............................241
Oil (see Engine oil) ..................225
P
Parking brake ............................173
Parts (see Motorcraft parts) ....252
Passenger Occupant
Classification Sensor .................105
Pedals (see Power adjustable
foot pedals) .................................65
Power adjustable foot pedals .....65
Power distribution box
(see Fuses) ...............................190
Power door locks ..................83, 89
Power mirrors .............................64
Power point .................................62
Power steering ..................175–176
fluid, checking and adding ....248
fluid, refill capacity ................253
fluid, specifications .................255
Power Windows ...........................62
R
Radio ....................17, 19, 21, 25, 30
Rear window defroster ...............39
2006 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Index
266
