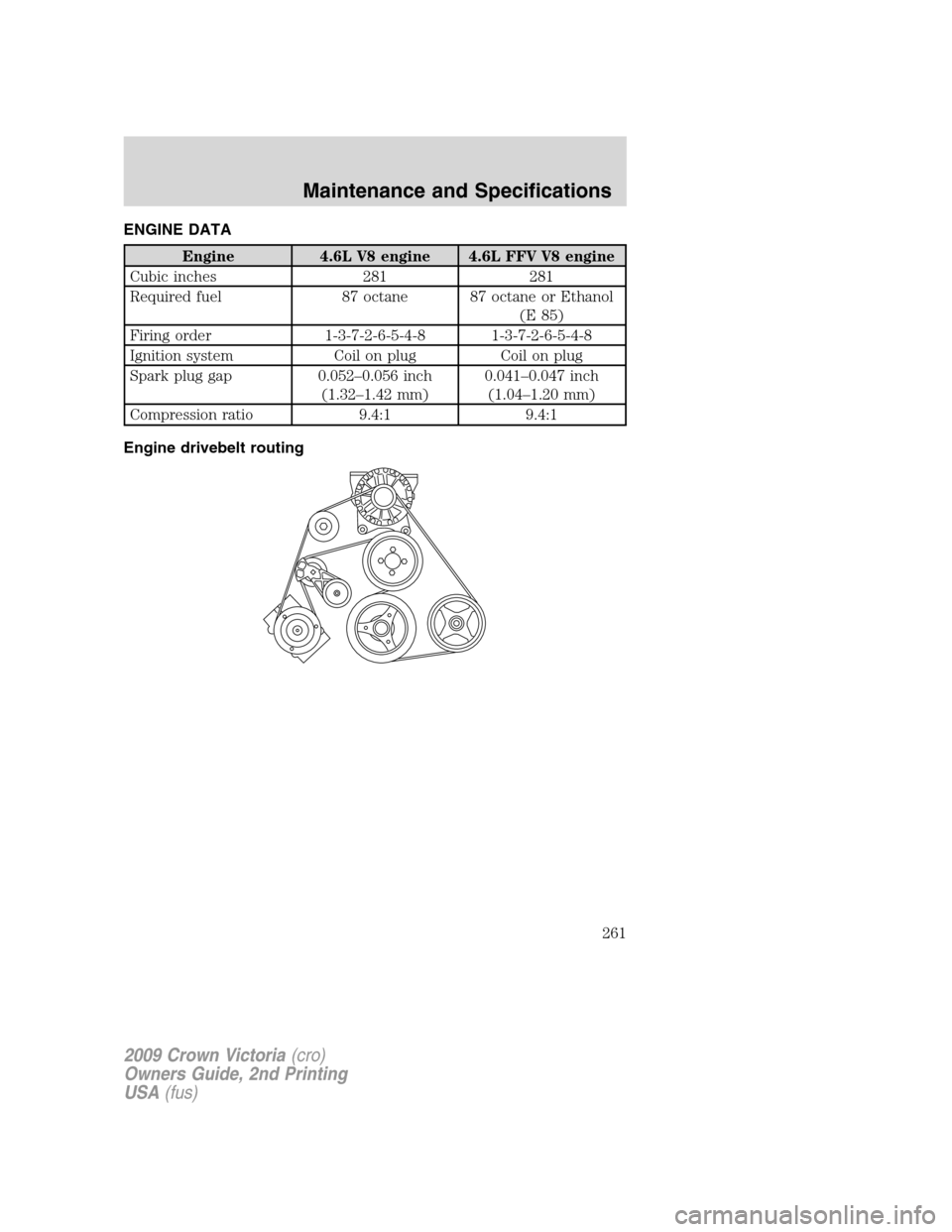

ENGINE DATA
Engine 4.6L V8 engine 4.6L FFV V8 engine
Cubic inches 281 281
Required fuel 87 octane 87 octane or Ethanol
(E 85)
Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8
Ignition system Coil on plug Coil on plug
Spark plug gap 0.052–0.056 inch
(1.32–1.42 mm)0.041–0.047 inch
(1.04–1.20 mm)
Compression ratio 9.4:1 9.4:1
Engine drivebelt routing
2009 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
261

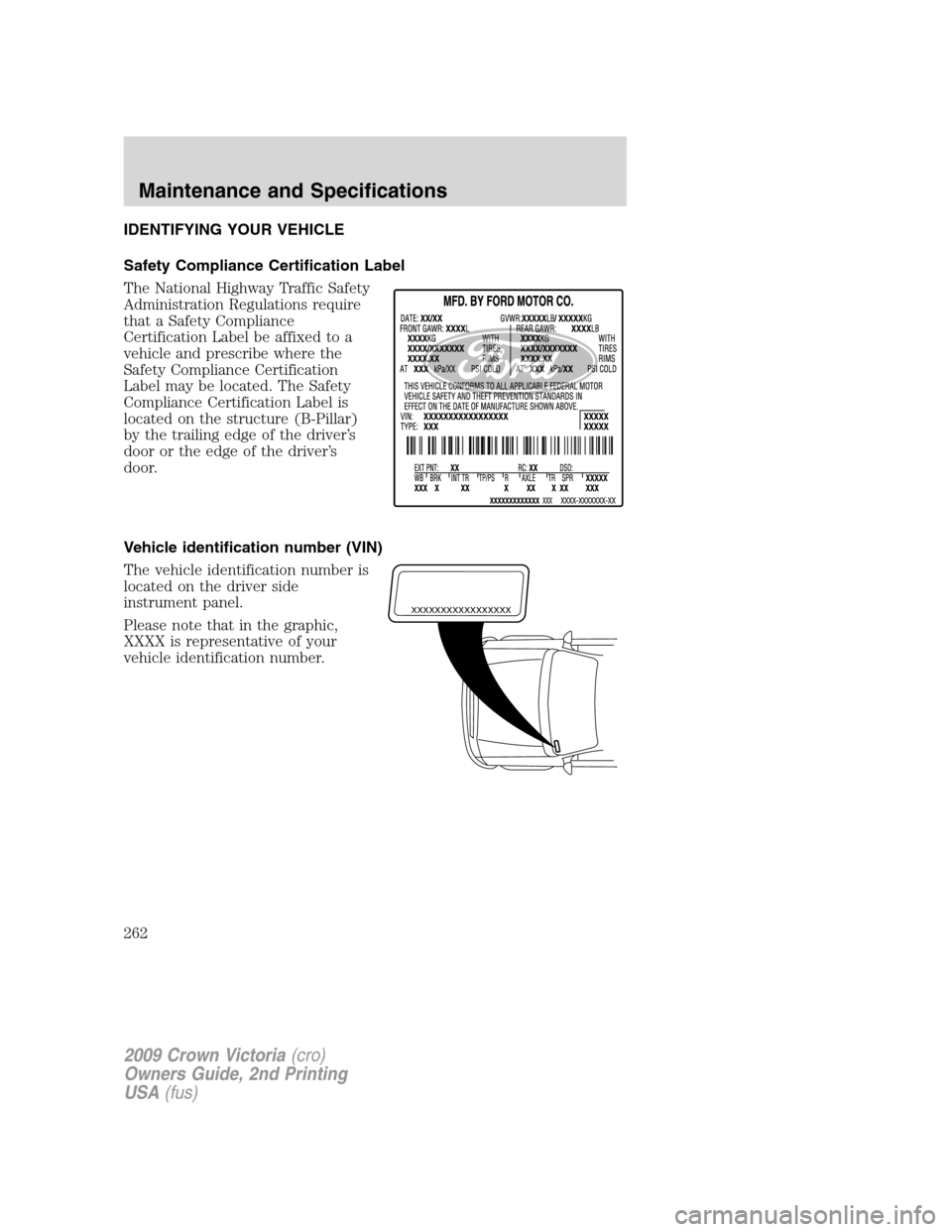

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
2009 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
262

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Four-speed automatic overdrive (4R75E) Q
2009 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
263

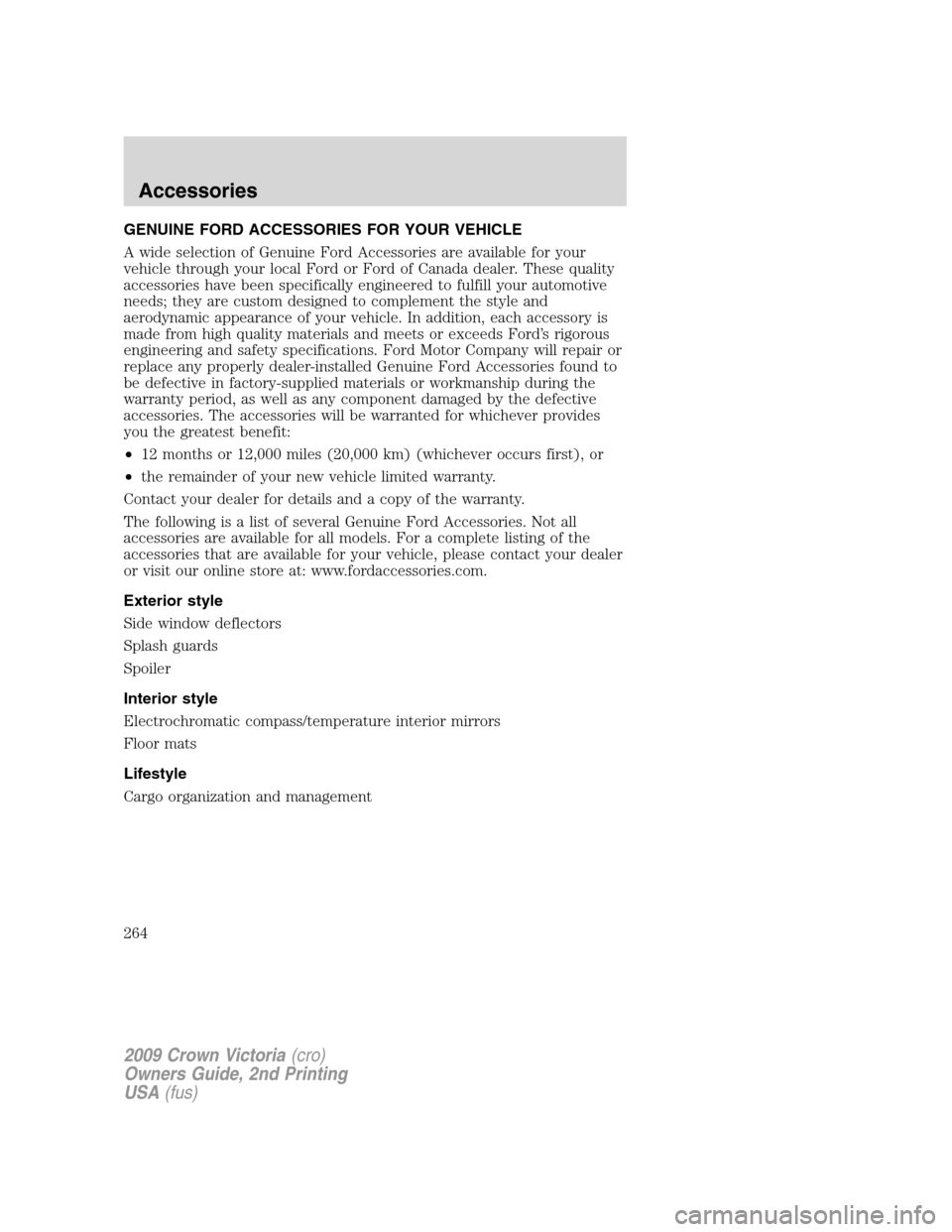

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessories.com.
Exterior style
Side window deflectors
Splash guards
Spoiler
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
Lifestyle
Cargo organization and management
2009 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)
Accessories
264

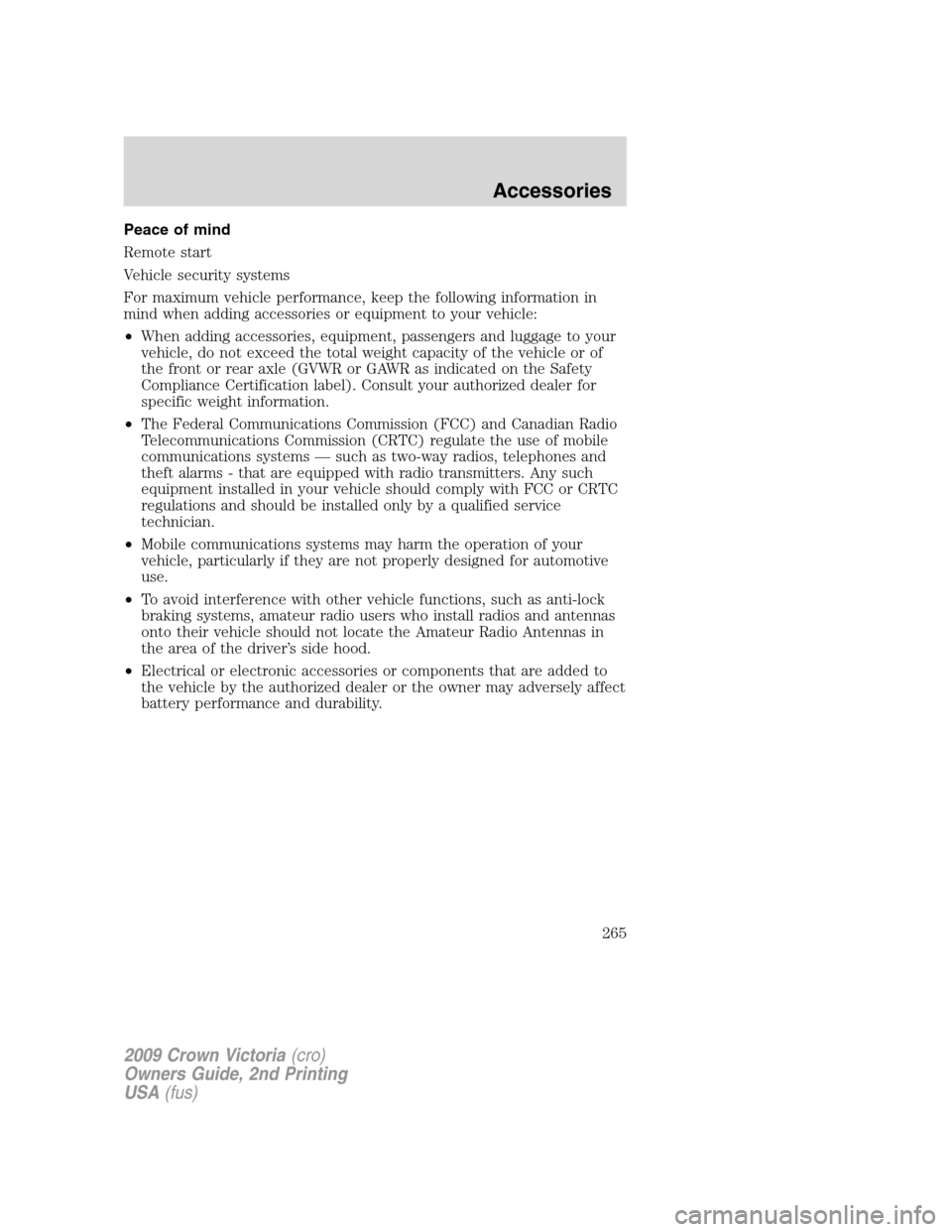

Peace of mind
Remote start
Vehicle security systems
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2009 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)
Accessories
265

A
ABS (see Brakes) .....................174
Air cleaner filter ...............255–256
Air conditioning ..........................38
Air suspension ...........................178
description ..............................178
Airbag supplemental restraint
system ................................107, 117
and child safety seats ............109
description ......................107, 117
disposal ....................................120
driver airbag ....................110, 118
indicator light .................117, 119
operation .........................110, 118
passenger airbag .............110, 118
side airbag ...............................117
Antifreeze
(see Engine coolant) ................233
Anti-lock brake system
(see Brakes) ......................174–175
Anti-theft system ........................83
Audio system
(see Radio) ................20, 22, 25, 30
Automatic transmission
driving an automatic
overdrive .................................180
fluid, adding ............................253
fluid, checking ........................253
fluid, refill capacities ..............258
fluid, specification ..................258
Auxiliary power point .................55
Axle
lubricant specifications ..........258
refill capacities ........................258
traction lok ..............................179
B
Battery .......................................231acid, treating emergencies .....231
jumping a disabled battery ....202
maintenance-free ....................231
replacement, specifications ...256
servicing ..................................231
Belt-Minder
.............................103
Booster seats .............................134
Brakes ................................173–174
anti-lock ...........................174–175
anti-lock brake system (ABS)
warning light ...........................175
fluid, checking and adding ....253
fluid, refill capacities ..............258
fluid, specifications .................258
lubricant specifications ..........258
shift interlock ..........................179
Bulbs ............................................46
C
Capacities for refilling fluids ....258
Cell phone use ..............................8
Child safety seats ......................124
attaching with tether straps ..132
in front seat ............................125
in rear seat ......................125, 128
LATCH .....................................129
recommendations ...................122
Child safety seats - booster
seats ...........................................134
Cleaning your vehicle
engine compartment ..............219
instrument panel ....................221
interior .....................................221
plastic parts ............................220
washing ....................................217
waxing .....................................218
wheels ......................................218
wiper blades ............................220
2009 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)
Index
266

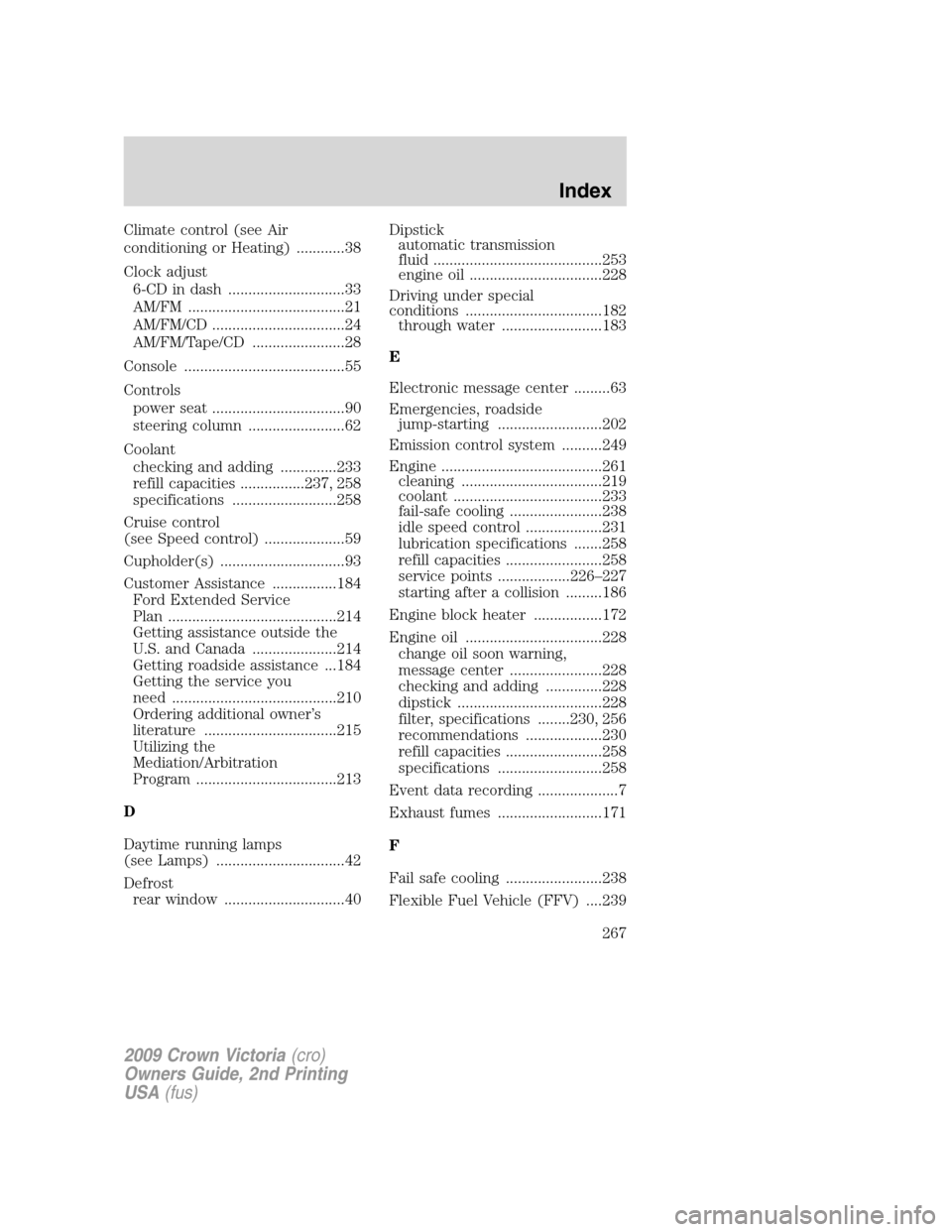

Climate control (see Air
conditioning or Heating) ............38
Clock adjust
6-CD in dash .............................33
AM/FM .......................................21
AM/FM/CD .................................24
AM/FM/Tape/CD .......................28
Console ........................................55
Controls
power seat .................................90
steering column ........................62
Coolant
checking and adding ..............233
refill capacities ................237, 258
specifications ..........................258
Cruise control
(see Speed control) ....................59
Cupholder(s) ...............................93
Customer Assistance ................184
Ford Extended Service
Plan ..........................................214
Getting assistance outside the
U.S. and Canada .....................214
Getting roadside assistance ...184
Getting the service you
need .........................................210
Ordering additional owner’s
literature .................................215
Utilizing the
Mediation/Arbitration
Program ...................................213
D
Daytime running lamps
(see Lamps) ................................42
Defrost
rear window ..............................40Dipstick
automatic transmission
fluid ..........................................253
engine oil .................................228
Driving under special
conditions ..................................182
through water .........................183
E
Electronic message center .........63
Emergencies, roadside
jump-starting ..........................202
Emission control system ..........249
Engine ........................................261
cleaning ...................................219
coolant .....................................233
fail-safe cooling .......................238
idle speed control ...................231
lubrication specifications .......258
refill capacities ........................258
service points ..................226–227
starting after a collision .........186
Engine block heater .................172
Engine oil ..................................228
change oil soon warning,
message center .......................228
checking and adding ..............228
dipstick ....................................228
filter, specifications ........230, 256
recommendations ...................230
refill capacities ........................258
specifications ..........................258
Event data recording ....................7
Exhaust fumes ..........................171
F
Fail safe cooling ........................238
Flexible Fuel Vehicle (FFV) ....239
2009 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)
Index
267

Floor mats ...................................72
Fluid capacities .........................258
Fuel ............................................239
calculating fuel
economy ............................65, 246
cap ...........................................242
capacity ...................................258
choosing the right fuel ...........244
comparisons with EPA fuel
economy estimates .................249
detergent in fuel .....................244
filling your vehicle with
fuel ...........................239, 242, 246
filter, specifications ........239, 256
fuel pump shut-off switch .....186
improving fuel economy ........246
octane rating ...................244, 261
quality ......................................245
running out of fuel .................245
safety information relating to
automotive fuels .....................239
Fuel - flex fuel vehicle
(FFV) .................................239, 244
Fuses ..................................187–188
G
Gas cap (see Fuel cap) ............242
Gas mileage
(see Fuel economy) .................246
Gauges .........................................17
H
Hazard flashers .........................185
Head restraints ...........................88
Headlamps ...................................41
aiming ........................................43
autolamp system .......................41
bulb specifications ....................46daytime running lights .............42
flash to pass ..............................42
high beam .................................42
replacing bulbs
.........................47
turning on and off
....................41
Heating
heating and air conditioning
system
.................................37–38
Hood
..........................................225
I
Ignition
...............................168, 261
Illuminated visor mirror
.............54
Infant seats
(see Safety seats)
.....................124
Inspection/maintenance (I/M)
testing
........................................251
Instrument panel
cleaning
...................................221
cluster
........................................12
lighting up panel and
interior
.......................................43
J
Jump-starting your vehicle
......202
K
Keyless entry system
.................81
autolock
.....................................73
keypad
.......................................81
programming entry code
.........81
Keys
.................................73, 85–86
positions of the ignition
.........168
2009 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)
Index
268

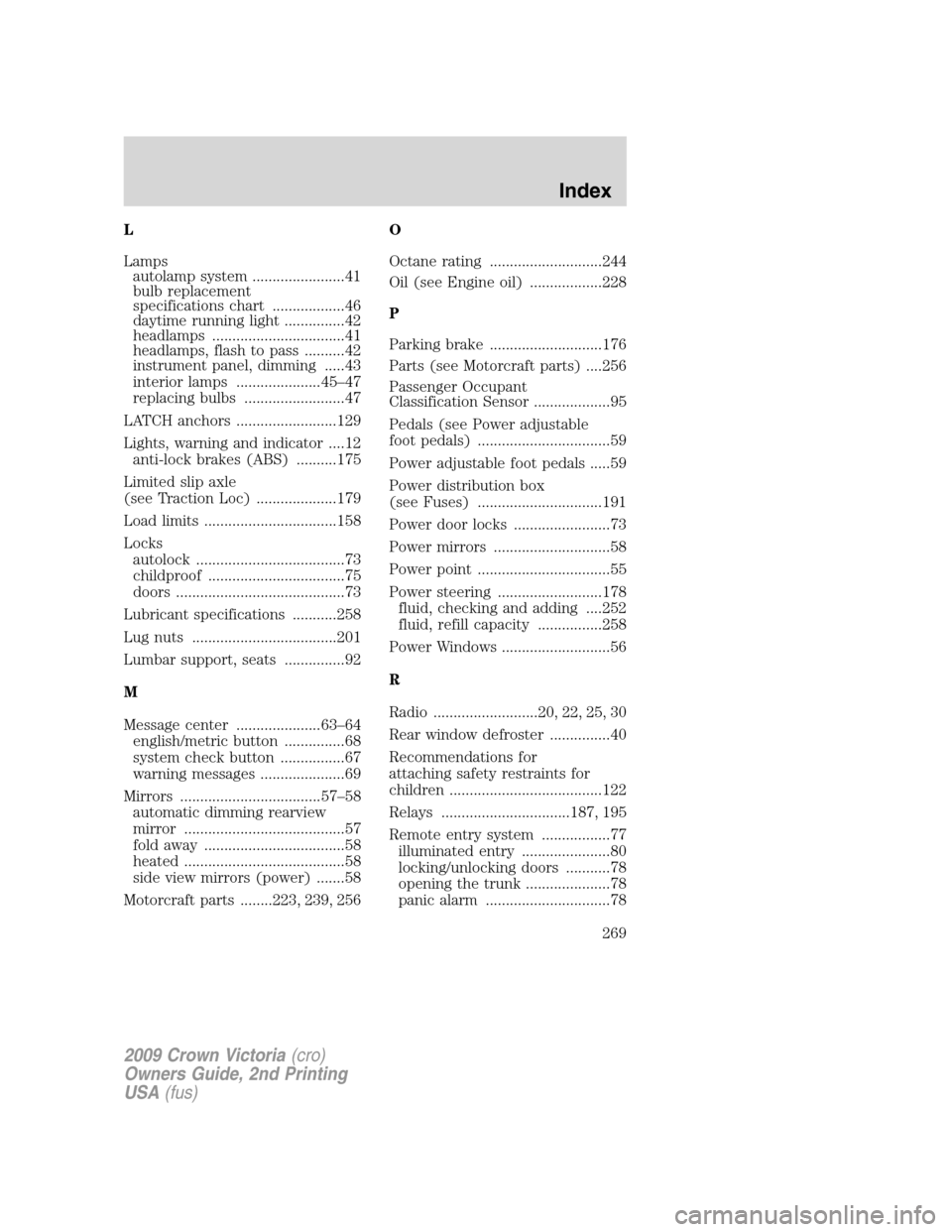

L
Lamps
autolamp system .......................41
bulb replacement
specifications chart ..................46
daytime running light ...............42
headlamps .................................41
headlamps, flash to pass ..........42
instrument panel, dimming .....43
interior lamps .....................45–47
replacing bulbs .........................47
LATCH anchors .........................129
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........175
Limited slip axle
(see Traction Loc) ....................179
Load limits .................................158
Locks
autolock .....................................73
childproof ..................................75
doors ..........................................73
Lubricant specifications ...........258
Lug nuts ....................................201
Lumbar support, seats ...............92
M
Message center .....................63–64
english/metric button ...............68
system check button ................67
warning messages .....................69
Mirrors ...................................57–58
automatic dimming rearview
mirror ........................................57
fold away ...................................58
heated ........................................58
side view mirrors (power) .......58
Motorcraft parts ........223, 239, 256O
Octane rating ............................244
Oil (see Engine oil) ..................228
P
Parking brake ............................176
Parts (see Motorcraft parts) ....256
Passenger Occupant
Classification Sensor ...................95
Pedals (see Power adjustable
foot pedals) .................................59
Power adjustable foot pedals .....59
Power distribution box
(see Fuses) ...............................191
Power door locks ........................73
Power mirrors .............................58
Power point .................................55
Power steering ..........................178
fluid, checking and adding ....252
fluid, refill capacity ................258
Power Windows ...........................56
R
Radio ..........................20, 22, 25, 30
Rear window defroster ...............40
Recommendations for
attaching safety restraints for
children ......................................122
Relays ................................187, 195
Remote entry system .................77
illuminated entry ......................80
locking/unlocking doors ...........78
opening the trunk .....................78
panic alarm ...............................78
2009 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)
Index
269

replacement/additional
transmitters ...............................79
replacing the batteries .............78
Roadside assistance ..................184
S
Safety belts (see Safety
restraints) ......................93, 97–102
Safety Canopy ...........................117
Safety defects, reporting ..........216
Safety restraints ............93, 97–102
Belt-Minder
...........................103
extension assembly ................101
for adults ...........................98–101
for children .............................120
lap belt ......................................99
Occupant Classification
Sensor ........................................95
warning light and chime ........102
Safety restraints - LATCH
anchors ......................................129
Safety seats for children ..........124
Safety Compliance
Certification Label ....................262
Seats ............................................88
child safety seats ....................124
front seats .................................88
SecuriLock passive anti-theft
system ....................................83, 86
Servicing your vehicle ..............224
Setting the clock
AM/FM single CD .....................24
AM/FM stereo ...........................21
AM/FM/In-dash 6 CD ................33
AM/FM/Tape/CD .......................28
Spark plugs,
specifications .....................256, 261Specification chart,
lubricants ...................................258
Speed control ..............................59
Starting a flex fuel vehicle .......170
Starting your vehicle ........168–170
jump starting ..........................202
Steering wheel
controls ......................................62
tilting .........................................54
T
Tilt steering wheel ......................54
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....153
Tires ...................................138–139
alignment ................................146
care ..........................................142
changing ..................................199
checking the pressure ............142
inflating ...................................140
label .........................................152
replacing ..................................144
rotating ....................................146
safety practices .......................145
sidewall information ...............147
snow tires and chains ............158
spare tire .........................196, 198
terminology .............................139
tire grades ...............................139
treadwear ........................138, 143
Towing .......................................164
recreational towing .................167
trailer towing ..........................164
wrecker ....................................208
Traction control ........................177
Traction-lok rear axle ...............179
Transmission .............................179
2009 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)
Index
270
