FORD CROWN VICTORIA 2010 2.G Owners Manual

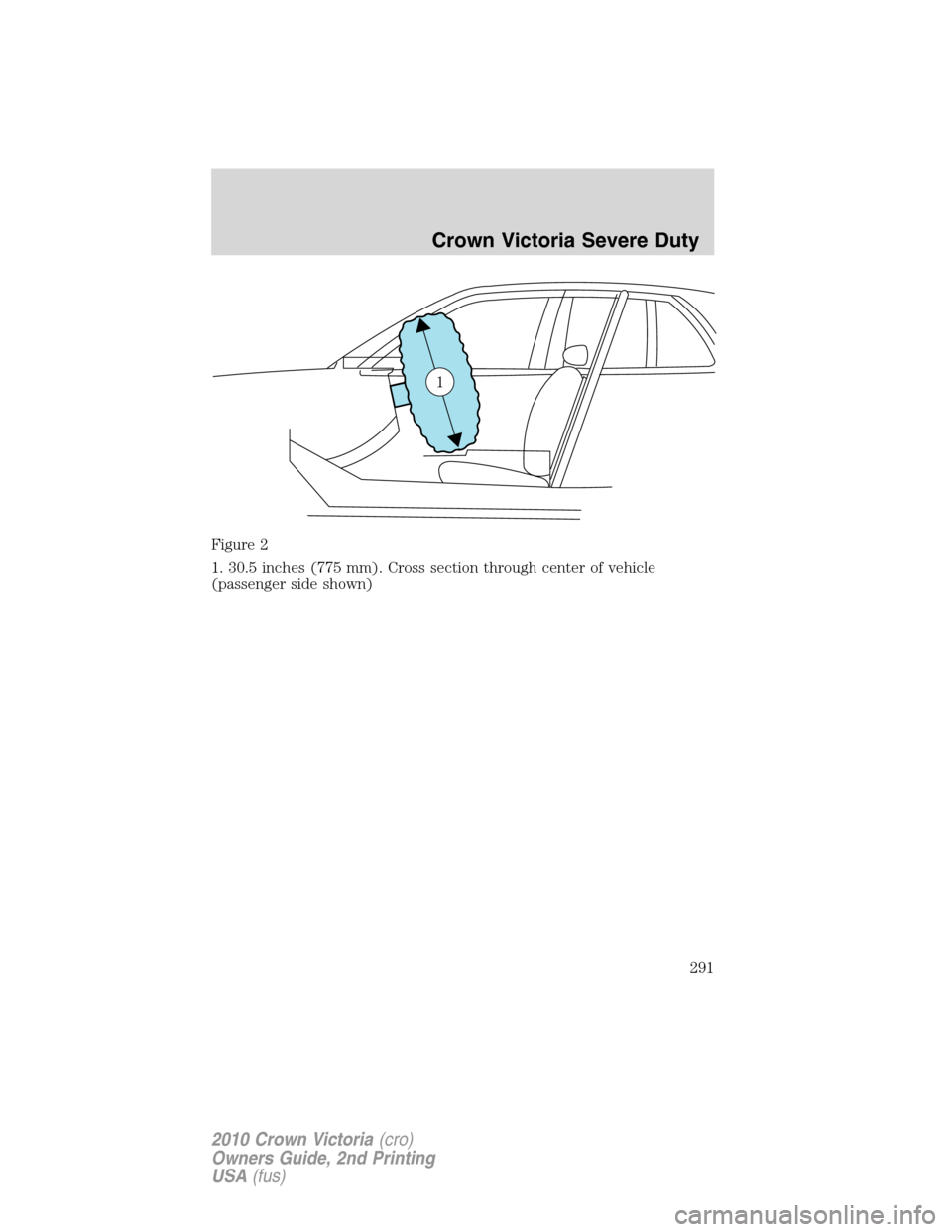

Figure 2
1. 30.5 inches (775 mm). Cross section through center of vehicle
(passenger side shown)
1
Crown Victoria Severe Duty
291
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

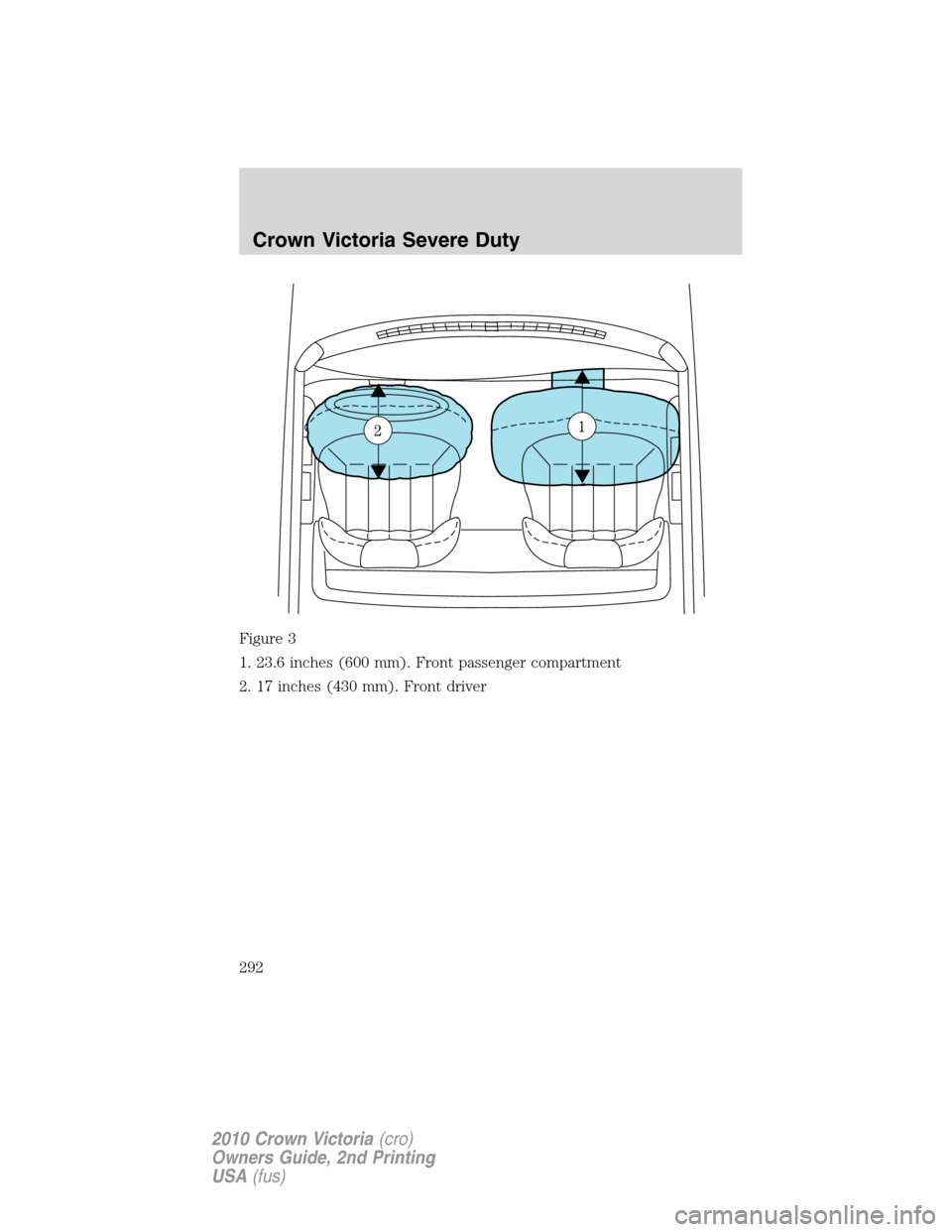

Figure 3
1. 23.6 inches (600 mm). Front passenger compartment
2. 17 inches (430 mm). Front driver
Crown Victoria Severe Duty
292
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

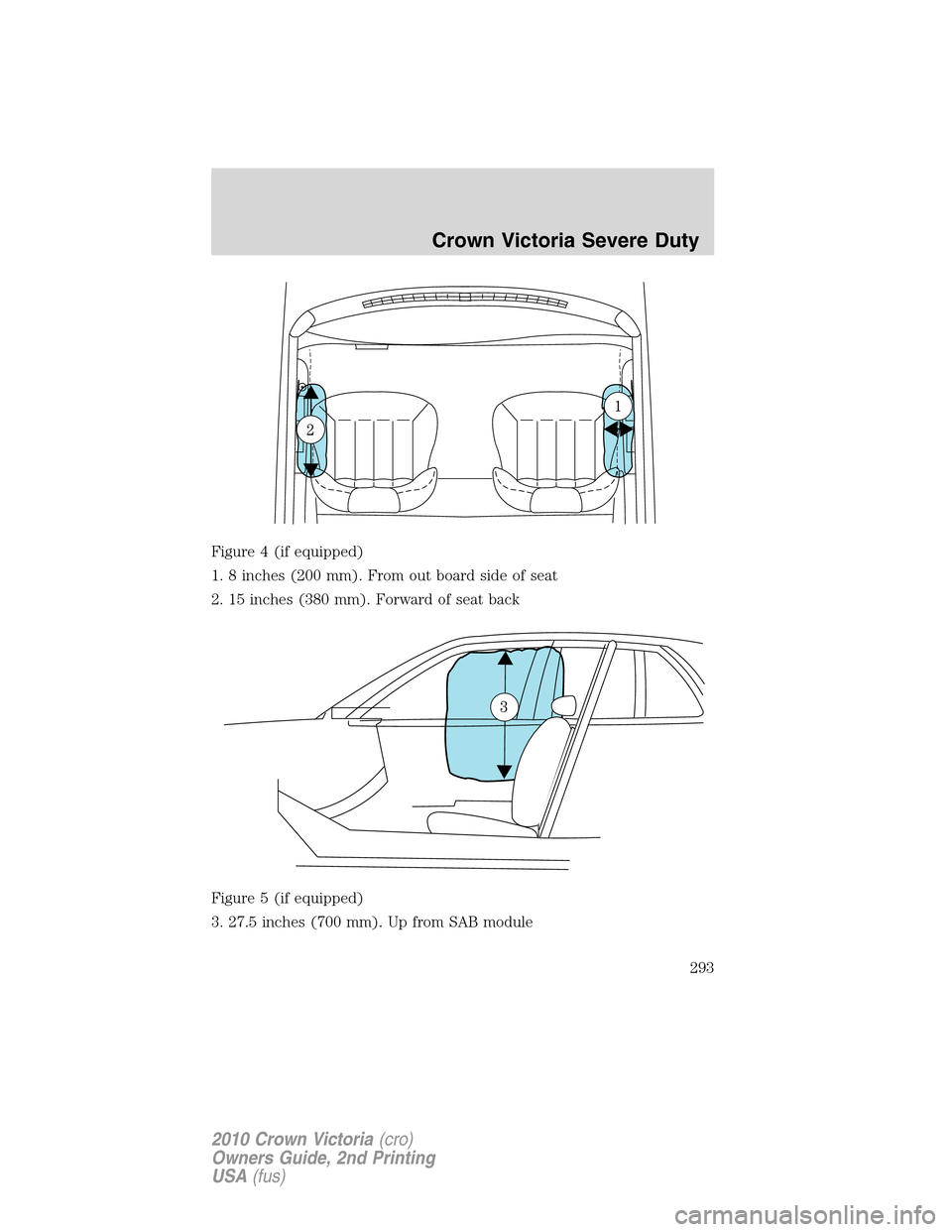

Figure 4 (if equipped)
1. 8 inches (200 mm). From out board side of seat
2. 15 inches (380 mm). Forward of seat back
Figure 5 (if equipped)
3. 27.5 inches (700 mm). Up from SAB module
Crown Victoria Severe Duty
293
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

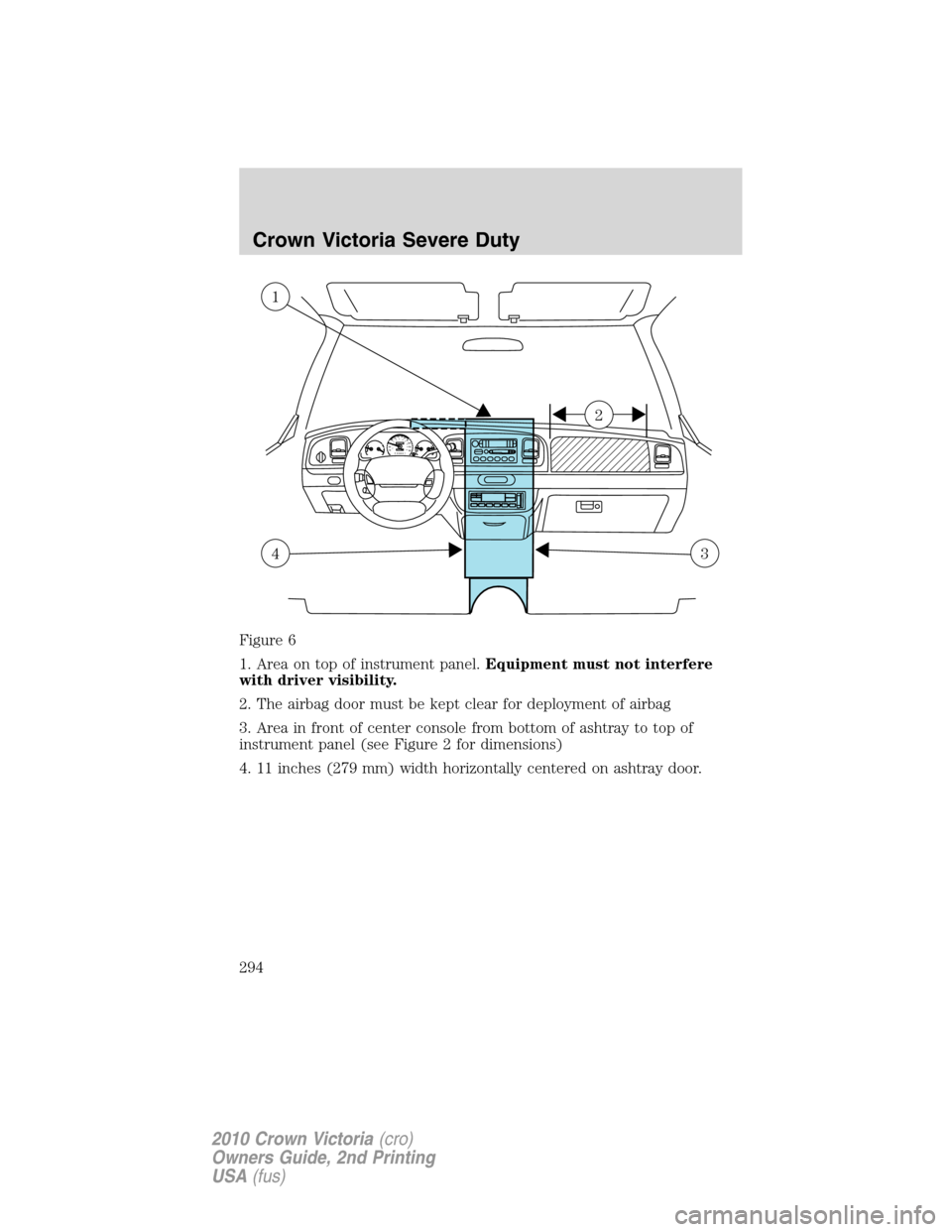

Figure 6
1. Area on top of instrument panel.Equipment must not interfere
with driver visibility.
2. The airbag door must be kept clear for deployment of airbag
3. Area in front of center console from bottom of ashtray to top of
instrument panel (see Figure 2 for dimensions)
4. 11 inches (279 mm) width horizontally centered on ashtray door.
10 203040506070
80
90
10 0
11 0
12 020 406080100
120
140
160
180
200LP R N D 2 1
2
1
43
Crown Victoria Severe Duty
294
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

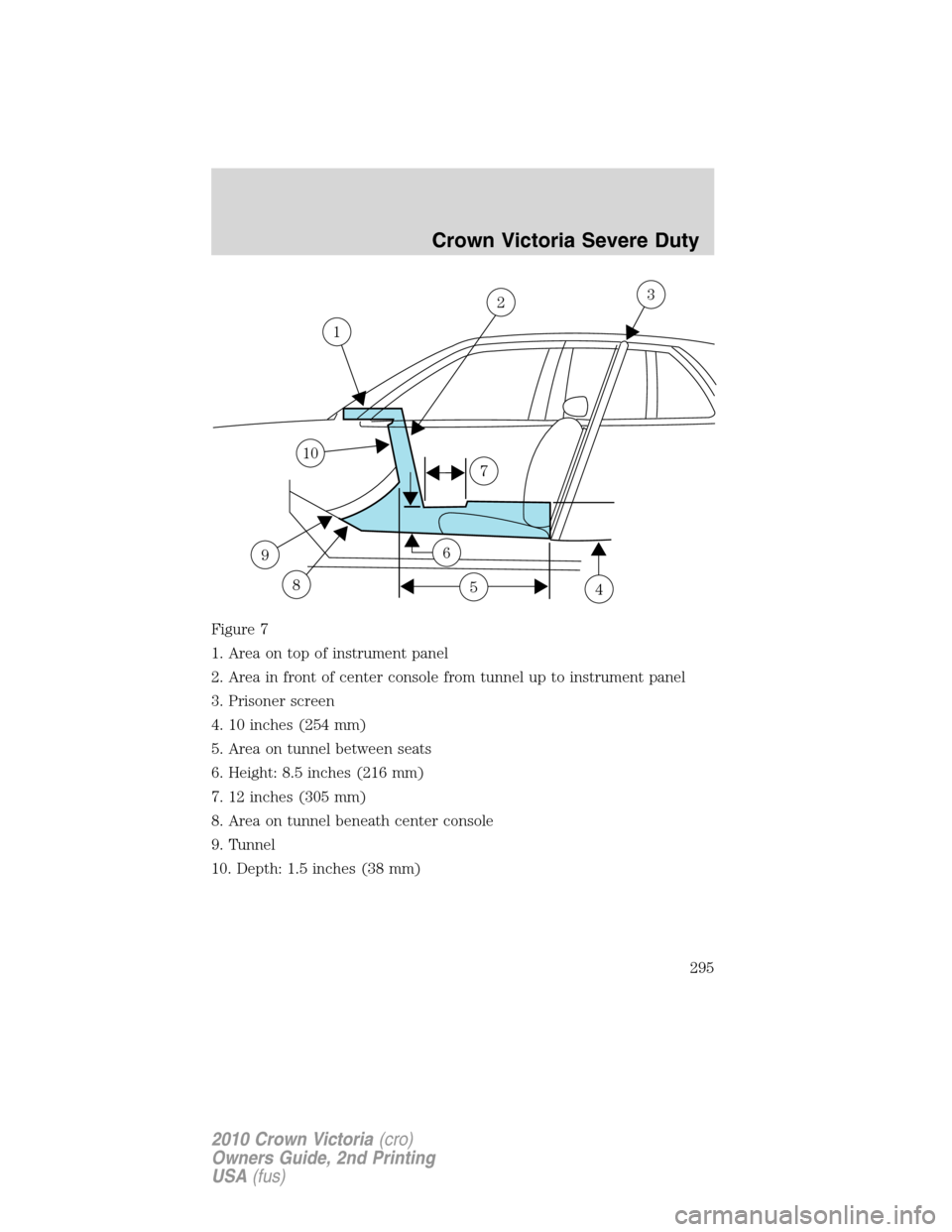

Figure 7
1. Area on top of instrument panel
2. Area in front of center console from tunnel up to instrument panel
3. Prisoner screen
4. 10 inches (254 mm)
5. Area on tunnel between seats
6. Height: 8.5 inches (216 mm)
7. 12 inches (305 mm)
8. Area on tunnel beneath center console
9. Tunnel
10. Depth: 1.5 inches (38 mm)
7
5
6
4
3
8
2
9
10
1
Crown Victoria Severe Duty
295
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

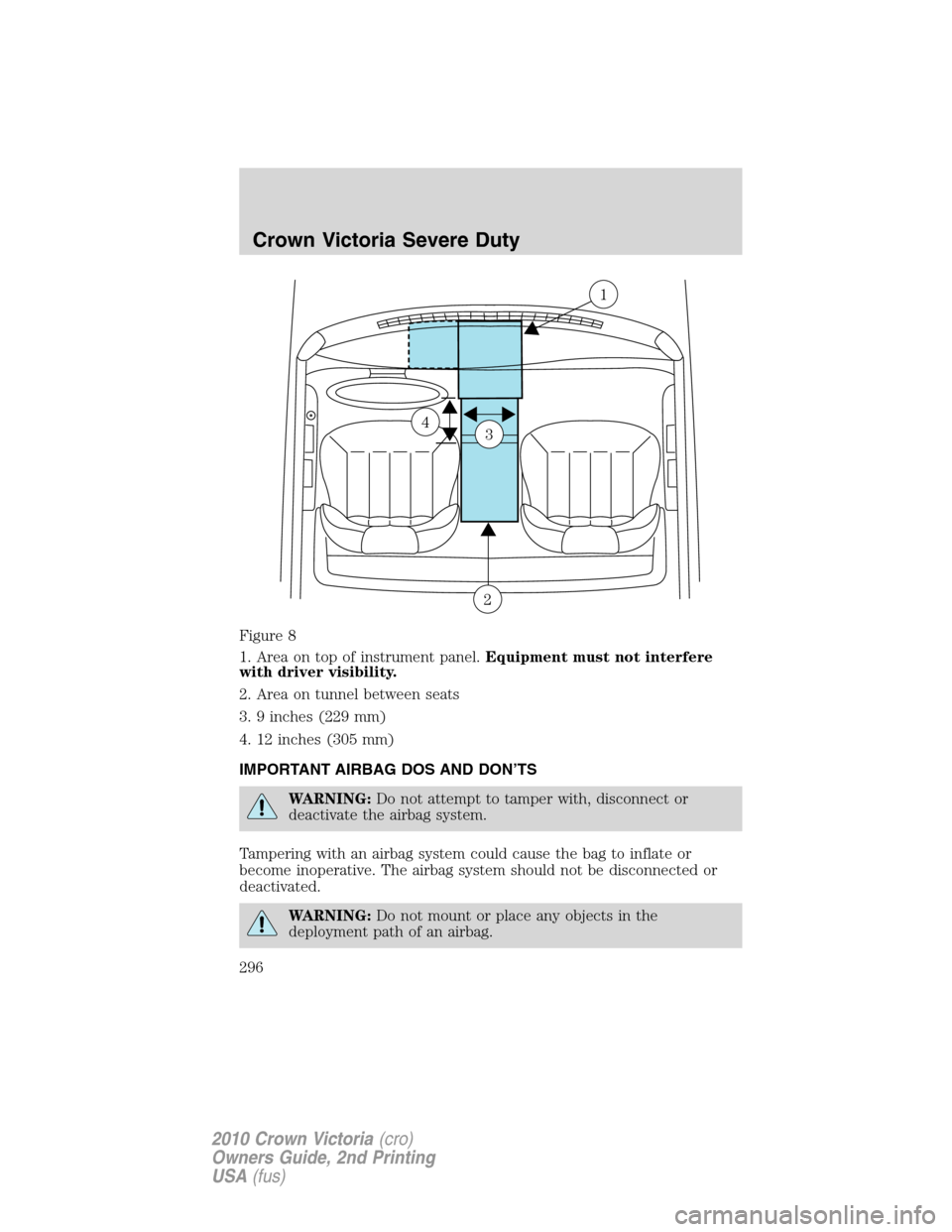

Figure 8
1. Area on top of instrument panel.Equipment must not interfere
with driver visibility.
2. Area on tunnel between seats
3. 9 inches (229 mm)
4. 12 inches (305 mm)
IMPORTANT AIRBAG DOS AND DON’TS
WARNING:Do not attempt to tamper with, disconnect or
deactivate the airbag system.
Tampering with an airbag system could cause the bag to inflate or
become inoperative. The airbag system should not be disconnected or
deactivated.
WARNING:Do not mount or place any objects in the
deployment path of an airbag.
1
2
34
Crown Victoria Severe Duty
296
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

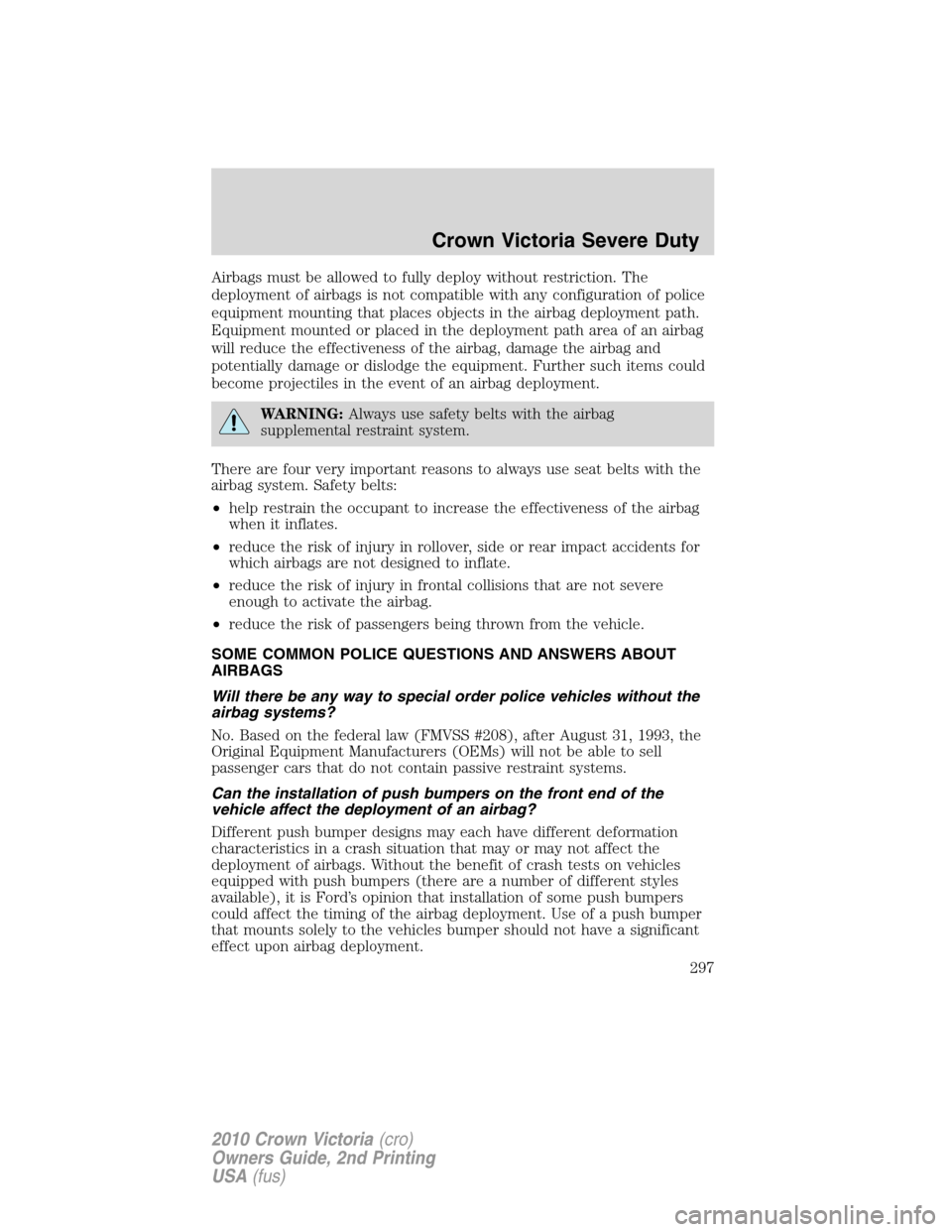

Airbags must be allowed to fully deploy without restriction. The
deployment of airbags is not compatible with any configuration of police
equipment mounting that places objects in the airbag deployment path.
Equipment mounted or placed in the deployment path area of an airbag
will reduce the effectiveness of the airbag, damage the airbag and
potentially damage or dislodge the equipment. Further such items could
become projectiles in the event of an airbag deployment.
WARNING:Always use safety belts with the airbag
supplemental restraint system.
There are four very important reasons to always use seat belts with the
airbag system. Safety belts:
•help restrain the occupant to increase the effectiveness of the airbag
when it inflates.
•reduce the risk of injury in rollover, side or rear impact accidents for
which airbags are not designed to inflate.
•reduce the risk of injury in frontal collisions that are not severe
enough to activate the airbag.
•reduce the risk of passengers being thrown from the vehicle.
SOME COMMON POLICE QUESTIONS AND ANSWERS ABOUT
AIRBAGS
Will there be any way to special order police vehicles without the
airbag systems?
No. Based on the federal law (FMVSS #208), after August 31, 1993, the
Original Equipment Manufacturers (OEMs) will not be able to sell
passenger cars that do not contain passive restraint systems.
Can the installation of push bumpers on the front end of the
vehicle affect the deployment of an airbag?
Different push bumper designs may each have different deformation
characteristics in a crash situation that may or may not affect the
deployment of airbags. Without the benefit of crash tests on vehicles
equipped with push bumpers (there are a number of different styles
available), it is Ford’s opinion that installation of some push bumpers
could affect the timing of the airbag deployment. Use of a push bumper
that mounts solely to the vehicles bumper should not have a significant
effect upon airbag deployment.
Crown Victoria Severe Duty
297
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

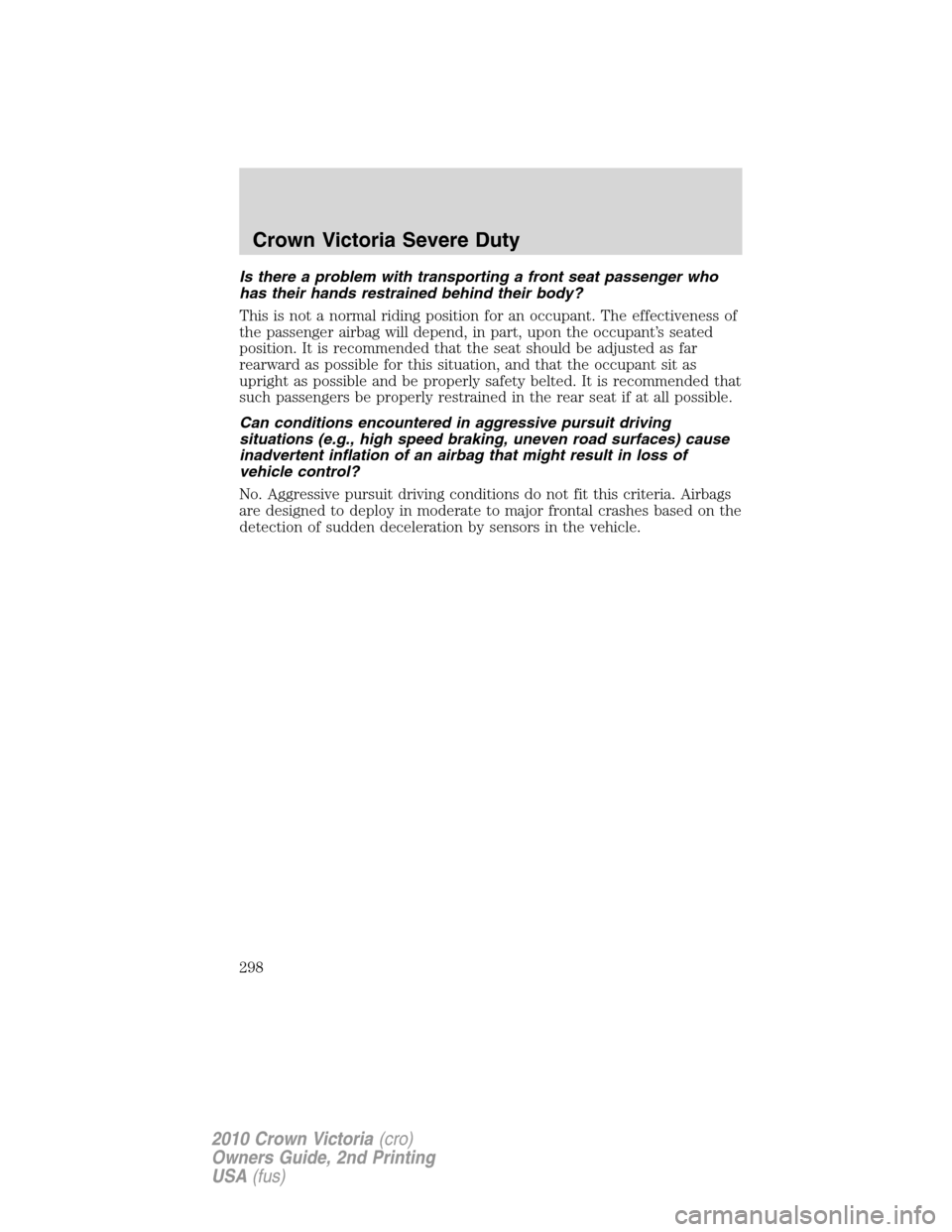

Is there a problem with transporting a front seat passenger who
has their hands restrained behind their body?
This is not a normal riding position for an occupant. The effectiveness of
the passenger airbag will depend, in part, upon the occupant’s seated
position. It is recommended that the seat should be adjusted as far
rearward as possible for this situation, and that the occupant sit as
upright as possible and be properly safety belted. It is recommended that
such passengers be properly restrained in the rear seat if at all possible.
Can conditions encountered in aggressive pursuit driving
situations (e.g., high speed braking, uneven road surfaces) cause
inadvertent inflation of an airbag that might result in loss of
vehicle control?
No. Aggressive pursuit driving conditions do not fit this criteria. Airbags
are designed to deploy in moderate to major frontal crashes based on the
detection of sudden deceleration by sensors in the vehicle.
Crown Victoria Severe Duty
298
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

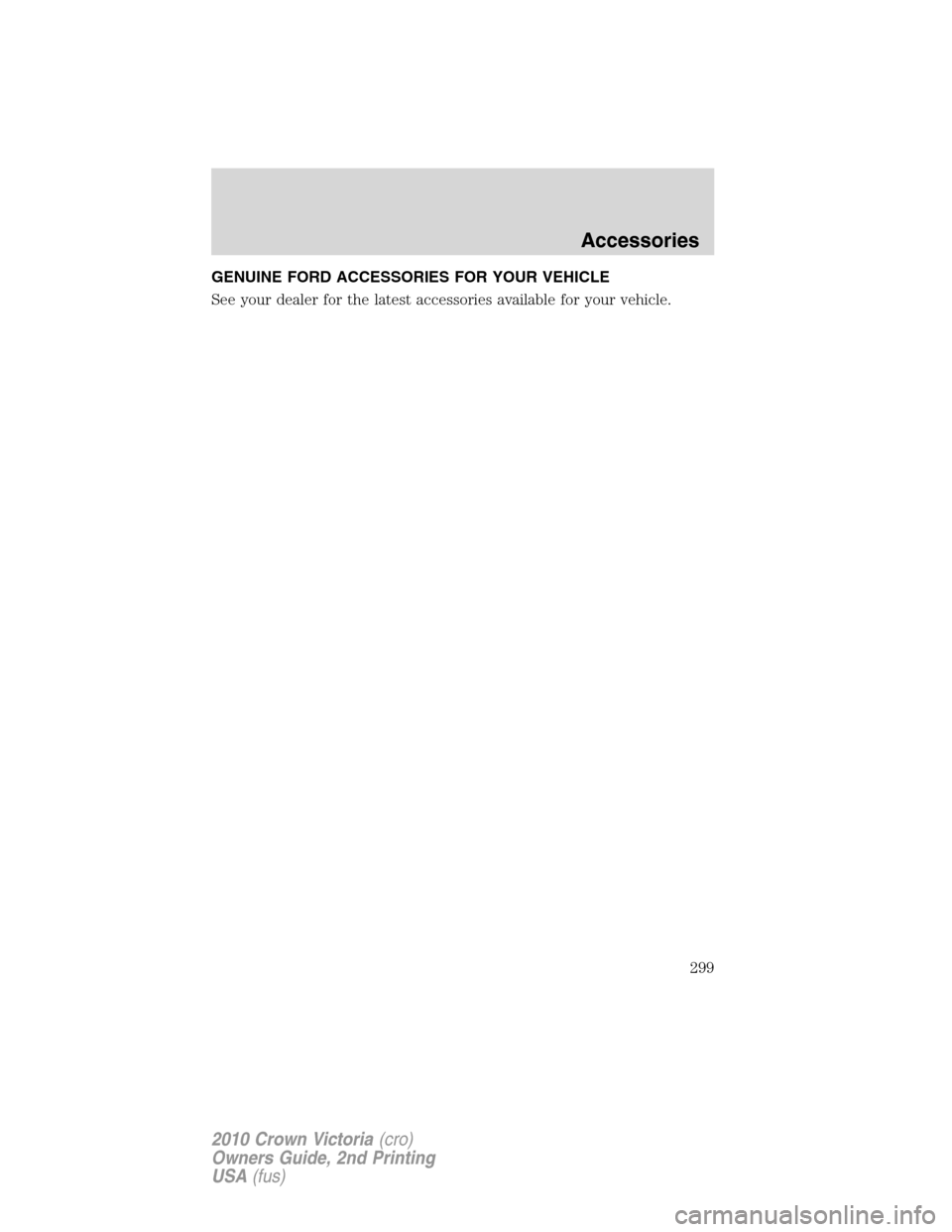

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
See your dealer for the latest accessories available for your vehicle.
Accessories
299
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

FORD ESP EXTENDED SERVICE PLANS
More than 30 million Ford, Lincoln, and Mercury owners have discovered
the powerful protection of Ford ESP. It is the only extended service plan
backed by Ford Motor Company, and provides “peace of mind”
protection beyond the New Vehicle Limited Warranty coverage.
Up to 500+ Covered Vehicle Components
There are four, new-vehicle Extended Service Plans with different levels
of coverage. Ask you dealer for details.
PremiumCare –Our most comprehensive coverage. With over 500
covered components, this plan is so complete that we generally only
discuss what’s not covered!
ExtraCare –Covers 113 components, and includes many high-tech
items.
BaseCare –Covers 84 components.
PowertrainCare –Covers 29 critical components.
Ford ESP is honored by all Ford, Lincoln and Mercury Dealers in
the U.S. and CanadaIt’s the only extended service plan authorized and
backed by Ford Motor Company. That means you get:
•Reliable, quality service anywhere you go.
•Factory-trained technicians.
•Genuine Ford and Motorcraft
Parts.
Rental car reimbursement
If your vehicle is kept overnight for covered repairs,you are
eligible for rental car coverage, including Bumper-to-Bumper warranty
repairs, or manufacturer’s recalls.
Transferable coverage
If you sell your vehicle before your Ford ESP coverage expires, you can
transfer any remaining coverage to the new owner. Whenever you’re
ready to sell your car, prospective buyers may feel better about taking a
risk on your used vehicle. Ford ESP may add resale value!
Plus,exclusive 24/7 roadside assistance,including:
•Towing, flat-tire change and battery jump starts.
•Out-of-fuel and lock-out assistance.
•Travel expense reimbursement for lodging, meals and rental car.
•Destination assistance for taxi, shuttle, rental car coverage and
emergency transportation.
Ford Extended Service Plan
