To remove a fuse use the fuse puller tool provided on the fuse panel
cover.
The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 10A Ignition (START) - Starter relay
coil, DTRS
2 7.5A Power mirrors, Mirror switch,
Keypad switch, Decklid switch,
Adjustable pedal switch, Driver’s
door module, Cluster
3 5A Ignition (START) - Audio mute,
Police power distribution box
(PDB) (Police vehicles only)
4 10A Lighting control module (LCM)
(switch illumination), Autolamp
sensor
5 7.5A Ignition (ON/ACC) - LCM
6 7.5A LCM
7 10A Ignition (ON/ACC) - Wiper module
Roadside Emergencies
194
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
22 10A Ignition (ON/START) - Restraint
control module (RCM), Occupant
classification sensor (OCS),
Passenger airbag deactivation
indicator (PADI)
23 15A Multi-function switch
(Flash-to-pass), LCM (High beams)
24 10A Ignition (ON/START) - Passive
anti-theft system (PATS) module,
Powertrain control module (PCM)
relay coil, Fuel relay coil, Ignition
relay coil
25 15A LCM (Park lamps, corner lamps,
license lamps)
26 10A Ignition (ON/START) - Cluster,
LCM, Overdrive cancel switch,
Traction control switch
27 — Not used
28 7.5A Brake signal, LCM (brake
transmission shift interlock), ABS
29 2A Hazard in (Police vehicles only)
30 2A Battery saver (Police vehicles only)
31 5A Key in (LCM)
32 2A Hazard out (Police vehicles only)
33 10A Fire suppression module (if
equipped) (Police vehicles only)
K101 Full ISO relay Window relay, Decklid (Police
vehicles only)
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
Roadside Emergencies
196
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

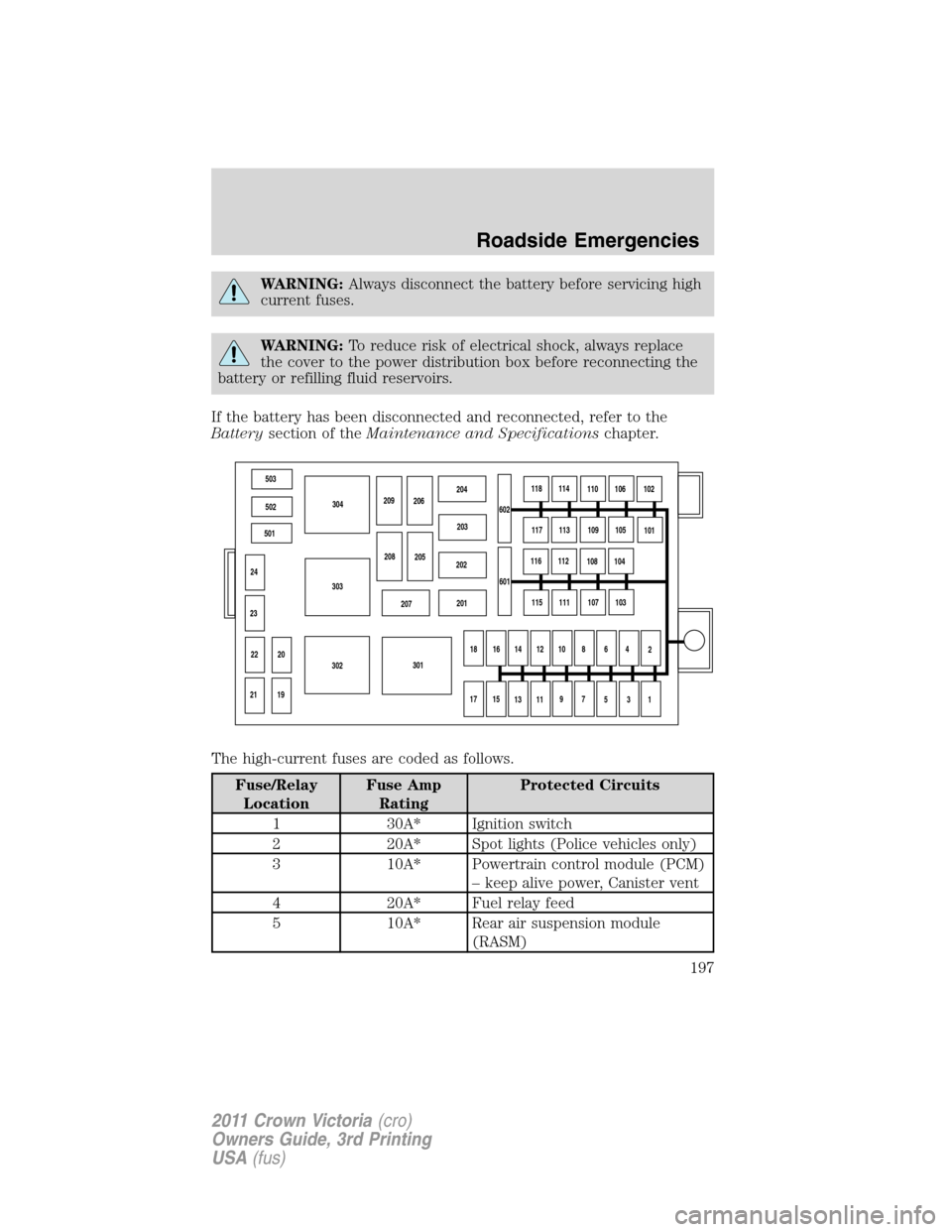

WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 30A* Ignition switch
2 20A* Spot lights (Police vehicles only)
3 10A* Powertrain control module (PCM)
– keep alive power, Canister vent
4 20A* Fuel relay feed
5 10A* Rear air suspension module
(RASM)
503
502
501
24
23
20
19 22
21302303304
301 207201 202203 204
209
206
208
205602118
114
110
106
102
117
113
109
105
101
116
112
108
104
115
111
107
103
18
16
14
1210
8
6
4
2
17
15
13
119
7
5
3
1 601
Roadside Emergencies
197
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

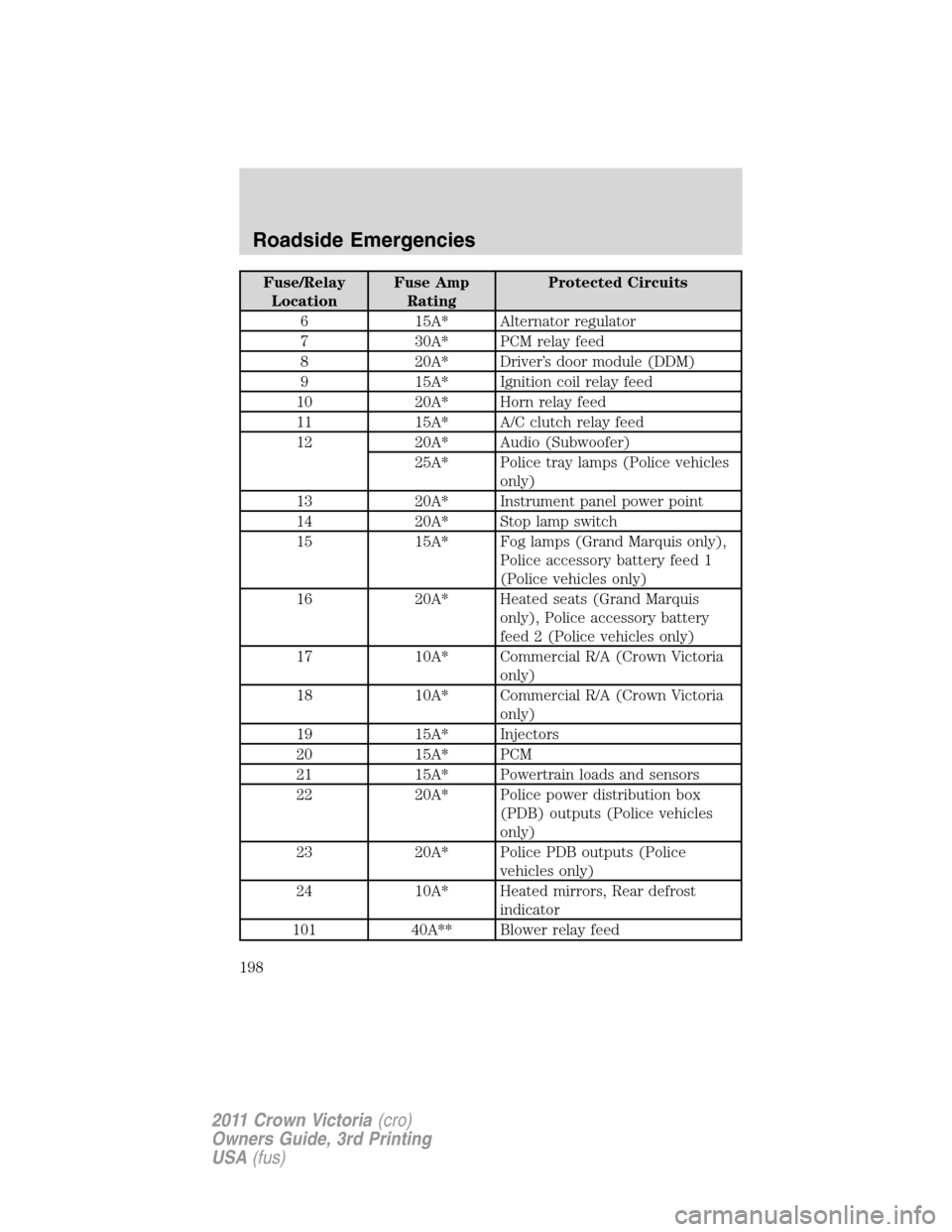

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
6 15A* Alternator regulator
7 30A* PCM relay feed
8 20A* Driver’s door module (DDM)
9 15A* Ignition coil relay feed
10 20A* Horn relay feed
11 15A* A/C clutch relay feed
12 20A* Audio (Subwoofer)
25A* Police tray lamps (Police vehicles
only)
13 20A* Instrument panel power point
14 20A* Stop lamp switch
15 15A* Fog lamps (Grand Marquis only),
Police accessory battery feed 1
(Police vehicles only)
16 20A* Heated seats (Grand Marquis
only), Police accessory battery
feed 2 (Police vehicles only)
17 10A* Commercial R/A (Crown Victoria
only)
18 10A* Commercial R/A (Crown Victoria
only)
19 15A* Injectors
20 15A* PCM
21 15A* Powertrain loads and sensors
22 20A* Police power distribution box
(PDB) outputs (Police vehicles
only)
23 20A* Police PDB outputs (Police
vehicles only)
24 10A* Heated mirrors, Rear defrost
indicator
101 40A** Blower relay feed
Roadside Emergencies
198
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

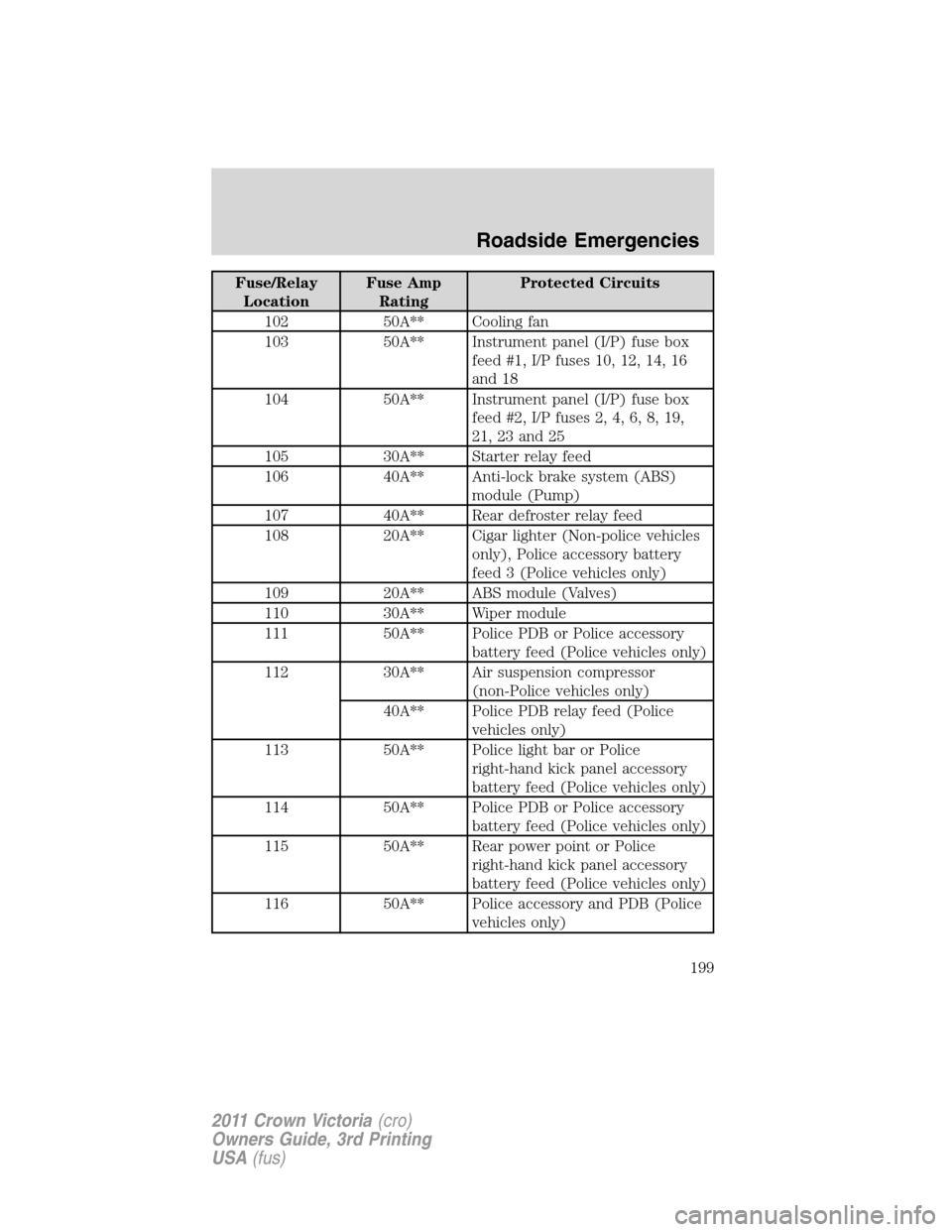

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
102 50A** Cooling fan
103 50A** Instrument panel (I/P) fuse box
feed #1, I/P fuses 10, 12, 14, 16
and 18
104 50A** Instrument panel (I/P) fuse box
feed #2, I/P fuses 2, 4, 6, 8, 19,
21, 23 and 25
105 30A** Starter relay feed
106 40A** Anti-lock brake system (ABS)
module (Pump)
107 40A** Rear defroster relay feed
108 20A** Cigar lighter (Non-police vehicles
only), Police accessory battery
feed 3 (Police vehicles only)
109 20A** ABS module (Valves)
110 30A** Wiper module
111 50A** Police PDB or Police accessory
battery feed (Police vehicles only)
112 30A** Air suspension compressor
(non-Police vehicles only)
40A** Police PDB relay feed (Police
vehicles only)
113 50A** Police light bar or Police
right-hand kick panel accessory
battery feed (Police vehicles only)
114 50A** Police PDB or Police accessory
battery feed (Police vehicles only)
115 50A** Rear power point or Police
right-hand kick panel accessory
battery feed (Police vehicles only)
116 50A** Police accessory and PDB (Police
vehicles only)
Roadside Emergencies
199
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

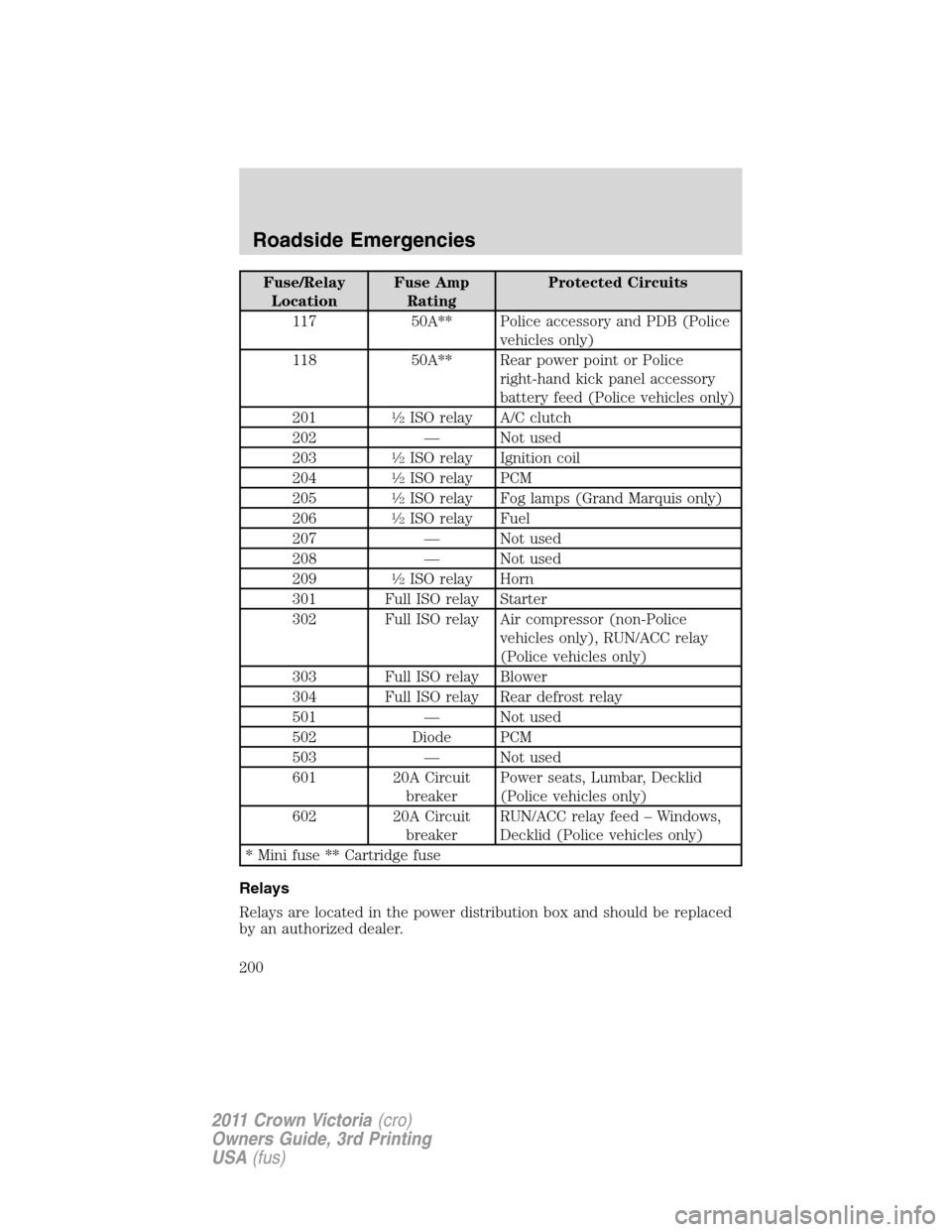

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
117 50A** Police accessory and PDB (Police
vehicles only)
118 50A** Rear power point or Police
right-hand kick panel accessory
battery feed (Police vehicles only)
201
12ISO relay A/C clutch
202 — Not used
203
12ISO relay Ignition coil
204
12ISO relay PCM
205
12ISO relay Fog lamps (Grand Marquis only)
206
12ISO relay Fuel
207 — Not used
208 — Not used
209
12ISO relay Horn
301 Full ISO relay Starter
302 Full ISO relay Air compressor (non-Police
vehicles only), RUN/ACC relay
(Police vehicles only)
303 Full ISO relay Blower
304 Full ISO relay Rear defrost relay
501 — Not used
502 Diode PCM
503 — Not used
601 20A Circuit
breakerPower seats, Lumbar, Decklid
(Police vehicles only)
602 20A Circuit
breakerRUN/ACC relay feed – Windows,
Decklid (Police vehicles only)
* Mini fuse ** Cartridge fuse
Relays
Relays are located in the power distribution box and should be replaced
by an authorized dealer.
Roadside Emergencies
200
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

Taxi
Pin Function Gauge Color
6 50A Battery 10 Tan/Yellow
7 20A Run/Acc 12 White/Pink
8 10A Run/Acc 14 Light Blue/White
9 50A Battery 10 Yellow
10 Not used — —
11 50A Battery 10 Red/White
12 10A Run/Acc 14 Gray/White
The mating connector is provided on the end of the power distribution
connector. The vehicle modifier can either purchase pins for the mating
connector and install them on the wires before they are inserted into the
connector, thereby avoiding any splicing, or purchase an optional power
pigtail for the interface. The power pigtail (P/N 14A411) plugs into the
power distribution connector and provides blunt cut wires ready for
splicing by the vehicle modifier.
See thePolice Interceptor Modifier Guidefor more details.
Rear power point - police
The rear power point is a battery access port for police auxiliary
equipment mounted in the trunk. It is capable of supplying 80 amps of
battery power. The front power distribution box (PDB) contains two
50 amp fuses, which protect the power point. Battery access is via two
studs contained in an enclosure, mounted in the trunk, on the right side
fender support. The terminal with the red wires is the battery positive,
and the terminal with the black wire is the ground. Remove both fuses in
the front PDB before removing the cover to the rear power point. Ensure
load devices can be turned off, and are switched off when reinserting
fuses.
WARNING:Under no circumstance should the rear power point
cover be removed without first pulling the two fuses in the front
power distribution box. Removing cover without pulling fuses could
result in an electrical hazard, and result in personal injury. Shut off
load devices before inserting fuses.
Crown Victoria Severe Duty
274
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

2.Electronic Equipment –The safest location for the electronic
equipment is on the trunk forward package shelf. Some equipment can
be mounted in the side shelf areas, but it must not protrude into the fuel
tank area in a crash (noted in Trunk Equipment Mounting Guide). The
optional Complete Police Prep Package is available to facilitate packaging
of electronic components with a sliding tray for the forward package
shelf and side compartments in the right and left shelf area. All
equipment should be located and mounted using theTrunk Equipment
Mounting Guidefor proper positioning of fasteners. This guide can be
accessed on the www.fleet.ford.com website. The sliding tray can also be
used, depending on size, to properly store parts with rigid and sharp
edges.
3.Ammunition –The safest location for ammunition is the forward
package shelf and on the side shelves. It is recommended that a plastic
storage container be utilized and mounted using theTrunk Mounting
Equipment Guidefor proper fastener locations. It is also recommended
that ammunition remain in the purchased container and be placed in a
safe storage container.
Low risk items –These items are soft in feel and pose a low risk of
trunk wall, rear seat area, and fuel tank puncture. Examples are: a soft
camera case, biohazard kit in plastic boxes, gloves, safety rope, tow
strap, traffic cones & sleeves, rain gear, riot gear (soft), emergency
blankets, bullet resistant vest, tie straps, cloth tape, garment bags, first
responder kit, Res-Q-Flo mask (placed in garment bag), fuses (plastic
container), briefcase, notebooks, spray bottles, helmet, and jumper
cables. It is not essential but recommended that the Trunk Pack™ can
be considered for organization of low risk items, especially if mixed with
“Carry With Caution”items.
BODY
Fire suppression system (if equipped)
Your vehicle may be equipped with an optional fire suppression system.
The fire suppression system is designed to help reduce the risk of injury
in high-speed rear impacts. The fire suppression system deploys
chemicals designed to slow the spread of fire or potentially extinguish a
fire, thereby providing more time for occupants to escape from a crashed
vehicle.
Crown Victoria Severe Duty
286
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

Pedals (see Power adjustable
foot pedals) .................................70
Power adjustable foot pedals .....70
Power distribution box
(see Fuses) ...............................196
Power distribution connector
(police and fleet vehicles) .......273
Power door locks ........................74
Power mirrors .............................69
Power point .................................67
Rear (police) ...........................274
Power steering ..........................184
fluid, checking and adding ....256
fluid, refill capacity ................264
Power Windows ...........................68
R
Radio ..........................26, 28, 32, 37
Rear window defroster ...............46
Recommendations for
attaching safety restraints for
children ......................................127
Relays ................................193, 200
Remote entry system .................78
illuminated entry ......................81
locking/unlocking doors ...........78
opening the trunk .....................79
panic alarm ...............................79
replacement/additional
transmitters ...............................80
replacing the batteries .............79
Roadside assistance ..................190
S
Safety belts (see Safety
restraints) ............97, 102, 104–106Safety Canopy ...........................122
Safety defects, reporting ..........220
Safety restraints ..........97, 102–106
Belt-Minder...........................107
extension assembly ................106
for adults .................102, 104–105
for children .............................125
lap belt ....................................103
Occupant Classification
Sensor ........................................99
warning light and
chime ...............................106–107
Safety restraints - LATCH
anchors ......................................134
Safety seats for children ..........129
Safety Compliance
Certification Label ....................268
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............311
Seat belt extenders (police) ....281
Seats ............................................89
child safety seats ....................129
cleaning ...................................226
front seats .................................91
heated ........................................96
Heavy duty (police) ...............281
SecuriLock passive anti-theft
system ....................................84, 87
Servicing your vehicle ..............229
Setting the clock
AM/FM/In-dash 6 CD ................40
AM/FM single CD .....................30
AM/FM stereo ...........................27
AM/FM/Tape/CD .......................35
Spark plugs,
specifications .....................263, 267
Index
332
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
