snow chains FORD CROWN VICTORIA 2011 2.G Owners Manual
[x] Cancel search | Manufacturer: FORD, Model Year: 2011, Model line: CROWN VICTORIA, Model: FORD CROWN VICTORIA 2011 2.GPages: 333, PDF Size: 2.23 MB

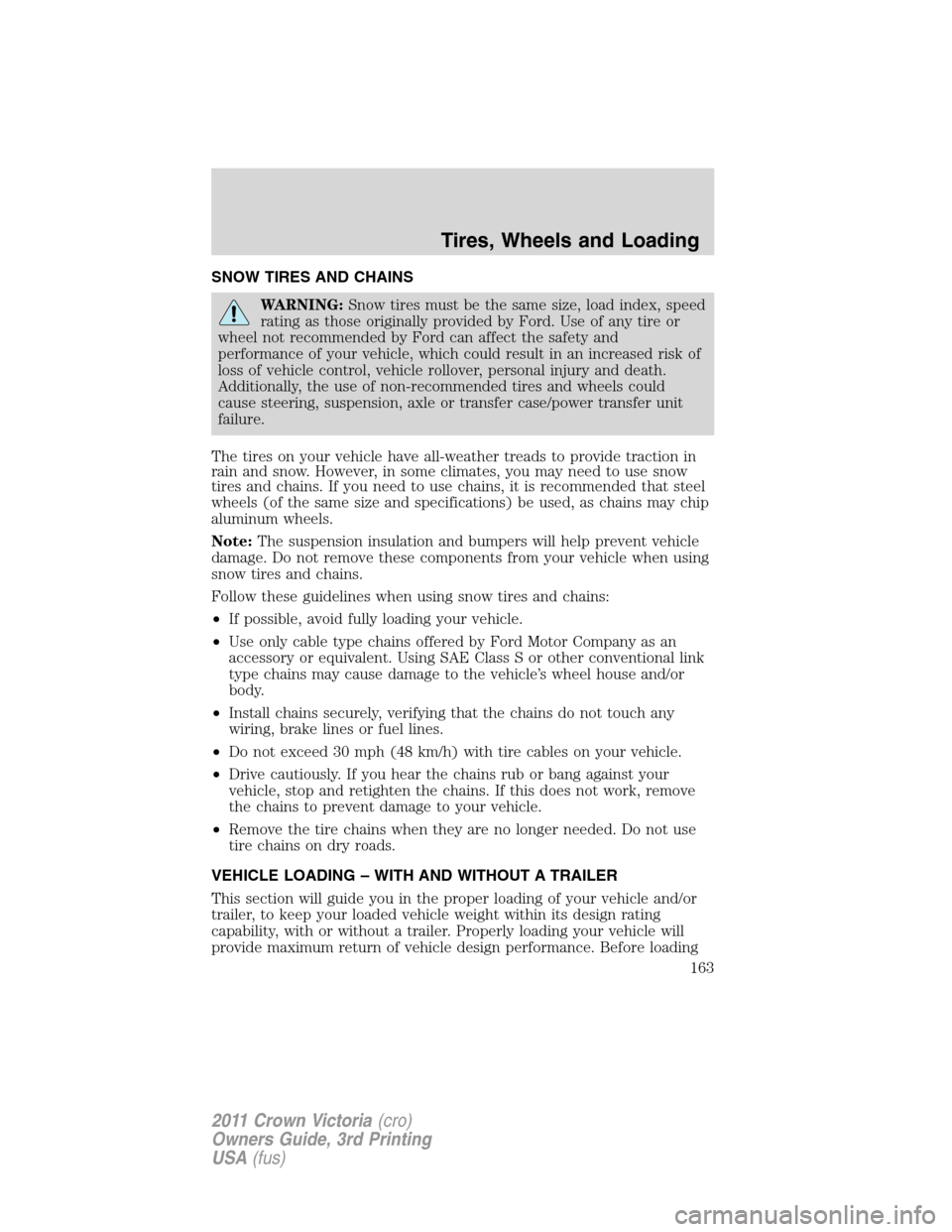

Page 163 of 333
SNOW TIRES AND CHAINS
WARNING:Snow tires must be the same size, load index, speed
rating as those originally provided by Ford. Use of any tire or
wheel not recommended by Ford can affect the safety and
performance of your vehicle, which could result in an increased risk of
loss of vehicle control, vehicle rollover, personal injury and death.
Additionally, the use of non-recommended tires and wheels could
cause steering, suspension, axle or transfer case/power transfer unit
failure.
The tires on your vehicle have all-weather treads to provide traction in
rain and snow. However, in some climates, you may need to use snow
tires and chains. If you need to use chains, it is recommended that steel
wheels (of the same size and specifications) be used, as chains may chip
aluminum wheels.
Note:The suspension insulation and bumpers will help prevent vehicle
damage. Do not remove these components from your vehicle when using
snow tires and chains.
Follow these guidelines when using snow tires and chains:
•If possible, avoid fully loading your vehicle.
•Use only cable type chains offered by Ford Motor Company as an
accessory or equivalent. Using SAE Class S or other conventional link
type chains may cause damage to the vehicle’s wheel house and/or
body.
•Install chains securely, verifying that the chains do not touch any
wiring, brake lines or fuel lines.
•Do not exceed 30 mph (48 km/h) with tire cables on your vehicle.
•Drive cautiously. If you hear the chains rub or bang against your
vehicle, stop and retighten the chains. If this does not work, remove
the chains to prevent damage to your vehicle.
•Remove the tire chains when they are no longer needed. Do not use
tire chains on dry roads.
VEHICLE LOADING – WITH AND WITHOUT A TRAILER
This section will guide you in the proper loading of your vehicle and/or
trailer, to keep your loaded vehicle weight within its design rating
capability, with or without a trailer. Properly loading your vehicle will
provide maximum return of vehicle design performance. Before loading
Tires, Wheels and Loading
163
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

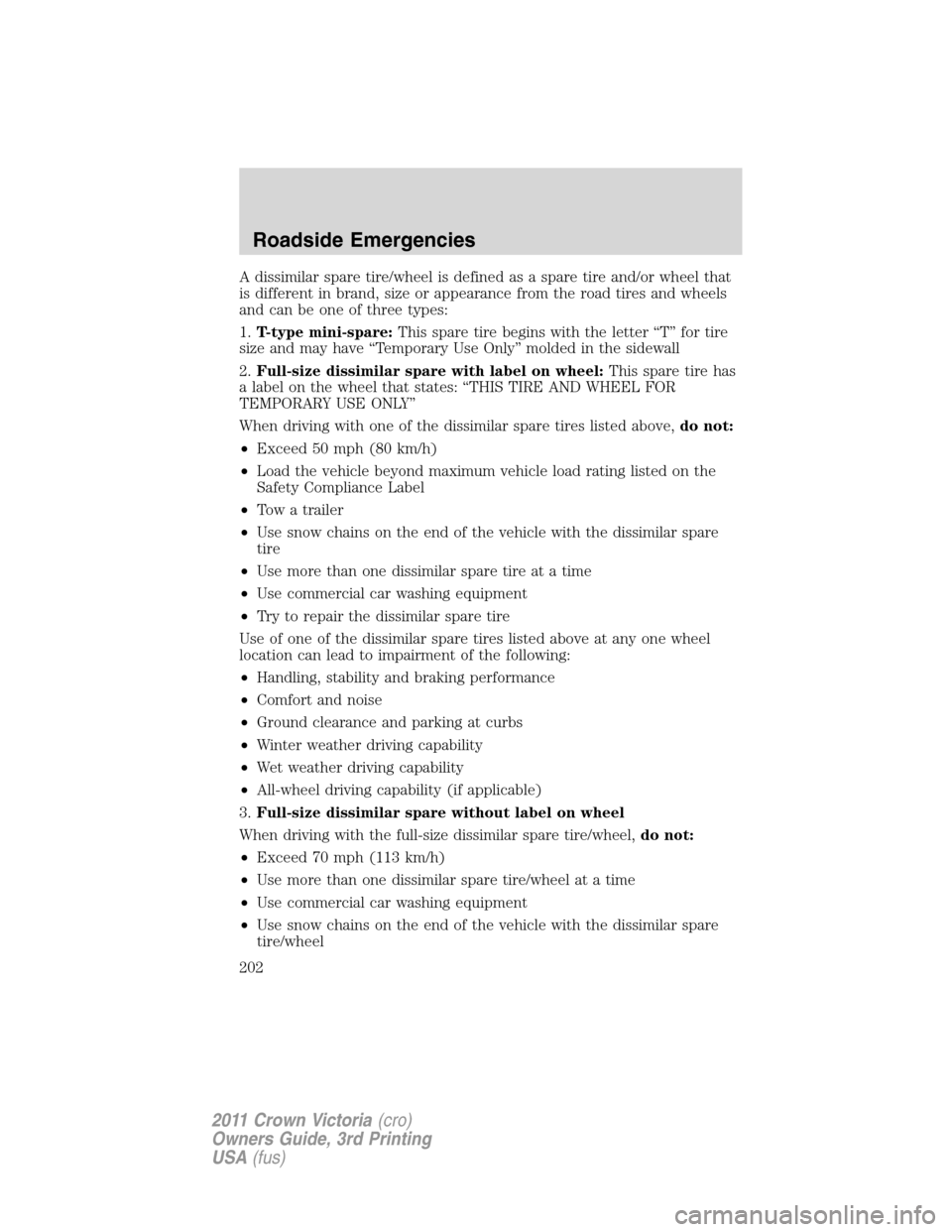

Page 202 of 333
A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that
is different in brand, size or appearance from the road tires and wheels
and can be one of three types:
1.T-type mini-spare:This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall
2.Full-size dissimilar spare with label on wheel:This spare tire has
a label on the wheel that states: “THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY”
When driving with one of the dissimilar spare tires listed above,do not:
•Exceed 50 mph (80 km/h)
•Load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label
•Tow a trailer
•Use snow chains on the end of the vehicle with the dissimilar spare
tire
•Use more than one dissimilar spare tire at a time
•Use commercial car washing equipment
•Try to repair the dissimilar spare tire
Use of one of the dissimilar spare tires listed above at any one wheel
location can lead to impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
•All-wheel driving capability (if applicable)
3.Full-size dissimilar spare without label on wheel
When driving with the full-size dissimilar spare tire/wheel,do not:
•Exceed 70 mph (113 km/h)
•Use more than one dissimilar spare tire/wheel at a time
•Use commercial car washing equipment
•Use snow chains on the end of the vehicle with the dissimilar spare
tire/wheel
Roadside Emergencies
202
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

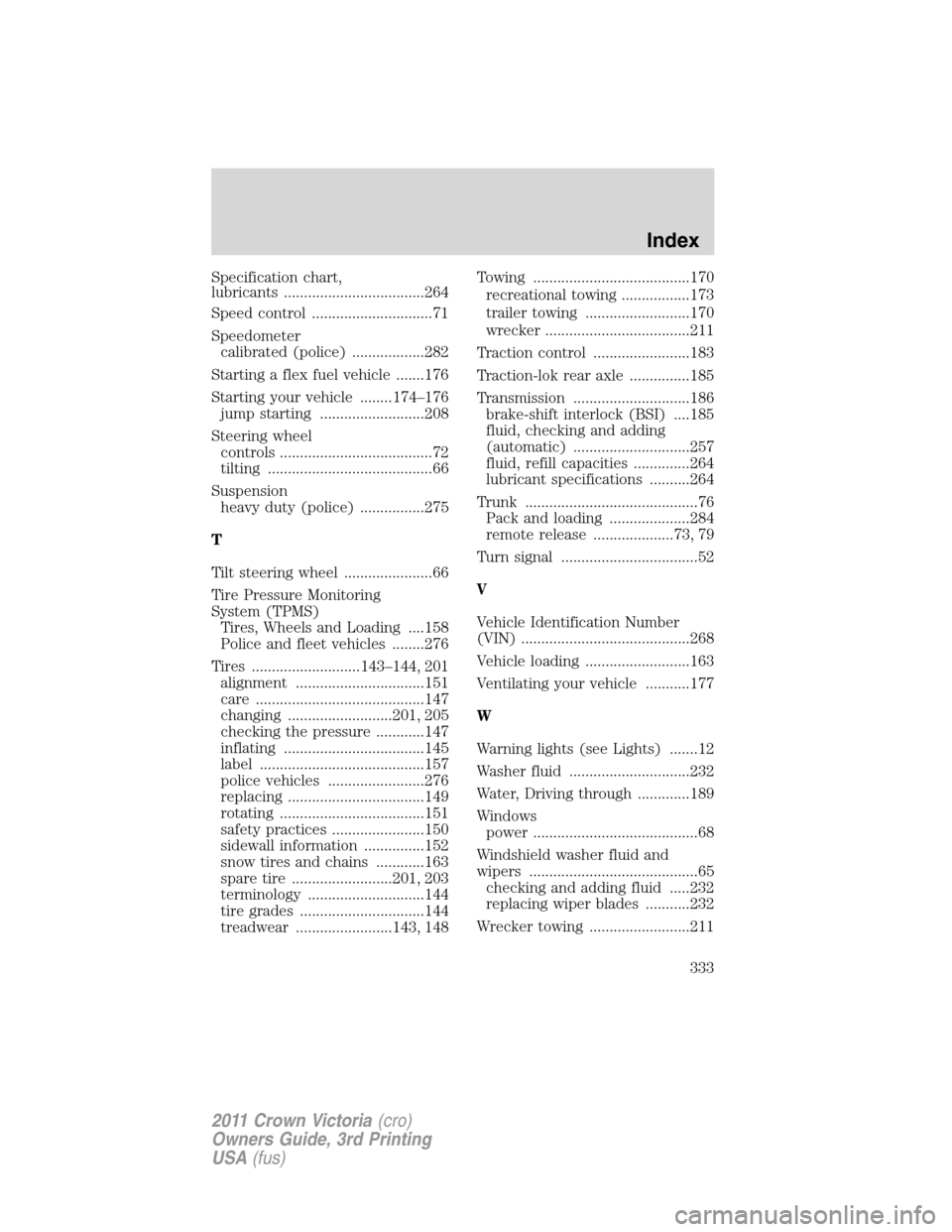

Page 333 of 333
Specification chart,
lubricants ...................................264
Speed control ..............................71
Speedometer
calibrated (police) ..................282
Starting a flex fuel vehicle .......176
Starting your vehicle ........174–176
jump starting ..........................208
Steering wheel
controls ......................................72
tilting .........................................66
Suspension
heavy duty (police) ................275
T
Tilt steering wheel ......................66
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....158
Police and fleet vehicles ........276
Tires ...........................143–144, 201
alignment ................................151
care ..........................................147
changing ..........................201, 205
checking the pressure ............147
inflating ...................................145
label .........................................157
police vehicles ........................276
replacing ..................................149
rotating ....................................151
safety practices .......................150
sidewall information ...............152
snow tires and chains ............163
spare tire .........................201, 203
terminology .............................144
tire grades ...............................144
treadwear ........................143, 148Towing .......................................170
recreational towing .................173
trailer towing ..........................170
wrecker ....................................211
Traction control ........................183
Traction-lok rear axle ...............185
Transmission .............................186
brake-shift interlock (BSI) ....185
fluid, checking and adding
(automatic) .............................257
fluid, refill capacities ..............264
lubricant specifications ..........264
Trunk ...........................................76
Pack and loading ....................284
remote release ....................73, 79
Turn signal ..................................52
V
Vehicle Identification Number
(VIN) ..........................................268
Vehicle loading ..........................163
Ventilating your vehicle ...........177
W
Warning lights (see Lights) .......12
Washer fluid ..............................232
Water, Driving through .............189
Windows
power .........................................68
Windshield washer fluid and
wipers ..........................................65
checking and adding fluid .....232
replacing wiper blades ...........232
Wrecker towing .........................211
Index
333
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
