If the vehicle’s powertrain system or its battery has just been serviced,
the on-board diagnostics system is reset to a“not ready for I/M test”
condition. To ready the on-board diagnostics system for I/M testing, a
minimum of 30 minutes of city and highway driving is necessary as
described below:
•First, at least 10 minutes of driving on an expressway or highway.
•Next, at least 20 minutes driving in stop-and-go, city-type traffic with
at least four idle periods.
Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete.
CHECKING AND ADDING POWER STEERING FLUID
Check the power steering fluid.
Refer to the scheduled maintenance
guide for the service interval
schedules. If adding fluid is
necessary, use only MERCONAT F.
Check the fluid level when it is at ambient temperature, 20°–80°F (-7°
–25°C):
1. Check the fluid level on the dipstick. It should be between the arrows
in the FULL COLD range. Do not add fluid if the level is within this
range.
FULL COLD
Maintenance and Specifications
225
ProCarManuals.com

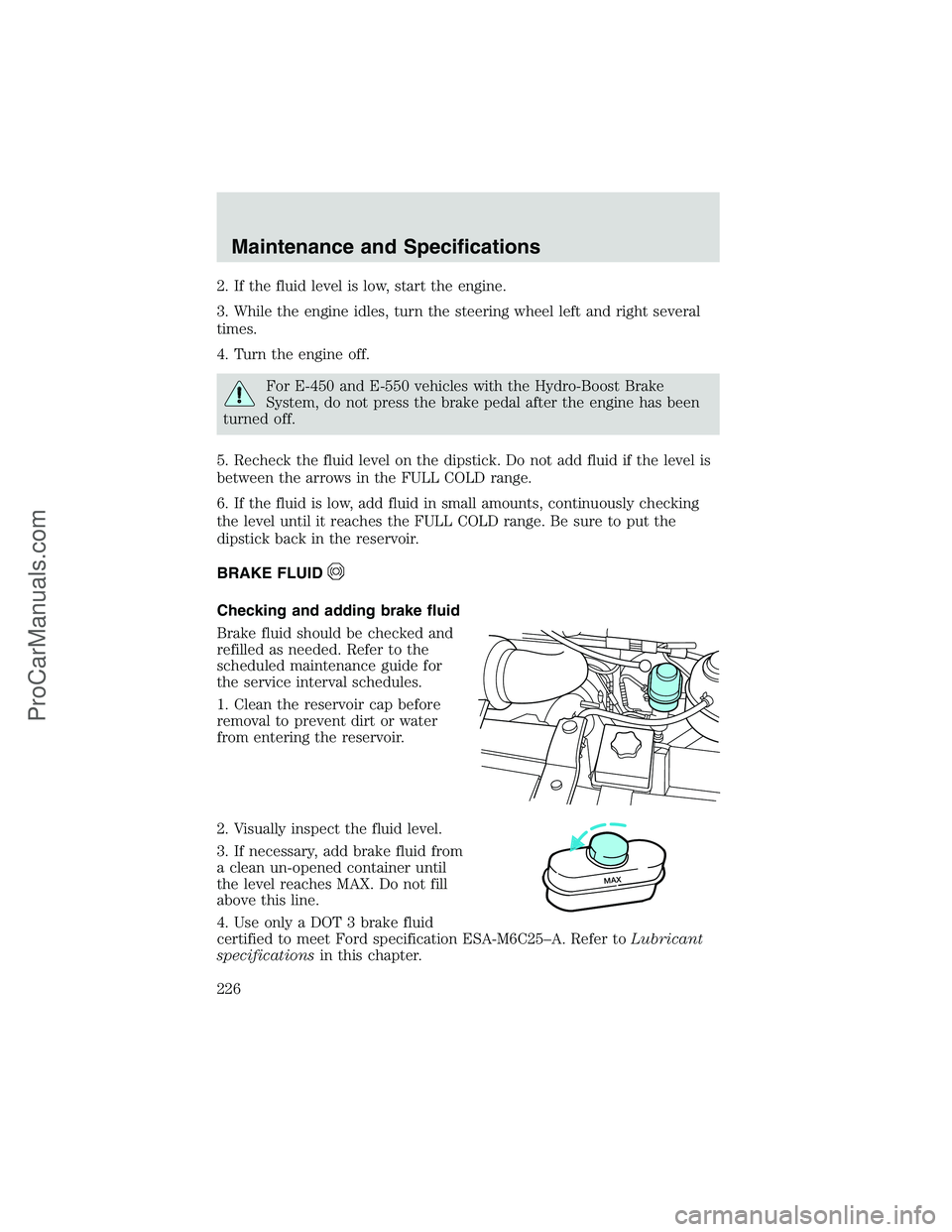

2. If the fluid level is low, start the engine.
3. While the engine idles, turn the steering wheel left and right several
times.
4. Turn the engine off.
For E-450 and E-550 vehicles with the Hydro-Boost Brake
System, do not press the brake pedal after the engine has been
turned off.
5. Recheck the fluid level on the dipstick. Do not add fluid if the level is
between the arrows in the FULL COLD range.
6. If the fluid is low, add fluid in small amounts, continuously checking
the level until it reaches the FULL COLD range. Be sure to put the
dipstick back in the reservoir.
BRAKE FLUID
Checking and adding brake fluid
Brake fluid should be checked and
refilled as needed. Refer to the
scheduled maintenance guide for
the service interval schedules.
1. Clean the reservoir cap before
removal to prevent dirt or water
from entering the reservoir.
2. Visually inspect the fluid level.
3. If necessary, add brake fluid from
a clean un-opened container until
the level reaches MAX. Do not fill
above this line.
4. Use only a DOT 3 brake fluid
certified to meet Ford specification ESA-M6C25–A. Refer toLubricant
specificationsin this chapter.
MAX
Maintenance and Specifications
226
ProCarManuals.com

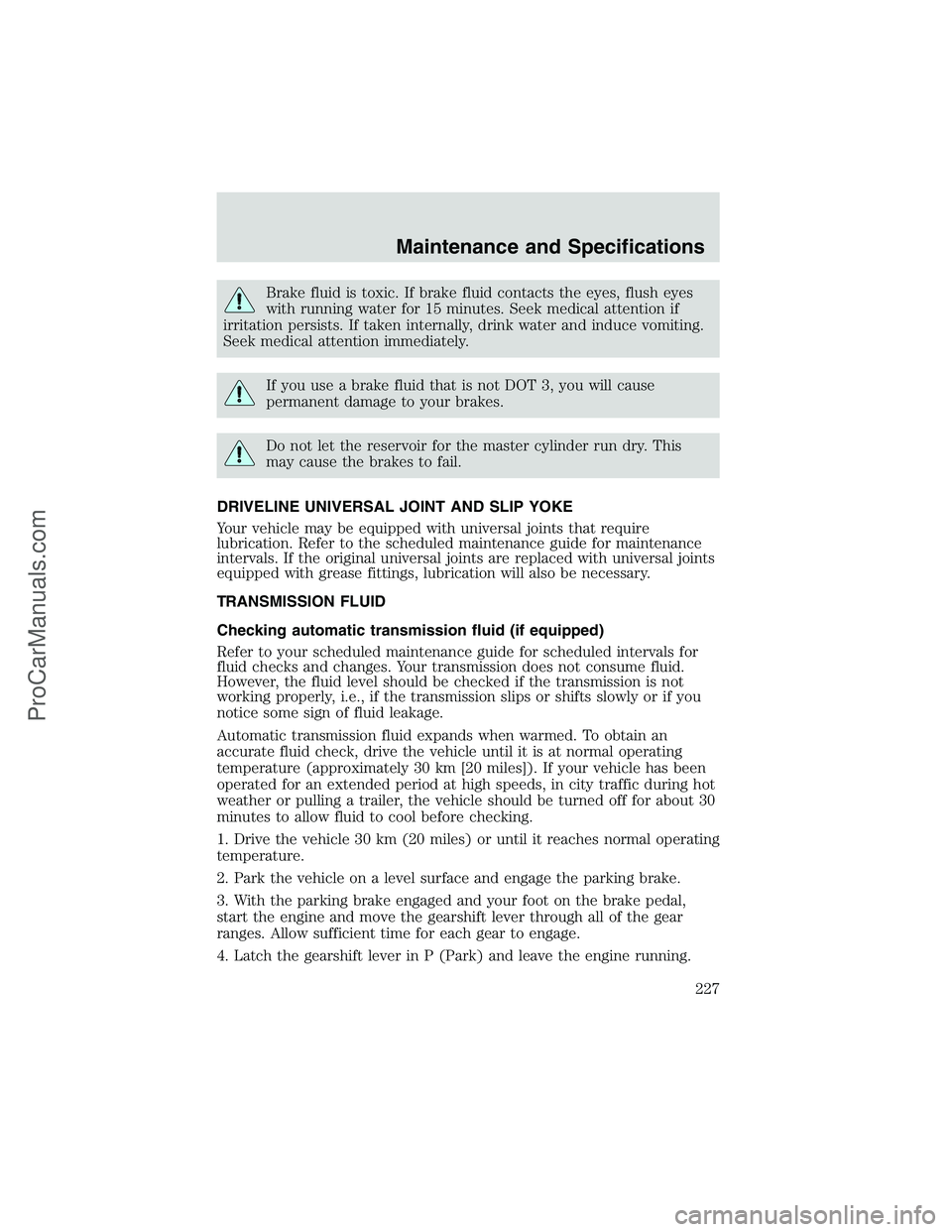

Brake fluid is toxic. If brake fluid contacts the eyes, flush eyes
with running water for 15 minutes. Seek medical attention if
irritation persists. If taken internally, drink water and induce vomiting.
Seek medical attention immediately.
If you use a brake fluid that is not DOT 3, you will cause
permanent damage to your brakes.
Do not let the reservoir for the master cylinder run dry. This
may cause the brakes to fail.
DRIVELINE UNIVERSAL JOINT AND SLIP YOKE
Your vehicle may be equipped with universal joints that require
lubrication. Refer to the scheduled maintenance guide for maintenance
intervals. If the original universal joints are replaced with universal joints
equipped with grease fittings, lubrication will also be necessary.
TRANSMISSION FLUID
Checking automatic transmission fluid (if equipped)
Refer to your scheduled maintenance guide for scheduled intervals for
fluid checks and changes. Your transmission does not consume fluid.
However, the fluid level should be checked if the transmission is not
working properly, i.e., if the transmission slips or shifts slowly or if you
notice some sign of fluid leakage.
Automatic transmission fluid expands when warmed. To obtain an
accurate fluid check, drive the vehicle until it is at normal operating
temperature (approximately 30 km [20 miles]). If your vehicle has been
operated for an extended period at high speeds, in city traffic during hot
weather or pulling a trailer, the vehicle should be turned off for about 30
minutes to allow fluid to cool before checking.
1. Drive the vehicle 30 km (20 miles) or until it reaches normal operating
temperature.
2. Park the vehicle on a level surface and engage the parking brake.
3. With the parking brake engaged and your foot on the brake pedal,
start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage.
4. Latch the gearshift lever in P (Park) and leave the engine running.
Maintenance and Specifications
227
ProCarManuals.com

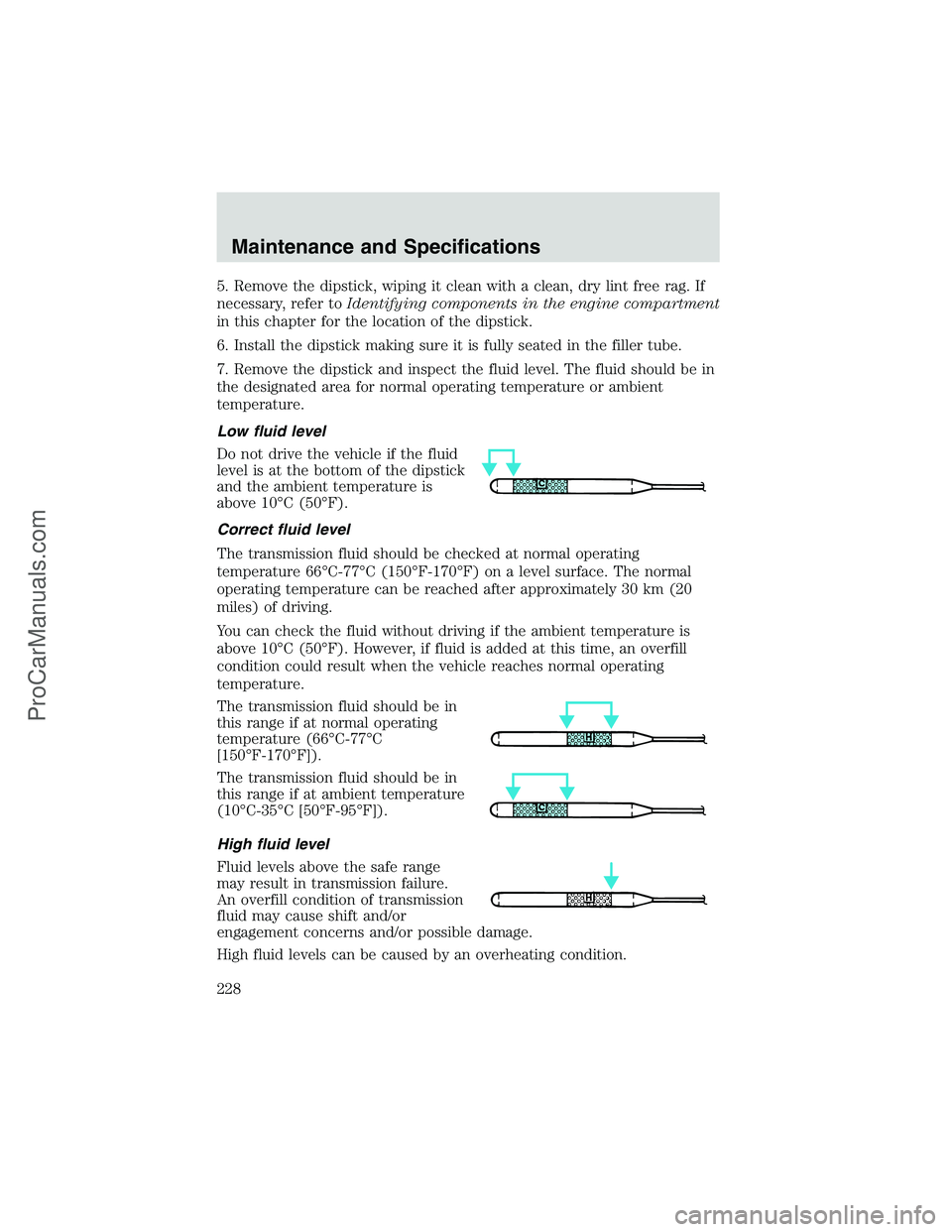

5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. If
necessary, refer toIdentifying components in the engine compartment
in this chapter for the location of the dipstick.
6. Install the dipstick making sure it is fully seated in the filler tube.
7. Remove the dipstick and inspect the fluid level. The fluid should be in
the designated area for normal operating temperature or ambient
temperature.
Low fluid level
Do not drive the vehicle if the fluid
level is at the bottom of the dipstick
and the ambient temperature is
above 10°C (50°F).
Correct fluid level
The transmission fluid should be checked at normal operating
temperature 66°C-77°C (150°F-170°F) on a level surface. The normal
operating temperature can be reached after approximately 30 km (20
miles) of driving.
You can check the fluid without driving if the ambient temperature is
above 10°C (50°F). However, if fluid is added at this time, an overfill
condition could result when the vehicle reaches normal operating
temperature.
The transmission fluid should be in
this range if at normal operating
temperature (66°C-77°C
[150°F-170°F]).
The transmission fluid should be in
this range if at ambient temperature
(10°C-35°C [50°F-95°F]).
High fluid level
Fluid levels above the safe range
may result in transmission failure.
An overfill condition of transmission
fluid may cause shift and/or
engagement concerns and/or possible damage.
High fluid levels can be caused by an overheating condition.
Maintenance and Specifications
228
ProCarManuals.com

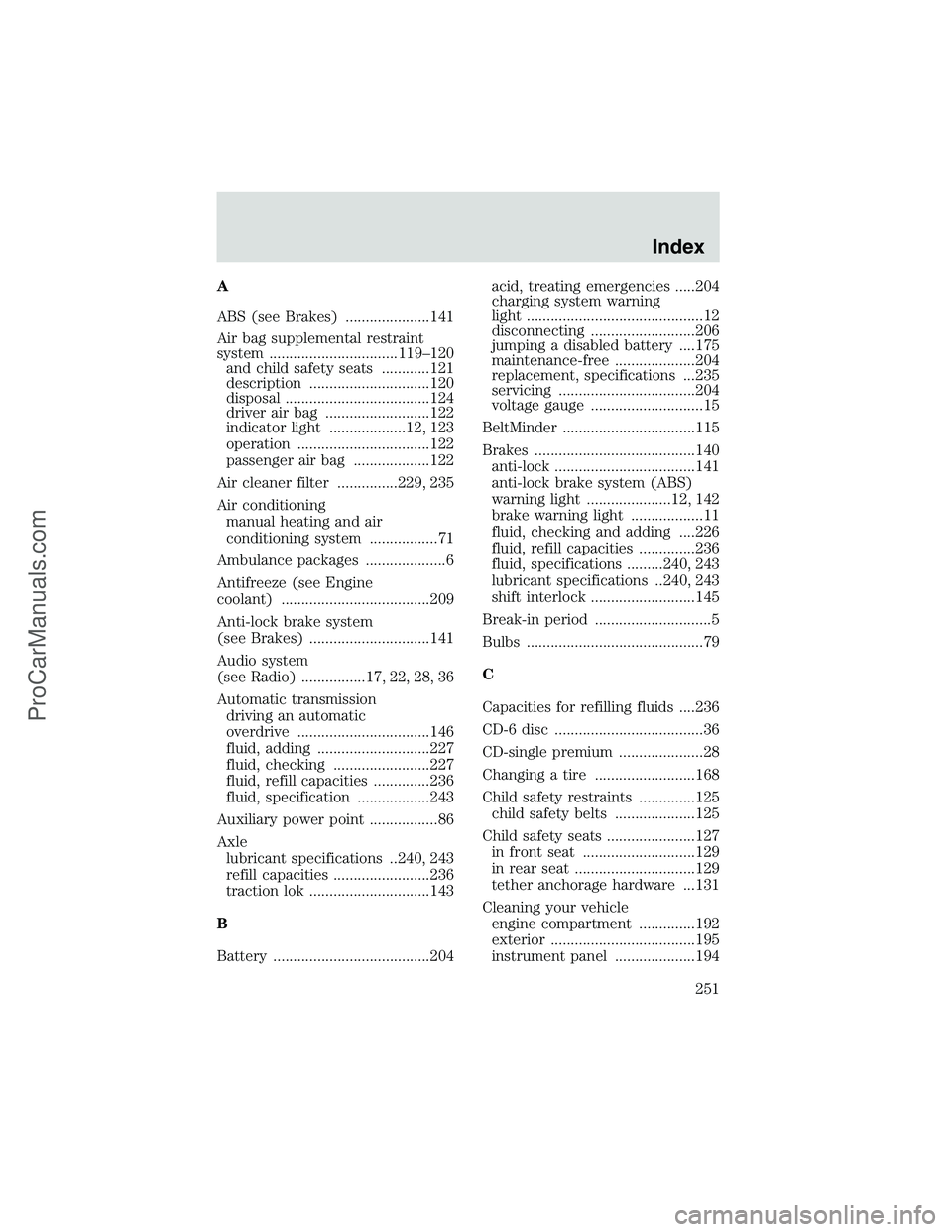

A
ABS (see Brakes) .....................141
Air bag supplemental restraint
system ................................119–120
and child safety seats ............121
description ..............................120
disposal ....................................124
driver air bag ..........................122
indicator light ...................12, 123
operation .................................122
passenger air bag ...................122
Air cleaner filter ...............229, 235
Air conditioning
manual heating and air
conditioning system .................71
Ambulance packages ....................6
Antifreeze (see Engine
coolant) .....................................209
Anti-lock brake system
(see Brakes) ..............................141
Audio system
(see Radio) ................17, 22, 28, 36
Automatic transmission
driving an automatic
overdrive .................................146
fluid, adding ............................227
fluid, checking ........................227
fluid, refill capacities ..............236
fluid, specification ..................243
Auxiliary power point .................86
Axle
lubricant specifications ..240, 243
refill capacities ........................236
traction lok ..............................143
B
Battery .......................................204acid, treating emergencies .....204
charging system warning
light ............................................12
disconnecting ..........................206
jumping a disabled battery ....175
maintenance-free ....................204
replacement, specifications ...235
servicing ..................................204
voltage gauge ............................15
BeltMinder .................................115
Brakes ........................................140
anti-lock ...................................141
anti-lock brake system (ABS)
warning light .....................12, 142
brake warning light ..................11
fluid, checking and adding ....226
fluid, refill capacities ..............236
fluid, specifications .........240, 243
lubricant specifications ..240, 243
shift interlock ..........................145
Break-in period .............................5
Bulbs ............................................79
C
Capacities for refilling fluids ....236
CD-6 disc .....................................36
CD-single premium .....................28
Changing a tire .........................168
Child safety restraints ..............125
child safety belts ....................125
Child safety seats ......................127
in front seat ............................129
in rear seat ..............................129
tether anchorage hardware ...131
Cleaning your vehicle
engine compartment ..............192
exterior ....................................195
instrument panel ....................194
Index
251
ProCarManuals.com

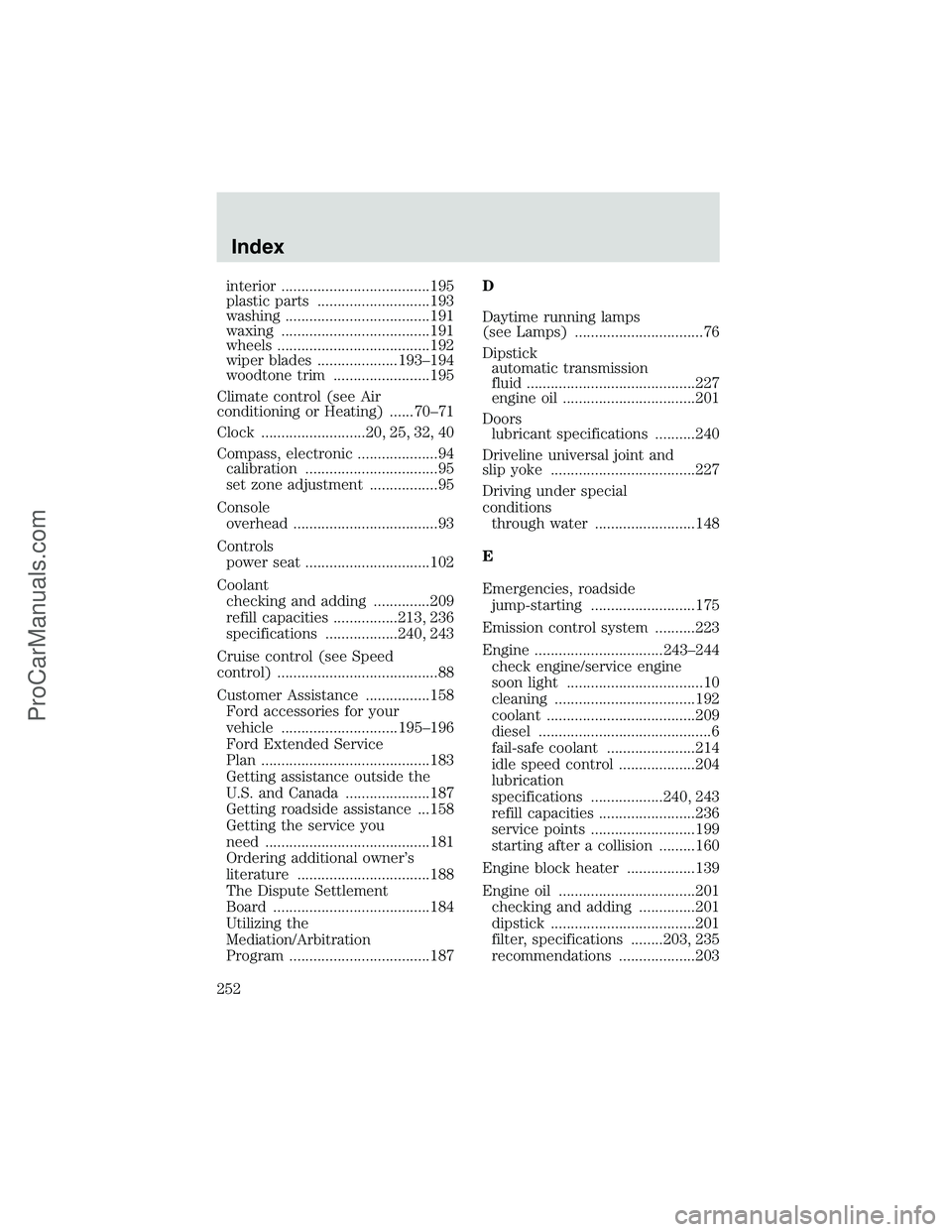

interior .....................................195
plastic parts ............................193
washing ....................................191
waxing .....................................191
wheels ......................................192
wiper blades ....................193–194
woodtone trim ........................195
Climate control (see Air
conditioning or Heating) ......70–71
Clock ..........................20, 25, 32, 40
Compass, electronic ....................94
calibration .................................95
set zone adjustment .................95
Console
overhead ....................................93
Controls
power seat ...............................102
Coolant
checking and adding ..............209
refill capacities ................213, 236
specifications ..................240, 243
Cruise control (see Speed
control) ........................................88
Customer Assistance ................158
Ford accessories for your
vehicle .............................195–196
Ford Extended Service
Plan ..........................................183
Getting assistance outside the
U.S. and Canada .....................187
Getting roadside assistance ...158
Getting the service you
need .........................................181
Ordering additional owner’s
literature .................................188
The Dispute Settlement
Board .......................................184
Utilizing the
Mediation/Arbitration
Program ...................................187D
Daytime running lamps
(see Lamps) ................................76
Dipstick
automatic transmission
fluid ..........................................227
engine oil .................................201
Doors
lubricant specifications ..........240
Driveline universal joint and
slip yoke ....................................227
Driving under special
conditions
through water .........................148
E
Emergencies, roadside
jump-starting ..........................175
Emission control system ..........223
Engine ................................243–244
check engine/service engine
soon light ..................................10
cleaning ...................................192
coolant .....................................209
diesel ...........................................6
fail-safe coolant ......................214
idle speed control ...................204
lubrication
specifications ..................240, 243
refill capacities ........................236
service points ..........................199
starting after a collision .........160
Engine block heater .................139
Engine oil ..................................201
checking and adding ..............201
dipstick ....................................201
filter, specifications ........203, 235
recommendations ...................203
Index
252
ProCarManuals.com

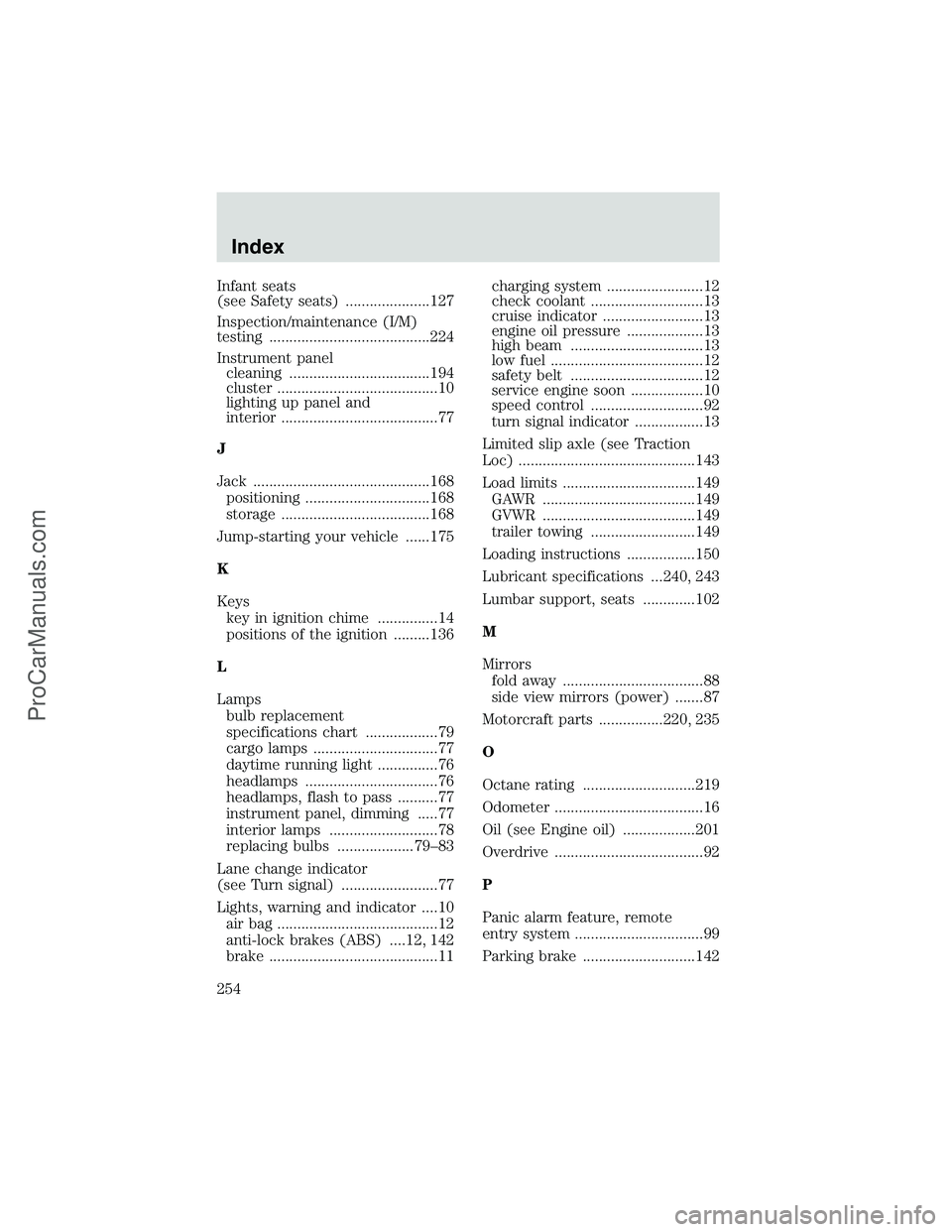

Infant seats
(see Safety seats) .....................127
Inspection/maintenance (I/M)
testing ........................................224
Instrument panel
cleaning ...................................194
cluster ........................................10
lighting up panel and
interior .......................................77
J
Jack ............................................168
positioning ...............................168
storage .....................................168
Jump-starting your vehicle ......175
K
Keys
key in ignition chime ...............14
positions of the ignition .........136
L
Lamps
bulb replacement
specifications chart ..................79
cargo lamps ...............................77
daytime running light ...............76
headlamps .................................76
headlamps, flash to pass ..........77
instrument panel, dimming .....77
interior lamps ...........................78
replacing bulbs ...................79–83
Lane change indicator
(see Turn signal) ........................77
Lights, warning and indicator ....10
air bag ........................................12
anti-lock brakes (ABS) ....12, 142
brake ..........................................11charging system ........................12
check coolant ............................13
cruise indicator .........................13
engine oil pressure ...................13
high beam .................................13
low fuel ......................................12
safety belt .................................12
service engine soon ..................10
speed control ............................92
turn signal indicator .................13
Limited slip axle (see Traction
Loc) ............................................143
Load limits .................................149
GAWR ......................................149
GVWR ......................................149
trailer towing ..........................149
Loading instructions .................150
Lubricant specifications ...240, 243
Lumbar support, seats .............102
M
Mirrors
fold away ...................................88
side view mirrors (power) .......87
Motorcraft parts ................220, 235
O
Octane rating ............................219
Odometer .....................................16
Oil (see Engine oil) ..................201
Overdrive .....................................92
P
Panic alarm feature, remote
entry system ................................99
Parking brake ............................142
Index
254
ProCarManuals.com
