headlamp FORD E-150 2005 User Guide

4. Remove the bulb retaining ring by
rotating it counterclockwise, and
slide the ring off the plastic base.
5. Pull the bulb straight out.
Handle a halogen headlamp bulb carefully and keep out of
children’s reach. Grasp the bulb only by its plastic base and do
not touch the glass. The oil from your hand could cause the bulb to
break the next time the headlamps are operated.
Note:If the bulb is accidentally touched, it should be cleaned with
alcohol before being used.
To install the new bulb, follow the removal procedures in reverse order.
Replacing headlamp bulbs (sealed beam)
1. Make sure headlamp switch is in the OFF position and open the hood.
2. Remove the two headlamp screws
and bezel from the headlamp
housing.
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
48
ProCarManuals.com

3. Remove the four headlamp bulb
retaining screws and the retaining
ring.
4. Remove the headlamp.
5. Disconnect the electrical
connector from the bulb and remove
the bulb.
To install the new bulb, follow the removal procedures in reverse order.
Replacing front parking lamp/turn signal bulbs
1. Make sure the headlamp control is in the OFF position.
2. Remove two screws and pull lamp assembly away from the vehicle.
3. Rotate the bulb socket
counterclockwise and remove.
4. Carefully pull the bulb straight
out of the socket.
To complete installation, follow the
removal procedures in reverse order.
Replacing high-mount brakelamp bulbs
The interior cargo lamp (if equipped), on vehicles without a rear
headliner, will have to be removed from under the high-mount brakelamp
assembly located inside the vehicle. Then:
1. Remove the two screws from the
high-mount brakelamp assembly and
lift the lamp from the vehicle.
2. Remove the bulb socket from the
lamp assembly by turning
counterclockwise.
3. Carefully pull the bulb straight
out of the socket.
To install the new bulb, follow the removal procedure in reverse order.
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
49
ProCarManuals.com

Replacing license plate lamp bulbs
1. Turn the headlamp switch to OFF
and then remove the two screws
and the license plate lamp assembly
from the rear door.
2. Remove bulb socket from lamp
assembly by turning
counterclockwise.
3. Pull the bulb out from socket and
push in the new bulb.
To install the new bulb, follow the removal procedures in reverse order.
Replacing tail lamp/turn/backup lamp bulbs
1. Turn the headlamp switch to the
OFF position and then remove the
four screws and the lamp assembly
from vehicle.
2. Rotate bulb socket
counterclockwise and remove from
lamp assembly.
3. Carefully pull the bulb straight
out of the socket and push in the
new bulb.
To install the lamp, follow the removal procedures in reverse order.
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
50
ProCarManuals.com

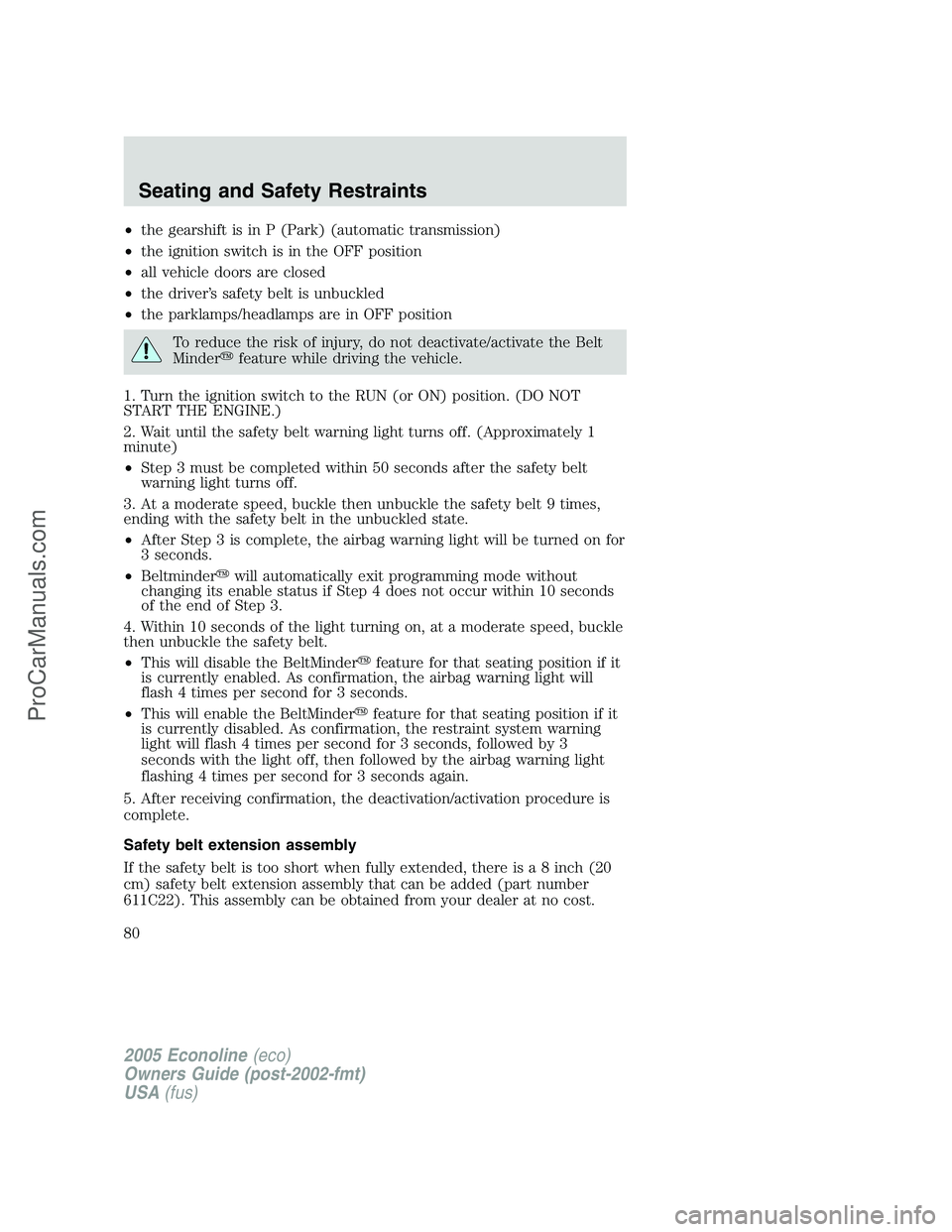

•the gearshift is in P (Park) (automatic transmission)
•the ignition switch is in the OFF position
•all vehicle doors are closed
•the driver’s safety belt is unbuckled
•the parklamps/headlamps are in OFF position
To reduce the risk of injury, do not deactivate/activate the Belt
Minderfeature while driving the vehicle.
1. Turn the ignition switch to the RUN (or ON) position. (DO NOT
START THE ENGINE.)
2. Wait until the safety belt warning light turns off. (Approximately 1
minute)
•Step 3 must be completed within 50 seconds after the safety belt
warning light turns off.
3. At a moderate speed, buckle then unbuckle the safety belt 9 times,
ending with the safety belt in the unbuckled state.
•After Step 3 is complete, the airbag warning light will be turned on for
3 seconds.
•Beltminderwill automatically exit programming mode without
changing its enable status if Step 4 does not occur within 10 seconds
of the end of Step 3.
4. Within 10 seconds of the light turning on, at a moderate speed, buckle
then unbuckle the safety belt.
•This will disable the BeltMinderfeature for that seating position if it
is currently enabled. As confirmation, the airbag warning light will
flash 4 times per second for 3 seconds.
•This will enable the BeltMinderfeature for that seating position if it
is currently disabled. As confirmation, the restraint system warning
light will flash 4 times per second for 3 seconds, followed by 3
seconds with the light off, then followed by the airbag warning light
flashing 4 times per second for 3 seconds again.
5. After receiving confirmation, the deactivation/activation procedure is
complete.
Safety belt extension assembly
If the safety belt is too short when fully extended, there isa8inch(20
cm) safety belt extension assembly that can be added (part number
611C22). This assembly can be obtained from your dealer at no cost.
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
80
ProCarManuals.com

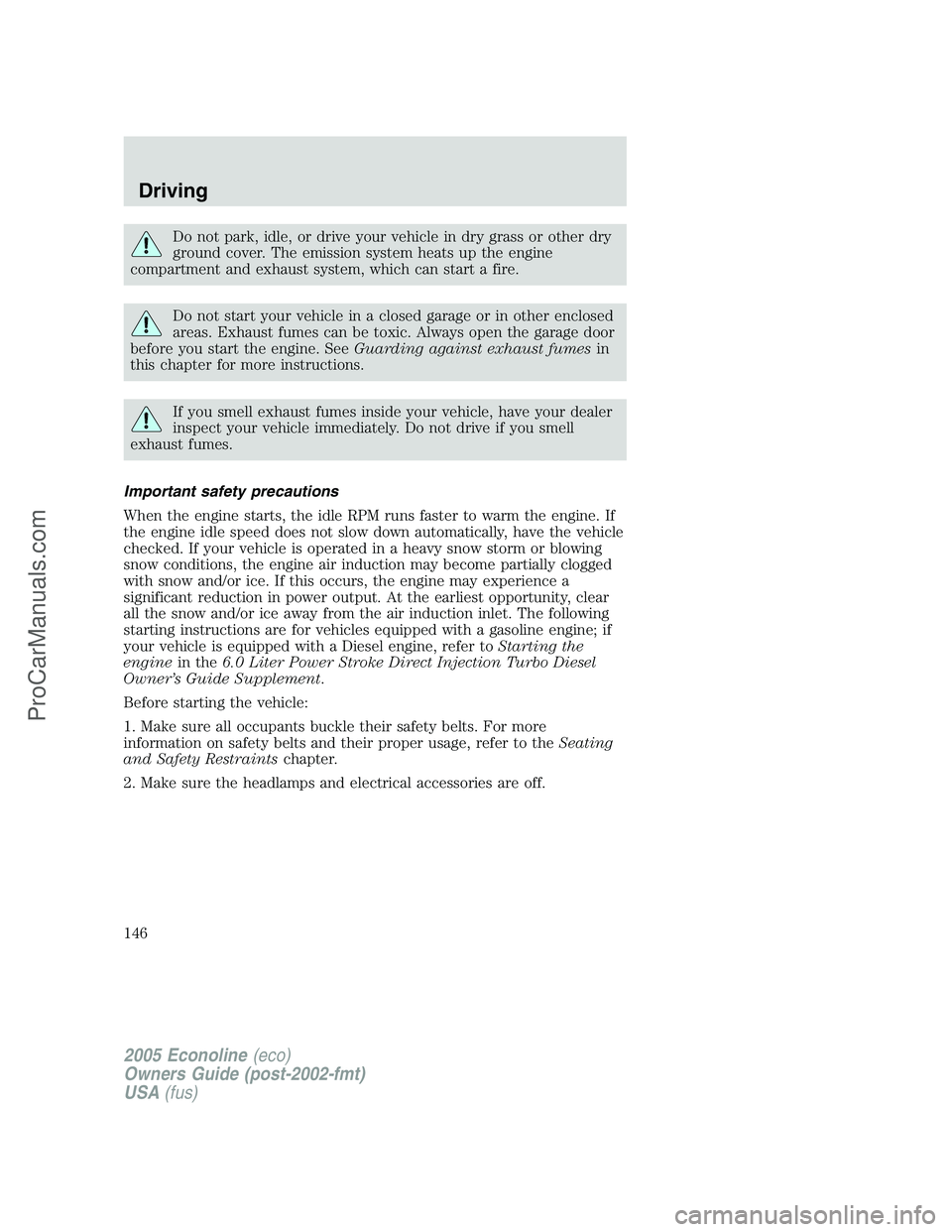

Do not park, idle, or drive your vehicle in dry grass or other dry
ground cover. The emission system heats up the engine
compartment and exhaust system, which can start a fire.
Do not start your vehicle in a closed garage or in other enclosed
areas. Exhaust fumes can be toxic. Always open the garage door
before you start the engine. SeeGuarding against exhaust fumesin
this chapter for more instructions.
If you smell exhaust fumes inside your vehicle, have your dealer
inspect your vehicle immediately. Do not drive if you smell
exhaust fumes.
Important safety precautions
When the engine starts, the idle RPM runs faster to warm the engine. If
the engine idle speed does not slow down automatically, have the vehicle
checked. If your vehicle is operated in a heavy snow storm or blowing
snow conditions, the engine air induction may become partially clogged
with snow and/or ice. If this occurs, the engine may experience a
significant reduction in power output. At the earliest opportunity, clear
all the snow and/or ice away from the air induction inlet. The following
starting instructions are for vehicles equipped with a gasoline engine; if
your vehicle is equipped with a Diesel engine, refer toStarting the
enginein the6.0 Liter Power Stroke Direct Injection Turbo Diesel
Owner’s Guide Supplement.
Before starting the vehicle:
1. Make sure all occupants buckle their safety belts. For more
information on safety belts and their proper usage, refer to theSeating
and Safety Restraintschapter.
2. Make sure the headlamps and electrical accessories are off.
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
146
ProCarManuals.com

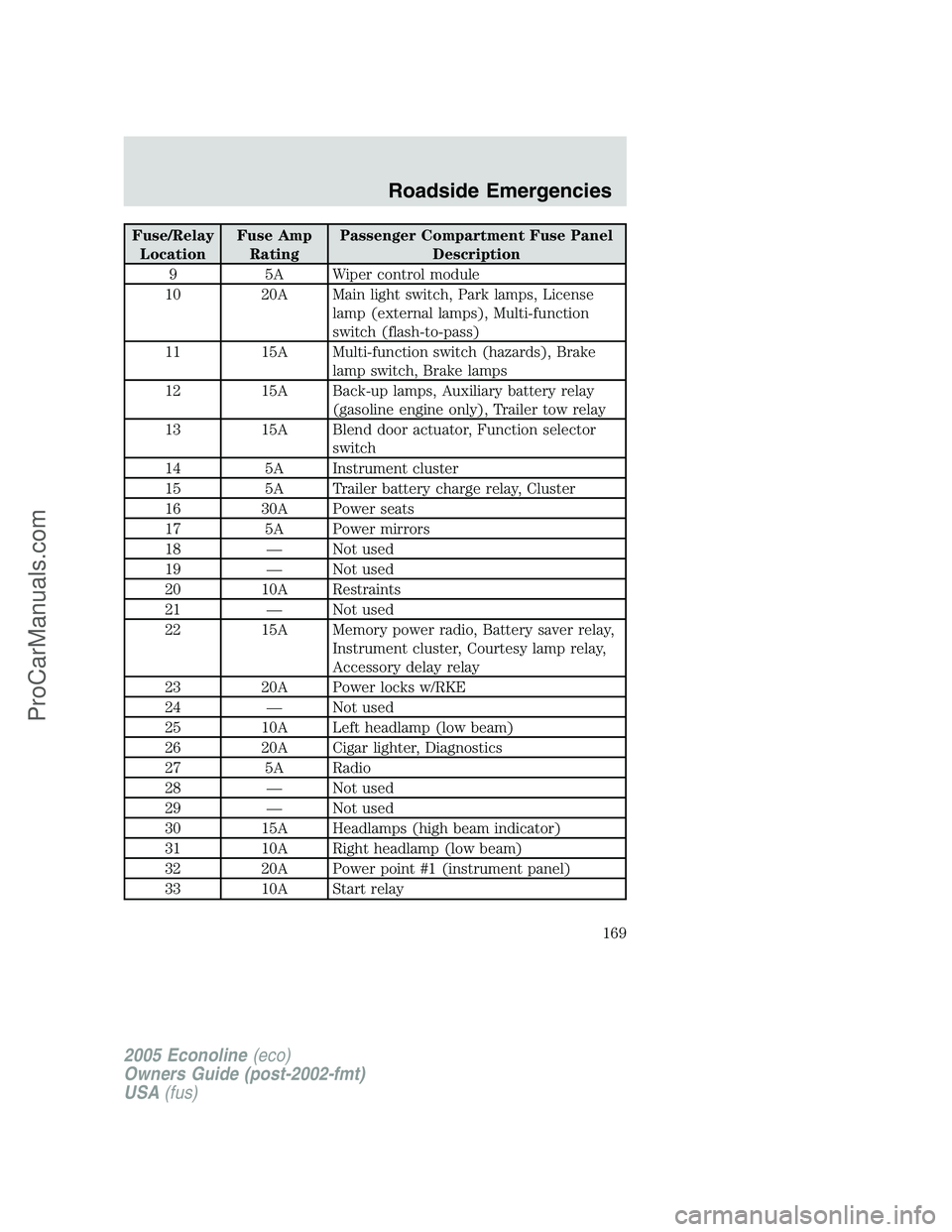

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse Panel
Description
9 5A Wiper control module
10 20A Main light switch, Park lamps, License
lamp (external lamps), Multi-function
switch (flash-to-pass)
11 15A Multi-function switch (hazards), Brake
lamp switch, Brake lamps
12 15A Back-up lamps, Auxiliary battery relay
(gasoline engine only), Trailer tow relay
13 15A Blend door actuator, Function selector
switch
14 5A Instrument cluster
15 5A Trailer battery charge relay, Cluster
16 30A Power seats
17 5A Power mirrors
18 — Not used
19 — Not used
20 10A Restraints
21 — Not used
22 15A Memory power radio, Battery saver relay,
Instrument cluster, Courtesy lamp relay,
Accessory delay relay
23 20A Power locks w/RKE
24 — Not used
25 10A Left headlamp (low beam)
26 20A Cigar lighter, Diagnostics
27 5A Radio
28 — Not used
29 — Not used
30 15A Headlamps (high beam indicator)
31 10A Right headlamp (low beam)
32 20A Power point #1 (instrument panel)
33 10A Start relay
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
169
ProCarManuals.com

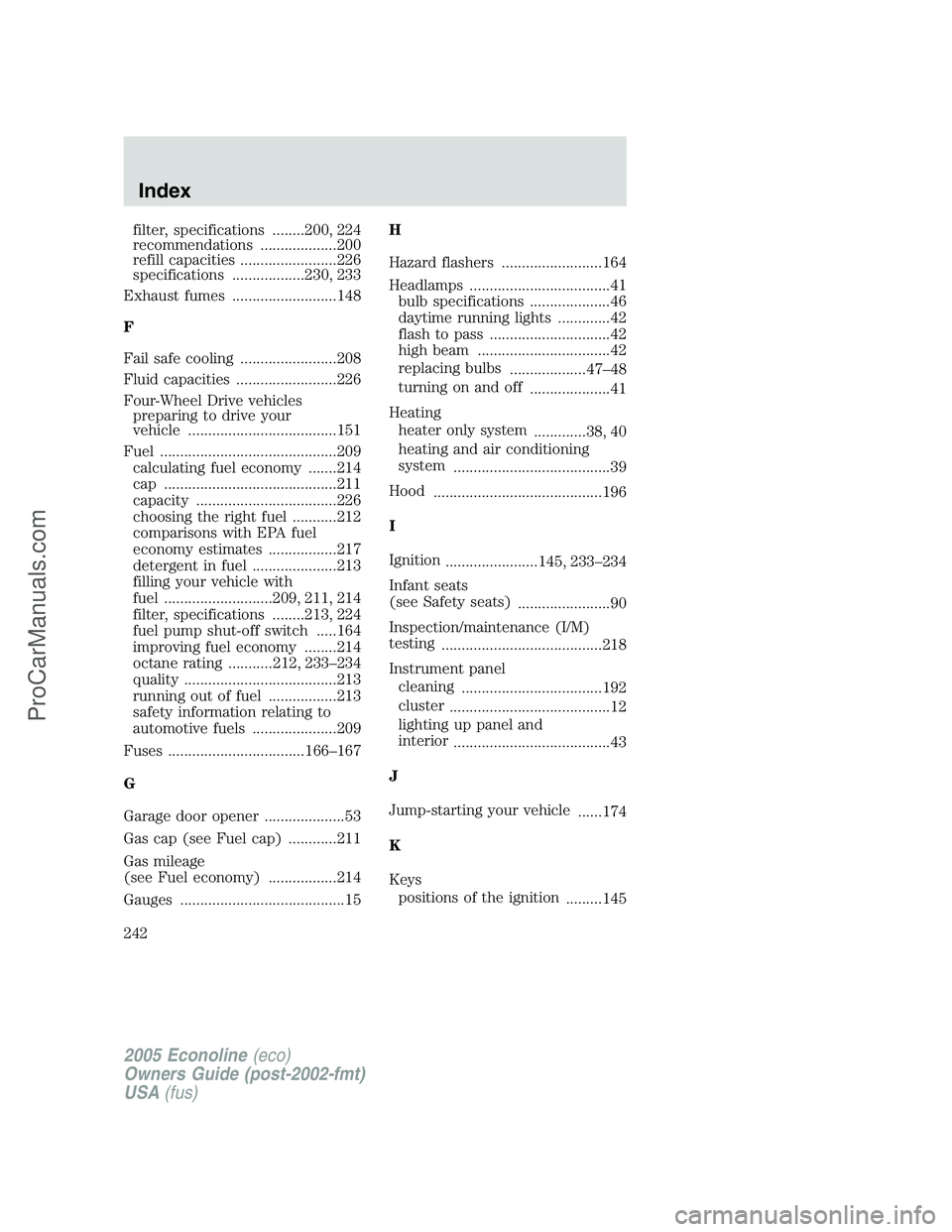

filter, specifications ........200, 224
recommendations ...................200
refill capacities ........................226
specifications ..................230, 233
Exhaust fumes ..........................148
F
Fail safe cooling ........................208
Fluid capacities .........................226
Four-Wheel Drive vehicles
preparing to drive your
vehicle .....................................151
Fuel ............................................209
calculating fuel economy .......214
cap ...........................................211
capacity ...................................226
choosing the right fuel ...........212
comparisons with EPA fuel
economy estimates .................217
detergent in fuel .....................213
filling your vehicle with
fuel ...........................209, 211, 214
filter, specifications ........213, 224
fuel pump shut-off switch .....164
improving fuel economy ........214
octane rating ...........212, 233–234
quality ......................................213
running out of fuel .................213
safety information relating to
automotive fuels .....................209
Fuses ..................................166–167
G
Garage door opener ....................53
Gas cap (see Fuel cap) ............211
Gas mileage
(see Fuel economy) .................214
Gauges .........................................15H
Hazard flashers .........................164
Headlamps ...................................41
bulb specifications ....................46
daytime running lights .............42
flash to pass ..............................42
high beam .................................42
replacing bulbs
...................47–48
turning on and off
....................41
Heating
heater only system
.............38, 40
heating and air conditioning
system
.......................................39
Hood
..........................................196
I
Ignition
.......................145, 233–234
Infant seats
(see Safety seats)
.......................90
Inspection/maintenance (I/M)
testing
........................................218
Instrument panel
cleaning
...................................192
cluster
........................................12
lighting up panel and
interior
.......................................43
J
Jump-starting your vehicle
......174
K
Keys
positions of the ignition
.........145
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
242
ProCarManuals.com

L
Lamps
bulb replacement
specifications chart ..................46
daytime running light ...............42
headlamps .................................41
headlamps, flash to pass ..........42
instrument panel, dimming .....43
interior lamps ...........................45
replacing bulbs ...................46–50
Lane change indicator
(see Turn signal) ........................45
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........149
Load limits .................................126
Loading instructions .................133
Lubricant specifications ...230, 233
Lug nuts ....................................117
Lumbar support, seats ...............67
M
Mirrors
fold away ...................................57
side view mirrors (power) .......56
Motorcraft parts ................213, 224
O
Octane rating ............................212
Oil (see Engine oil) ..................198
P
Parking brake ............................150
Parts (see Motorcraft parts) ....224Power distribution box
(see Fuses) ...............................170
Power door locks ........................61
Power mirrors .............................56
Power point .................................55
Power steering ..........................150
fluid, checking and adding ....219
fluid, refill capacity ................226
fluid, specifications .........230, 233
Power Windows ...........................56
Preparing to drive your
vehicle ........................................151
R
Radio ..............18–19, 22, 25, 28, 32
Relays ................................166, 173
Remote entry system
illuminated entry ......................65
locking/unlocking doors ...........61
Roadside assistance ..................163
S
Safety Belt Maintenance ............81
Safety belts (see Safety
restraints) ........................72–74, 76
Safety defects, reporting ..........188
Safety restraints ....................72–76
belt minder ...............................77
extension assembly ..................80
for adults .............................73–74
for children .........................86–87
lap belt ......................................76
safety belt maintenance ...........81
warning light and chime ..........77
Safety seats for children ............90
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
243
ProCarManuals.com
