FORD E-250 2001 Owners Manual

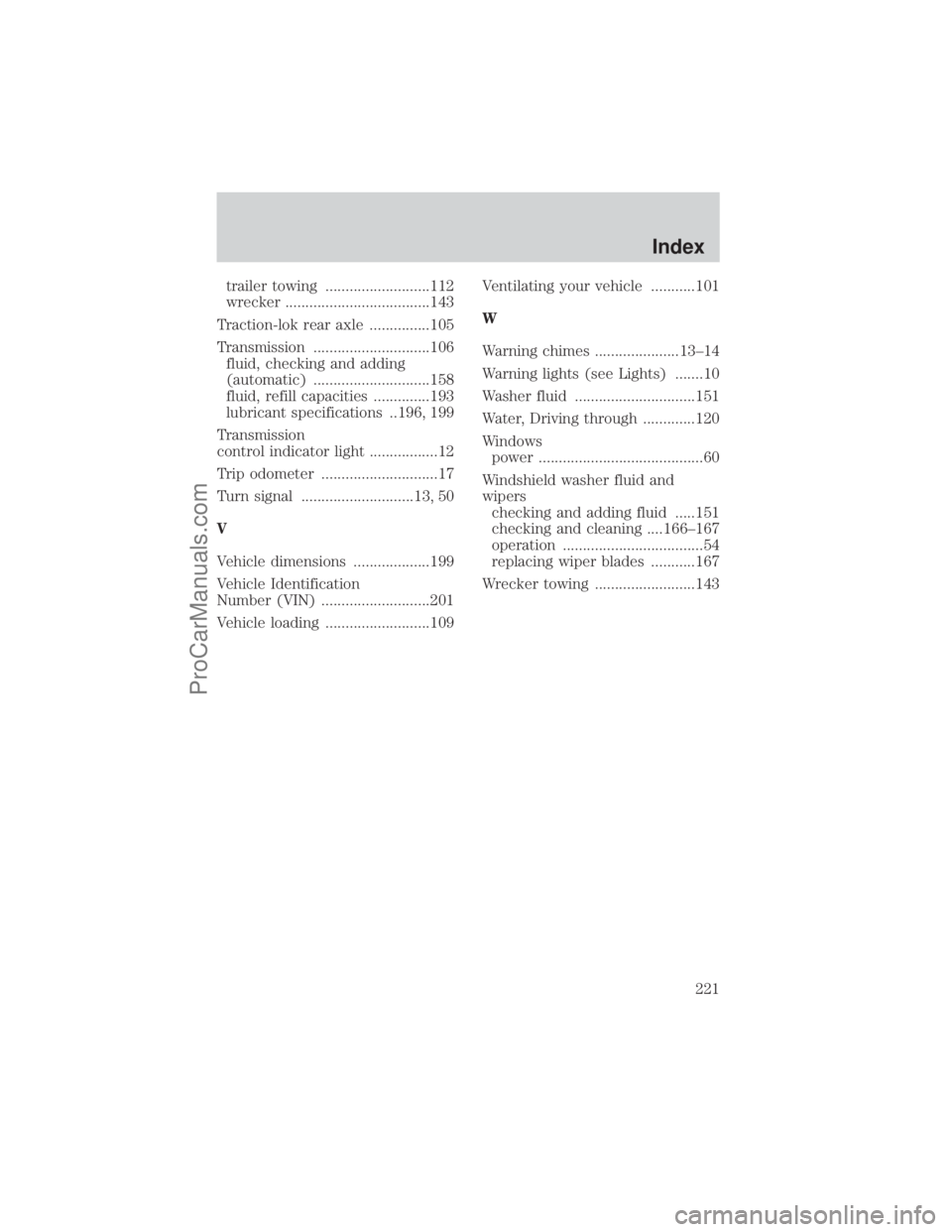

trailer towing ..........................112
wrecker ....................................143
Traction-lok rear axle ...............105
Transmission .............................106
fluid, checking and adding
(automatic) .............................158
fluid, refill capacities ..............193
lubricant specifications ..196, 199
Transmission
control indicator light .................12
Trip odometer .............................17
Turn signal ............................13, 50
V
Vehicle dimensions ...................199
Vehicle Identification
Number (VIN) ...........................201
Vehicle loading ..........................109Ventilating your vehicle ...........101
W
Warning chimes .....................13±14
Warning lights (see Lights) .......10
Washer fluid ..............................151
Water, Driving through .............120
Windows
power .........................................60
Windshield washer fluid and
wipers
checking and adding fluid .....151
checking and cleaning ....166±167
operation ...................................54
replacing wiper blades ...........167
Wrecker towing .........................143
Index
221
ProCarManuals.com

222
ProCarManuals.com

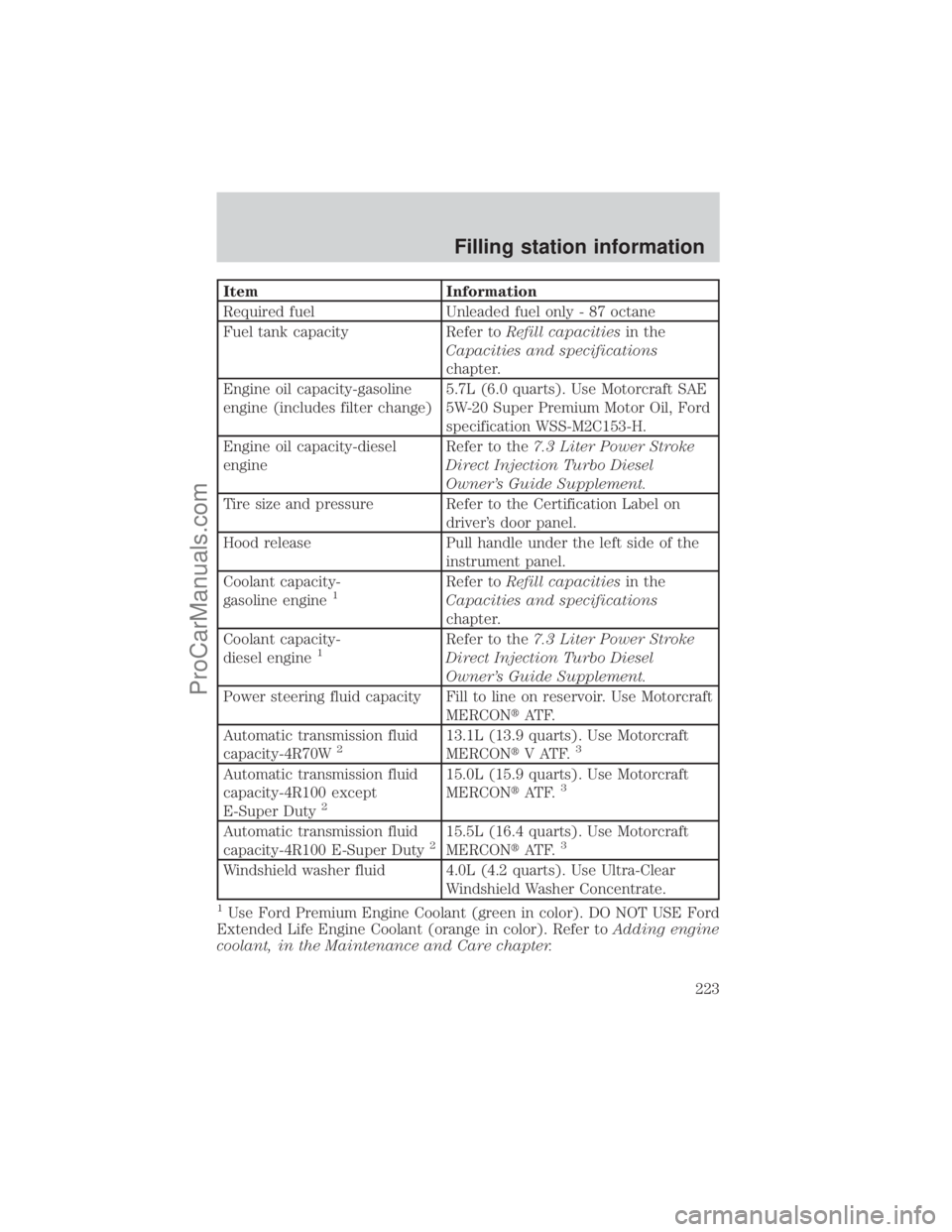

Item Information
Required fuel Unleaded fuel only - 87 octane
Fuel tank capacity Refer toRefill capacitiesin the
Capacities and specifications
chapter.
Engine oil capacity-gasoline
engine (includes filter change)5.7L (6.0 quarts). Use Motorcraft SAE
5W-20 Super Premium Motor Oil, Ford
specification WSS-M2C153-H.
Engine oil capacity-diesel
engineRefer to the7.3 Liter Power Stroke
Direct Injection Turbo Diesel
Owner's Guide Supplement.
Tire size and pressure Refer to the Certification Label on
driver's door panel.
Hood release Pull handle under the left side of the
instrument panel.
Coolant capacity-
gasoline engine
1Refer toRefill capacitiesin the
Capacities and specifications
chapter.
Coolant capacity-
diesel engine
1Refer to the7.3 Liter Power Stroke
Direct Injection Turbo Diesel
Owner's Guide Supplement.
Power steering fluid capacity Fill to line on reservoir. Use Motorcraft
MERCONtAT F.
Automatic transmission fluid
capacity-4R70W
213.1L (13.9 quarts). Use Motorcraft
MERCONtV ATF.3
Automatic transmission fluid
capacity-4R100 except
E-Super Duty
2
15.0L (15.9 quarts). Use Motorcraft
MERCONtAT F.3
Automatic transmission fluid
capacity-4R100 E-Super Duty215.5L (16.4 quarts). Use Motorcraft
MERCONtAT F.3
Windshield washer fluid 4.0L (4.2 quarts). Use Ultra-Clear
Windshield Washer Concentrate.
1Use Ford Premium Engine Coolant (green in color). DO NOT USE Ford
Extended Life Engine Coolant (orange in color). Refer toAdding engine
coolant, in the Maintenance and Care chapter.
Filling station information
223
ProCarManuals.com

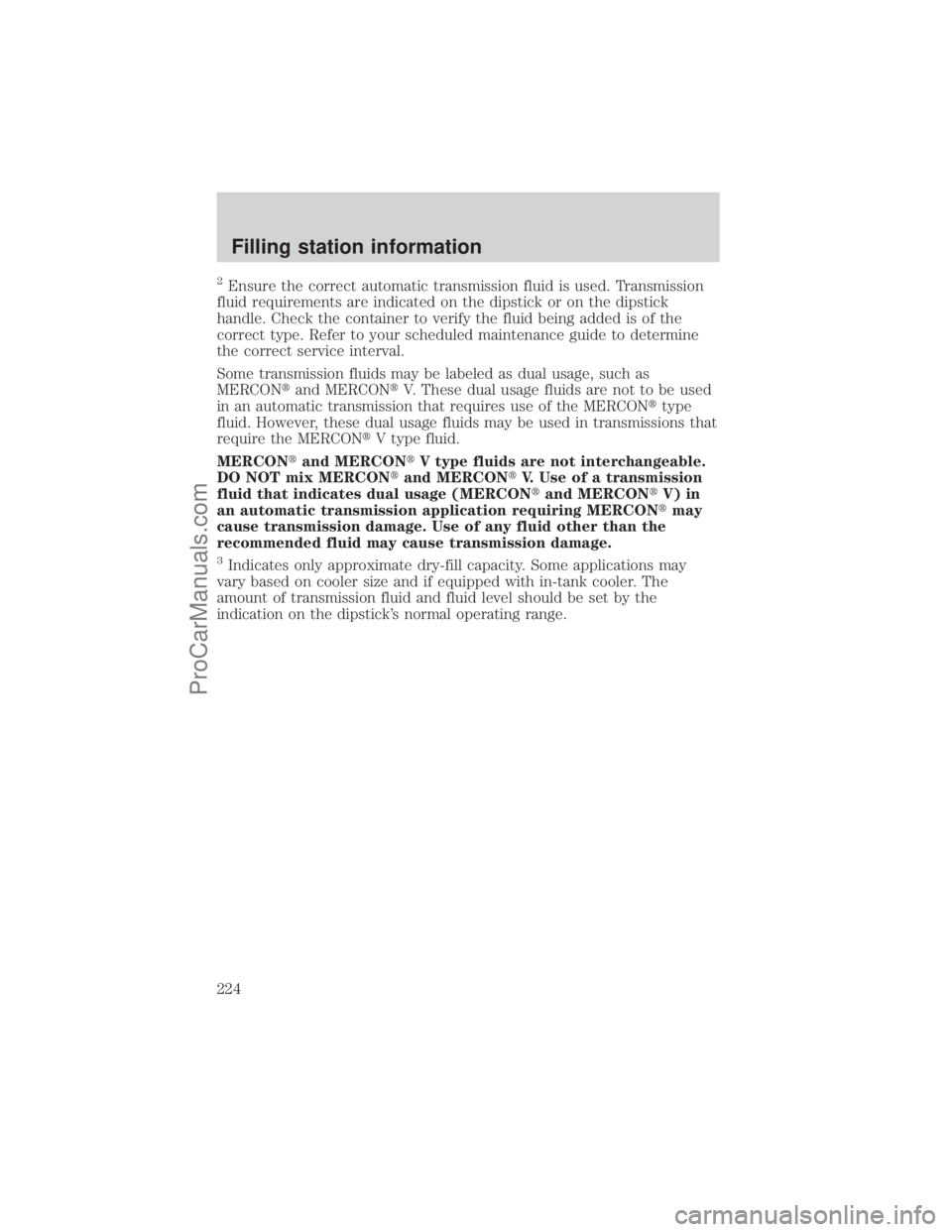

2Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your scheduled maintenance guide to determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONtand MERCONtV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONttype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONtV type fluid.
MERCONtand MERCONtV type fluids are not interchangeable.
DO NOT mix MERCONtand MERCONtV. Use of a transmission
fluid that indicates dual usage (MERCONtand MERCONtV) in
an automatic transmission application requiring MERCONtmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
3Indicates only approximate dry-fill capacity. Some applications may
vary based on cooler size and if equipped with in-tank cooler. The
amount of transmission fluid and fluid level should be set by the
indication on the dipstick's normal operating range.
Filling station information
