FORD E-250 2007 Owners Manual

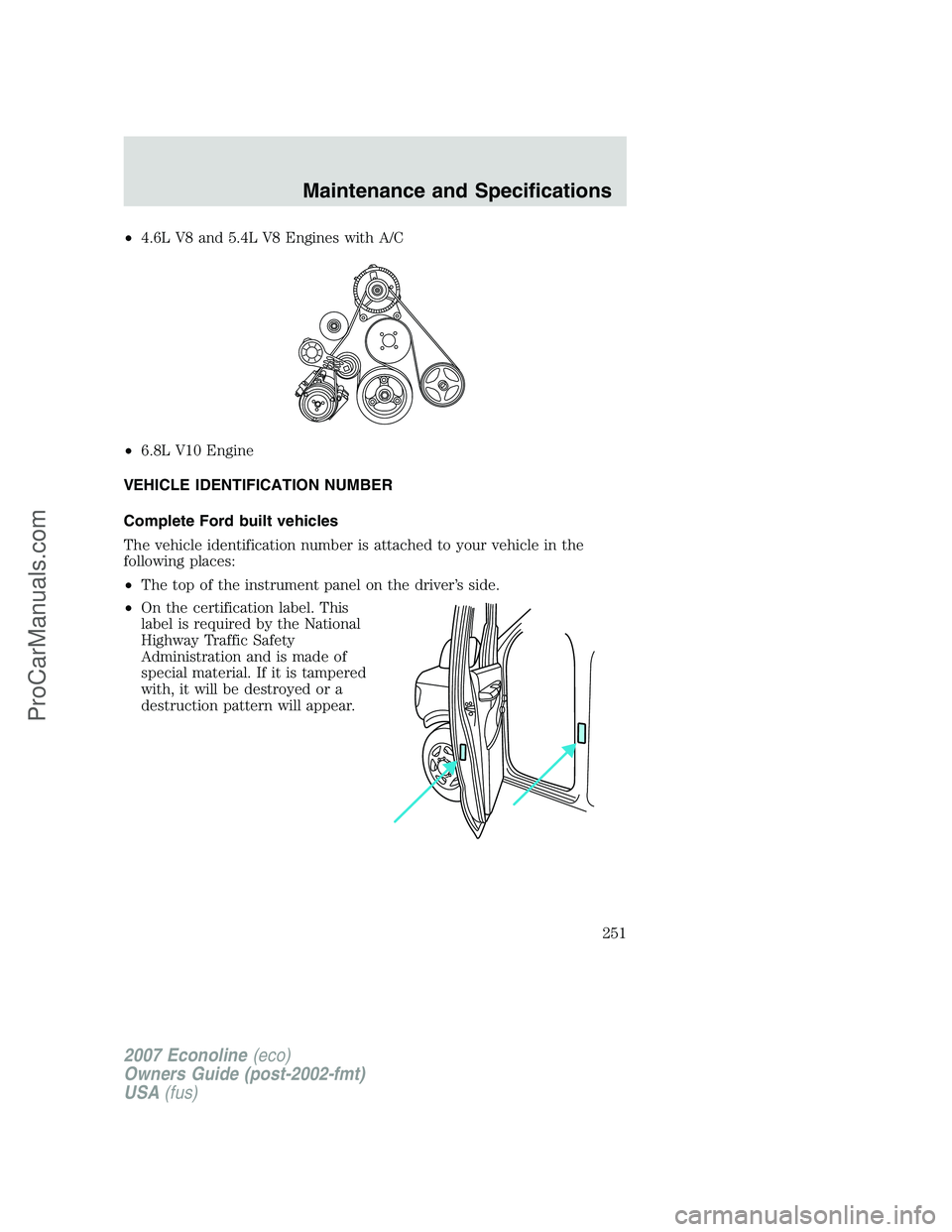

•4.6L V8 and 5.4L V8 Engines with A/C
•6.8L V10 Engine
VEHICLE IDENTIFICATION NUMBER
Complete Ford built vehicles
The vehicle identification number is attached to your vehicle in the
following places:
•The top of the instrument panel on the driver’s side.
•On the certification label. This
label is required by the National
Highway Traffic Safety
Administration and is made of
special material. If it is tampered
with, it will be destroyed or a
destruction pattern will appear.
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
251
ProCarManuals.com

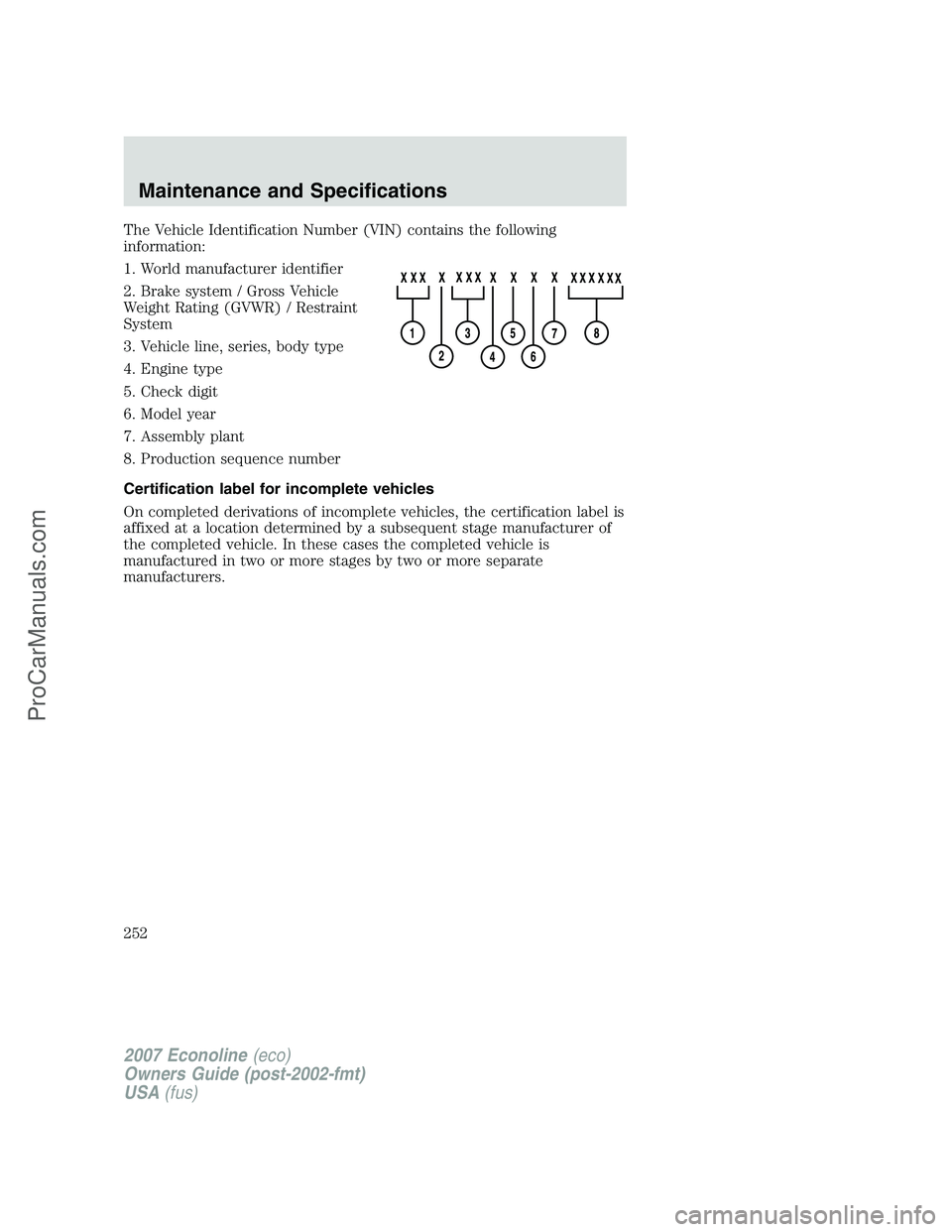

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Certification label for incomplete vehicles
On completed derivations of incomplete vehicles, the certification label is
affixed at a location determined by a subsequent stage manufacturer of
the completed vehicle. In these cases the completed vehicle is
manufactured in two or more stages by two or more separate
manufacturers.
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
252
ProCarManuals.com

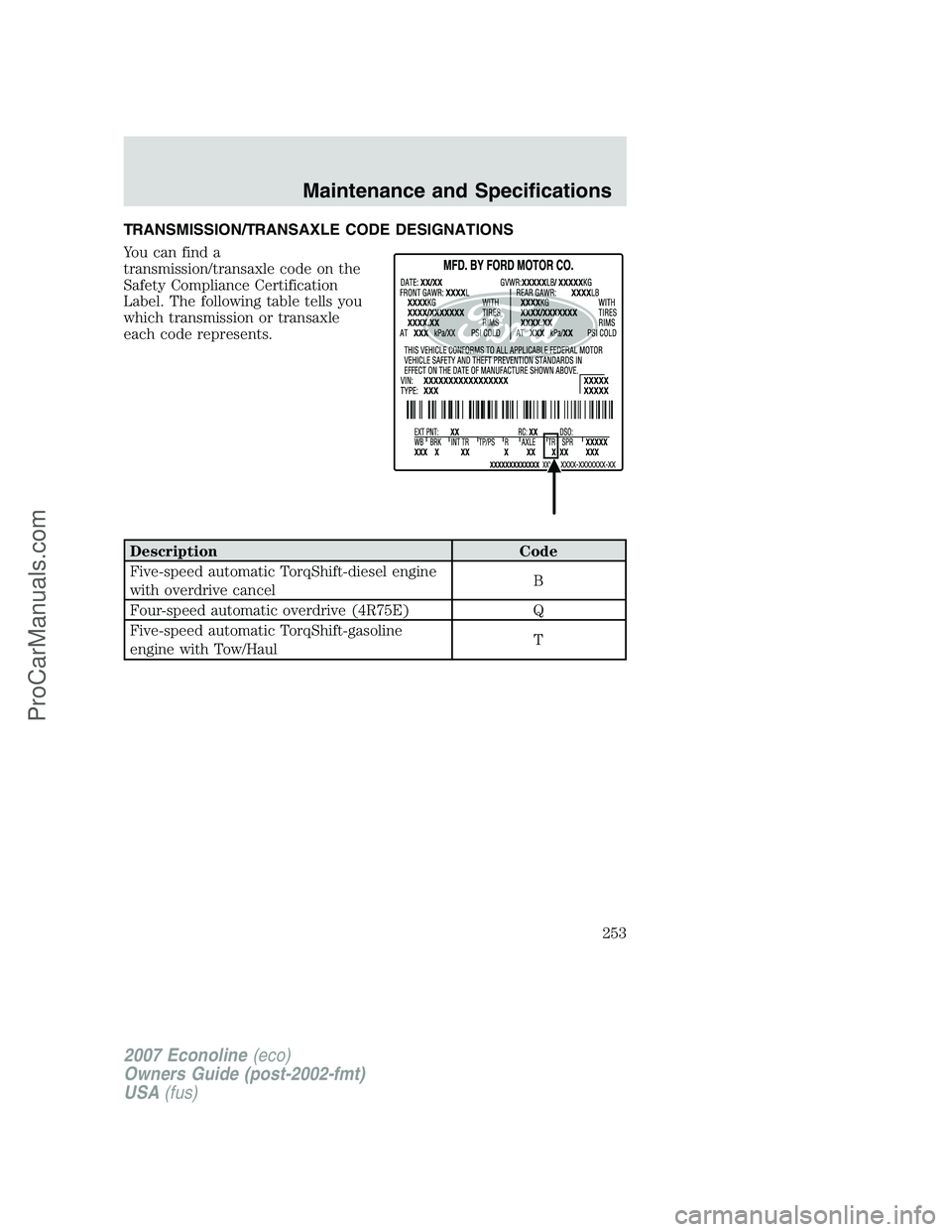

TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
Five-speed automatic TorqShift-diesel engine
with overdrive cancelB
Four-speed automatic overdrive (4R75E) Q
Five-speed automatic TorqShift-gasoline
engine with Tow/HaulT
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
253
ProCarManuals.com

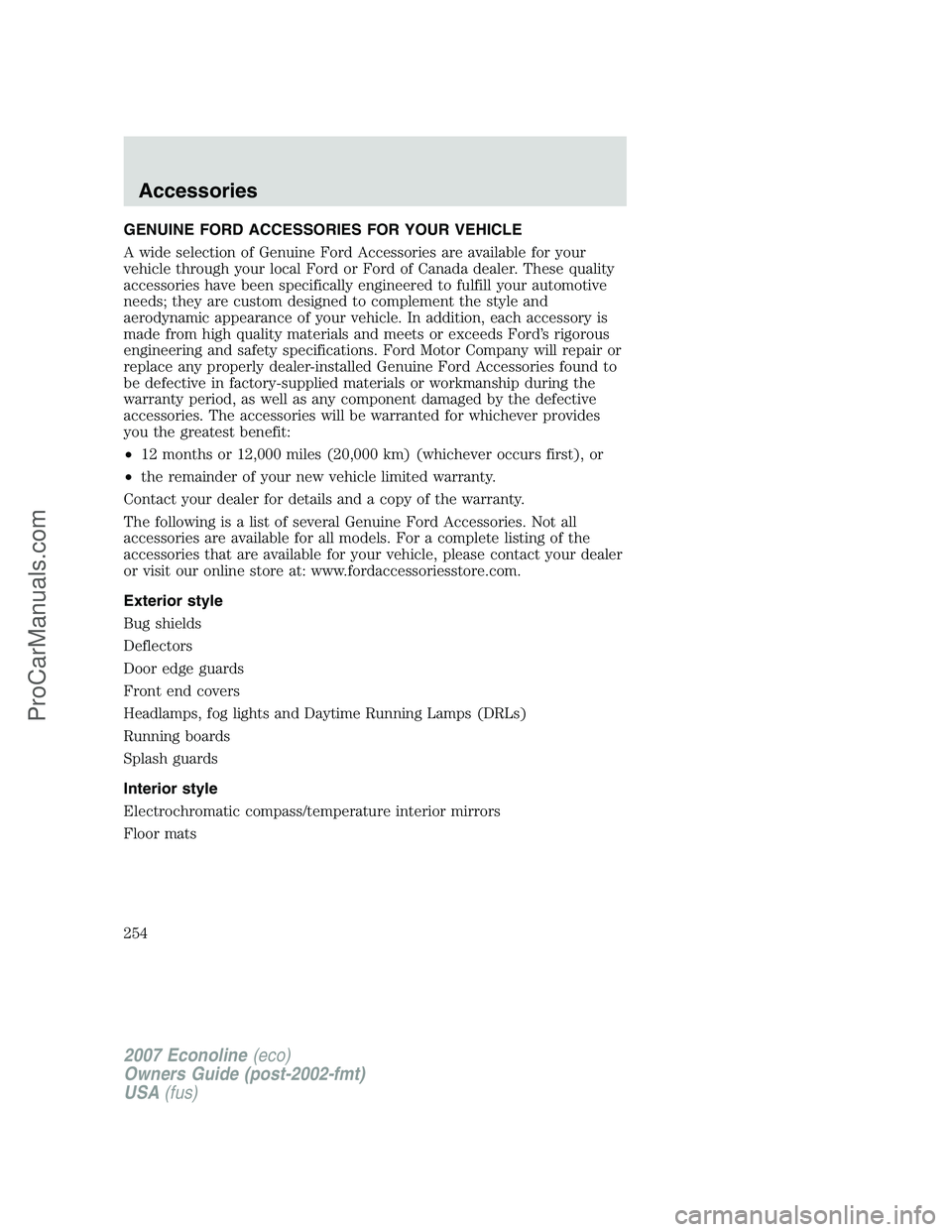

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Door edge guards
Front end covers
Headlamps, fog lights and Daytime Running Lamps (DRLs)
Running boards
Splash guards
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
254
ProCarManuals.com

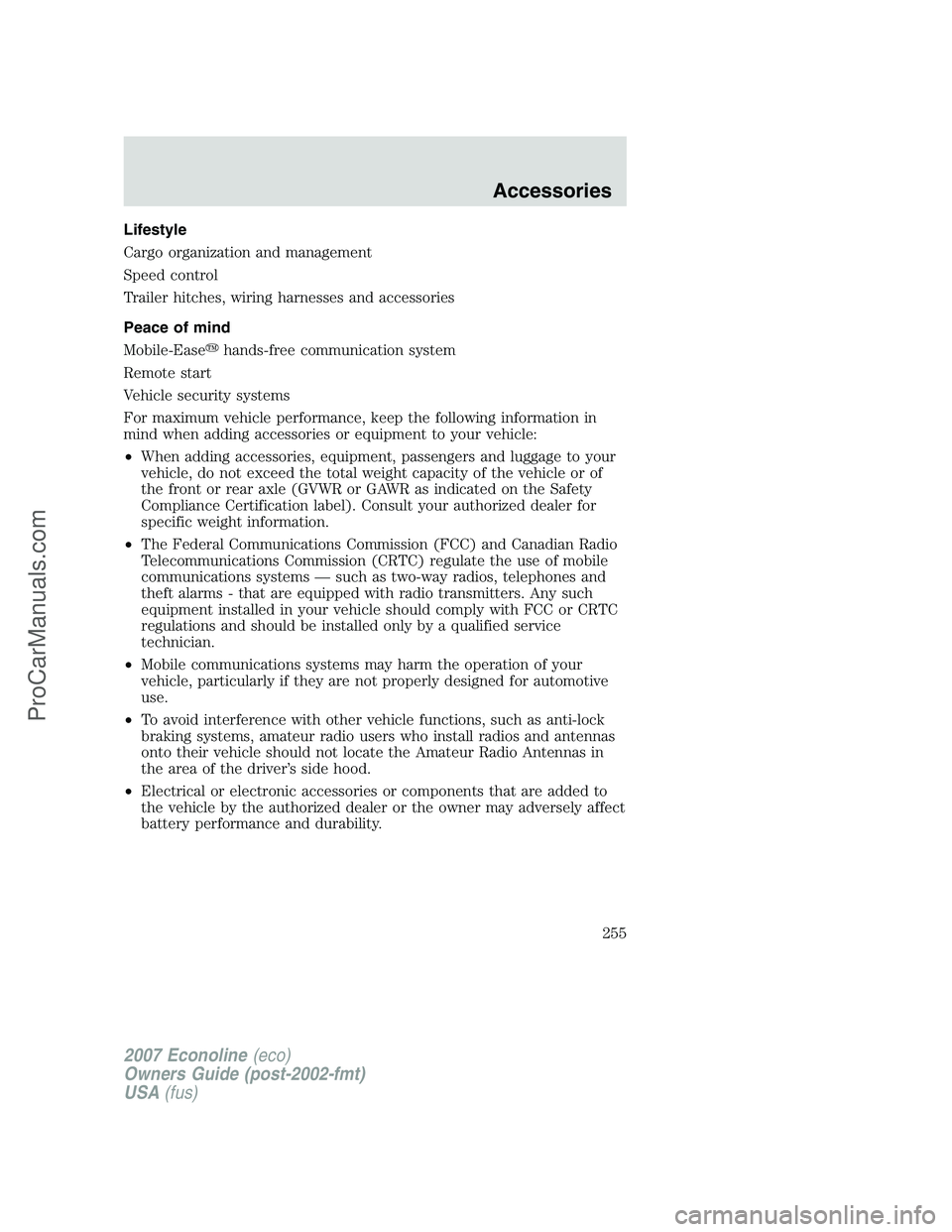

Lifestyle
Cargo organization and management
Speed control
Trailer hitches, wiring harnesses and accessories
Peace of mind
Mobile-Easehands-free communication system
Remote start
Vehicle security systems
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
255
ProCarManuals.com

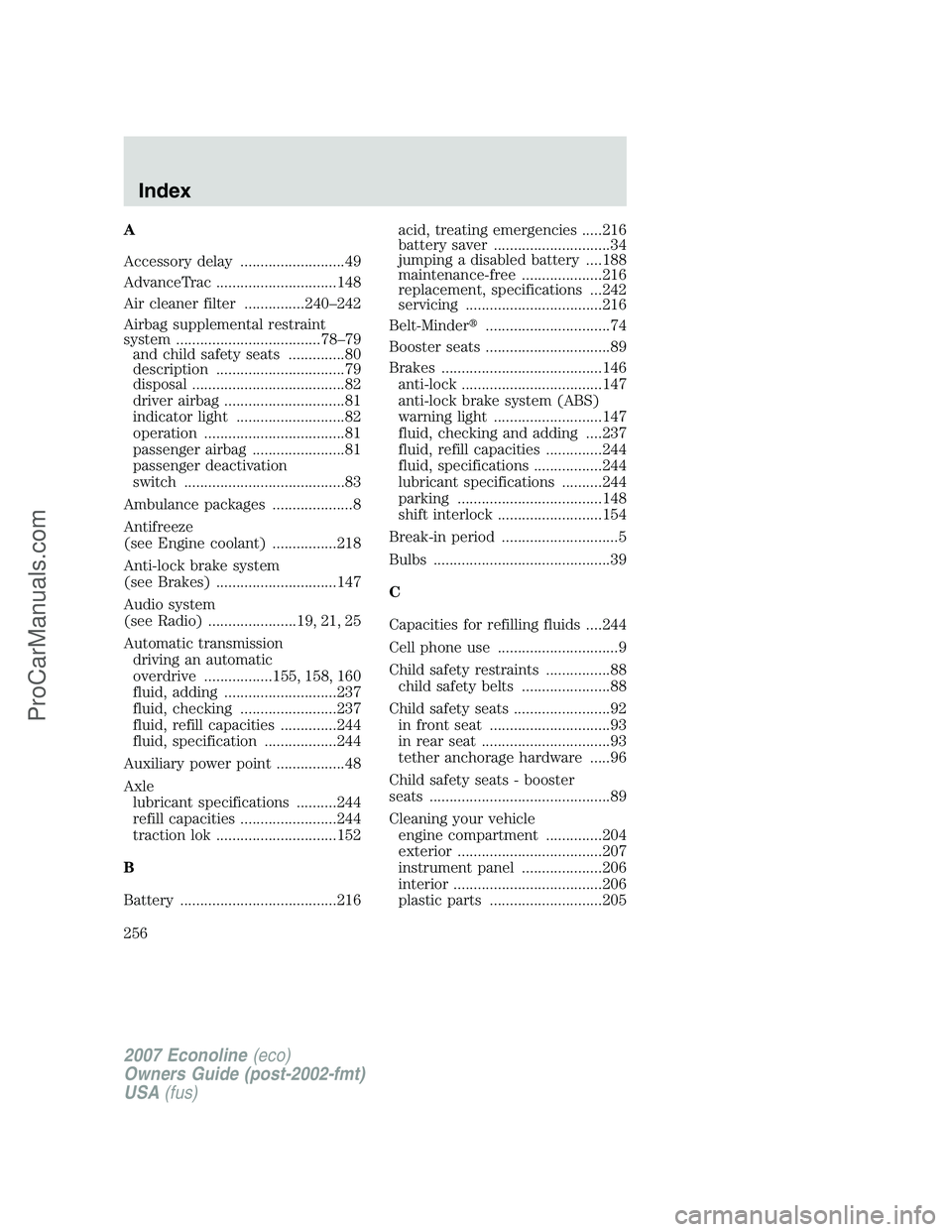

A
Accessory delay ..........................49
AdvanceTrac ..............................148
Air cleaner filter ...............240–242
Airbag supplemental restraint
system ....................................78–79
and child safety seats ..............80
description ................................79
disposal ......................................82
driver airbag ..............................81
indicator light ...........................82
operation ...................................81
passenger airbag .......................81
passenger deactivation
switch ........................................83
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................218
Anti-lock brake system
(see Brakes) ..............................147
Audio system
(see Radio) ......................19, 21, 25
Automatic transmission
driving an automatic
overdrive .................155, 158, 160
fluid, adding ............................237
fluid, checking ........................237
fluid, refill capacities ..............244
fluid, specification ..................244
Auxiliary power point .................48
Axle
lubricant specifications ..........244
refill capacities ........................244
traction lok ..............................152
B
Battery .......................................216acid, treating emergencies .....216
battery saver .............................34
jumping a disabled battery ....188
maintenance-free ....................216
replacement, specifications ...242
servicing ..................................216
Belt-Minder
...............................74
Booster seats ...............................89
Brakes ........................................146
anti-lock ...................................147
anti-lock brake system (ABS)
warning light ...........................147
fluid, checking and adding ....237
fluid, refill capacities ..............244
fluid, specifications .................244
lubricant specifications ..........244
parking ....................................148
shift interlock ..........................154
Break-in period .............................5
Bulbs ............................................39
C
Capacities for refilling fluids ....244
Cell phone use ..............................9
Child safety restraints ................88
child safety belts ......................88
Child safety seats ........................92
in front seat ..............................93
in rear seat ................................93
tether anchorage hardware .....96
Child safety seats - booster
seats .............................................89
Cleaning your vehicle
engine compartment ..............204
exterior ....................................207
instrument panel ....................206
interior .....................................206
plastic parts ............................205
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
256
ProCarManuals.com

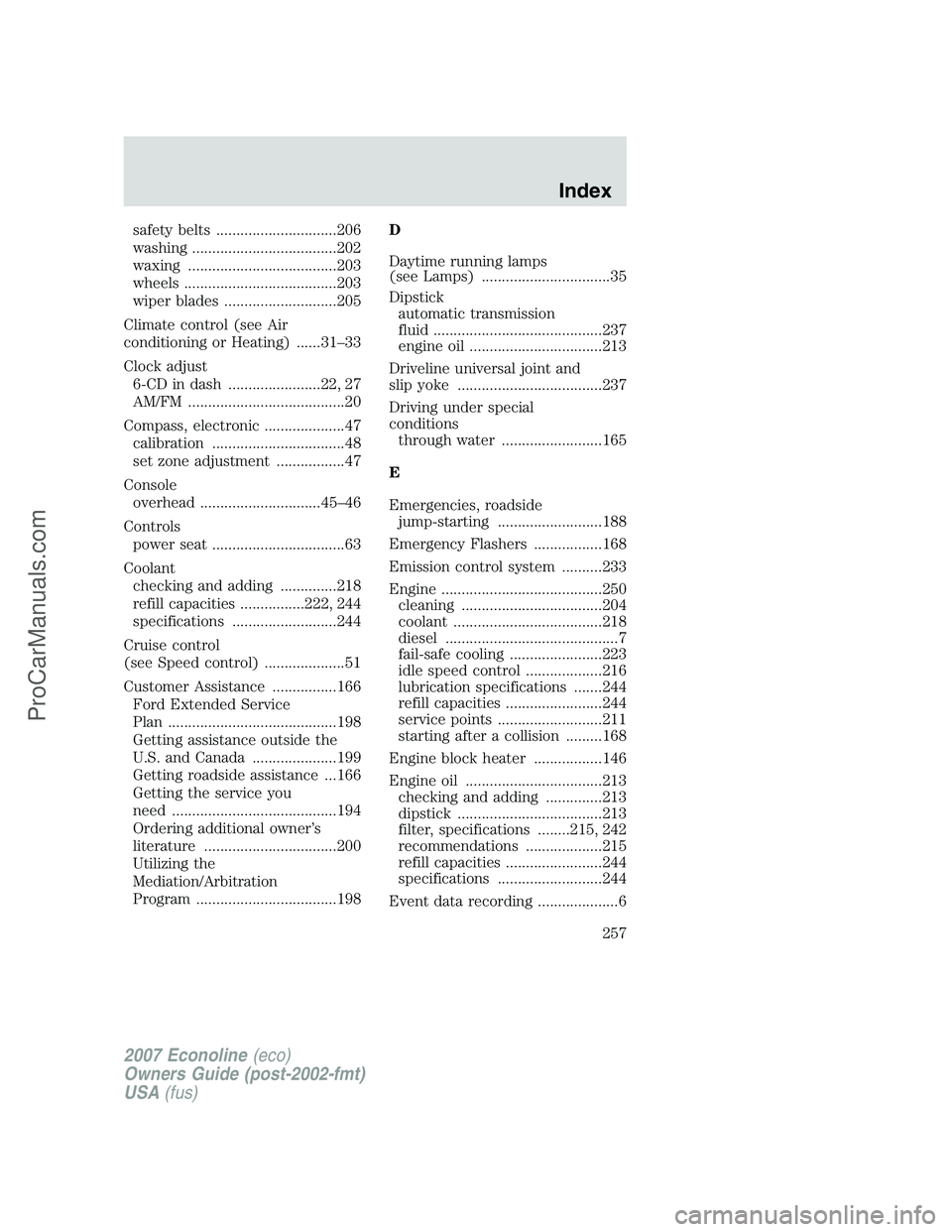

safety belts ..............................206
washing ....................................202
waxing .....................................203
wheels ......................................203
wiper blades ............................205
Climate control (see Air
conditioning or Heating) ......31–33
Clock adjust
6-CD in dash .......................22, 27
AM/FM .......................................20
Compass, electronic ....................47
calibration .................................48
set zone adjustment .................47
Console
overhead ..............................45–46
Controls
power seat .................................63
Coolant
checking and adding ..............218
refill capacities ................222, 244
specifications ..........................244
Cruise control
(see Speed control) ....................51
Customer Assistance ................166
Ford Extended Service
Plan ..........................................198
Getting assistance outside the
U.S. and Canada .....................199
Getting roadside assistance ...166
Getting the service you
need .........................................194
Ordering additional owner’s
literature .................................200
Utilizing the
Mediation/Arbitration
Program ...................................198D
Daytime running lamps
(see Lamps) ................................35
Dipstick
automatic transmission
fluid ..........................................237
engine oil .................................213
Driveline universal joint and
slip yoke ....................................237
Driving under special
conditions
through water .........................165
E
Emergencies, roadside
jump-starting ..........................188
Emergency Flashers .................168
Emission control system ..........233
Engine ........................................250
cleaning ...................................204
coolant .....................................218
diesel ...........................................7
fail-safe cooling .......................223
idle speed control ...................216
lubrication specifications .......244
refill capacities ........................244
service points ..........................211
starting after a collision .........168
Engine block heater .................146
Engine oil ..................................213
checking and adding ..............213
dipstick ....................................213
filter, specifications ........215, 242
recommendations ...................215
refill capacities ........................244
specifications ..........................244
Event data recording ....................6
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
257
ProCarManuals.com

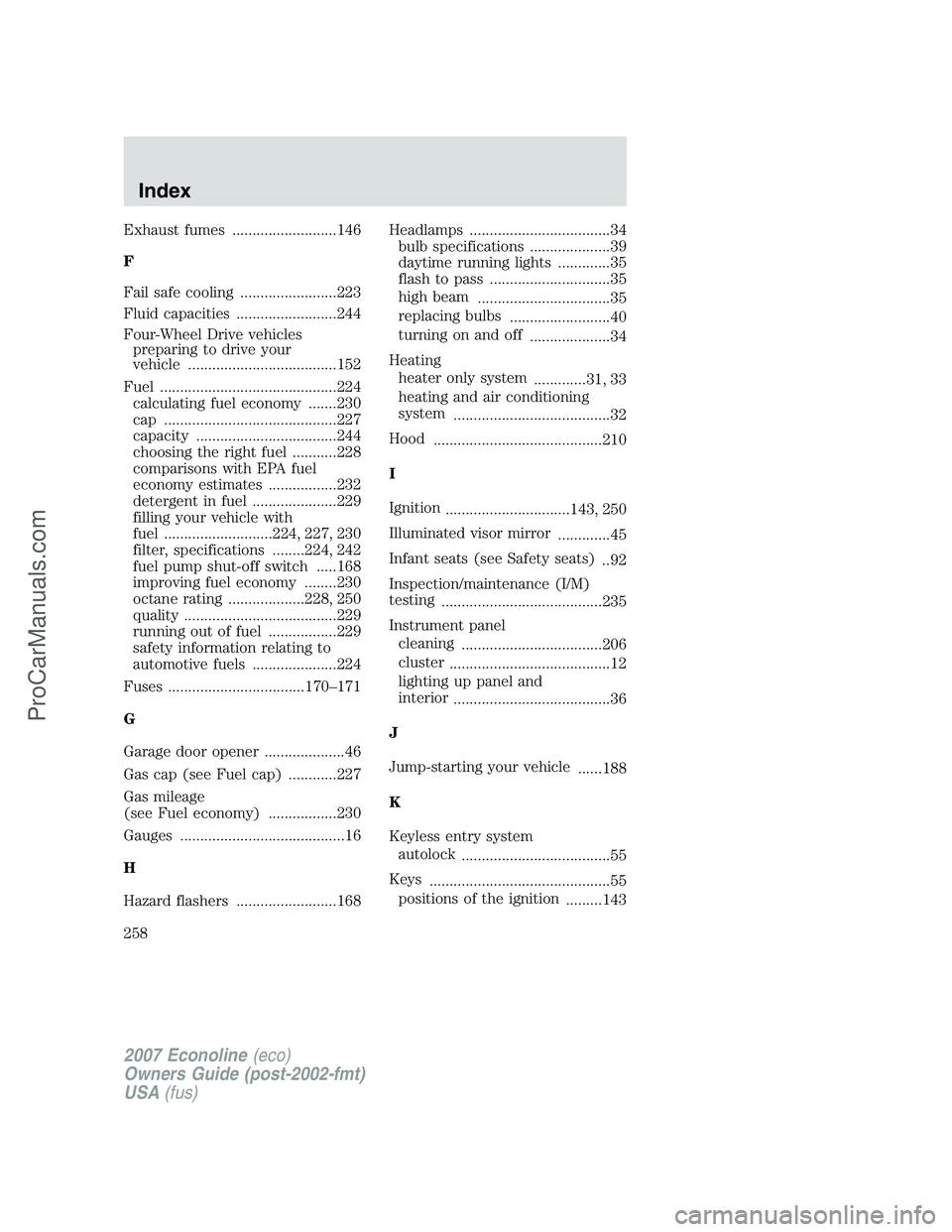

Exhaust fumes ..........................146
F
Fail safe cooling ........................223
Fluid capacities .........................244
Four-Wheel Drive vehicles
preparing to drive your
vehicle .....................................152
Fuel ............................................224
calculating fuel economy .......230
cap ...........................................227
capacity ...................................244
choosing the right fuel ...........228
comparisons with EPA fuel
economy estimates .................232
detergent in fuel .....................229
filling your vehicle with
fuel ...........................224, 227, 230
filter, specifications ........224, 242
fuel pump shut-off switch .....168
improving fuel economy ........230
octane rating ...................228, 250
quality ......................................229
running out of fuel .................229
safety information relating to
automotive fuels .....................224
Fuses ..................................170–171
G
Garage door opener ....................46
Gas cap (see Fuel cap) ............227
Gas mileage
(see Fuel economy) .................230
Gauges .........................................16
H
Hazard flashers .........................168Headlamps ...................................34
bulb specifications ....................39
daytime running lights .............35
flash to pass ..............................35
high beam
.................................35
replacing bulbs
.........................40
turning on and off
....................34
Heating
heater only system
.............31, 33
heating and air conditioning
system
.......................................32
Hood
..........................................210
I
Ignition
...............................143, 250
Illuminated visor mirror
.............45
Infant seats (see Safety seats)
..92
Inspection/maintenance (I/M)
testing
........................................235
Instrument panel
cleaning
...................................206
cluster
........................................12
lighting up panel and
interior
.......................................36
J
Jump-starting your vehicle
......188
K
Keyless entry system
autolock
.....................................55
Keys
.............................................55
positions of the ignition
.........143
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
258
ProCarManuals.com

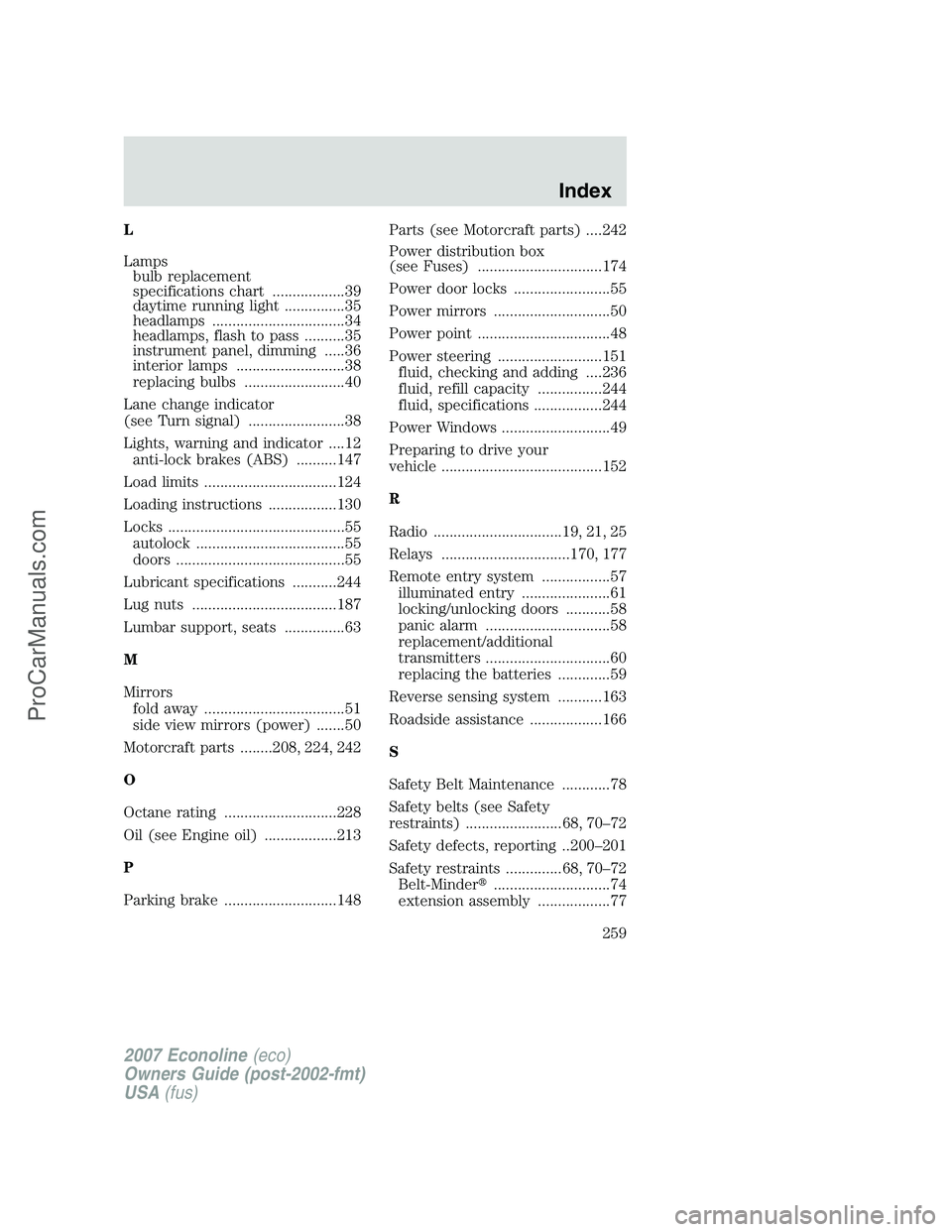

L
Lamps
bulb replacement
specifications chart ..................39
daytime running light ...............35
headlamps .................................34
headlamps, flash to pass ..........35
instrument panel, dimming .....36
interior lamps ...........................38
replacing bulbs .........................40
Lane change indicator
(see Turn signal) ........................38
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........147
Load limits .................................124
Loading instructions .................130
Locks ............................................55
autolock .....................................55
doors ..........................................55
Lubricant specifications ...........244
Lug nuts ....................................187
Lumbar support, seats ...............63
M
Mirrors
fold away ...................................51
side view mirrors (power) .......50
Motorcraft parts ........208, 224, 242
O
Octane rating ............................228
Oil (see Engine oil) ..................213
P
Parking brake ............................148Parts (see Motorcraft parts) ....242
Power distribution box
(see Fuses) ...............................174
Power door locks ........................55
Power mirrors .............................50
Power point .................................48
Power steering ..........................151
fluid, checking and adding ....236
fluid, refill capacity ................244
fluid, specifications .................244
Power Windows ...........................49
Preparing to drive your
vehicle ........................................152
R
Radio ................................19, 21, 25
Relays ................................170, 177
Remote entry system .................57
illuminated entry ......................61
locking/unlocking doors ...........58
panic alarm ...............................58
replacement/additional
transmitters ...............................60
replacing the batteries .............59
Reverse sensing system ...........163
Roadside assistance ..................166
S
Safety Belt Maintenance ............78
Safety belts (see Safety
restraints) ........................68, 70–72
Safety defects, reporting ..200–201
Safety restraints ..............68, 70–72
Belt-Minder
.............................74
extension assembly ..................77
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
259
ProCarManuals.com

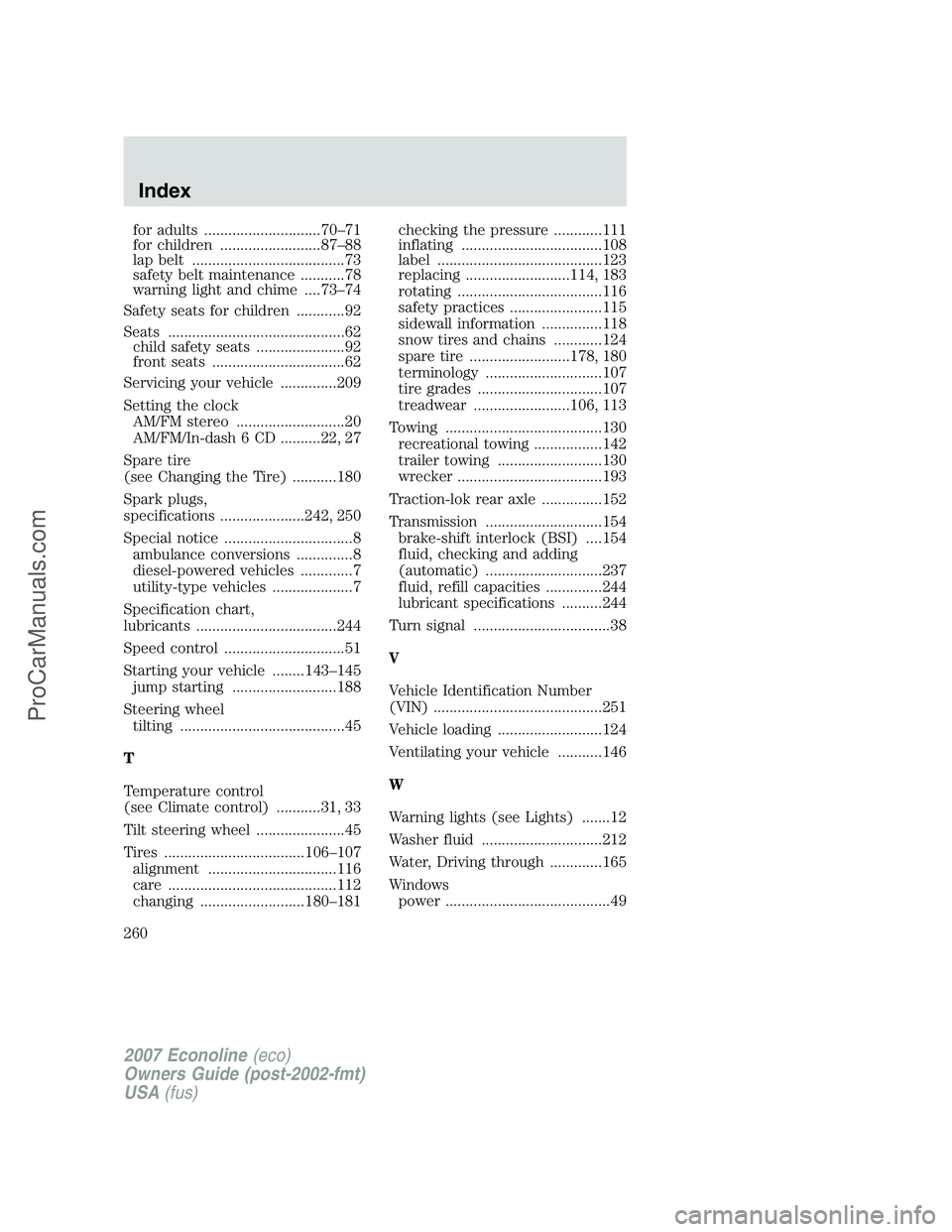

for adults .............................70–71
for children .........................87–88
lap belt ......................................73
safety belt maintenance ...........78
warning light and chime ....73–74
Safety seats for children ............92
Seats ............................................62
child safety seats ......................92
front seats .................................62
Servicing your vehicle ..............209
Setting the clock
AM/FM stereo ...........................20
AM/FM/In-dash 6 CD ..........22, 27
Spare tire
(see Changing the Tire) ...........180
Spark plugs,
specifications .....................242, 250
Special notice ................................8
ambulance conversions ..............8
diesel-powered vehicles .............7
utility-type vehicles ....................7
Specification chart,
lubricants ...................................244
Speed control ..............................51
Starting your vehicle ........143–145
jump starting ..........................188
Steering wheel
tilting .........................................45
T
Temperature control
(see Climate control) ...........31, 33
Tilt steering wheel ......................45
Tires ...................................106–107
alignment ................................116
care ..........................................112
changing ..........................180–181checking the pressure ............111
inflating ...................................108
label .........................................123
replacing ..........................114, 183
rotating ....................................116
safety practices .......................115
sidewall information ...............118
snow tires and chains ............124
spare tire .........................178, 180
terminology .............................107
tire grades ...............................107
treadwear ........................106, 113
Towing .......................................130
recreational towing .................142
trailer towing ..........................130
wrecker ....................................193
Traction-lok rear axle ...............152
Transmission .............................154
brake-shift interlock (BSI) ....154
fluid, checking and adding
(automatic) .............................237
fluid, refill capacities ..............244
lubricant specifications ..........244
Turn signal ..................................38
V
Vehicle Identification Number
(VIN) ..........................................251
Vehicle loading ..........................124
Ventilating your vehicle ...........146
W
Warning lights (see Lights) .......12
Washer fluid ..............................212
Water, Driving through .............165
Windows
power .........................................49
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
260
ProCarManuals.com
