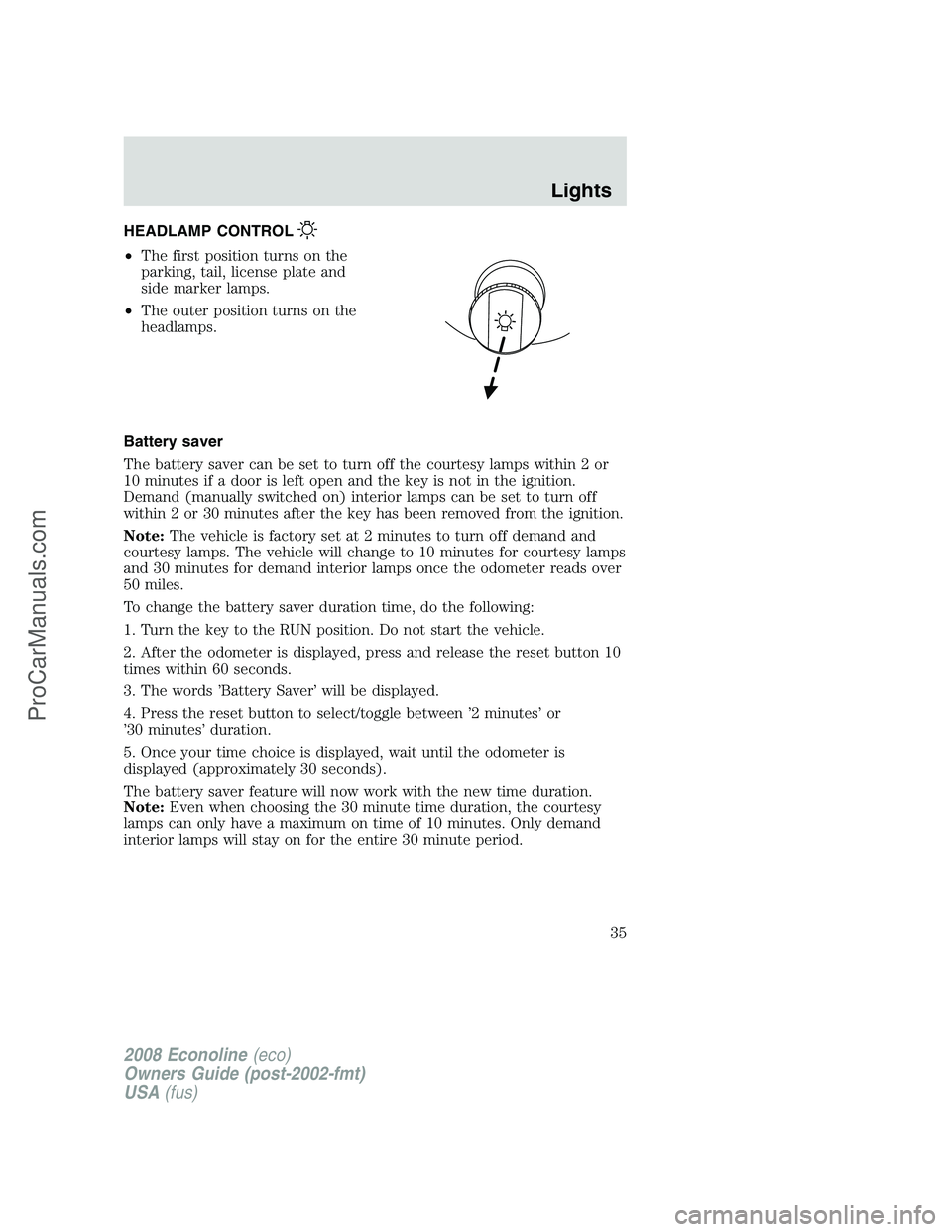

HEADLAMP CONTROL
•The first position turns on the
parking, tail, license plate and
side marker lamps.
•The outer position turns on the
headlamps.
Battery saver
The battery saver can be set to turn off the courtesy lamps within 2 or
10 minutes if a door is left open and the key is not in the ignition.
Demand (manually switched on) interior lamps can be set to turn off
within 2 or 30 minutes after the key has been removed from the ignition.
Note:The vehicle is factory set at 2 minutes to turn off demand and
courtesy lamps. The vehicle will change to 10 minutes for courtesy lamps
and 30 minutes for demand interior lamps once the odometer reads over
50 miles.
To change the battery saver duration time, do the following:
1. Turn the key to the RUN position. Do not start the vehicle.
2. After the odometer is displayed, press and release the reset button 10
times within 60 seconds.
3. The words ’Battery Saver’ will be displayed.
4. Press the reset button to select/toggle between ’2 minutes’ or
’30 minutes’ duration.
5. Once your time choice is displayed, wait until the odometer is
displayed (approximately 30 seconds).
The battery saver feature will now work with the new time duration.
Note:Even when choosing the 30 minute time duration, the courtesy
lamps can only have a maximum on time of 10 minutes. Only demand
interior lamps will stay on for the entire 30 minute period.
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
35
ProCarManuals.com

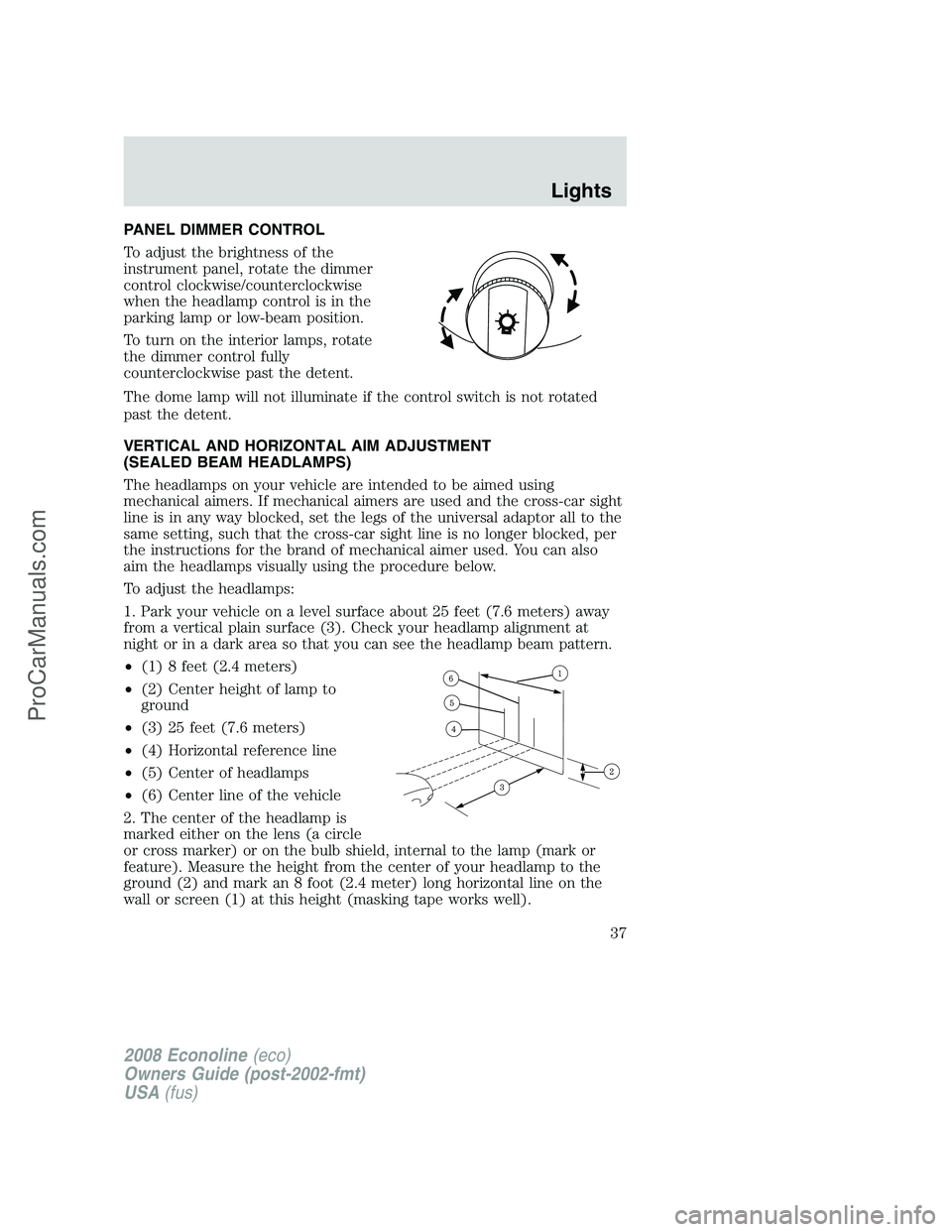

PANEL DIMMER CONTROL
To adjust the brightness of the
instrument panel, rotate the dimmer
control clockwise/counterclockwise
when the headlamp control is in the
parking lamp or low-beam position.
To turn on the interior lamps, rotate
the dimmer control fully
counterclockwise past the detent.
The dome lamp will not illuminate if the control switch is not rotated
past the detent.
VERTICAL AND HORIZONTAL AIM ADJUSTMENT
(SEALED BEAM HEADLAMPS)
The headlamps on your vehicle are intended to be aimed using
mechanical aimers. If mechanical aimers are used and the cross-car sight
line is in any way blocked, set the legs of the universal adaptor all to the
same setting, such that the cross-car sight line is no longer blocked, per
the instructions for the brand of mechanical aimer used. You can also
aim the headlamps visually using the procedure below.
To adjust the headlamps:
1. Park your vehicle on a level surface about 25 feet (7.6 meters) away
from a vertical plain surface (3). Check your headlamp alignment at
night or in a dark area so that you can see the headlamp beam pattern.
•(1) 8 feet (2.4 meters)
•(2) Center height of lamp to
ground
•(3) 25 feet (7.6 meters)
•(4) Horizontal reference line
•(5) Center of headlamps
•(6) Center line of the vehicle
2. The center of the headlamp is
marked either on the lens (a circle
or cross marker) or on the bulb shield, internal to the lamp (mark or
feature). Measure the height from the center of your headlamp to the
ground (2) and mark an 8 foot (2.4 meter) long horizontal line on the
wall or screen (1) at this height (masking tape works well).
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
37
ProCarManuals.com

TURN SIGNAL CONTROL
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
INTERIOR LAMPS
Cargo and dome lamps with rear headliner
Rear cargo lamps equipped with an
ON/OFF/DOOR control will light
when:
•doors are closed and the control
is in the ON position
•control is in the DOOR position
and any door is open
•headlamp control is rotated fully counterclockwise
When the control is in the OFF position, it will not illuminate when you
open the doors or fully rotate the headlamp control.
Third row courtesy/reading/cargo lamps
The dome portion of the lamp, the
center light, can be turned on when
the headlamp control is rotated fully
counterclockwise or when any door
is opened.
With the ignition key in the accessory or on position, the rear dome lamp
can be turned on or off by sliding the control.
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
40
ProCarManuals.com

Sealed beam
3. Rotate the bulb socket counterclockwise and remove.
4. Carefully pull the bulb straight out of the socket.
To complete installation, follow the removal procedures in reverse order.
Replacing high-mount brakelamp bulbs
On vehicles without a rear headliner, the interior cargo lamp (if
equipped) will have to be removed from under the high-mount
brakelamp assembly located inside the vehicle. Then, do the following:
1. Remove the two screws from the
high-mount brakelamp assembly and
lift the lamp from the vehicle.
2. Remove the bulb socket from the
lamp assembly by turning
counterclockwise.
3. Carefully pull the bulb straight
out of the socket.
To install the new bulb, follow the removal procedure in reverse order.
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
45
ProCarManuals.com

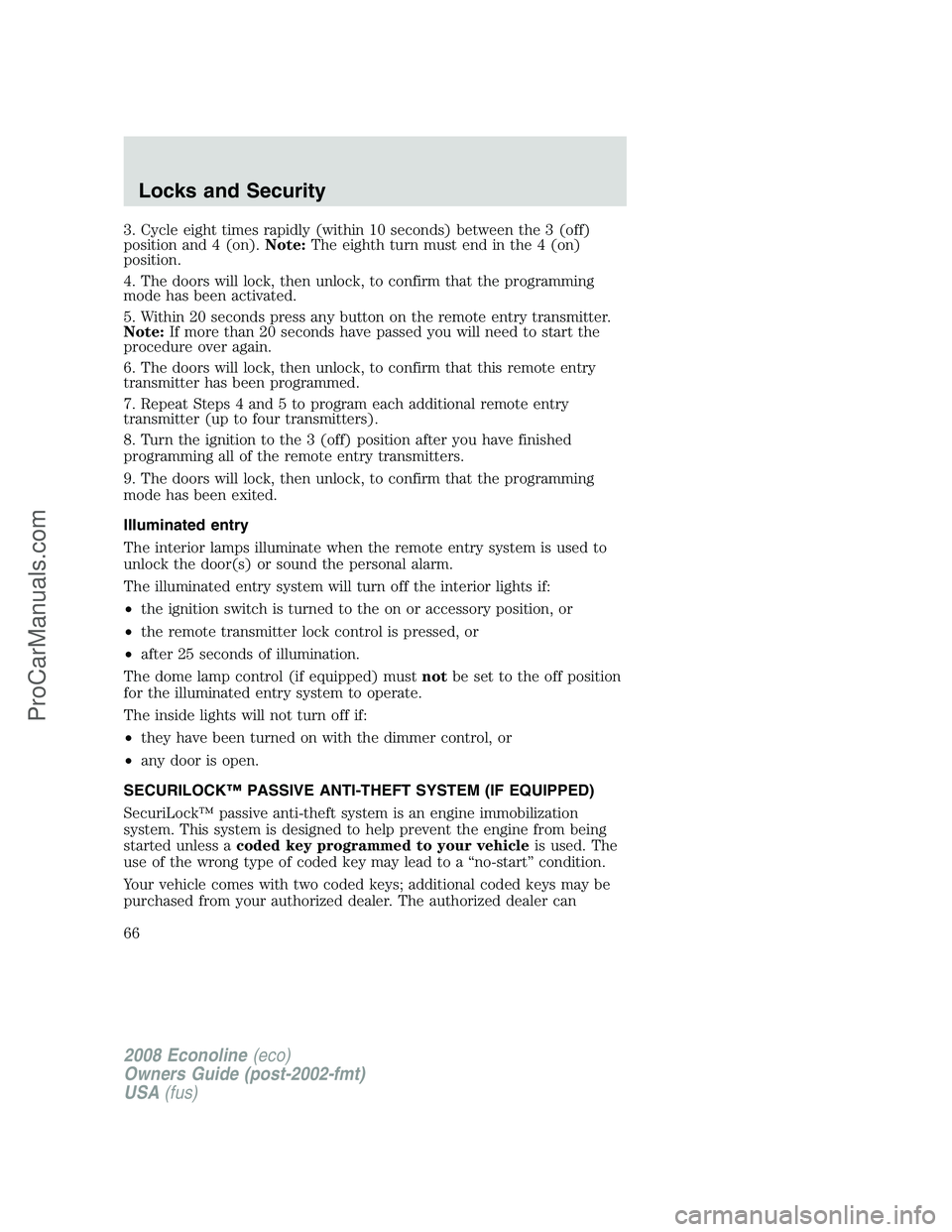

3. Cycle eight times rapidly (within 10 seconds) between the 3 (off)
position and 4 (on).Note:The eighth turn must end in the 4 (on)
position.
4. The doors will lock, then unlock, to confirm that the programming
mode has been activated.
5. Within 20 seconds press any button on the remote entry transmitter.
Note:If more than 20 seconds have passed you will need to start the
procedure over again.
6. The doors will lock, then unlock, to confirm that this remote entry
transmitter has been programmed.
7. Repeat Steps 4 and 5 to program each additional remote entry
transmitter (up to four transmitters).
8. Turn the ignition to the 3 (off) position after you have finished
programming all of the remote entry transmitters.
9. The doors will lock, then unlock, to confirm that the programming
mode has been exited.
Illuminated entry
The interior lamps illuminate when the remote entry system is used to
unlock the door(s) or sound the personal alarm.
The illuminated entry system will turn off the interior lights if:
•the ignition switch is turned to the on or accessory position, or
•the remote transmitter lock control is pressed, or
•after 25 seconds of illumination.
The dome lamp control (if equipped) mustnotbe set to the off position
for the illuminated entry system to operate.
The inside lights will not turn off if:
•they have been turned on with the dimmer control, or
•any door is open.
SECURILOCK™ PASSIVE ANTI-THEFT SYSTEM (IF EQUIPPED)
SecuriLock™ passive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless acoded key programmed to your vehicleis used. The
use of the wrong type of coded key may lead to a “no-start” condition.
Your vehicle comes with two coded keys; additional coded keys may be
purchased from your authorized dealer. The authorized dealer can
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
66
ProCarManuals.com

Flexible Fuel Vehicle (FFV) ....249
Fluid capacities .........................271
Four-Wheel Drive vehicles
preparing to drive your
vehicle .....................................174
Fuel ............................................249
calculating fuel economy .......256
cap ...........................................252
capacity ...................................271
choosing the right fuel ...........254
comparisons with EPA fuel
economy estimates .................259
detergent in fuel .....................254
filling your vehicle with
fuel ...........................249, 252, 256
filter, specifications ........249, 270
fuel pump shut-off switch .....191
improving fuel economy ........256
octane rating ...................254, 274
quality ......................................255
running out of fuel .................256
safety information relating to
automotive fuels .....................249
Fuel - flex fuel vehicle
(FFV) .................................249, 254
Fuses ..................................192–193
G
Garage door opener ....................49
Gas cap (see Fuel cap) ............252
Gas mileage
(see Fuel economy) .................256
Gauges .........................................17
H
Hazard flashers .........................190
Headlamps ...................................35aiming ........................................38
bulb specifications ....................41
daytime running lights .............36
flash to pass ..............................36
high beam .................................36
replacing bulbs .........................42
turning on and off ....................35
Heating
heater only system .............32, 34
heating and air conditioning
system .......................................33
Hood ..........................................234
I
Ignition ...............................162, 274
Illuminated visor mirror .............48
Infant seats
(see Safety seats) .....................101
Inspection/maintenance (I/M)
testing ........................................261
Instrument panel
cleaning ...................................230
cluster ........................................12
lighting up panel and
interior .......................................37
J
Jack ............................................200
positioning ...............................200
storage .....................................200
Jump-starting your vehicle ......210
K
Keyless entry system
autolock .....................................58
Keys .............................................68
positions of the ignition .........162
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
282
ProCarManuals.com

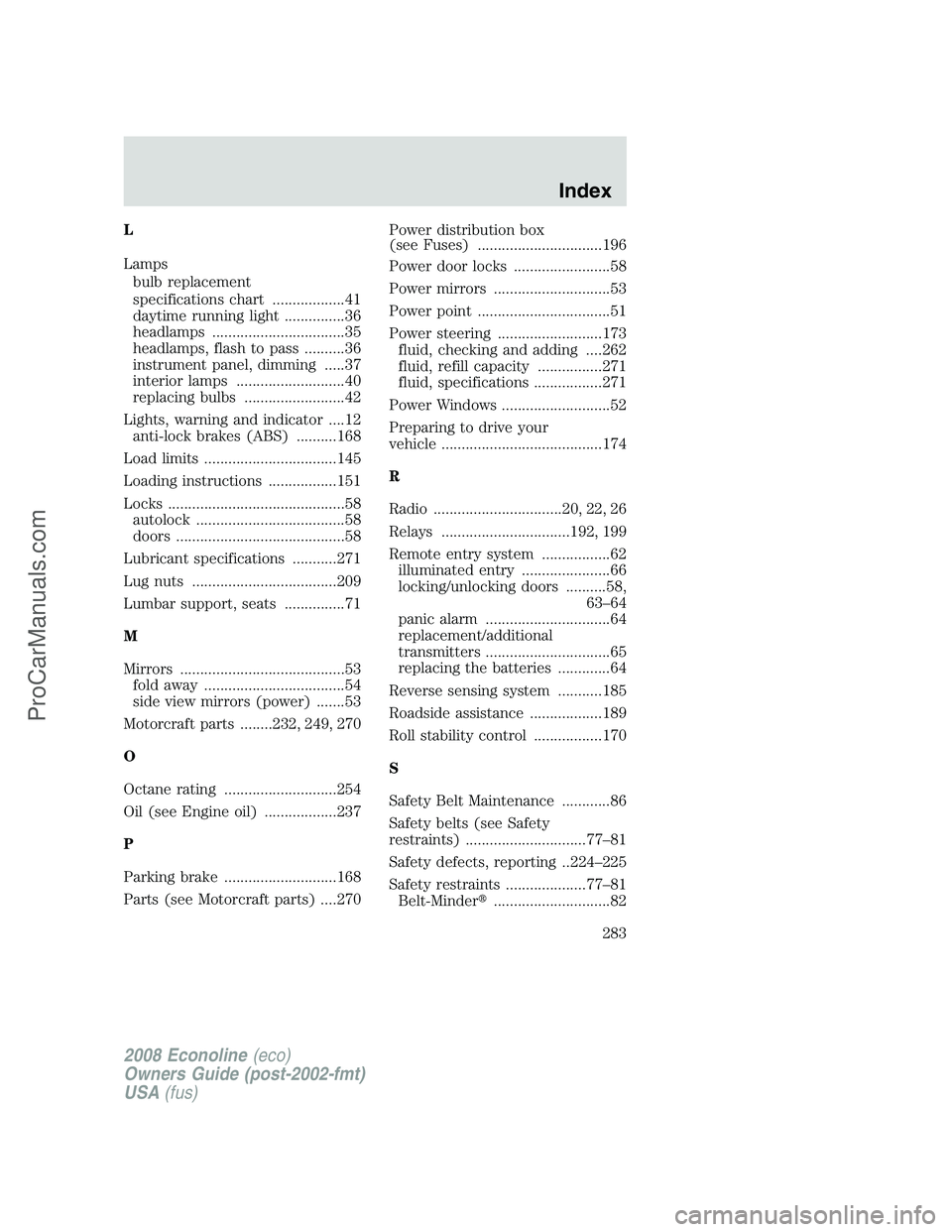

L
Lamps
bulb replacement
specifications chart ..................41
daytime running light ...............36
headlamps .................................35
headlamps, flash to pass ..........36
instrument panel, dimming .....37
interior lamps ...........................40
replacing bulbs .........................42
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........168
Load limits .................................145
Loading instructions .................151
Locks ............................................58
autolock .....................................58
doors ..........................................58
Lubricant specifications ...........271
Lug nuts ....................................209
Lumbar support, seats ...............71
M
Mirrors .........................................53
fold away ...................................54
side view mirrors (power) .......53
Motorcraft parts ........232, 249, 270
O
Octane rating ............................254
Oil (see Engine oil) ..................237
P
Parking brake ............................168
Parts (see Motorcraft parts) ....270Power distribution box
(see Fuses) ...............................196
Power door locks ........................58
Power mirrors .............................53
Power point .................................51
Power steering ..........................173
fluid, checking and adding ....262
fluid, refill capacity ................271
fluid, specifications .................271
Power Windows ...........................52
Preparing to drive your
vehicle ........................................174
R
Radio ................................20, 22, 26
Relays ................................192, 199
Remote entry system .................62
illuminated entry ......................66
locking/unlocking doors ..........58,
63–64
panic alarm ...............................64
replacement/additional
transmitters ...............................65
replacing the batteries .............64
Reverse sensing system ...........185
Roadside assistance ..................189
Roll stability control .................170
S
Safety Belt Maintenance ............86
Safety belts (see Safety
restraints) ..............................77–81
Safety defects, reporting ..224–225
Safety restraints ....................77–81
Belt-Minder
.............................82
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
283
ProCarManuals.com
