FORD E-350 2000 Owners Manual

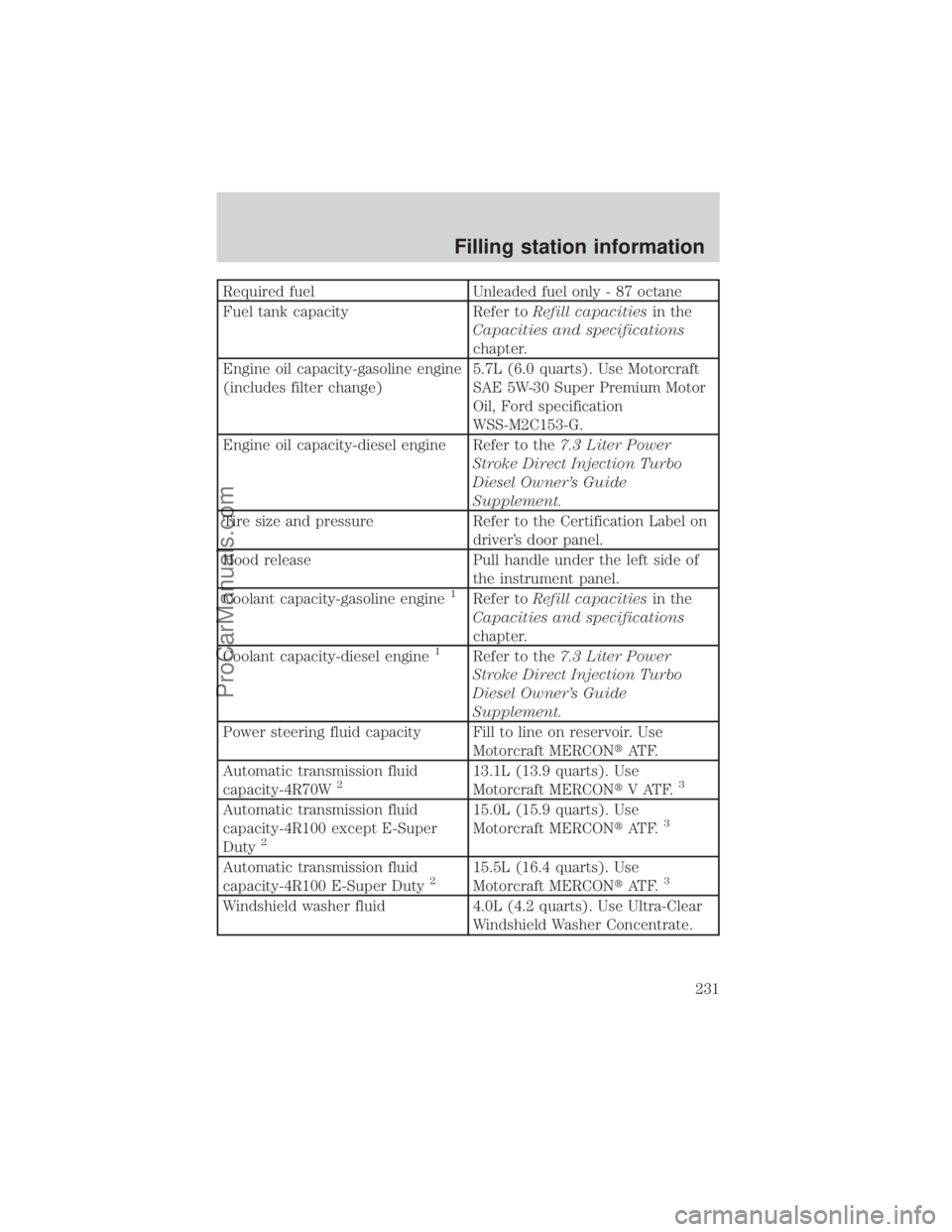

Required fuel Unleaded fuel only - 87 octane
Fuel tank capacity Refer toRefill capacitiesin the
Capacities and specifications
chapter.
Engine oil capacity-gasoline engine
(includes filter change)5.7L (6.0 quarts). Use Motorcraft
SAE 5W-30 Super Premium Motor
Oil, Ford specification
WSS-M2C153-G.
Engine oil capacity-diesel engine Refer to the7.3 Liter Power
Stroke Direct Injection Turbo
Diesel Owner's Guide
Supplement.
Tire size and pressure Refer to the Certification Label on
driver's door panel.
Hood release Pull handle under the left side of
the instrument panel.
Coolant capacity-gasoline engine
1Refer toRefill capacitiesin the
Capacities and specifications
chapter.
Coolant capacity-diesel engine
1Refer to the7.3 Liter Power
Stroke Direct Injection Turbo
Diesel Owner's Guide
Supplement.
Power steering fluid capacity Fill to line on reservoir. Use
Motorcraft MERCONtAT F.
Automatic transmission fluid
capacity-4R70W
213.1L (13.9 quarts). Use
Motorcraft MERCONtV ATF.3
Automatic transmission fluid
capacity-4R100 except E-Super
Duty
2
15.0L (15.9 quarts). Use
Motorcraft MERCONtAT F.3
Automatic transmission fluid
capacity-4R100 E-Super Duty215.5L (16.4 quarts). Use
Motorcraft MERCONtAT F.3
Windshield washer fluid 4.0L (4.2 quarts). Use Ultra-Clear
Windshield Washer Concentrate.
Filling station information
231
ProCarManuals.com

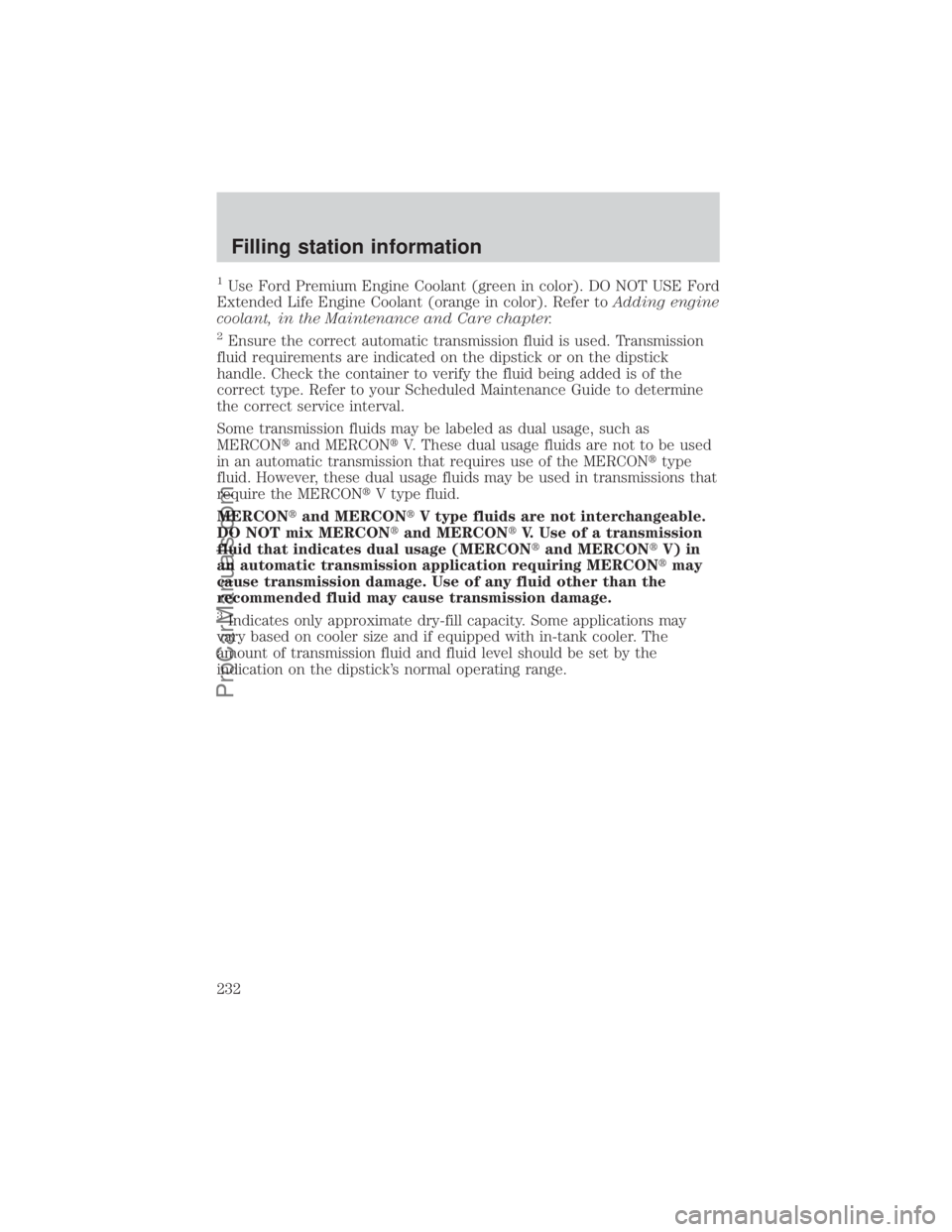

1Use Ford Premium Engine Coolant (green in color). DO NOT USE Ford
Extended Life Engine Coolant (orange in color). Refer toAdding engine
coolant, in the Maintenance and Care chapter.
2Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your Scheduled Maintenance Guide to determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONtand MERCONtV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONttype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONtV type fluid.
MERCONtand MERCONtV type fluids are not interchangeable.
DO NOT mix MERCONtand MERCONtV. Use of a transmission
fluid that indicates dual usage (MERCONtand MERCONtV) in
an automatic transmission application requiring MERCONtmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
3Indicates only approximate dry-fill capacity. Some applications may
vary based on cooler size and if equipped with in-tank cooler. The
amount of transmission fluid and fluid level should be set by the
indication on the dipstick's normal operating range.
Filling station information
232
