seat adjustment FORD E-350 2002 Owners Manual

Adjusting the volume
This control allows the rear seat
passengers to adjust the volume
level of the audio system.
Press the + control to increase the
volume.
Press the—control to decrease the
volume.
From the AutoVisioncontrols, the speaker volume cannot be set higher
than the current volume radio setting. When in headphone mode, the
AutoVisioncontrols can change the volume setting to any desired level.
Using headphones/Personal Audio Feature
The Personal Audio Feature allows
the rear seat passengers to listen to
one media source (radio, TAPE, CD,
CDDJ, VCP, or AUX) while the front
seat passengers listen to another.
To activate, press the
/
control and plug a 3.5mm
headphone into the headphone jack.
With the headphones ON, the rear
speakers will not operate.
Press the MEDIA control to toggle
to the desired media source.
Use the SEEK, VOLUME and MEM
controls to make any desired
adjustments.
Press the
/control again to engage the rear speakers and
deactivate the Personal Audio Feature.
Entertainment Systems
56
ProCarManuals.com

Safety belts and seats can become hot in a vehicle that has been
closed up in sunny weather; they could burn a small child. Check
seat covers and buckles before you place a child anywhere near them.
Combination lap and shoulder belts
1. Insert the belt tongue into the
proper buckle (the buckle closest to
the direction the tongue is coming
from) until you hear a snap and feel
it latch. Make sure the tongue is
securely fastened in the buckle.
2. To unfasten, push the release
button and remove the tongue from
the buckle.
The front and rear outboard safety restraints in the vehicle are
combination lap and shoulder belts. The front passenger and rear seat
outboard safety belts have two types of locking modes described below:
Vehicle sensitive mode
The vehicle sensitive mode is the normal retractor mode, allowing free
shoulder belt length adjustment to your movements and locking in
response to vehicle movement. For example, if the driver brakes
suddenly or turns a corner sharply, or the vehicle receives an impact of
approximately 8 km/h (5 mph) or more, the combination safety belts will
lock to help reduce forward movement of the driver and passengers.
Seating and Safety Restraints
110
ProCarManuals.com

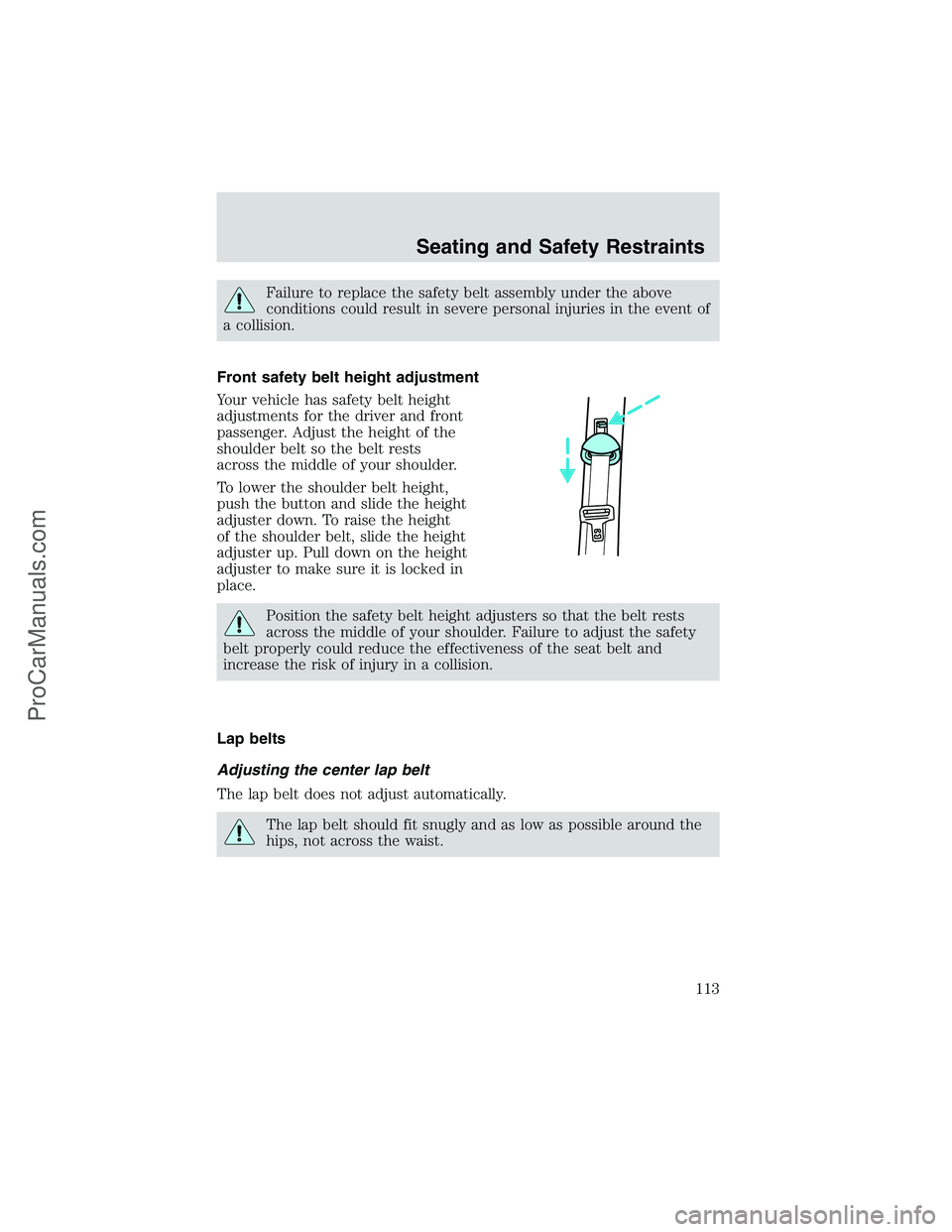

Failure to replace the safety belt assembly under the above
conditions could result in severe personal injuries in the event of
a collision.
Front safety belt height adjustment
Your vehicle has safety belt height
adjustments for the driver and front
passenger. Adjust the height of the
shoulder belt so the belt rests
across the middle of your shoulder.
To lower the shoulder belt height,
push the button and slide the height
adjuster down. To raise the height
of the shoulder belt, slide the height
adjuster up. Pull down on the height
adjuster to make sure it is locked in
place.
Position the safety belt height adjusters so that the belt rests
across the middle of your shoulder. Failure to adjust the safety
belt properly could reduce the effectiveness of the seat belt and
increase the risk of injury in a collision.
Lap belts
Adjusting the center lap belt
The lap belt does not adjust automatically.
The lap belt should fit snugly and as low as possible around the
hips, not across the waist.
Seating and Safety Restraints
113
ProCarManuals.com

interior .....................................195
plastic parts ............................193
washing ....................................191
waxing .....................................191
wheels ......................................192
wiper blades ....................193–194
woodtone trim ........................195
Climate control (see Air
conditioning or Heating) ......70–71
Clock ..........................20, 25, 32, 40
Compass, electronic ....................94
calibration .................................95
set zone adjustment .................95
Console
overhead ....................................93
Controls
power seat ...............................102
Coolant
checking and adding ..............209
refill capacities ................213, 236
specifications ..................240, 243
Cruise control (see Speed
control) ........................................88
Customer Assistance ................158
Ford accessories for your
vehicle .............................195–196
Ford Extended Service
Plan ..........................................183
Getting assistance outside the
U.S. and Canada .....................187
Getting roadside assistance ...158
Getting the service you
need .........................................181
Ordering additional owner’s
literature .................................188
The Dispute Settlement
Board .......................................184
Utilizing the
Mediation/Arbitration
Program ...................................187D
Daytime running lamps
(see Lamps) ................................76
Dipstick
automatic transmission
fluid ..........................................227
engine oil .................................201
Doors
lubricant specifications ..........240
Driveline universal joint and
slip yoke ....................................227
Driving under special
conditions
through water .........................148
E
Emergencies, roadside
jump-starting ..........................175
Emission control system ..........223
Engine ................................243–244
check engine/service engine
soon light ..................................10
cleaning ...................................192
coolant .....................................209
diesel ...........................................6
fail-safe coolant ......................214
idle speed control ...................204
lubrication
specifications ..................240, 243
refill capacities ........................236
service points ..........................199
starting after a collision .........160
Engine block heater .................139
Engine oil ..................................201
checking and adding ..............201
dipstick ....................................201
filter, specifications ........203, 235
recommendations ...................203
Index
252
