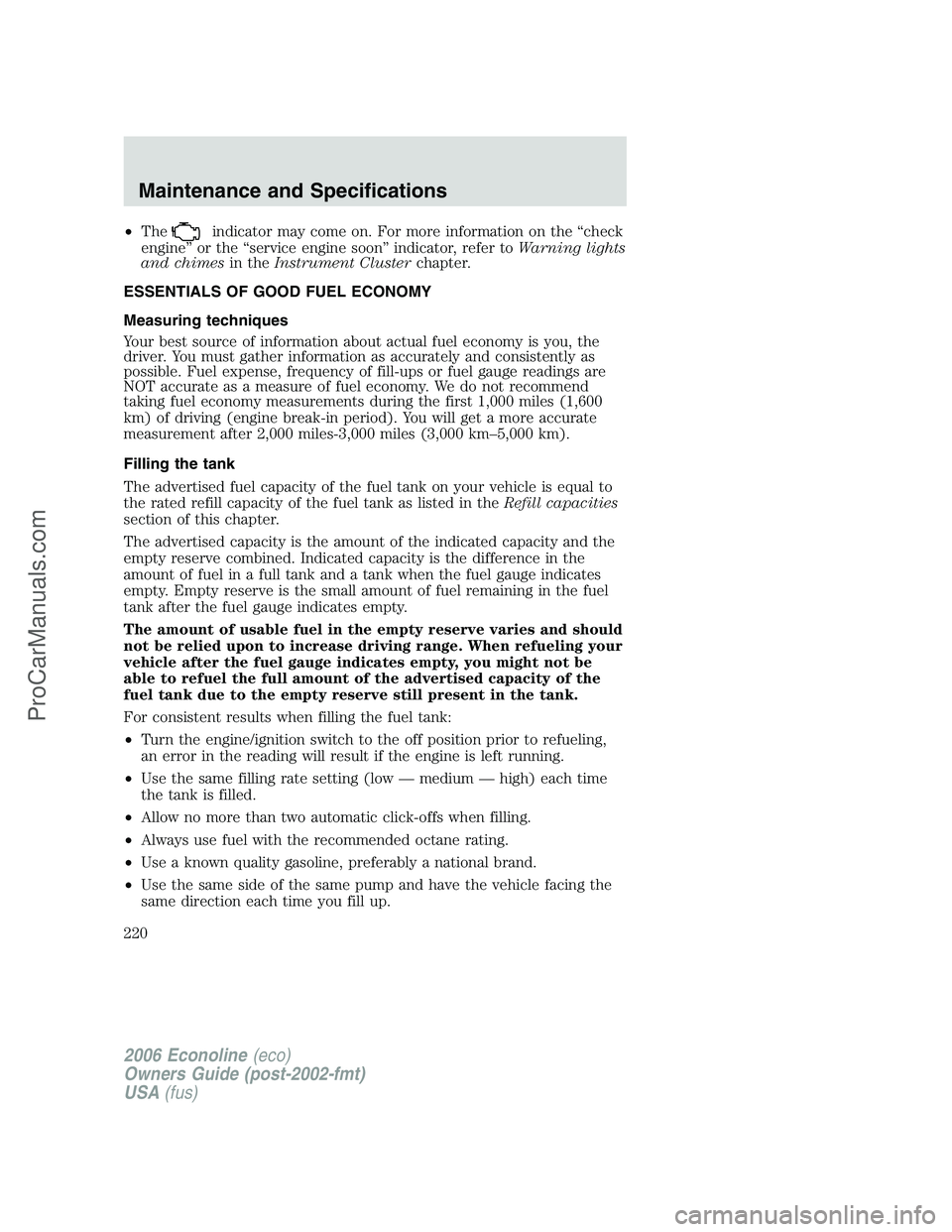

•Theindicator may come on. For more information on the “check
engine” or the “service engine soon” indicator, refer toWarning lights
and chimesin theInstrument Clusterchapter.
ESSENTIALS OF GOOD FUEL ECONOMY
Measuring techniques
Your best source of information about actual fuel economy is you, the
driver. You must gather information as accurately and consistently as
possible. Fuel expense, frequency of fill-ups or fuel gauge readings are
NOT accurate as a measure of fuel economy. We do not recommend
taking fuel economy measurements during the first 1,000 miles (1,600
km) of driving (engine break-in period). You will get a more accurate
measurement after 2,000 miles-3,000 miles (3,000 km–5,000 km).
Filling the tank
The advertised fuel capacity of the fuel tank on your vehicle is equal to
the rated refill capacity of the fuel tank as listed in theRefill capacities
section of this chapter.
The advertised capacity is the amount of the indicated capacity and the
empty reserve combined. Indicated capacity is the difference in the
amount of fuel in a full tank and a tank when the fuel gauge indicates
empty. Empty reserve is the small amount of fuel remaining in the fuel
tank after the fuel gauge indicates empty.
The amount of usable fuel in the empty reserve varies and should
not be relied upon to increase driving range. When refueling your
vehicle after the fuel gauge indicates empty, you might not be
able to refuel the full amount of the advertised capacity of the
fuel tank due to the empty reserve still present in the tank.
For consistent results when filling the fuel tank:
•Turn the engine/ignition switch to the off position prior to refueling,
an error in the reading will result if the engine is left running.
•Use the same filling rate setting (low — medium — high) each time
the tank is filled.
•Allow no more than two automatic click-offs when filling.
•Always use fuel with the recommended octane rating.
•Use a known quality gasoline, preferably a national brand.
•Use the same side of the same pump and have the vehicle facing the
same direction each time you fill up.
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
220
ProCarManuals.com

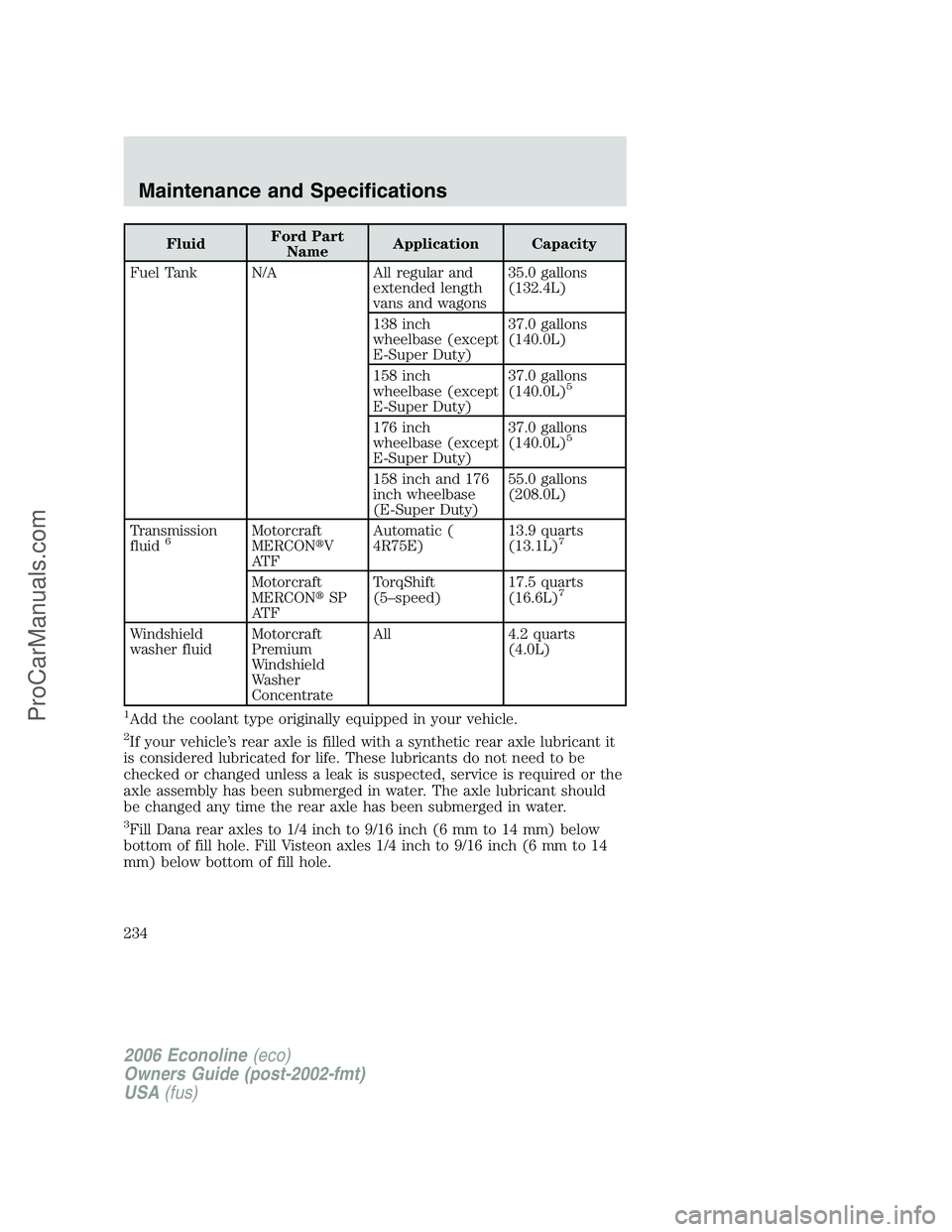

FluidFord Part
NameApplication Capacity
Fuel Tank N/A All regular and
extended length
vans and wagons35.0 gallons
(132.4L)
138 inch
wheelbase (except
E-Super Duty)37.0 gallons
(140.0L)
158 inch
wheelbase (except
E-Super Duty)37.0 gallons
(140.0L)
5
176 inch
wheelbase (except
E-Super Duty)37.0 gallons
(140.0L)5
158 inch and 176
inch wheelbase
(E-Super Duty)55.0 gallons
(208.0L)
Transmission
fluid
6Motorcraft
MERCON
V
AT FAutomatic (
4R75E)13.9 quarts
(13.1L)7
Motorcraft
MERCON
SP
AT FTorqShift
(5–speed)17.5 quarts
(16.6L)7
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateAll 4.2 quarts
(4.0L)
1Add the coolant type originally equipped in your vehicle.
2If your vehicle’s rear axle is filled with a synthetic rear axle lubricant it
is considered lubricated for life. These lubricants do not need to be
checked or changed unless a leak is suspected, service is required or the
axle assembly has been submerged in water. The axle lubricant should
be changed any time the rear axle has been submerged in water.
3Fill Dana rear axles to 1/4 inch to 9/16 inch (6 mm to 14 mm) below
bottom of fill hole. Fill Visteon axles 1/4 inch to 9/16 inch (6 mm to 14
mm) below bottom of fill hole.
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
234
ProCarManuals.com

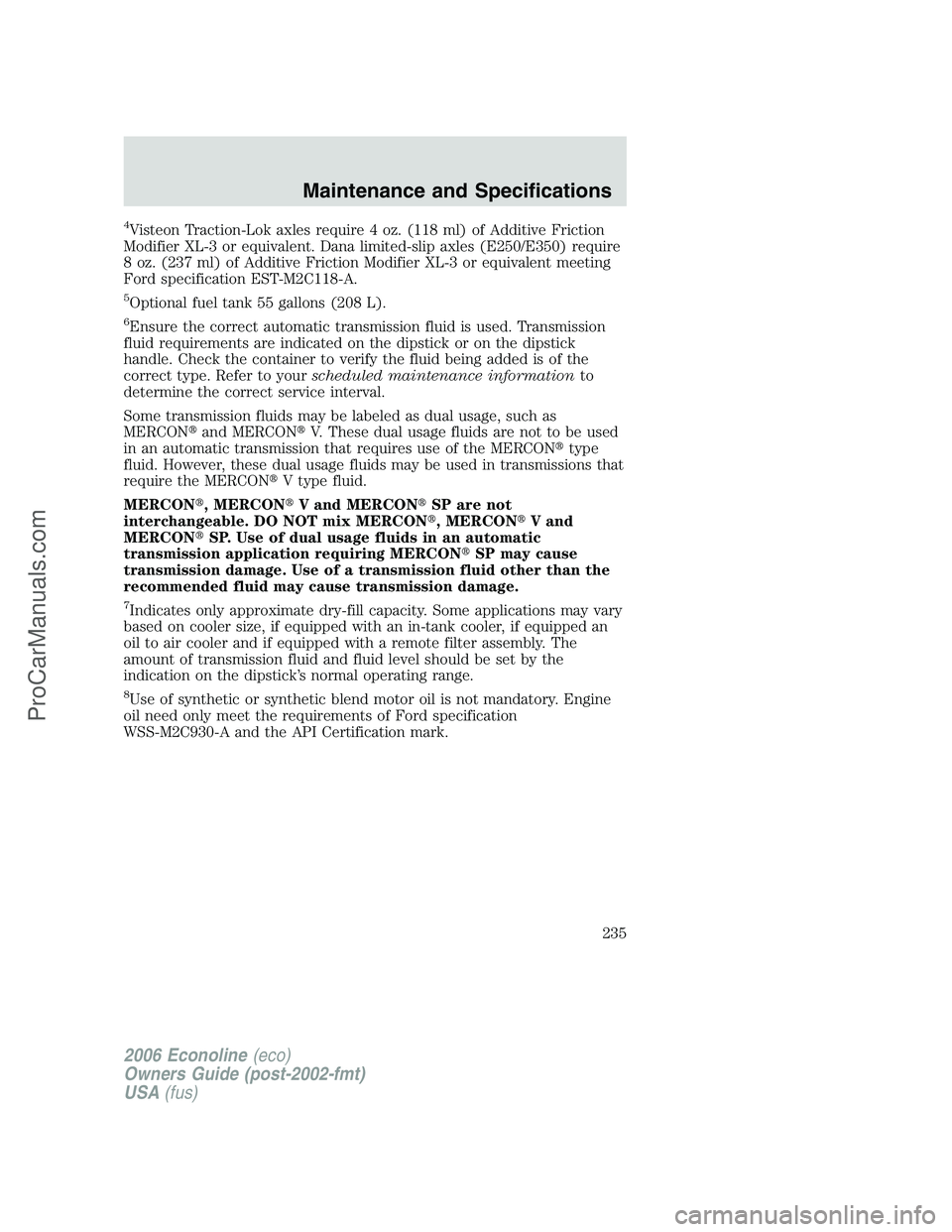

4Visteon Traction-Lok axles require 4 oz. (118 ml) of Additive Friction
Modifier XL-3 or equivalent. Dana limited-slip axles (E250/E350) require
8 oz. (237 ml) of Additive Friction Modifier XL-3 or equivalent meeting
Ford specification EST-M2C118-A.
5Optional fuel tank 55 gallons (208 L).
6Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to yourscheduled maintenance informationto
determine the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCON
and MERCON
V. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCON
type
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCON
V type fluid.
MERCON
, MERCON
V and MERCON
SP are not
interchangeable. DO NOT mix MERCON
, MERCON
V and
MERCON
SP. Use of dual usage fluids in an automatic
transmission application requiring MERCON
SP may cause
transmission damage. Use of a transmission fluid other than the
recommended fluid may cause transmission damage.
7Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size, if equipped with an in-tank cooler, if equipped an
oil to air cooler and if equipped with a remote filter assembly. The
amount of transmission fluid and fluid level should be set by the
indication on the dipstick’s normal operating range.
8Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C930-A and the API Certification mark.
