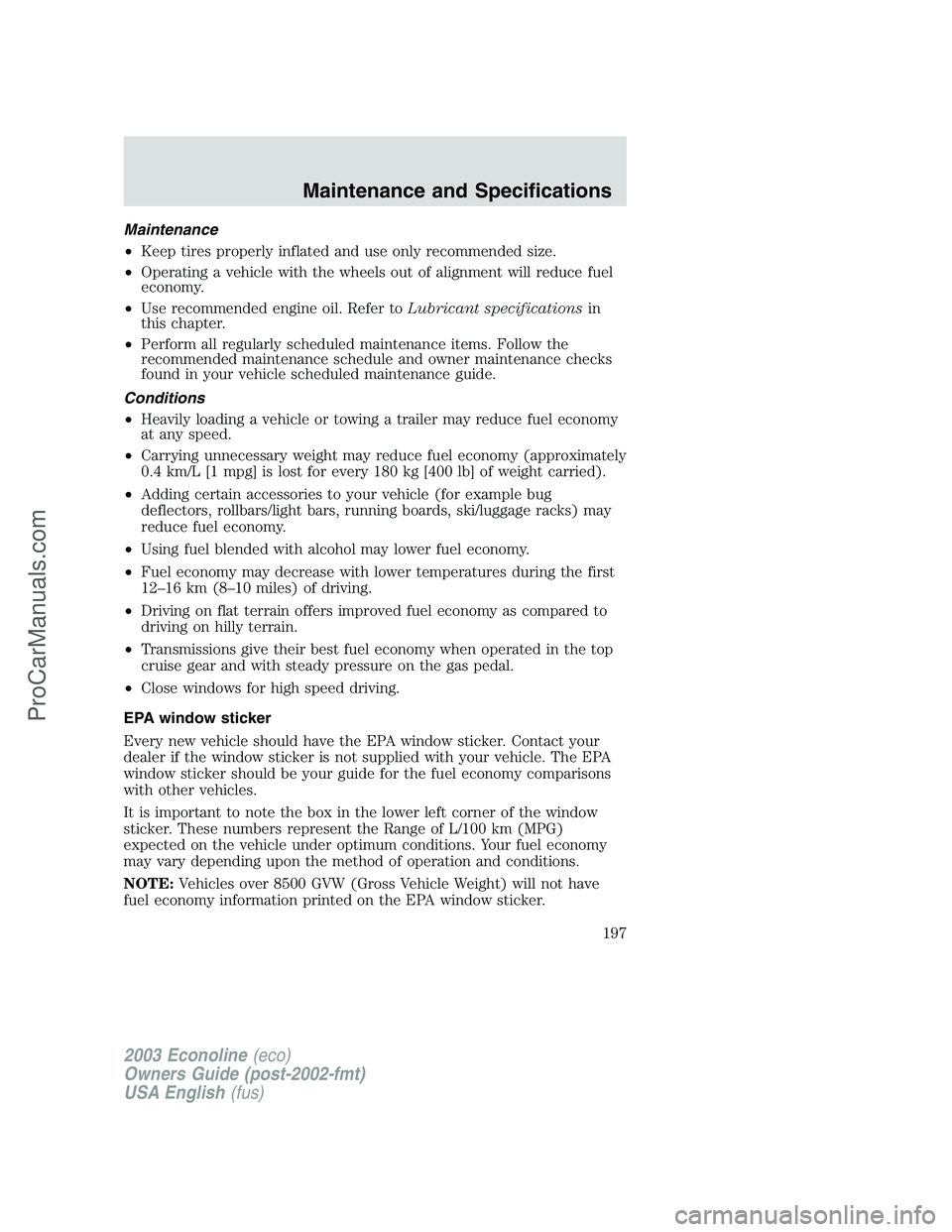

Maintenance
•Keep tires properly inflated and use only recommended size.
•Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
•Use recommended engine oil. Refer toLubricant specificationsin
this chapter.
•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found in your vehicle scheduled maintenance guide.
Conditions
•Heavily loading a vehicle or towing a trailer may reduce fuel economy
at any speed.
•Carrying unnecessary weight may reduce fuel economy (approximately
0.4 km/L [1 mpg] is lost for every 180 kg [400 lb] of weight carried).
•Adding certain accessories to your vehicle (for example bug
deflectors, rollbars/light bars, running boards, ski/luggage racks) may
reduce fuel economy.
•Using fuel blended with alcohol may lower fuel economy.
•Fuel economy may decrease with lower temperatures during the first
12–16 km (8–10 miles) of driving.
•Driving on flat terrain offers improved fuel economy as compared to
driving on hilly terrain.
•Transmissions give their best fuel economy when operated in the top
cruise gear and with steady pressure on the gas pedal.
•Close windows for high speed driving.
EPA window sticker
Every new vehicle should have the EPA window sticker. Contact your
dealer if the window sticker is not supplied with your vehicle. The EPA
window sticker should be your guide for the fuel economy comparisons
with other vehicles.
It is important to note the box in the lower left corner of the window
sticker. These numbers represent the Range of L/100 km (MPG)
expected on the vehicle under optimum conditions. Your fuel economy
may vary depending upon the method of operation and conditions.
NOTE:Vehicles over 8500 GVW (Gross Vehicle Weight) will not have
fuel economy information printed on the EPA window sticker.
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
197
ProCarManuals.com

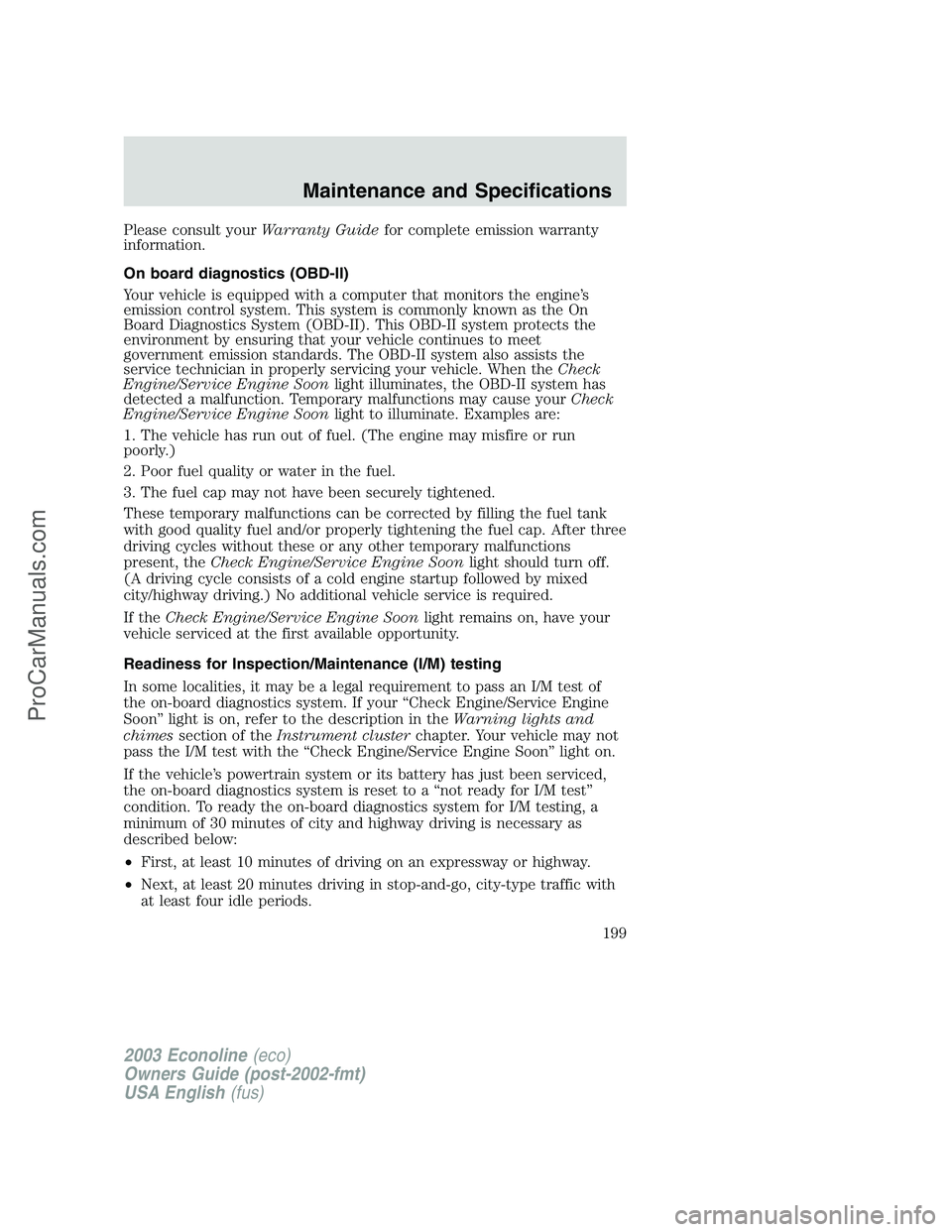

Please consult yourWarranty Guidefor complete emission warranty
information.
On board diagnostics (OBD-II)
Your vehicle is equipped with a computer that monitors the engine’s
emission control system. This system is commonly known as the On
Board Diagnostics System (OBD-II). This OBD-II system protects the
environment by ensuring that your vehicle continues to meet
government emission standards. The OBD-II system also assists the
service technician in properly servicing your vehicle. When theCheck
Engine/Service Engine Soonlight illuminates, the OBD-II system has
detected a malfunction. Temporary malfunctions may cause yourCheck
Engine/Service Engine Soonlight to illuminate. Examples are:
1. The vehicle has run out of fuel. (The engine may misfire or run
poorly.)
2. Poor fuel quality or water in the fuel.
3. The fuel cap may not have been securely tightened.
These temporary malfunctions can be corrected by filling the fuel tank
with good quality fuel and/or properly tightening the fuel cap. After three
driving cycles without these or any other temporary malfunctions
present, theCheck Engine/Service Engine Soonlight should turn off.
(A driving cycle consists of a cold engine startup followed by mixed
city/highway driving.) No additional vehicle service is required.
If theCheck Engine/Service Engine Soonlight remains on, have your
vehicle serviced at the first available opportunity.
Readiness for Inspection/Maintenance (I/M) testing
In some localities, it may be a legal requirement to pass an I/M test of
the on-board diagnostics system. If your“Check Engine/Service Engine
Soon”light is on, refer to the description in theWarning lights and
chimessection of theInstrument clusterchapter. Your vehicle may not
pass the I/M test with the“Check Engine/Service Engine Soon”light on.
If the vehicle’s powertrain system or its battery has just been serviced,
the on-board diagnostics system is reset to a“not ready for I/M test”
condition. To ready the on-board diagnostics system for I/M testing, a
minimum of 30 minutes of city and highway driving is necessary as
described below:
•First, at least 10 minutes of driving on an expressway or highway.
•Next, at least 20 minutes driving in stop-and-go, city-type traffic with
at least four idle periods.
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
199
ProCarManuals.com

Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete.

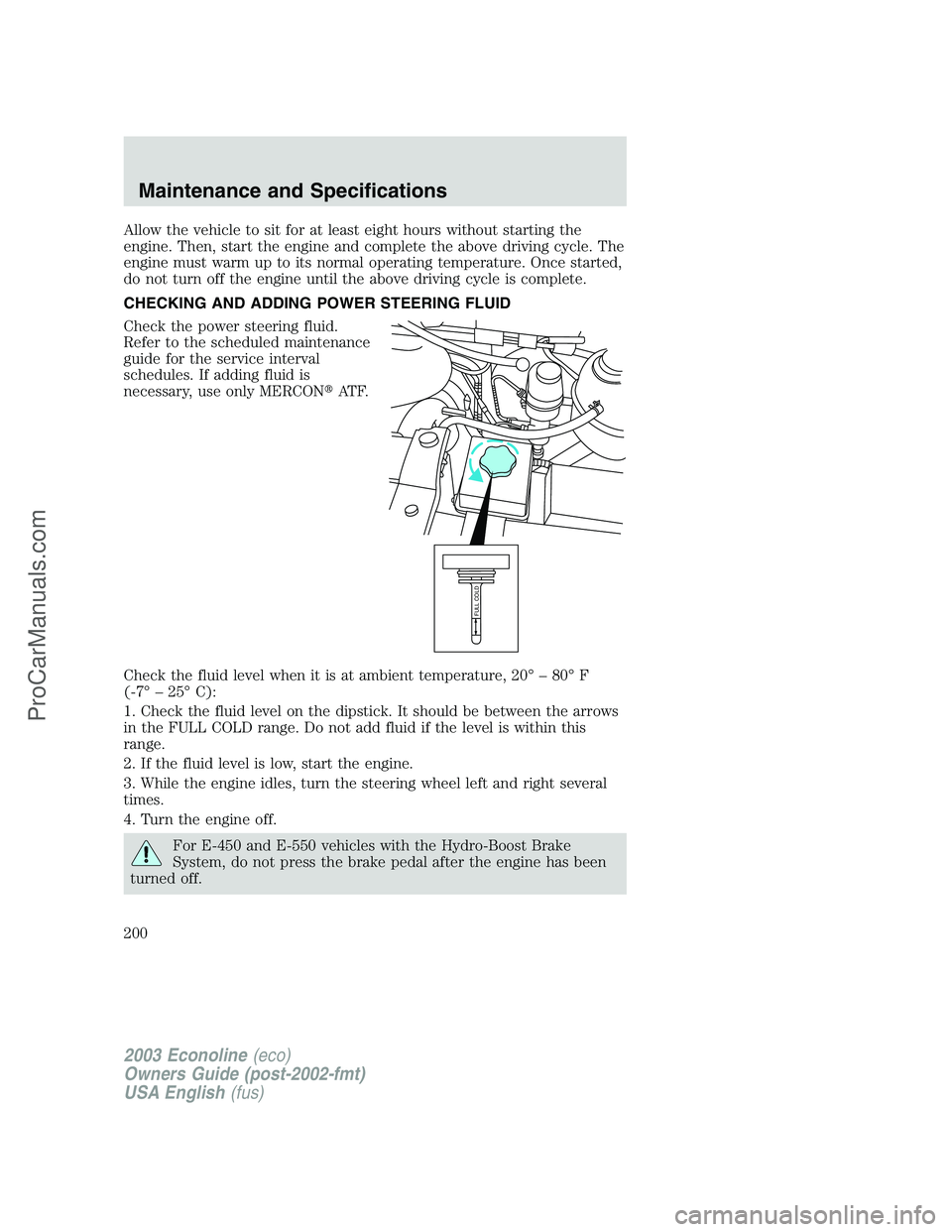

CHECKING AND ADDING POWER STEERING FLUID
Check the power steering fluid.
Refer to the scheduled maintenance
guide for the service interval
schedules. If adding fluid is
necessary, use only MERCONAT F.
Check the fluid level when it is at ambient temperature, 20°–80°F
(-7°–25°C):
1. Check the fluid level on the dipstick. It should be between the arrows
in the FULL COLD range. Do not add fluid if the level is within this
range.
2. If the fluid level is low, start the engine.
3. While the engine idles, turn the steering wheel left and right several
times.
4. Turn the engine off.
For E-450 and E-550 vehicles with the Hydro-Boost Brake
System, do not press the brake pedal after the engine has been
turned off.
FULL COLD
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
200
ProCarManuals.com

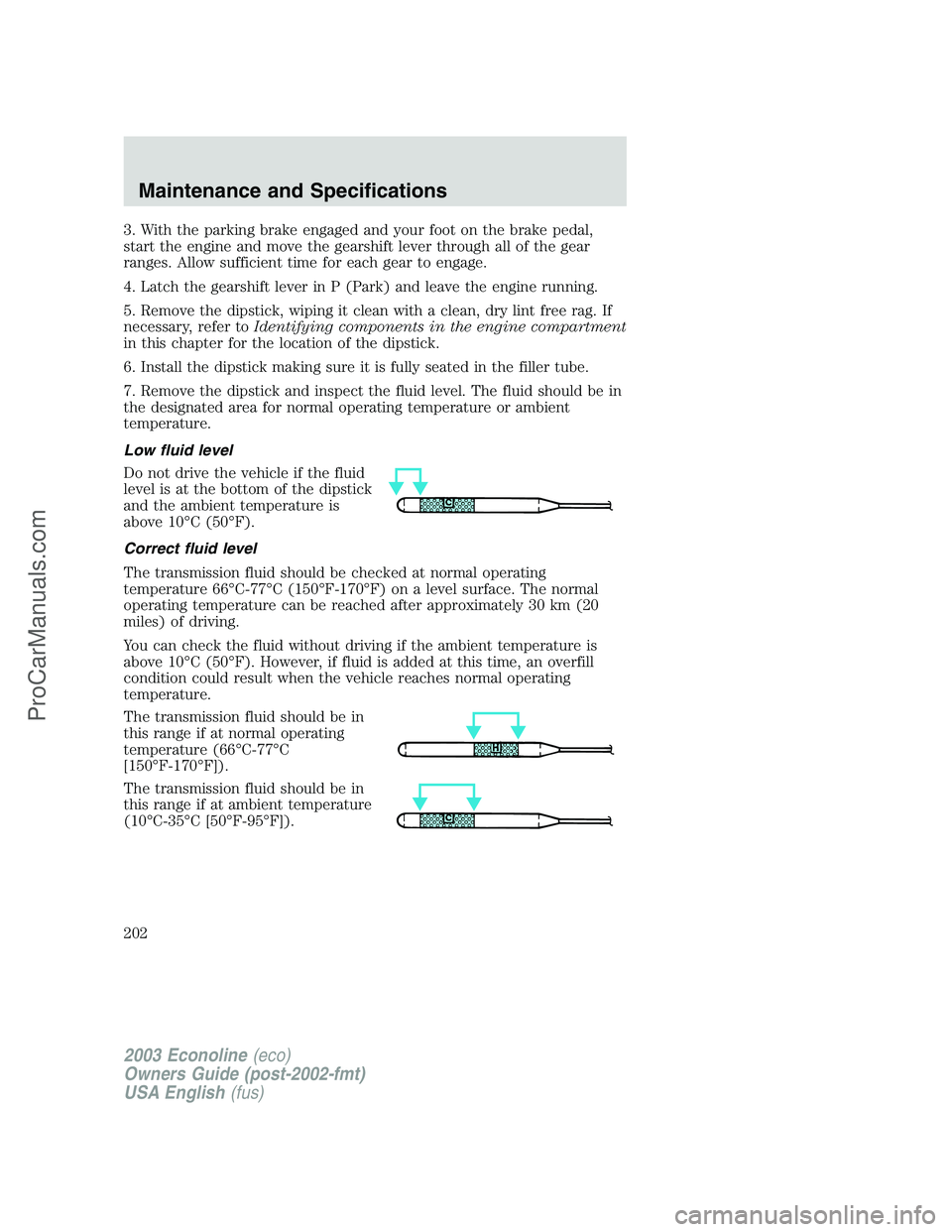

3. With the parking brake engaged and your foot on the brake pedal,
start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage.
4. Latch the gearshift lever in P (Park) and leave the engine running.
5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. If
necessary, refer toIdentifying components in the engine compartment
in this chapter for the location of the dipstick.
6. Install the dipstick making sure it is fully seated in the filler tube.
7. Remove the dipstick and inspect the fluid level. The fluid should be in
the designated area for normal operating temperature or ambient
temperature.
Low fluid level
Do not drive the vehicle if the fluid
level is at the bottom of the dipstick
and the ambient temperature is
above 10°C (50°F).
Correct fluid level
The transmission fluid should be checked at normal operating
temperature 66°C-77°C (150°F-170°F) on a level surface. The normal
operating temperature can be reached after approximately 30 km (20
miles) of driving.
You can check the fluid without driving if the ambient temperature is
above 10°C (50°F). However, if fluid is added at this time, an overfill
condition could result when the vehicle reaches normal operating
temperature.
The transmission fluid should be in
this range if at normal operating
temperature (66°C-77°C
[150°F-170°F]).
The transmission fluid should be in
this range if at ambient temperature
(10°C-35°C [50°F-95°F]).
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
202
ProCarManuals.com

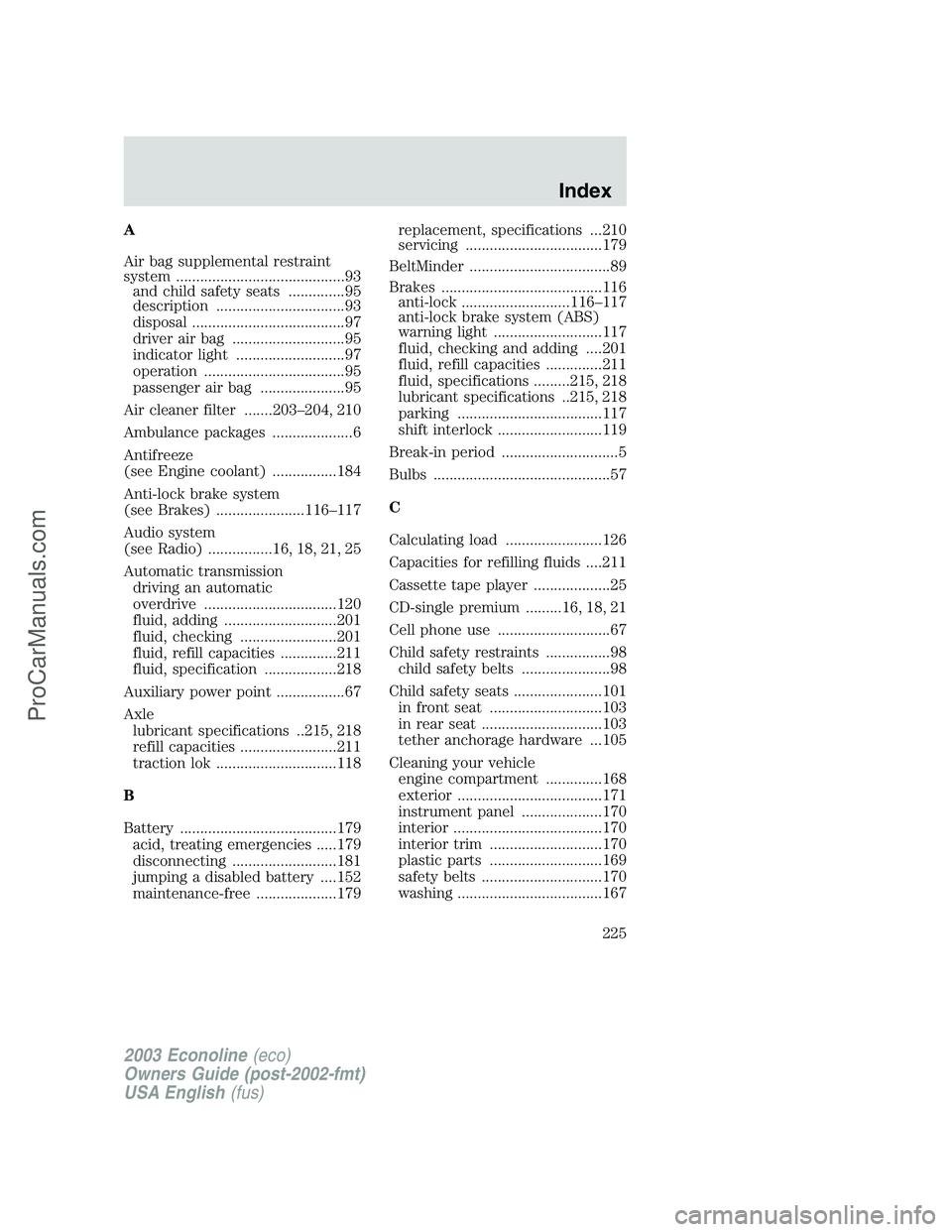

A
Air bag supplemental restraint
system ..........................................93
and child safety seats ..............95
description ................................93
disposal ......................................97
driver air bag ............................95
indicator light ...........................97
operation ...................................95
passenger air bag .....................95
Air cleaner filter .......203–204, 210
Ambulance packages ....................6
Antifreeze
(see Engine coolant) ................184
Anti-lock brake system
(see Brakes) ......................116–117
Audio system
(see Radio) ................16, 18, 21, 25
Automatic transmission
driving an automatic
overdrive .................................120
fluid, adding ............................201
fluid, checking ........................201
fluid, refill capacities ..............211
fluid, specification ..................218
Auxiliary power point .................67
Axle
lubricant specifications ..215, 218
refill capacities ........................211
traction lok ..............................118
B
Battery .......................................179
acid, treating emergencies .....179
disconnecting ..........................181
jumping a disabled battery ....152
maintenance-free ....................179replacement, specifications ...210
servicing ..................................179
BeltMinder ...................................89
Brakes ........................................116
anti-lock ...........................116–117
anti-lock brake system (ABS)
warning light ...........................117
fluid, checking and adding ....201
fluid, refill capacities ..............211
fluid, specifications .........215, 218
lubricant specifications ..215, 218
parking ....................................117
shift interlock ..........................119
Break-in period .............................5
Bulbs ............................................57
C
Calculating load ........................126
Capacities for refilling fluids ....211
Cassette tape player ...................25
CD-single premium .........16, 18, 21
Cell phone use ............................67
Child safety restraints ................98
child safety belts ......................98
Child safety seats ......................101
in front seat ............................103
in rear seat ..............................103
tether anchorage hardware ...105
Cleaning your vehicle
engine compartment ..............168
exterior ....................................171
instrument panel ....................170
interior .....................................170
interior trim ............................170
plastic parts ............................169
safety belts ..............................170
washing ....................................167
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
Index
225
ProCarManuals.com

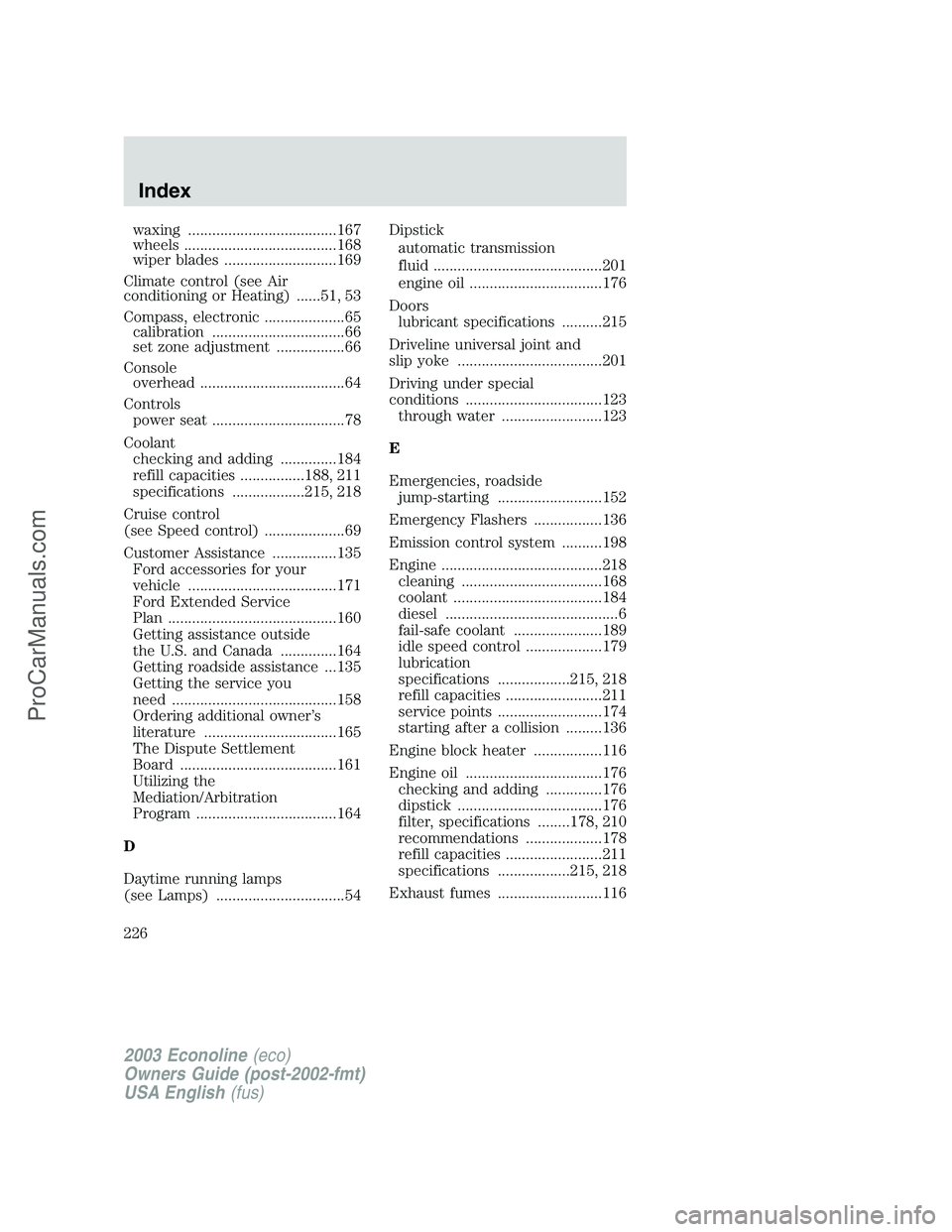

waxing .....................................167
wheels ......................................168
wiper blades ............................169
Climate control (see Air
conditioning or Heating) ......51, 53
Compass, electronic ....................65
calibration .................................66
set zone adjustment .................66
Console
overhead ....................................64
Controls
power seat .................................78
Coolant
checking and adding ..............184
refill capacities ................188, 211
specifications ..................215, 218
Cruise control
(see Speed control) ....................69
Customer Assistance ................135
Ford accessories for your
vehicle .....................................171
Ford Extended Service
Plan ..........................................160
Getting assistance outside
the U.S. and Canada ..............164
Getting roadside assistance ...135
Getting the service you
need .........................................158
Ordering additional owner’s
literature .................................165
The Dispute Settlement
Board .......................................161
Utilizing the
Mediation/Arbitration
Program ...................................164
D
Daytime running lamps
(see Lamps) ................................54Dipstick
automatic transmission
fluid ..........................................201
engine oil .................................176
Doors
lubricant specifications ..........215
Driveline universal joint and
slip yoke ....................................201
Driving under special
conditions ..................................123
through water .........................123
E
Emergencies, roadside
jump-starting ..........................152
Emergency Flashers .................136
Emission control system ..........198
Engine ........................................218
cleaning ...................................168
coolant .....................................184
diesel ...........................................6
fail-safe coolant ......................189
idle speed control ...................179
lubrication
specifications ..................215, 218
refill capacities ........................211
service points ..........................174
starting after a collision .........136
Engine block heater .................116
Engine oil ..................................176
checking and adding ..............176
dipstick ....................................176
filter, specifications ........178, 210
recommendations ...................178
refill capacities ........................211
specifications ..................215, 218
Exhaust fumes ..........................116
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
226
ProCarManuals.com

J
Jump-starting your vehicle ......152
K
Keys
positions of the ignition .........113
L
Lamps
bulb replacement
specifications chart ..................57
cargo lamps ...............................55
daytime running light ...............54
headlamps .................................54
headlamps, flash to pass ..........55
instrument panel, dimming .....55
interior lamps ...........................56
replacing bulbs ...................57–61
Lane change indicator
(see Turn signal) ........................55
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........117
Load limits .................................124
GAWR ......................................124
GVWR ......................................124
trailer towing ..........................124
Loading instructions .................126
Lubricant specifications ...215, 218
Lumbar support, seats ...............78
M
Mirrors
fold away ...................................69
side view mirrors (power) .......68
Motorcraft parts ................194, 210O
Octane rating ............................193
Oil (see Engine oil) ..................176
P
Parking brake ............................117
Parts (see Motorcraft parts) ....210
Power distribution box
(see Fuses) ...............................141
Power door locks ........................73
Power point .................................67
Power steering ..........................118
fluid, checking and adding ....200
fluid, refill capacity ................211
fluid, specifications .........215, 218
Power Windows ...........................68
Preparing to drive your
vehicle ........................................118
R
Radio ..........................16, 18, 21, 25
Relays ................................138, 143
Remote entry system
illuminated entry ......................76
locking/unlocking doors ...........73
Roadside assistance ..................135
S
Safety Belt Maintenance ............92
Safety belts (see Safety
restraints) ........................83–85, 87
Safety defects, reporting ..........166
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
228
ProCarManuals.com
