dimensions FORD E SERIES 2003 4.G Owners Manual

ENGINE DATA
Engine*4.2L V6
engine4.6L V8
engine5.4L V8
engine6.8L V10
engine
Cubic inches 256 281 330 415
Required
fuel87 octane 87 octane 87 octane 87 octane
Firing order1-4-2-5-3-6 1-3-7-2-6-
5-4-81-3-7-2-6-
5-4-81-6-5-10-2-
7-3-8-4-9
Spark plug
gap1.3-1.4 mm
(0.052-0.056
inch)1.3-1.4 mm
(0.052-0.056
inch)1.3-1.4 mm
(0.052-0.056
inch)1.3-1.4 mm
(0.052-0.056
inch)
Ignition
systemEDIS Coil on plug Coil on plug Coil on plug
Compression
ratio9.3:1 9.4:1 9.0:1 9.0:1
*Refer to the7.3 Liter Power Stroke Direct Injection Turbo Diesel
Owner’s Guide Supplementfor diesel engine information.
VEHICLE DIMENSIONS
Van/wagon models
E-150 E-250 E-350
(1) Overall height 2050 mm (80.7
in)2118 mm (83.4
in)2136 mm
(84.1 in)
(2) Track front/rear 1763 mm (69.4 in)/ 1 702 mm (67.0 in)
(3) Overall width
(excluding mirrors)2014 mm (79.3 in)
(4) Wheelbase 3505 mm (138 in)
(5) Overall length Regular van, 5382 mm (211.9 in)
Extended, 5890 mm (231.9 in)
Maintenance and Specifications
220

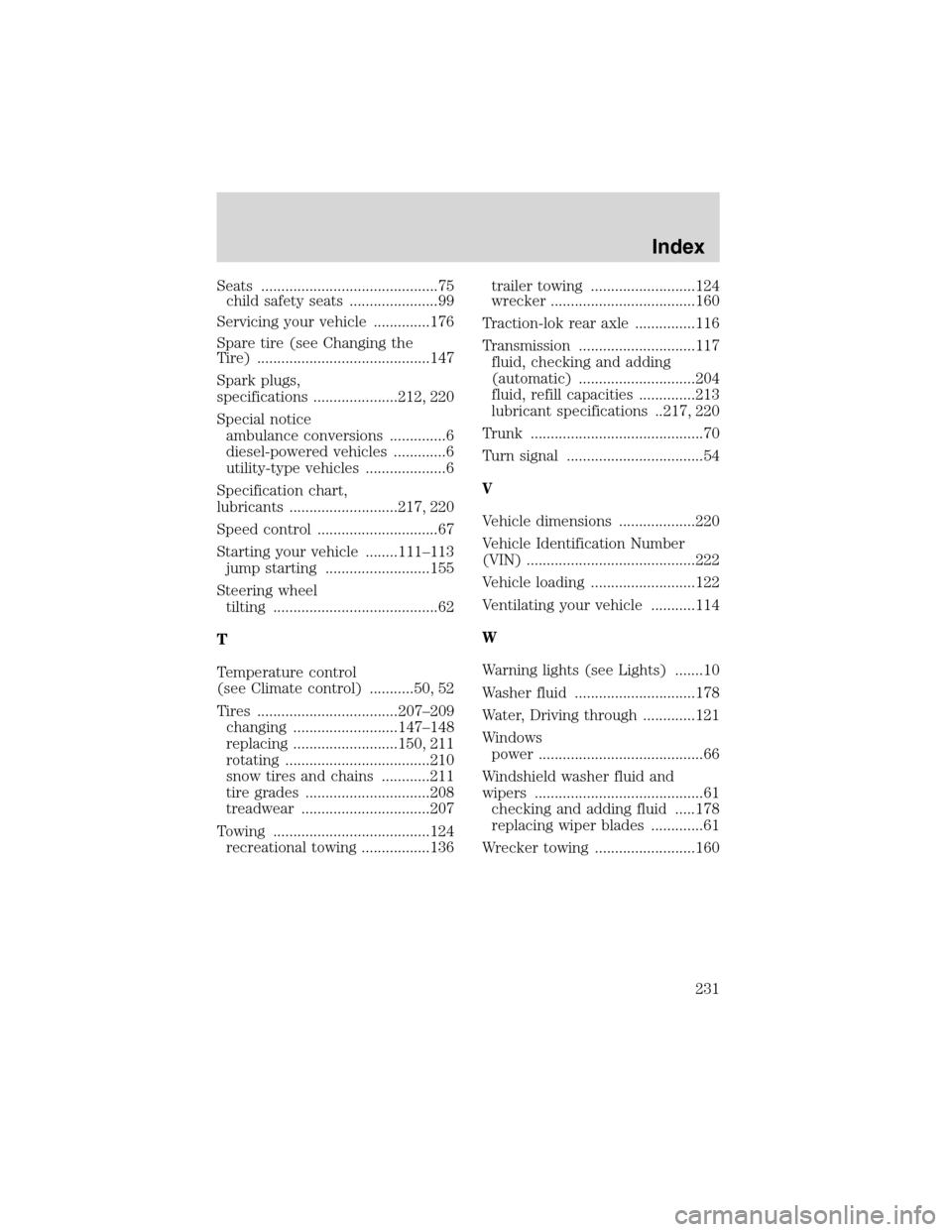

Seats ............................................75
child safety seats ......................99
Servicing your vehicle ..............176
Spare tire (see Changing the
Tire) ...........................................147
Spark plugs,
specifications .....................212, 220
Special notice
ambulance conversions ..............6
diesel-powered vehicles .............6
utility-type vehicles ....................6
Specification chart,
lubricants ...........................217, 220
Speed control ..............................67
Starting your vehicle ........111–113
jump starting ..........................155
Steering wheel
tilting .........................................62
T
Temperature control
(see Climate control) ...........50, 52
Tires ...................................207–209
changing ..........................147–148
replacing ..........................150, 211
rotating ....................................210
snow tires and chains ............211
tire grades ...............................208
treadwear ................................207
Towing .......................................124
recreational towing .................136trailer towing ..........................124
wrecker ....................................160
Traction-lok rear axle ...............116
Transmission .............................117
fluid, checking and adding
(automatic) .............................204
fluid, refill capacities ..............213
lubricant specifications ..217, 220
Trunk ...........................................70
Turn signal ..................................54
V
Vehicle dimensions ...................220
Vehicle Identification Number
(VIN) ..........................................222
Vehicle loading ..........................122
Ventilating your vehicle ...........114
W
Warning lights (see Lights) .......10
Washer fluid ..............................178
Water, Driving through .............121
Windows
power .........................................66
Windshield washer fluid and
wipers ..........................................61
checking and adding fluid .....178
replacing wiper blades .............61
Wrecker towing .........................160
Index
231
