5Optional fuel tank 208L (55 gallon).
6Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your scheduled maintenance guide to determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
7Approximate dry fill capacity including transmission fluid cooling
system, actual refill capacities will vary based on vehicle application and
transmission fluid cooling system (i.e. coolers size, cooling lines. auxiliary
cooler capacities). The amount of transmission fluid and fluid level
should be set by the indication on the dipstick’s normal operating range.
8If your vehicle is equipped with a single row radiator, there will be a
label on the top side of the radiator indicating“1 Row Radiator”.
9Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C153–H and the API Certification mark.
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
221

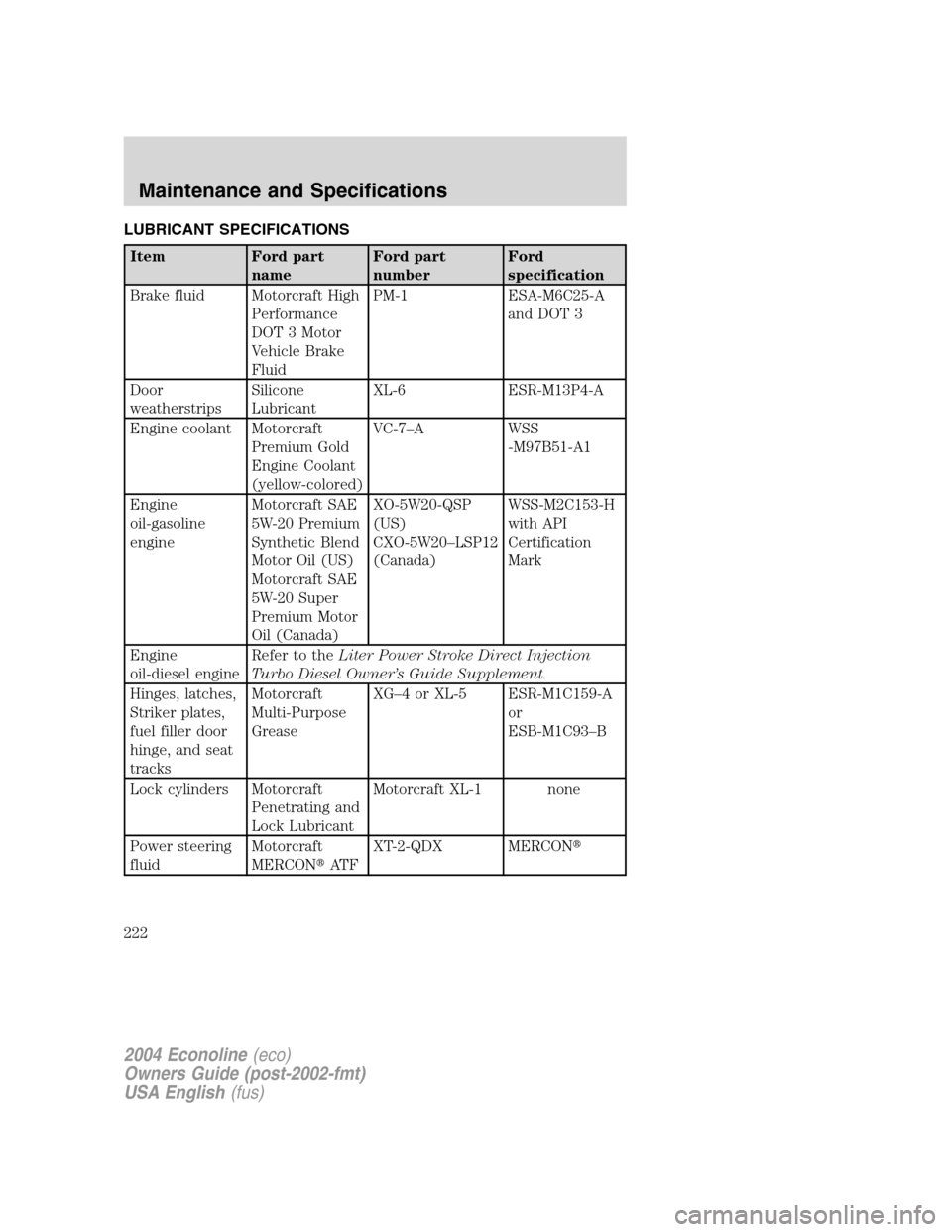

LUBRICANT SPECIFICATIONS
Item Ford part
nameFord part
numberFord
specification
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 ESA-M6C25-A
and DOT 3
Door
weatherstripsSilicone
LubricantXL-6 ESR-M13P4-A
Engine coolant Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7–A WSS
-M97B51-A1
Engine
oil-gasoline
engineMotorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO-5W20-QSP
(US)
CXO-5W20–LSP12
(Canada)WSS-M2C153-H
with API
Certification
Mark
Engine
oil-diesel engineRefer to theLiter Power Stroke Direct Injection
Turbo Diesel Owner’s Guide Supplement.
Hinges, latches,
Striker plates,
fuel filler door
hinge, and seat
tracksMotorcraft
Multi-Purpose
GreaseXG–4 or XL-5 ESR-M1C159-A
or
ESB-M1C93–B
Lock cylinders Motorcraft
Penetrating and
Lock LubricantMotorcraft XL-1 none
Power steering
fluidMotorcraft
MERCONAT FXT-2-QDX MERCON
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
222

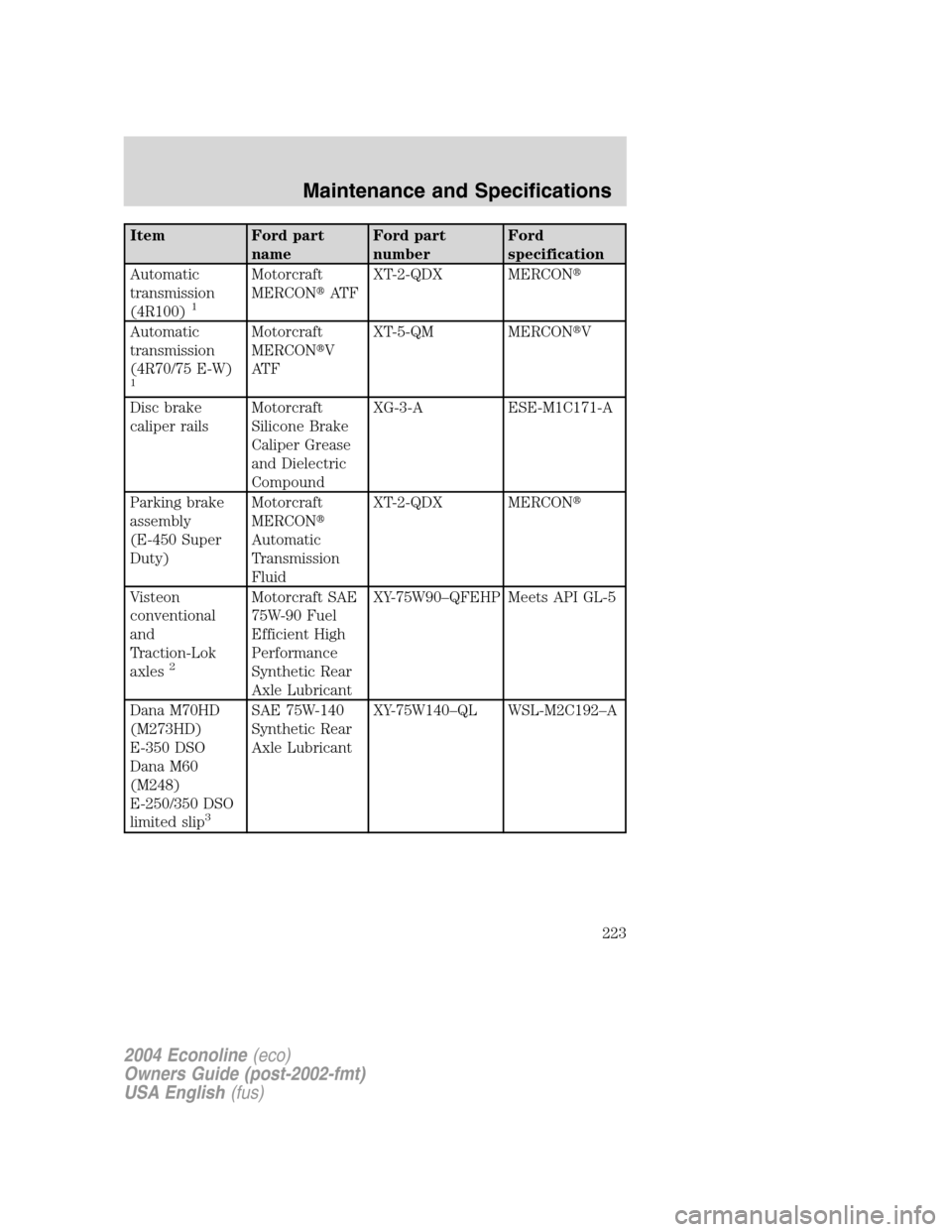

Item Ford part
nameFord part
numberFord
specification
Automatic
transmission
(4R100)
1
Motorcraft
MERCONAT FXT-2-QDX MERCON
Automatic
transmission
(4R70/75 E-W)
1
Motorcraft
MERCONV
AT FXT-5-QM MERCONV
Disc brake
caliper railsMotorcraft
Silicone Brake
Caliper Grease
and Dielectric
CompoundXG-3-A ESE-M1C171-A
Parking brake
assembly
(E-450 Super
Duty)Motorcraft
MERCON
Automatic
Transmission
FluidXT-2-QDX MERCON
Visteon
conventional
and
Traction-Lok
axles
2
Motorcraft SAE
75W-90 Fuel
Efficient High
Performance
Synthetic Rear
Axle LubricantXY-75W90–QFEHP Meets API GL-5
Dana M70HD
(M273HD)
E-350 DSO
Dana M60
(M248)
E-250/350 DSO
limited slip
3
SAE 75W-140
Synthetic Rear
Axle LubricantXY-75W140–QL WSL-M2C192–A
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
223

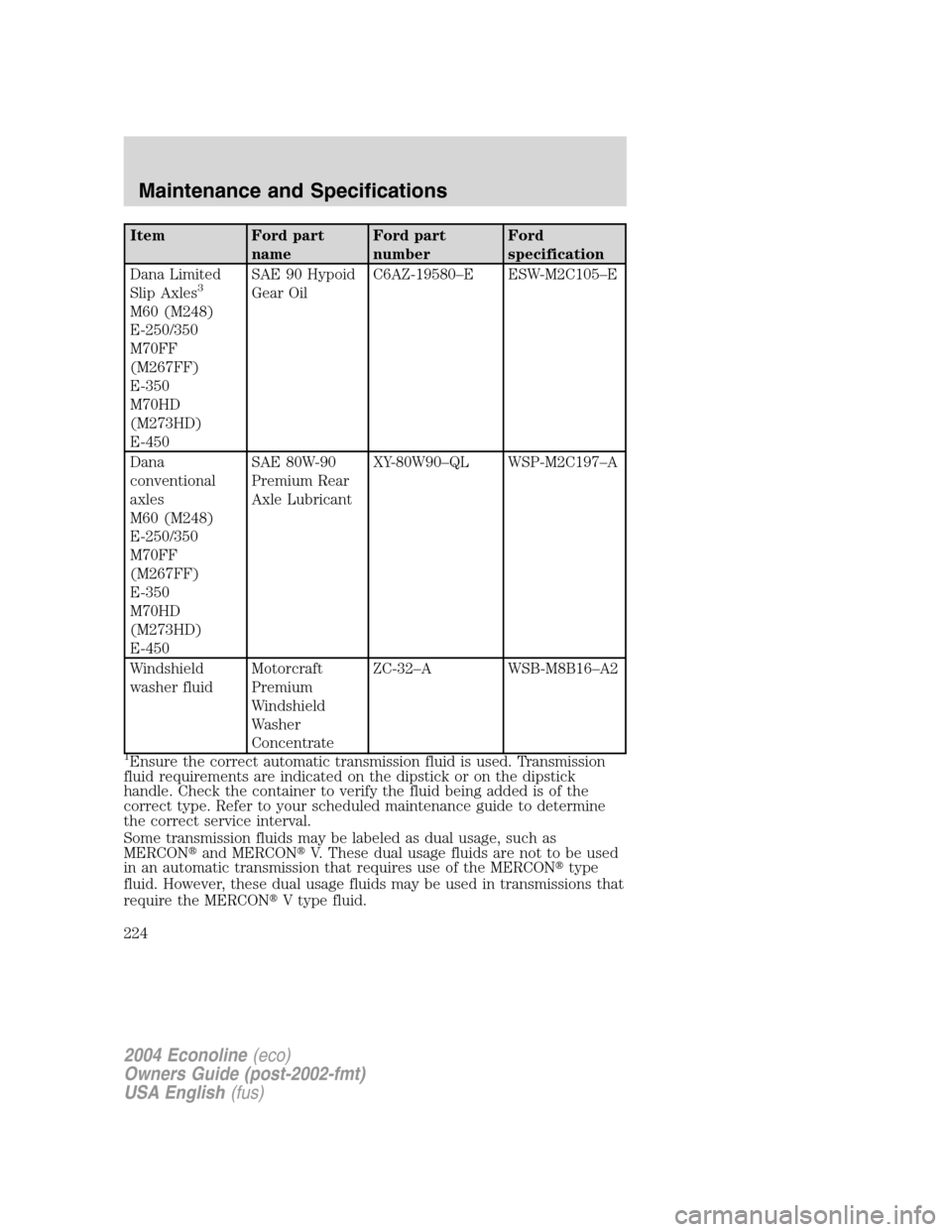

Item Ford part
nameFord part
numberFord
specification
Dana Limited
Slip Axles
3
M60 (M248)
E-250/350
M70FF
(M267FF)
E-350
M70HD
(M273HD)
E-450SAE 90 Hypoid
Gear OilC6AZ-19580–E ESW-M2C105–E
Dana
conventional
axles
M60 (M248)
E-250/350
M70FF
(M267FF)
E-350
M70HD
(M273HD)
E-450SAE 80W-90
Premium Rear
Axle LubricantXY-80W90–QL WSP-M2C197–A
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateZC-32–A WSB-M8B16–A2
1Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your scheduled maintenance guide to determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
224

MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
2Add 118 ml (4 oz.) of Additive Friction Modifier XL-3 or equivalent
meeting Ford specification EST-M2C118-A for complete refill of Visteon
Traction-Lok rear axles.
3Add 237 ml (8 oz.) of Additive Friction Modifier C8AZ-19B546-A or
equivalent meeting Ford specification EST-M2C118-A for complete refill
of Dana Limited Slip rear axles.
ENGINE DATA
Engine*4.6L V8
engine5.4L V8
engine6.8L V10 engine
Cubic inches 281 330 415
Required fuel 87 octane 87 octane 87 octane
Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8 1-6-5-10-2-7-3-8-4-9
Spark plug gap1.3-1.4 mm
(0.052-0.056
inch)1.3-1.4 mm
(0.052-0.056
inch)1.3-1.4 mm
(0.052-0.056 inch)
Ignition system Coil on plug Coil on plug Coil on plug
Compression
ratio9.4:1 9.0:1 9.0:1
*Refer to the7.3 Liter Power Stroke Direct Injection Turbo Diesel
Owner’s Guide Supplementfor diesel engine information.
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
225

VEHICLE DIMENSIONS
Van/wagon models
E-150 E-250 E-350
(1) Overall height 2050 mm (80.7
in)2118 mm (83.4
in)2136 mm
(84.1 in)
(2) Track front/rear 1763 (69.4)/1707
mm (67.2 in)1763
(69.4)/1692 mm
(66.6 in)1763
(69.4)/1687
mm (66.4
in)
(3) Overall width
(excluding mirrors)2014 mm (79.3 in)
(4) Wheelbase 3505 mm (138 in)
(5) Overall length Regular van, 5381 mm (211.8 in)
Extended, 5889 mm (231.8 in)
3
2
1
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
226

Cutaway/commercial stripped chassis models
Body style
Dimension E-250 E-350 E-450 Super
Duty
(1) Overall height Refer to Body Builder for specifications.
(2) Track (Front /
Rear)1763 mm (69.4 in)/
1 692 mm (66.6 in)1763 mm (69.4 in)/
SRW 1687 mm
(66.4 in),
DRW 1859 mm
(73.2 in)1763 mm
(69.4 in)/
1974 mm
(77.7 in)
(3) Overall width Refer to Body Builder for specifications.
(4) Wheelbase 3150 mm (124 in) 3505 mm
(138 in)
4013 mm
(158 in)
4470 mm
(176 in)4013 mm
(158 in)
4470 mm
(176 in)
(5) Overall length Refer to Body Builder for specifications.
4
5
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
227

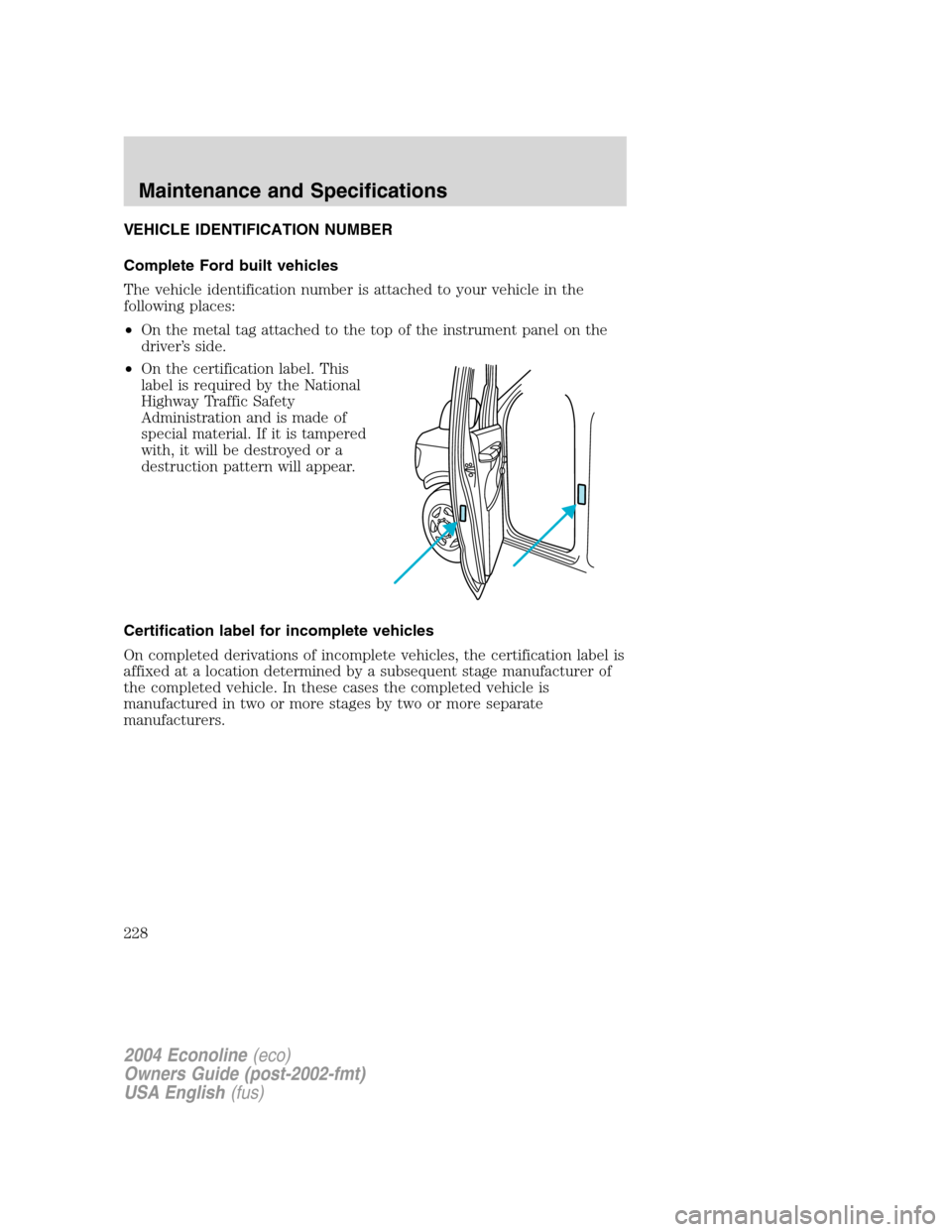

VEHICLE IDENTIFICATION NUMBER
Complete Ford built vehicles
The vehicle identification number is attached to your vehicle in the
following places:
•On the metal tag attached to the top of the instrument panel on the
driver’s side.
•On the certification label. This
label is required by the National
Highway Traffic Safety
Administration and is made of
special material. If it is tampered
with, it will be destroyed or a
destruction pattern will appear.
Certification label for incomplete vehicles
On completed derivations of incomplete vehicles, the certification label is
affixed at a location determined by a subsequent stage manufacturer of
the completed vehicle. In these cases the completed vehicle is
manufactured in two or more stages by two or more separate
manufacturers.
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
228

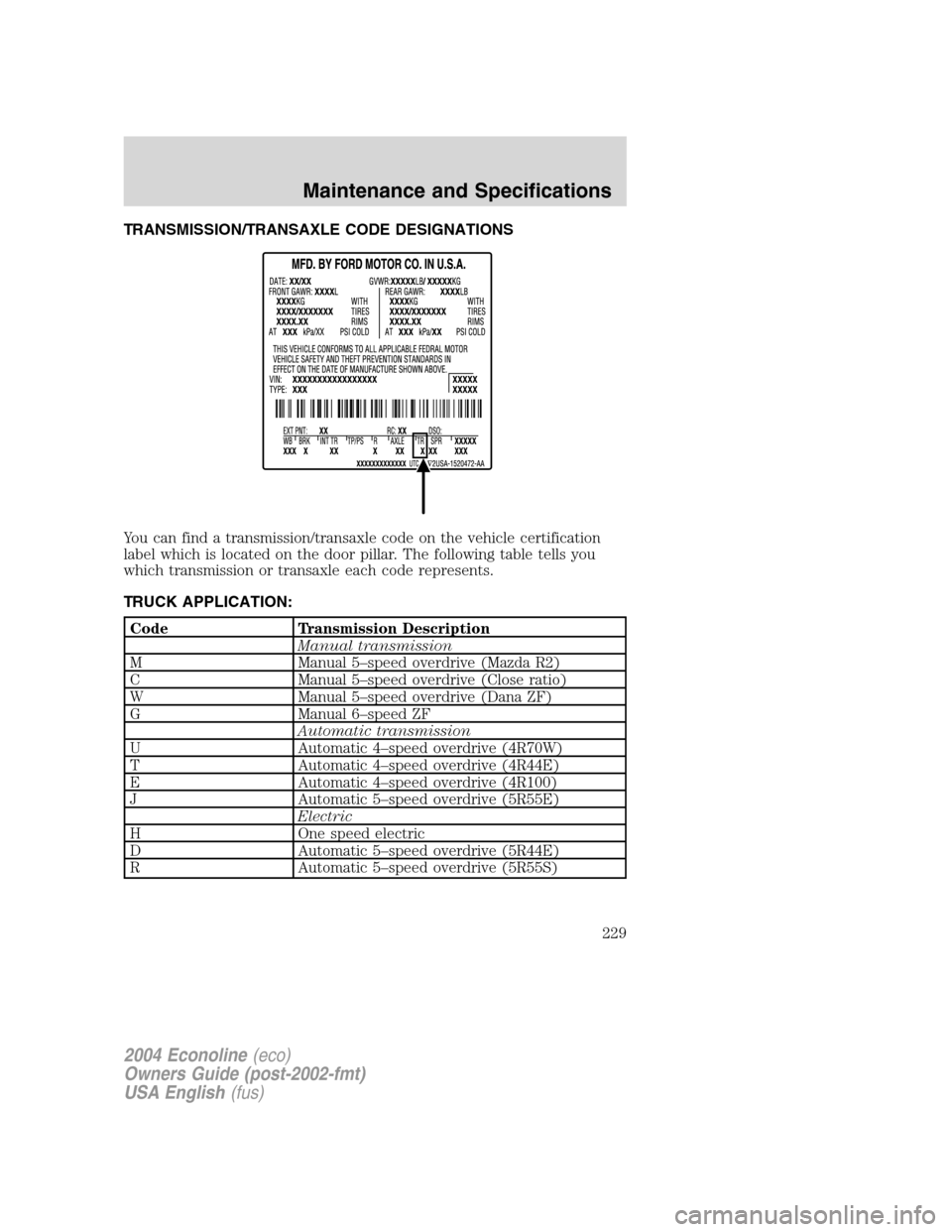

TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a transmission/transaxle code on the vehicle certification
label which is located on the door pillar. The following table tells you
which transmission or transaxle each code represents.
TRUCK APPLICATION:
Code Transmission Description
Manual transmission
M Manual 5–speed overdrive (Mazda R2)
C Manual 5–speed overdrive (Close ratio)
W Manual 5–speed overdrive (Dana ZF)
G Manual 6–speed ZF
Automatic transmission
U Automatic 4–speed overdrive (4R70W)
T Automatic 4–speed overdrive (4R44E)
E Automatic 4–speed overdrive (4R100)
J Automatic 5–speed overdrive (5R55E)
Electric
H One speed electric
D Automatic 5–speed overdrive (5R44E)
R Automatic 5–speed overdrive (5R55S)
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
229

PASSENGER CAR APPLICATION:
Code Transmission/Transaxle Description
Front wheel drive manual transaxle
R5–speed overdrive (MTX75)
W5–speed overdrive (M5)
Front wheel drive automatic transaxle
A4–speed overdrive (4F27E)
E4–speed overdrive (4FE)
J3–speed (Mazda)
L4–speed overdrive (AX4S)
P4–speed overdrive (4F20E)
X4–speed overdrive (4F50N)
Y4–speed overdrive (CD4E)
Rear wheel drive manual transaxle
55–speed (Mazda M5)
Rear wheel drive automatic transmission
U4–speed overdrive (4R70W)
A5–speed overdrive (5R55N)
