CD player FORD E SERIES 2004 4.G Owners Manual

FORD E SERIES 2004 4.G Owners Manual E SERIES 2004 4.G FORD FORD https://www.carmanualsonline.info/img/11/4804/w960_4804-0.png FORD E SERIES 2004 4.G Owners Manual

Page 21 of 240

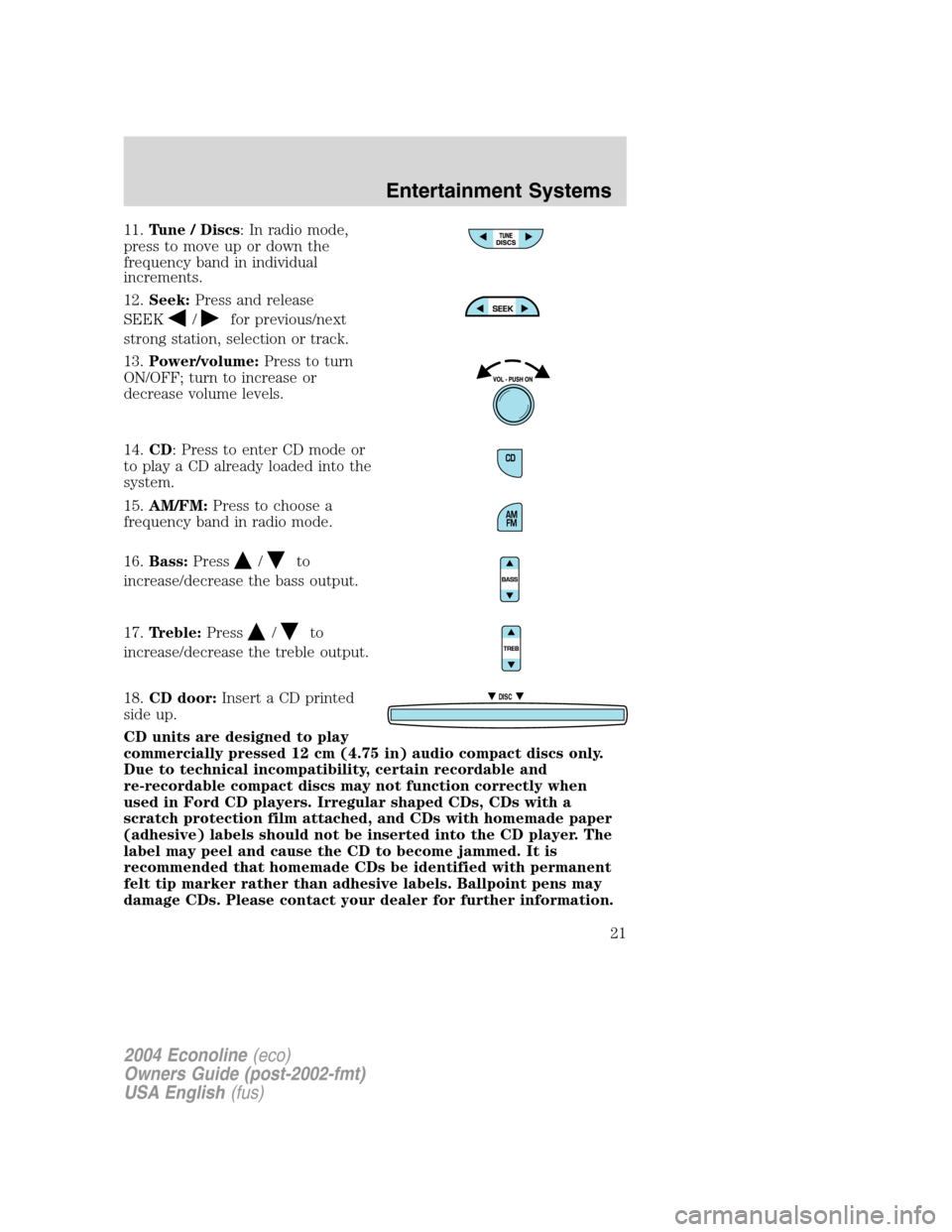

FORD E SERIES 2004 4.G Owners Manual 11.Tune / Discs: In radio mode,
press to move up or down the
frequency band in individual
increments.
12.Seek:Press and release
SEEK
/for previous/next
strong station, selection or track.
13.Power/vol

Page 25 of 240

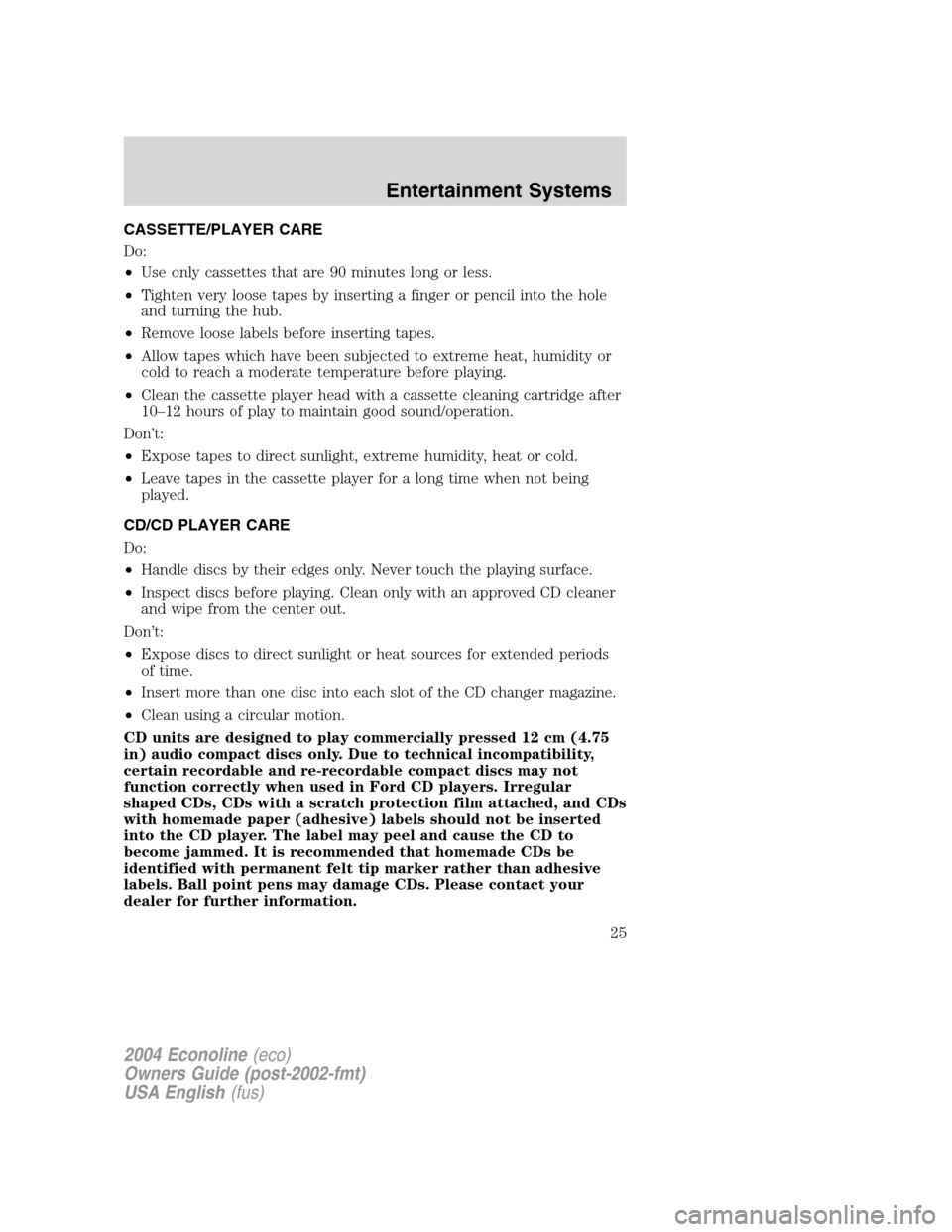

FORD E SERIES 2004 4.G Owners Manual CASSETTE/PLAYER CARE
Do:
•Use only cassettes that are 90 minutes long or less.
•Tighten very loose tapes by inserting a finger or pencil into the hole
and turning the hub.
•Remove loose labels b

Page 28 of 240

FORD E SERIES 2004 4.G Owners Manual Do not insert foreign objects into the videocassette player (VCP) tape
cassette compartment.
The front glass on the liquid crystal display may break when hit
with a hard surface. If the glass breaks,

Page 29 of 240

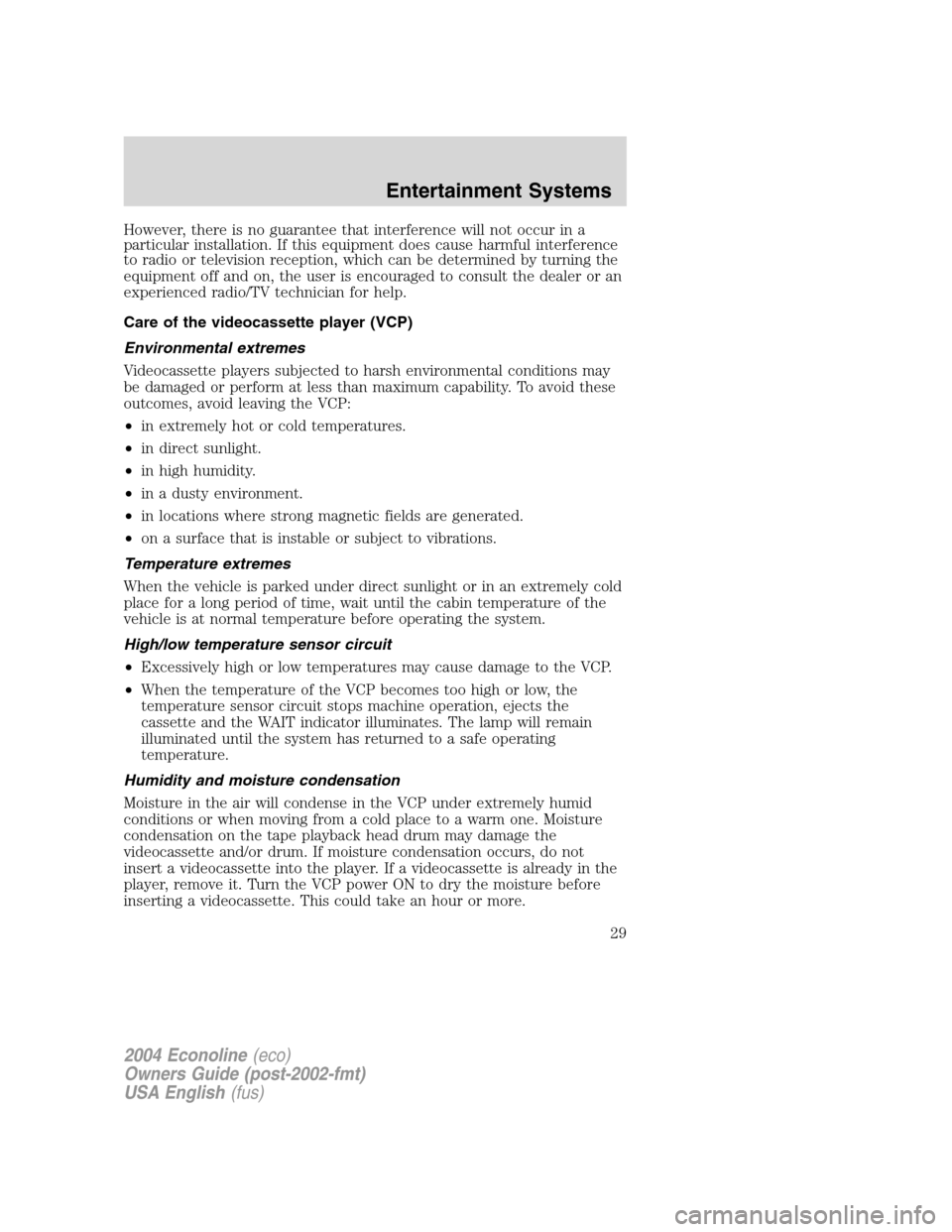

FORD E SERIES 2004 4.G Owners Manual However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determine

Page 30 of 240

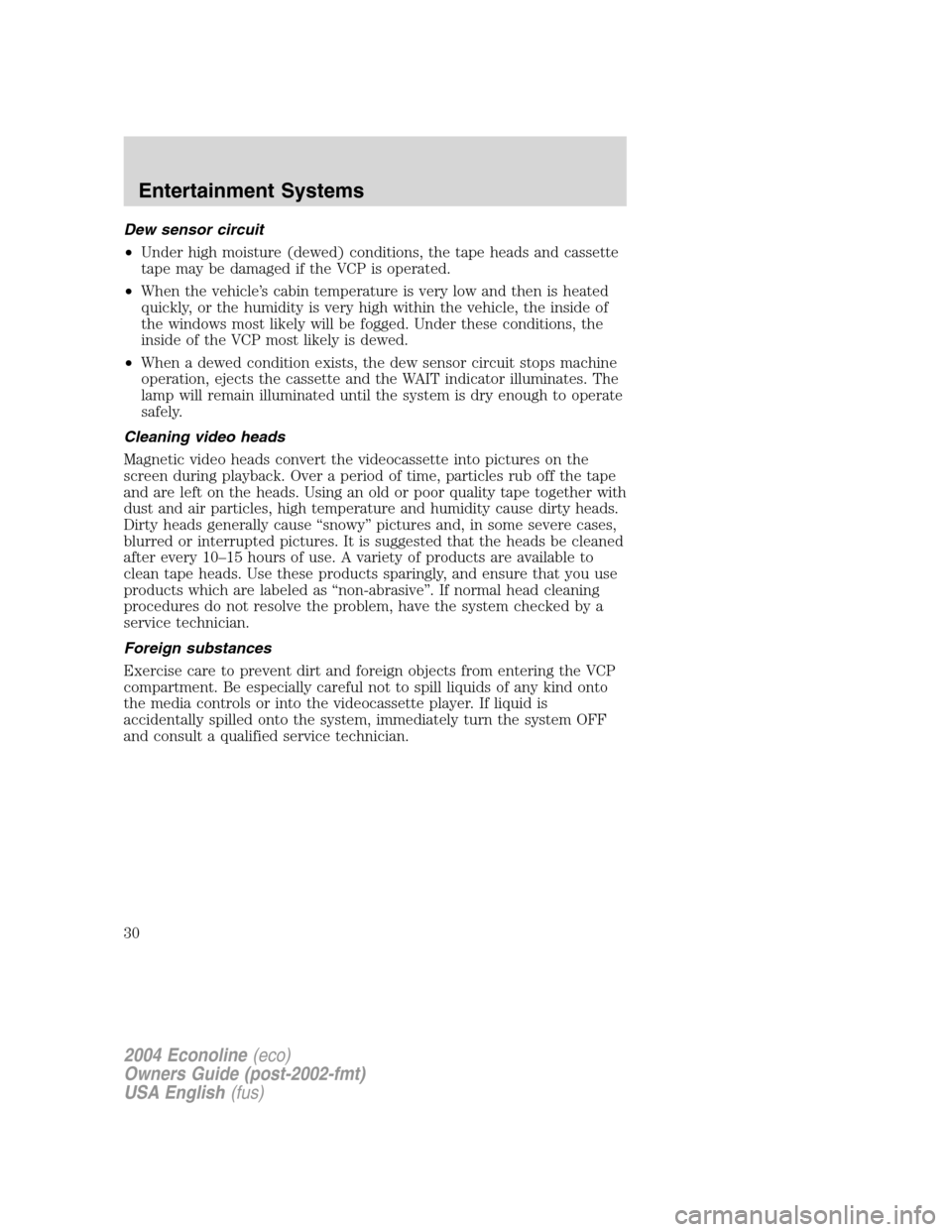

FORD E SERIES 2004 4.G Owners Manual Dew sensor circuit
•Under high moisture (dewed) conditions, the tape heads and cassette
tape may be damaged if the VCP is operated.
•When the vehicle’s cabin temperature is very low and then is

Page 31 of 240

FORD E SERIES 2004 4.G Owners Manual AutoVisionsystem
Features
•2–head hi-fi playback
•AutoPlay feature
•Digital auto tracking
•Dual stereo headphone with electric volume control
•Self docking connection for easy mobile inst

Page 32 of 240

FORD E SERIES 2004 4.G Owners Manual VCP controls
1.LEDdisplay
The display lamp will light up in green when power is supplied to the
videocassette player.
2.POWERkey
Press to toggle between ON/OFF. When the power is ON, other keys
(PLAY,

Page 33 of 240

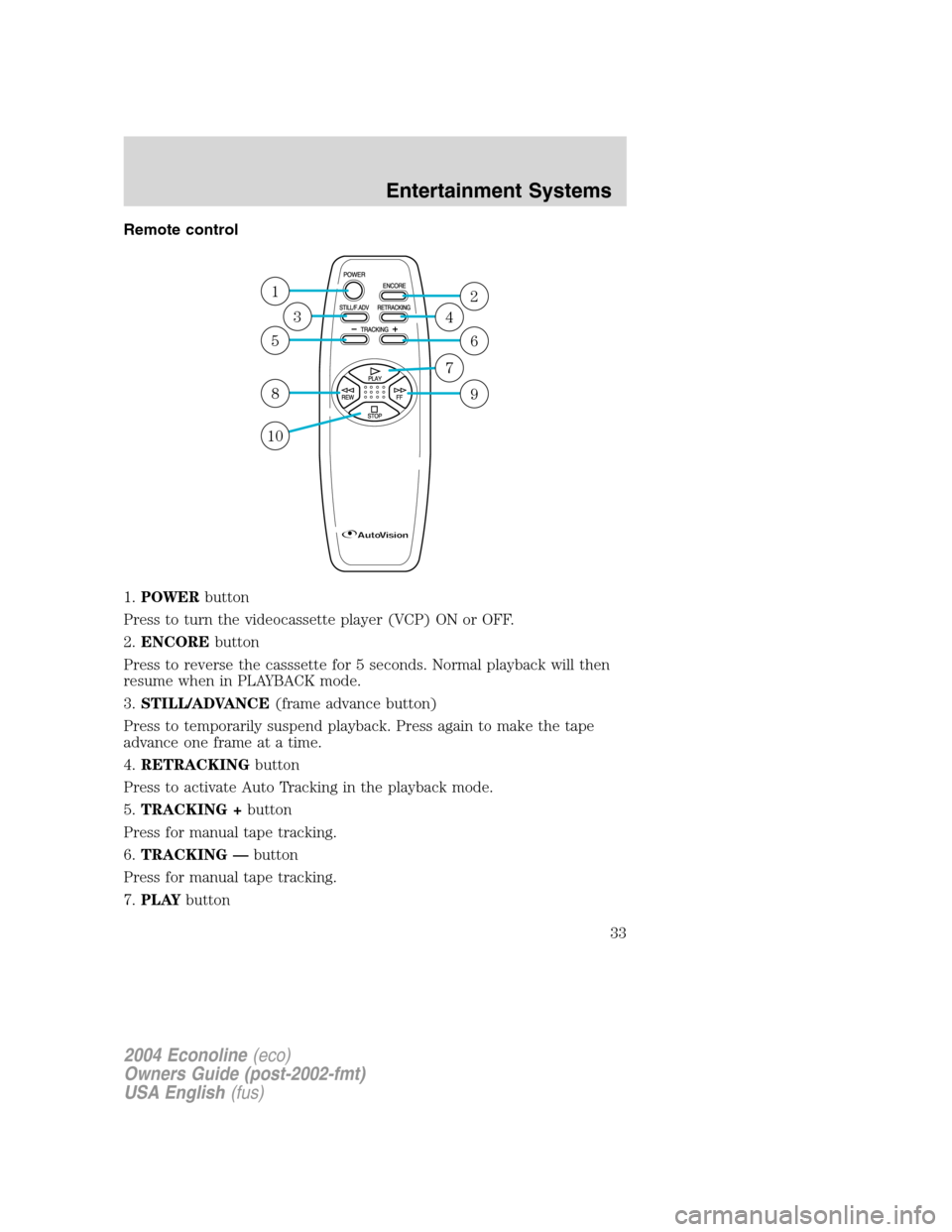

FORD E SERIES 2004 4.G Owners Manual Remote control
1.POWERbutton
Press to turn the videocassette player (VCP) ON or OFF.
2.ENCOREbutton
Press to reverse the casssette for 5 seconds. Normal playback will then
resume when in PLAYBACK mode

Page 37 of 240

FORD E SERIES 2004 4.G Owners Manual Speakers ON/OFF mode
With the speakers ON, you can adjust the audio output to all system
speakers—front and rear together (headphones are disabled in this
mode). The rear seat passengers can not rai

Page 42 of 240

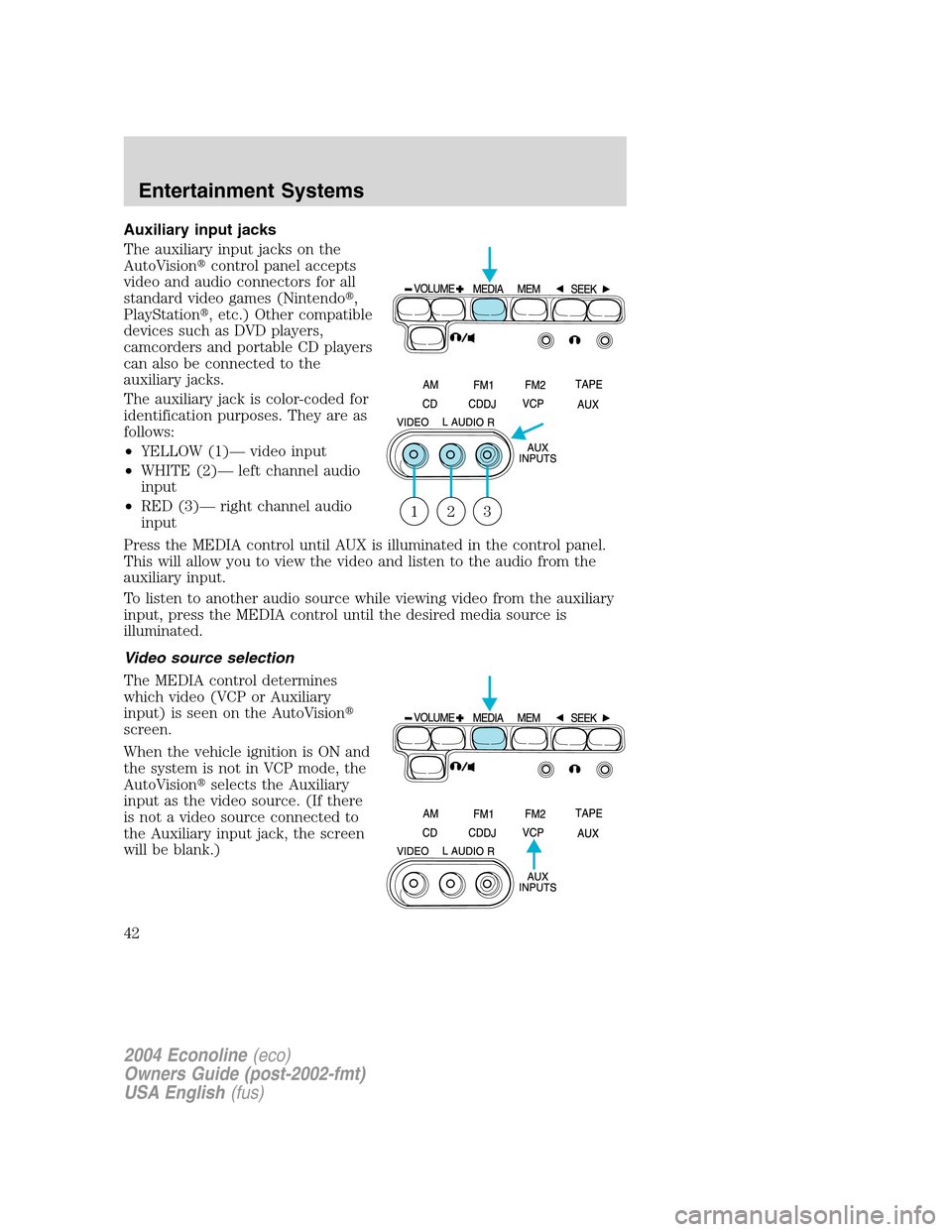

FORD E SERIES 2004 4.G Owners Manual Auxiliary input jacks
The auxiliary input jacks on the
AutoVisioncontrol panel accepts
video and audio connectors for all
standard video games (Nintendo,
PlayStation, etc.) Other compatible
devices
