Introduction 4
Instrument Cluster 12
Warning and control lights 12
Gauges 16
Entertainment Systems 18
AM/FM stereo 18
AM/FM stereo with single CD 20
AM/FM stereo with in-dash six CD 24
Climate Controls 30
Heater only 30
Manual heating and air conditioning 31
Lights 33
Headlamps 33
Turn signal control 37
Bulb replacement 38
Driver Controls 43
Windshield wiper/washer control 43
Steering wheel adjustment 44
Power windows 47
Mirrors 48
Speed control 49
Locks and Security 53
Keys 53
Locks 53
Table of Contents
1
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)

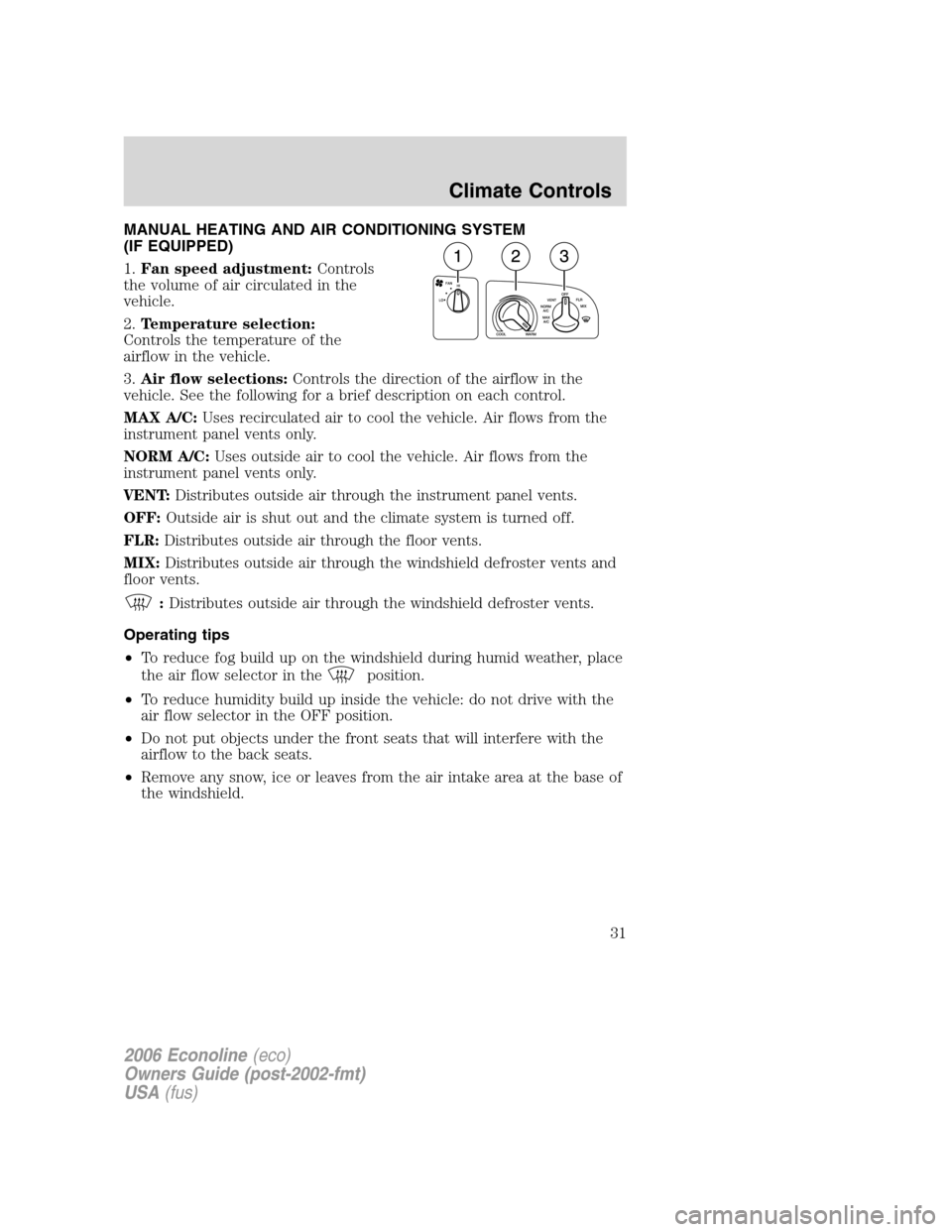

MANUAL HEATING AND AIR CONDITIONING SYSTEM
(IF EQUIPPED)
1.Fan speed adjustment:Controls
the volume of air circulated in the
vehicle.
2.Temperature selection:
Controls the temperature of the
airflow in the vehicle.
3.Air flow selections:Controls the direction of the airflow in the
vehicle. See the following for a brief description on each control.
MAX A/C:Uses recirculated air to cool the vehicle. Air flows from the
instrument panel vents only.
NORM A/C:Uses outside air to cool the vehicle. Air flows from the
instrument panel vents only.
VENT:Distributes outside air through the instrument panel vents.
OFF:Outside air is shut out and the climate system is turned off.
FLR:Distributes outside air through the floor vents.
MIX:Distributes outside air through the windshield defroster vents and
floor vents.
:Distributes outside air through the windshield defroster vents.
Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
•To reduce humidity build up inside the vehicle: do not drive with the
air flow selector in the OFF position.
•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
31

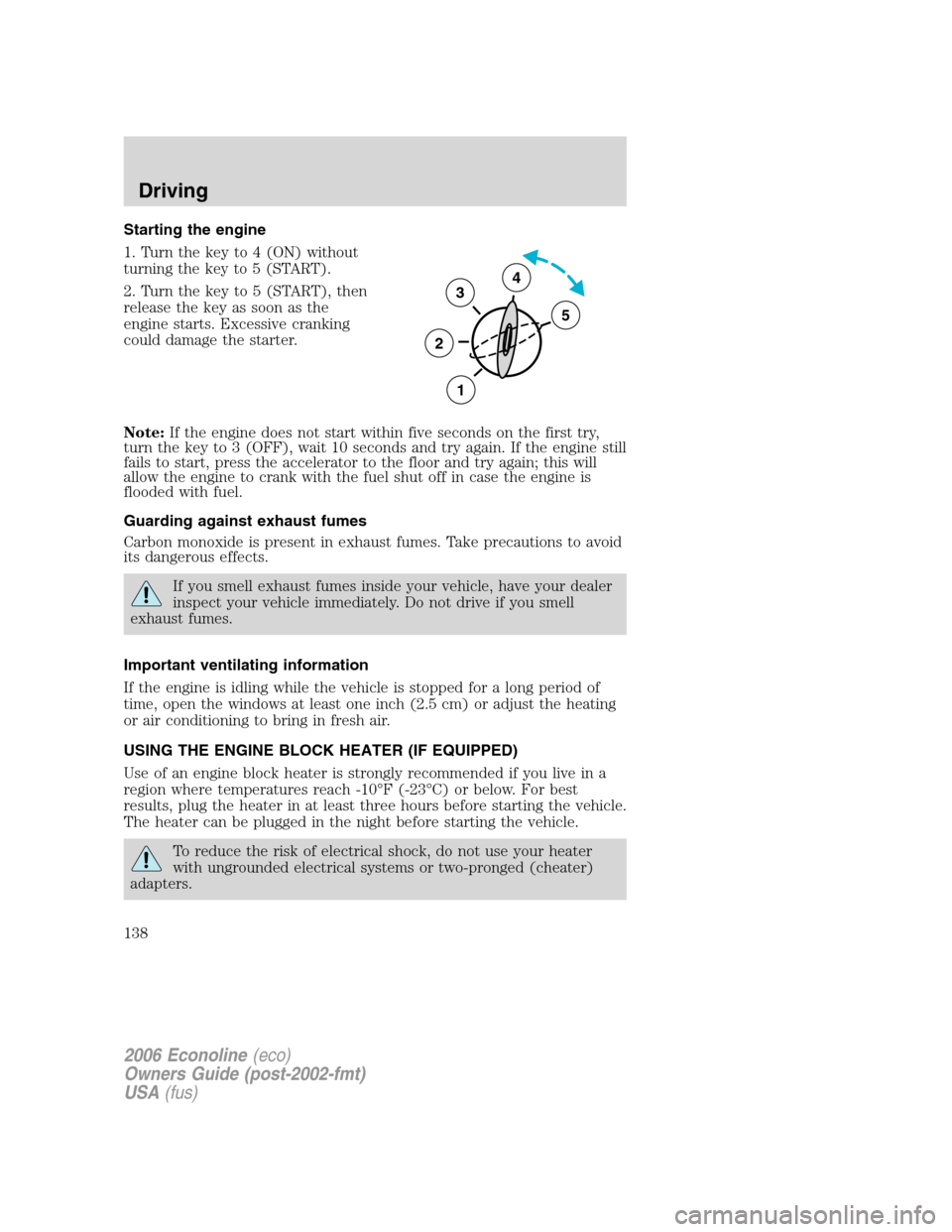

Starting the engine
1. Turn the key to 4 (ON) without
turning the key to 5 (START).
2. Turn the key to 5 (START), then
release the key as soon as the
engine starts. Excessive cranking
could damage the starter.
Note:If the engine does not start within five seconds on the first try,
turn the key to 3 (OFF), wait 10 seconds and try again. If the engine still
fails to start, press the accelerator to the floor and try again; this will
allow the engine to crank with the fuel shut off in case the engine is
flooded with fuel.
Guarding against exhaust fumes
Carbon monoxide is present in exhaust fumes. Take precautions to avoid
its dangerous effects.
If you smell exhaust fumes inside your vehicle, have your dealer
inspect your vehicle immediately. Do not drive if you smell
exhaust fumes.
Important ventilating information
If the engine is idling while the vehicle is stopped for a long period of
time, open the windows at least one inch (2.5 cm) or adjust the heating
or air conditioning to bring in fresh air.
USING THE ENGINE BLOCK HEATER (IF EQUIPPED)
Use of an engine block heater is strongly recommended if you live in a
region where temperatures reach -10°F (-23°C) or below. For best
results, plug the heater in at least three hours before starting the vehicle.
The heater can be plugged in the night before starting the vehicle.
To reduce the risk of electrical shock, do not use your heater
with ungrounded electrical systems or two-pronged (cheater)
adapters.
3
2
1
5
4
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
138

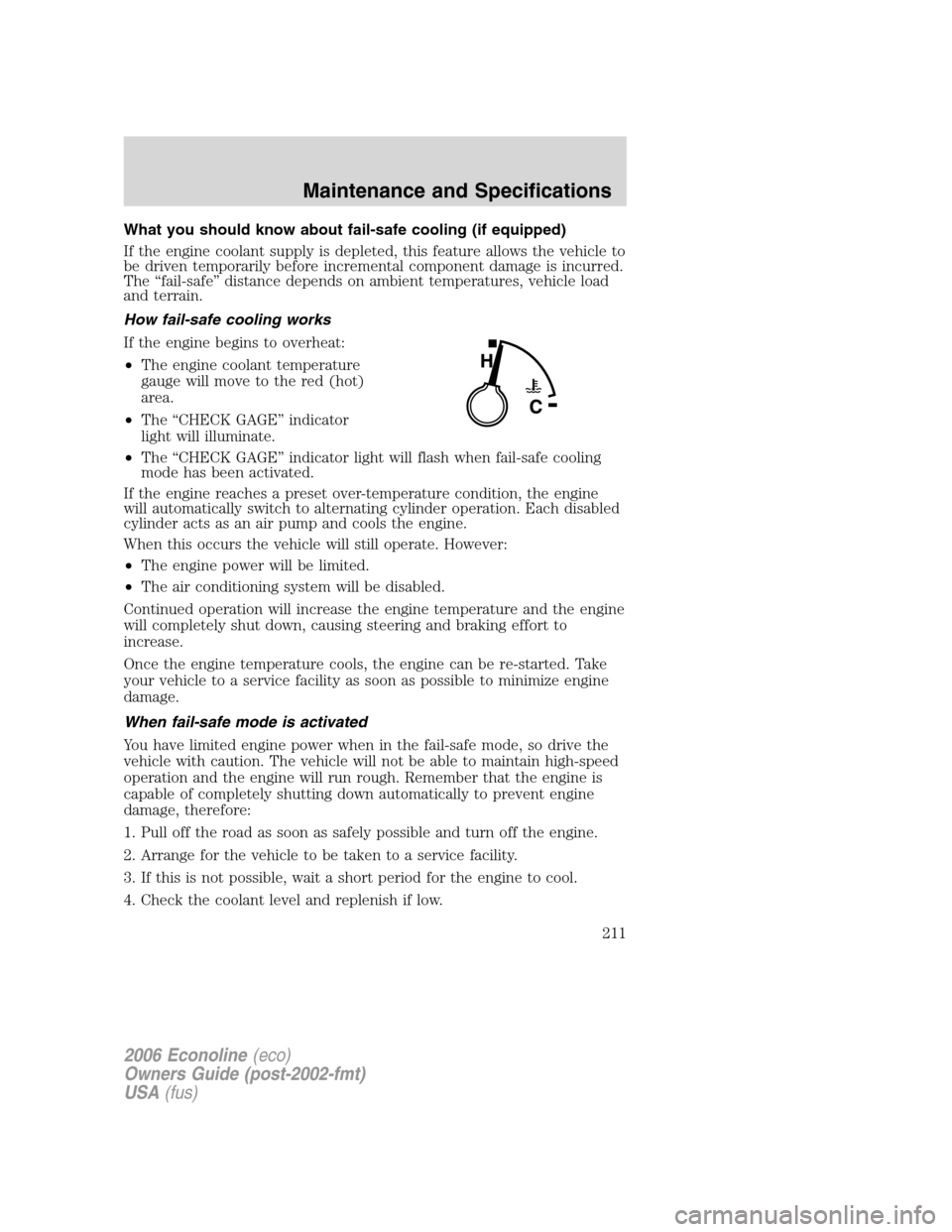

What you should know about fail-safe cooling (if equipped)
If the engine coolant supply is depleted, this feature allows the vehicle to
be driven temporarily before incremental component damage is incurred.
The “fail-safe” distance depends on ambient temperatures, vehicle load
and terrain.
How fail-safe cooling works
If the engine begins to overheat:
•The engine coolant temperature
gauge will move to the red (hot)
area.
•The “CHECK GAGE” indicator
light will illuminate.
•The “CHECK GAGE” indicator light will flash when fail-safe cooling
mode has been activated.
If the engine reaches a preset over-temperature condition, the engine
will automatically switch to alternating cylinder operation. Each disabled
cylinder acts as an air pump and cools the engine.
When this occurs the vehicle will still operate. However:
•The engine power will be limited.
•The air conditioning system will be disabled.
Continued operation will increase the engine temperature and the engine
will completely shut down, causing steering and braking effort to
increase.
Once the engine temperature cools, the engine can be re-started. Take
your vehicle to a service facility as soon as possible to minimize engine
damage.
When fail-safe mode is activated
You have limited engine power when in the fail-safe mode, so drive the
vehicle with caution. The vehicle will not be able to maintain high-speed
operation and the engine will run rough. Remember that the engine is
capable of completely shutting down automatically to prevent engine
damage, therefore:
1. Pull off the road as soon as safely possible and turn off the engine.
2. Arrange for the vehicle to be taken to a service facility.
3. If this is not possible, wait a short period for the engine to cool.
4. Check the coolant level and replenish if low.
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
211

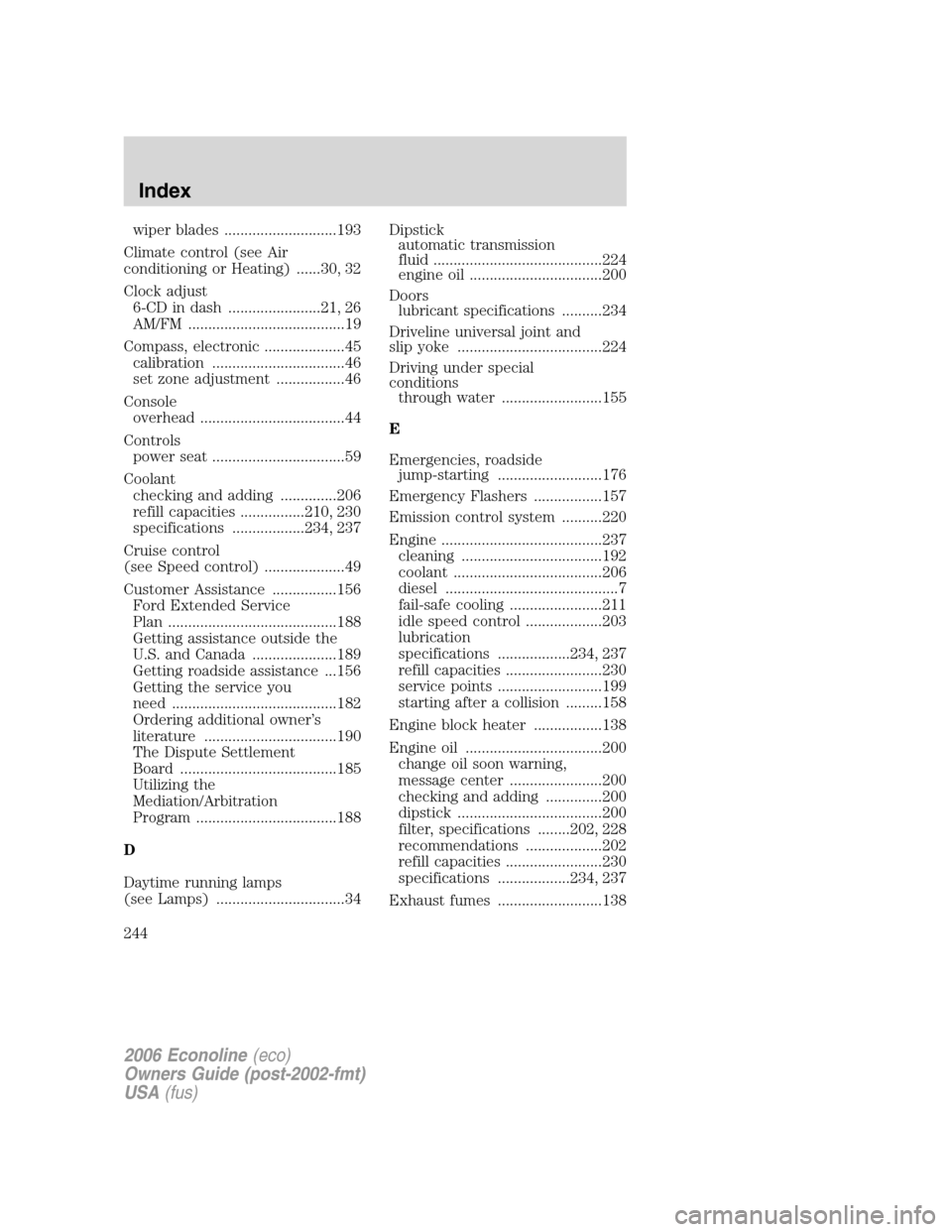

wiper blades ............................193
Climate control (see Air
conditioning or Heating) ......30, 32
Clock adjust
6-CD in dash .......................21, 26
AM/FM .......................................19
Compass, electronic ....................45
calibration .................................46
set zone adjustment .................46
Console
overhead ....................................44
Controls
power seat .................................59
Coolant
checking and adding ..............206
refill capacities ................210, 230
specifications ..................234, 237
Cruise control
(see Speed control) ....................49
Customer Assistance ................156
Ford Extended Service
Plan ..........................................188
Getting assistance outside the
U.S. and Canada .....................189
Getting roadside assistance ...156
Getting the service you
need .........................................182
Ordering additional owner’s
literature .................................190
The Dispute Settlement
Board .......................................185
Utilizing the
Mediation/Arbitration
Program ...................................188
D
Daytime running lamps
(see Lamps) ................................34Dipstick
automatic transmission
fluid ..........................................224
engine oil .................................200
Doors
lubricant specifications ..........234
Driveline universal joint and
slip yoke ....................................224
Driving under special
conditions
through water .........................155
E
Emergencies, roadside
jump-starting ..........................176
Emergency Flashers .................157
Emission control system ..........220
Engine ........................................237
cleaning ...................................192
coolant .....................................206
diesel ...........................................7
fail-safe cooling .......................211
idle speed control ...................203
lubrication
specifications ..................234, 237
refill capacities ........................230
service points ..........................199
starting after a collision .........158
Engine block heater .................138
Engine oil ..................................200
change oil soon warning,
message center .......................200
checking and adding ..............200
dipstick ....................................200
filter, specifications ........202, 228
recommendations ...................202
refill capacities ........................230
specifications ..................234, 237
Exhaust fumes ..........................138
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
244

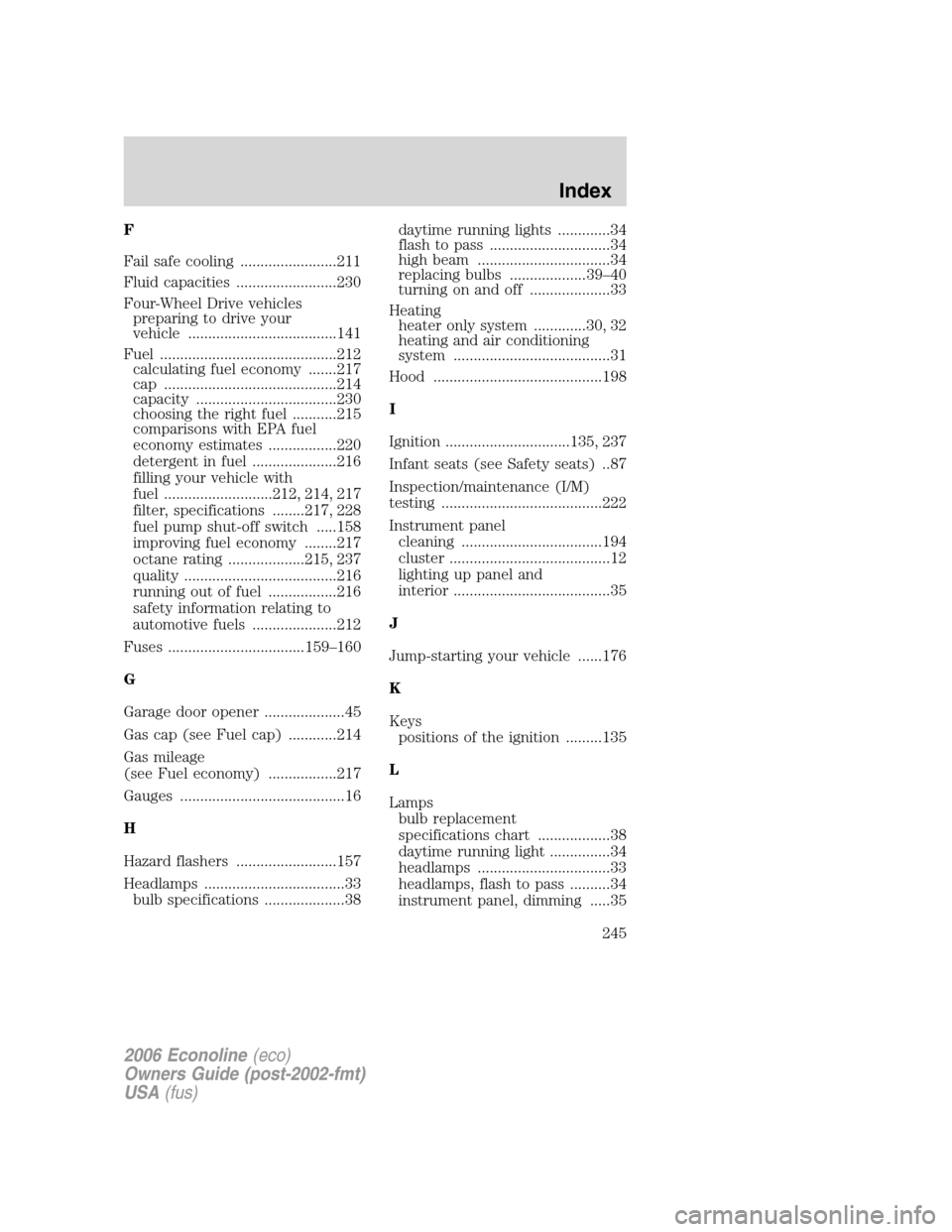

F
Fail safe cooling ........................211
Fluid capacities .........................230
Four-Wheel Drive vehicles
preparing to drive your
vehicle .....................................141
Fuel ............................................212
calculating fuel economy .......217
cap ...........................................214
capacity ...................................230
choosing the right fuel ...........215
comparisons with EPA fuel
economy estimates .................220
detergent in fuel .....................216
filling your vehicle with
fuel ...........................212, 214, 217
filter, specifications ........217, 228
fuel pump shut-off switch .....158
improving fuel economy ........217
octane rating ...................215, 237
quality ......................................216
running out of fuel .................216
safety information relating to
automotive fuels .....................212
Fuses ..................................159–160
G
Garage door opener ....................45
Gas cap (see Fuel cap) ............214
Gas mileage
(see Fuel economy) .................217
Gauges .........................................16
H
Hazard flashers .........................157
Headlamps ...................................33
bulb specifications ....................38daytime running lights .............34
flash to pass ..............................34
high beam .................................34
replacing bulbs ...................39–40
turning on and off ....................33
Heating
heater only system .............30, 32
heating and air conditioning
system .......................................31
Hood ..........................................198
I
Ignition ...............................135, 237
Infant seats (see Safety seats) ..87
Inspection/maintenance (I/M)
testing ........................................222
Instrument panel
cleaning ...................................194
cluster ........................................12
lighting up panel and
interior .......................................35
J
Jump-starting your vehicle ......176
K
Keys
positions of the ignition .........135
L
Lamps
bulb replacement
specifications chart ..................38
daytime running light ...............34
headlamps .................................33
headlamps, flash to pass ..........34
instrument panel, dimming .....35
