clock setting FORD E SERIES 2006 4.G Owners Manual

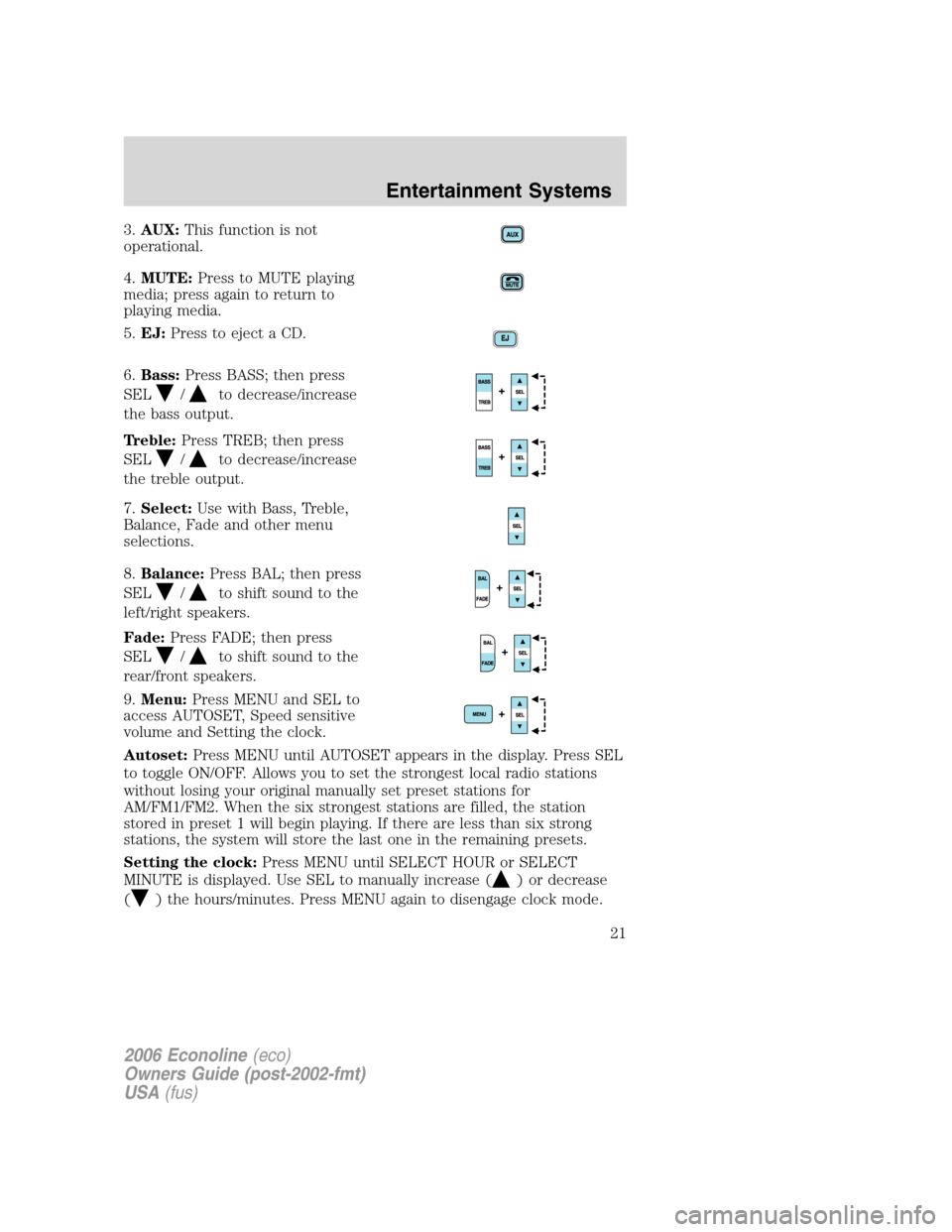

3.AUX:This function is not
operational.
4.MUTE:Press to MUTE playing
media; press again to return to
playing media.
5.EJ:Press to eject a CD.
6.Bass:Press BASS; then press
SEL
/to decrease/increase
the bass output.
Treble:Press TREB; then press
SEL
/to decrease/increase
the treble output.
7.Select:Use with Bass, Treble,
Balance, Fade and other menu
selections.
8.Balance:Press BAL; then press
SEL
/to shift sound to the
left/right speakers.
Fade:Press FADE; then press
SEL
/to shift sound to the
rear/front speakers.
9.Menu:Press MENU and SEL to
access AUTOSET, Speed sensitive
volume and Setting the clock.
Autoset:Press MENU until AUTOSET appears in the display. Press SEL
to toggle ON/OFF. Allows you to set the strongest local radio stations
without losing your original manually set preset stations for
AM/FM1/FM2. When the six strongest stations are filled, the station
stored in preset 1 will begin playing. If there are less than six strong
stations, the system will store the last one in the remaining presets.
Setting the clock:Press MENU until SELECT HOUR or SELECT
MINUTE is displayed. Use SEL to manually increase (
) or decrease
(
) the hours/minutes. Press MENU again to disengage clock mode.
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
21

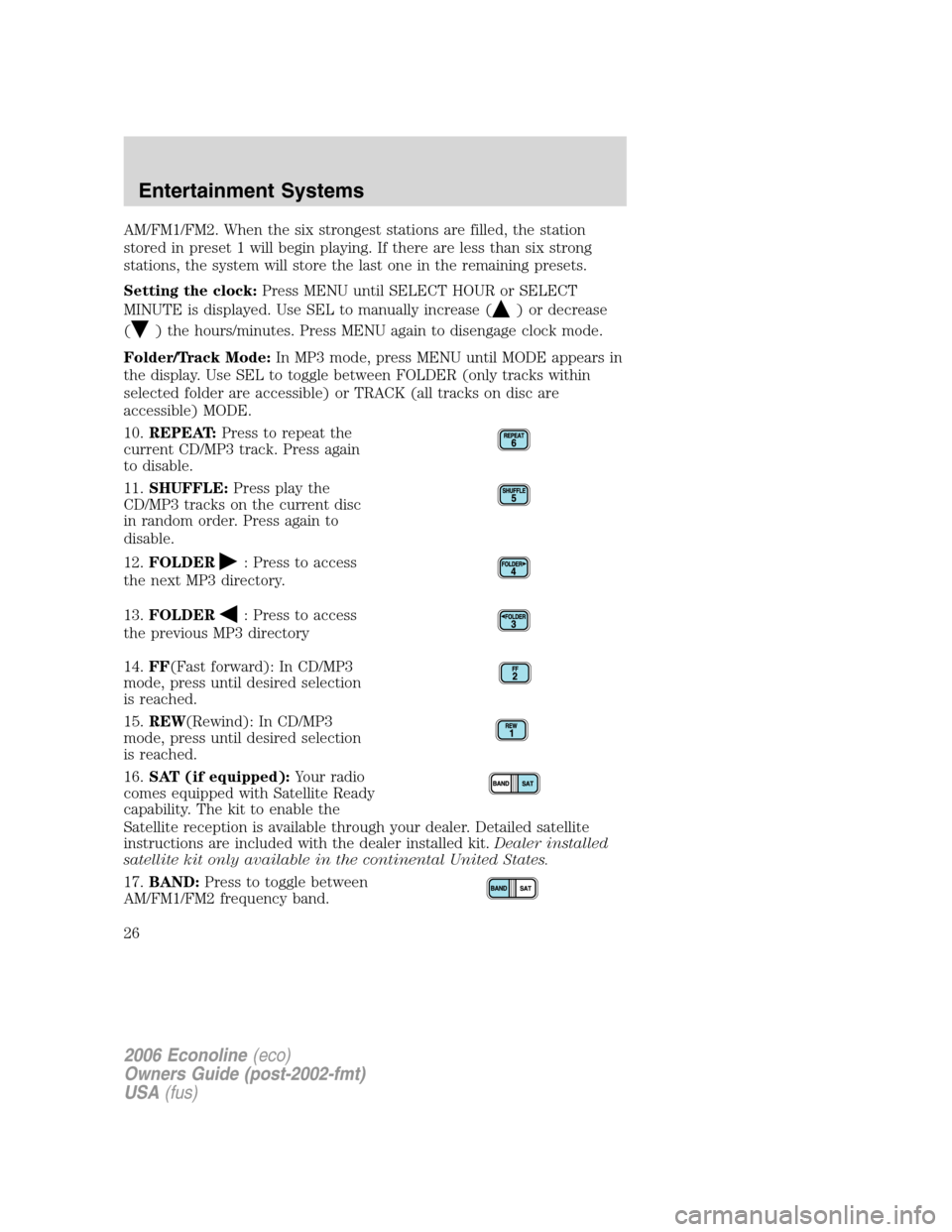

AM/FM1/FM2. When the six strongest stations are filled, the station
stored in preset 1 will begin playing. If there are less than six strong
stations, the system will store the last one in the remaining presets.
Setting the clock:Press MENU until SELECT HOUR or SELECT
MINUTE is displayed. Use SEL to manually increase (
) or decrease
(
) the hours/minutes. Press MENU again to disengage clock mode.
Folder/Track Mode:In MP3 mode, press MENU until MODE appears in
the display. Use SEL to toggle between FOLDER (only tracks within
selected folder are accessible) or TRACK (all tracks on disc are
accessible) MODE.
10.REPEAT:Press to repeat the
current CD/MP3 track. Press again
to disable.
11.SHUFFLE:Press play the
CD/MP3 tracks on the current disc
in random order. Press again to
disable.
12.FOLDER
: Press to access
the next MP3 directory.
13.FOLDER
: Press to access
the previous MP3 directory
14.FF(Fast forward): In CD/MP3
mode, press until desired selection
is reached.
15.REW(Rewind): In CD/MP3
mode, press until desired selection
is reached.
16.SAT (if equipped):Your radio
comes equipped with Satellite Ready
capability. The kit to enable the
Satellite reception is available through your dealer. Detailed satellite
instructions are included with the dealer installed kit.Dealer installed
satellite kit only available in the continental United States.
17.BAND:Press to toggle between
AM/FM1/FM2 frequency band.
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
26

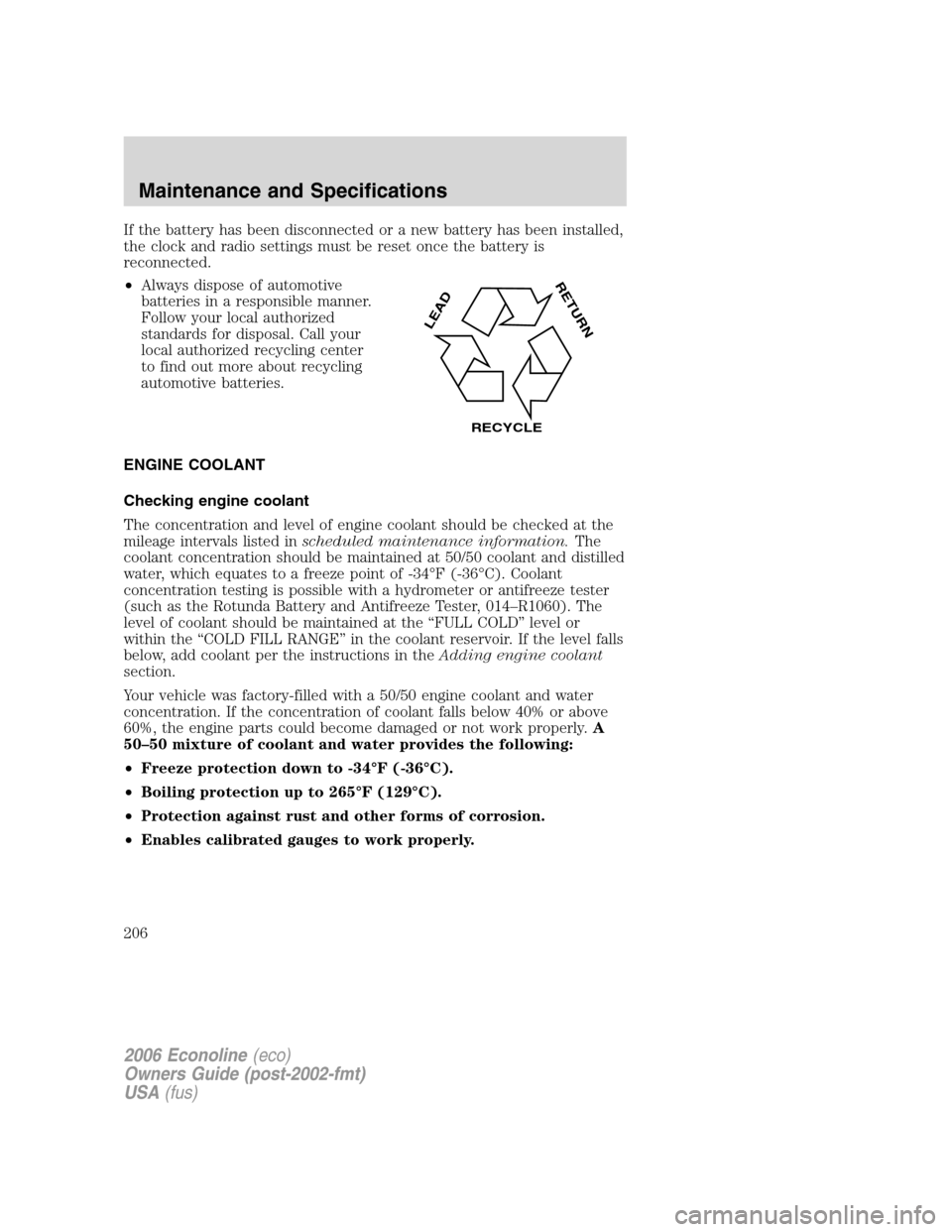

If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should be checked at the
mileage intervals listed inscheduled maintenance information.The
coolant concentration should be maintained at 50/50 coolant and distilled
water, which equates to a freeze point of -34°F (-36°C). Coolant
concentration testing is possible with a hydrometer or antifreeze tester
(such as the Rotunda Battery and Antifreeze Tester, 014–R1060). The
level of coolant should be maintained at the “FULL COLD” level or
within the “COLD FILL RANGE” in the coolant reservoir. If the level falls
below, add coolant per the instructions in theAdding engine coolant
section.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50–50 mixture of coolant and water provides the following:
•Freeze protection down to -34°F (-36°C).
•Boiling protection up to 265°F (129°C).
•Protection against rust and other forms of corrosion.
•Enables calibrated gauges to work properly.
L
E
A
D
RETURN
RECYCLE
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
206

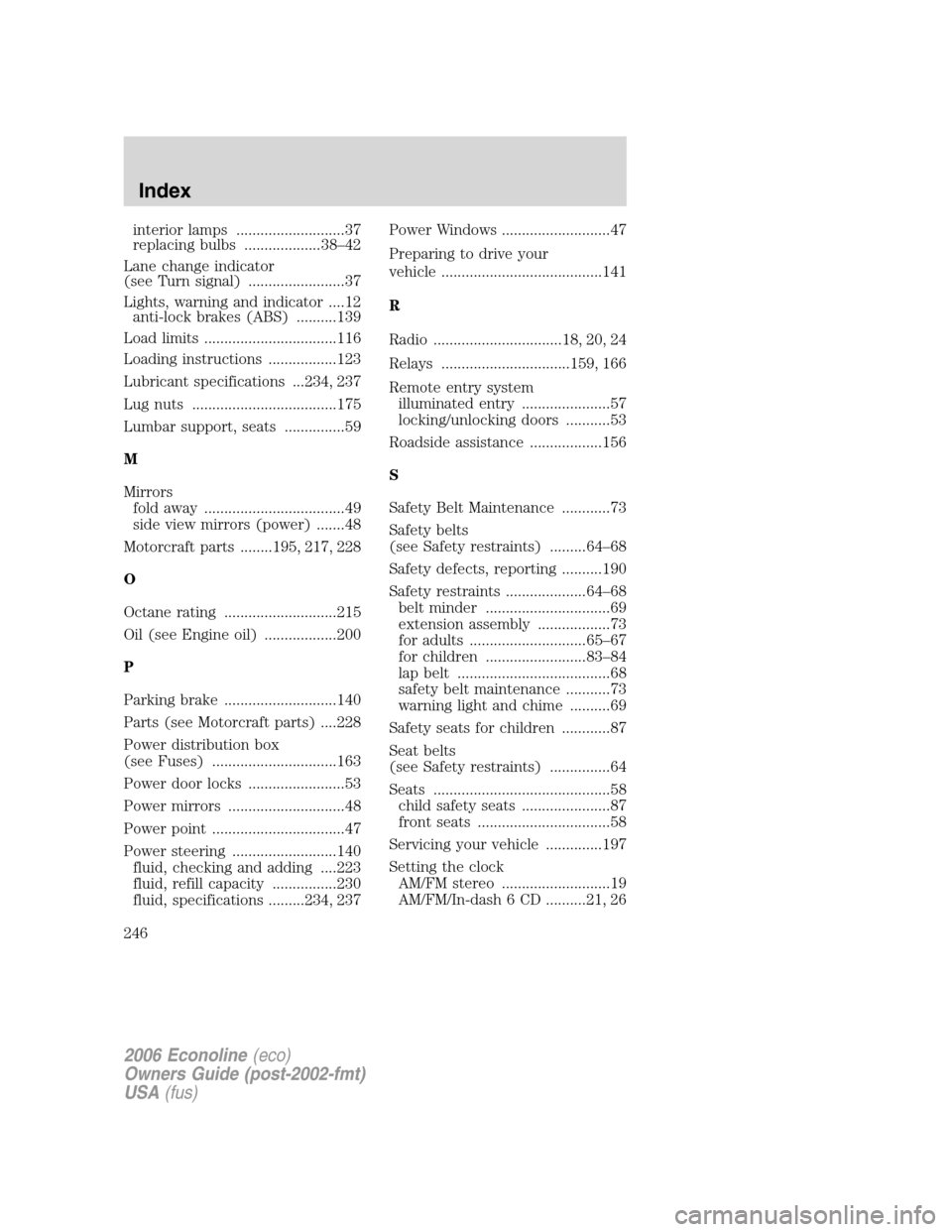

interior lamps ...........................37
replacing bulbs ...................38–42
Lane change indicator
(see Turn signal) ........................37
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........139
Load limits .................................116
Loading instructions .................123
Lubricant specifications ...234, 237
Lug nuts ....................................175
Lumbar support, seats ...............59
M
Mirrors
fold away ...................................49
side view mirrors (power) .......48
Motorcraft parts ........195, 217, 228
O
Octane rating ............................215
Oil (see Engine oil) ..................200
P
Parking brake ............................140
Parts (see Motorcraft parts) ....228
Power distribution box
(see Fuses) ...............................163
Power door locks ........................53
Power mirrors .............................48
Power point .................................47
Power steering ..........................140
fluid, checking and adding ....223
fluid, refill capacity ................230
fluid, specifications .........234, 237Power Windows ...........................47
Preparing to drive your
vehicle ........................................141
R
Radio ................................18, 20, 24
Relays ................................159, 166
Remote entry system
illuminated entry ......................57
locking/unlocking doors ...........53
Roadside assistance ..................156
S
Safety Belt Maintenance ............73
Safety belts
(see Safety restraints) .........64–68
Safety defects, reporting ..........190
Safety restraints ....................64–68
belt minder ...............................69
extension assembly ..................73
for adults .............................65–67
for children .........................83–84
lap belt ......................................68
safety belt maintenance ...........73
warning light and chime ..........69
Safety seats for children ............87
Seat belts
(see Safety restraints) ...............64
Seats ............................................58
child safety seats ......................87
front seats .................................58
Servicing your vehicle ..............197
Setting the clock
AM/FM stereo ...........................19
AM/FM/In-dash 6 CD ..........21, 26
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
246
