jump start FORD E SERIES 2006 4.G Owners Manual

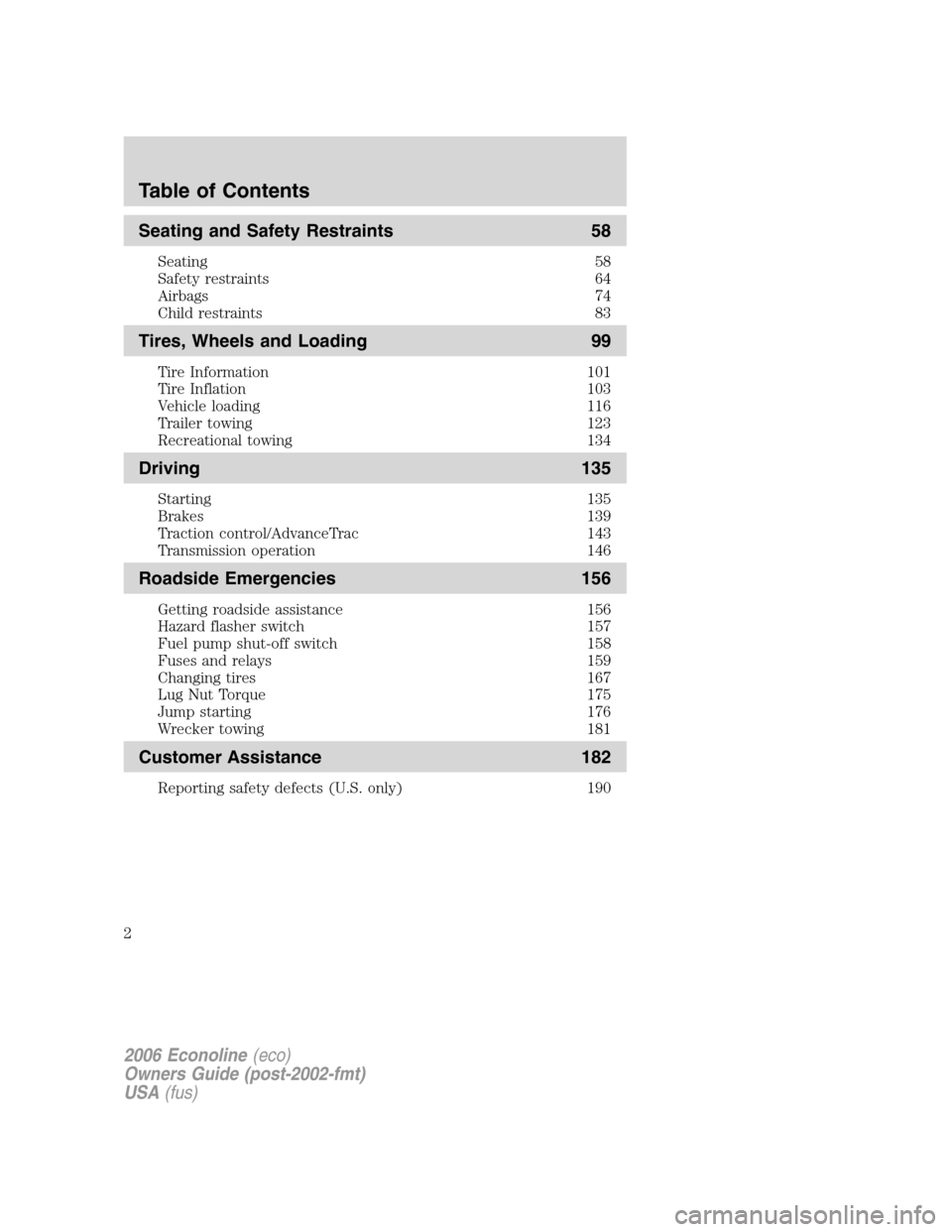

Seating and Safety Restraints 58
Seating 58
Safety restraints 64
Airbags 74
Child restraints 83
Tires, Wheels and Loading 99
Tire Information 101
Tire Inflation 103
Vehicle loading 116
Trailer towing 123
Recreational towing 134
Driving 135
Starting 135
Brakes 139
Traction control/AdvanceTrac 143
Transmission operation 146
Roadside Emergencies 156
Getting roadside assistance 156
Hazard flasher switch 157
Fuel pump shut-off switch 158
Fuses and relays 159
Changing tires 167
Lug Nut Torque 175
Jump starting 176
Wrecker towing 181
Customer Assistance 182
Reporting safety defects (U.S. only) 190
Table of Contents
2
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)

ROADSIDE ASSISTANCE
Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
•24–hours, seven days a week
•for the New Vehicle Limited Warranty period of three years or 36,000
miles (60,000 km), whichever occurs first on Ford and Mercury
vehicles, and four years or 50,000 miles (80,000 km) on Lincoln
vehicles.
Roadside assistance will cover:
•a flat tire change with a good spare (except Ford GT which has a tire
inflation kit)
•battery jump start
•lock-out assistance (key replacement cost is the customer’s
responsibility)
•fuel delivery (2.0 gallons [7.5L], maximum two occurrences within 12
month period)
•towing of your disabled vehicle to the nearest Ford Motor Company
dealership, or your selling dealer if within 35 miles (56.3 km) of the
nearest Ford Motor Company dealership (one tow per disablement).
Even non-warranty related tows, like accidents, are covered (some
exclusions apply, such as impound towing or repossession).
Canadian customers refer to your Owner Information Guide for
information on:
•coverage period
•exact fuel amounts
•towing of your disabled vehicle
•emergency travel expense reimbursement
•travel planning benefits
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
156

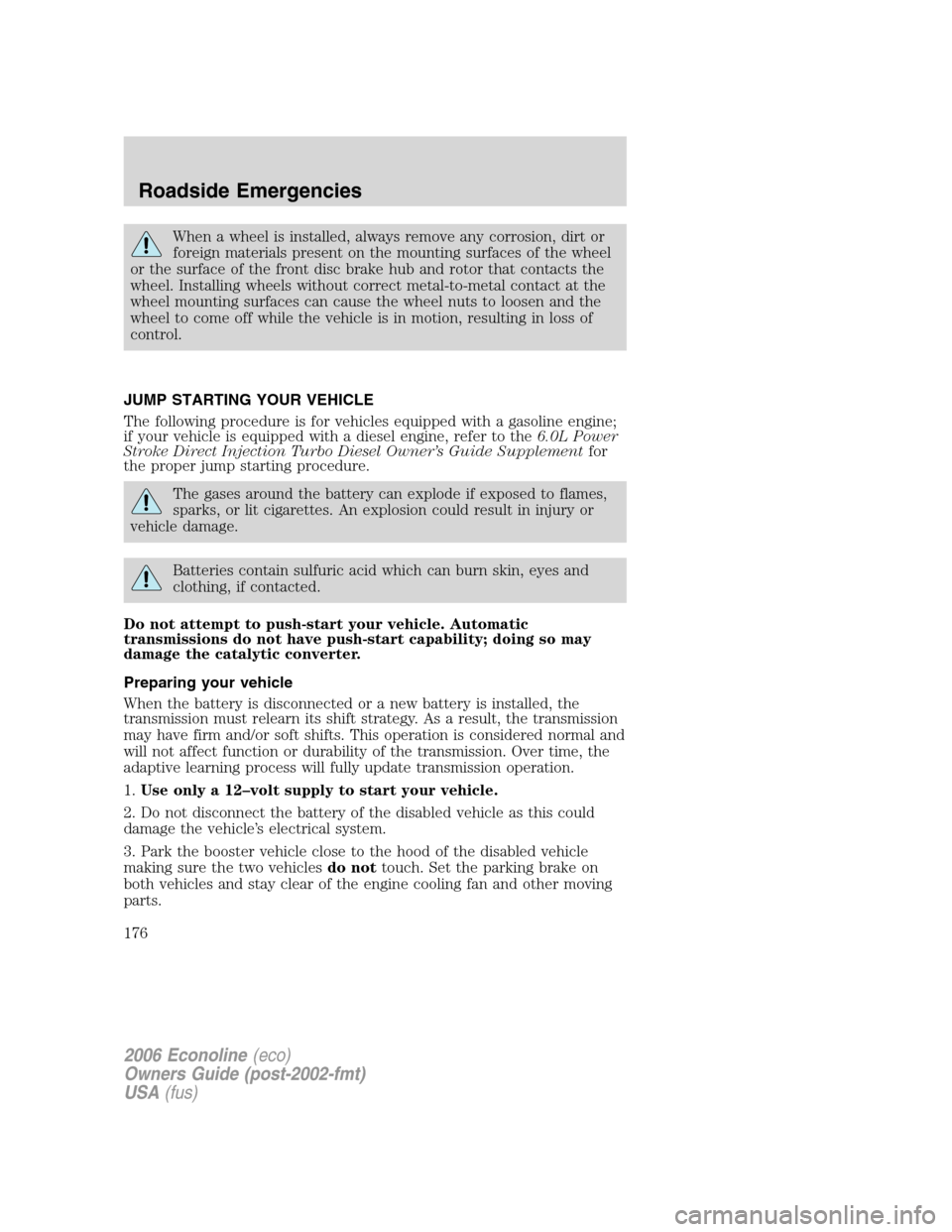

When a wheel is installed, always remove any corrosion, dirt or
foreign materials present on the mounting surfaces of the wheel
or the surface of the front disc brake hub and rotor that contacts the
wheel. Installing wheels without correct metal-to-metal contact at the
wheel mounting surfaces can cause the wheel nuts to loosen and the
wheel to come off while the vehicle is in motion, resulting in loss of
control.
JUMP STARTING YOUR VEHICLE
The following procedure is for vehicles equipped with a gasoline engine;
if your vehicle is equipped with a diesel engine, refer to the6.0L Power
Stroke Direct Injection Turbo Diesel Owner’s Guide Supplementfor
the proper jump starting procedure.
The gases around the battery can explode if exposed to flames,
sparks, or lit cigarettes. An explosion could result in injury or
vehicle damage.
Batteries contain sulfuric acid which can burn skin, eyes and
clothing, if contacted.
Do not attempt to push-start your vehicle. Automatic
transmissions do not have push-start capability; doing so may
damage the catalytic converter.
Preparing your vehicle
When the battery is disconnected or a new battery is installed, the
transmission must relearn its shift strategy. As a result, the transmission
may have firm and/or soft shifts. This operation is considered normal and
will not affect function or durability of the transmission. Over time, the
adaptive learning process will fully update transmission operation.
1.Use only a 12–volt supply to start your vehicle.
2. Do not disconnect the battery of the disabled vehicle as this could
damage the vehicle’s electrical system.
3. Park the booster vehicle close to the hood of the disabled vehicle
making sure the two vehiclesdo nottouch. Set the parking brake on
both vehicles and stay clear of the engine cooling fan and other moving
parts.
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
176

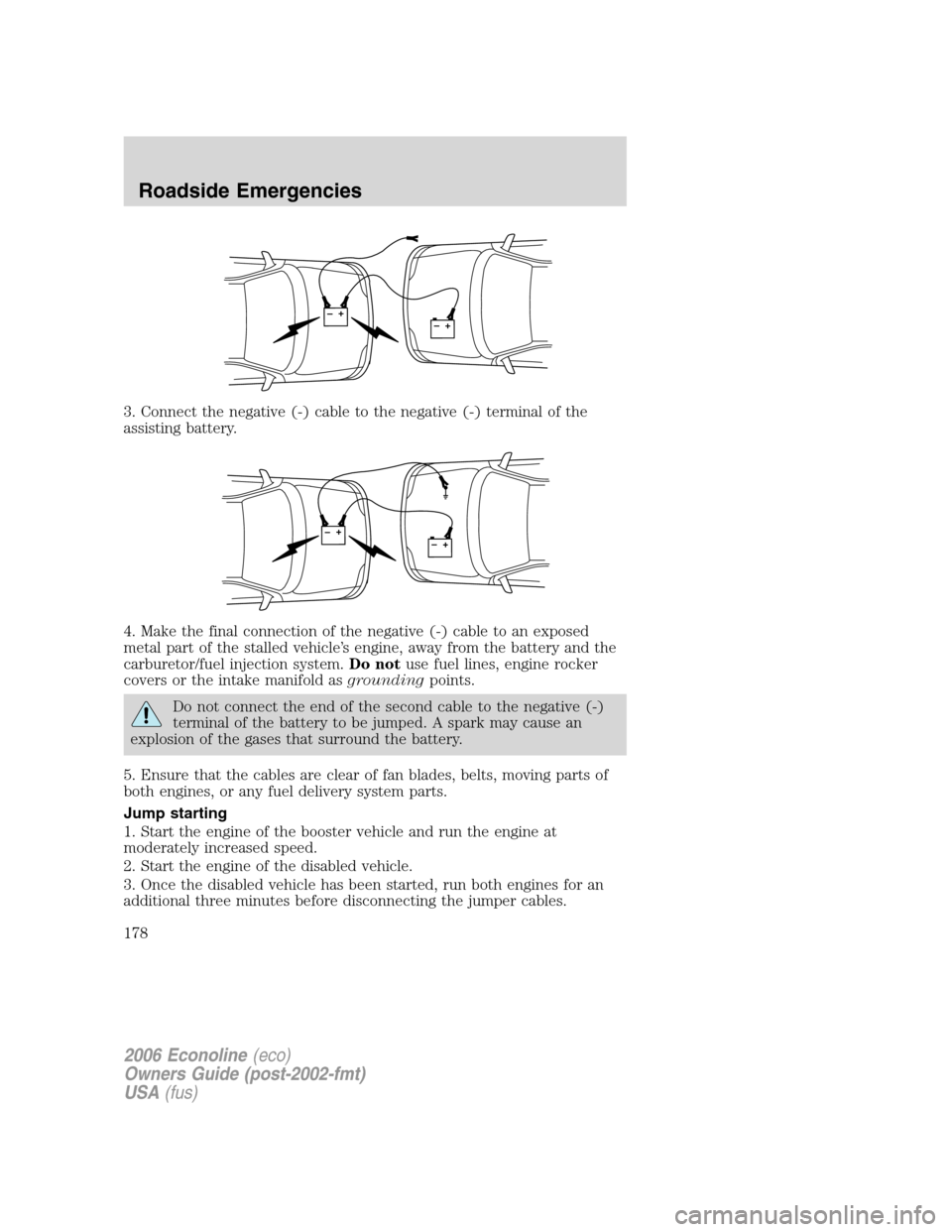

3. Connect the negative (-) cable to the negative (-) terminal of the
assisting battery.
4. Make the final connection of the negative (-) cable to an exposed
metal part of the stalled vehicle’s engine, away from the battery and the
carburetor/fuel injection system.Do notuse fuel lines, engine rocker
covers or the intake manifold asgroundingpoints.
Do not connect the end of the second cable to the negative (-)
terminal of the battery to be jumped. A spark may cause an
explosion of the gases that surround the battery.
5. Ensure that the cables are clear of fan blades, belts, moving parts of
both engines, or any fuel delivery system parts.
Jump starting
1. Start the engine of the booster vehicle and run the engine at
moderately increased speed.
2. Start the engine of the disabled vehicle.
3. Once the disabled vehicle has been started, run both engines for an
additional three minutes before disconnecting the jumper cables.
+–+–
+–+–
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
178

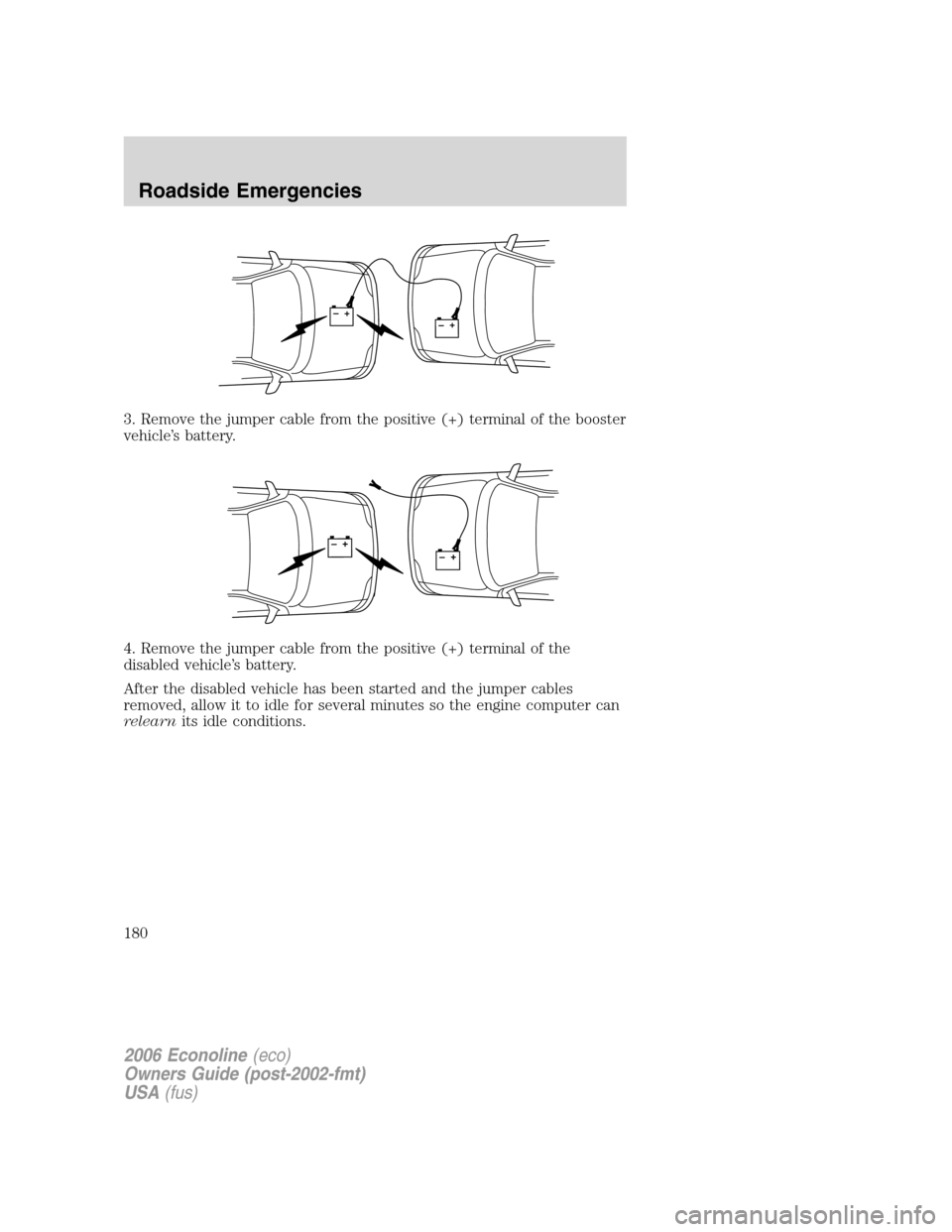

3. Remove the jumper cable from the positive (+) terminal of the booster
vehicle’s battery.
4. Remove the jumper cable from the positive (+) terminal of the
disabled vehicle’s battery.
After the disabled vehicle has been started and the jumper cables
removed, allow it to idle for several minutes so the engine computer can
relearnits idle conditions.
+–+–
+–+–
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
180

wiper blades ............................193
Climate control (see Air
conditioning or Heating) ......30, 32
Clock adjust
6-CD in dash .......................21, 26
AM/FM .......................................19
Compass, electronic ....................45
calibration .................................46
set zone adjustment .................46
Console
overhead ....................................44
Controls
power seat .................................59
Coolant
checking and adding ..............206
refill capacities ................210, 230
specifications ..................234, 237
Cruise control
(see Speed control) ....................49
Customer Assistance ................156
Ford Extended Service
Plan ..........................................188
Getting assistance outside the
U.S. and Canada .....................189
Getting roadside assistance ...156
Getting the service you
need .........................................182
Ordering additional owner’s
literature .................................190
The Dispute Settlement
Board .......................................185
Utilizing the
Mediation/Arbitration
Program ...................................188
D
Daytime running lamps
(see Lamps) ................................34Dipstick
automatic transmission
fluid ..........................................224
engine oil .................................200
Doors
lubricant specifications ..........234
Driveline universal joint and
slip yoke ....................................224
Driving under special
conditions
through water .........................155
E
Emergencies, roadside
jump-starting ..........................176
Emergency Flashers .................157
Emission control system ..........220
Engine ........................................237
cleaning ...................................192
coolant .....................................206
diesel ...........................................7
fail-safe cooling .......................211
idle speed control ...................203
lubrication
specifications ..................234, 237
refill capacities ........................230
service points ..........................199
starting after a collision .........158
Engine block heater .................138
Engine oil ..................................200
change oil soon warning,
message center .......................200
checking and adding ..............200
dipstick ....................................200
filter, specifications ........202, 228
recommendations ...................202
refill capacities ........................230
specifications ..................234, 237
Exhaust fumes ..........................138
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
244

F
Fail safe cooling ........................211
Fluid capacities .........................230
Four-Wheel Drive vehicles
preparing to drive your
vehicle .....................................141
Fuel ............................................212
calculating fuel economy .......217
cap ...........................................214
capacity ...................................230
choosing the right fuel ...........215
comparisons with EPA fuel
economy estimates .................220
detergent in fuel .....................216
filling your vehicle with
fuel ...........................212, 214, 217
filter, specifications ........217, 228
fuel pump shut-off switch .....158
improving fuel economy ........217
octane rating ...................215, 237
quality ......................................216
running out of fuel .................216
safety information relating to
automotive fuels .....................212
Fuses ..................................159–160
G
Garage door opener ....................45
Gas cap (see Fuel cap) ............214
Gas mileage
(see Fuel economy) .................217
Gauges .........................................16
H
Hazard flashers .........................157
Headlamps ...................................33
bulb specifications ....................38daytime running lights .............34
flash to pass ..............................34
high beam .................................34
replacing bulbs ...................39–40
turning on and off ....................33
Heating
heater only system .............30, 32
heating and air conditioning
system .......................................31
Hood ..........................................198
I
Ignition ...............................135, 237
Infant seats (see Safety seats) ..87
Inspection/maintenance (I/M)
testing ........................................222
Instrument panel
cleaning ...................................194
cluster ........................................12
lighting up panel and
interior .......................................35
J
Jump-starting your vehicle ......176
K
Keys
positions of the ignition .........135
L
Lamps
bulb replacement
specifications chart ..................38
daytime running light ...............34
headlamps .................................33
headlamps, flash to pass ..........34
instrument panel, dimming .....35
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
245

Spare tire
(see Changing the Tire) ...........169
Spark plugs,
specifications .....................228, 237
Special notice ................................8
ambulance conversions ..............7
diesel-powered vehicles .............7
utility-type vehicles ....................7
Specification chart,
lubricants ...........................234, 237
Speed control ..............................49
Starting your
vehicle ........................135–136, 138
jump starting ..........................176
Steering wheel
tilting .........................................44
T
Temperature control
(see Climate control) ...........30, 32
Tilt steering wheel ......................44
Tires ...................................101–102
alignment ................................114
care ..........................................112
changing ..........................169–170
checking the pressure ............104
inspecting and inflating .........103
label .........................................112
replacing ..........................107, 171
rotating ....................................115
safety practices .......................113
sidewall information ...............108
snow tires and chains ............116
spare tire .................................168
terminology .............................102
tire grades ...............................102treadwear ........................101, 112
Towing .......................................123
recreational towing .................134
trailer towing ..........................123
wrecker ....................................181
Traction-lok rear axle ...............141
Transmission .............................146
brake-shift interlock (BSI) ....146
fluid, checking and adding
(automatic) .............................224
fluid, refill capacities ..............230
lubricant specifications ..234, 237
Turn signal ..................................37
V
Vehicle dimensions ...................237
Vehicle Identification Number
(VIN) ..........................................239
Vehicle loading ..........................116
Ventilating your vehicle ...........138
W
Warning lights (see Lights) .......12
Washer fluid ..............................200
Water, Driving through .............155
Windows
power .........................................47
Windshield washer fluid and
wipers ..........................................43
checking and adding fluid .....200
replacing wiper blades .............43
Wrecker towing .........................181
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
247
