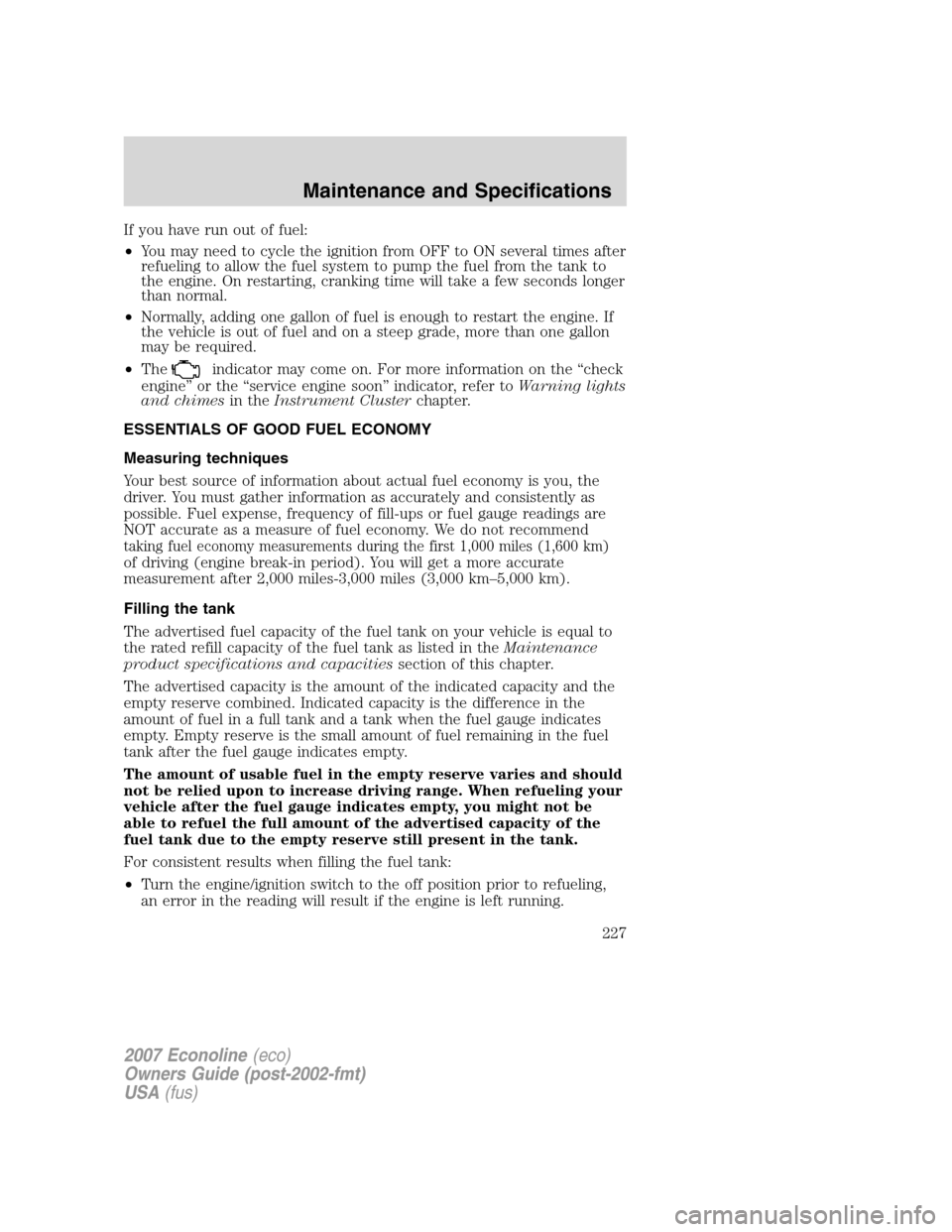

If you have run out of fuel:
•You may need to cycle the ignition from OFF to ON several times after
refueling to allow the fuel system to pump the fuel from the tank to
the engine. On restarting, cranking time will take a few seconds longer
than normal.
•Normally, adding one gallon of fuel is enough to restart the engine. If
the vehicle is out of fuel and on a steep grade, more than one gallon
may be required.
•The
indicator may come on. For more information on the “check
engine” or the “service engine soon” indicator, refer toWarning lights
and chimesin theInstrument Clusterchapter.
ESSENTIALS OF GOOD FUEL ECONOMY
Measuring techniques
Your best source of information about actual fuel economy is you, the
driver. You must gather information as accurately and consistently as
possible. Fuel expense, frequency of fill-ups or fuel gauge readings are
NOT accurate as a measure of fuel economy. We do not recommend
taking fuel economy measurements during the first 1,000 miles (1,600 km)
of driving (engine break-in period). You will get a more accurate
measurement after 2,000 miles-3,000 miles (3,000 km–5,000 km).
Filling the tank
The advertised fuel capacity of the fuel tank on your vehicle is equal to
the rated refill capacity of the fuel tank as listed in theMaintenance
product specifications and capacitiessection of this chapter.
The advertised capacity is the amount of the indicated capacity and the
empty reserve combined. Indicated capacity is the difference in the
amount of fuel in a full tank and a tank when the fuel gauge indicates
empty. Empty reserve is the small amount of fuel remaining in the fuel
tank after the fuel gauge indicates empty.
The amount of usable fuel in the empty reserve varies and should
not be relied upon to increase driving range. When refueling your
vehicle after the fuel gauge indicates empty, you might not be
able to refuel the full amount of the advertised capacity of the
fuel tank due to the empty reserve still present in the tank.
For consistent results when filling the fuel tank:
•Turn the engine/ignition switch to the off position prior to refueling,
an error in the reading will result if the engine is left running.
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
227

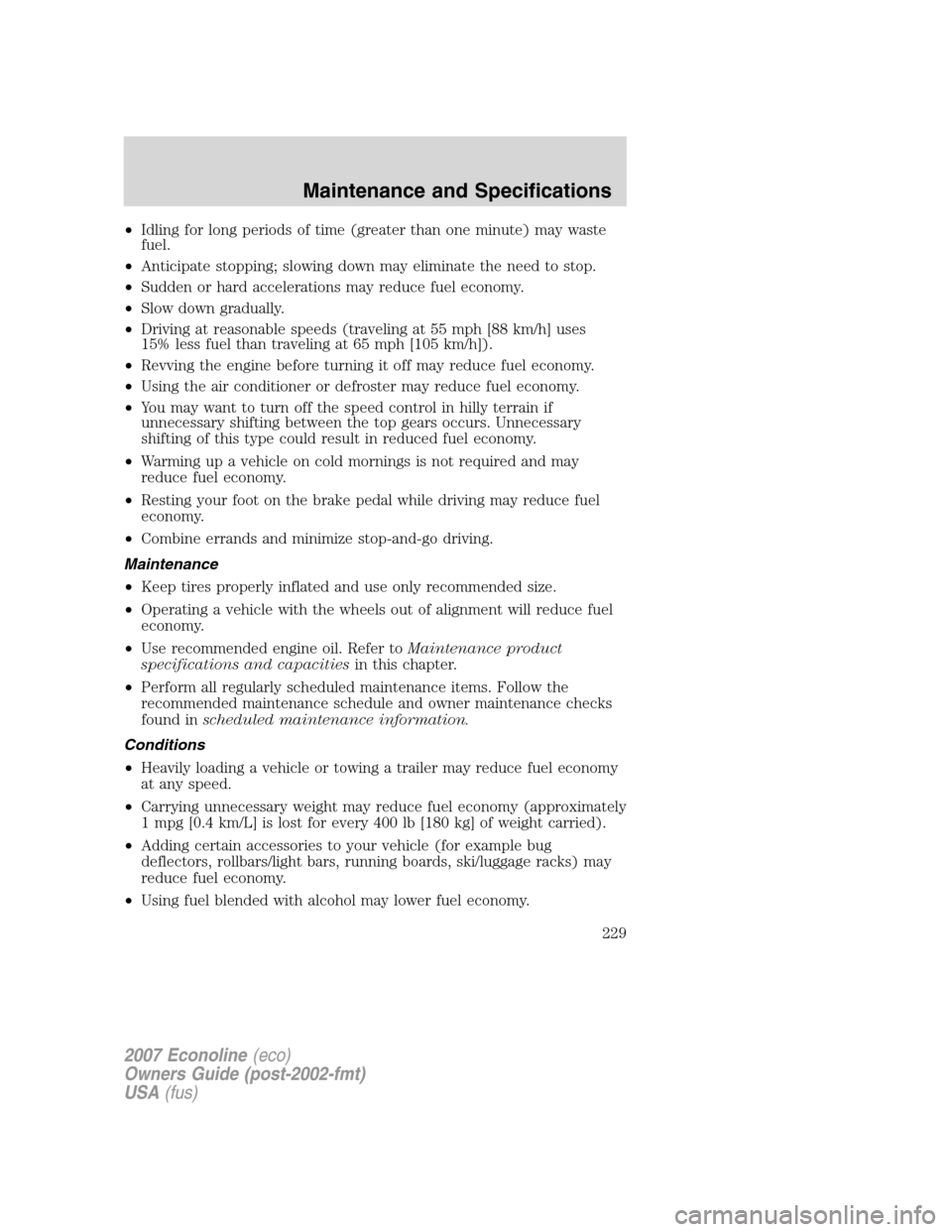

•Idling for long periods of time (greater than one minute) may waste
fuel.
•Anticipate stopping; slowing down may eliminate the need to stop.
•Sudden or hard accelerations may reduce fuel economy.
•Slow down gradually.
•Driving at reasonable speeds (traveling at 55 mph [88 km/h] uses
15% less fuel than traveling at 65 mph [105 km/h]).
•Revving the engine before turning it off may reduce fuel economy.
•Using the air conditioner or defroster may reduce fuel economy.
•You may want to turn off the speed control in hilly terrain if
unnecessary shifting between the top gears occurs. Unnecessary
shifting of this type could result in reduced fuel economy.
•Warming up a vehicle on cold mornings is not required and may
reduce fuel economy.
•Resting your foot on the brake pedal while driving may reduce fuel
economy.
•Combine errands and minimize stop-and-go driving.
Maintenance
•Keep tires properly inflated and use only recommended size.
•Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
•Use recommended engine oil. Refer toMaintenance product
specifications and capacitiesin this chapter.
•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found inscheduled maintenance information.
Conditions
•Heavily loading a vehicle or towing a trailer may reduce fuel economy
at any speed.
•Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 400 lb [180 kg] of weight carried).
•Adding certain accessories to your vehicle (for example bug
deflectors, rollbars/light bars, running boards, ski/luggage racks) may
reduce fuel economy.
•Using fuel blended with alcohol may lower fuel economy.
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
229

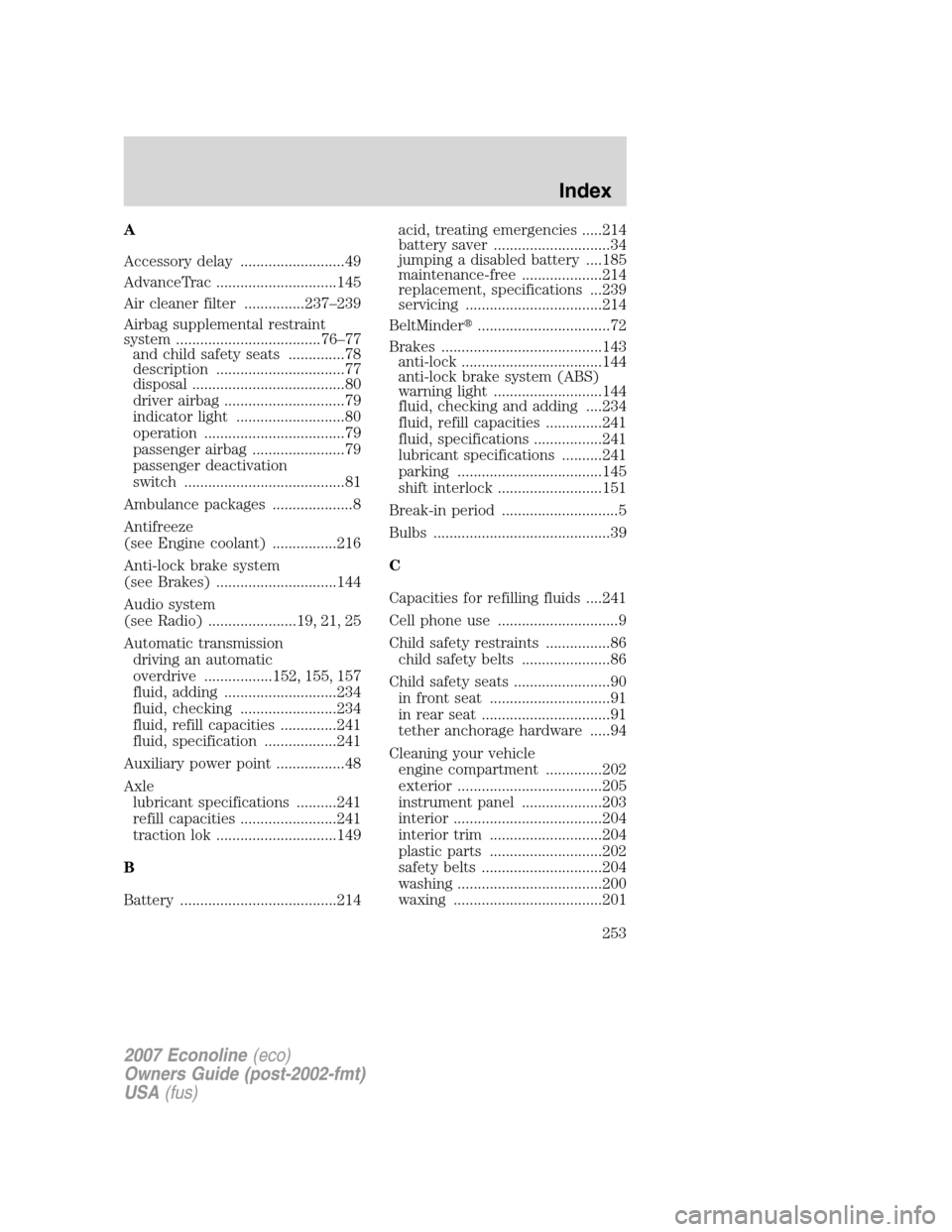

A
Accessory delay ..........................49
AdvanceTrac ..............................145
Air cleaner filter ...............237–239
Airbag supplemental restraint
system ....................................76–77
and child safety seats ..............78
description ................................77
disposal ......................................80
driver airbag ..............................79
indicator light ...........................80
operation ...................................79
passenger airbag .......................79
passenger deactivation
switch ........................................81
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................216
Anti-lock brake system
(see Brakes) ..............................144
Audio system
(see Radio) ......................19, 21, 25
Automatic transmission
driving an automatic
overdrive .................152, 155, 157
fluid, adding ............................234
fluid, checking ........................234
fluid, refill capacities ..............241
fluid, specification ..................241
Auxiliary power point .................48
Axle
lubricant specifications ..........241
refill capacities ........................241
traction lok ..............................149
B
Battery .......................................214acid, treating emergencies .....214
battery saver .............................34
jumping a disabled battery ....185
maintenance-free ....................214
replacement, specifications ...239
servicing ..................................214
BeltMinder
.................................72
Brakes ........................................143
anti-lock ...................................144
anti-lock brake system (ABS)
warning light ...........................144
fluid, checking and adding ....234
fluid, refill capacities ..............241
fluid, specifications .................241
lubricant specifications ..........241
parking ....................................145
shift interlock ..........................151
Break-in period .............................5
Bulbs ............................................39
C
Capacities for refilling fluids ....241
Cell phone use ..............................9
Child safety restraints ................86
child safety belts ......................86
Child safety seats ........................90
in front seat ..............................91
in rear seat ................................91
tether anchorage hardware .....94
Cleaning your vehicle
engine compartment ..............202
exterior ....................................205
instrument panel ....................203
interior .....................................204
interior trim ............................204
plastic parts ............................202
safety belts ..............................204
washing ....................................200
waxing .....................................201
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
253

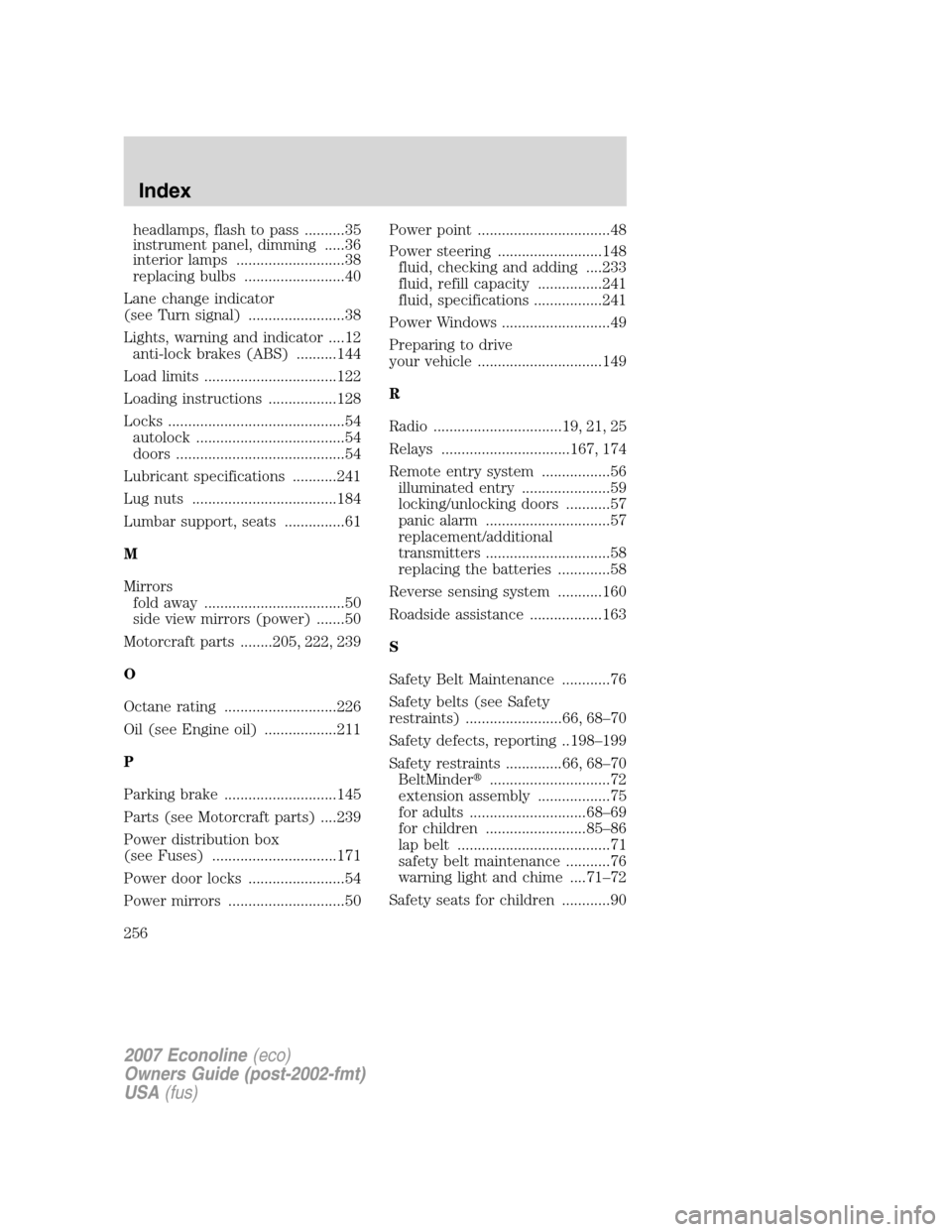

headlamps, flash to pass ..........35
instrument panel, dimming .....36
interior lamps ...........................38
replacing bulbs .........................40
Lane change indicator
(see Turn signal) ........................38
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........144
Load limits .................................122
Loading instructions .................128
Locks ............................................54
autolock .....................................54
doors ..........................................54
Lubricant specifications ...........241
Lug nuts ....................................184
Lumbar support, seats ...............61
M
Mirrors
fold away ...................................50
side view mirrors (power) .......50
Motorcraft parts ........205, 222, 239
O
Octane rating ............................226
Oil (see Engine oil) ..................211
P
Parking brake ............................145
Parts (see Motorcraft parts) ....239
Power distribution box
(see Fuses) ...............................171
Power door locks ........................54
Power mirrors .............................50Power point .................................48
Power steering ..........................148
fluid, checking and adding ....233
fluid, refill capacity ................241
fluid, specifications .................241
Power Windows ...........................49
Preparing to drive
your vehicle ...............................149
R
Radio ................................19, 21, 25
Relays ................................167, 174
Remote entry system .................56
illuminated entry ......................59
locking/unlocking doors ...........57
panic alarm ...............................57
replacement/additional
transmitters ...............................58
replacing the batteries .............58
Reverse sensing system ...........160
Roadside assistance ..................163
S
Safety Belt Maintenance ............76
Safety belts (see Safety
restraints) ........................66, 68–70
Safety defects, reporting ..198–199
Safety restraints ..............66, 68–70
BeltMinder
..............................72
extension assembly ..................75
for adults .............................68–69
for children .........................85–86
lap belt ......................................71
safety belt maintenance ...........76
warning light and chime ....71–72
Safety seats for children ............90
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
256
