The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
1 5A 4–Wheel Anti–lock Brake System
(4WABS) module
2 10A Remote Keyless Entry (RKE),
O/D cancel, IVD module
3 15A Trip computer, Radio, Overhead
console
4 15A Courtesy lamps
5 30A Power lock switches, Power locks
without RKE
6 10A Brake-shift interlock, Daytime
Running Lamps (DRL) module
7 10A Multi-function switch, Turn signals
1234
5
7
689101142
43
44 13 12 14
15 16 17
19 18
2021 22 23
25 24
26 27 28 29
31 30 32 33 3435
37
3638 3940
41
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
169

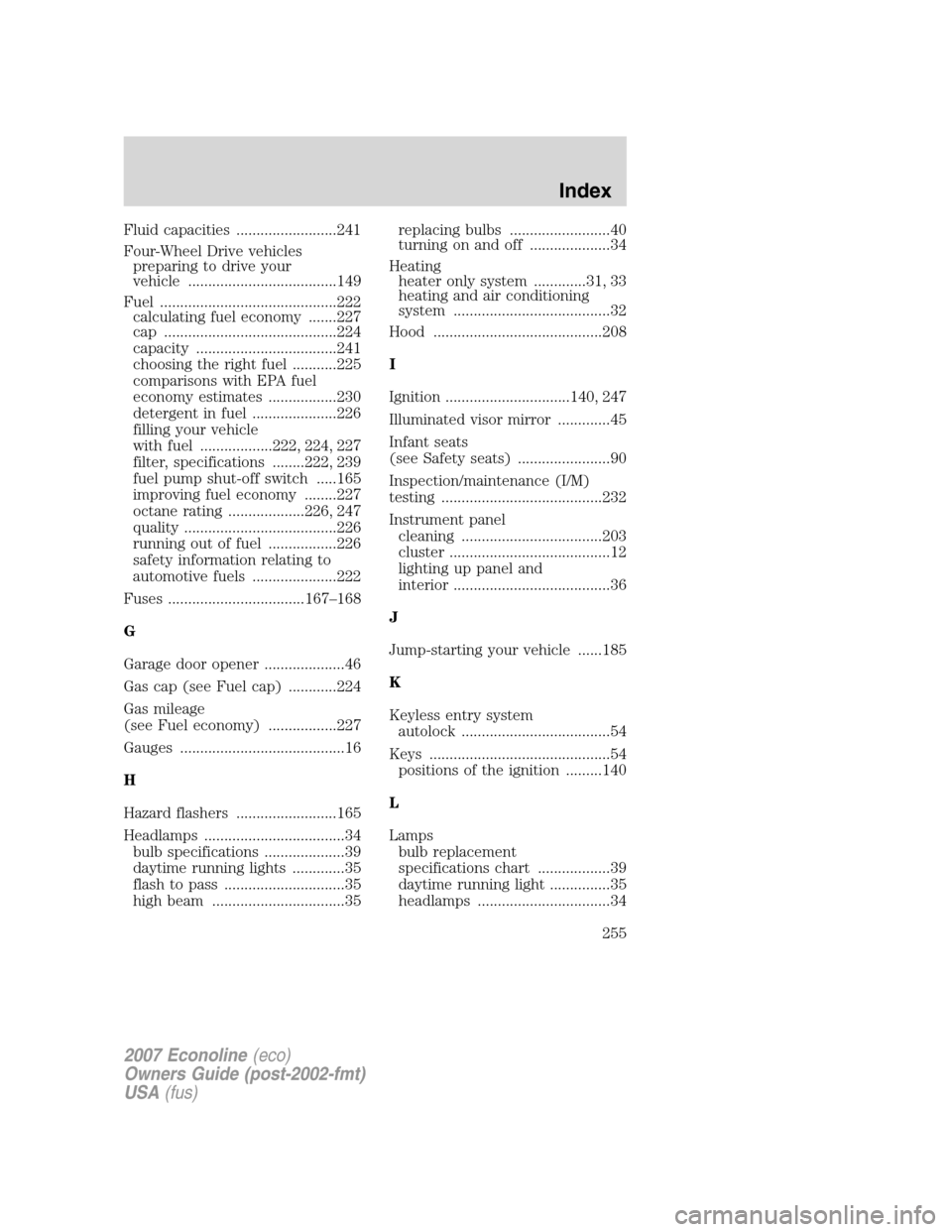

Fluid capacities .........................241
Four-Wheel Drive vehicles
preparing to drive your
vehicle .....................................149
Fuel ............................................222
calculating fuel economy .......227
cap ...........................................224
capacity ...................................241
choosing the right fuel ...........225
comparisons with EPA fuel
economy estimates .................230
detergent in fuel .....................226
filling your vehicle
with fuel ..................222, 224, 227
filter, specifications ........222, 239
fuel pump shut-off switch .....165
improving fuel economy ........227
octane rating ...................226, 247
quality ......................................226
running out of fuel .................226
safety information relating to
automotive fuels .....................222
Fuses ..................................167–168
G
Garage door opener ....................46
Gas cap (see Fuel cap) ............224
Gas mileage
(see Fuel economy) .................227
Gauges .........................................16
H
Hazard flashers .........................165
Headlamps ...................................34
bulb specifications ....................39
daytime running lights .............35
flash to pass ..............................35
high beam .................................35replacing bulbs .........................40
turning on and off ....................34
Heating
heater only system .............31, 33
heating and air conditioning
system .......................................32
Hood ..........................................208
I
Ignition ...............................140, 247
Illuminated visor mirror .............45
Infant seats
(see Safety seats) .......................90
Inspection/maintenance (I/M)
testing ........................................232
Instrument panel
cleaning ...................................203
cluster ........................................12
lighting up panel and
interior .......................................36
J
Jump-starting your vehicle ......185
K
Keyless entry system
autolock .....................................54
Keys .............................................54
positions of the ignition .........140
L
Lamps
bulb replacement
specifications chart ..................39
daytime running light ...............35
headlamps .................................34
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
255
