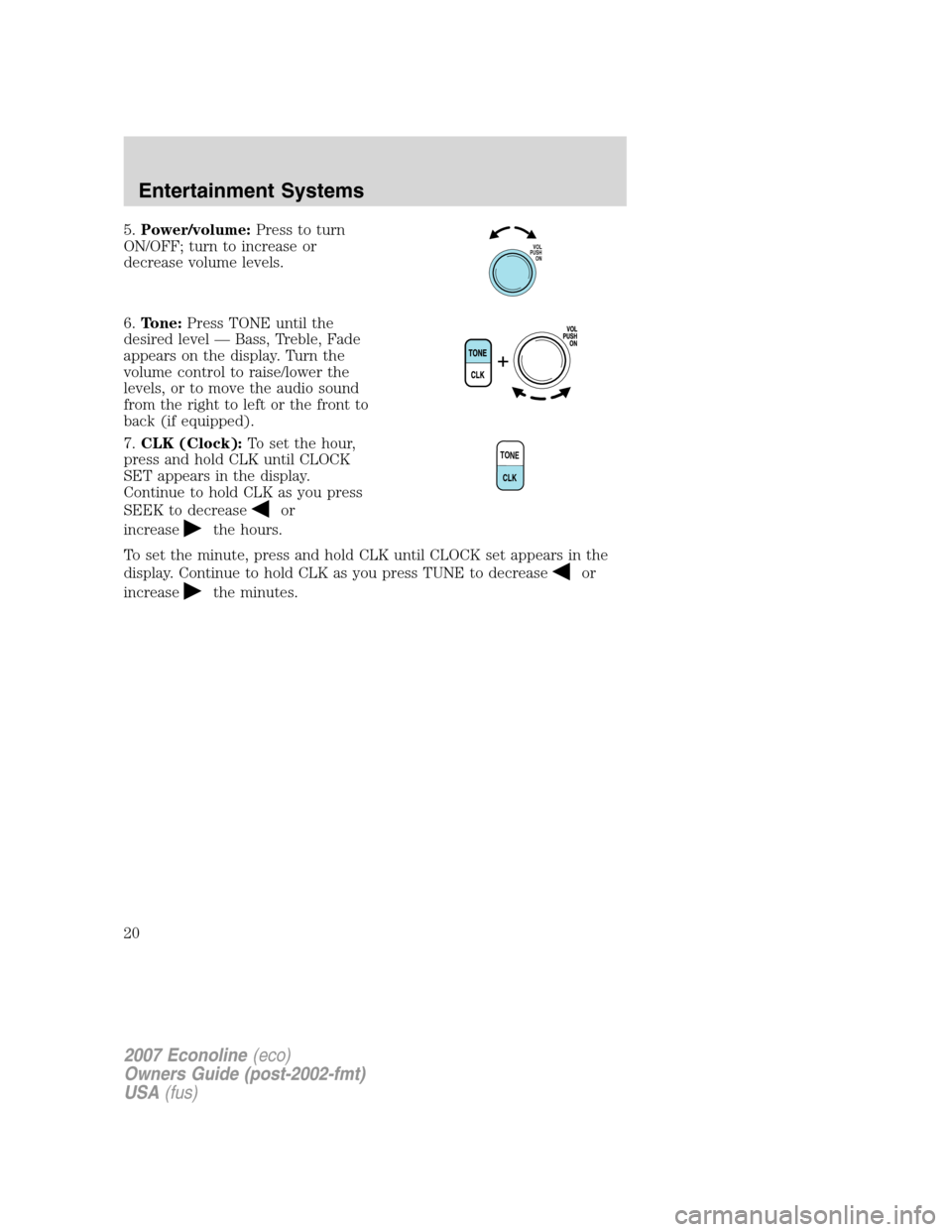

5.Power/volume:Press to turn
ON/OFF; turn to increase or
decrease volume levels.
6.Tone:Press TONE until the
desired level — Bass, Treble, Fade
appears on the display. Turn the
volume control to raise/lower the
levels, or to move the audio sound
from the right to left or the front to
back (if equipped).
7.CLK (Clock):To set the hour,
press and hold CLK until CLOCK
SET appears in the display.
Continue to hold CLK as you press
SEEK to decrease
or
increase
the hours.
To set the minute, press and hold CLK until CLOCK set appears in the
display. Continue to hold CLK as you press TUNE to decrease
or
increase
the minutes.
VOL
PUSH
ON
TONE
CLK
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
20

3.AUX:This function is not
operational.
4.MUTE:Press to MUTE playing
media; press again to return to
playing media.
5.EJ:Press to eject a CD.
6.Bass:Press BASS; then press
SEL
/to decrease/increase
the bass output.
Treble:Press TREB; then press
SEL
/to decrease/increase
the treble output.
7.Select:Use with Bass, Treble,
Balance, Fade and other menu
selections.
8.Balance:Press BAL; then press
SEL
/to shift sound to the
left/right speakers.
Fade:Press FADE; then press
SEL
/to shift sound to the
rear/front speakers.
9.Menu:Press MENU and SEL to
access/adjust the following
functions:
Autoset:Press MENU until AUTOSET appears in the display. Press SEL
to toggle ON/OFF. Allows you to set the strongest local radio stations
without losing your original manually set preset stations for
AM/FM1/FM2. When the six strongest stations are filled, the station
stored in preset 1 will begin playing. If there are less than six strong
stations, the system will store the last one in the remaining presets.
Setting the clock:Press MENU until SELECT HOUR or SELECT
MINUTE is displayed. Use SEL to manually increase (
) or decrease
(
) the hours/minutes. Press MENU again to disengage clock mode.
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
22

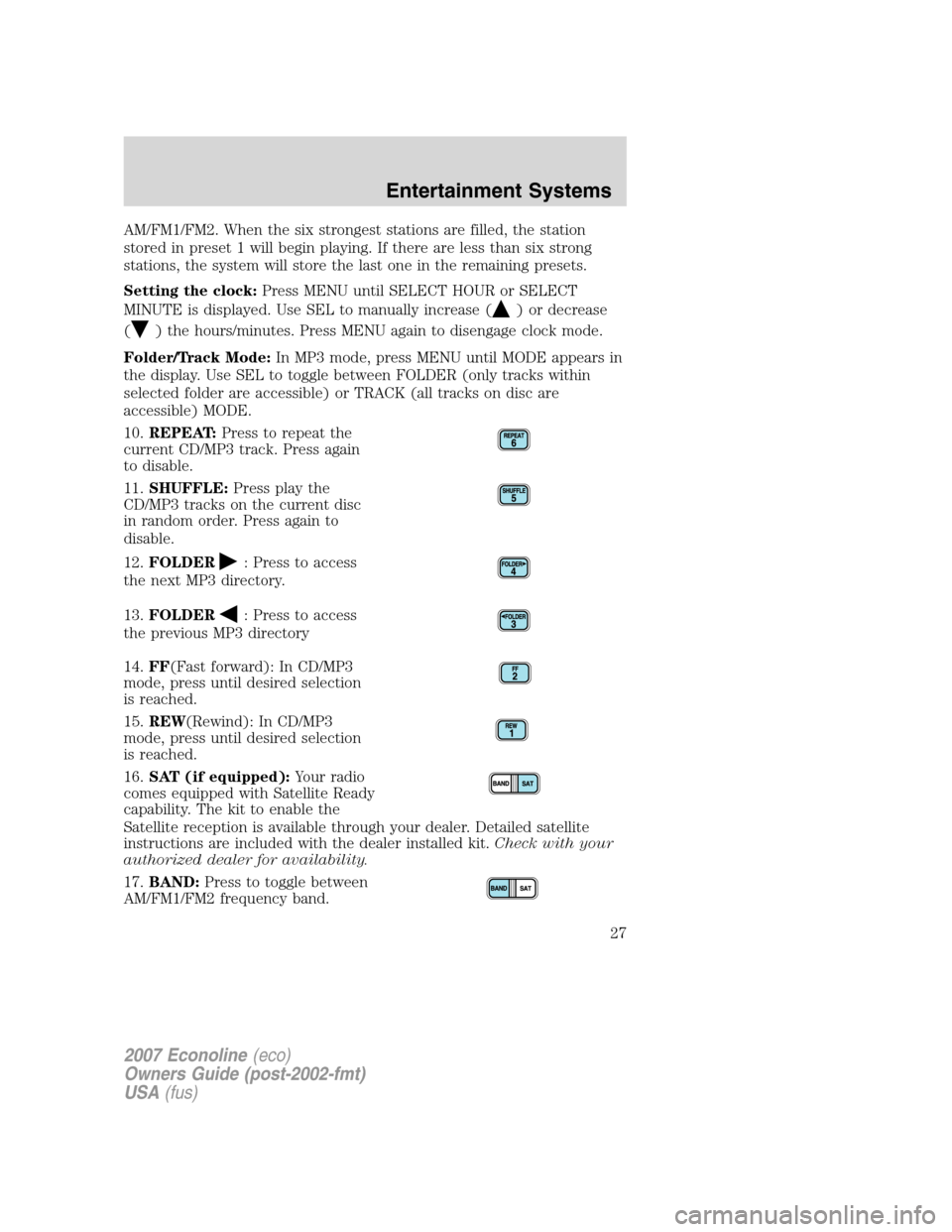

AM/FM1/FM2. When the six strongest stations are filled, the station
stored in preset 1 will begin playing. If there are less than six strong
stations, the system will store the last one in the remaining presets.
Setting the clock:Press MENU until SELECT HOUR or SELECT
MINUTE is displayed. Use SEL to manually increase (
) or decrease
(
) the hours/minutes. Press MENU again to disengage clock mode.
Folder/Track Mode:In MP3 mode, press MENU until MODE appears in
the display. Use SEL to toggle between FOLDER (only tracks within
selected folder are accessible) or TRACK (all tracks on disc are
accessible) MODE.
10.REPEAT:Press to repeat the
current CD/MP3 track. Press again
to disable.
11.SHUFFLE:Press play the
CD/MP3 tracks on the current disc
in random order. Press again to
disable.
12.FOLDER
: Press to access
the next MP3 directory.
13.FOLDER
: Press to access
the previous MP3 directory
14.FF(Fast forward): In CD/MP3
mode, press until desired selection
is reached.
15.REW(Rewind): In CD/MP3
mode, press until desired selection
is reached.
16.SAT (if equipped):Your radio
comes equipped with Satellite Ready
capability. The kit to enable the
Satellite reception is available through your dealer. Detailed satellite
instructions are included with the dealer installed kit.Check with your
authorized dealer for availability.
17.BAND:Press to toggle between
AM/FM1/FM2 frequency band.
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
27

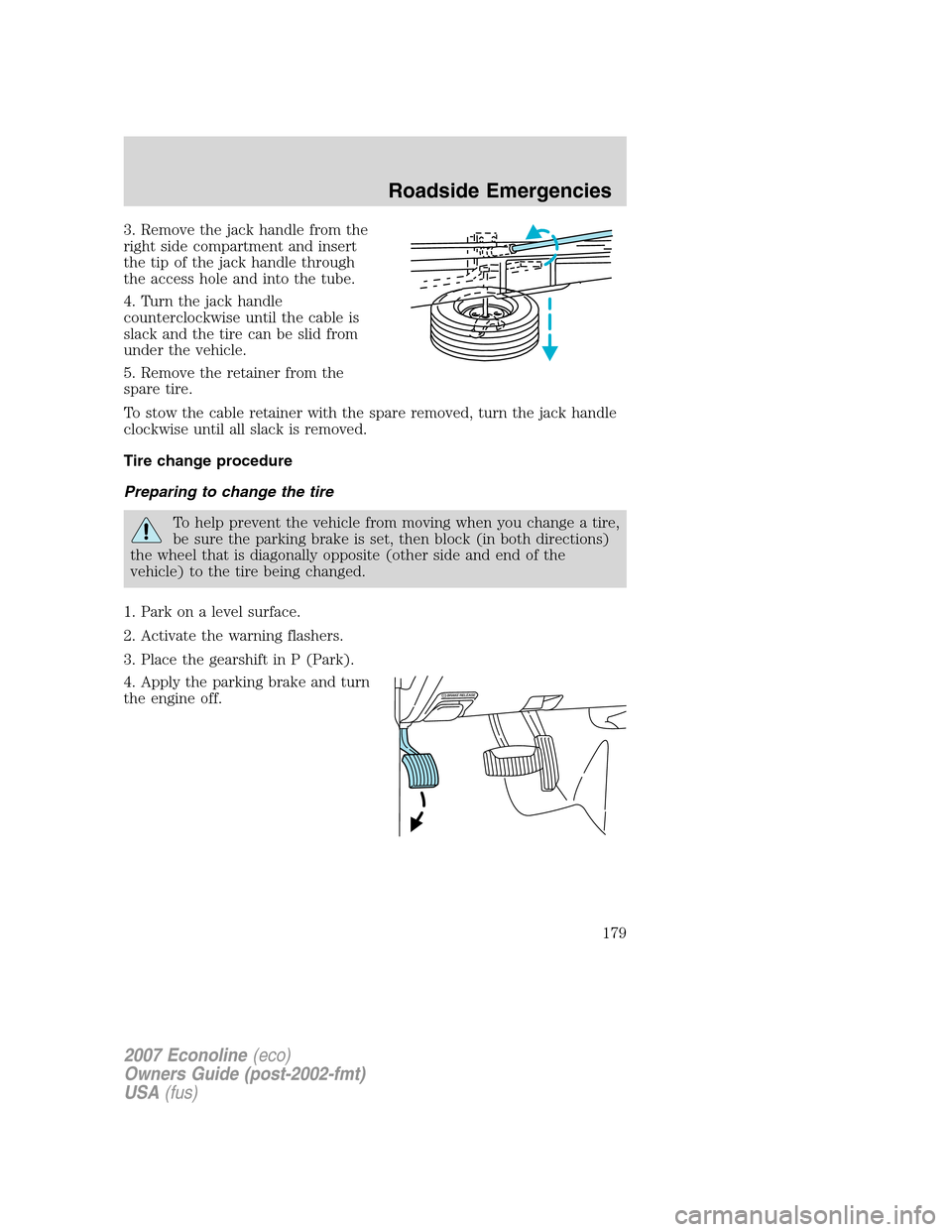

3. Remove the jack handle from the
right side compartment and insert
the tip of the jack handle through
the access hole and into the tube.
4. Turn the jack handle
counterclockwise until the cable is
slack and the tire can be slid from
under the vehicle.
5. Remove the retainer from the
spare tire.
To stow the cable retainer with the spare removed, turn the jack handle
clockwise until all slack is removed.
Tire change procedure
Preparing to change the tire
To help prevent the vehicle from moving when you change a tire,
be sure the parking brake is set, then block (in both directions)
the wheel that is diagonally opposite (other side and end of the
vehicle) to the tire being changed.
1. Park on a level surface.
2. Activate the warning flashers.
3. Place the gearshift in P (Park).
4. Apply the parking brake and turn
the engine off.
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
179

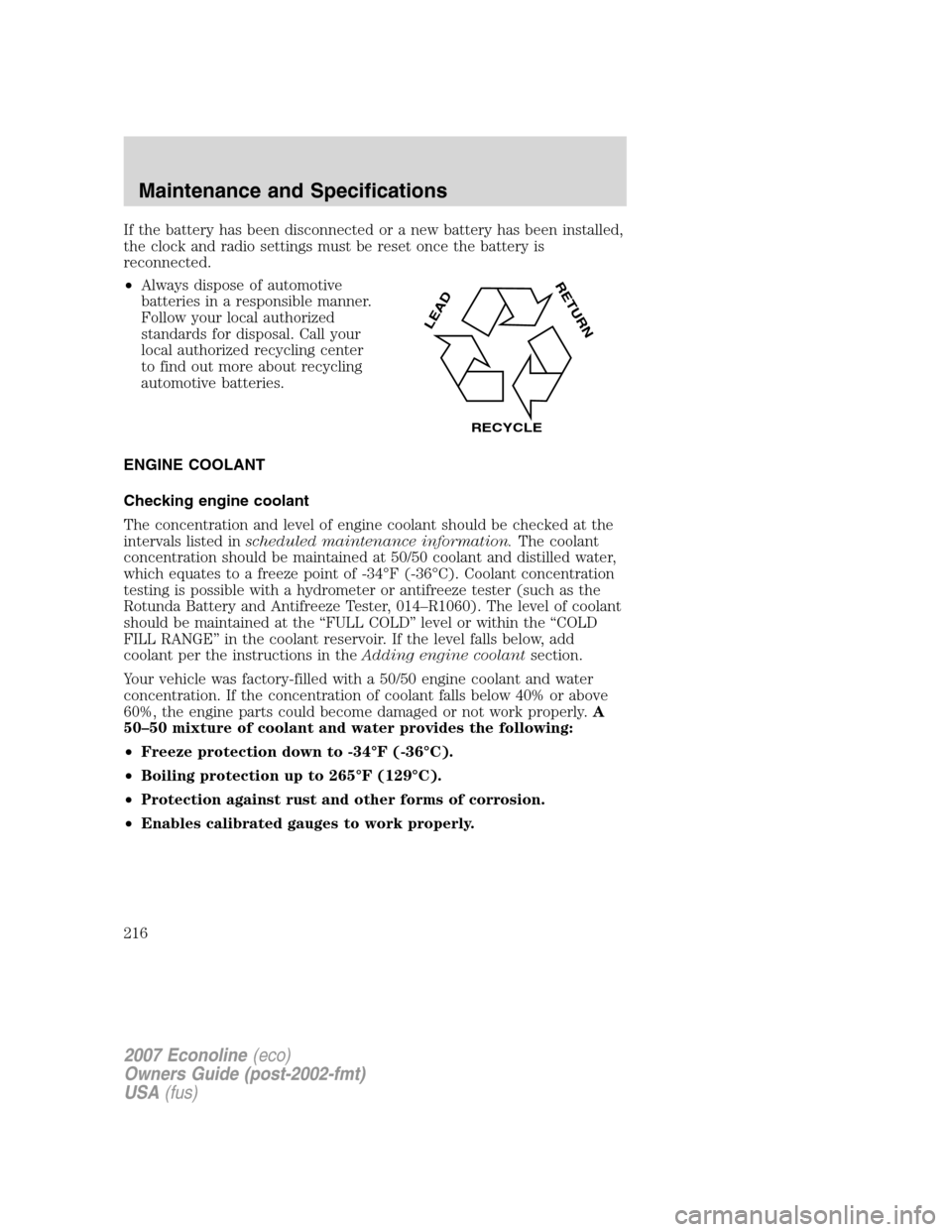

If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should be checked at the
intervals listed inscheduled maintenance information.The coolant
concentration should be maintained at 50/50 coolant and distilled water,
which equates to a freeze point of -34°F (-36°C). Coolant concentration
testing is possible with a hydrometer or antifreeze tester (such as the
Rotunda Battery and Antifreeze Tester, 014–R1060). The level of coolant
should be maintained at the “FULL COLD” level or within the “COLD
FILL RANGE” in the coolant reservoir. If the level falls below, add
coolant per the instructions in theAdding engine coolantsection.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50–50 mixture of coolant and water provides the following:
•Freeze protection down to -34°F (-36°C).
•Boiling protection up to 265°F (129°C).
•Protection against rust and other forms of corrosion.
•Enables calibrated gauges to work properly.
L
E
A
D
RETURN
RECYCLE
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
216

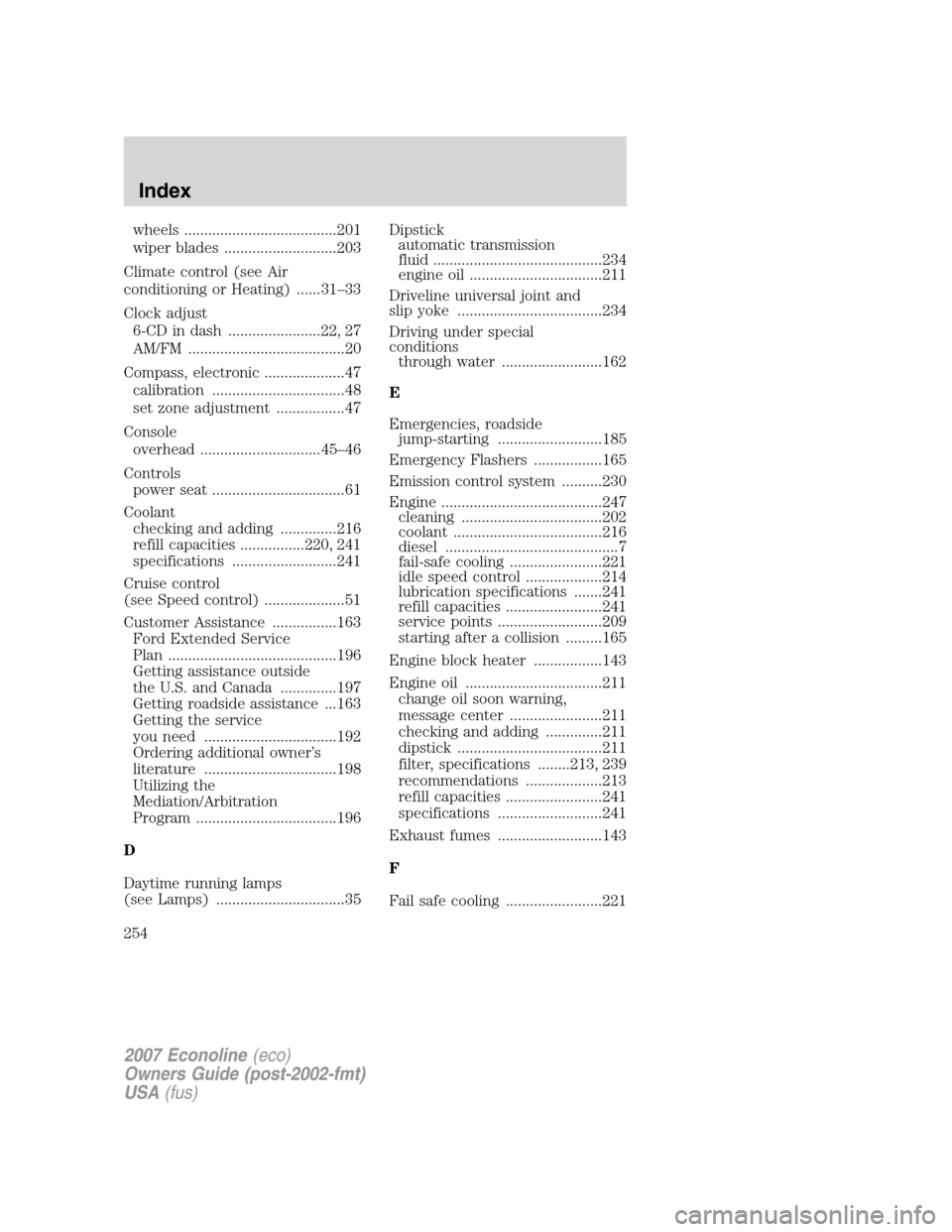

wheels ......................................201
wiper blades ............................203
Climate control (see Air
conditioning or Heating) ......31–33
Clock adjust
6-CD in dash .......................22, 27
AM/FM .......................................20
Compass, electronic ....................47
calibration .................................48
set zone adjustment .................47
Console
overhead ..............................45–46
Controls
power seat .................................61
Coolant
checking and adding ..............216
refill capacities ................220, 241
specifications ..........................241
Cruise control
(see Speed control) ....................51
Customer Assistance ................163
Ford Extended Service
Plan ..........................................196
Getting assistance outside
the U.S. and Canada ..............197
Getting roadside assistance ...163
Getting the service
you need .................................192
Ordering additional owner’s
literature .................................198
Utilizing the
Mediation/Arbitration
Program ...................................196
D
Daytime running lamps
(see Lamps) ................................35Dipstick
automatic transmission
fluid ..........................................234
engine oil .................................211
Driveline universal joint and
slip yoke ....................................234
Driving under special
conditions
through water .........................162
E
Emergencies, roadside
jump-starting ..........................185
Emergency Flashers .................165
Emission control system ..........230
Engine ........................................247
cleaning ...................................202
coolant .....................................216
diesel ...........................................7
fail-safe cooling .......................221
idle speed control ...................214
lubrication specifications .......241
refill capacities ........................241
service points ..........................209
starting after a collision .........165
Engine block heater .................143
Engine oil ..................................211
change oil soon warning,
message center .......................211
checking and adding ..............211
dipstick ....................................211
filter, specifications ........213, 239
recommendations ...................213
refill capacities ........................241
specifications ..........................241
Exhaust fumes ..........................143
F
Fail safe cooling ........................221
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
254

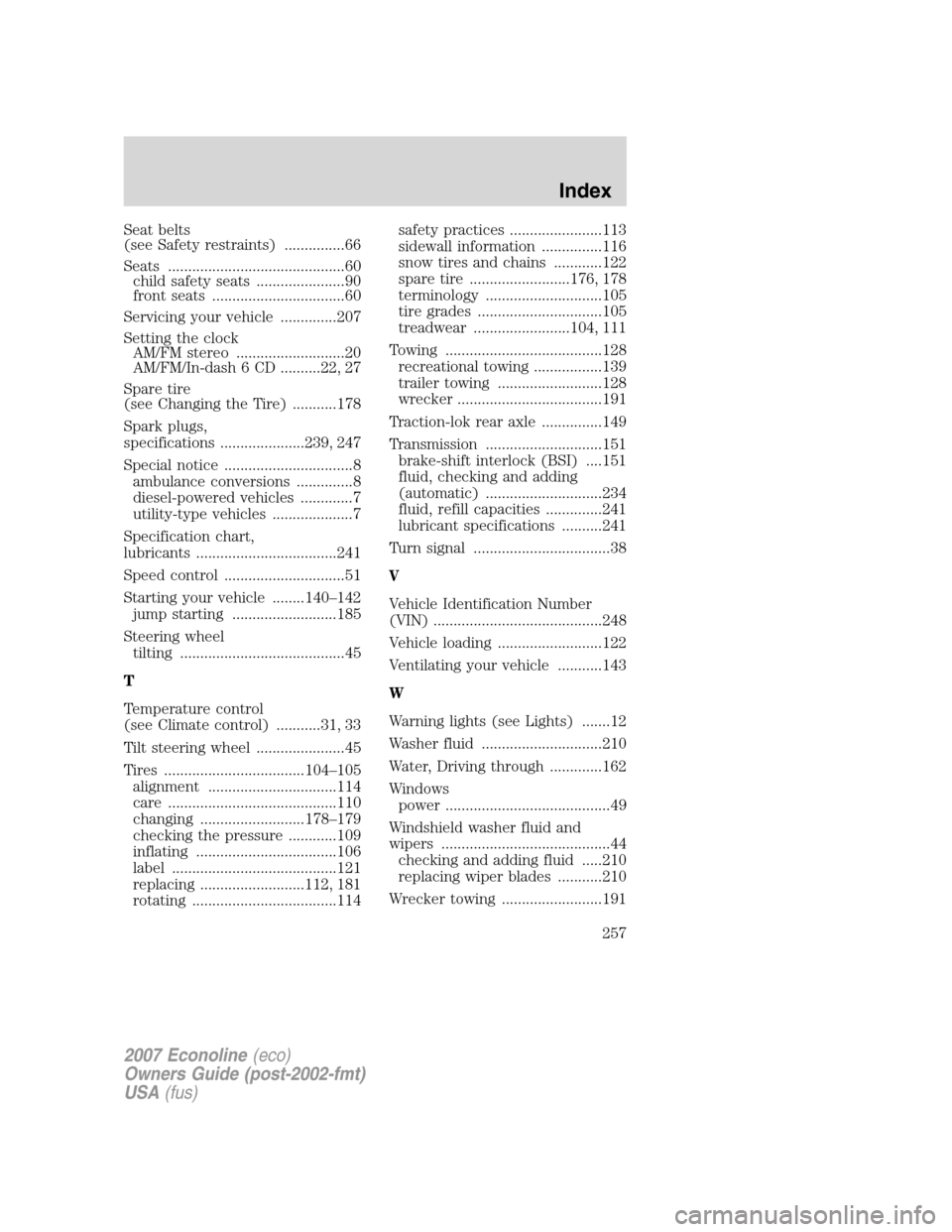

Seat belts
(see Safety restraints) ...............66
Seats ............................................60
child safety seats ......................90
front seats .................................60
Servicing your vehicle ..............207
Setting the clock
AM/FM stereo ...........................20
AM/FM/In-dash 6 CD ..........22, 27
Spare tire
(see Changing the Tire) ...........178
Spark plugs,
specifications .....................239, 247
Special notice ................................8
ambulance conversions ..............8
diesel-powered vehicles .............7
utility-type vehicles ....................7
Specification chart,
lubricants ...................................241
Speed control ..............................51
Starting your vehicle ........140–142
jump starting ..........................185
Steering wheel
tilting .........................................45
T
Temperature control
(see Climate control) ...........31, 33
Tilt steering wheel ......................45
Tires ...................................104–105
alignment ................................114
care ..........................................110
changing ..........................178–179
checking the pressure ............109
inflating ...................................106
label .........................................121
replacing ..........................112, 181
rotating ....................................114safety practices .......................113
sidewall information ...............116
snow tires and chains ............122
spare tire .........................176, 178
terminology .............................105
tire grades ...............................105
treadwear ........................104, 111
Towing .......................................128
recreational towing .................139
trailer towing ..........................128
wrecker ....................................191
Traction-lok rear axle ...............149
Transmission .............................151
brake-shift interlock (BSI) ....151
fluid, checking and adding
(automatic) .............................234
fluid, refill capacities ..............241
lubricant specifications ..........241
Turn signal ..................................38
V
Vehicle Identification Number
(VIN) ..........................................248
Vehicle loading ..........................122
Ventilating your vehicle ...........143
W
Warning lights (see Lights) .......12
Washer fluid ..............................210
Water, Driving through .............162
Windows
power .........................................49
Windshield washer fluid and
wipers ..........................................44
checking and adding fluid .....210
replacing wiper blades ...........210
Wrecker towing .........................191
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
257
