snow chains FORD E SERIES 2008 4.G Owners Manual

Rotation, pressure adjustment
and successful completion of the
TPMS reset procedure
Sensor 1: 80 psi
Sensor 2: 80 psi
Sensor 3: 50 psi
Sensor 4: 50 psi
Tire rotation and air pressure
adjustment followed by sensor
resetting will ensure the system is properly programmed for vehicles
with different front and rear tire pressures and reduce the risk of a false
low tire warning.
In this situation, the TPMS warning light will be off.
SNOW TIRES AND CHAINS
Snow tires must be the same size and grade as the tires you
currently have on your vehicle.
The tires on your vehicle have all weather treads to provide traction in
rain and snow. However, in some climates, you may need to use snow
tires and chains. If you need to use chains, it is recommended that steel
wheels (of the same size and specifications) be used, as chains may chip
aluminum wheels.
Follow these guidelines when using snow tires and chains:
•Use only SAE Class S chains.
•Install chains securely, verifying that the chains do not touch any
wiring, brake lines or fuel lines.
•Drive cautiously. If you hear the chains rub or bang against your
vehicle, stop and re-tighten the chains. If this does not work, remove
the chains to prevent damage to your vehicle.
•If possible, avoid fully loading your vehicle.
•Remove the tire chains when they are no longer needed. Do not use
tire chains on dry roads.
•The suspension insulation and bumpers will help prevent vehicle
damage. Do not remove these components from your vehicle when
using snow tires and chains.
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Tires, Wheels and Loading
143

When driving with one of the dissimilar spare tires listed above,do not:
•Exceed 50 mph (80 km/h)
•Load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label
•Tow a trailer
•Use snow chains on the end of the vehicle with the dissimilar spare
tire
•Use more than one dissimilar spare tire at a time
•Use commercial car washing equipment
•Try to repair the dissimilar spare tire
Use of one of the dissimilar spare tires listed above at any one wheel
location can lead to impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
3.Full-size dissimilar spare without label on wheel
When driving with the full-size dissimilar spare tire/wheel,do not:
•Exceed 70 mph (113 km/h)
•Use more than one dissimilar spare tire/wheel at a time
•Use commercial car washing equipment
•Use snow chains on the end of the vehicle with the dissimilar spare
tire/wheel
The usage of a full-size dissimilar spare tire/wheel can lead to
impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
•All-Wheel driving capability (if applicable)
•Load leveling adjustment (if applicable)
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
199

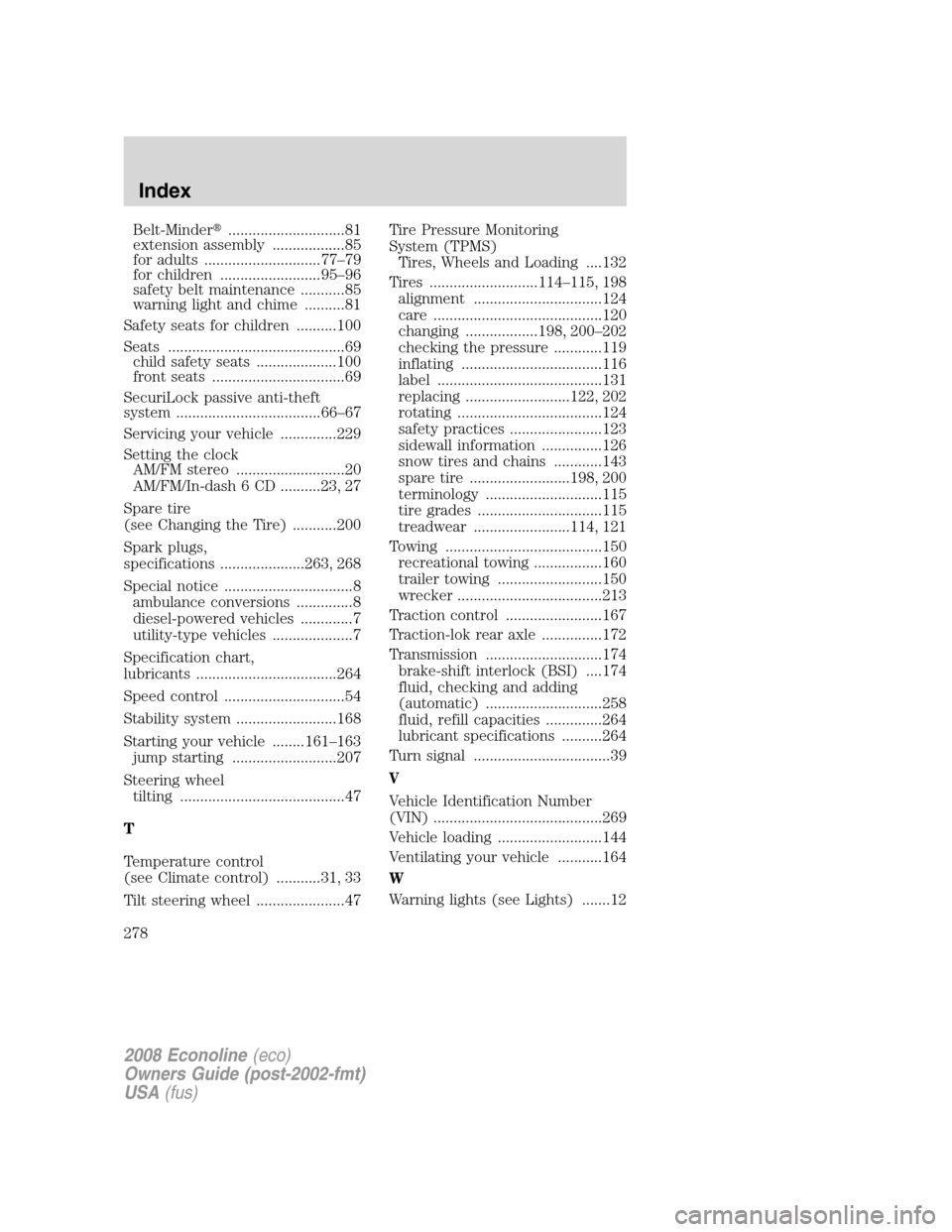

Belt-Minder
.............................81
extension assembly ..................85
for adults .............................77–79
for children .........................95–96
safety belt maintenance ...........85
warning light and chime ..........81
Safety seats for children ..........100
Seats ............................................69
child safety seats ....................100
front seats .................................69
SecuriLock passive anti-theft
system ....................................66–67
Servicing your vehicle ..............229
Setting the clock
AM/FM stereo ...........................20
AM/FM/In-dash 6 CD ..........23, 27
Spare tire
(see Changing the Tire) ...........200
Spark plugs,
specifications .....................263, 268
Special notice ................................8
ambulance conversions ..............8
diesel-powered vehicles .............7
utility-type vehicles ....................7
Specification chart,
lubricants ...................................264
Speed control ..............................54
Stability system .........................168
Starting your vehicle ........161–163
jump starting ..........................207
Steering wheel
tilting .........................................47
T
Temperature control
(see Climate control) ...........31, 33
Tilt steering wheel ......................47Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....132
Tires ...........................114–115, 198
alignment ................................124
care ..........................................120
changing ..................198, 200–202
checking the pressure ............119
inflating ...................................116
label .........................................131
replacing ..........................122, 202
rotating ....................................124
safety practices .......................123
sidewall information ...............126
snow tires and chains ............143
spare tire .........................198, 200
terminology .............................115
tire grades ...............................115
treadwear ........................114, 121
Towing .......................................150
recreational towing .................160
trailer towing ..........................150
wrecker ....................................213
Traction control ........................167
Traction-lok rear axle ...............172
Transmission .............................174
brake-shift interlock (BSI) ....174
fluid, checking and adding
(automatic) .............................258
fluid, refill capacities ..............264
lubricant specifications ..........264
Turn signal ..................................39
V
Vehicle Identification Number
(VIN) ..........................................269
Vehicle loading ..........................144
Ventilating your vehicle ...........164
W
Warning lights (see Lights) .......12
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
278
