These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety BeltAirbag - Front
Airbag - SideChild Seat Lower
Anchor
Child Seat Tether
AnchorBrake System
Anti-Lock Brake SystemParking Brake System
Brake Fluid -
Non-Petroleum BasedParking Aid System
Stability Control SystemSpeed Control
Master Lighting SwitchHazard Warning Flasher
Fog Lamps-FrontFuse Compartment
Fuel Pump ResetWindshield Wash/Wipe
Windshield
Defrost/DemistRear Window
Defrost/Demist
Introduction
12
2010 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
Introduction
13
2010 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

Replacing exterior bulbs
Check the operation of all bulbs frequently.
Replacing headlamp bulbs (aerodynamic)
1. Make sure the headlamp switch is in the off position, then open the
hood.
2. Remove the three screws from
the headlamp assembly and pull the
assembly straight out.
3. Disconnect the electrical
connector by squeezing the release
tab and pushing the connector
forward, then pulling it rearward.
4. Remove the bulb assembly by
turning it counterclockwise and
pulling it straight out.
WARNING:Handle a halogen headlamp bulb carefully and keep
out of children’s reach. Grasp the bulb only by its plastic base
and do not touch the glass. The oil from your hand could cause the
bulb to break the next time the headlamps are operated.
Note:If the bulb is accidentally touched, it should be cleaned with
alcohol before being used.
To install the new bulb, follow the removal procedures in reverse order.
Lights
57
2010 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

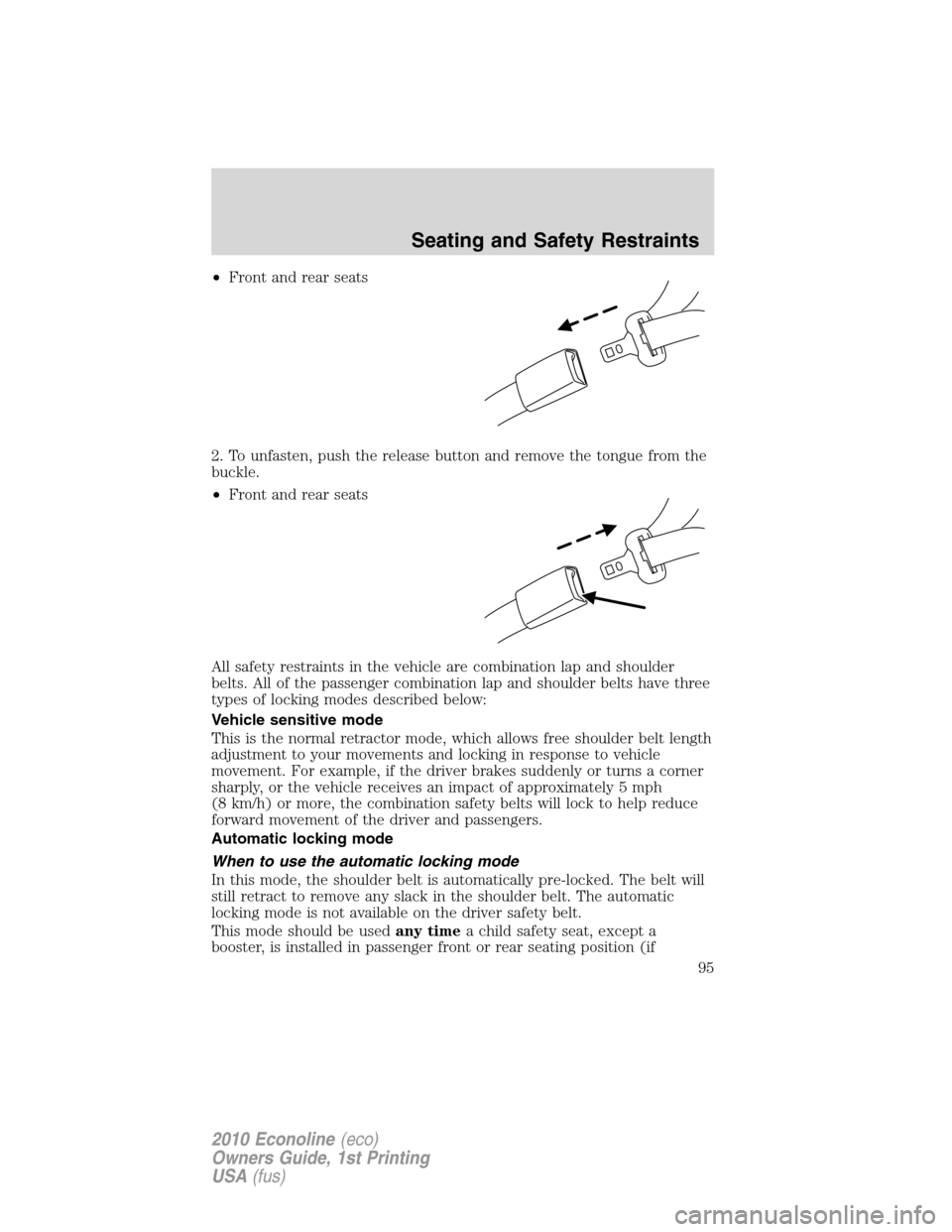

•Front and rear seats
2. To unfasten, push the release button and remove the tongue from the
buckle.
•Front and rear seats
All safety restraints in the vehicle are combination lap and shoulder
belts. All of the passenger combination lap and shoulder belts have three
types of locking modes described below:
Vehicle sensitive mode
This is the normal retractor mode, which allows free shoulder belt length
adjustment to your movements and locking in response to vehicle
movement. For example, if the driver brakes suddenly or turns a corner
sharply, or the vehicle receives an impact of approximately 5 mph
(8 km/h) or more, the combination safety belts will lock to help reduce
forward movement of the driver and passengers.
Automatic locking mode
When to use the automatic locking mode
In this mode, the shoulder belt is automatically pre-locked. The belt will
still retract to remove any slack in the shoulder belt. The automatic
locking mode is not available on the driver safety belt.
This mode should be usedany timea child safety seat, except a
booster, is installed in passenger front or rear seating position (if
Seating and Safety Restraints
95
2010 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

equipped). Children 12 years old and under should be properly
restrained in a rear seating position whenever possible. Refer toSafety
restraints for childrenorSafety seats for childrenlater in this chapter.

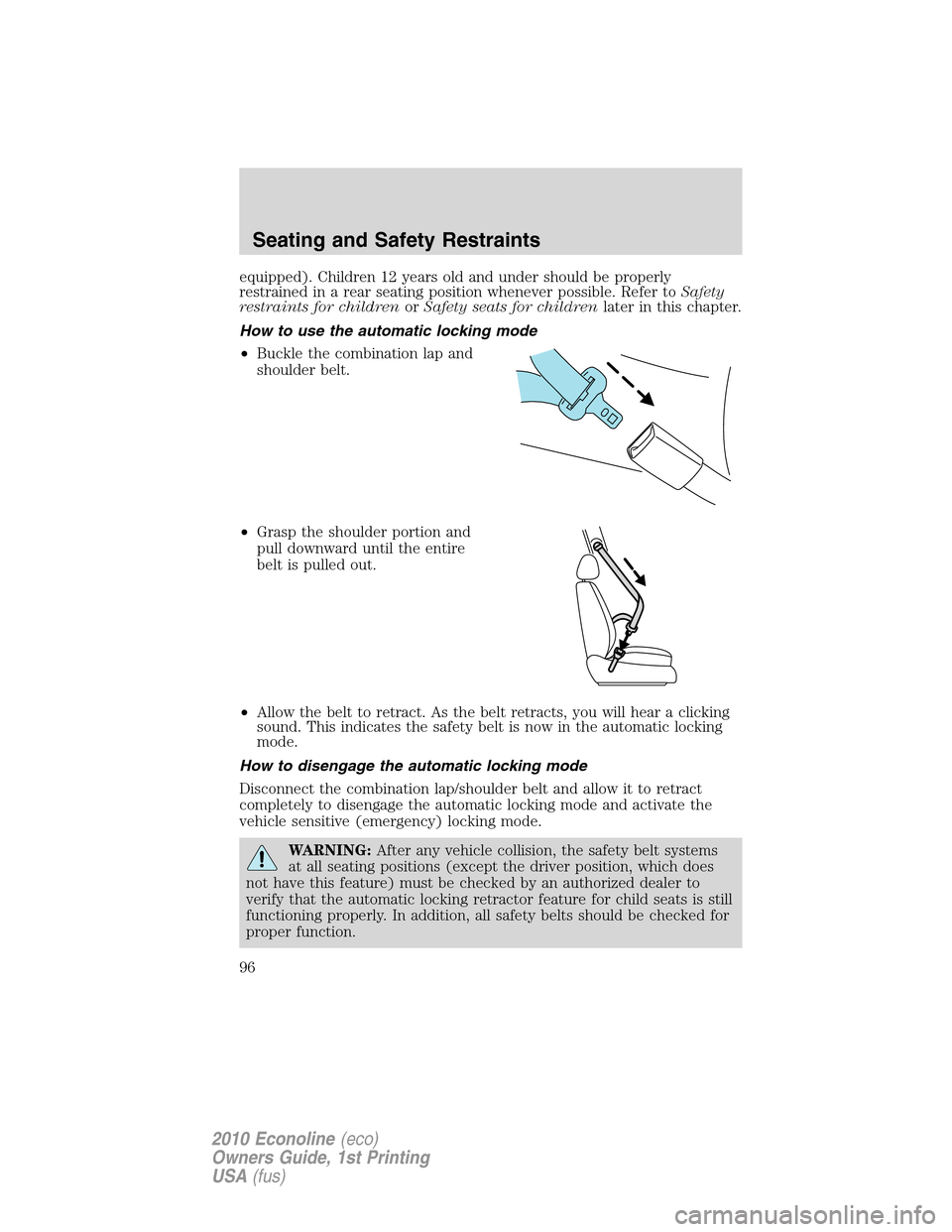

How to use the automatic locking mode
•Buckle the combination lap and
shoulder belt.
•Grasp the shoulder portion and
pull downward until the entire
belt is pulled out.
•Allow the belt to retract. As the belt retracts, you will hear a clicking
sound. This indicates the safety belt is now in the automatic locking
mode.
How to disengage the automatic locking mode
Disconnect the combination lap/shoulder belt and allow it to retract
completely to disengage the automatic locking mode and activate the
vehicle sensitive (emergency) locking mode.
WARNING:After any vehicle collision, the safety belt systems
at all seating positions (except the driver position, which does
not have this feature) must be checked by an authorized dealer to
verify that the automatic locking retractor feature for child seats is still
functioning properly. In addition, all safety belts should be checked for
proper function.
Seating and Safety Restraints
96
2010 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

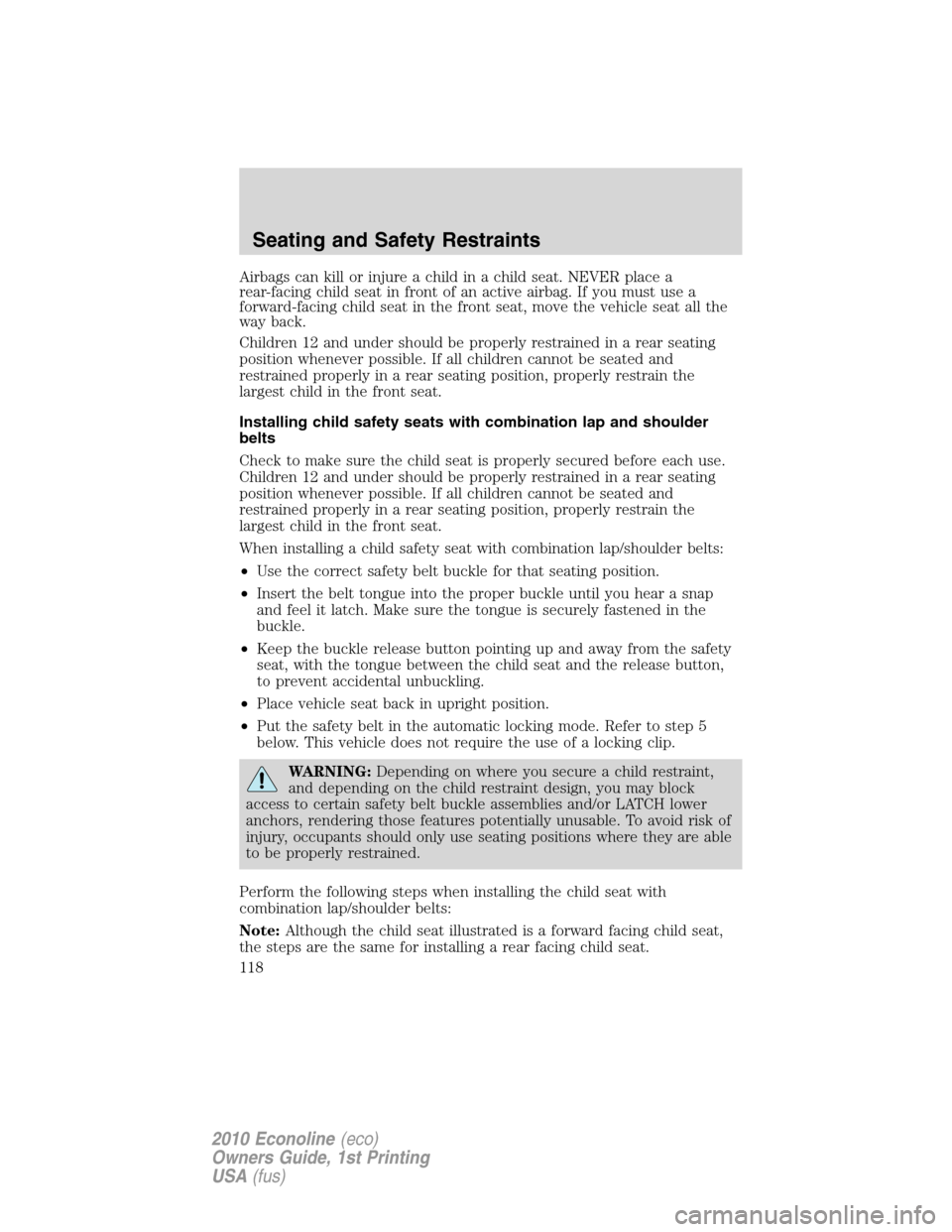

Airbags can kill or injure a child in a child seat. NEVER place a
rear-facing child seat in front of an active airbag. If you must use a
forward-facing child seat in the front seat, move the vehicle seat all the
way back.
Children 12 and under should be properly restrained in a rear seating
position whenever possible. If all children cannot be seated and
restrained properly in a rear seating position, properly restrain the
largest child in the front seat.
Installing child safety seats with combination lap and shoulder
belts
Check to make sure the child seat is properly secured before each use.
Children 12 and under should be properly restrained in a rear seating
position whenever possible. If all children cannot be seated and
restrained properly in a rear seating position, properly restrain the
largest child in the front seat.
When installing a child safety seat with combination lap/shoulder belts:
•Use the correct safety belt buckle for that seating position.
•Insert the belt tongue into the proper buckle until you hear a snap
and feel it latch. Make sure the tongue is securely fastened in the
buckle.
•Keep the buckle release button pointing up and away from the safety
seat, with the tongue between the child seat and the release button,
to prevent accidental unbuckling.
•Place vehicle seat back in upright position.
•Put the safety belt in the automatic locking mode. Refer to step 5
below. This vehicle does not require the use of a locking clip.
WARNING:Depending on where you secure a child restraint,
and depending on the child restraint design, you may block
access to certain safety belt buckle assemblies and/or LATCH lower
anchors, rendering those features potentially unusable. To avoid risk of
injury, occupants should only use seating positions where they are able
to be properly restrained.
Perform the following steps when installing the child seat with
combination lap/shoulder belts:
Note:Although the child seat illustrated is a forward facing child seat,
the steps are the same for installing a rear facing child seat.
Seating and Safety Restraints
118
2010 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

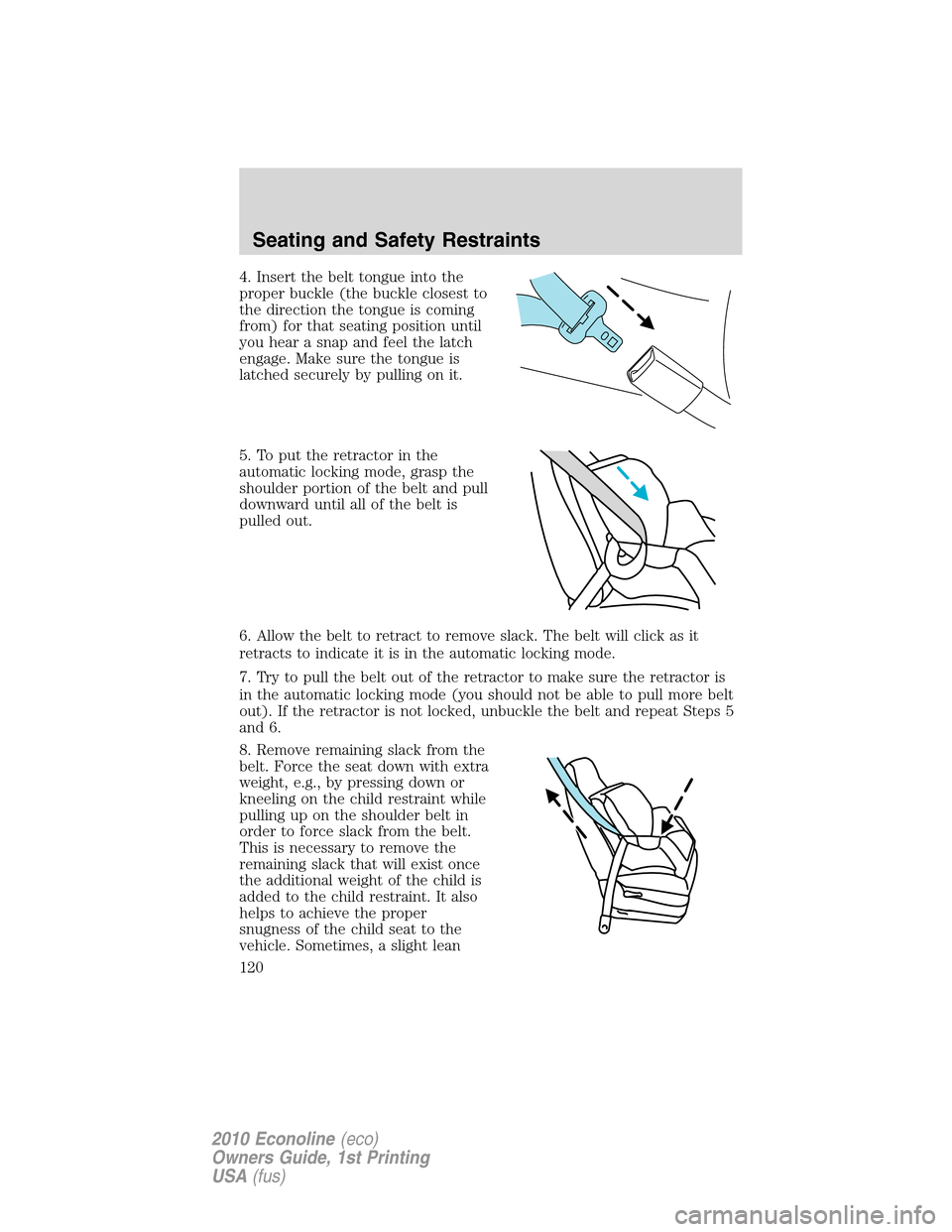

4. Insert the belt tongue into the
proper buckle (the buckle closest to
the direction the tongue is coming
from) for that seating position until
you hear a snap and feel the latch
engage. Make sure the tongue is
latched securely by pulling on it.
5. To put the retractor in the
automatic locking mode, grasp the
shoulder portion of the belt and pull
downward until all of the belt is
pulled out.
6. Allow the belt to retract to remove slack. The belt will click as it
retracts to indicate it is in the automatic locking mode.
7. Try to pull the belt out of the retractor to make sure the retractor is
in the automatic locking mode (you should not be able to pull more belt
out). If the retractor is not locked, unbuckle the belt and repeat Steps 5
and 6.
8. Remove remaining slack from the
belt. Force the seat down with extra
weight, e.g., by pressing down or
kneeling on the child restraint while
pulling up on the shoulder belt in
order to force slack from the belt.
This is necessary to remove the
remaining slack that will exist once
the additional weight of the child is
added to the child restraint. It also
helps to achieve the proper
snugness of the child seat to the
vehicle. Sometimes, a slight lean
Seating and Safety Restraints
120
2010 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

Refueling
WARNING:Fuel vapor burns violently and a fuel fire can cause
severe injuries. To help avoid injuries to you and others:
•Read and follow all the instructions on the pump island;
•Turn off your engine when you are refueling;
•Do not smoke if you are near fuel or refueling your vehicle;
•Keep sparks, flames and smoking materials away from fuel;
•Stay outside your vehicle and do not leave the fuel pump unattended
when refueling your vehicle — this is against the law in some places;
•Keep children away from the fuel pump; never let children pump
fuel.
Use the following guidelines to avoid electrostatic charge build-up when
filling an ungrounded fuel container:
•Place approved fuel container on the ground.
•DO NOT fill a fuel container while it is in the vehicle (including the
cargo area).
•Keep the fuel pump nozzle in contact with the fuel container while
filling.
•DO NOT use a device that would hold the fuel pump handle in the fill
position.
Fuel filler cap
Your fuel tank filler cap has an indexed design with a 1/4 turn on/off
feature.
When fueling your vehicle:
1. Turn the engine off.
2. Carefully turn the filler cap counterclockwise until it spins off.
3. Pull to remove the cap from the fuel filler pipe.
4. To install the cap, align the tabs on the cap with the notches on the
filler pipe.
5. Turn the filler cap clockwise 1/4 of a turn until it clicks at least once.
If the check fuel cap light
or a “check fuel cap” message comes on,
the fuel filler cap may not be properly installed. The light or message can
come on after several driving events after you’ve refueled your vehicle.
Maintenance and Specifications
286
2010 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

A
Accessory delay ..........................65
AdvanceTrac ..............................200
Air cleaner filter ...............303–305
Airbag supplemental restraint
system ................................102–103
and child safety seats ............104
description ..............................103
disposal ....................................107
driver airbag ............................105
indicator light .........................106
operation .................................105
passenger airbag .....................105
passenger deactivation
switch ......................................108
Ambulance packages ....................7
Antifreeze (see Engine
coolant) .....................................277
Anti-lock brake system
(see Brakes) ......................197–198
Anti-theft system ........................81
arming the system ....................82
Audio system (see Radio) ...29, 31
Automatic transmission
driving an automatic
overdrive .................209, 211, 214
fluid, adding ............................298
fluid, checking ........................298
fluid, refill capacities ..............306
fluid, specification ..................306
Auxiliary Input Jack ...................38
Auxiliary power point .................63
Axle
lubricant specifications ..........306
refill capacities ........................306
traction lok ..............................205B
Battery .......................................274
acid, treating emergencies .....274
jumping a disabled battery ....245
maintenance-free ....................274
replacement, specifications ...305
servicing ..................................274
Belt-Minder
...............................98
Blind Spot Spotter Mirror ........221
Booster seats .............................130
Brakes ........................................197
anti-lock ...........................197–198
anti-lock brake system (ABS)
warning light ...........................198
fluid, checking and adding ....297
fluid, refill capacities ..............306
fluid, specifications .................306
lubricant specifications ..........306
parking ....................................198
shift interlock ..........................207
trailer .......................................185
Bulbs ............................................55
C
Capacities for refilling fluids ....306
Cell phone use ............................10
Changing a tire .........................236
Child safety seats ......................117
in front seat ............................118
in rear seat ..............................118
LATCH .....................................121
recommendations ...................115
tether anchorage hardware ...127
Child safety seats - booster
seats ...........................................130
Cleaning your vehicle
engine compartment ..............262
Index
319
2010 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

K
Keyless entry system
autolock .....................................72
Keys .............................................83
positions of the ignition .........192
L
Lamps
bulb replacement
specifications chart ..................56
daytime running light ...............50
headlamps .................................50
headlamps, flash to pass ..........51
instrument panel, dimming .....51
interior lamps ...........................54
replacing bulbs .........................57
LATCH anchors .........................121
Lights, warning and indicator ....14
anti-lock brakes (ABS) ..........198
Load limits .................................167
Loading instructions .................174
Locks
autolock .....................................72
doors ..........................................72
Lubricant specifications ...........306
Lug nuts ....................................244
Lumbar support, seats ...............87
M
Message center ...........................21
english/metric button ...............26
warning messages .....................26
Mirrors ...................................65–66
automatic dimming rearview
mirror ........................................65
fold away ...................................67side view mirrors (power) .......66
Motorcraft
parts ..............266, 305
N
Navigation system .......................46
O
Octane rating ............................288
Oil (see Engine oil) ..................271
P
Parking brake ............................198
Parts (see Motorcraft

parts) .........................................305
Power distribution box (see
Fuses) ........................................231
Power door locks ........................72
Power mirrors .............................66
Power point .................................63
Power steering ..........................204
fluid, checking and adding ....296
fluid, refill capacity ................306
fluid, specifications .................306
Power Windows ...........................64
Preparing to drive your
vehicle ........................................205
R
Radio ......................................29, 31
Rear-view camera system .........219
Recommendations for
attaching safety restraints for
children ......................................115
Relays ........................................228
Index
322
2010 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
