Modifying your phone book 28
Automatically download your phone book 29
Traffic, Directions and Information 30
911 assist™ 33
Vehicle health report 36
Applications 38
System settings 38
Adding (pairing) a phone 39
Connecting a phone 40
Setting a phone as primary 40
Turning Bluetooth on/off 41
Deleting a phone 41
Deleting all phones 42
Turning prompts on/off 42
Changing the SYNClanguage setting 43
Returning to factory defaults 43
Performing a master reset 44
SYNCmedia features
46
Voice commands in media mode 46
Connecting a digital media player to SYNC48
What’s playing? 48
Using your media menu 48
Selecting different media sources 49
Accessing and using your USB port 49
Streaming music from your phone 50
Using the Auxiliary input jack (Line in) 51
Using the media settings 52
Accessing vehicle applications 53
Accessing system settings 53
Adding a Bluetooth media device which is in discovery mode 54
Adding a Bluetooth media device which is in discoverable
mode 55
Connecting a Bluetooth media device 55
Delete a device 56
Using SYNC’s play menu 60
Using the play all feature 61
Selecting and playing specific artists 62
Selecting and playing specific albums 63
Table of Contents
2SeeEnd User License Agreementat the end of this book
2011 SYNC/MGM(mgm)
Supplement, 2nd Printing
USA(fus)

WHAT IS SYNC?
Thank you for purchasing SYNC!
SYNCis a hands-free communications and entertainment system that
literally ‘syncs up’ with all other multimedia systems in your vehicle.
SYNCdelivers convenience with voice activated calling and hands-free
conversations, digital media player command and control as well as easy
to use voice commands. The world outside your vehicle cabin may be
chaotic, but inside, with SYNC, it’s always a smooth ride. All you have
to do is sync it and stow it. We’ll take care of the rest.
Welcome to the new world of ingenuity and passion - technology that is
both fun and functional. Welcome to SYNC.
For more information, please visit www.SyncMyRide.com.
EXPORT UNIQUE (NON-UNITED STATES/CANADA) INFORMATION
For your particular global region, your vehicle may be equipped with
features and options that are different from the features and options that
are described in this supplement.
Introduction
4SeeEnd User License Agreementat the end of this book
2011 SYNC/MGM(mgm)
Supplement, 2nd Printing
USA(fus)

SAFETY INFORMATION
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. Your primary responsibility is the safe operation of
the vehicle. We recommend against the use of any handheld device
while driving and that you comply with all applicable laws.
•Do not attempt to service or repair SYNC. See your authorized
dealer.
•Do not operate playing devices if the power cords and/or cables are
broken, split or damaged. Carefully place cords and/or cables where
they will not be stepped on or interfere with the operation of pedals,
seats and/or compartments, or safe driving abilities.
•Do not leave playing devices in the vehicle in extreme conditions as it
could cause damage to your device. Refer to your device’s user guide
for further information.
•For your safety, some SYNCfunctions are speed dependent and
cannot be performed when the vehicle is traveling at speeds greater
than 3 mph (5 km/h).
•Ensure that you review your device’s user guide before using with
SYNC.
PRIVACY INFORMATION
When a cellular phone is connected to SYNC, SYNCcreates a profile
within your vehicle that is linked to that cellular phone. This profile is
created in order to offer you more cellular features and to operate more
efficiently. Among other things, this profile may contain data about your
cellular phone book, text messages (read and unread), and call history,
including history of calls when your cell phone was not connected to
SYNC. In addition, if you connect a media device, SYNCcreates and
retains an index of media content supported by SYNC. SYNCalso
records a short development log of approximately 10 minutes of all
recent SYNCactivity. The log profile and other SYNCdata may be
used to improve SYNCand help diagnose any problems that may occur.
The cellular profile, media device index, and development log will remain
in the vehicle unless you delete it and are generally accessible only in
the vehicle when the cellular phone or media player is connected. If you
no longer plan to use SYNCor the vehicle, we recommend you perform
a Master Reset to erase all information stored in SYNC.
Introduction
5SeeEnd User License Agreementat the end of this book
2011 SYNC/MGM(mgm)
Supplement, 2nd Printing
USA(fus)

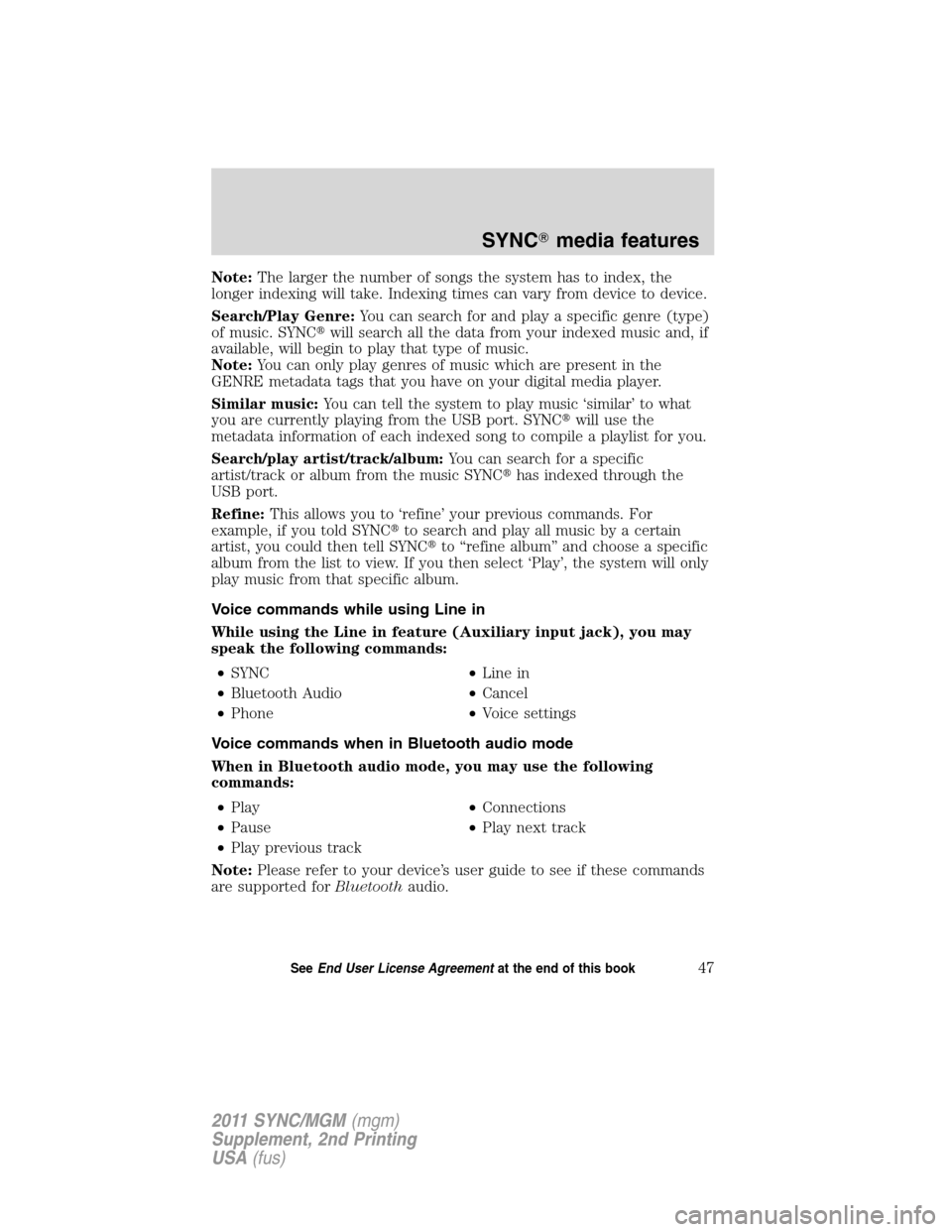

Note:The larger the number of songs the system has to index, the
longer indexing will take. Indexing times can vary from device to device.
Search/Play Genre:You can search for and play a specific genre (type)
of music. SYNCwill search all the data from your indexed music and, if
available, will begin to play that type of music.
Note:You can only play genres of music which are present in the
GENRE metadata tags that you have on your digital media player.
Similar music:You can tell the system to play music ‘similar’ to what
you are currently playing from the USB port. SYNCwill use the
metadata information of each indexed song to compile a playlist for you.
Search/play artist/track/album:You can search for a specific
artist/track or album from the music SYNChas indexed through the
USB port.
Refine:This allows you to ‘refine’ your previous commands. For
example, if you told SYNCto search and play all music by a certain
artist, you could then tell SYNCto “refine album” and choose a specific
album from the list to view. If you then select ‘Play’, the system will only
play music from that specific album.
Voice commands while using Line in
While using the Line in feature (Auxiliary input jack), you may
speak the following commands:
•SYNC•Line in
•Bluetooth Audio•Cancel
•Phone•Voice settings
Voice commands when in Bluetooth audio mode
When in Bluetooth audio mode, you may use the following
commands:
•Play•Connections
•Pause•Play next track
•Play previous track
Note:Please refer to your device’s user guide to see if these commands
are supported forBluetoothaudio.
SYNCmedia features
47SeeEnd User License Agreementat the end of this book
2011 SYNC/MGM(mgm)
Supplement, 2nd Printing
USA(fus)

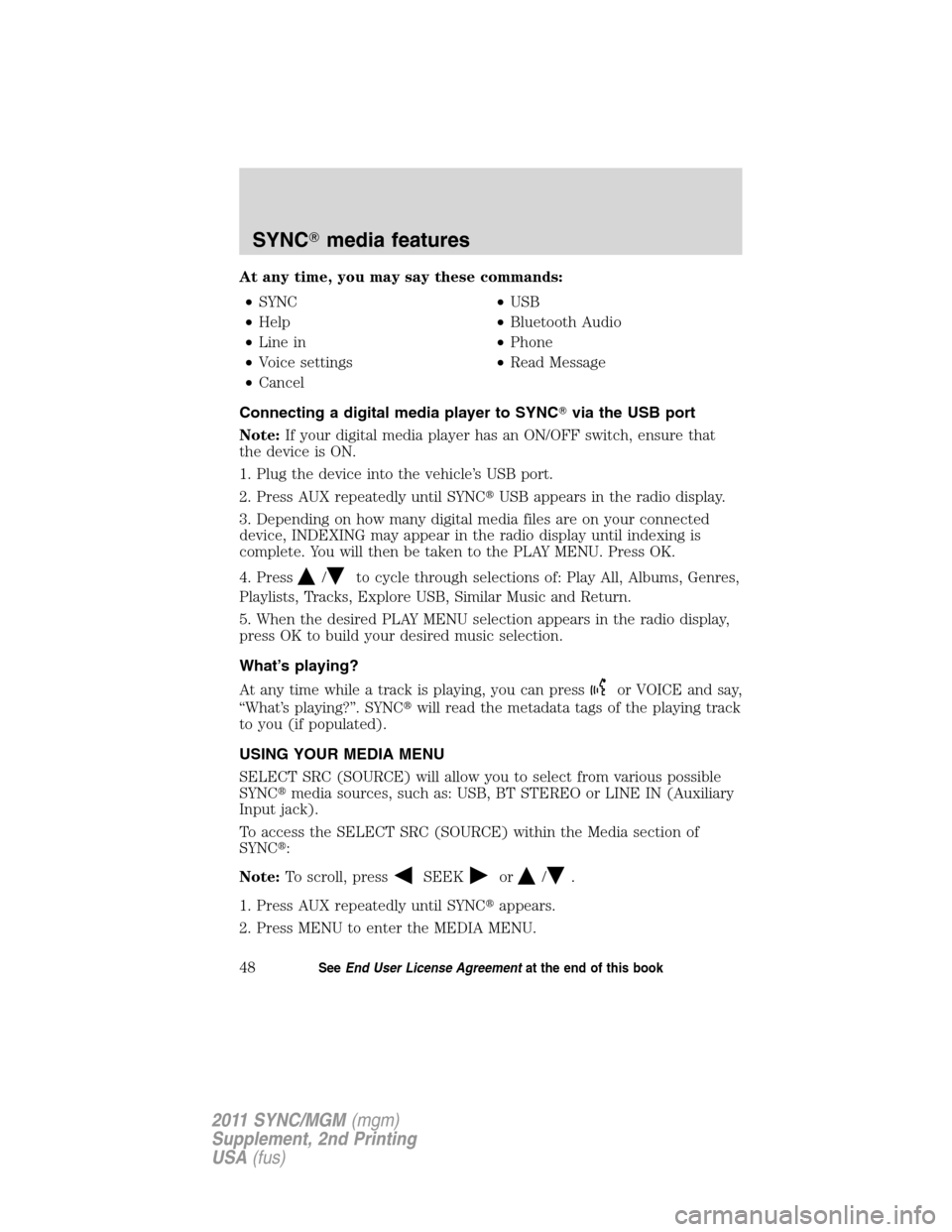

At any time, you may say these commands:
•SYNC•USB
•Help•Bluetooth Audio
•Line in•Phone
•Voice settings•Read Message
•Cancel
Connecting a digital media player to SYNCvia the USB port
Note:If your digital media player has an ON/OFF switch, ensure that
the device is ON.
1. Plug the device into the vehicle’s USB port.
2. Press AUX repeatedly until SYNCUSB appears in the radio display.
3. Depending on how many digital media files are on your connected
device, INDEXING may appear in the radio display until indexing is
complete. You will then be taken to the PLAY MENU. Press OK.
4. Press
/to cycle through selections of: Play All, Albums, Genres,
Playlists, Tracks, Explore USB, Similar Music and Return.
5. When the desired PLAY MENU selection appears in the radio display,
press OK to build your desired music selection.
What’s playing?
At any time while a track is playing, you can press
or VOICE and say,
“What’s playing?”. SYNCwill read the metadata tags of the playing track
to you (if populated).
USING YOUR MEDIA MENU
SELECT SRC (SOURCE) will allow you to select from various possible
SYNCmedia sources, such as: USB, BT STEREO or LINE IN (Auxiliary
Input jack).
To access the SELECT SRC (SOURCE) within the Media section of
SYNC:
Note:To scroll, press
SEEKor/.
1. Press AUX repeatedly until SYNCappears.
2. Press MENU to enter the MEDIA MENU.
SYNCmedia features
48SeeEnd User License Agreementat the end of this book
2011 SYNC/MGM(mgm)
Supplement, 2nd Printing
USA(fus)

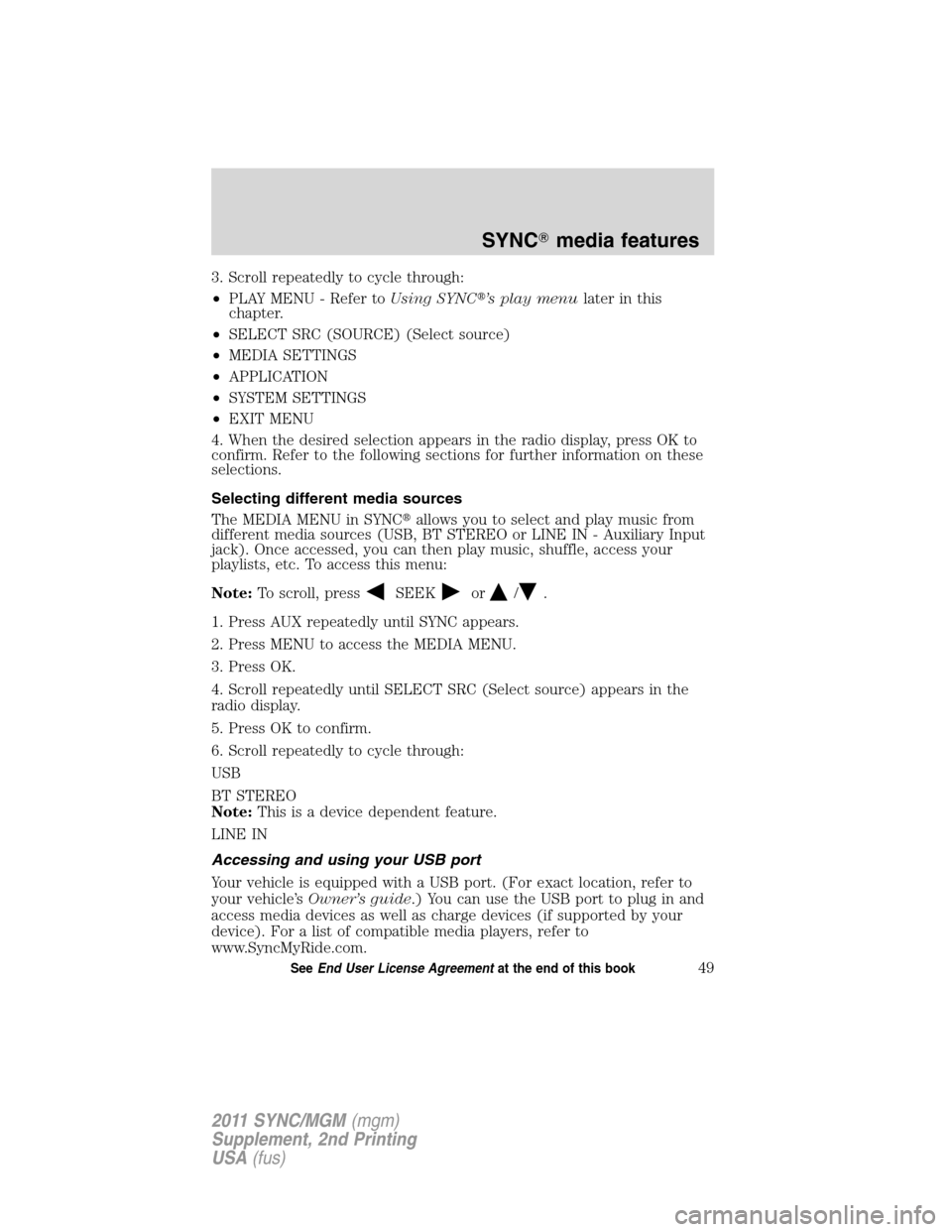

3. Scroll repeatedly to cycle through:
•PLAY MENU - Refer toUsing SYNC’s play menulater in this
chapter.
•SELECT SRC (SOURCE) (Select source)
•MEDIA SETTINGS
•APPLICATION
•SYSTEM SETTINGS
•EXIT MENU
4. When the desired selection appears in the radio display, press OK to
confirm. Refer to the following sections for further information on these
selections.
Selecting different media sources
The MEDIA MENU in SYNCallows you to select and play music from
different media sources (USB, BT STEREO or LINE IN - Auxiliary Input
jack). Once accessed, you can then play music, shuffle, access your
playlists, etc. To access this menu:
Note:To scroll, press
SEEKor/.
1. Press AUX repeatedly until SYNC appears.
2. Press MENU to access the MEDIA MENU.
3. Press OK.
4. Scroll repeatedly until SELECT SRC (Select source) appears in the
radio display.
5. Press OK to confirm.
6. Scroll repeatedly to cycle through:
USB
BT STEREO
Note:This is a device dependent feature.
LINE IN
Accessing and using your USB port
Your vehicle is equipped with a USB port. (For exact location, refer to
your vehicle’sOwner’s guide.) You can use the USB port to plug in and
access media devices as well as charge devices (if supported by your
device). For a list of compatible media players, refer to
www.SyncMyRide.com.
SYNCmedia features
49SeeEnd User License Agreementat the end of this book
2011 SYNC/MGM(mgm)
Supplement, 2nd Printing
USA(fus)

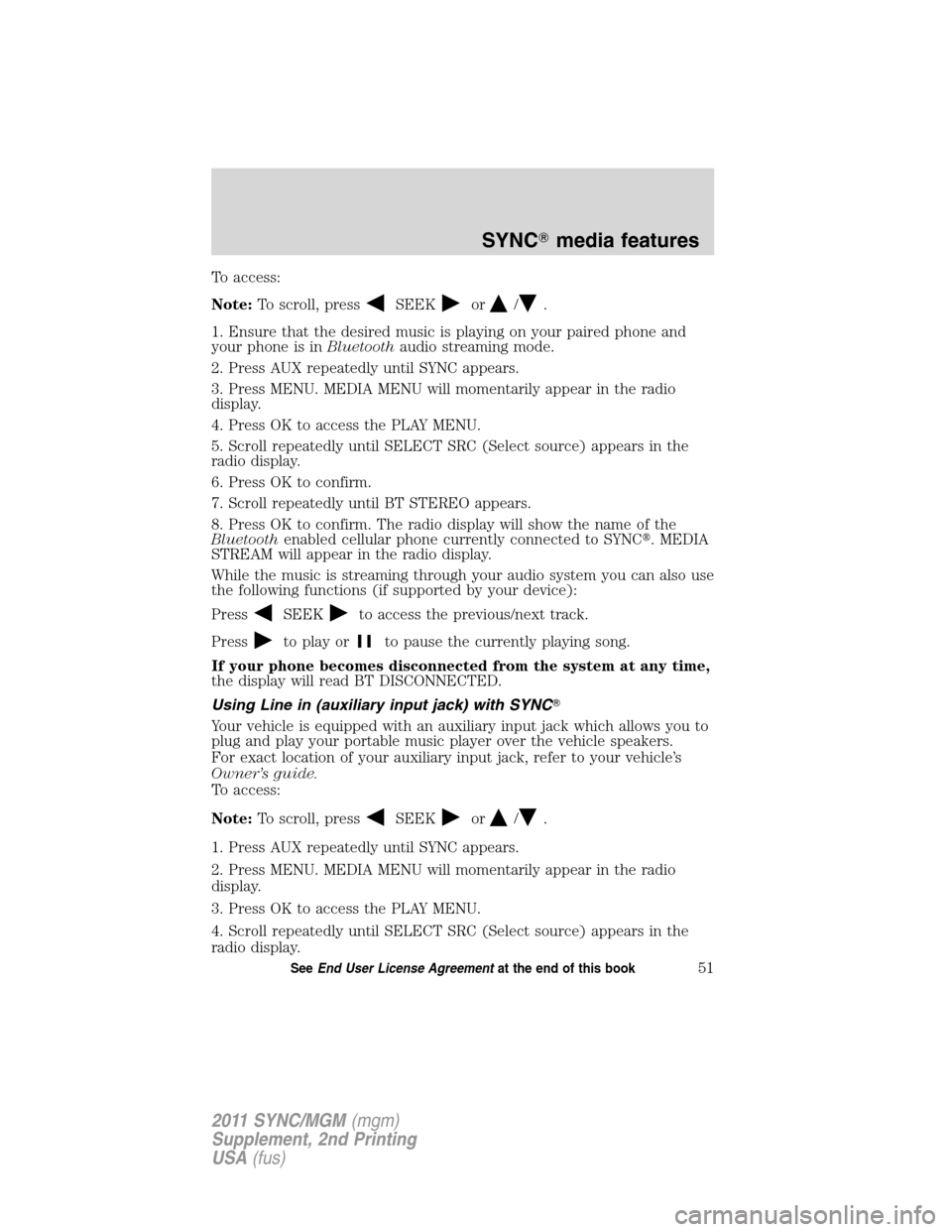

To access:
Note:To scroll, press
SEEKor/.
1. Ensure that the desired music is playing on your paired phone and
your phone is inBluetoothaudio streaming mode.
2. Press AUX repeatedly until SYNC appears.
3. Press MENU. MEDIA MENU will momentarily appear in the radio
display.
4. Press OK to access the PLAY MENU.
5. Scroll repeatedly until SELECT SRC (Select source) appears in the
radio display.
6. Press OK to confirm.
7. Scroll repeatedly until BT STEREO appears.
8. Press OK to confirm. The radio display will show the name of the
Bluetoothenabled cellular phone currently connected to SYNC. MEDIA
STREAM will appear in the radio display.
While the music is streaming through your audio system you can also use
the following functions (if supported by your device):
Press
SEEKto access the previous/next track.
Press
to play orto pause the currently playing song.
If your phone becomes disconnected from the system at any time,
the display will read BT DISCONNECTED.
Using Line in (auxiliary input jack) with SYNC
Your vehicle is equipped with an auxiliary input jack which allows you to
plug and play your portable music player over the vehicle speakers.
For exact location of your auxiliary input jack, refer to your vehicle’s
Owner’s guide.
To access:
Note:To scroll, press
SEEKor/.
1. Press AUX repeatedly until SYNC appears.
2. Press MENU. MEDIA MENU will momentarily appear in the radio
display.
3. Press OK to access the PLAY MENU.
4. Scroll repeatedly until SELECT SRC (Select source) appears in the
radio display.
SYNCmedia features
51SeeEnd User License Agreementat the end of this book
2011 SYNC/MGM(mgm)
Supplement, 2nd Printing
USA(fus)

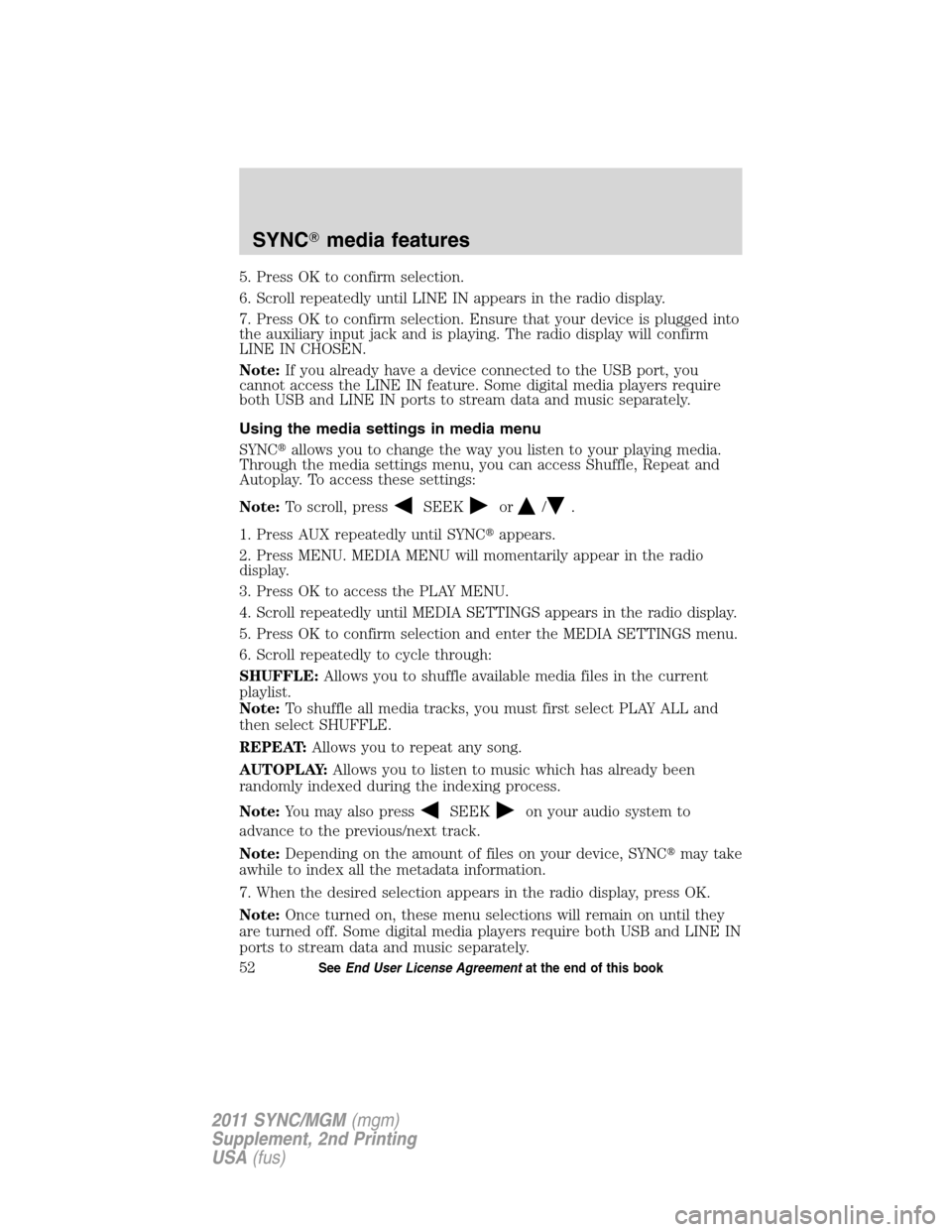

5. Press OK to confirm selection.
6. Scroll repeatedly until LINE IN appears in the radio display.
7. Press OK to confirm selection. Ensure that your device is plugged into
the auxiliary input jack and is playing. The radio display will confirm
LINE IN CHOSEN.
Note:If you already have a device connected to the USB port, you
cannot access the LINE IN feature. Some digital media players require
both USB and LINE IN ports to stream data and music separately.
Using the media settings in media menu
SYNCallows you to change the way you listen to your playing media.
Through the media settings menu, you can access Shuffle, Repeat and
Autoplay. To access these settings:
Note:To scroll, press
SEEKor/.
1. Press AUX repeatedly until SYNCappears.
2. Press MENU. MEDIA MENU will momentarily appear in the radio
display.
3. Press OK to access the PLAY MENU.
4. Scroll repeatedly until MEDIA SETTINGS appears in the radio display.
5. Press OK to confirm selection and enter the MEDIA SETTINGS menu.
6. Scroll repeatedly to cycle through:
SHUFFLE:Allows you to shuffle available media files in the current
playlist.
Note:To shuffle all media tracks, you must first select PLAY ALL and
then select SHUFFLE.
REPEAT:Allows you to repeat any song.
AUTOPLAY:Allows you to listen to music which has already been
randomly indexed during the indexing process.
Note:You may also press
SEEKon your audio system to
advance to the previous/next track.
Note:Depending on the amount of files on your device, SYNCmay take
awhile to index all the metadata information.
7. When the desired selection appears in the radio display, press OK.
Note:Once turned on, these menu selections will remain on until they
are turned off. Some digital media players require both USB and LINE IN
ports to stream data and music separately.
SYNCmedia features
52SeeEnd User License Agreementat the end of this book
2011 SYNC/MGM(mgm)
Supplement, 2nd Printing
USA(fus)

GLOSSARY OF TERMS
Autoplay:With Autoplay turned ON, SYNCallows you to listen to
music which has already been randomly indexed during the indexing
process. With Autoplay turned off, the chosen music will not begin to
play until all of the music has been indexed by SYNC. Depending on the
size of the material, this may take a few minutes.
Bluetooth enabled cellular phone:Any cellular phone which has the
Bluetoothwireless technology which will enable the phone to connect
with SYNCand exchange information wirelessly.
Digital media player / USB Device:This is a generic term used to
signify any of the following media devices: iPod, Zune™, “Plays from
device” players, and most USB drives (thumb drives, flash drives, PEN
drives, etc.)
Discoverable mode:A mode which allows otherBluetoothenabled
devices to find yourBluetoothenabled device.
Discovery mode:A mode which allows yourBluetoothenabled device
to search for other ‘discoverable’Bluetoothenabled devices.
In-band ringing:This is a phone dependent feature. If yourBluetooth
enabled cellular phone supports this feature, SYNCcan play your ring
tone during incoming calls.
Indexing:A process in which SYNCbuilds a voice recognition grammar
for the media content of your digital media player. While indexing,
SYNCwill play already indexed media if Autoplay is on. However, voice
recognition is not available for the media until the indexing process is
complete.
Metadata:Descriptive tags embedded in your digital media which
provide SYNCwith information such as ARTIST, ALBUM, GENRE and
TRACK.
Pairing:To use yourBluetoothenabled cellular phone with SYNC, you
must go through a pairing (bonding) process. “Pairing” is a special
process used when two devices connect for the first time. The pairing
process is used to generate a link key that is used for authentication
purposes during subsequentBluetoothconnections between the two
devices.
PIN (Personal Identification number):This six digit number
(sometimes referred to as a passkey) will be shown in the radio display
during the pairing process with yourBluetoothenabled device. You do
not need to write down this number as it will only be used for that
specific pairing procedure.
Glossary
78SeeEnd User License Agreementat the end of this book
2011 SYNC/MGM(mgm)
Supplement, 2nd Printing
USA(fus)

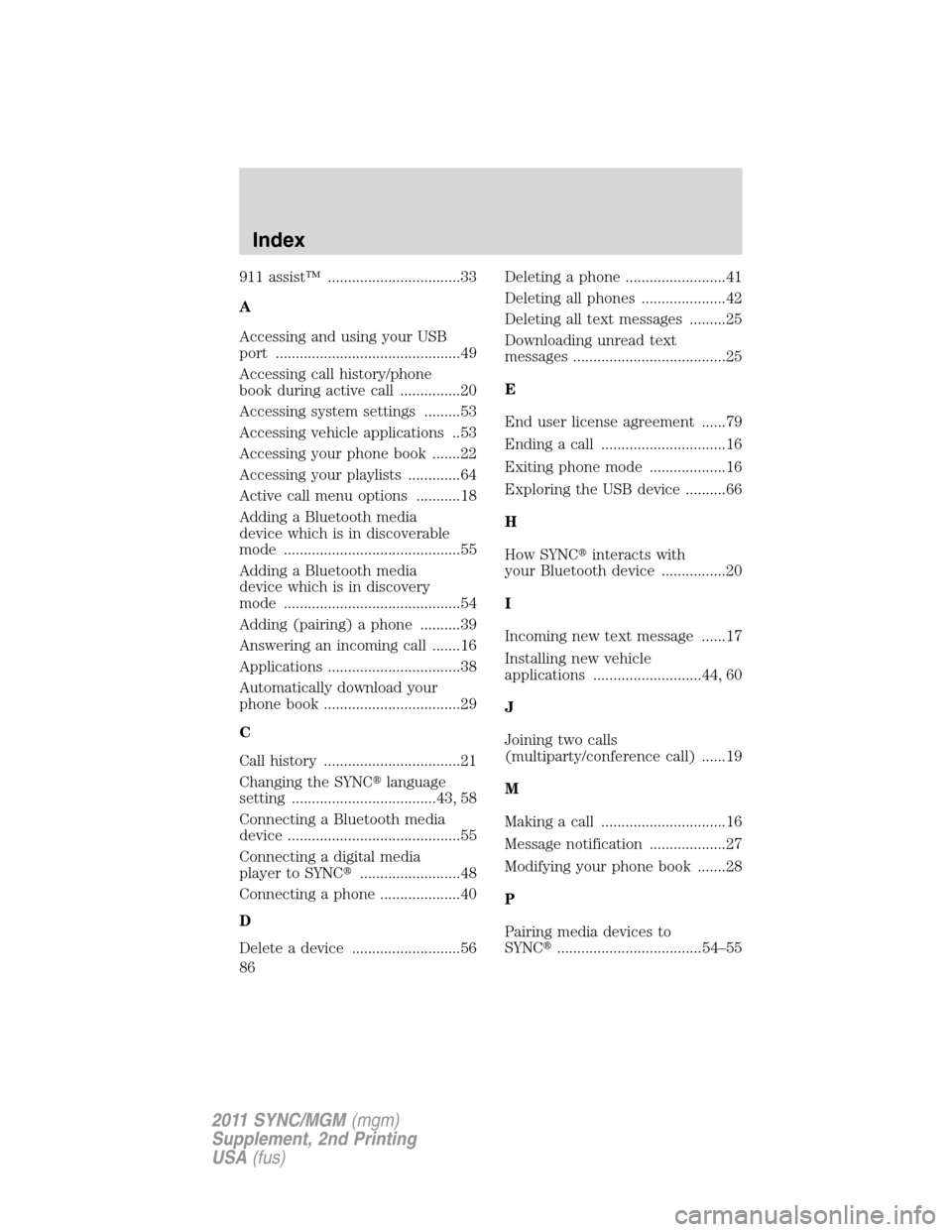

911 assist™ .................................33
A
Accessing and using your USB
port ..............................................49
Accessing call history/phone
book during active call ...............20
Accessing system settings .........53
Accessing vehicle applications ..53
Accessing your phone book .......22
Accessing your playlists .............64
Active call menu options ...........18
Adding a Bluetooth media
device which is in discoverable
mode ............................................55
Adding a Bluetooth media
device which is in discovery
mode ............................................54
Adding (pairing) a phone ..........39
Answering an incoming call .......16
Applications .................................38
Automatically download your
phone book ..................................29
C
Call history ..................................21
Changing the SYNClanguage
setting ....................................43, 58
Connecting a Bluetooth media
device ...........................................55
Connecting a digital media
player to SYNC.........................48
Connecting a phone ....................40
D
Delete a device ...........................56Deleting a phone .........................41
Deleting all phones .....................42
Deleting all text messages .........25
Downloading unread text
messages ......................................25
E
End user license agreement ......79
Ending a call ...............................16
Exiting phone mode ...................16
Exploring the USB device ..........66
H
How SYNCinteracts with
your Bluetooth device ................20
I
Incoming new text message ......17
Installing new vehicle
applications ...........................44, 60
J
Joining two calls
(multiparty/conference call) ......19
M
Making a call ...............................16
Message notification ...................27
Modifying your phone book .......28
P
Pairing media devices to
SYNC....................................54–55
Index
86
2011 SYNC/MGM(mgm)
Supplement, 2nd Printing
USA(fus)
