•DELETE CONTACT: When DELETE CONTACT appears in the radio
display, press OK to delete a specific contact. Press OK when SELECT
CONTACT appears and scroll until the desired name appears in the
radio display. Press OK to select. DELETE CONTACT? will appear in
the radio display. Press OK to confirm, and DELETED will appear in
the radio display.
Note:If Automatic download is on, the contact may appear on the
next download from yourBluetoothenabled cellular phone.
Note:This is a speed dependent feature and cannot be operated if
the vehicle is traveling at speeds greater than 3 mph (5 km/h).
•RETURN: Select to go back.
Automatically downloading your phone book
Note:This is a phone dependent feature.
SYNCallows you to automatically download yourBluetoothenabled
cellular phone’s phone book with location type (i.e., cell, work, other), if
supported, each time your phone connects with SYNC.
Note:Your phone book, call history and text messages can only be
accessed when your specificBluetoothenabled cellular phone is
connected.
Note:To scroll, press
SEEKor/.
1. Press
or PHONE to access the PHONE MENU.
2. Scroll repeatedly until PHONE SETTINGS appears in the radio display.
3. Press OK to confirm selection and enter the PHONE SETTINGS menu.
4. Scroll repeatedly until AUTODOWNLOAD appears in the radio display.
5. Press OK. AUTO ON? will appear in the radio display.
6. Press OK. AUTO SET ON will appear and your phone book will be
automatically downloaded each time yourBluetoothenabled cellular
phone connects with SYNC.
Or, select AUTO OFF and your phone book will not be automatically
downloaded each time your phone connects with SYNC.
7. Press OK to confirm your selection.
Note:Downloading times are phone and quantity dependent.
Note:If you choose to automatically download your cellular phone’s
phone book every time yourBluetoothenabled phone reconnects to
SYNC, any changes, additions or deletions that have been saved since
your last download will be deleted.
SYNCphone features
29SeeEnd User License Agreementat the end of this book
2011 SYNC/MGM(mgm)
Supplement, 2nd Printing
USA(fus)

Note:If you select Voice Guidance, scroll until the desired selection
(YES or NO) appears in the display. Press OK to confirm.
Accessing these features using voice commands:Press
or
VOICE and, when prompted, say any of the above commands.
Personalizing Traffic, Directions and Information:
Your Traffic, Directions and Information Services can be personalized to
provide quicker access to your most used or favorite information. You
can save address points such as, ‘work’ or ‘home’. You can also save
favorite information like sports teams or a news category. To learn more,
log onto www.SyncMyRide.com.
Push to interrupt:You can, at any time, press
or VOICE to
interrupt a voice prompt (or sports report for example) and provide your
next voice command.
Portable:Simply connect your phone to any vehicle equipped with
Traffic, Directions and Information and continue enjoying your
personalized services.
Note:The driver is ultimately responsible for the safe operation of the
vehicle, and therefore, must evaluate whether it is safe to follow the
suggested directions. Any navigation features are provided only as an aid.
Make your driving decisions based on your observations of local
conditions and existing traffic regulations. Do not follow the route
suggestions if doing so would result in an unsafe or illegal maneuver, if
you would be placed in an unsafe situation, or if you would be directed
into an area that you consider unsafe. Maps used by this system may be
inaccurate because of errors, changes in roads, traffic conditions or
driving conditions.
Note:When you connect to Traffic, Directions and Information, the
service uses GPS technology and advanced vehicle sensors to collect the
vehicle’s current location, travel direction and speed to help provide you
with the directions, traffic reports, or business searches you request.
Further, to provide the services you request and for continuous
improvement, the service may collect and record call details and voice
communications. For more information, see Traffic, Directions and
Information, Terms and Conditions at www.SyncMyRide.com. If you do
not want Ford or its service providers to collect the vehicle travel
information or other information identified in the Terms and Conditions,
do not activate or use the service.
Note:SYNCwith Traffic, Directions & Information Services requires
activation prior to use. Standard phone and message rates may apply.
SYNCphone features
32SeeEnd User License Agreementat the end of this book
2011 SYNC/MGM(mgm)
Supplement, 2nd Printing
USA(fus)

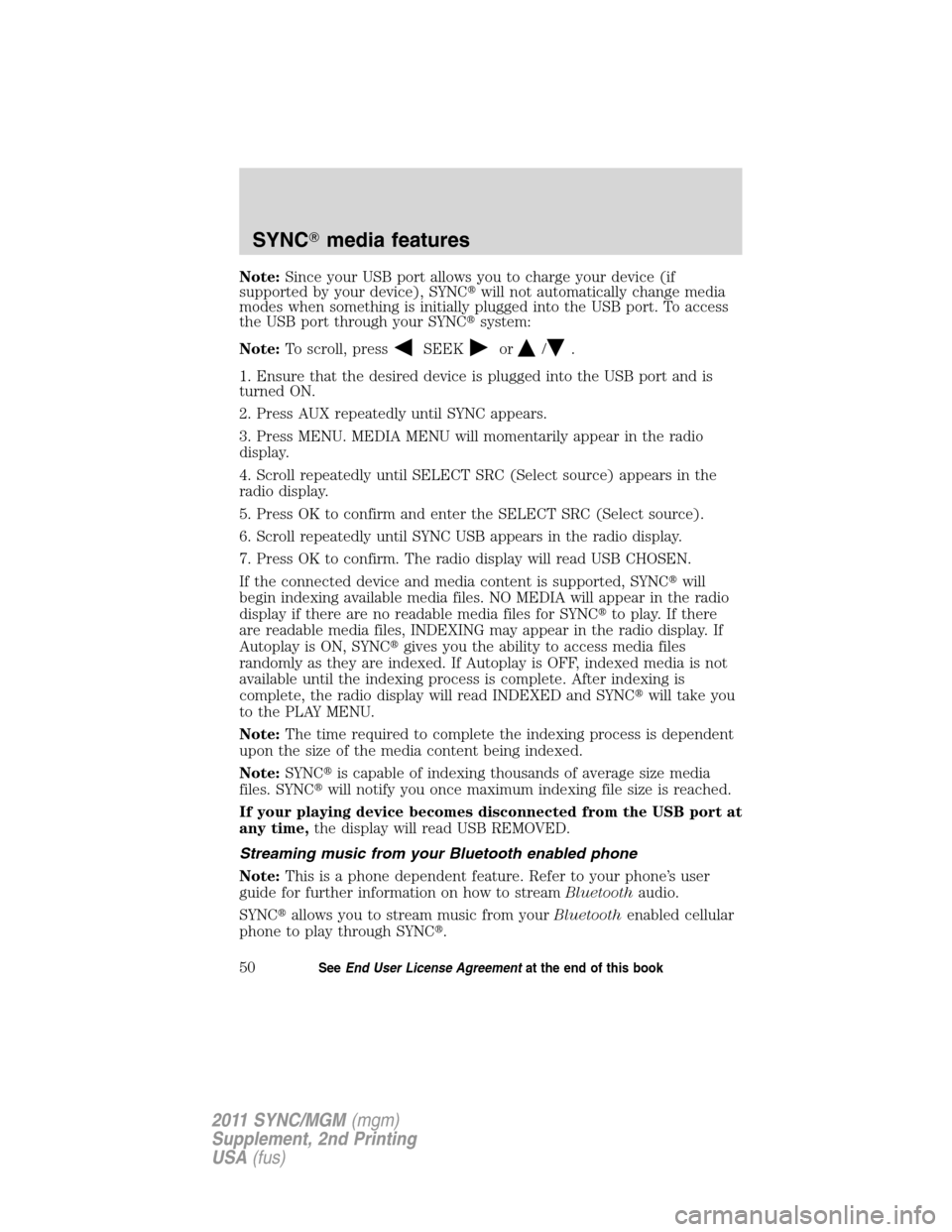

Note:Since your USB port allows you to charge your device (if
supported by your device), SYNCwill not automatically change media
modes when something is initially plugged into the USB port. To access
the USB port through your SYNCsystem:
Note:To scroll, press
SEEKor/.
1. Ensure that the desired device is plugged into the USB port and is
turned ON.
2. Press AUX repeatedly until SYNC appears.
3. Press MENU. MEDIA MENU will momentarily appear in the radio
display.
4. Scroll repeatedly until SELECT SRC (Select source) appears in the
radio display.
5. Press OK to confirm and enter the SELECT SRC (Select source).
6. Scroll repeatedly until SYNC USB appears in the radio display.
7. Press OK to confirm. The radio display will read USB CHOSEN.
If the connected device and media content is supported, SYNCwill
begin indexing available media files. NO MEDIA will appear in the radio
display if there are no readable media files for SYNCto play. If there
are readable media files, INDEXING may appear in the radio display. If
Autoplay is ON, SYNCgives you the ability to access media files
randomly as they are indexed. If Autoplay is OFF, indexed media is not
available until the indexing process is complete. After indexing is
complete, the radio display will read INDEXED and SYNCwill take you
to the PLAY MENU.
Note:The time required to complete the indexing process is dependent
upon the size of the media content being indexed.
Note:SYNCis capable of indexing thousands of average size media
files. SYNCwill notify you once maximum indexing file size is reached.
If your playing device becomes disconnected from the USB port at
any time,the display will read USB REMOVED.
Streaming music from your Bluetooth enabled phone
Note:This is a phone dependent feature. Refer to your phone’s user
guide for further information on how to streamBluetoothaudio.
SYNCallows you to stream music from yourBluetoothenabled cellular
phone to play through SYNC.
SYNCmedia features
50SeeEnd User License Agreementat the end of this book
2011 SYNC/MGM(mgm)
Supplement, 2nd Printing
USA(fus)

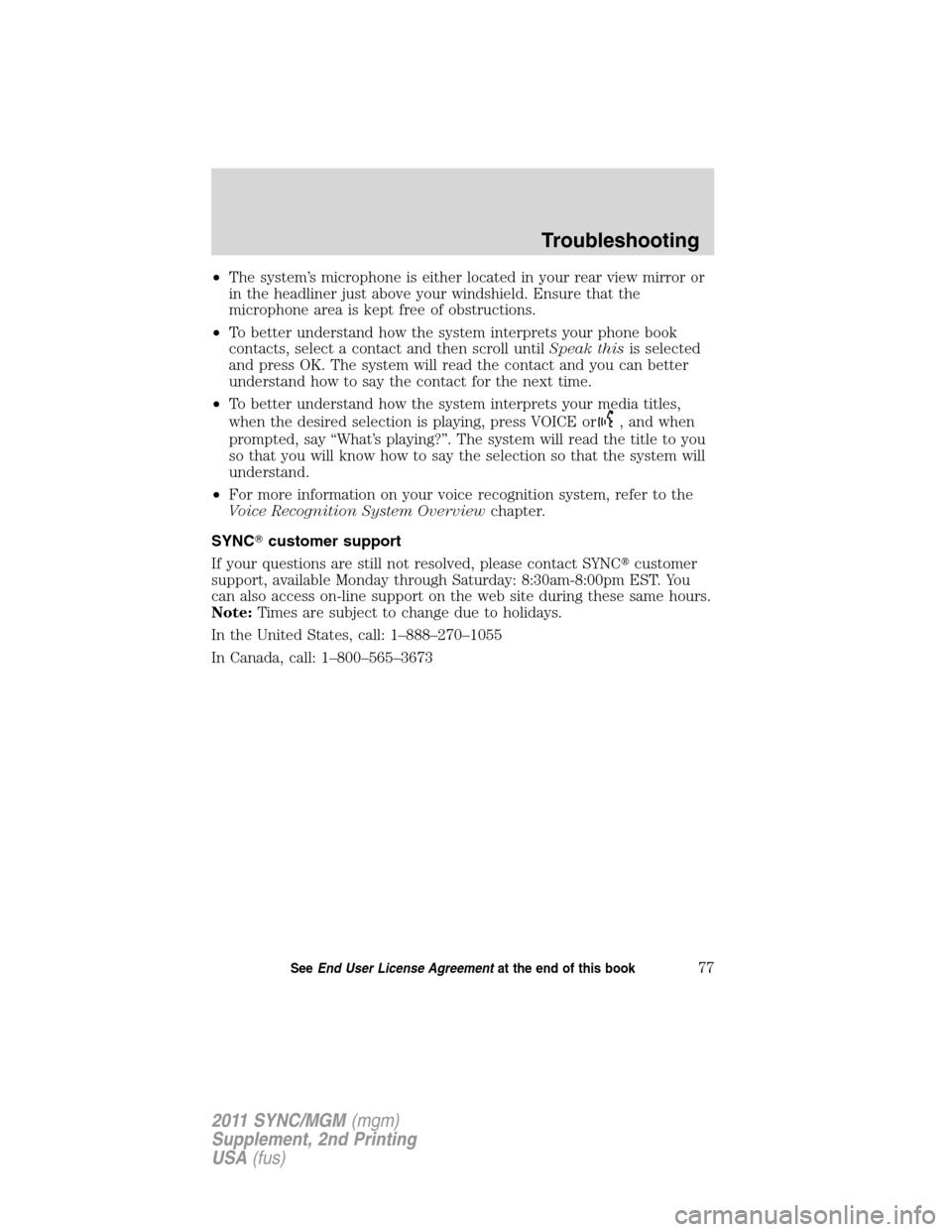

•The system’s microphone is either located in your rear view mirror or
in the headliner just above your windshield. Ensure that the
microphone area is kept free of obstructions.
•To better understand how the system interprets your phone book
contacts, select a contact and then scroll untilSpeak thisis selected
and press OK. The system will read the contact and you can better
understand how to say the contact for the next time.
•To better understand how the system interprets your media titles,
when the desired selection is playing, press VOICE or
, and when
prompted, say “What’s playing?”. The system will read the title to you
so that you will know how to say the selection so that the system will
understand.
•For more information on your voice recognition system, refer to the
Voice Recognition System Overviewchapter.
SYNCcustomer support
If your questions are still not resolved, please contact SYNCcustomer
support, available Monday through Saturday: 8:30am-8:00pm EST. You
can also access on-line support on the web site during these same hours.
Note:Times are subject to change due to holidays.
In the United States, call: 1–888–270–1055
In Canada, call: 1–800–565–3673
Troubleshooting
77SeeEnd User License Agreementat the end of this book
2011 SYNC/MGM(mgm)
Supplement, 2nd Printing
USA(fus)

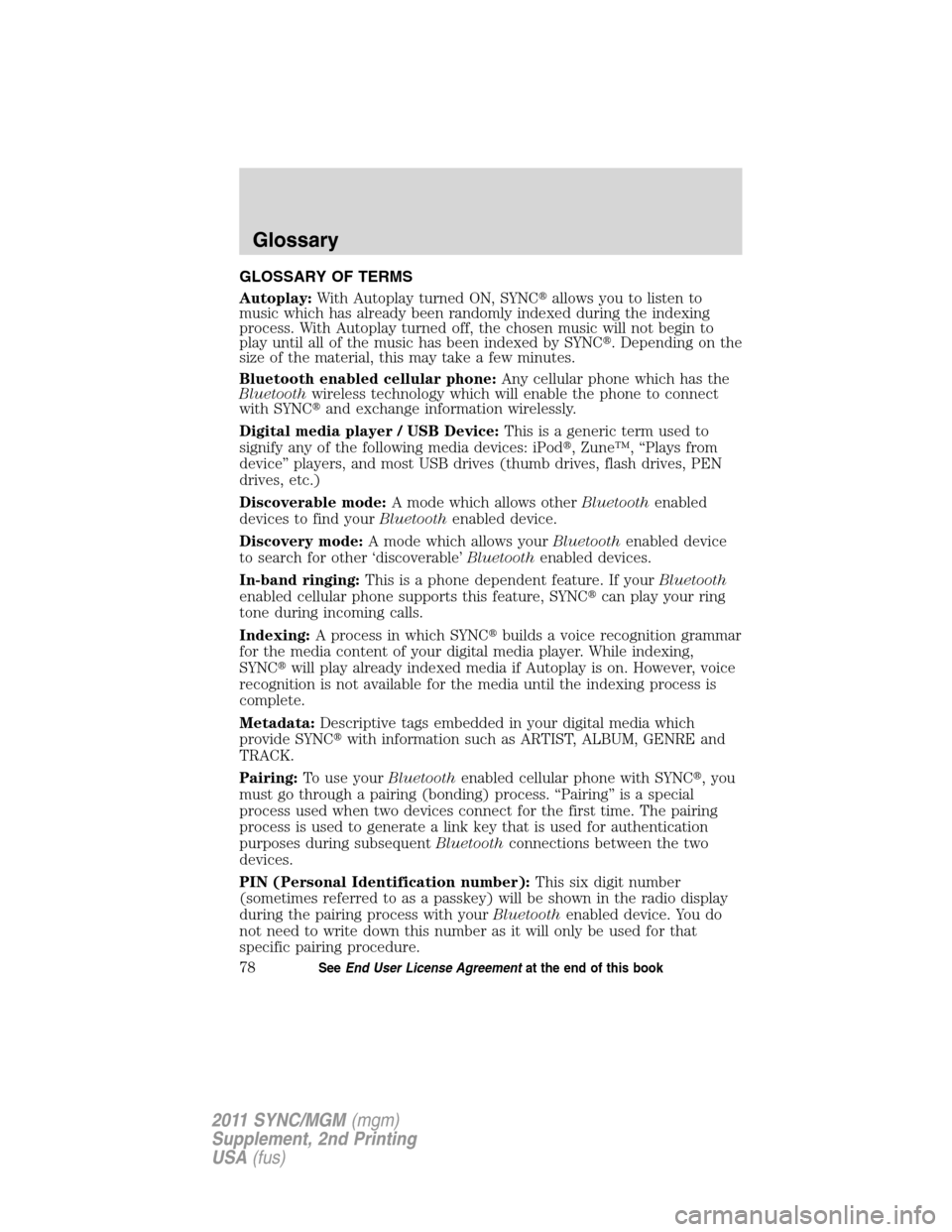

GLOSSARY OF TERMS
Autoplay:With Autoplay turned ON, SYNCallows you to listen to
music which has already been randomly indexed during the indexing
process. With Autoplay turned off, the chosen music will not begin to
play until all of the music has been indexed by SYNC. Depending on the
size of the material, this may take a few minutes.
Bluetooth enabled cellular phone:Any cellular phone which has the
Bluetoothwireless technology which will enable the phone to connect
with SYNCand exchange information wirelessly.
Digital media player / USB Device:This is a generic term used to
signify any of the following media devices: iPod, Zune™, “Plays from
device” players, and most USB drives (thumb drives, flash drives, PEN
drives, etc.)
Discoverable mode:A mode which allows otherBluetoothenabled
devices to find yourBluetoothenabled device.
Discovery mode:A mode which allows yourBluetoothenabled device
to search for other ‘discoverable’Bluetoothenabled devices.
In-band ringing:This is a phone dependent feature. If yourBluetooth
enabled cellular phone supports this feature, SYNCcan play your ring
tone during incoming calls.
Indexing:A process in which SYNCbuilds a voice recognition grammar
for the media content of your digital media player. While indexing,
SYNCwill play already indexed media if Autoplay is on. However, voice
recognition is not available for the media until the indexing process is
complete.
Metadata:Descriptive tags embedded in your digital media which
provide SYNCwith information such as ARTIST, ALBUM, GENRE and
TRACK.
Pairing:To use yourBluetoothenabled cellular phone with SYNC, you
must go through a pairing (bonding) process. “Pairing” is a special
process used when two devices connect for the first time. The pairing
process is used to generate a link key that is used for authentication
purposes during subsequentBluetoothconnections between the two
devices.
PIN (Personal Identification number):This six digit number
(sometimes referred to as a passkey) will be shown in the radio display
during the pairing process with yourBluetoothenabled device. You do
not need to write down this number as it will only be used for that
specific pairing procedure.
Glossary
78SeeEnd User License Agreementat the end of this book
2011 SYNC/MGM(mgm)
Supplement, 2nd Printing
USA(fus)

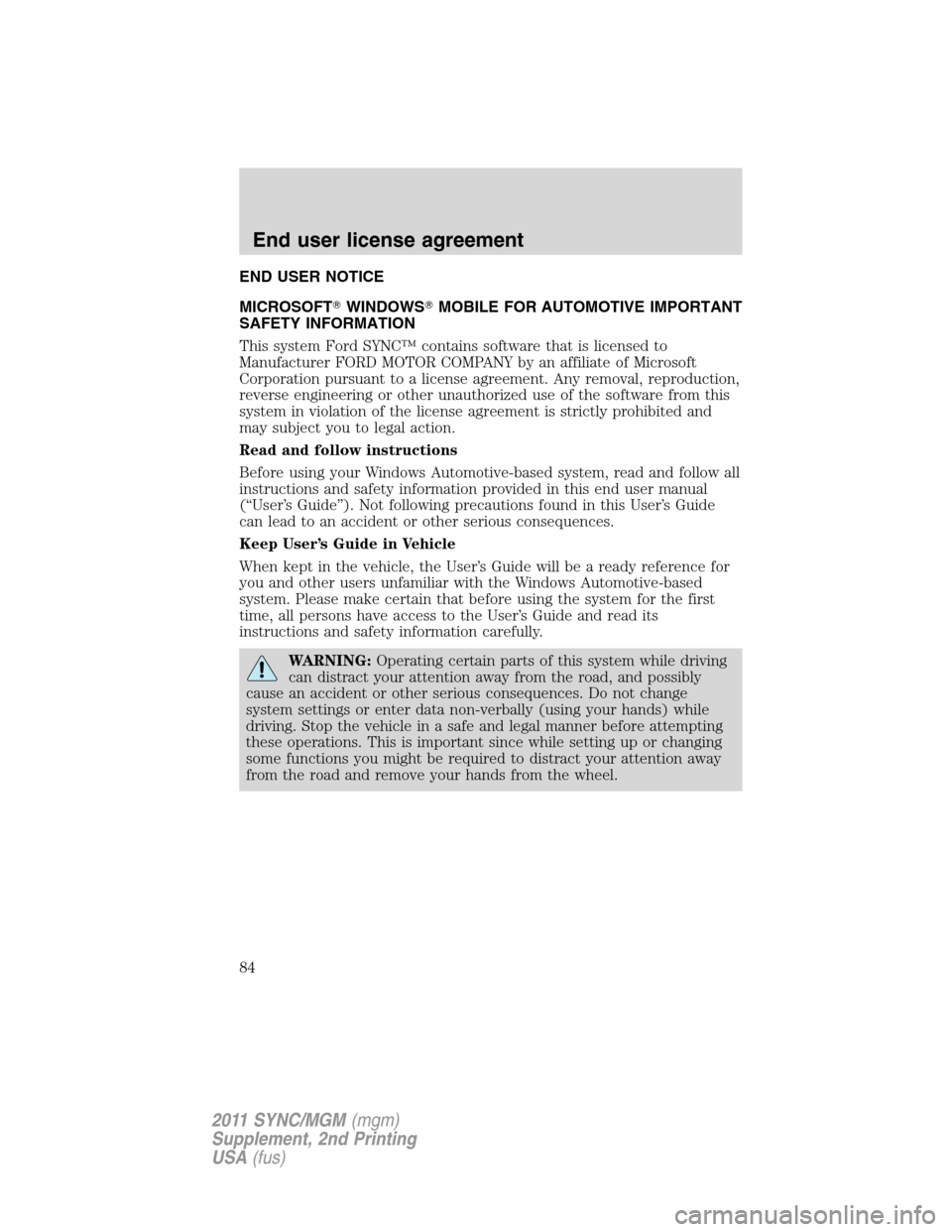

END USER NOTICE
MICROSOFTWINDOWSMOBILE FOR AUTOMOTIVE IMPORTANT
SAFETY INFORMATION
This system Ford SYNC™ contains software that is licensed to
Manufacturer FORD MOTOR COMPANY by an affiliate of Microsoft
Corporation pursuant to a license agreement. Any removal, reproduction,
reverse engineering or other unauthorized use of the software from this
system in violation of the license agreement is strictly prohibited and
may subject you to legal action.
Read and follow instructions
Before using your Windows Automotive-based system, read and follow all
instructions and safety information provided in this end user manual
(“User’s Guide”). Not following precautions found in this User’s Guide
can lead to an accident or other serious consequences.
Keep User’s Guide in Vehicle
When kept in the vehicle, the User’s Guide will be a ready reference for
you and other users unfamiliar with the Windows Automotive-based
system. Please make certain that before using the system for the first
time, all persons have access to the User’s Guide and read its
instructions and safety information carefully.
WARNING:Operating certain parts of this system while driving
can distract your attention away from the road, and possibly
cause an accident or other serious consequences. Do not change
system settings or enter data non-verbally (using your hands) while
driving. Stop the vehicle in a safe and legal manner before attempting
these operations. This is important since while setting up or changing
some functions you might be required to distract your attention away
from the road and remove your hands from the wheel.
End user license agreement
84
2011 SYNC/MGM(mgm)
Supplement, 2nd Printing
USA(fus)
