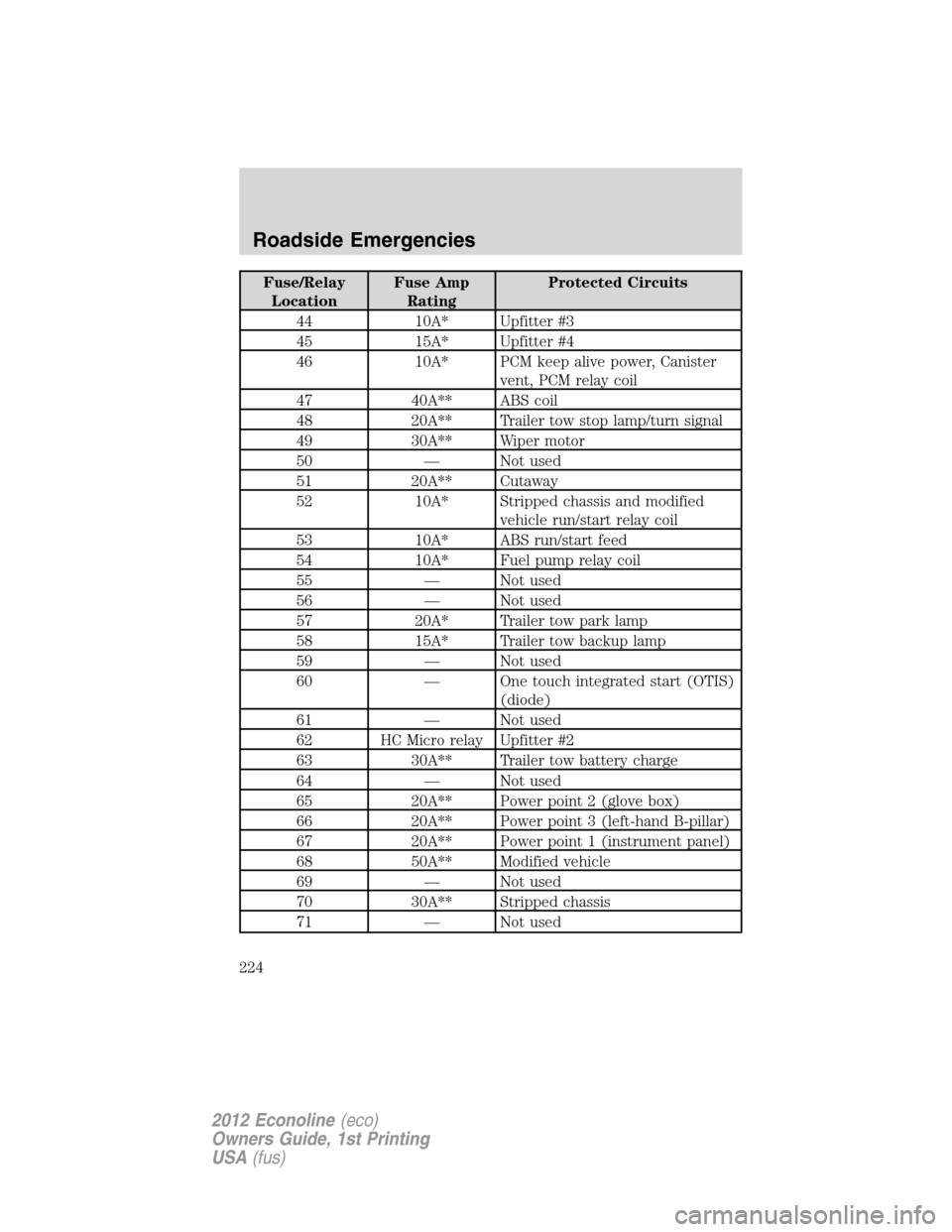

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
44 10A* Upfitter #3
45 15A* Upfitter #4
46 10A* PCM keep alive power, Canister
vent, PCM relay coil
47 40A** ABS coil
48 20A** Trailer tow stop lamp/turn signal
49 30A** Wiper motor
50 — Not used
51 20A** Cutaway
52 10A* Stripped chassis and modified
vehicle run/start relay coil
53 10A* ABS run/start feed
54 10A* Fuel pump relay coil
55 — Not used
56 — Not used
57 20A* Trailer tow park lamp
58 15A* Trailer tow backup lamp
59 — Not used
60 — One touch integrated start (OTIS)
(diode)
61 — Not used
62 HC Micro relay Upfitter #2
63 30A** Trailer tow battery charge
64 — Not used
65 20A** Power point 2 (glove box)
66 20A** Power point 3 (left-hand B-pillar)
67 20A** Power point 1 (instrument panel)
68 50A** Modified vehicle
69 — Not used
70 30A** Stripped chassis
71 — Not used
Roadside Emergencies
224
2012 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
72 20A** Cigar lighter
73 — Not used
74 30A** Power seat
75 20A* Vehicle power (VPWR) 1, PCM
power
76 20A* VPWR 2, PCM – emission related
powertrain components
77 10A* VPWR 3, PCM – general
powertrain components
78 15A* VPWR 4, Fuel pump relay coil
79 10A* VPWR 5, Transmission
80 10A* Cluster run/start (stripped
chassis)
81 — Not used
82 — Not used
83 — Fuel pump (diode)
84 — Not used
85 HC Micro relay Upfitter #1
* Mini fuses ** A1S fuses
CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Note:If your vehicle is equipped with the tire pressure monitoring
system (TPMS), the indicator light will illuminate when the spare tire is
in use. To restore the full functionality of the monitoring system, all road
wheels equipped with tire pressure monitoring sensors must be mounted
on the vehicle.
If your vehicle is equipped with TPMS, have a flat serviced by an
authorized dealer in order to prevent damage to the TPMS sensors, refer
toTire pressure monitoring system (TPMS)in theTires, Wheels and
Loadingchapter. Replace the spare tire with a road tire as soon as
possible. During repairing or replacing of the flat tire, have the
authorized dealer inspect the TPMS sensor for damage.
Roadside Emergencies
225
2012 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

Keys .............................................86
positions of the ignition .........184
L
Lamps
bulb replacement
specifications chart ..................57
daytime running light ...............52
headlamps .................................51
headlamps, flash to pass ..........51
instrument panel, dimming .....52
interior lamps ...........................56
replacing bulbs .........................59
LATCH anchors .........................124
Lights, warning and indicator ....14
anti-lock brakes (ABS) ..........190
Loading instructions .................172
Load limits .................................165
Locks
autolock .....................................75
doors ..........................................75
Lubricant specifications ...........296
Lug nuts ....................................234
Lumbar support, seats ...............91
M
Message center ...........................21
english/metric button ...............27
warning messages .....................27
Mirrors ...................................67–68
automatic dimming rearview
mirror ........................................67
fold away ...................................69
side view mirrors (power) .......68
Motorcraftparts ..............256, 295
N
Navigation system .......................47O
Octane rating ............................277
Oil (see Engine oil) ..................260
P
Parking brake ............................191
Parts
(see Motorcraftparts) ...........295
Power distribution box
(see Fuses) ...............................221
Power door locks ........................75
Power mirrors .............................68
Power point .................................65
Power steering ..........................197
fluid, checking and adding ....284
fluid, refill capacity ................296
fluid, specifications .................296
Power Windows ...........................66
Preparing to drive your
vehicle ........................................198
R
Radio ......................................29, 31
Rear-view camera system .........210
Recommendations for
attaching safety restraints for
children ......................................118
Relays ........................................217
Remote entry system .................80
illuminated entry ......................84
locking/unlocking
doors ..............................75, 81–82
panic alarm ...............................82
replacement/additional
transmitters ...............................83
