clock setting FORD E SERIES 2012 4.G Owners Manual

2.AUDIO:Press AUDIO repeatedly
to gain access to the following
settings:
•BAL (Balance):Press AUDIO to
reach the balance setting. Use
//SEEKto adjust the
audio between the left (L) and right (R) speakers.
•FAD (Fade)–If equipped with four speaker audio system:Press
AUDIO to reach the fade feature. Use
//SEEKto
adjust the audio between the front (F) and back (B) speakers.
•TREB (Treble):Press to adjust the treble setting. Use
//
SEEKto adjust.
•BASS (Bass):Press to adjust the bass setting. Use
//
SEEKto adjust.
3.SEEK:Press
SEEKto
access the previous/next strong
station.
4.Memory presets:To set a
station: Select frequency band
AM/FM1/FM2; tune to a station,
press and hold a preset button until sound returns. You can save up to
18 stations, six in AM, six in FM1 and FM2.
5.AM/FM:Press AM/FM repeatedly
to cycle through: AM > FM1 > FM2
> IN (auxiliary input jack). For
more information on the auxiliary input jack, refer toLine in, auxiliary
input jacklater in this chapter.
6.ON/OFF/Volume:Press
VOL-PUSH to turn ON/OFF. Turn
VOL-PUSH to increase/decrease
volume.
7.CLK (Clock):Press CLK to
toggle between displaying the radio
frequency and the clock setting.
Entertainment Systems
30
2012 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

Setting the clock:Press and hold CLK until the hours begin to flash.
Press
//SEEKto manually increase/decrease the hours.
Press CLK again to set the minutes using
//SEEKto
manually increase/decrease the minutes. Allow 10 seconds to pass to
confirm that the time has been set.
Note:If your vehicle is equipped with a navigation system, refer to
Setting the clockin yourNavigation supplement.
AM/FM Single CD/MP3 satellite compatible sound system
(if equipped)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
Accessory delay:Your vehicle is equipped with accessory delay. With
this feature, the radio and other electrical devices may be used for up to
ten minutes after the ignition is turned off or until either front door is
opened.
Entertainment Systems
31
2012 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

1./(Tuner):Press to
manually go up or down the radio
frequency. Also use in menu mode
to select various settings.
In satellite radio mode (if equipped),press
/to tune to the
next/previous channel.
In CATEGORY MODE,press
/to scroll through the list of
available SIRIUS channel Categories (Pop, Rock, News, etc.). Refer to
CategoryunderMenufor further information.
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability.
2.
(Phone):If your vehicle is
equipped with SYNC, press to
access SYNC PHONE features. For
further information, please refer to theSYNCsupplement.
If your vehicle is not equipped with SYNC, the display will read NO
PHONE.
3.MENU:Press repeatedly to
access the following settings:
Setting the clock:Press MENU until SET HOURS or SET MINUTES is
displayed. Use
/to manually increase/decrease. Press MENU again
to disengage clock mode.
Note:If your vehicle is equipped with a navigation system, refer to
Setting the clockin yourNavigation supplement.
SATELLITE RADIO MENU (if equipped):Press MENU when satellite
radio mode is active to access. Press OK to enter into the satellite radio
menu. Press
/to cycle through the following options:
•CATEGORY:Press OK to enter category mode. Press
/to
scroll through the list of available SIRIUS channel Categories (Pop,
Rock, News, etc.) Press OK when the desired category appears in the
display. After a category is selected, press SEEK to search for that
specific category of channels only (i.e. ROCK). You may also select
CATEGORY ALL to seek all available SIRIUS categories and channels.
Entertainment Systems
32
2012 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

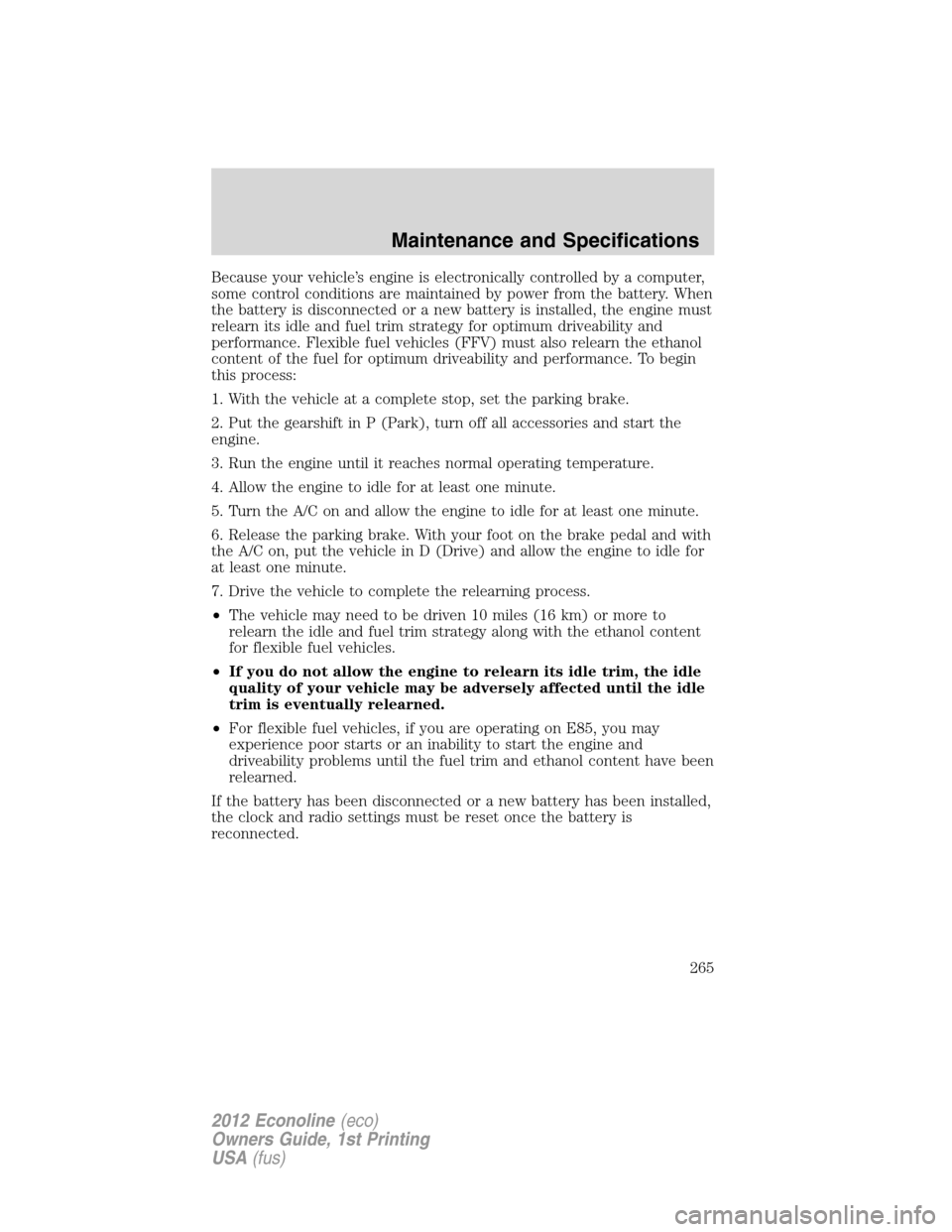

Because your vehicle’s engine is electronically controlled by a computer,
some control conditions are maintained by power from the battery. When
the battery is disconnected or a new battery is installed, the engine must
relearn its idle and fuel trim strategy for optimum driveability and
performance. Flexible fuel vehicles (FFV) must also relearn the ethanol
content of the fuel for optimum driveability and performance. To begin
this process:
1. With the vehicle at a complete stop, set the parking brake.
2. Put the gearshift in P (Park), turn off all accessories and start the
engine.
3. Run the engine until it reaches normal operating temperature.
4. Allow the engine to idle for at least one minute.
5. Turn the A/C on and allow the engine to idle for at least one minute.
6. Release the parking brake. With your foot on the brake pedal and with
the A/C on, put the vehicle in D (Drive) and allow the engine to idle for
at least one minute.
7. Drive the vehicle to complete the relearning process.
•The vehicle may need to be driven 10 miles (16 km) or more to
relearn the idle and fuel trim strategy along with the ethanol content
for flexible fuel vehicles.
•If you do not allow the engine to relearn its idle trim, the idle
quality of your vehicle may be adversely affected until the idle
trim is eventually relearned.
•For flexible fuel vehicles, if you are operating on E85, you may
experience poor starts or an inability to start the engine and
driveability problems until the fuel trim and ethanol content have been
relearned.
If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected.
Maintenance and Specifications
265
2012 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

replacing the batteries .............82
Reverse sensing system ...........208
Roadside assistance ..................214
Roll stability control .................192
S
Safety belts (see Safety
restraints) ......................97–99, 101
Safety defects, reporting ..........249
Safety restraints ............97–99, 101
Belt-Minder...........................102
extension assembly ................105
for adults .............................98–99
for children .............................116
warning light and chime ........102
Safety restraints - LATCH
anchors ......................................124
Safety seats for children ..........120
Safety Compliance
Certification Label ....................301
Satellite Radio Information ........44
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............315
Seats ............................................89
child safety seats ....................120
front seats .................................90
SecuriLock passive anti-theft
system ..........................................85
Servicing your vehicle ..............257
Setting the clock ...................30, 32
SOS Post Crash Alert ...............110
Spare tire
(see Changing the Tire) ...........228Spark plugs,
specifications .....................295, 300
Special notice ................................7
ambulance conversions ..............7
utility-type vehicles ....................6
Specification chart,
lubricants ...................................296
Speed control ..............................70
Stability system .........................192
Starting a flex fuel vehicle .......187
Starting your vehicle ........184–187
jump starting ..........................235
Steering wheel
controls ......................................71
tilting .........................................65
SYNC..........................................47
T
Temperature control
(see Climate control) ...........48, 50
Tilt steering wheel ......................65
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....158
Tires ...........................140–141, 225
alignment ................................150
care ..........................................146
changing ..................225, 228–230
checking the pressure ............145
inflating ...................................142
label .........................................157
replacing ..........................148, 230
rotating ....................................150
safety practices .......................149
sidewall information ...............152
snow tires and chains ............164
spare tire .........................226, 228
Index
334
2012 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
