FORD E SERIES 2013 4.G Owners Manual

Item CapacityFord part name or
equivalentFord part number / Ford
specification
Engine oil
2
6.0 quarts (5.7L)•MotorcraftSAE 5W-20
Premium Synthetic Blend
Motor Oil (US)
•MotorcraftSAE 5W-20 Full
Synthetic Motor Oil (US)
•MotorcraftSAE 5W-20
Super Premium Motor Oil
(Canada)
•MotorcraftSAE 5W-20
Synthetic Motor Oil (Canada)•XO-5W20-QSP (US)
•XO-5W20-QFS (US)
•CXO-5W20-LSP12 (Canada)
•CXO-5W20-LFS12 (Canada)
/
WSS-M2C945-A
Power steering fluidBetween MIN/MAX
on reservoirMotorcraft
MERCONVATFXT-5-QM /
MERCONV
Automatic transmission fluid
(4R75E)
3,4
13.9 quarts (13.1L)Motorcraft
MERCONLV AT FXT-10-QLV /
MERCONLV
Automatic transmission fluid
TorqShift(5–speed)
3,4
18.8 quarts (17.7L)Motorcraft
MERCONLV AT FXT-10-QLV /
MERCONLV
Limited Slip axle fluid
M60 (M248)
E-350 with 4.10 axle
ratio
5,6,7
5.9 pints (2.8L)SAE 75W-140 Synthetic Rear
Axle LubricantXY-75W140-QL /
WSL-M2C192-A
Capacities and Specifications281
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number / Ford
specification
Dana Limited Slip Axle fluid
M60 (M248)
E–250/E–350
5,7
5.9 pints (2.8L)
SAE 90 Hypoid Gear OilXY–90–GL /
ESW-M2C105-E Dana Limited Slip Axle fluid
M70FF (M267FF)
E-350
7
6.6 pints (3.1L)
Dana Limited Slip Axle fluid
M70HD (M273HD)
E-450
7
9.0 pints (4.3L)
Dana conventional axle fluid
M60 (M248) E-350 with
4.10 axle ratio
6,7
6.2 pints (2.9L)SAE 75W-140 Synthetic Rear
Axle LubricantXY-75W140-QL /
WSL-M2C192-A
Dana conventional axle fluid
M60 (M248)
E-150/E-350
7
6.2 pints (2.9 L)
SAE 80W-90 Premium Rear
Axle LubricantXY-80W90-QL /
WSP-M2C197-A Dana conventional axle fluid
M70FF (M267FF)
E-350
7
6.6 pints (3.1L)
Dana conventional axle fluid
M70HD (M273HD)
E-450
7
9.0 pints (4.3 L)
282Capacities and Specifications
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number / Ford
specification
Windshield washer fluid Fill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality Windshield
Washer Fluid (Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
Fuel tank–all regular and
extended length vans and
wagons33.0 gallons (124.9 L)
—— Fuel tank–138 inch
wheelbase (except E-Super
Duty)40.0 gallons (151.0L)
Fuel tank–158 inch
wheelbase (except E-Super
Duty)
8
40.0 gallons (151.0L)
Fuel tank–176 inch
wheelbase (except E-Super
Duty)
8
40.0 gallons (151.0L)
Fuel tank–158 inch and
176 inch wheelbase
(E-Super Duty)55.0 gallons (208.0L)
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the requirements
of Ford specification WSS-M2C945-A and display the API Certification mark.
Your engine has been designed to be used with Ford engine oil, which gives a fuel economy benefit while
maintaining the durability of your engine. Using oils other than the one specified can result in longer engine
cranking periods, reduced engine performance, reduced fuel economy and increased emission levels.
Capacities and Specifications283
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size, if equipped
with an in-tank cooler, if equipped with an oil to air cooler and if equipped with a remote filter assembly. The
amount of transmission fluid and fluid level should be set by the indication on the dipstick’s normal operating
range.4Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer toscheduled
maintenance informationto determine the correct service interval. Use of any fluid other than the
recommended fluid may cause transmission damage.5Dana limited-slip axle (M60) requires 6 oz. (177 ml) of Additive Friction Modifier XL-3 or equivalent meeting
Ford specification EST-M2C118-A.6If your vehicle’s rear axle is filled with a synthetic rear axle lubricant it is considered lubricated for life.
These lubricants do not need to be checked or changed unless a leak is suspected, service is required or the
axle assembly has been submerged in water. The axle lubricant should be changed any time the rear axle has
been submerged in water.7Fill Dana rear axles to 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.8Optional fuel tank 55.0 gallons (208.0L).
284Capacities and Specifications
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

MOTORCRAFTPART NUMBERS
Component 4.6L V8 engine 5.4L V8 engine6.8L V10
engine
Air filter element FA-1632 FA-1632 FA-1632
Battery-
standard /
(auxiliary)BXT-65-650 /
(BXT-65-750)BXT-65-650 /
(BXT-65-750)BXT-65-650 /
(BXT-65-750)
Oil filter FL-820-S FL-820-S FL-820-S
Spark plugs
1
TorqShift
automatic
transmission
internal
bottom–pan filter— FT-180 FT-180
Windshield wiper
bladeWW-2001-PF
1For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Note:Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor equivalent
replacement parts. The customer warranty may be void for any damage
to the engine if such spark plugs are not used.
Capacities and Specifications285
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

VEHICLE IDENTIFICATION NUMBER
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
A. World manufacturer identifier
B. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
C. Make, vehicle line, series, body
type
D. Engine type
E. Check digit
F. Model year
G. Assembly plant
H. Production sequence number
XXXXXXXXXXXXXXXXX
286Capacities and Specifications
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

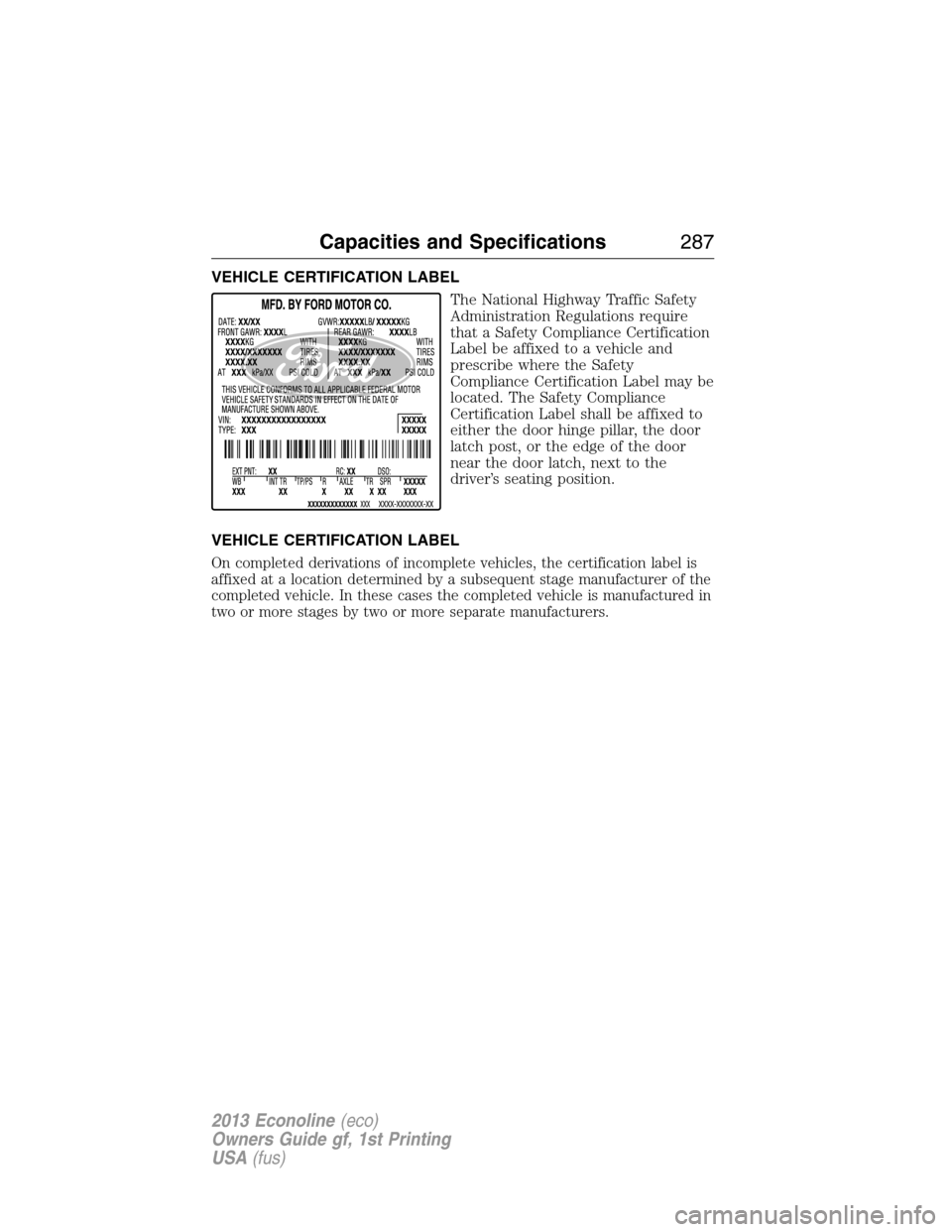

VEHICLE CERTIFICATION LABEL
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance Certification
Label be affixed to a vehicle and
prescribe where the Safety
Compliance Certification Label may be
located. The Safety Compliance
Certification Label shall be affixed to
either the door hinge pillar, the door
latch post, or the edge of the door
near the door latch, next to the
driver’s seating position.
VEHICLE CERTIFICATION LABEL
On completed derivations of incomplete vehicles, the certification label is
affixed at a location determined by a subsequent stage manufacturer of the
completed vehicle. In these cases the completed vehicle is manufactured in
two or more stages by two or more separate manufacturers.
Capacities and Specifications287
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

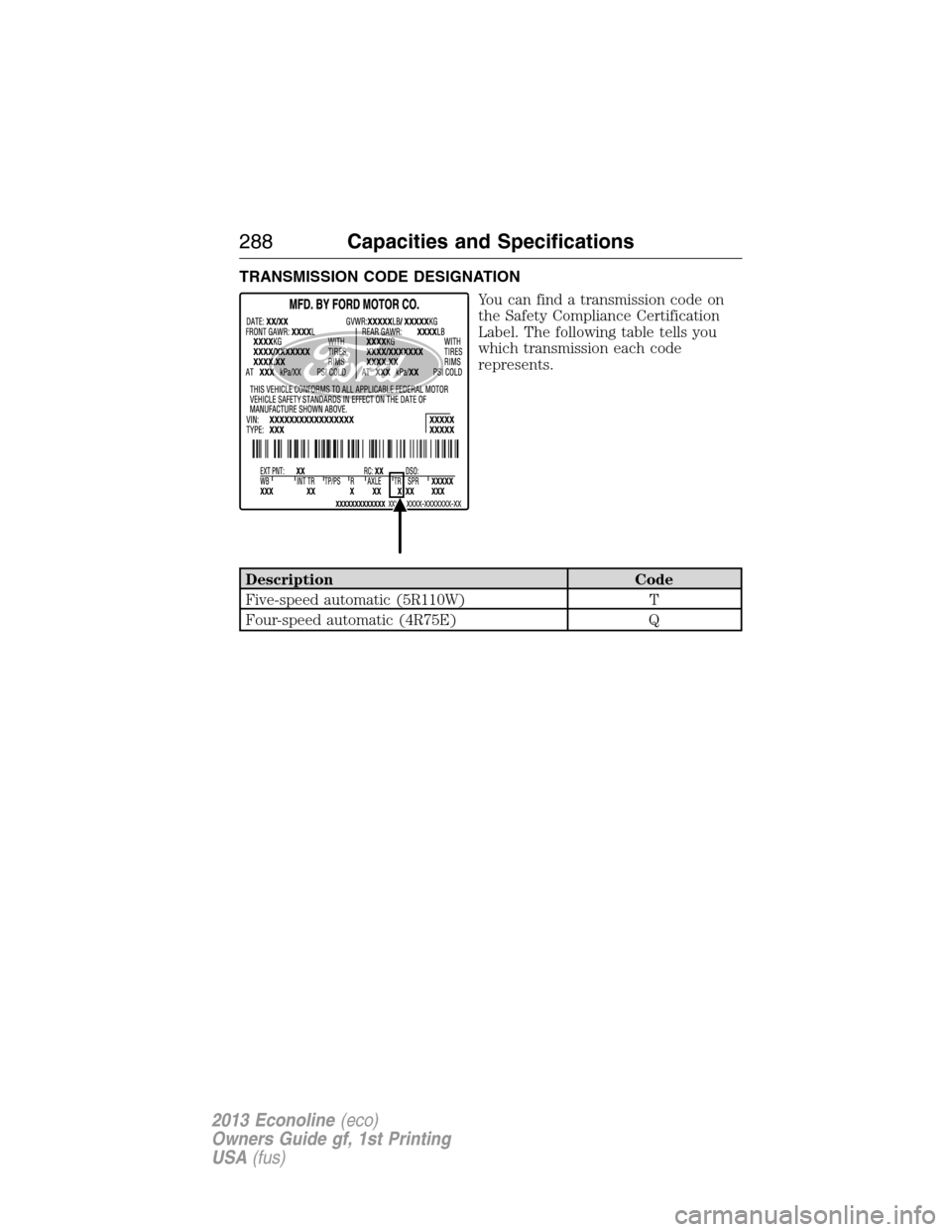

TRANSMISSION CODE DESIGNATION
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Five-speed automatic (5R110W) T
Four-speed automatic (4R75E) Q
288Capacities and Specifications
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

ACCESSORIES
For a complete listing of the accessories that are available for your
vehicle, please contact your dealer or visit our online store at:
Accessories.Ford.com(U.S. only).
Ford Custom Accessories are available for your vehicle through your
local Ford or Ford of Canada dealer. Ford Motor Company will repair or
replace any properly dealer-installed Ford Custom Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
Exterior style
•Bug shields•Running boards
•Deflectors•Splash guards
Interior style
•Floor mats•Cargo organization
•Electrochromic compass/temperature interior mirrors
Lifestyle
•Racks and carriers*•Trailer hitches and towing
accessories
Peace of mind
•Keyless entry keypad•Back up alarm*
•Remote start•Hitch mounted parking sensor*
•Vehicle security systems
•Bumper mounted parking sensors*
*Ford Licensed Accessories (FLA) are warranted by the accessory
manufacturer’s warranty. Ford Licensed Accessories are fully designed
and developed by the accessory manufacturer and have not been
designed or tested to Ford Motor Company engineering requirements.
Contact your Ford dealer for details regarding the manufacturer’s limited
warranty and/or a copy of the FLA product limited warranty offered by
the accessory manufacturer.
Accessories289
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

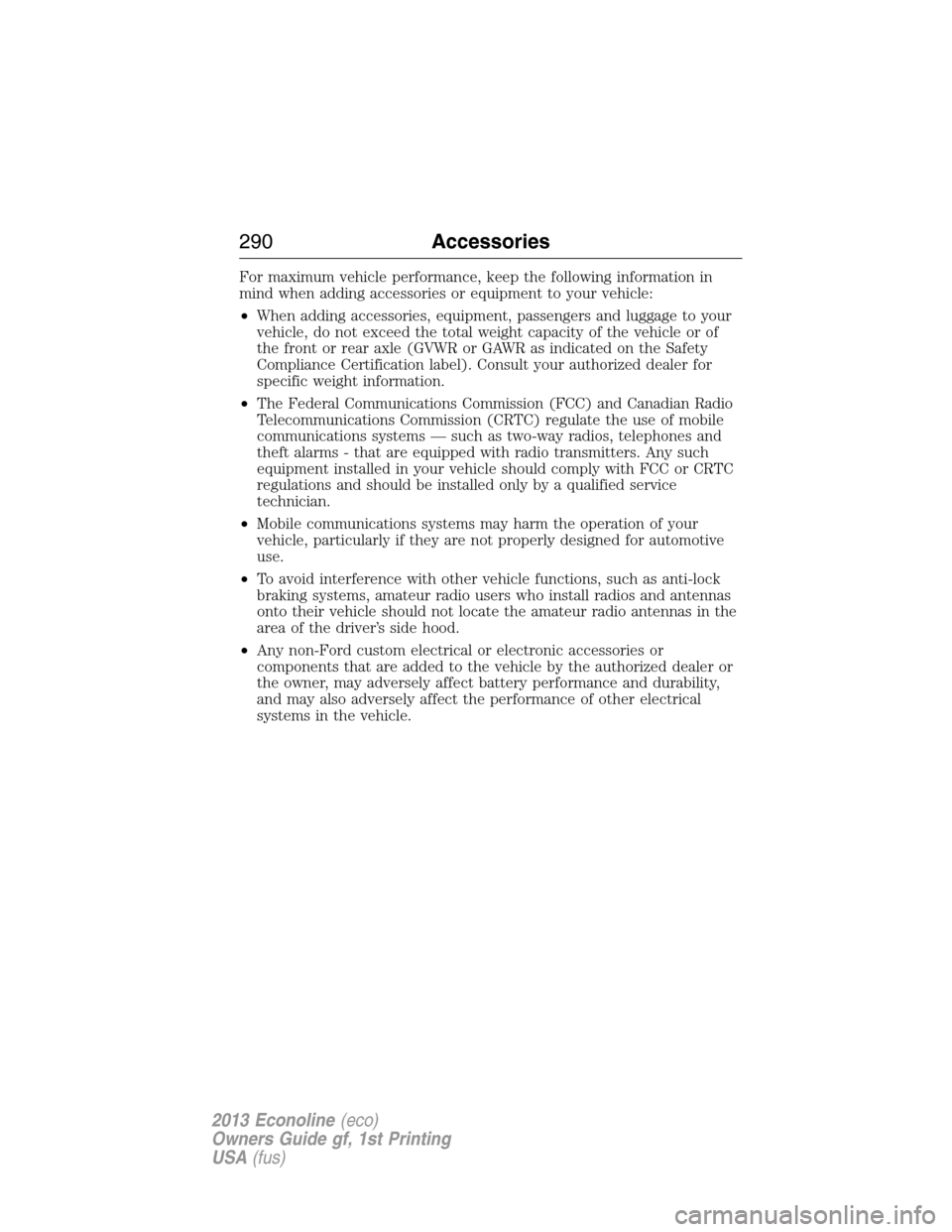

For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the amateur radio antennas in the
area of the driver’s side hood.
•Any non-Ford custom electrical or electronic accessories or
components that are added to the vehicle by the authorized dealer or
the owner, may adversely affect battery performance and durability,
and may also adversely affect the performance of other electrical
systems in the vehicle.
