check engine FORD E SERIES 2013 4.G Owner's Guide

EXCEPTIONS
Normal vehicle axle maintenance:Rear axles and power take-off
(PTO) units with synthetic fluid and light-duty trucks equipped with
Ford-design axles are lubricated for life; do not check or change fluid
unless a leak is suspected, service is required or the assembly has been
submerged in water. During long periods of trailer towing with outside
temperatures above 70°F (21°C) and at wide-open throttle for long
periods above 45 mph (72 km/h), non-synthetic rear axle fluids should
be changed every 3000 miles (4800 kilometers) or three months,
whichever comes first. This interval can be waived if the axle is filled
with 75W140 synthetic gear fluid meeting Ford specification
WSL-M2C192-A, part number F1TZ-19580-B or equivalent. Add friction
modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of
Traction-Lok rear axles (seeTechnical specificationsin theCapacities
and Specificationschapter for details).
Police/Taxi/Livery vehicle axle maintenance:Change rear axle fluid
every 100000 miles (160000 kilometers). Rear axle fluid change may be
waived if the axle was filled with 75W140 synthetic gear fluid meeting
Ford specification WSL-M2C192-A, part number FITZ-19580-B or
equivalent. Add four ounces (118 mL) of additive friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles. The axle fluid should be changed anytime the axle has been
submerged in water.
California fuel filter replacement:If the vehicle is registered in
California, the California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify the emission
warranty or limit recall liability prior to the completion of the vehicle’s
useful life. Ford Motor Company, however, urges you to have all
recommended maintenance services performed at the specified intervals
and to record all vehicle service.
Hot climate oil change intervals:Vehicles operating in the Middle
East, North Africa, Sub-Saharan Africa or locations with similar climates
using an American Petroleum Institute (API) Certified for Gasoline
Engines (Certification mark) oil of SM or SN quality, the normal oil
change interval is 5000 miles (8000 kilometers).
If the available API “SM” or “SN” oils are not available, then the oil
change service interval is 3000 miles (4800 kilometers).
Engine air filter replacement:Engine air filter life is dependent on
exposure to dusty and dirty conditions. Vehicles operated in these
conditions require frequent inspection and replacement of the engine air
filter.
308Scheduled Maintenance
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

911 Assist™ ..............................329
A
ABS (see Brakes) .....................137
Accessing call history/phone
book during active call .............319
Accessing the help screen .......388
Accessing the music in your
jukebox ......................................382
Accessing your media menu
features ......................................341
Accessing your phone menu
features ......................................320
Accessory delay ..........................71
Active call menu options .........319
Advanced menu options ...327, 348
Advanced menu options
(prompts, languages, defaults,
master reset, installing
applications) ..............................327
Airbag supplemental restraint
system ..........................................46
and child safety seats ..............47
description ................................46
disposal ......................................54
driver airbag ..............................46
passenger airbag .......................46
passenger deactivation
switch ........................................48
side airbag .................................46
Air cleaner filter .......221–222, 285
Air conditioning ..................99–100
manual heating and air
conditioning system .........99–100
Ambulance packages ..................14
AM/FM .......................................366Antifreeze
(see Engine coolant) ................205
Anti-lock brake system
(see Brakes) ..............................137
Anti-theft system ........................63
arming the system ....................63
AppLink™ .................................336
Audio system
Single CD ............................91–92
Audio system (see Radio) ...91–92
Automatic transmission
driving an automatic
overdrive .........................129, 132
fluid, adding ............................210
fluid, checking ........................210
fluid, refill capacities ..............280
fluid, specification ..................280
Auxiliary input jack (Line in) ....94
Auxiliary powerpoint ................111
Axle
lubricant specifications ..........280
refill capacities ........................280
traction lok ..............................136
B
Battery .......................................218
acid, treating emergencies .....218
jumping a disabled battery ....181
maintenance-free ....................218
replacement, specifications ...285
servicing ..................................218
Booster seats ...............................22
Brakes ........................................137
anti-lock ...................................137
anti-lock brake system (ABS)
warning light ...........................137
brake warning light ................137
410Index
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

fluid, checking and adding ....216
fluid, refill capacities ..............280
fluid, specifications .................280
lubricant specifications ..........280
parking ....................................138
shift interlock ..........................134
trailer .......................................164

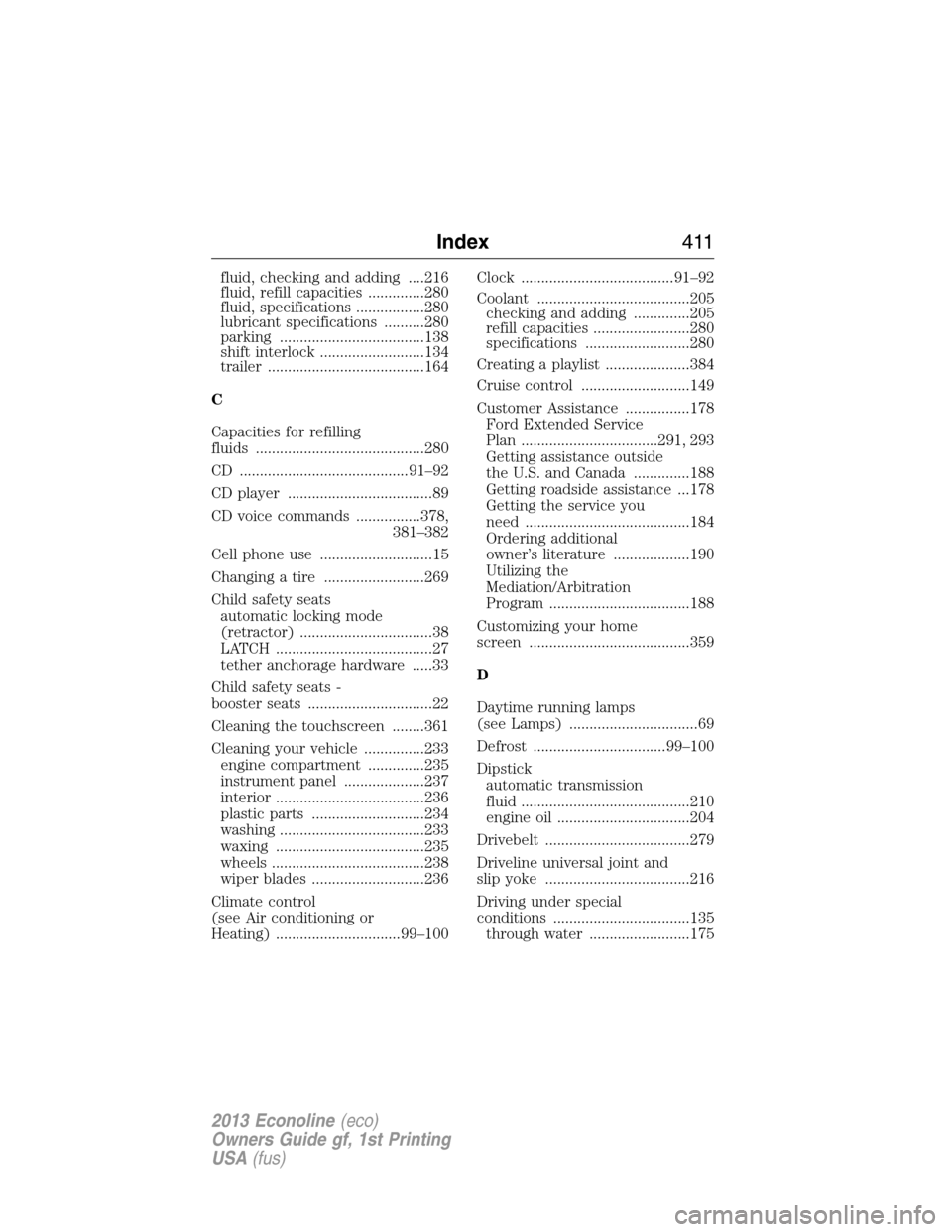

C
Capacities for refilling
fluids ..........................................280
CD ..........................................91–92
CD player ....................................89
CD voice commands ................378,
381–382
Cell phone use ............................15
Changing a tire .........................269
Child safety seats
automatic locking mode
(retractor) .................................38
LATCH .......................................27
tether anchorage hardware .....33
Child safety seats -
booster seats ...............................22
Cleaning the touchscreen ........361
Cleaning your vehicle ...............233
engine compartment ..............235
instrument panel ....................237
interior .....................................236
plastic parts ............................234
washing ....................................233
waxing .....................................235
wheels ......................................238
wiper blades ............................236
Climate control
(see Air conditioning or
Heating) ...............................99–100Clock ......................................91–92
Coolant ......................................205
checking and adding ..............205
refill capacities ........................280
specifications ..........................280
Creating a playlist .....................384
Cruise control ...........................149
Customer Assistance ................178
Ford Extended Service
Plan ..................................291, 293
Getting assistance outside
the U.S. and Canada ..............188
Getting roadside assistance ...178
Getting the service you
need .........................................184
Ordering additional
owner’s literature ...................190
Utilizing the
Mediation/Arbitration
Program ...................................188
Customizing your home
screen ........................................359
D
Daytime running lamps
(see Lamps) ................................69
Defrost .................................99–100
Dipstick
automatic transmission
fluid ..........................................210
engine oil .................................204
Drivebelt ....................................279
Driveline universal joint and
slip yoke ....................................216
Driving under special
conditions ..................................135
through water .........................175
Index411
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

E
Electronic message center .........82
Electronic stability control ......141
Emergencies, roadside
jump-starting ..........................181
running out of fuel .................122
Emergency Flashers .................180
Emission control system ..........125
End user license agreement ....398
Engine ................................278–279
cleaning ...................................235
coolant .....................................205
fail-safe cooling .......................208
lubrication specifications .......280
refill capacities ........................280
service points ..........................204
Engine block heater .................117
Engine oil
checking and adding ..............204
dipstick ....................................204
filter, specifications ................285
refill capacities ........................280
specifications ..........................280
Event data recording ..................11
Exhaust fumes ..........................117
F
Fail safe cooling ........................208
Flexible Fuel Vehicle (FFV) ....119
Floor mats .................................176
Fluid capacities .........................280
Four-Wheel Drive vehicles
preparing to drive your
vehicle .....................................172Fuel
cap ...........................................123
capacity ...................................280
choosing the right fuel ...........121
filler funnel .............................122
filling your vehicle with
fuel ...........................................123
filter, specifications ................217
fuel pump shut-off ..................180
octane rating ...........122, 278–279
quality ......................................121
running out of fuel .................122
safety information relating to
automotive fuels .....................119
Fuel - flex fuel vehicle
(FFV) .................................119, 121
Fuses ..........................192–193, 197
G
Gas cap (see Fuel cap) ............123
Gauges .........................................76
H
Hazard flashers .........................180
HD Radio™ ...............................369
Headlamps ...................................68
aiming ..............................223–224
bulb specifications ..................232
checking alignment ........223–224
daytime running lights .............69
flash to pass ..............................68
high beam .................................68
replacing bulbs .......................226
turning on and off ....................68
Head restraints .........................104
Heating ................................99–100
Hood ..........................................202
412Index
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)
