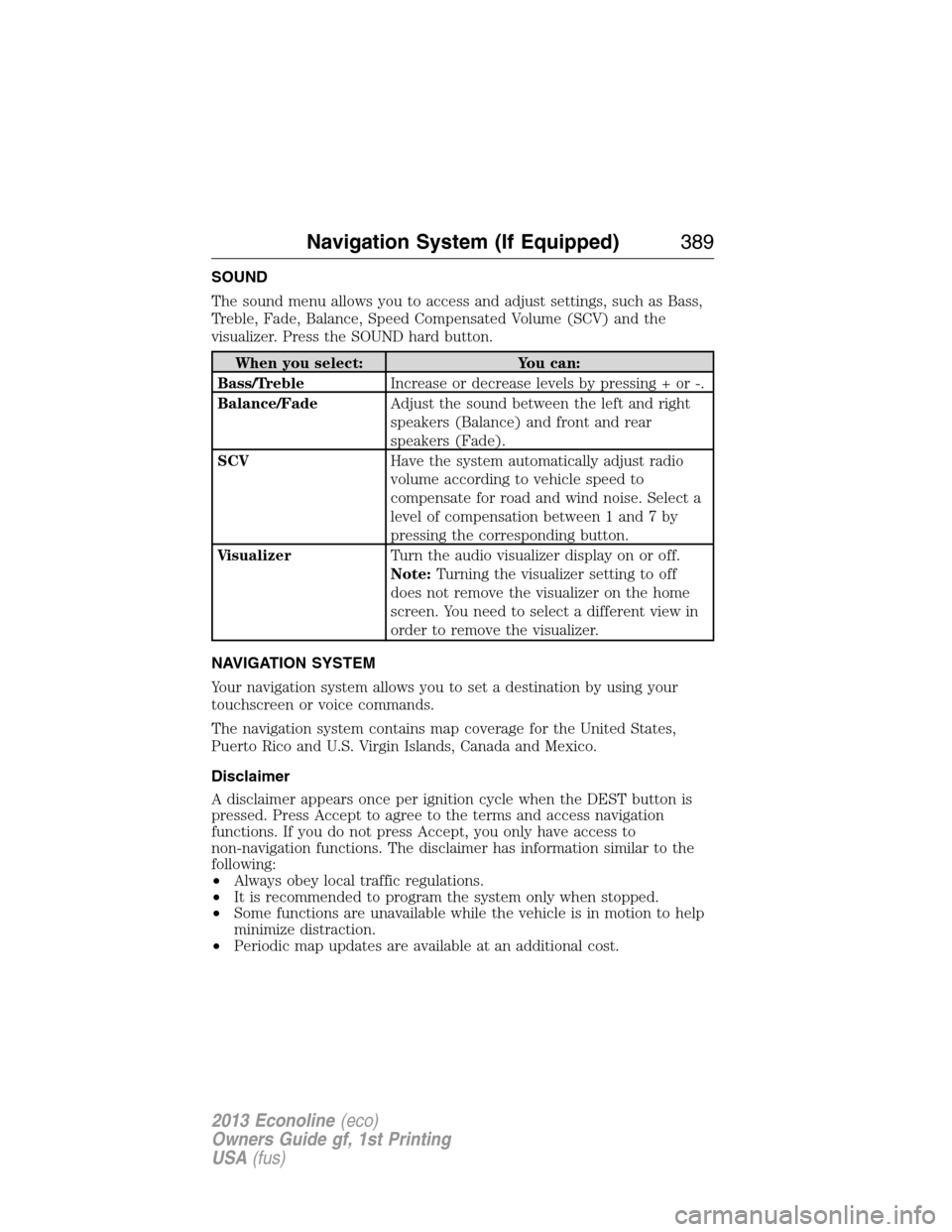

SOUND
The sound menu allows you to access and adjust settings, such as Bass,
Treble, Fade, Balance, Speed Compensated Volume (SCV) and the
visualizer. Press the SOUND hard button.
When you select: You can:
Bass/TrebleIncrease or decrease levels by pressing + or -.
Balance/FadeAdjust the sound between the left and right
speakers (Balance) and front and rear
speakers (Fade).
SCVHave the system automatically adjust radio
volume according to vehicle speed to
compensate for road and wind noise. Select a
level of compensation between 1 and 7 by
pressing the corresponding button.
VisualizerTurn the audio visualizer display on or off.
Note:Turning the visualizer setting to off
does not remove the visualizer on the home
screen. You need to select a different view in
order to remove the visualizer.
NAVIGATION SYSTEM
Your navigation system allows you to set a destination by using your
touchscreen or voice commands.
The navigation system contains map coverage for the United States,
Puerto Rico and U.S. Virgin Islands, Canada and Mexico.
Disclaimer
A disclaimer appears once per ignition cycle when the DEST button is
pressed. Press Accept to agree to the terms and access navigation
functions. If you do not press Accept, you only have access to
non-navigation functions. The disclaimer has information similar to the
following:
•Always obey local traffic regulations.
•It is recommended to program the system only when stopped.
•Some functions are unavailable while the vehicle is in motion to help
minimize distraction.
•Periodic map updates are available at an additional cost.
Navigation System (If Equipped)389
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

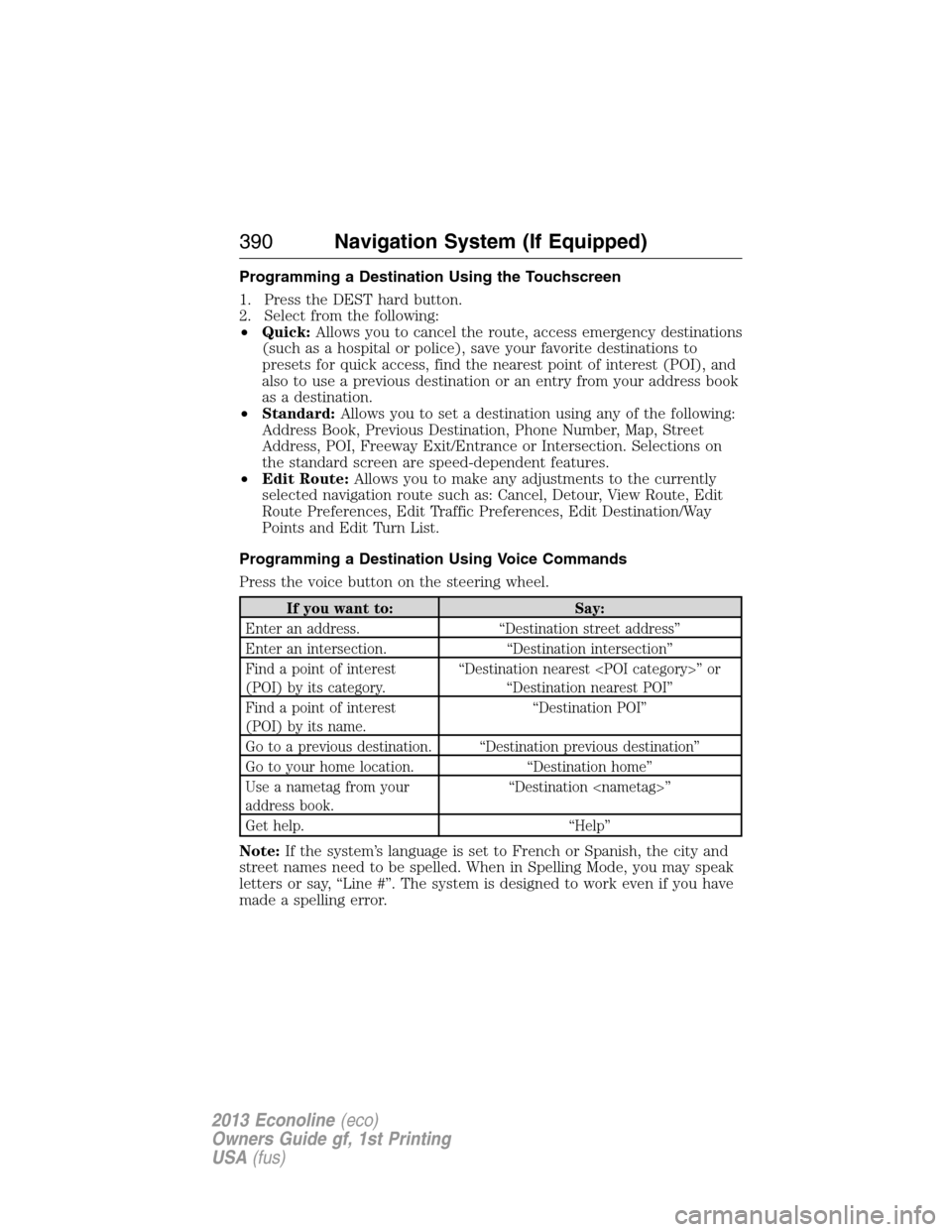

Programming a Destination Using the Touchscreen
1. Press the DEST hard button.
2. Select from the following:
•Quick:Allows you to cancel the route, access emergency destinations
(such as a hospital or police), save your favorite destinations to
presets for quick access, find the nearest point of interest (POI), and
also to use a previous destination or an entry from your address book
as a destination.
•Standard:Allows you to set a destination using any of the following:
Address Book, Previous Destination, Phone Number, Map, Street
Address, POI, Freeway Exit/Entrance or Intersection. Selections on
the standard screen are speed-dependent features.
•Edit Route:Allows you to make any adjustments to the currently
selected navigation route such as: Cancel, Detour, View Route, Edit
Route Preferences, Edit Traffic Preferences, Edit Destination/Way
Points and Edit Turn List.
Programming a Destination Using Voice Commands
Press the voice button on the steering wheel.
If you want to: Say:
Enter an address. “Destination street address”
Enter an intersection. “Destination intersection”
Find a point of interest
(POI) by its category.“Destination nearest ” or
“Destination nearest POI”
Find a point of interest
(POI) by its name.“Destination POI”
Go to a previous destination. “Destination previous destination”
Go to your home location. “Destination home”
Use a nametag from your
address book.“Destination ”
Get help. “Help”
Note:If the system’s language is set to French or Spanish, the city and
street names need to be spelled. When in Spelling Mode, you may speak
letters or say, “Line #”. The system is designed to work even if you have
made a spelling error.
390Navigation System (If Equipped)
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

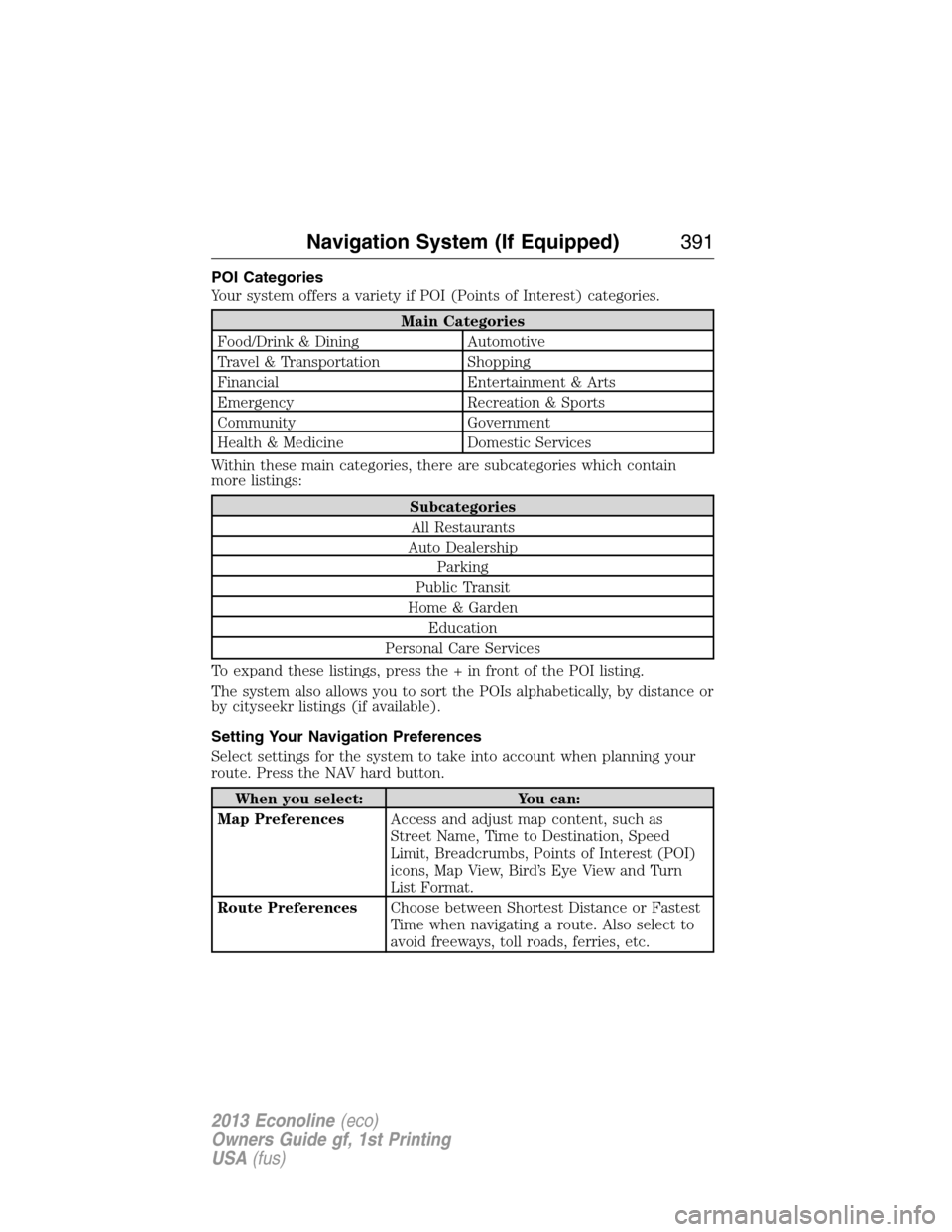

POI Categories
Your system offers a variety if POI (Points of Interest) categories.
Main Categories
Food/Drink & Dining Automotive
Travel & Transportation Shopping
Financial Entertainment & Arts
Emergency Recreation & Sports
Community Government
Health & Medicine Domestic Services
Within these main categories, there are subcategories which contain
more listings:
Subcategories
All Restaurants
Auto Dealership
Parking
Public Transit
Home & Garden
Education
Personal Care Services
To expand these listings, press the + in front of the POI listing.
The system also allows you to sort the POIs alphabetically, by distance or
by cityseekr listings (if available).
Setting Your Navigation Preferences
Select settings for the system to take into account when planning your
route. Press the NAV hard button.
When you select: You can:
Map PreferencesAccess and adjust map content, such as
Street Name, Time to Destination, Speed
Limit, Breadcrumbs, Points of Interest (POI)
icons, Map View, Bird’s Eye View and Turn
List Format.
Route PreferencesChoose between Shortest Distance or Fastest
Time when navigating a route. Also select to
avoid freeways, toll roads, ferries, etc.
Navigation System (If Equipped)391
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

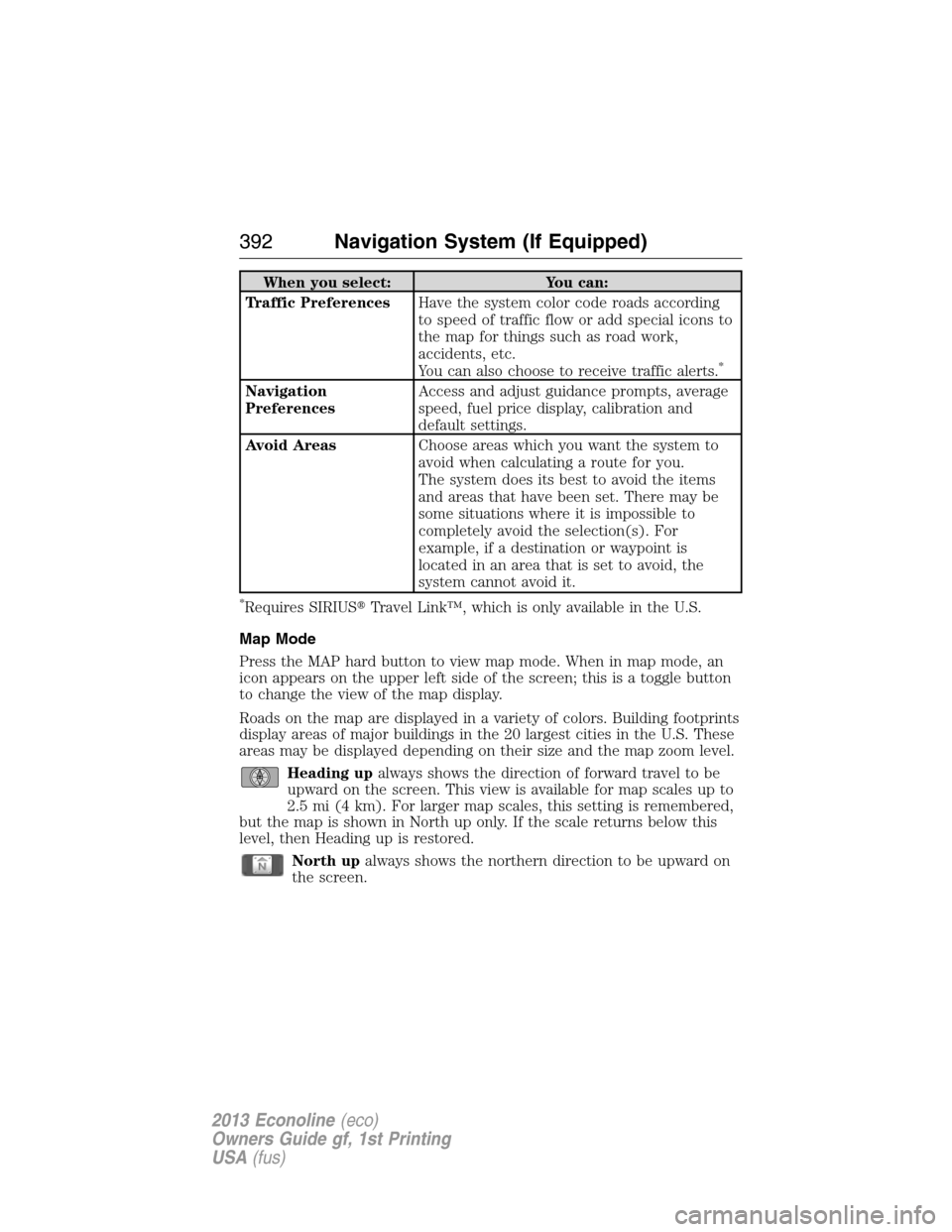

When you select: You can:
Traffic PreferencesHave the system color code roads according
to speed of traffic flow or add special icons to
the map for things such as road work,
accidents, etc.
You can also choose to receive traffic alerts.
*
Navigation
PreferencesAccess and adjust guidance prompts, average
speed, fuel price display, calibration and
default settings.
Avoid AreasChoose areas which you want the system to
avoid when calculating a route for you.
The system does its best to avoid the items
and areas that have been set. There may be
some situations where it is impossible to
completely avoid the selection(s). For
example, if a destination or waypoint is
located in an area that is set to avoid, the
system cannot avoid it.
*Requires SIRIUSTravel Link™, which is only available in the U.S.
Map Mode
Press the MAP hard button to view map mode. When in map mode, an
icon appears on the upper left side of the screen; this is a toggle button
to change the view of the map display.
Roads on the map are displayed in a variety of colors. Building footprints
display areas of major buildings in the 20 largest cities in the U.S. These
areas may be displayed depending on their size and the map zoom level.
Heading upalways shows the direction of forward travel to be
upward on the screen. This view is available for map scales up to
2.5 mi (4 km). For larger map scales, this setting is remembered,
but the map is shown in North up only. If the scale returns below this
level, then Heading up is restored.
North upalways shows the northern direction to be upward on
the screen.
392Navigation System (If Equipped)
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

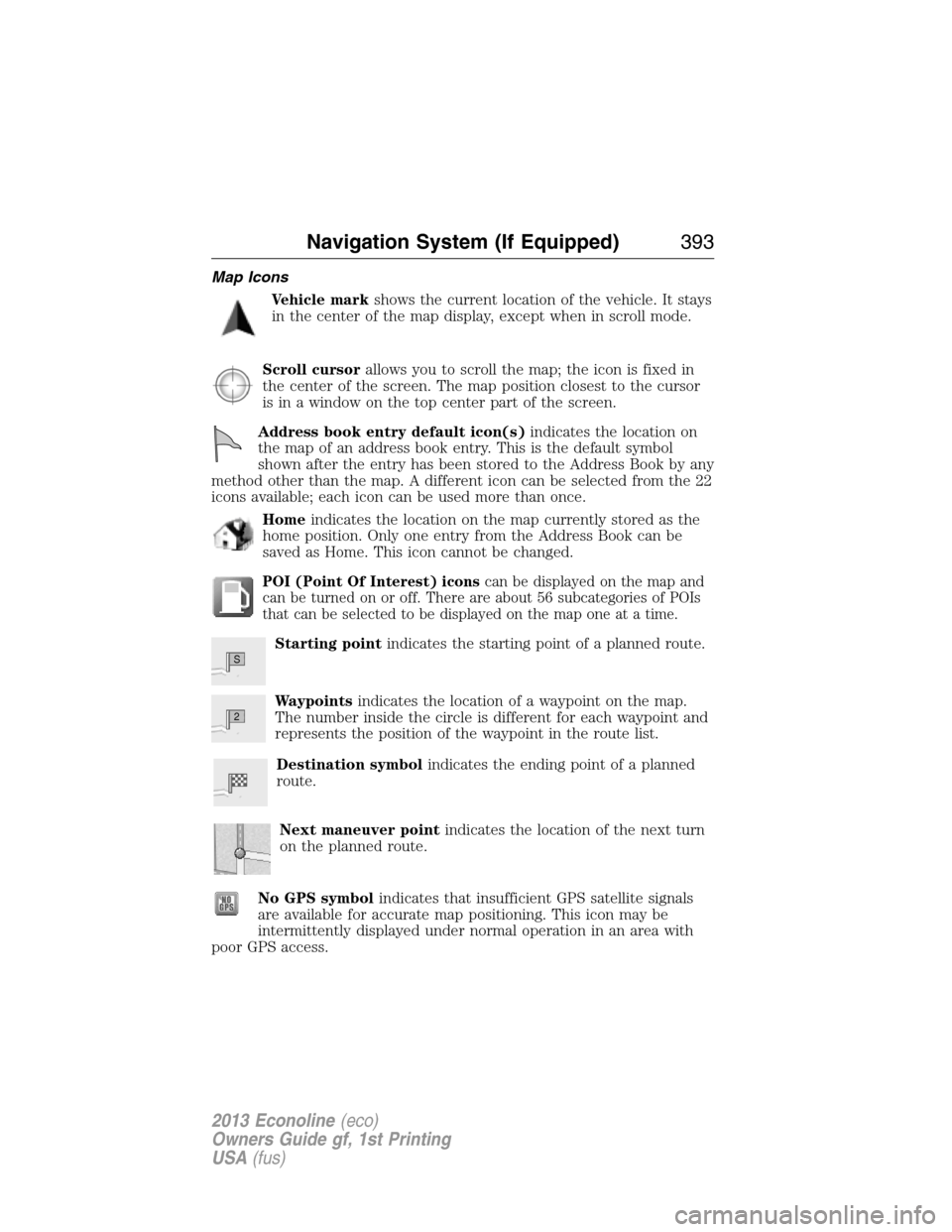

Map Icons
Vehicle markshows the current location of the vehicle. It stays
in the center of the map display, except when in scroll mode.
Scroll cursorallows you to scroll the map; the icon is fixed in
the center of the screen. The map position closest to the cursor
is in a window on the top center part of the screen.
Address book entry default icon(s)indicates the location on
the map of an address book entry. This is the default symbol
shown after the entry has been stored to the Address Book by any
method other than the map. A different icon can be selected from the 22
icons available; each icon can be used more than once.
Homeindicates the location on the map currently stored as the
home position. Only one entry from the Address Book can be
saved as Home. This icon cannot be changed.
POI (Point Of Interest) iconscan be displayed on the map and
can be turned on or off. There are about 56 subcategories of POIs
that can be selected to be displayed on the map one at a time.
Starting pointindicates the starting point of a planned route.
Waypointsindicates the location of a waypoint on the map.
The number inside the circle is different for each waypoint and
represents the position of the waypoint in the route list.
Destination symbolindicates the ending point of a planned
route.
Next maneuver pointindicates the location of the next turn
on the planned route.
No GPS symbolindicates that insufficient GPS satellite signals
are available for accurate map positioning. This icon may be
intermittently displayed under normal operation in an area with
poor GPS access.S
2
Navigation System (If Equipped)393
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

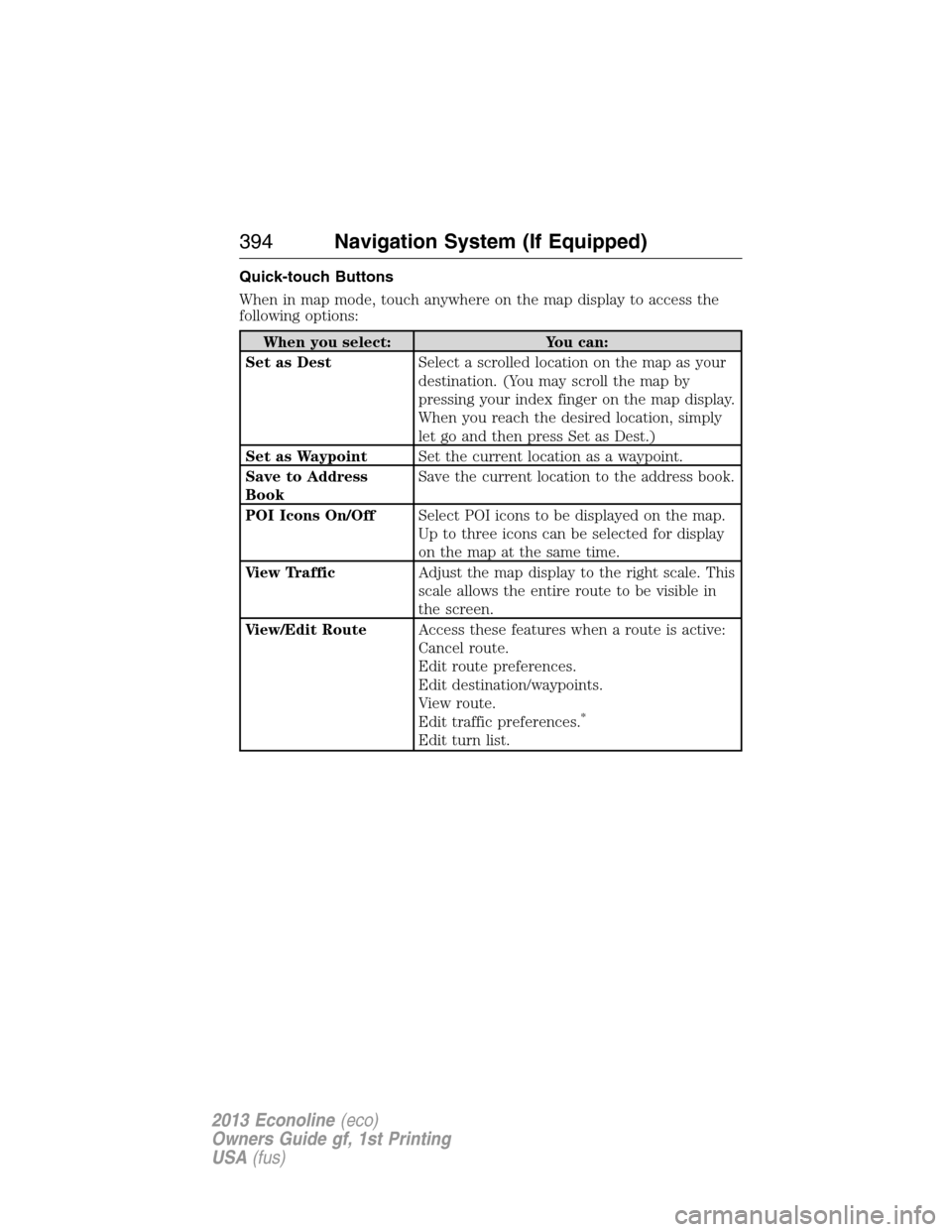

Quick-touch Buttons
When in map mode, touch anywhere on the map display to access the
following options:
When you select: You can:
Set as DestSelect a scrolled location on the map as your
destination. (You may scroll the map by
pressing your index finger on the map display.
When you reach the desired location, simply
let go and then press Set as Dest.)
Set as WaypointSet the current location as a waypoint.
Save to Address
BookSave the current location to the address book.
POI Icons On/OffSelect POI icons to be displayed on the map.
Up to three icons can be selected for display
on the map at the same time.
View TrafficAdjust the map display to the right scale. This
scale allows the entire route to be visible in
the screen.
View/Edit RouteAccess these features when a route is active:
Cancel route.
Edit route preferences.
Edit destination/waypoints.
View route.
Edit traffic preferences.
*
Edit turn list.
394Navigation System (If Equipped)
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

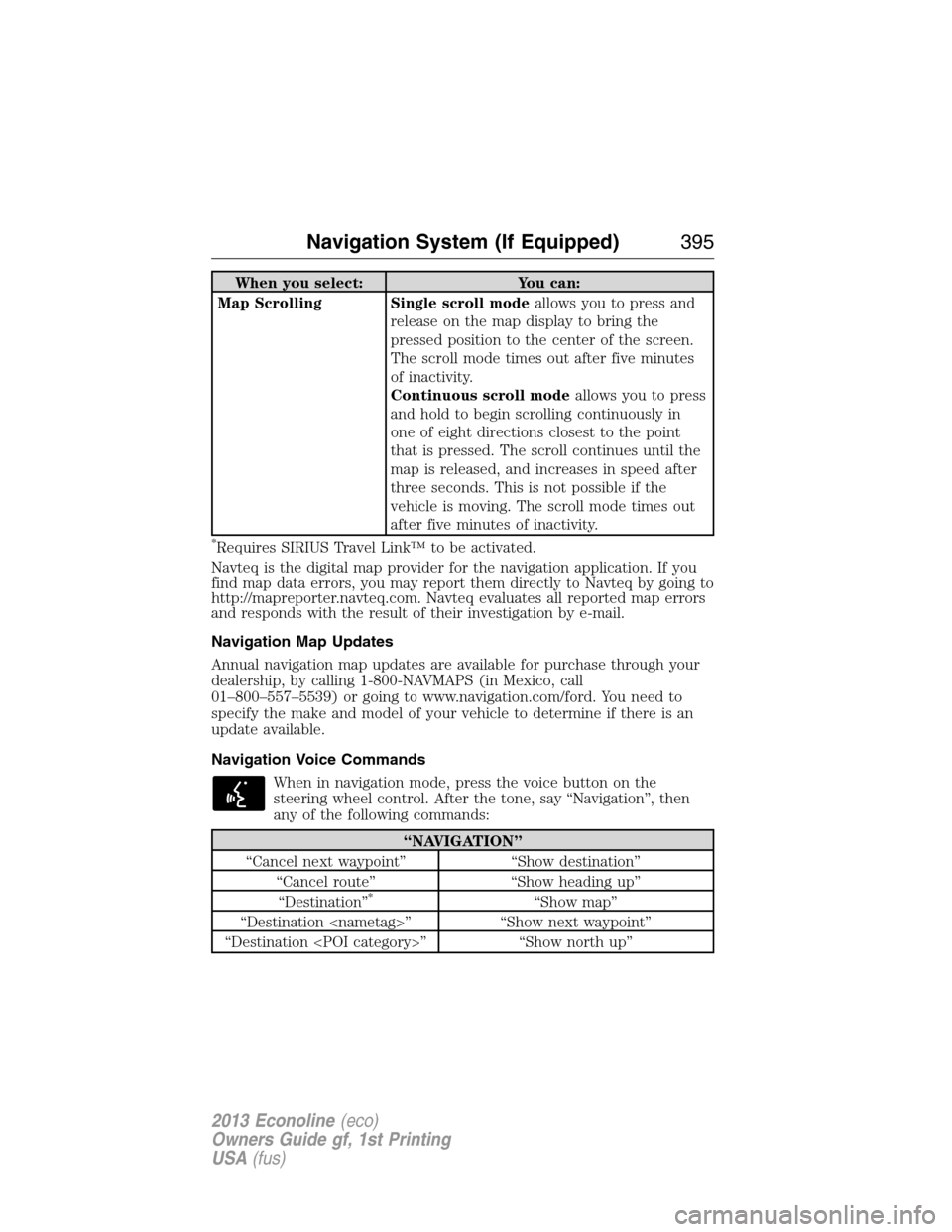

When you select: You can:
Map Scrolling Single scroll modeallows you to press and
release on the map display to bring the
pressed position to the center of the screen.
The scroll mode times out after five minutes
of inactivity.
Continuous scroll modeallows you to press
and hold to begin scrolling continuously in
one of eight directions closest to the point
that is pressed. The scroll continues until the
map is released, and increases in speed after
three seconds. This is not possible if the
vehicle is moving. The scroll mode times out
after five minutes of inactivity.
*Requires SIRIUS Travel Link™ to be activated.
Navteq is the digital map provider for the navigation application. If you
find map data errors, you may report them directly to Navteq by going to
http://mapreporter.navteq.com. Navteq evaluates all reported map errors
and responds with the result of their investigation by e-mail.
Navigation Map Updates
Annual navigation map updates are available for purchase through your
dealership, by calling 1-800-NAVMAPS (in Mexico, call
01–800–557–5539) or going to www.navigation.com/ford. You need to
specify the make and model of your vehicle to determine if there is an
update available.
Navigation Voice Commands
When in navigation mode, press the voice button on the
steering wheel control. After the tone, say “Navigation”, then
any of the following commands:
“NAVIGATION”
“Cancel next waypoint” “Show destination”
“Cancel route” “Show heading up”
“Destination”
*“Show map”
“Destination ” “Show next waypoint”
“Destination ” “Show north up”
Navigation System (If Equipped)395
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

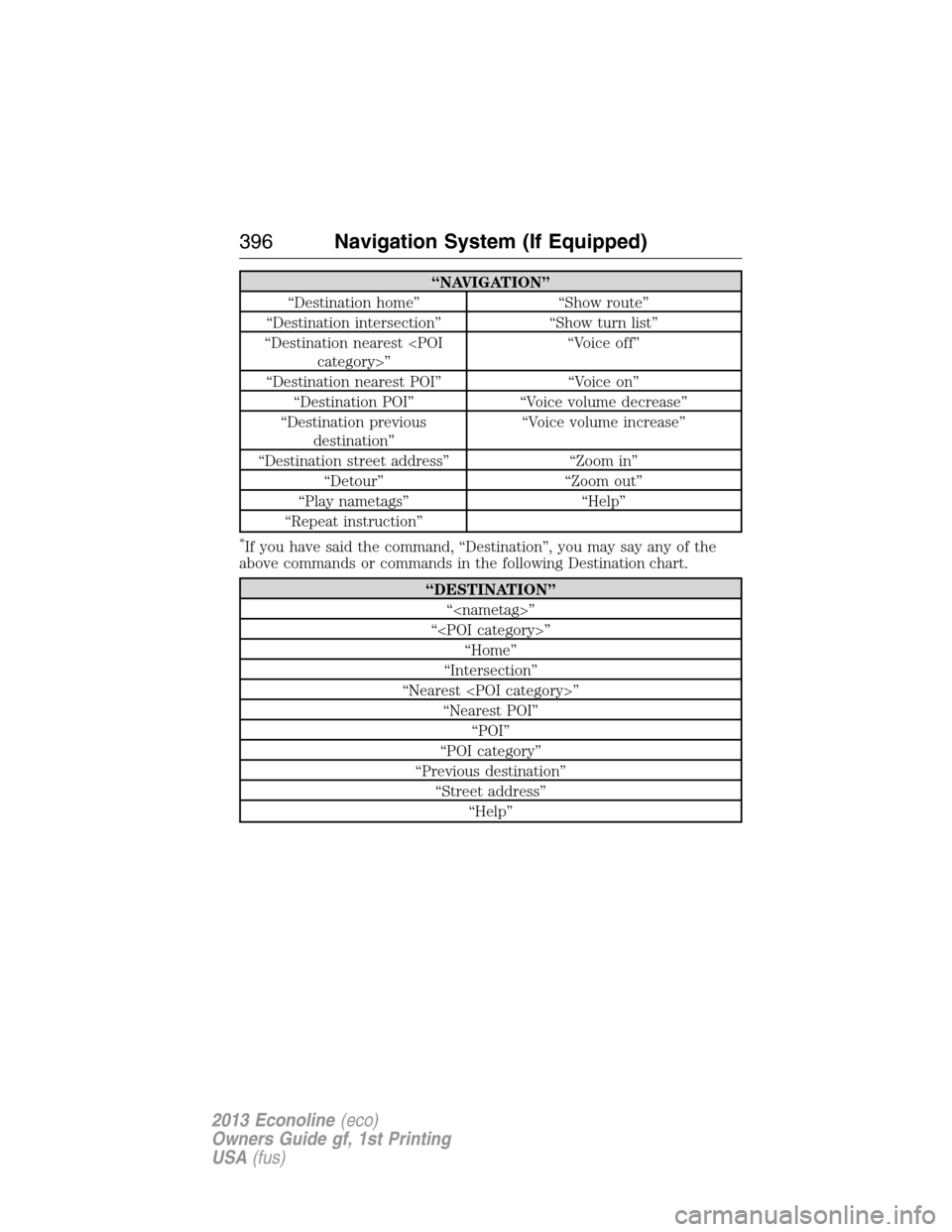

“NAVIGATION”
“Destination home” “Show route”
“Destination intersection” “Show turn list”
“Destination nearest category>”“Voice off”
“Destination nearest POI” “Voice on”
“Destination POI” “Voice volume decrease”
“Destination previous
destination”“Voice volume increase”
“Destination street address” “Zoom in”
“Detour” “Zoom out”
“Play nametags” “Help”
“Repeat instruction”
*If you have said the command, “Destination”, you may say any of the
above commands or commands in the following Destination chart.
“DESTINATION”
“”
“”
“Home”
“Intersection”
“Nearest ”
“Nearest POI”
“POI”
“POI category”
“Previous destination”
“Street address”
“Help”
396Navigation System (If Equipped)
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

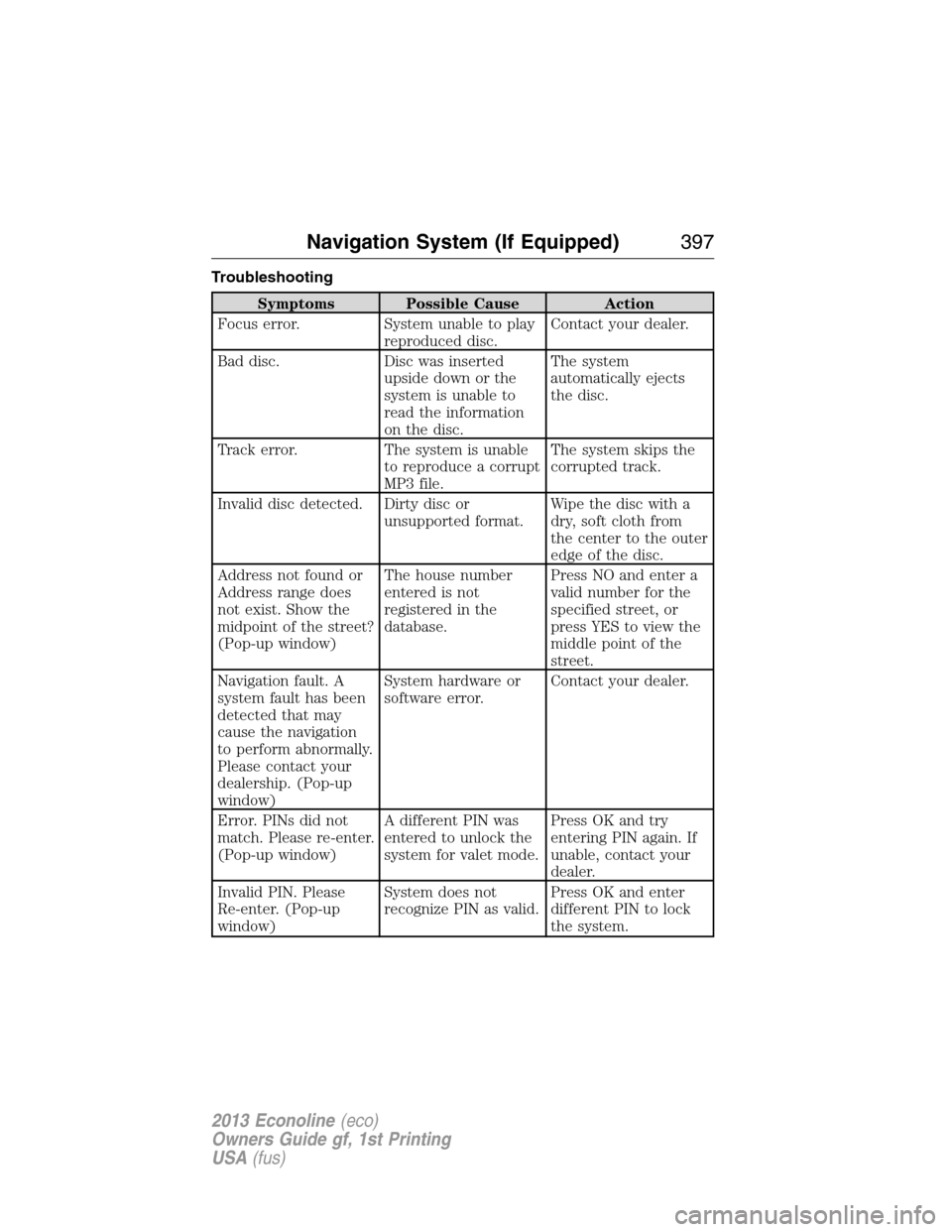

Troubleshooting
Symptoms Possible Cause Action
Focus error. System unable to play
reproduced disc.Contact your dealer.
Bad disc. Disc was inserted
upside down or the
system is unable to
read the information
on the disc.The system
automatically ejects
the disc.
Track error. The system is unable
to reproduce a corrupt
MP3 file.The system skips the
corrupted track.
Invalid disc detected. Dirty disc or
unsupported format.Wipe the disc with a
dry, soft cloth from
the center to the outer
edge of the disc.
Address not found or
Address range does
not exist. Show the
midpoint of the street?
(Pop-up window)The house number
entered is not
registered in the
database.Press NO and enter a
valid number for the
specified street, or
press YES to view the
middle point of the
street.
Navigation fault. A
system fault has been
detected that may
cause the navigation
to perform abnormally.
Please contact your
dealership. (Pop-up
window)System hardware or
software error.Contact your dealer.
Error. PINs did not
match. Please re-enter.
(Pop-up window)A different PIN was
entered to unlock the
system for valet mode.Press OK and try
entering PIN again. If
unable, contact your
dealer.
Invalid PIN. Please
Re-enter. (Pop-up
window)System does not
recognize PIN as valid.Press OK and enter
different PIN to lock
the system.
Navigation System (If Equipped)397
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

access a function of the system requiring prolonged attention. Even
occasional short scans to the screen may be hazardous if your attention has
been diverted away from your driving task at a critical time.
Volume Setting
Do not raise the volume excessively. Keep the volume at a level where
you can still hear outside traffic and emergency signals while driving.
Driving while unable to hear these sounds could cause an accident.
Use of Speech Recognition Functions
Speech recognition software is inherently a statistical process which is
subject to errors. It is your responsibility to monitor any speech
recognition functions included in the system and address any errors.
Navigation Features
Any navigation features included in the system are intended to provide
turn by turn instructions to get you to a desired destination. Please make
certain all persons using this system carefully read and follow
instructions and safety information fully.
Distraction Hazard
Any navigation features may require manual (non-verbal) setup.
Attempting to perform such set-up or insert data while driving can
seriously distract your attention and could cause an accident or other
serious consequences. Stop the vehicle in a safe and legal manner before
attempting these operations.
Let Your Judgment Prevail
Any navigation features are provided only as an aid. Make your driving
decisions based on your observations of local conditions and existing
traffic regulations. Any such feature is not a substitute for your personal
judgment. Any route suggestions made by this system should never
replace any local traffic regulations or your personal judgment or
knowledge of safe driving practices.
Route Safety
Do not follow the route suggestions if doing so would result in an unsafe or
illegal maneuver, if you would be placed in an unsafe situation, or if you
would be directed into an area that you consider unsafe. The driver is
ultimately responsible for the safe operation of the vehicle and therefore,
must evaluate whether it is safe to follow the suggested directions.
Potential Map Inaccuracy
Maps used by this system may be inaccurate because of changes in
roads, traffic controls or driving conditions. Always use good judgment
and common sense when following the suggested routes.
404Appendices
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)
