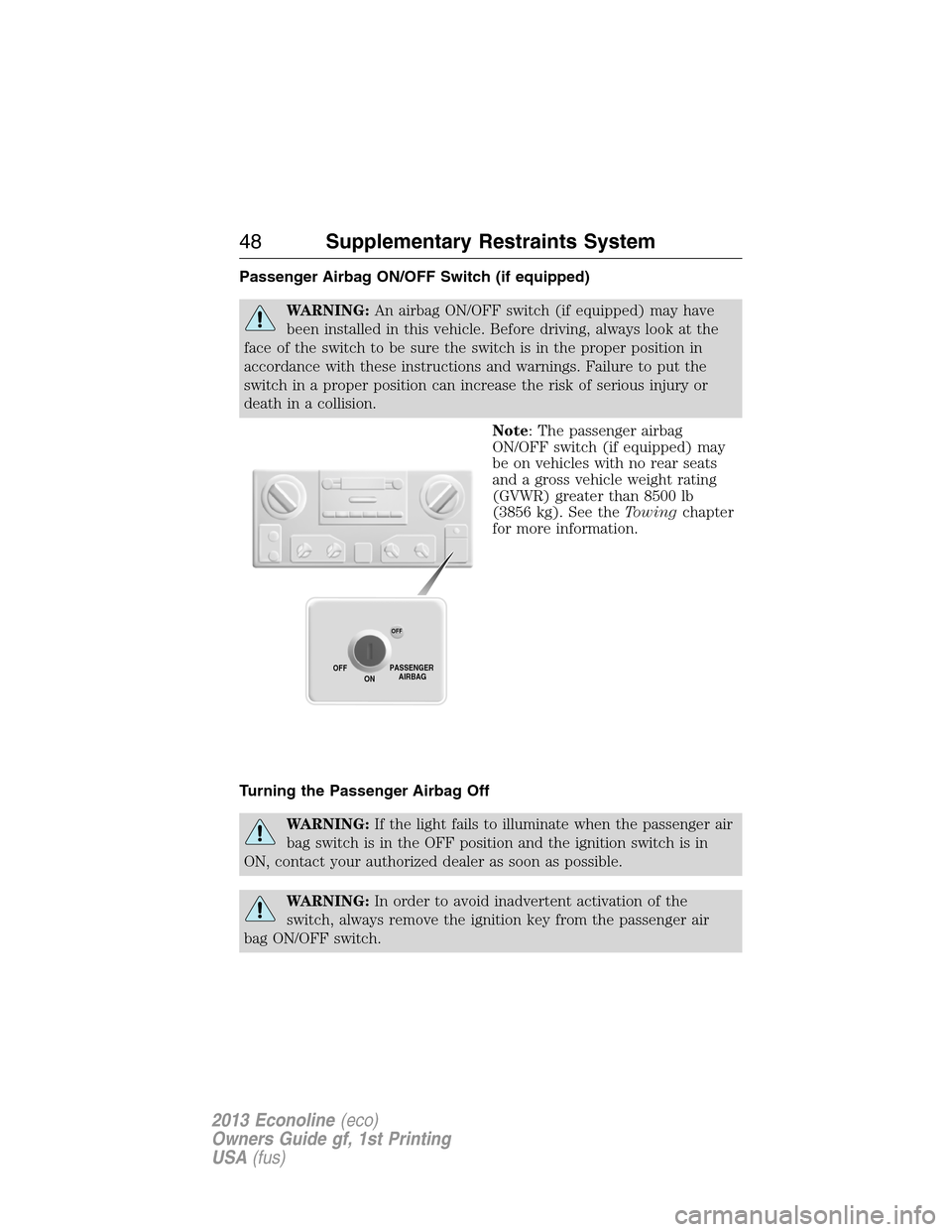

Passenger Airbag ON/OFF Switch (if equipped)
WARNING:An airbag ON/OFF switch (if equipped) may have
been installed in this vehicle. Before driving, always look at the
face of the switch to be sure the switch is in the proper position in
accordance with these instructions and warnings. Failure to put the
switch in a proper position can increase the risk of serious injury or
death in a collision.
Note: The passenger airbag
ON/OFF switch (if equipped) may
be on vehicles with no rear seats
and a gross vehicle weight rating
(GVWR) greater than 8500 lb
(3856 kg). See theTowingchapter
for more information.
Turning the Passenger Airbag Off
WARNING:If the light fails to illuminate when the passenger air
bag switch is in the OFF position and the ignition switch is in
ON, contact your authorized dealer as soon as possible.
WARNING:In order to avoid inadvertent activation of the
switch, always remove the ignition key from the passenger air
bag ON/OFF switch.
OFF
ON OFFPASSENGER
AIRBAG
48Supplementary Restraints System
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)
Page 49 of 416
WARNING:An infant in a rear-facing seat faces a high risk of
serious or fatal injuries from a deploying passenger airbag. Rear
facing infant seats should NEVER be placed in the front seats, unless
the passenger airbag is turned off.
1. Insert the ignition key, turn the
switch to off, and hold in the off
position while removing the key.
2. When the ignition is turned to
off, the off light illuminates briefly,
momentarily shuts off and then
turns back on. This indicates that
the passenger airbag is deactivated.
Turning the Passenger Airbag Back On
WARNING:The safety belts for the driver and right front
passenger seating positions have been specifically designed to
function together with the airbags in certain types of crashes. When
you turn OFF your airbag, you not only lose the protection of the
airbag, you also may reduce the effectiveness of your safety belt
system, which was designed to work with the airbag. If you are not a
person who meets the requirements stated in the NHTSA/Transport
Canada deactivation criteria turning OFF the airbag can increase the
risk of serious injury or death in a collision.
WARNING:If your vehicle has rear seats, always transport
children who are 12 and younger in a rear seating position.
Always use safety belts and child restraints properly. DO NOT place a
child in a rear facing infant seat in the front seat unless your vehicle is
equipped with an airbag ON/OFF switch and the passenger airbag is
turned OFF. This is because the back of the infant seat is too close to
the inflating airbag and the risk of a fatal injury to the infant when the
airbag inflates is substantial.
OFF
ON OFFPASSENGER
AIRBAG
Supplementary Restraints System49
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)
Page 50 of 416

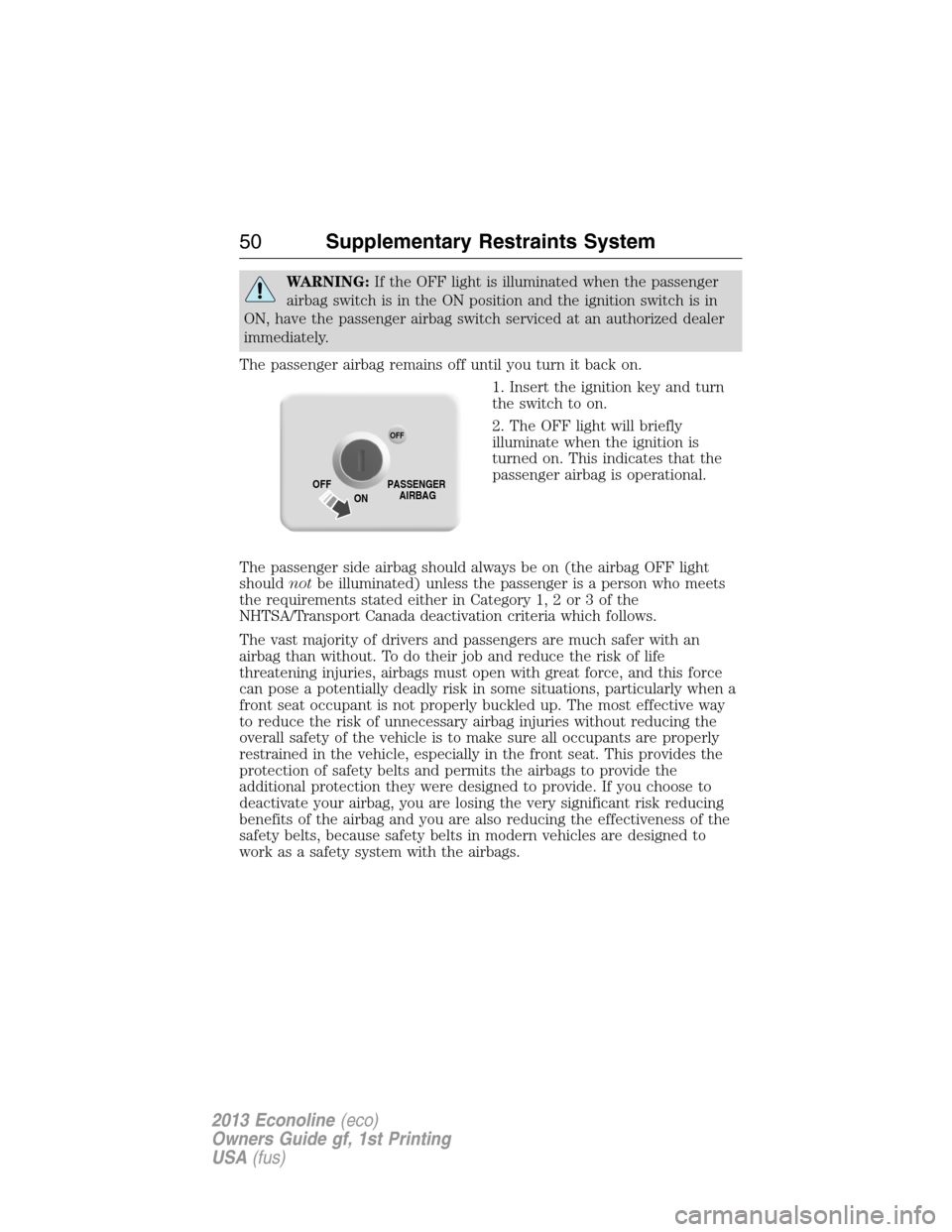

WARNING:If the OFF light is illuminated when the passenger
airbag switch is in the ON position and the ignition switch is in
ON, have the passenger airbag switch serviced at an authorized dealer
immediately.
The passenger airbag remains off until you turn it back on.
1. Insert the ignition key and turn
the switch to on.
2. The OFF light will briefly
illuminate when the ignition is
turned on. This indicates that the
passenger airbag is operational.
The passenger side airbag should always be on (the airbag OFF light
shouldnotbe illuminated) unless the passenger is a person who meets
the requirements stated either in Category 1, 2 or 3 of the
NHTSA/Transport Canada deactivation criteria which follows.
The vast majority of drivers and passengers are much safer with an
airbag than without. To do their job and reduce the risk of life
threatening injuries, airbags must open with great force, and this force
can pose a potentially deadly risk in some situations, particularly when a
front seat occupant is not properly buckled up. The most effective way
to reduce the risk of unnecessary airbag injuries without reducing the
overall safety of the vehicle is to make sure all occupants are properly
restrained in the vehicle, especially in the front seat. This provides the
protection of safety belts and permits the airbags to provide the
additional protection they were designed to provide. If you choose to
deactivate your airbag, you are losing the very significant risk reducing
benefits of the airbag and you are also reducing the effectiveness of the
safety belts, because safety belts in modern vehicles are designed to
work as a safety system with the airbags.
OFF
ON OFFPASSENGER
AIRBAG
50Supplementary Restraints System
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)
Page 55 of 416

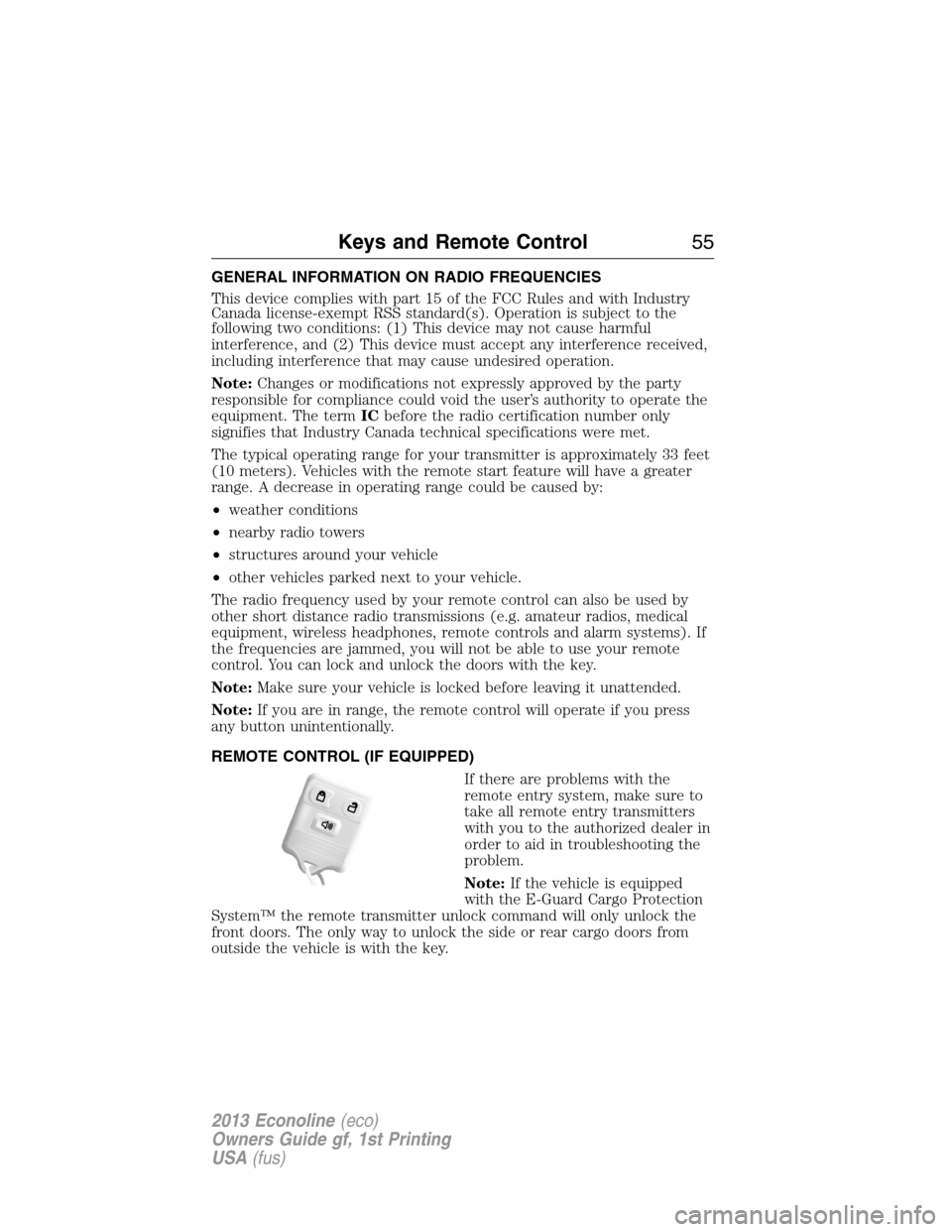

GENERAL INFORMATION ON RADIO FREQUENCIES
This device complies with part 15 of the FCC Rules and with Industry
Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Note:Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment. The termICbefore the radio certification number only
signifies that Industry Canada technical specifications were met.
The typical operating range for your transmitter is approximately 33 feet
(10 meters). Vehicles with the remote start feature will have a greater
range. A decrease in operating range could be caused by:
•weather conditions
•nearby radio towers
•structures around your vehicle
•other vehicles parked next to your vehicle.
The radio frequency used by your remote control can also be used by
other short distance radio transmissions (e.g. amateur radios, medical
equipment, wireless headphones, remote controls and alarm systems). If
the frequencies are jammed, you will not be able to use your remote
control. You can lock and unlock the doors with the key.
Note:Make sure your vehicle is locked before leaving it unattended.
Note:If you are in range, the remote control will operate if you press
any button unintentionally.
REMOTE CONTROL (IF EQUIPPED)
If there are problems with the
remote entry system, make sure to
take all remote entry transmitters
with you to the authorized dealer in
order to aid in troubleshooting the
problem.
Note:If the vehicle is equipped
with the E-Guard Cargo Protection
System™ the remote transmitter unlock command will only unlock the
front doors. The only way to unlock the side or rear cargo doors from
outside the vehicle is with the key.
Keys and Remote Control55
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)
Page 56 of 416

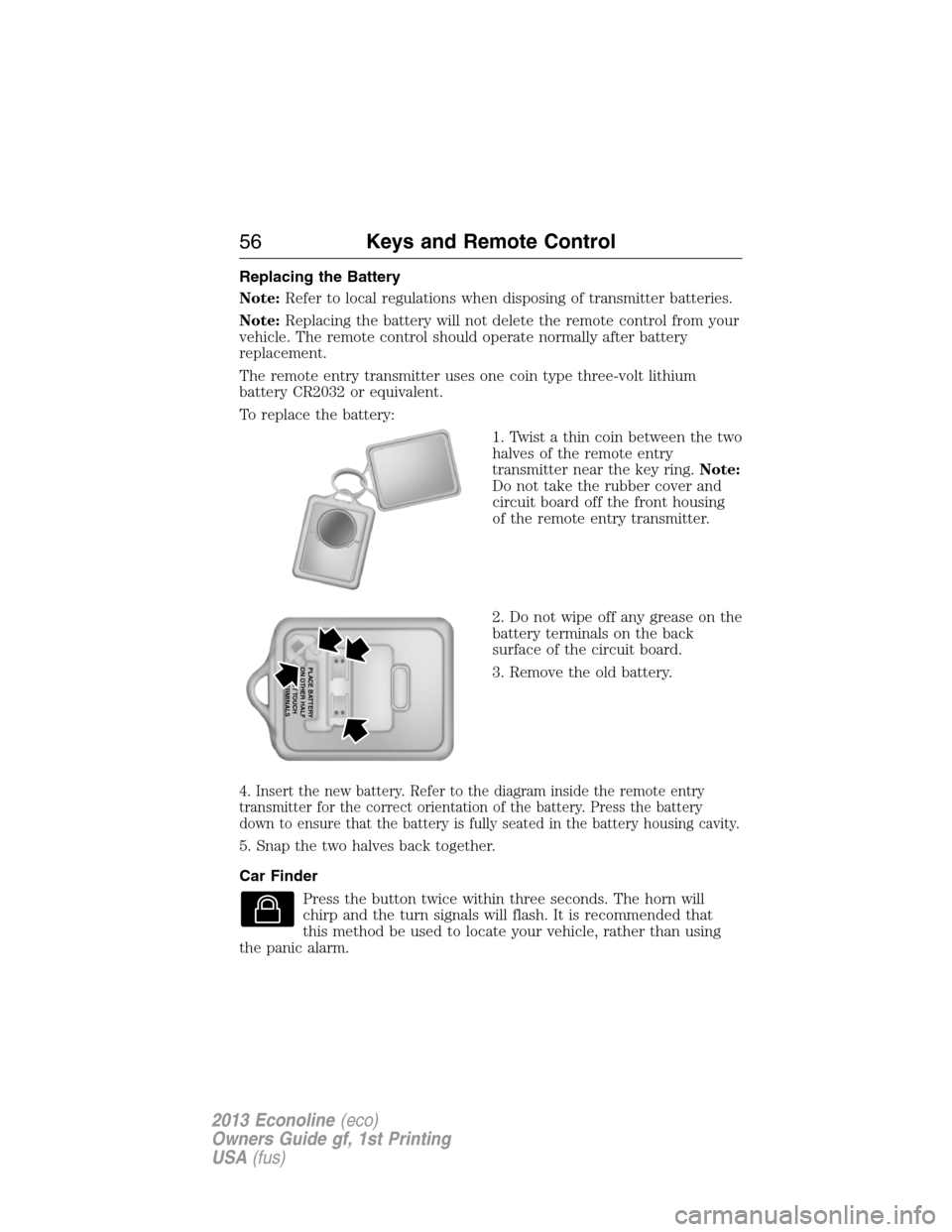

Replacing the Battery
Note:Refer to local regulations when disposing of transmitter batteries.
Note:Replacing the battery will not delete the remote control from your
vehicle. The remote control should operate normally after battery
replacement.
The remote entry transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent.
To replace the battery:
1. Twist a thin coin between the two
halves of the remote entry
transmitter near the key ring.Note:
Do not take the rubber cover and
circuit board off the front housing
of the remote entry transmitter.
2. Do not wipe off any grease on the
battery terminals on the back
surface of the circuit board.
3. Remove the old battery.
4. Insert the new battery. Refer to the diagram inside the remote entry
transmitter for the correct orientation of the battery. Press the battery
down to ensure that the battery is fully seated in the battery housing cavity.
5. Snap the two halves back together.
Car Finder
Press the button twice within three seconds. The horn will
chirp and the turn signals will flash. It is recommended that
this method be used to locate your vehicle, rather than using
the panic alarm.
PLACE BATTERY
ON OTHER HALF
DO NOT TOUCH
THE TERMINALS
56Keys and Remote Control
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)
Page 57 of 416

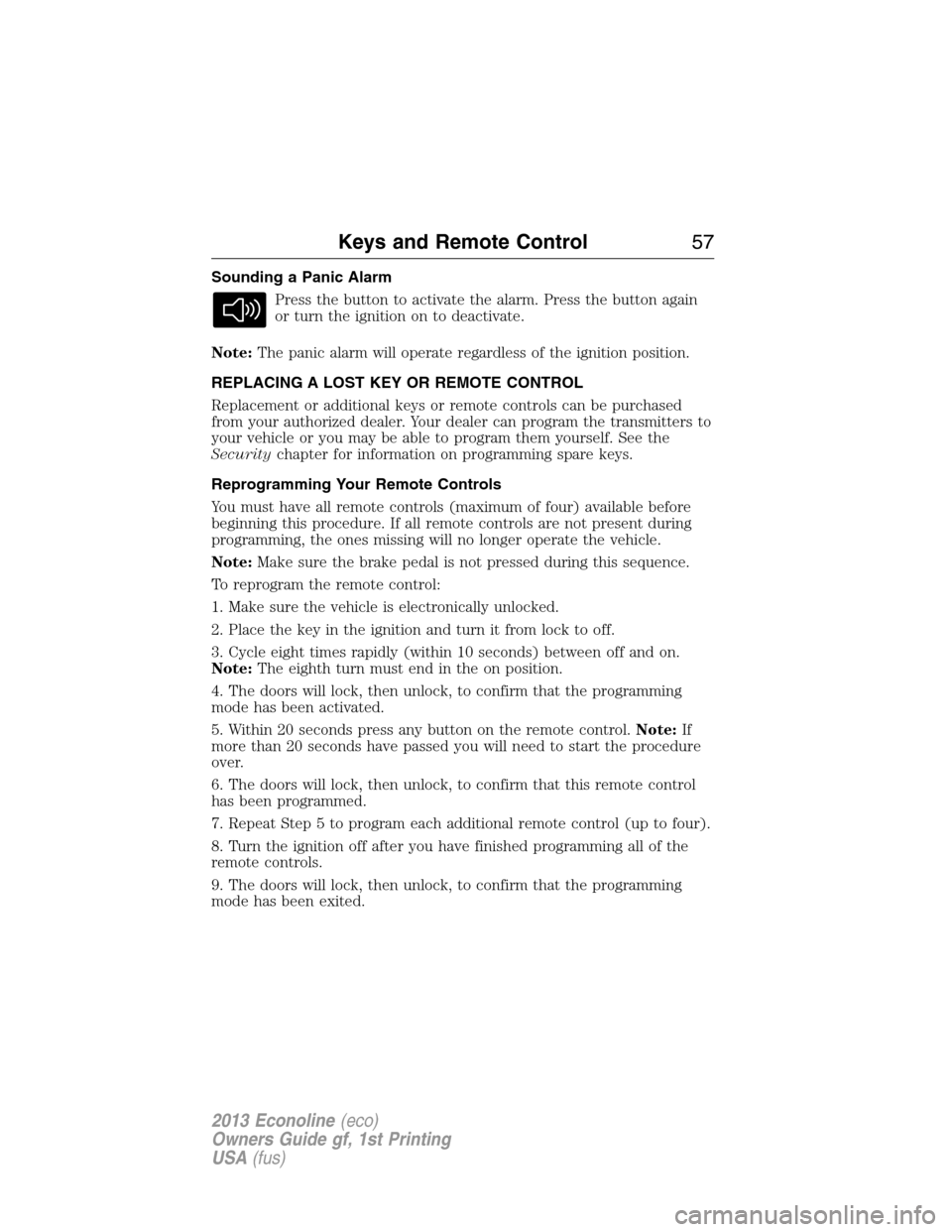

Sounding a Panic Alarm
Press the button to activate the alarm. Press the button again
or turn the ignition on to deactivate.
Note:The panic alarm will operate regardless of the ignition position.
REPLACING A LOST KEY OR REMOTE CONTROL
Replacement or additional keys or remote controls can be purchased
from your authorized dealer. Your dealer can program the transmitters to
your vehicle or you may be able to program them yourself. See the
Securitychapter for information on programming spare keys.
Reprogramming Your Remote Controls
You must have all remote controls (maximum of four) available before
beginning this procedure. If all remote controls are not present during
programming, the ones missing will no longer operate the vehicle.
Note:Make sure the brake pedal is not pressed during this sequence.
To reprogram the remote control:
1. Make sure the vehicle is electronically unlocked.
2. Place the key in the ignition and turn it from lock to off.
3. Cycle eight times rapidly (within 10 seconds) between off and on.
Note:The eighth turn must end in the on position.
4. The doors will lock, then unlock, to confirm that the programming
mode has been activated.
5. Within 20 seconds press any button on the remote control.Note:If
more than 20 seconds have passed you will need to start the procedure
over.
6. The doors will lock, then unlock, to confirm that this remote control
has been programmed.
7. Repeat Step 5 to program each additional remote control (up to four).
8. Turn the ignition off after you have finished programming all of the
remote controls.
9. The doors will lock, then unlock, to confirm that the programming
mode has been exited.
Keys and Remote Control57
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)
Page 60 of 416

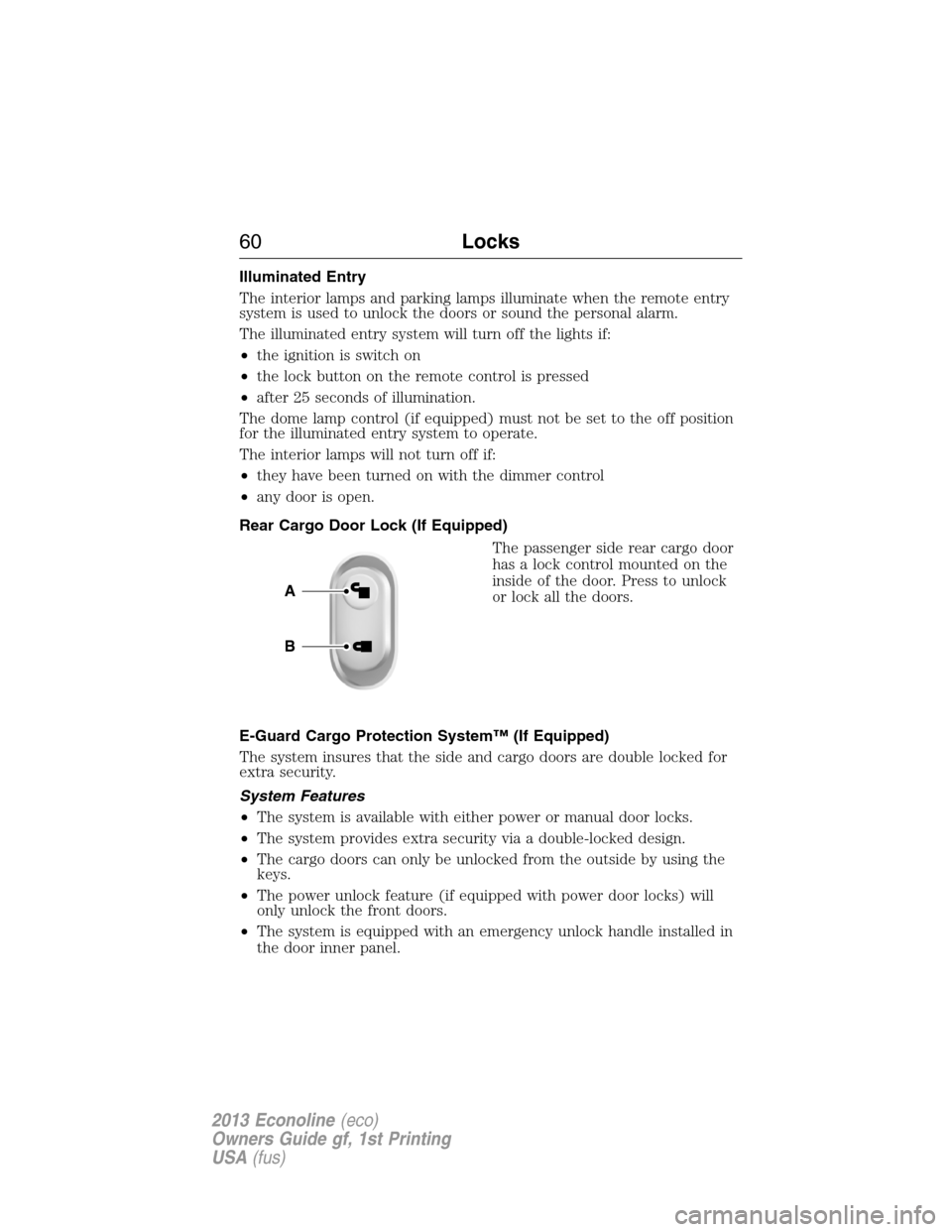

Illuminated Entry
The interior lamps and parking lamps illuminate when the remote entry
system is used to unlock the doors or sound the personal alarm.
The illuminated entry system will turn off the lights if:
•the ignition is switch on
•the lock button on the remote control is pressed
•after 25 seconds of illumination.
The dome lamp control (if equipped) must not be set to the off position
for the illuminated entry system to operate.
The interior lamps will not turn off if:
•they have been turned on with the dimmer control
•any door is open.
Rear Cargo Door Lock (If Equipped)
The passenger side rear cargo door
has a lock control mounted on the
inside of the door. Press to unlock
or lock all the doors.
E-Guard Cargo Protection System™ (If Equipped)
The system insures that the side and cargo doors are double locked for
extra security.
System Features
•The system is available with either power or manual door locks.
•The system provides extra security via a double-locked design.
•The cargo doors can only be unlocked from the outside by using the
keys.
•The power unlock feature (if equipped with power door locks) will
only unlock the front doors.
•The system is equipped with an emergency unlock handle installed in
the door inner panel.
A
B
60Locks
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)
Page 61 of 416

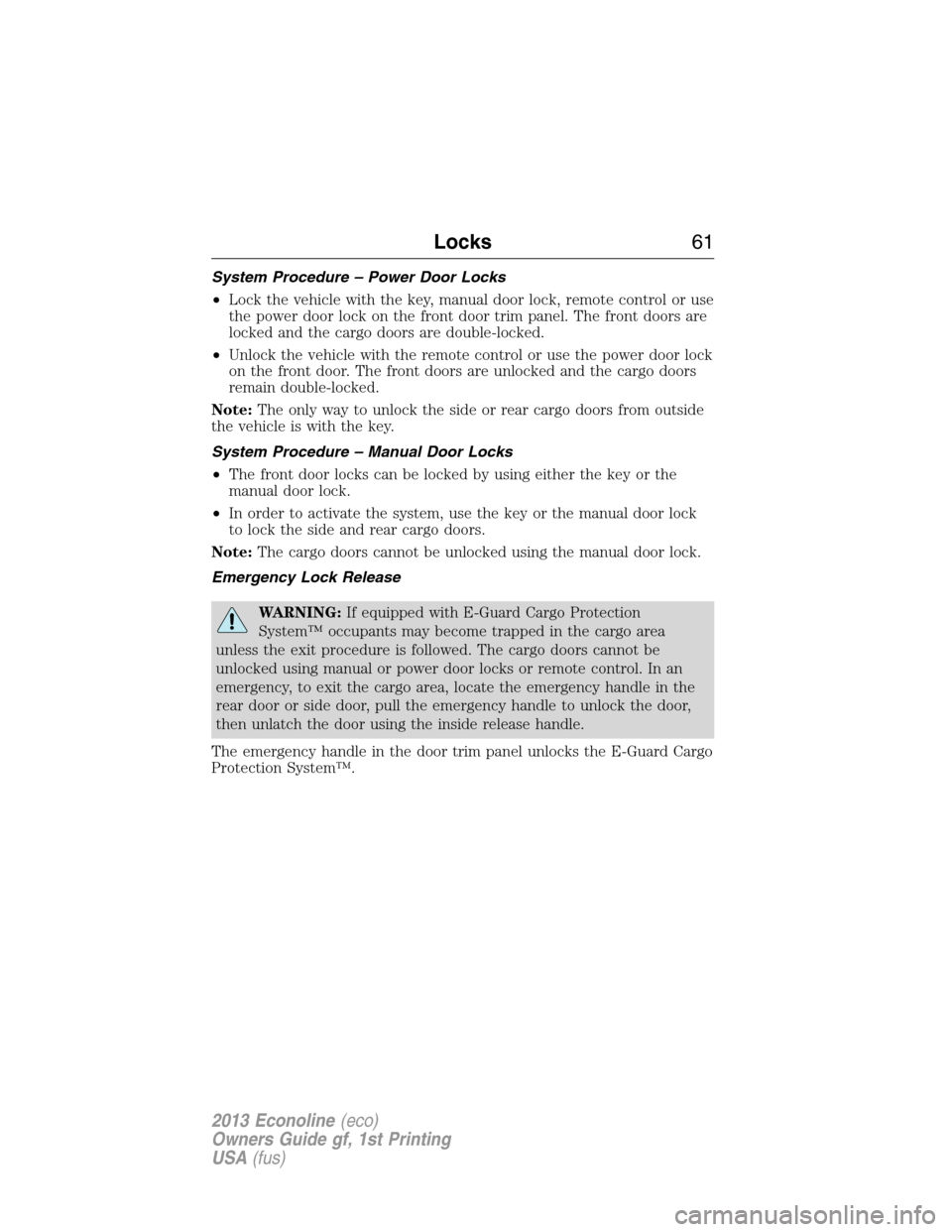

System Procedure – Power Door Locks
•Lock the vehicle with the key, manual door lock, remote control or use
the power door lock on the front door trim panel. The front doors are
locked and the cargo doors are double-locked.
•Unlock the vehicle with the remote control or use the power door lock
on the front door. The front doors are unlocked and the cargo doors
remain double-locked.
Note:The only way to unlock the side or rear cargo doors from outside
the vehicle is with the key.
System Procedure – Manual Door Locks
•The front door locks can be locked by using either the key or the
manual door lock.
•In order to activate the system, use the key or the manual door lock
to lock the side and rear cargo doors.
Note:The cargo doors cannot be unlocked using the manual door lock.
Emergency Lock Release
WARNING:If equipped with E-Guard Cargo Protection
System™ occupants may become trapped in the cargo area
unless the exit procedure is followed. The cargo doors cannot be
unlocked using manual or power door locks or remote control. In an
emergency, to exit the cargo area, locate the emergency handle in the
rear door or side door, pull the emergency handle to unlock the door,
then unlatch the door using the inside release handle.
The emergency handle in the door trim panel unlocks the E-Guard Cargo
Protection System™.
Locks61
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)
Page 63 of 416

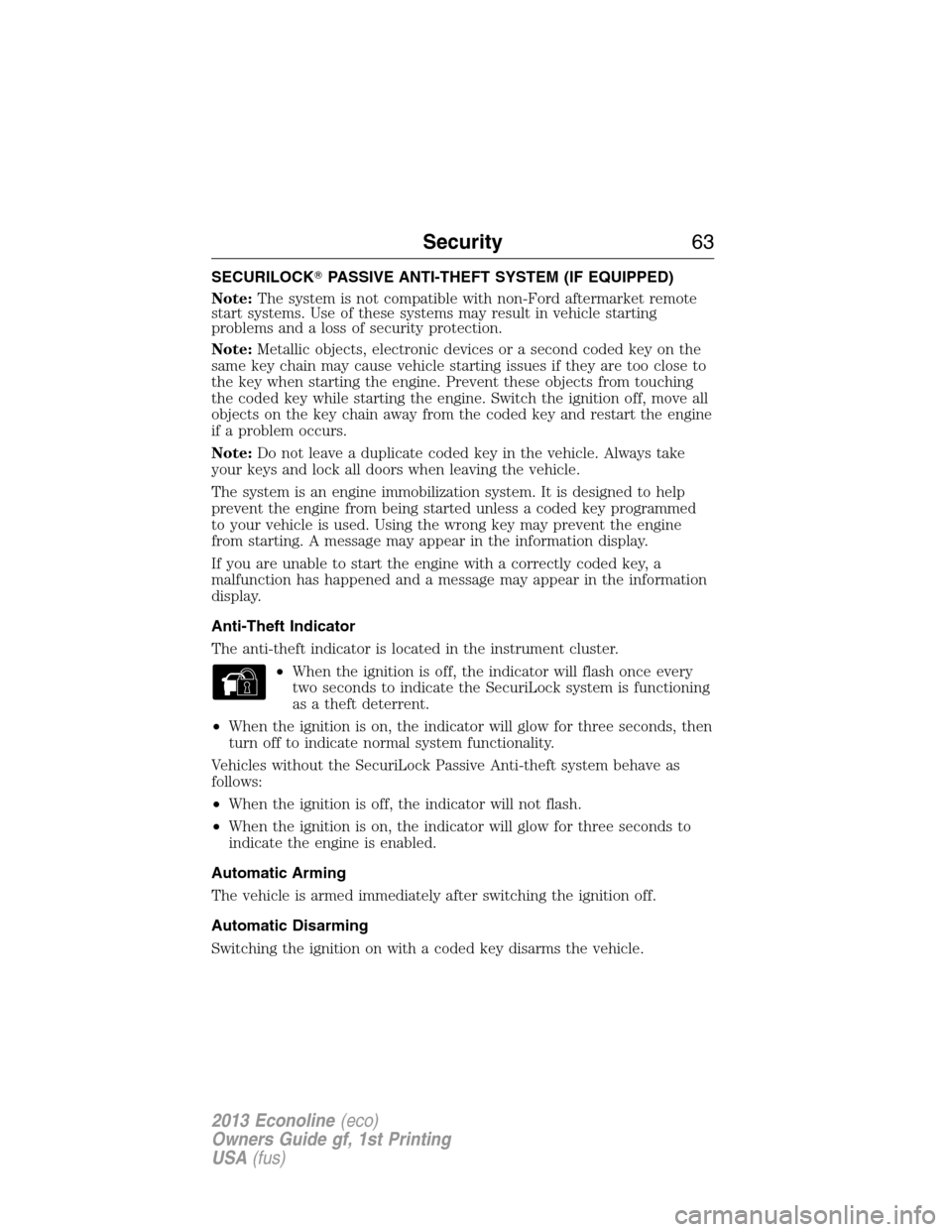

SECURILOCKPASSIVE ANTI-THEFT SYSTEM (IF EQUIPPED)
Note:The system is not compatible with non-Ford aftermarket remote
start systems. Use of these systems may result in vehicle starting
problems and a loss of security protection.
Note:Metallic objects, electronic devices or a second coded key on the
same key chain may cause vehicle starting issues if they are too close to
the key when starting the engine. Prevent these objects from touching
the coded key while starting the engine. Switch the ignition off, move all
objects on the key chain away from the coded key and restart the engine
if a problem occurs.
Note:Do not leave a duplicate coded key in the vehicle. Always take
your keys and lock all doors when leaving the vehicle.
The system is an engine immobilization system. It is designed to help
prevent the engine from being started unless a coded key programmed
to your vehicle is used. Using the wrong key may prevent the engine
from starting. A message may appear in the information display.
If you are unable to start the engine with a correctly coded key, a
malfunction has happened and a message may appear in the information
display.
Anti-Theft Indicator
The anti-theft indicator is located in the instrument cluster.
•When the ignition is off, the indicator will flash once every
two seconds to indicate the SecuriLock system is functioning
as a theft deterrent.
•When the ignition is on, the indicator will glow for three seconds, then
turn off to indicate normal system functionality.
Vehicles without the SecuriLock Passive Anti-theft system behave as
follows:
•When the ignition is off, the indicator will not flash.
•When the ignition is on, the indicator will glow for three seconds to
indicate the engine is enabled.
Automatic Arming
The vehicle is armed immediately after switching the ignition off.
Automatic Disarming
Switching the ignition on with a coded key disarms the vehicle.
Security63
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)
