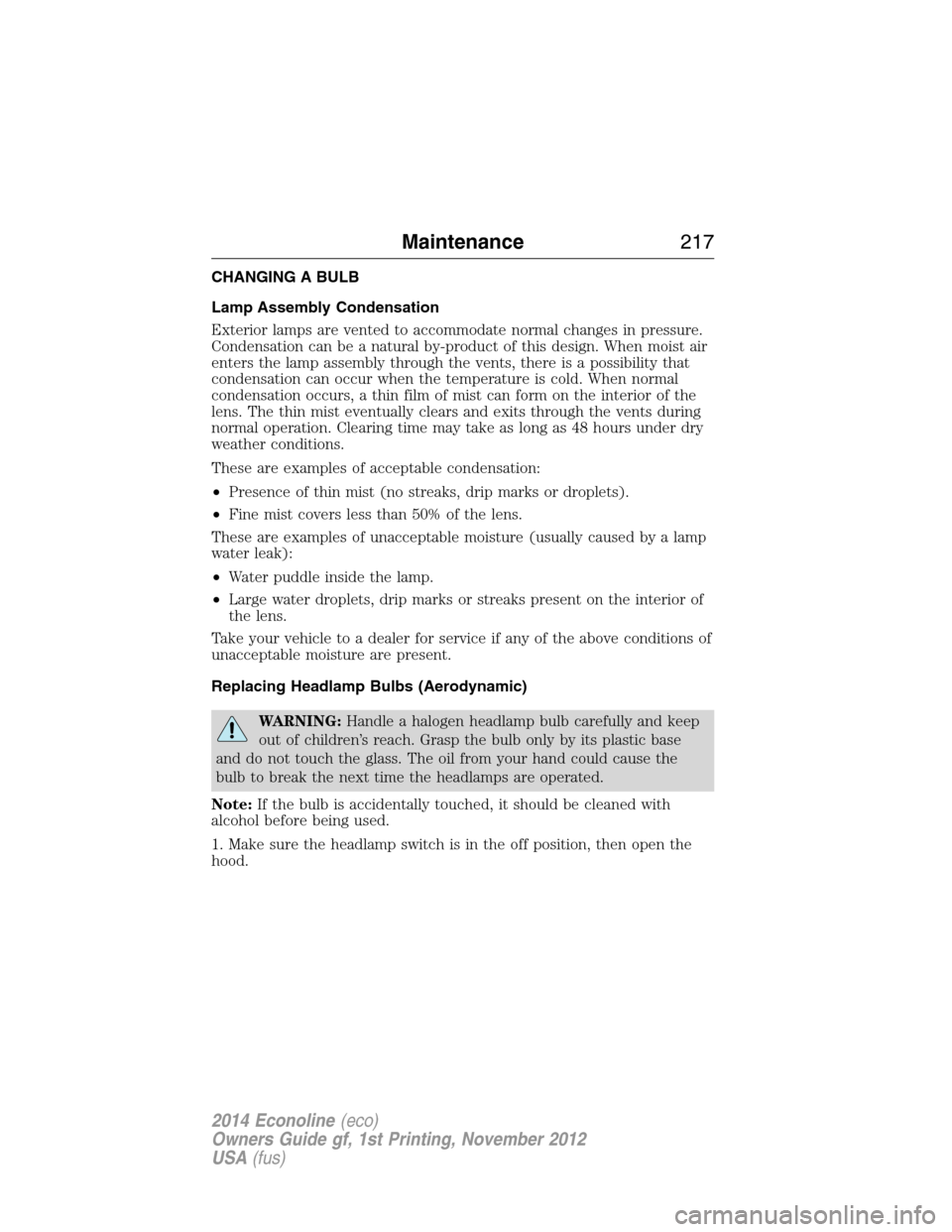

CHANGING A BULB
Lamp Assembly Condensation
Exterior lamps are vented to accommodate normal changes in pressure.
Condensation can be a natural by-product of this design. When moist air
enters the lamp assembly through the vents, there is a possibility that
condensation can occur when the temperature is cold. When normal
condensation occurs, a thin film of mist can form on the interior of the
lens. The thin mist eventually clears and exits through the vents during
normal operation. Clearing time may take as long as 48 hours under dry
weather conditions.
These are examples of acceptable condensation:
•Presence of thin mist (no streaks, drip marks or droplets).
•Fine mist covers less than 50% of the lens.
These are examples of unacceptable moisture (usually caused by a lamp
water leak):
•Water puddle inside the lamp.
•Large water droplets, drip marks or streaks present on the interior of
the lens.
Take your vehicle to a dealer for service if any of the above conditions of
unacceptable moisture are present.
Replacing Headlamp Bulbs (Aerodynamic)
WARNING:Handle a halogen headlamp bulb carefully and keep
out of children’s reach. Grasp the bulb only by its plastic base
and do not touch the glass. The oil from your hand could cause the
bulb to break the next time the headlamps are operated.
Note:If the bulb is accidentally touched, it should be cleaned with
alcohol before being used.
1. Make sure the headlamp switch is in the off position, then open the
hood.
Maintenance217
2014 Econoline(eco)
Owners Guide gf, 1st Printing, November 2012
USA(fus)
Page 219 of 438

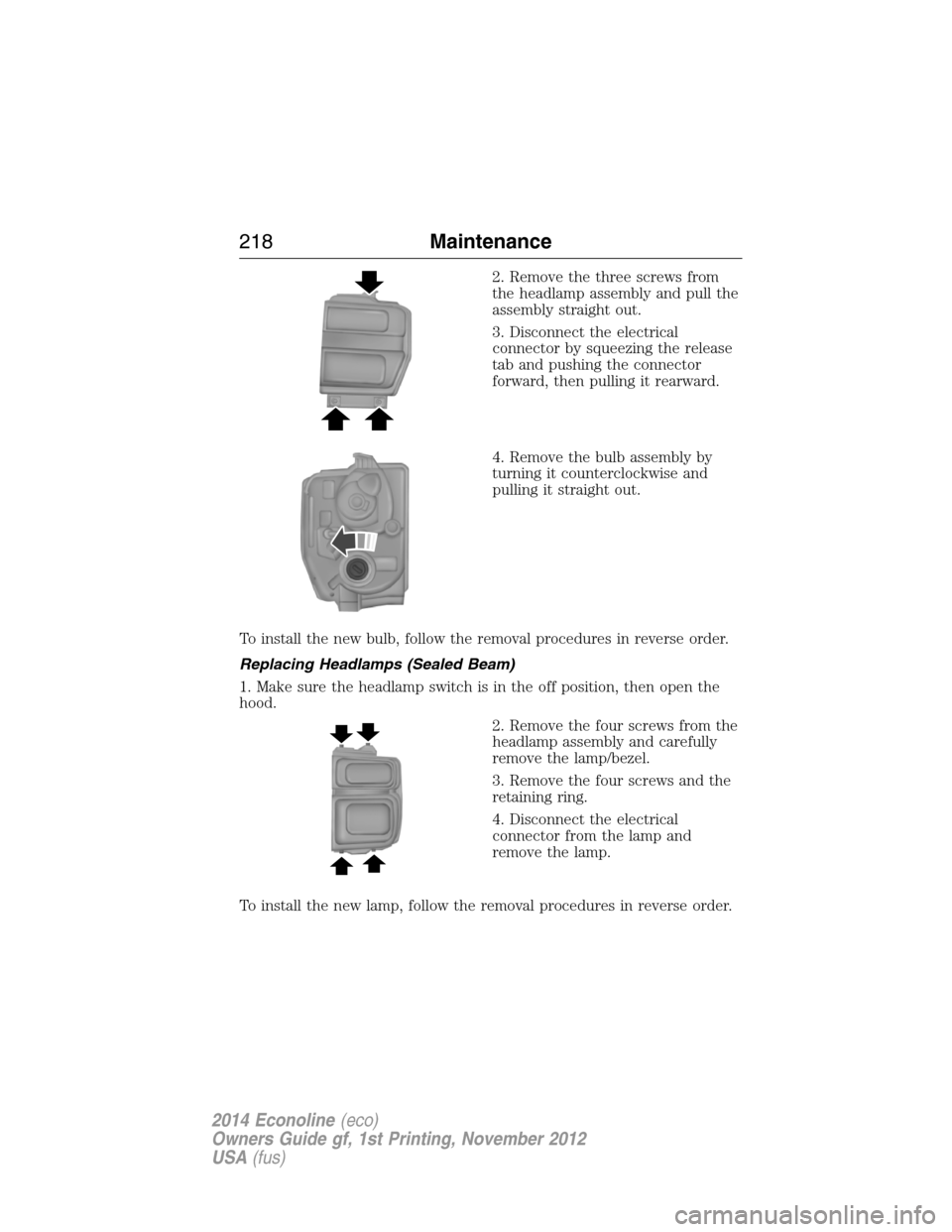

2. Remove the three screws from
the headlamp assembly and pull the
assembly straight out.
3. Disconnect the electrical
connector by squeezing the release
tab and pushing the connector
forward, then pulling it rearward.
4. Remove the bulb assembly by
turning it counterclockwise and
pulling it straight out.
To install the new bulb, follow the removal procedures in reverse order.
Replacing Headlamps (Sealed Beam)
1. Make sure the headlamp switch is in the off position, then open the
hood.
2. Remove the four screws from the
headlamp assembly and carefully
remove the lamp/bezel.
3. Remove the four screws and the
retaining ring.
4. Disconnect the electrical
connector from the lamp and
remove the lamp.
To install the new lamp, follow the removal procedures in reverse order.
218Maintenance
2014 Econoline(eco)
Owners Guide gf, 1st Printing, November 2012
USA(fus)
Page 220 of 438

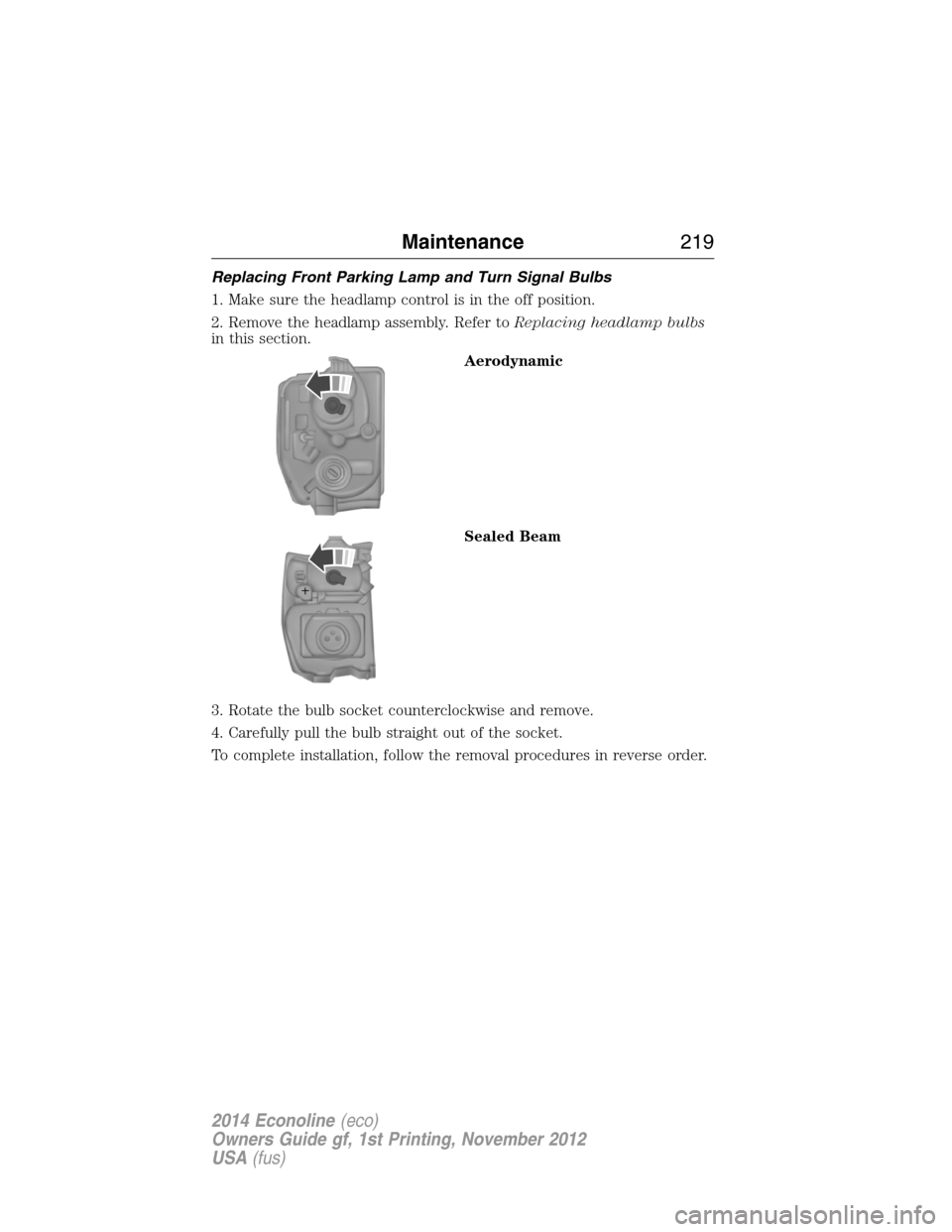

Replacing Front Parking Lamp and Turn Signal Bulbs
1. Make sure the headlamp control is in the off position.
2. Remove the headlamp assembly. Refer toReplacing headlamp bulbs
in this section.
Aerodynamic
Sealed Beam
3. Rotate the bulb socket counterclockwise and remove.
4. Carefully pull the bulb straight out of the socket.
To complete installation, follow the removal procedures in reverse order.
Maintenance219
2014 Econoline(eco)
Owners Guide gf, 1st Printing, November 2012
USA(fus)
Page 221 of 438

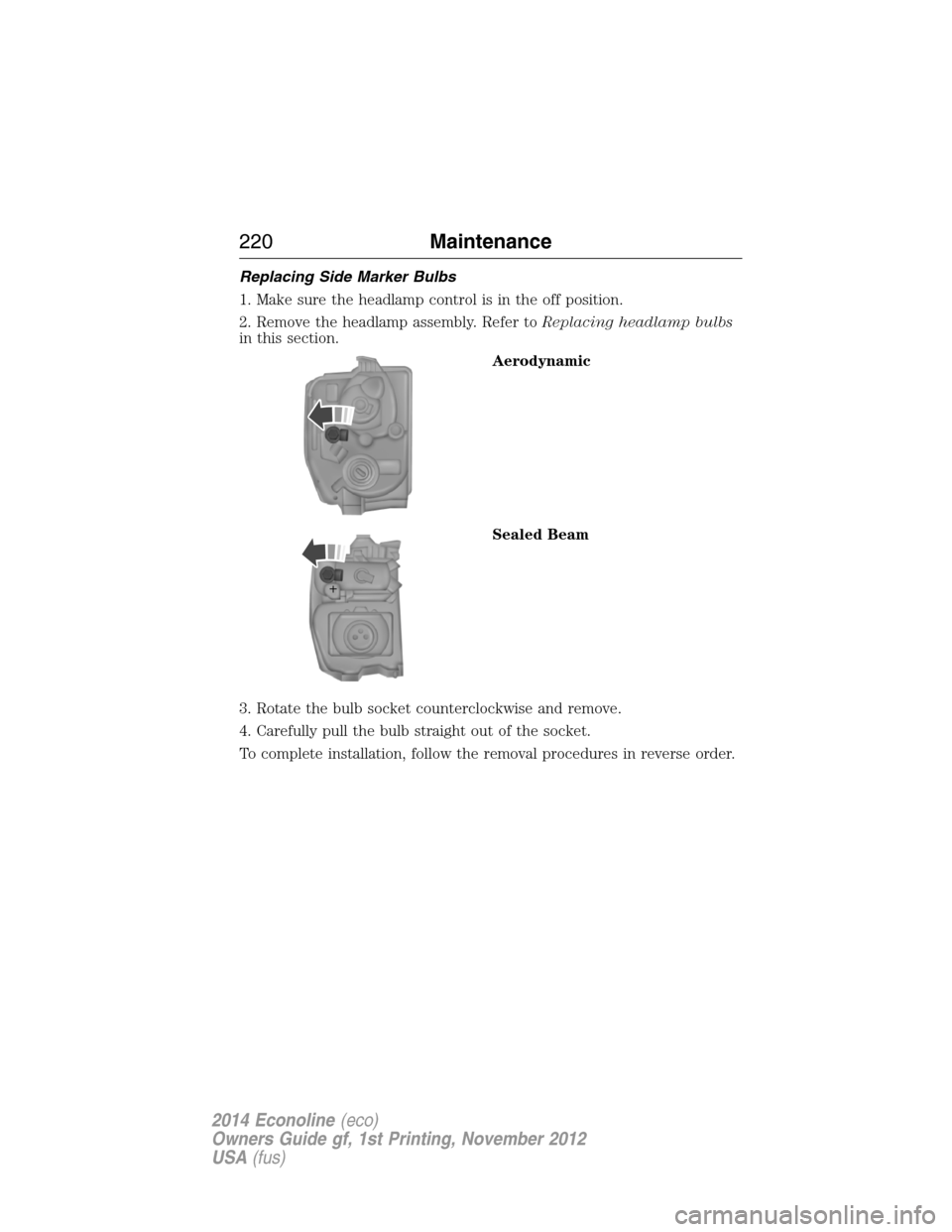

Replacing Side Marker Bulbs
1. Make sure the headlamp control is in the off position.
2. Remove the headlamp assembly. Refer toReplacing headlamp bulbs
in this section.
Aerodynamic
Sealed Beam
3. Rotate the bulb socket counterclockwise and remove.
4. Carefully pull the bulb straight out of the socket.
To complete installation, follow the removal procedures in reverse order.
220Maintenance
2014 Econoline(eco)
Owners Guide gf, 1st Printing, November 2012
USA(fus)
Page 222 of 438

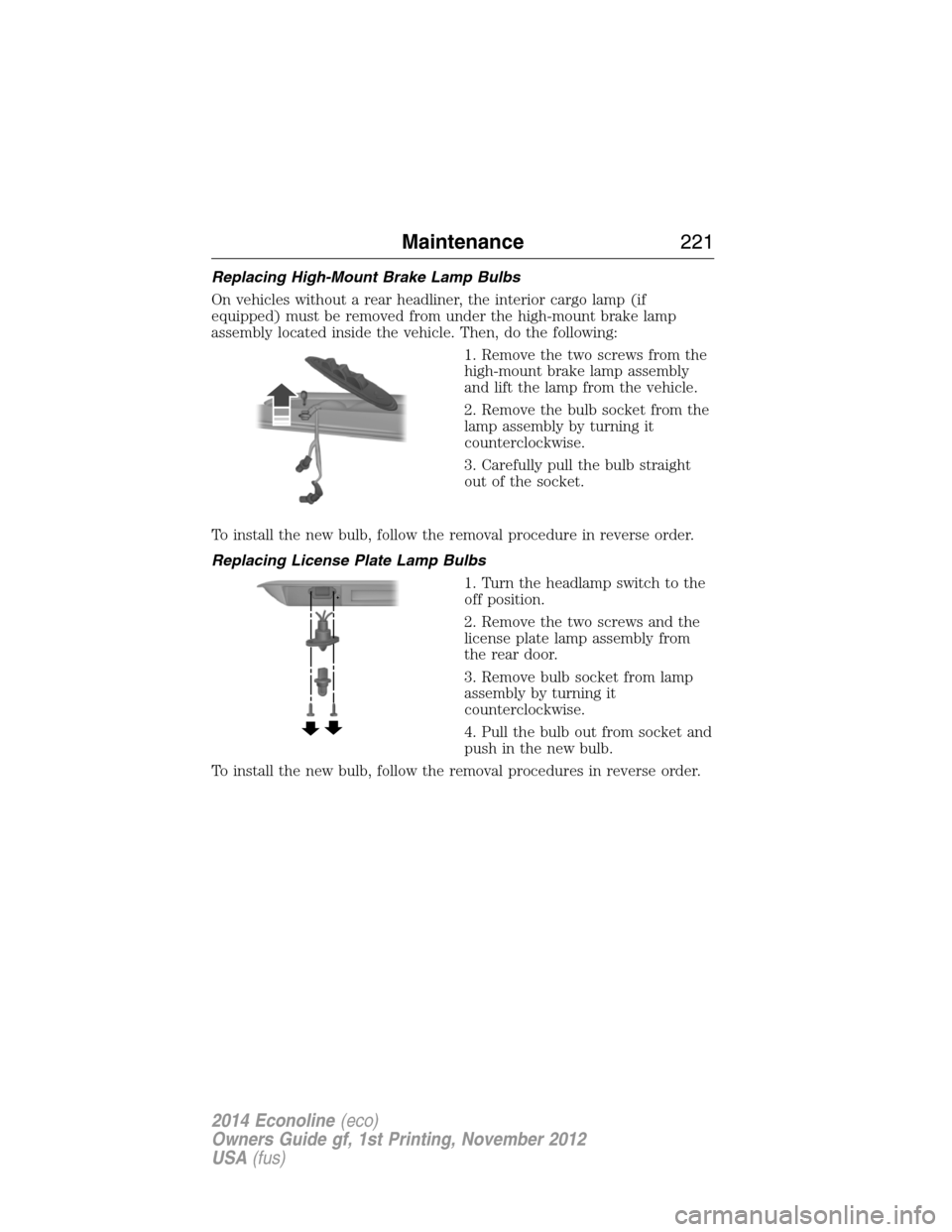

Replacing High-Mount Brake Lamp Bulbs
On vehicles without a rear headliner, the interior cargo lamp (if
equipped) must be removed from under the high-mount brake lamp
assembly located inside the vehicle. Then, do the following:
1. Remove the two screws from the
high-mount brake lamp assembly
and lift the lamp from the vehicle.
2. Remove the bulb socket from the
lamp assembly by turning it
counterclockwise.
3. Carefully pull the bulb straight
out of the socket.
To install the new bulb, follow the removal procedure in reverse order.
Replacing License Plate Lamp Bulbs
1. Turn the headlamp switch to the
off position.
2. Remove the two screws and the
license plate lamp assembly from
the rear door.
3. Remove bulb socket from lamp
assembly by turning it
counterclockwise.
4. Pull the bulb out from socket and
push in the new bulb.
To install the new bulb, follow the removal procedures in reverse order.
Maintenance221
2014 Econoline(eco)
Owners Guide gf, 1st Printing, November 2012
USA(fus)
Page 223 of 438

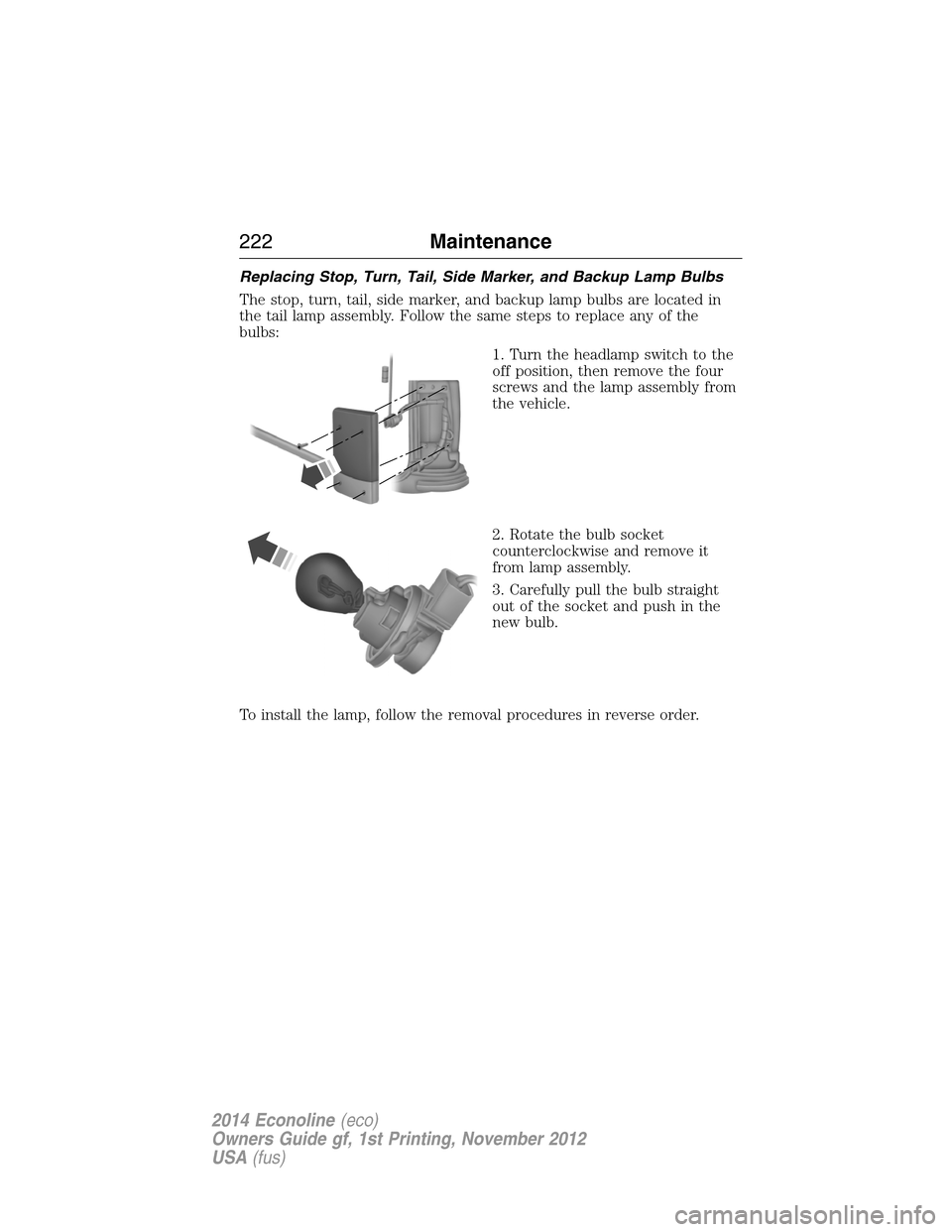

Replacing Stop, Turn, Tail, Side Marker, and Backup Lamp Bulbs
The stop, turn, tail, side marker, and backup lamp bulbs are located in
the tail lamp assembly. Follow the same steps to replace any of the
bulbs:
1. Turn the headlamp switch to the
off position, then remove the four
screws and the lamp assembly from
the vehicle.
2. Rotate the bulb socket
counterclockwise and remove it
from lamp assembly.
3. Carefully pull the bulb straight
out of the socket and push in the
new bulb.
To install the lamp, follow the removal procedures in reverse order.
222Maintenance
2014 Econoline(eco)
Owners Guide gf, 1st Printing, November 2012
USA(fus)
Page 224 of 438

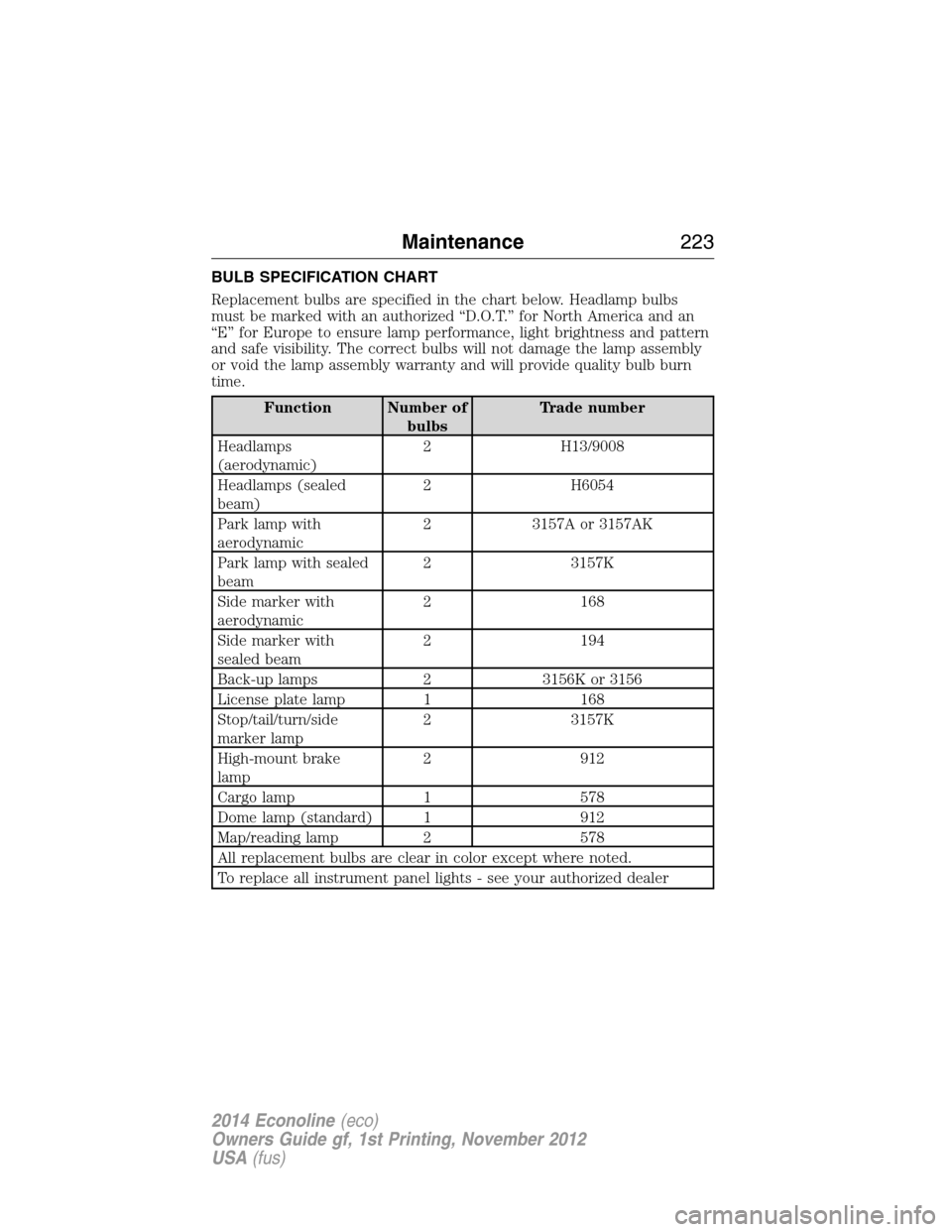

BULB SPECIFICATION CHART
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America and an
“E” for Europe to ensure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb burn
time.
Function Number of
bulbsTrade number
Headlamps
(aerodynamic)2 H13/9008
Headlamps (sealed
beam)2 H6054
Park lamp with
aerodynamic2 3157A or 3157AK
Park lamp with sealed
beam2 3157K
Side marker with
aerodynamic2 168
Side marker with
sealed beam2 194
Back-up lamps 2 3156K or 3156
License plate lamp 1 168
Stop/tail/turn/side
marker lamp2 3157K
High-mount brake
lamp2 912
Cargo lamp 1 578
Dome lamp (standard) 1 912
Map/reading lamp 2 578
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your authorized dealer
Maintenance223
2014 Econoline(eco)
Owners Guide gf, 1st Printing, November 2012
USA(fus)
Page 354 of 438

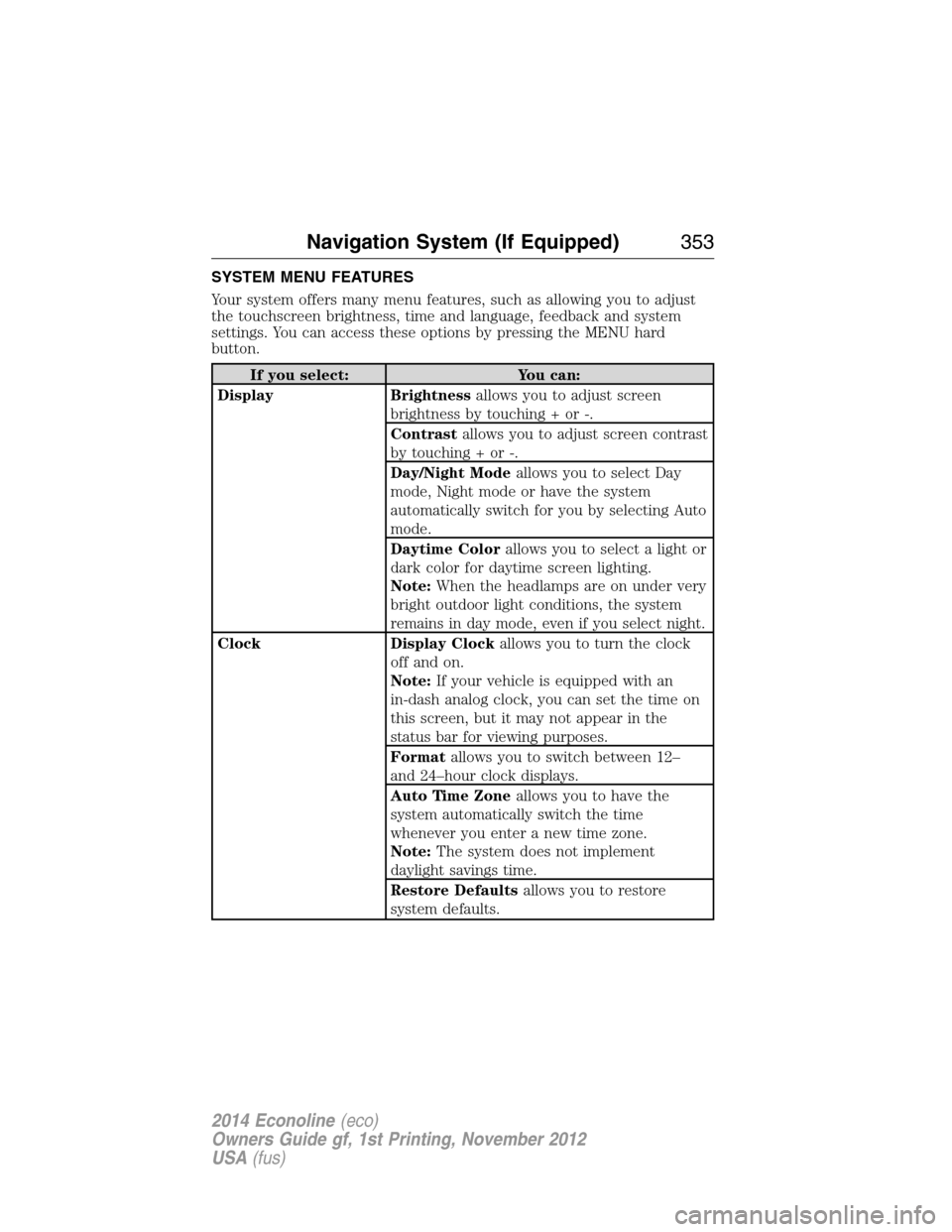

SYSTEM MENU FEATURES
Your system offers many menu features, such as allowing you to adjust
the touchscreen brightness, time and language, feedback and system
settings. You can access these options by pressing the MENU hard
button.
If you select: You can:
Display Brightnessallows you to adjust screen
brightness by touching + or -.
Contrastallows you to adjust screen contrast
by touching + or -.
Day/Night Modeallows you to select Day
mode, Night mode or have the system
automatically switch for you by selecting Auto
mode.
Daytime Colorallows you to select a light or
dark color for daytime screen lighting.
Note:When the headlamps are on under very
bright outdoor light conditions, the system
remains in day mode, even if you select night.
Clock Display Clockallows you to turn the clock
off and on.
Note:If your vehicle is equipped with an
in-dash analog clock, you can set the time on
this screen, but it may not appear in the
status bar for viewing purposes.
Formatallows you to switch between 12–
and 24–hour clock displays.
Auto Time Zoneallows you to have the
system automatically switch the time
whenever you enter a new time zone.
Note:The system does not implement
daylight savings time.
Restore Defaultsallows you to restore
system defaults.
Navigation System (If Equipped)353
2014 Econoline(eco)
Owners Guide gf, 1st Printing, November 2012
USA(fus)
Page 434 of 438
E
Electronic message center .........82
Electronic stability control ......133
Emergencies, roadside
jump-starting ..........................174
running out of fuel .................114
Emergency Flashers .................173
Emission control system ..........117
End user license agreement ....402
Engine ................................270–271
cleaning ...................................226
coolant .....................................197
fail-safe cooling .......................200
lubrication specifications .......272
refill capacities ........................272
service points ..........................196
Engine block heater .................109
Engine oil
checking and adding ..............196
dipstick ....................................196
filter, specifications ................279
refill capacities ........................272
specifications ..........................272
Event data recording ..................11
Exhaust fumes ..........................108
F
Fail safe cooling ........................200
Floor mats .................................169
Fluid capacities .........................272
Four-Wheel Drive vehicles
preparing to drive your
vehicle .....................................165Fuel
cap ...........................................115
capacity ...................................272
choosing the right fuel ...112–113
filler funnel .............................114
filling your vehicle
with fuel ..................................115
filter, specifications ................208
fuel pump shut-off ..................173
octane rating ...........113, 270–271
quality ......................................112
running out of fuel .................114
safety information relating to
automotive fuels .....................111
Fuel - flex fuel vehicle
(FFV) .........................................113
Fuses ..........................185–186, 190
G
Gas cap (see Fuel cap) ............115
Gauges .........................................76
H
Hazard flashers .........................173
HD Radio™ ...............................359
Headlamps ...................................67
aiming ..............................214–215
bulb specifications ..................223
checking alignment ........214–215
daytime running lights .............68
flash to pass ..............................67
high beam .................................67
replacing bulbs .......................217
turning on and off ....................67
Head restraints ...........................95
Heating ..................................90–91
Hood ..........................................194
Index433
2014 Econoline(eco)
Owners Guide gf, 1st Printing, November 2012
USA(fus)
Page 435 of 438
I
Ignition .......................106, 270–271
Illuminated visor mirror .............75
Information displays ...................82
Inspection/maintenance (I/M)
testing ........................................119
Instrument panel
cleaning ...................................228
cluster ........................................77
J
Jack ............................................260
positioning ...............................260
storage .....................................260
Joining two calls
(multiparty/conference call) ....307
Jukebox features .......................374
Jump-starting your vehicle ......174
K
Keyless entry system
autolock .....................................58
Keys .............................................63
positions of the ignition .........106
L
Lamps ..........................................67
bulb replacement
specifications chart ................223
daytime running light ...............68
headlamps .................................67
headlamps, flash to pass ..........67
interior lamps ...........................69
replacing bulbs .......................217
LATCH anchors ...........................28Lights, warning and indicator ....77
Loading instructions .................149
Loading pictures .......................349
Load limits .................................143
Locks
autolock .....................................58
doors ..........................................57
Lubricant specifications ...........272
Lug nuts ....................................268
M
Map icons ..................................395
Map mode ..................................395
Map updates ..............................399
Media Bluetooth menu options
(adding, connecting, deleting,
turning on/off) ..........................336
Message center ...........................82
system check button ................83
warning messages .....................87
Mirrors ...................................72, 75
fold away ...................................72
side view mirrors
(power) .....................................72
Motorcraft® parts .............224, 279
N
Navigation end user license
agreement ..................................409
Navigation features ...................381
O
Octane rating ............................113
434Index
2014 Econoline(eco)
Owners Guide gf, 1st Printing, November 2012
USA(fus)
