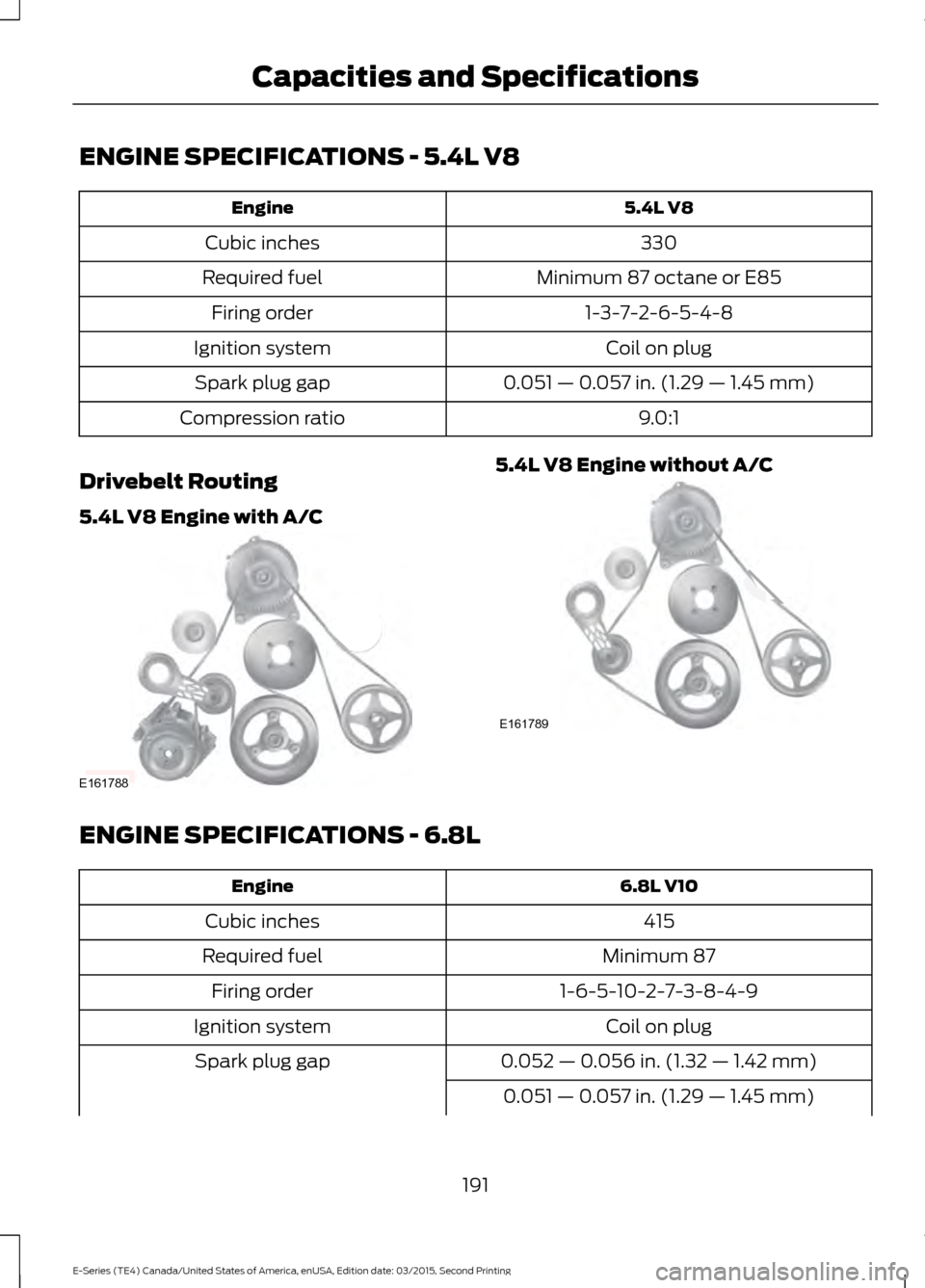

ENGINE SPECIFICATIONS - 5.4L V8
5.4L V8
Engine
330
Cubic inches
Minimum 87 octane or E85
Required fuel
1-3-7-2-6-5-4-8
Firing order
Coil on plug
Ignition system
0.051 — 0.057 in. (1.29 — 1.45 mm)
Spark plug gap
9.0:1
Compression ratio
Drivebelt Routing
5.4L V8 Engine with A/C 5.4L V8 Engine without A/C
ENGINE SPECIFICATIONS - 6.8L
6.8L V10
Engine
415
Cubic inches
Minimum 87
Required fuel
1-6-5-10-2-7-3-8-4-9
Firing order
Coil on plug
Ignition system
0.052 — 0.056 in. (1.32 — 1.42 mm)
Spark plug gap
0.051 — 0.057 in. (1.29 — 1.45 mm)
191
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 03/2015, Second Printing Capacities and SpecificationsE161788 E161789

6.8L V10
Engine
(With CNG Prep Package)9.0:1
Compression ratio
Drivebelt Routing
6.8L V10 Engine with A/C 6.8L V10 Engine without A/C
MOTORCRAFT PARTS - 5.4L V8
Part Number
Component
FA-1632
Air filter element
FL-820-S
Oil filter
BXT-65-650
Battery
BXT-65-750
BXT-65-750
Battery (auxiliary)
SP-521
Spark plugs
